Atmos DC 60 GSX User manual

Instruction manual - GB
www.atmos.cz
Instruction
Manual

instruction manual - GB
www.atmos.cz

Instruction manual - GB
GB
www.atmos.cz GB-3
Contents
1. Purpose of use 5
2. Technical specification 5
Design of dash panel for boilers with ventilator 6
The boilers advantages 7
3. Technical data 8
Legend to the boiler schemes 9
Technical data 9
Boiler drawings 10
Suction fan scheme 11
4. Type and embedding of fittings in the combustion chamber 11
5. Accessories delivered with boiler 12
6. Fuel 12
Basic wood burning data 12
Fuel value 13

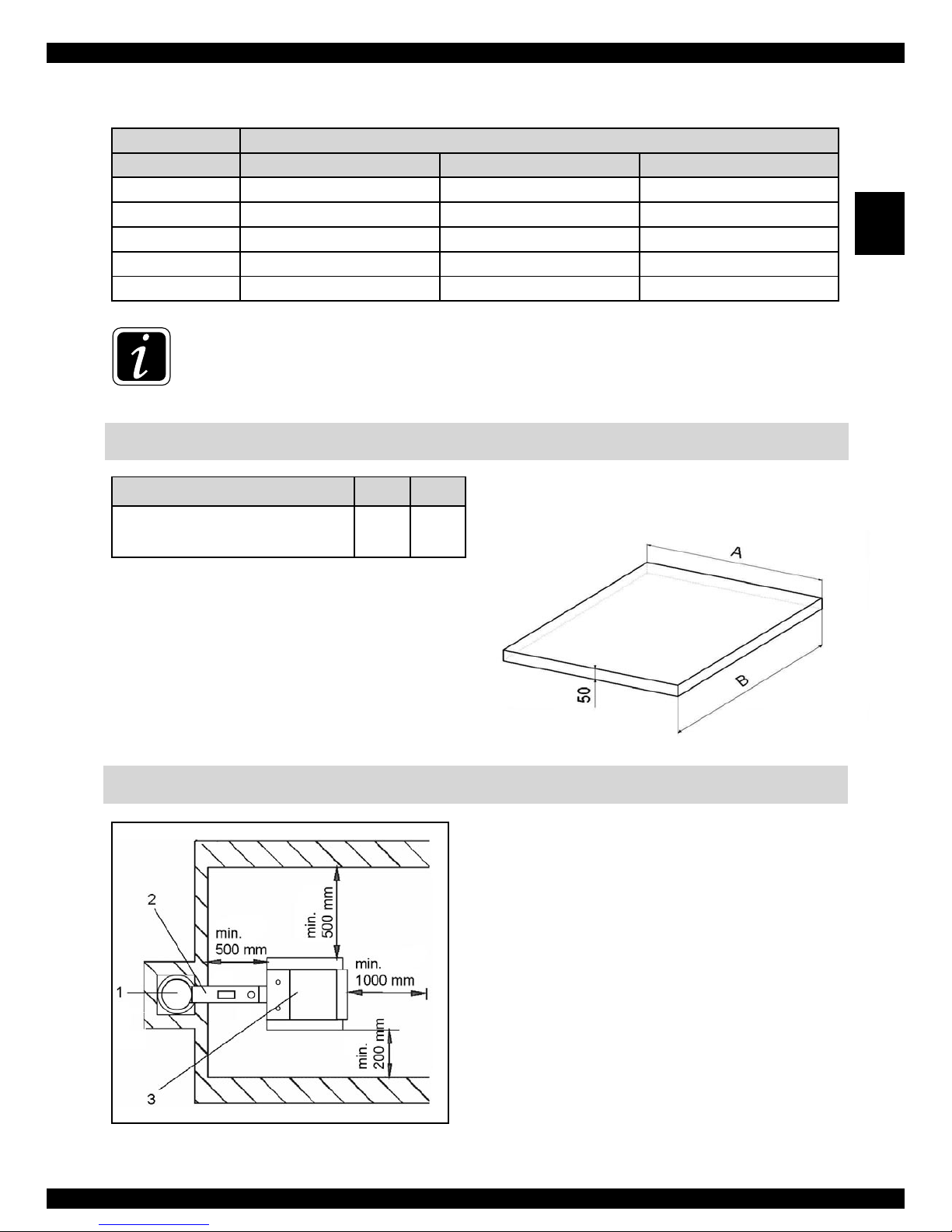

7. Foundations for boilers 13
8. The type of environment and boiler installation in the boiler-room 14
9. Chimney 14

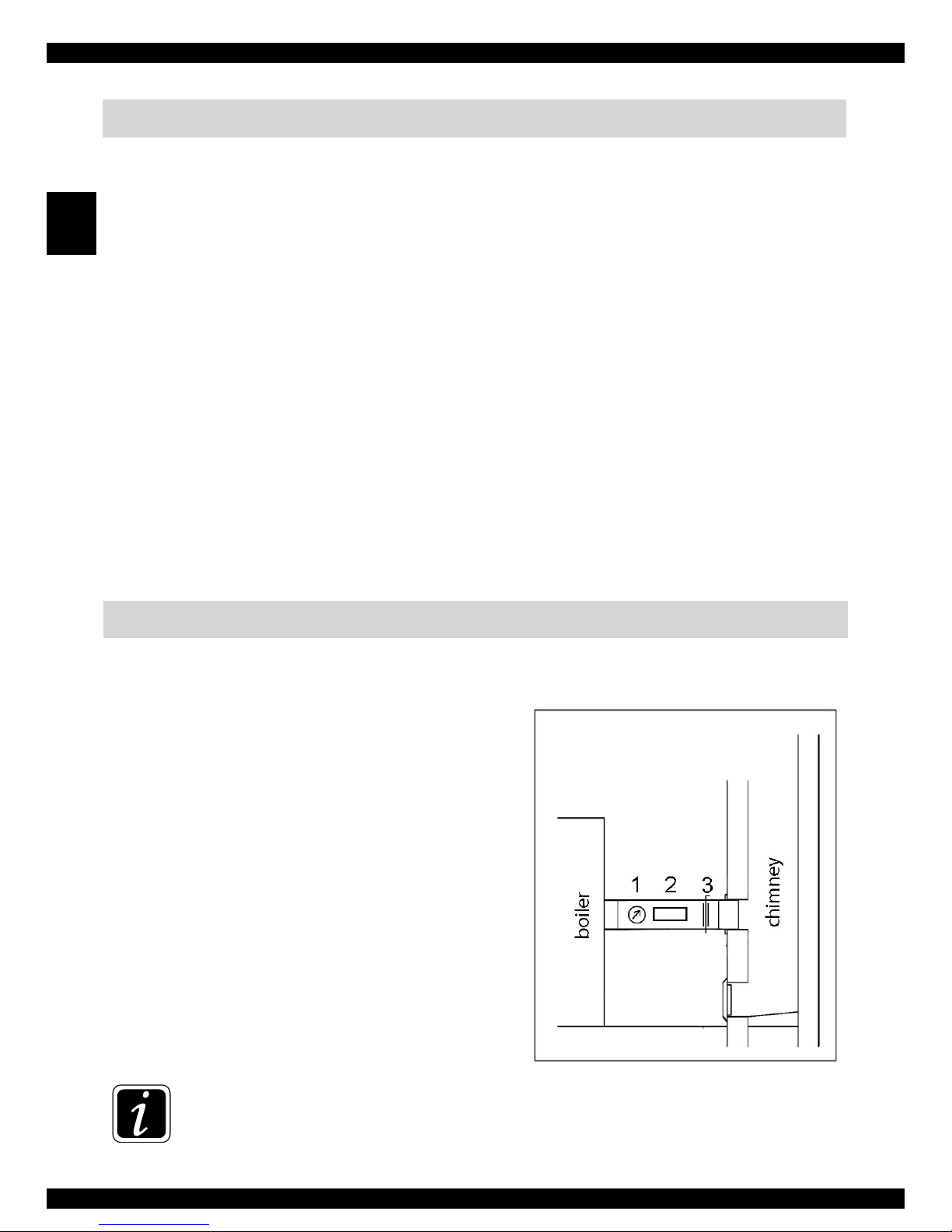

10. Smoke-flue 14
11. Fire protection at the heating appliances installation and use 15
12. Binding ČSN, EN for boilers design and installation 16
13. Connection of boilers to the grid 16

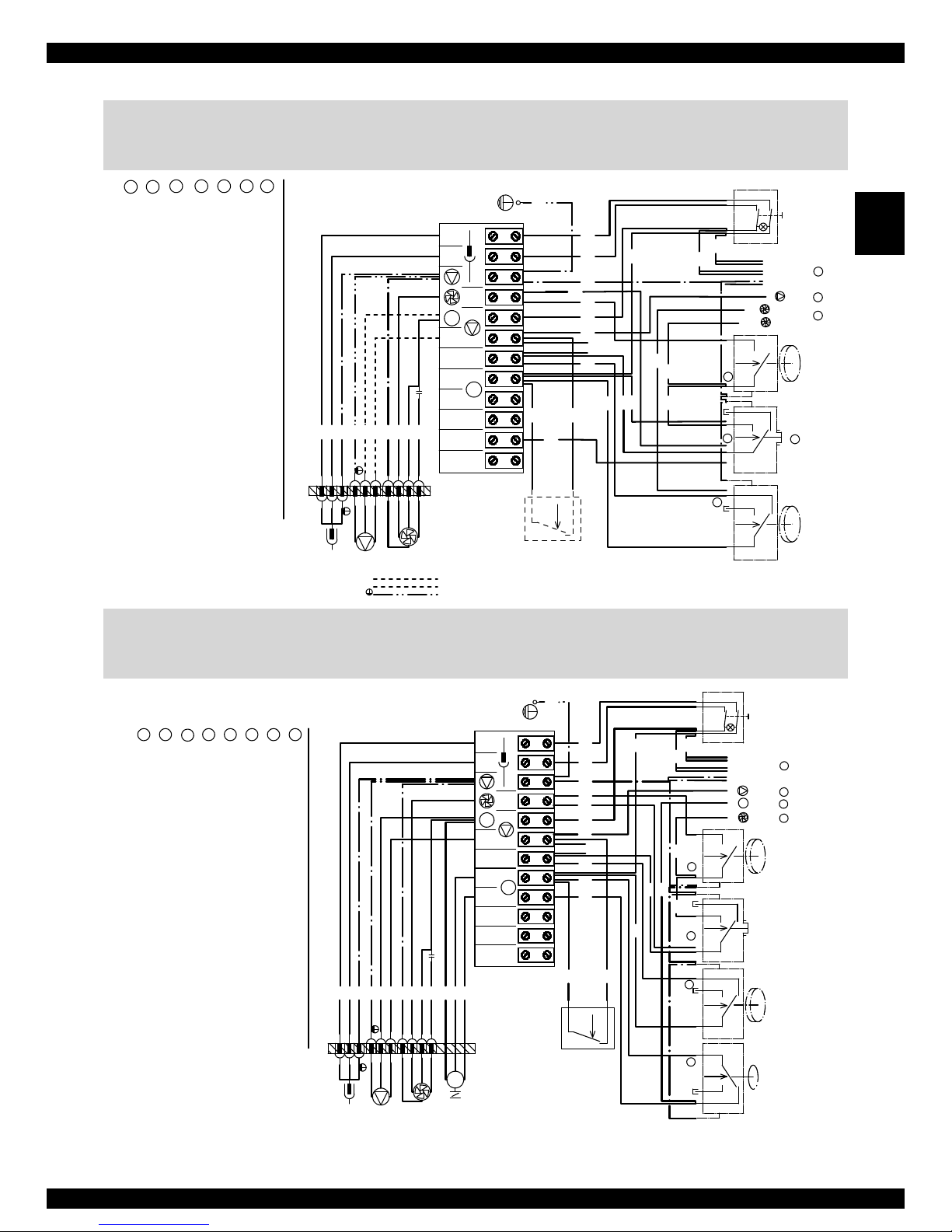

14. New electrical scheme of electro-mechanic regulations connection with the draw-off ventilatortype
UCJ 4C52 - variant A 17
15. New electrical scheme of electro-mechanic regulations connection with the draw-off ventilatortype
UCJ 4C52 - variant B 17
16. Selection and the way of connection of regulation and heating elements 18
17. Boiler corrosion prevention 19
18. Prescribed boiler connection with the thermoregulation valve and with buffer tanks 19
19. Thermoregulation valve 20

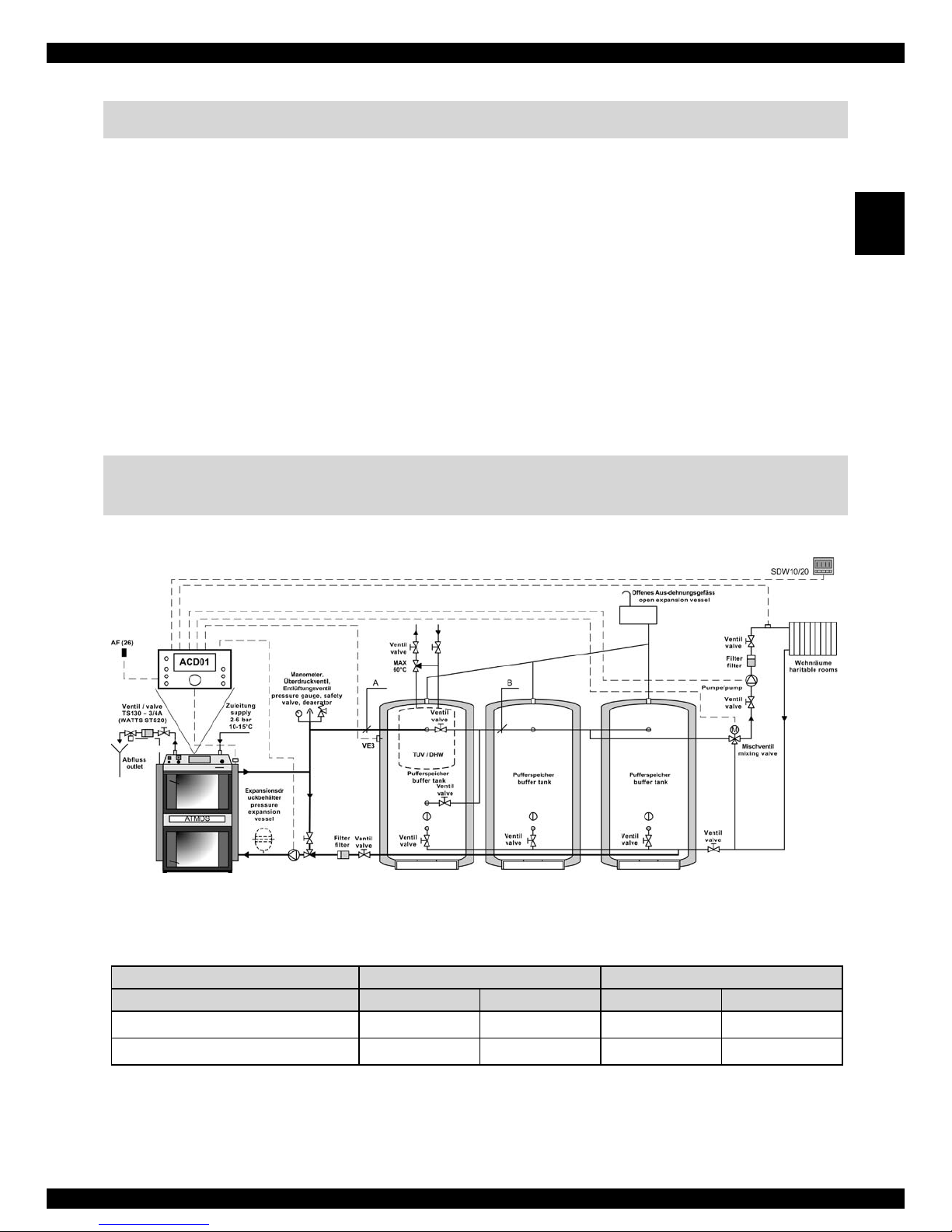

20. System operation with storage tanks 20
ATMOS storage tanks delivered on regular basis 20
Tanks insulation 21
Advantages 21
21. Connection of cooling loop against overheating with safety-valve Honeywell TS 130 - 3/4 A or
WATTS STS20 21
22. Service instructions 22
Boilers preparation for operation 22
Firing and operation 22
Ignitation valve operating 23
Waste gas thermnostat setting 23
Power control- electromechanical 23
HONEYWELL Braukmann FR 124 draught controller - Assembly instructions 24
Testing the draught regulator function 24
23. Setting the boiler output and combustion 25
For boilers DC50GSX, DC60GSX, DC70GSX 25
24. Refuelling 26
25. Top-fed stove operation 26
26. Cleaning of boilers 26
29. Maintenance of heating system including the boilers 28
30. Operation and supervision 28
31. Possible faults and the way of their rectification 29
32. Spare parts 30
Exchange of refractory fitting (nozzle) 30
Exchange of door gasket 31
Adjustment of hinges and closing of doors 31
33. Ecology 31
Boiler disposal after the termination of its service life 31
GUARANTEE CONDITIONS 32
BOILER INSTALLATION REPORT 33
ANNUAL REVISION RECORDS 34
CARRIED OUT GUARANTEE AND POST-GUARANTEE REPAIR RECORDS 35

GB
www.atmos.cz
4-GB
WE HOPE YOU WILL BE SATISFIED WITH OUR PROD-
UCT, AND WE RECOMMEND TO COMPLY WITH THESE
MAIN REGULATIONS NECESSARY FOR LONG SERVICE
LIFE AND CORRECT FUNCTION OF THE BOILER
1. Assembly, firing-up test and operator‘s training must be carried out by an installation companyt-
rained by the manufacturer; this company also fills in a boiler installation report (p.33).
2. At the gasification the tars and condensates (acids) are produced in the fuel reservoir therefore
the thermoregulation valve must be installed behind the boiler in order to keep the minimum
65°C temperature of the water returning to the boiler.
The service temperature of water in the boiler must be between 80 and 90°C.
3. When using the circulating pump its run must be operated by a separate thermostat so that the
prescribed minimal temperature of the reverse water is ensured.
4. The boiler must not be permanently operated in the power range lower than 50%.
5. The boiler operation at the rated output is ecological.
6. 3.The daily firing-up in necessary in case of operation at a reduced output (the summer opera-
tion and heating the hot service water).
7. Therefore the boilers should be installed with the storage tanks and the thermoregulation valve
which guarantees 20- 30% fuel savings and a longer service life of boiler and chimney with
a more comfortable operation.
8. If you cannot connect the boiler into the accumulation you should connect the boiler with at least
one equalizer with approx. 25l volume per 1kW of boiler output.
9. Use only dry fuel with 12 - 20% moisture – with a higher moisture the boiler output boiler
decreases and the fuel consumption increases.
The boilers with the draw-off ventilator have the letter S at the end of designation.
CAUTION - If the boiler is connected with thermoregulation valve TV 60°C and the
storage tanks (see the enclosed diagrams), the guarantee for the boiler drum is increa-
sed from 24 to 36 months. The guarantee for other parts does not change. In case these
principles are not adhered to the service life of the boiler drum and ceramic fittings
can be substantially reduced due to the low-temperature corrosion. The boiler drum
can corrode within two years.
Návod k obsluze - CZ

Instruction manual - GB
GB
www.atmos.cz GB-5
1. Purpose of use
The ecological hot water boilers ATMOS DC 50/60/70 GSX are destined for heating the one-fa-
mily houses, weekend houses, cottages and similar houses with 50 - 70 kW heat losses depending on
the type. The boilers are constructed only for combustion of the lump wood. Any dry wood, especial-
ly the wooden logs, cleft timber up to 530 mm max. length can be used for heating. It is also possible
to use the wood with a higher diameter in the form of blocks which decreases the rated output, but
prolongs the combustion time. The boiler is not destined for combustion of sawdust and petite wood
waste which only can be burnt in a small amount together with the logs- MAX.10%. Thanks to the ro-
bust hopper of the boiler there is eliminated the most toilsome operation at the wood preparation and
its cutting into appropriate pieces. It saves the physical effort and time necessary for this activity.
2. Technical specification
The boilers are constructed for combustion of wood on the principle of generator gasification
using the suction fan which exhausts the combustion products from the boiler or blasts air into the
boiler.
Suction fan - for boilers DC50GSX
DC60GSX
DC70GSX
The boiler drum is made as a weldment of steel sheets 3-8 mm. It consists of fuel hopper which
in the lower part is equipped with a refractory fitting with a longitudinal opening for the gases and
combustion products passage. The burning down space underneath is equipped with ceramic fittings.
In the rear part of boiler drum there is a vertical flue way equipped with firing-up safety valve in the
upper part. The upper part of the flue way is equipped with the draw-off throat for connection to the
chimney. The front wall is equipped with stoking door in the upper part and with the ash door in the
lower part. In the front part of the upper hood there is the tow bar (control cable) of firing-up safety
valve (register). The boiler drum from outside is heat insulated by means of rock-wool inserted under
the sheet metal covers of the boiler outer shell. In the upper part of boilers there is the control panel
for the electromechanical regulation. In the rear part of boilers there is the channel of primary and
secondary air input equipped with a register operated by the draught controller FR 124. The primary
and secondary air is preheated to a high temperature.

instruction manual - GB
GB
www.atmos.cz
6-GB
Design of dash panel for boilers with ventilator
1. Thermometer 5. Safety thermostat irreversible
2. Master switch 6. The taw bar(control cable) of the
3. Flue gas thermostat (1) firing-up safety valve
4. Regulation thermostat (of the boiler) 7. The place for electronic regulation
of the heating system (92x138 mm)
8. Flue gas thermostat (2)
Description:
1. Thermometer – it monitors the output water temperature from the boiler.
2. 1.Master switch – itenables to switch off the whole boiler if necessary.
3. Flue gas thermostat (1) – it serves for ventilator switching off after the fuel has burnt down.


A
3
74
1
52


Variant A
Variant B
3 6
74
1
5 8
2
A

Instruction manual - GB
GB
www.atmos.cz GB-7
CAUTION – When firing up we set the flue gas thermostat to („0°C“ firing). After burn-
ing up we set the flue gas thermostat into the operating position. It is necessary to find out
the optimal position for concrete conditions. If the temperature of the combustion products
drops below the set value the thermostat switches off the draw-off ventilator. If we want the
ventilator to run again we must set a lower temperature at the flue gas thermostat (e.g. set to
„0°C“ - firing).
4. Regulation thermostat (of the boiler) – controls the ventilator operation according to the output
temperature of water from boiler.
5. Safety thermostat irreversible – it serves as a protection of the boiler against overheating in case
of the regulation thermostat failure or as the signalization of emergency temperature transgression
– after the emergency temperature transgression it must be pressed down.
6. Tow bar (control cable) of firing-up safety valve – it serves for opening the firing-up safety
valve when firing-up or stoking.
7. The place for electronic regulation of the heating system can be equipped with any regulation
which can be inserted into the opening (92x138 mm). The electric bunch is prepared for its power
supply.
8. The flue gas thermostat 2 serves for operating the flap with the servo-drive at the combustion air
inlet into the boiler according to the maximum temperature of the combustion products - the switch-
ing temperature 180-200°C (only at variant B).
The boilers advantages
The combustion in the boilers runs at the high temperatures with the function of generator gasi-
fication. This results in fuel savings and an ecological operation. The primary and secondary air of
boilers is preheated to a high temperature it means they have a hot and stable flame with a constant
quality of burning. At the GSX boilers everything runs in a ceramic combustion chamber with the
lateral primary air inlets in the upper part of the stoking chamber. The boilers are equipped with the
exhauster and they have a comfortable and easy operation. A big hopper enables to burn the cleft tim-
ber of 530mm length. Also the big pieces of wood waste can be burnt. All boilers are equipped with
the cooling loops against overheating.

instruction manual - GB
GB
www.atmos.cz
8-GB
3. Technical data
Type of ATMOS boiler DC50GSX DC60GSX DC70GSX
Boiler output kW 49 60 70
Heat-up area m23,5 3,5 3,7
Fuel shaft volume dm3210 210 210
Filling hole dimension mm 450x310 450x310 450x310
Specified draught of the chimney Pa 25 28 30
Maximum water overpressure kPa 250 250 250
Boiler weight kg 527 527 571
Draw-off throat diameter mm 152 152 180
Boiler height mm 1563 1563 1648
Boiler width mm 678 678 678
Boiler depth mm 1042 1042 1068
Electric parts ingress protection IP 20
Electric input W 50 50 70
Boiler efficiency % 90,6 87,5 85,2
Boiler category 3
Waste gas temperature at nomi-
nal output °C 165 189 247
Mass flow rate of comb.n prod-
ucts at the rat.output kg/s 0,025 0,030 0,034
Specified fuel Dry wood of fuel value 15-17 MJ.kg-1, water content min. 12% - max. 20%, diam-
eter 80 -150 mm
Average fuel consumption kg.h-1 13 15,5 18
Per the heating season 1 kW = 1 stacked cubic meter
Max. length of logs mm 530 530 530
Burning time at nominal output hour 3 3 3
Water volume in the boiler l 120 120 132
Hydraulic loss of boiler mbar 0,23 0,23 0,22
Minimal volume of the equal-
izer l 750 1000 1000
Connecting voltage V/Hz 230/50
The prescribed minimal temperature of the reverse water in operation is 65°C.
The prescribed boiler service temp. is 80-90°C.

Instruction manual - GB
GB
www.atmos.cz GB-9

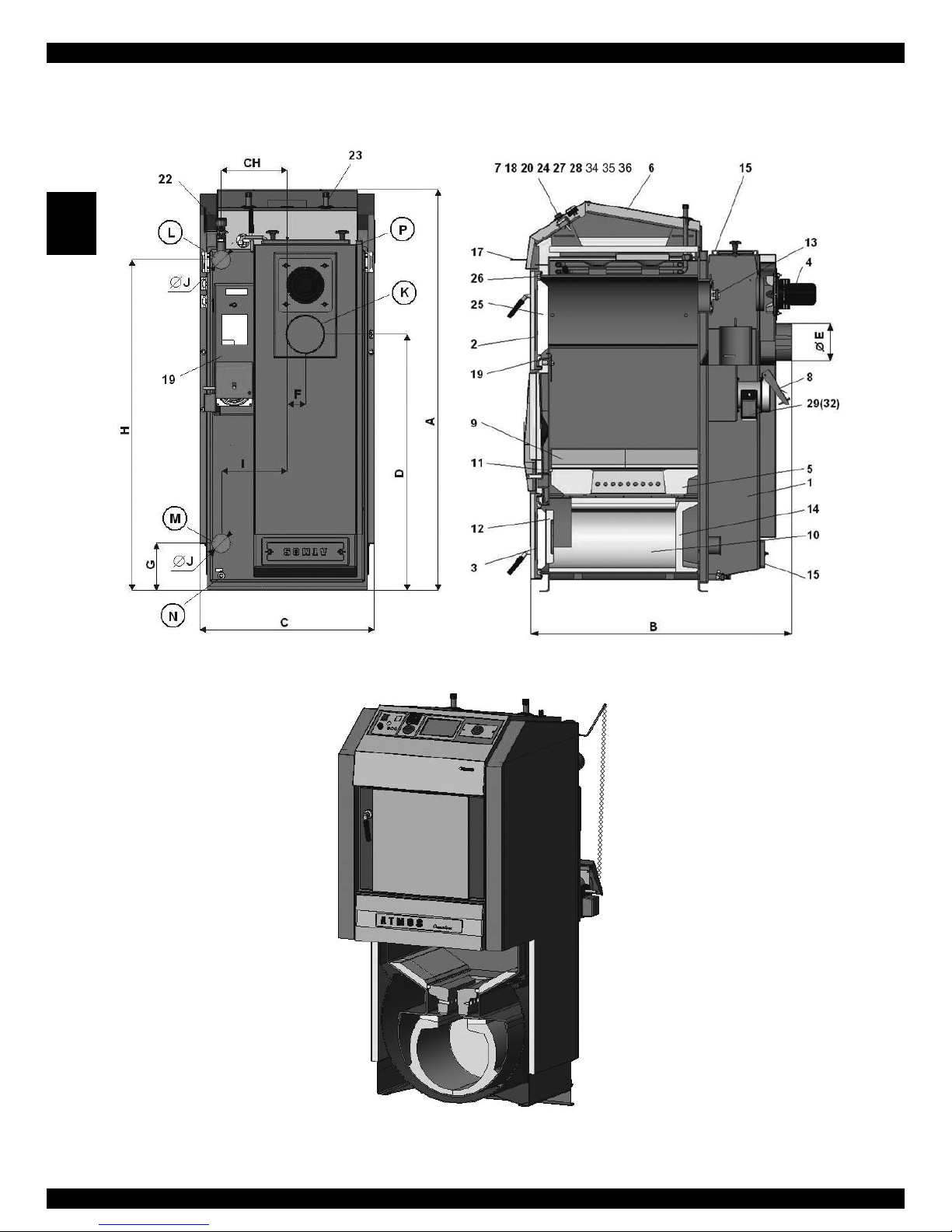

Legend to the boiler schemes
Technical data
1. Boiler drum
2. Filling door
3. Ash door
4. Ventilator - draw-off (S)
5. Refractory fitting - nozzle
6. Control panel
7.
8. Register(regulation valve)
9. Refractory bulb- sides of the comb.ch. 4pc
10. Refractory fitting - spherical space at GSX type
11. Těsnění - trysky - 12x12 (14x14)
12. Refractory fitting - half-moon
13. Firing-up safety valve
14. Refractory fitting - rear face of sph. space
at GSX type space
15. Cleaning cover
16.
17. Tow bar (control cable) of firing-up safety valve
18. Thermometer
19. Combustion chamber shutter
20. Switch with the indicator lamp
22. Draught controller - Honeywell FR 124
23. Cooling loop against overheating
24. Regulation thermostat of ventilator
25. Door cushioning - Sibral
26. Doorstrip- gasket 18x18
27.
28. Capacitor of ventilator
29. Air shutter with servo-drive - variant B
30.
31.
32.
33.
34. Flue gas thermostat 2 - variant B
35. Flue gas thermostat (1)
36. Safety thermostat
(Attention – press down at overheating)
37. Air-brake valve
K - smoke-flue throat
L - water oulet from boiler
M - water inlet into boiler
N - mouthpiece for filling cock
P - mouthpiece for valve sensor controlling the
cooling loop (TS 130, STS 20)
Dimensions DC50GSX DC60GSX DC70GSX
A1563 1563 1681
B 1042 1042 1068
C678 678 678
D 997 997 1086
E152 152 180
F70 70 58
G184 184 184
H1287 1287 1407
CH 256 256 256
I256 256 256
J2” 2” 2”

instruction manual - GB
GB
www.atmos.cz
10-GB
Boiler drawings

Instruction manual - GB
GB
www.atmos.cz GB-11
Suction fan scheme
CAUTION – The suction fan (S) is supplied in the dismantled condition. Put it on the rear
flue way, tighten everything properly, plug in and test its smooth operation.
1 - Engine
2 - Plate
3 - Propeller (stainless)
4 - The nut with a left-hand thread and underlay
5 - Wing nut
6 - Screw
7 - Big packing (2 pc)
8 - Small packing
4. Type and embedding of fittings in the combustion chamber
For type
DC70GSX
For type
DC50GSX
DC60GSX
CAUTION – do not turn the rear face in case of possible manipulation
10. Refractory fitting - spherical
space (L+P side),
14. Refractory fitting - rear face
with the undercut backwards
The spherical space mounting
must ensure that the front part of
fitting /10/ is in the 3 cm distance
from the front edge of the boiler
frame.

instruction manual - GB
GB
www.atmos.cz
12-GB
5. Accessories delivered with boiler
Steel brush incl. the accessories 1 pc
Fire-hook 1 pc
Filling cock 1 pc
Service and maintenance instructions 1 pc
Draught controller HONEYWELL FR 124 1 pc
Ash-pan 1 pc
6. Fuel
The prescribed fuel includes dry cleft timber and the logs of 80 - 150 mm diameter minimally
2 years old containing 12% - 20% moisture with 15-17 MJ.kg“1 fuel value. The fuel dimensions are
stated in chapter 3. „ Technical data „. It is also possible to burn the big lumps of the wood waste in
combination with the logs (max. 10%)
Basic wood burning data
The maximum output and a long service life of boiler can be ensured by burning the wood sea-
soned for minimally 2 years. In the following diagram we show the dependence of fuel value on the
water content. The effective energy content in the wood distinctly drops with increasing water con-
tent.
Example:
Wood with 20% water has the thermal value 4 kWh /lkg wood
Wood with 60% water has the thermal value 1,5kWh /lkg wood
• e.g. whitewood stored 1 year under shelter - shown in the diagramrafu
Max. boiler output with a wet fuel shown in
the diagram.
kW
DC 50 GSX - 39
DC 60 GSX - 44
DC 70 GSX - 49
The information also serves for other types of
gasification boilers.
The boilers are not suitable for burning the wood with water content below 12%.

Instruction manual - GB
GB
www.atmos.cz GB-13
Fuel value
Wood - type Heat capacity /1 kg
kcal kJoule kWh
spruce 3900 16250 4,5
pine tree 3800 15800 4,4
birch 3750 15500 4,3
oak 3600 15100 4,2
beech 3450 14400 4,0
NOTE - a fresh wood burns poorly: it smokes and significantly reduces the service life
of the boiler and chimney. The boiler output drops to 50% and the fuel consumption
doubles.
7. Foundations for boilers
Boiler type (mm) A B
DC50GSX, DC60 GSX,
DC70 GSX 800 1300
8. The type of environment and boiler installation in the boiler-room
The boilers can be used in the „basic environ-
ment“, AA5/AB5 according to ČSN 3320001-3. The
boilers must be installed in the boiler-room with an
ensured access of air necessary for combustion. The
boilers must not be positioned in the dwelling space
(neither in corridors). The cross section of the ope-
ning for combustion air inlet into the boiler-room
must be minimum 350 cm2 in case of boilers with
35-70 kW output.
1 - Chimney
2 - Smoke-flue
3 - Boiler
We recommend that a concrete (a metal) foun-
dation is constructed under the boiler.

instruction manual - GB
GB
www.atmos.cz
14-GB
9. Chimney
The connection of the appliance to the vent stack must be done with the agreement of a
competent chimney sweepers´ firm. The vent stack must always develop a sufficient draught and the
combustion products must be reliably led away into the free atmosphere for all practically possible ser-
vice conditions. For a correct function of boilers it is necessary that the separate vent stack is correctly
sized because the combustion, boiler output and service life depend on its draught. The chimney
draught depends directly on the chimney cross section, height and roughness of the internal wall. No
other appliance is allowed to join the chimney to which the boiler is connected. The chimney diameter
must not be smaller than the outlet on the boiler (min. 150 mm). The chimney draught must reach
the prescribed values (see the technical data p. 8). But it must not be extremely high so that it does not
reduce the boiler efficiency and does not disturb its combustion (does not split the flame). In case of a
strong draught install a throttle into the smoke-flue between the boiler and chimney (draught limiter).
Informative values of chimney cross section:
20 x 20 cm height 7 m
Ø 20 cm height 8 m
15x15cm height 11 m
Ø 16 cm height 12 m
ČSN 73 4201 defines the exact chimney dimensions. The prescribed chimney draught is speci
fied in section 3. „Technical data“.
10. Smoke-flue
The smoke-flue must join the vent stack. If the boiler cannot be directly connected to the vent
stack then the smoke-flue extension piece must be as short as possible,and not longer than 1 m, without
any additional heat-delivery surface and it must ascend
towards the chimney. The smoke-flues must be mecha-
nically robust and tight against the combustion products
leakage and inside cleanable. The smoke-flues must not
be led through external home or utility units. The inter-
nal cross section of the smoke-flue must not exceed the
internal cross section of the the stack flue and must not
narrow towards the chimney. The use of smoke elbows
is unsuitable. The factures of smoke-flue passing through
the structures made of of combustibles are shown in an-
nexes 2 and 3 to ČSN 061008 and are especially suitable
for the mobile facilities, timber huts etc.
1 Flue gas thermometer
2 Cleaning opening
3 Throttle (draught limiter)
INFO - In case of a strong draught in the chimney install a throttle (3) or a draught limiter
in the smoke-flue .

Instruction manual - GB
GB
www.atmos.cz GB-15
11. Fire protection at the heating appliances installation and use
Selection of ČSN 061008 –Fire safety of local appliances and sources of heat
Safety distances
The minimum 200 mm safety distance from the building materials must be kept when installing
the appliances. This distance applies to the boilers and smoke-flues installed near the combustibles of
B, Cl and C2 grades (the combustibility grade is shown in table no. l). The safety distance (200mm)
must be doubled if the boiler and smoke-flues are installed near the combustibles of grade C3 (see
tab. no. l). The safety distance must be doubled in case the combustibility grade wasn’t proved. The
safety distance must be halved (100 mm) when using the fire-resistant and heat-insulating board
(asbestos plywood), with min. 5 mm thickness installed 25 mm from the protected combustible ma-
terial (combustible insulation). The shielding plate or protective screen (on the protected item) must
overreach the boiler contours incl. the smoke-flues at least by 150 mm on every side and at least by
300 mm above the upper boiler surface. Also the furnishings made of combustible materials must be
equipped with the shielding plate or protective screen if it is impossible to keep the safety distance
(e.g. in mobile facilities, weekend houses etc. – see the details in ČSN 061008). The safety distance
must be kept when installing the furnishings in the vicinity of boilers.
If the boilers are installed on the floor made of combustible materials they must be equipped
with a fire-resistant and heat-insulating pad overreaching the contours on the side of the stoke hole
and ash-pan hole (at least by 300 mm in front of the hole and at least by 100 mm on other sides. The
materials with combustibility grade A can be used as the heat-insulating, fire-resistant pads.
Table no.l
combustibility grade of building
materials and products
A - fire-resistant granite, sandstone, concretes, bricks, ceramic tiles, mortars, fire prevention plas-
ters etc.
B - uneasy to burn acumin, izomin, heraclit,lignos, boards made of basalt felt , boards made of fibre-
glasses, novodur
C1- difficult to burn hardwood(oak, beech), hobrem boards, plywood, sirkolit, werzalit, hardened
paper(umakart, ecrona)
C2- moderately combustible Softwood (pine tree, larch, spruce), chipboards, cork slabs, rubber floorings (In-
dustrial, Super)
C3- easily combustible Fibreboards (Hobra, Sololak, Sololit), cellulose materials, polyurethane, polysty-
rene, polyethylene, expanded PVC
ATTENTION - Under the circumstances that result in the danger of temporary intrusion of
combustible gases or vapours and at the activities that might result in the temporary danger
of fire or explosion (e.g. linoleum, PVC gluing etc.) the boiler must be put out of operation
in a timely manner it means before the danger occurence. Do not put any items made of
combustible materials on the boiler neither within the distance smaller than the safety
distance (more ČSN EN 13501-1).

instruction manual - GB
GB
www.atmos.cz
16-GB
12. Binding ČSN, EN for boilers design and installation
ČSN EN 303-5 - Solid fuel boilers for central heating
ČSN 06 0310 - Central heating , design and installation
ČSN 06 0830 - Protecting device for central heating and service water heating
ČSN EN 73 4201 - Chimneys and smoke-flues design
ČSN EN 1443 - Chimneyconstructions – general requirements
ČSN 06 1008 - Fire safety of local appliances and sources of heat
ČSN 73 0823 - Combustibility grade of grade of building materials
ČSN EN 1264-1 - Floor heating-systems and components – Definitions and symbols
ČSN EN 1264-2 - Floor heating-systems and components – heat output calculation
ČSN EN 1264-3 - Floor heating-systems and components - Design
ČSN EN 442-2 - Radiators – Tests and their evaluation
ATTENTION – the boiler must be always installed according to the project prepared in
advance. Only the persons trained by the manufacturer are allowed to install the boiler.
13. Connection of boilers to the grid
The boilers are connected to 230 V, 50 Hz grid by means of the mains feeder with a plug or wi-
thout plug. This is the mains feeder type M and in case of an exchange it must be replaced by the same
type (cross-section). The position of the appliance must ensure that the plug (connector) is within the
operators´ easy reach (according to ČSN EN 60335-1). Only the persons competent according to all
valid rules of the concrete country are allowed to connect the boilers.
Connectors in side hoods of the boiler:
1 - connector for income cabel (L - brown, N - blue, PE - green/yellow)
2 - connector for pump in the primary circuit (L - brown, N - blue, PE - green/yellow)
(type EU and for Sweden - variant B)
3 - connector for extraction fan
Connector in the left side hoodConnectors in the right side hood

Instruction manual - GB
GB
www.atmos.cz GB-17
14. New electrical scheme of electro-mechanic regulations connec-
tion with the draw-off ventilatortype UCJ 4C52 - variant A
15. New electrical scheme of electro-mechanic regulations connec-
tion with the draw-off ventilatortype UCJ 4C52 - variant B
DCxxGSE_v1-1-09
1 2 3 4 5 6 7 8 9 10 11 12
L N PE
M
2 3
M
1
NL L
t
T95
T95



L
N
µ
1 F





































M
1 2 3




  
A
t






t







t







HLvyp
SNvyp
HNvyp
SLvyp
1 24 5



t
PE
BT-2
BT-1
BT-C



L
N
230V/50Hz




BD
EC

F


3






H
A
  
B
C
D
E
F
           
G
H
     
G
  
BT-C REG
  




DCxxS_v1-1-09_1BT
1 2 3 4 5 6 7 8 9 10 11 12
L N PE
M
2 3
M
1
NL L L1
t
T95
T95
SAFETY PUMP THERMOSTAT 95°C
SICHERHEITSPUMPETERMOSTAT 95°C
BEZPENOSTNÍ TERM. NA ERPADLO 95°C
L
N
L
N
230V/50Hz
1
µ
F
RBUBLGYBRGY BUBU GYBR
0,75
BL 0,75
BU 0,5
BL
0,75
BL
0,75
BU
0,5
BL
0,5
BL
0,5
BL
0,5
BL
0,5
BL 0,5 BL
0,75
GY
0,75
GY
0,75
BL
0,75
BU
A
VARIANT OF ACCES POINT FOR BOILER PUMP
ANLAGERUNGVARIANTE FÜR KESSEL PUMPE
VARIANTA PIPOJOVACÍCH SVOREK PRO KOTLOVÉ ERPADLO
3 x 0,75 3 x 0,5 4 x 0,5
BL-BLACK-SCHWARZ-ERNÁ BR-BROWN-BRÄUNE-HNDÁ
BU-BLUE-BLAU-MODRÁ R-RED-ROT-ERVENÁ
GY-GREEN/YELLOW-GRÜN/GELB-ZELENO/ŽLUTÁ W-WHITE-WEIS-BÍLÁ
A
t
PE
PT-1
PT-C
OPERATING THERMOSTAT
BETRIEB TERMOSTAT
PROVOZNÍ TERMOSTAT
t
PE
ST-C
ST-2
ST-1
WASTE GAS THERMOSTAT
RAUCHGAS TERMOSTAT
SPALINOVÝ TERMOSTAT
HLvyp
SNvyp
HNvyp
SLvyp
1 24 5
SWITCH
SCHALTER
HL.VYPÍNA
VARIANTS OF RESERVOIR POINTS FOR ELECTRONIC REGULATION SPEISEKLEMMEVARIANTEN FÜR ELEKTRONISCHE REGELUNG VARIANTY NAPÁJECÍCH SVOREK PRO ELEKTRONICKOU REGULACI
0,5
BL
D
E
B
C
B
C
D
E
F
F
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN/PELLETS BURNER - CHANGE CONNECTOR "BT-C/BT-N1 H" FOR CONNECTOR "BT-C/BT-N1 REG"
DEN AUSWECHSELN KONNEKT. "BT-C/BT-N1 H" FÜR KONNEKT."BT-C/BT-N1 REG" BEI DER KESSELGÄBLASE/BRENNER BEDIENUNG DER ELEKTRON. REG.
PEHODIT SVORKY "BT-C/BT-N1 H" ZA "BT-C/BT-N1 REG" PI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU/HOÁKU ELEKTRONICKOU REGULACÍ
BT-C/BT-N1 REG
WHEN USE ELECTRONIC REGULATION ACD01 MUST BE THESE CHANGES OF WIRING: BEI DER STEUERUNG DES KESSELBETRIEBES DER ELEKTRONISCHE REGELUNG ACD01 MÜSSEN DIESE ÄNDERUNGEN MACHEN SEIN: PI ZAPOJENÍ ELEKTRONICKÉ REGULACE ACD01 PROVETE TYTO ZMNY:
SPEISEKLEMME "L" DER KESSELPUMPE FÜR DIE ELEKTRONISCHE REGELUNG RESERVOIR POINT "L" OF BOILERPUMP TO THE ELECTRONIC REGULATION
PIPOJOVACÍ SVORKA "L" KOTLOVÉHO ERPADLA DO ELEKTRONICKÉ REGULACE
RESERVOIR POINT "L - IN / OUT" OF BOILER FAN/PELLETS BURNER TO THE ELECTRONIC REGULATION SPEISEKLEMME "L - IN / OUT" DER KESSELGEBLÄSE/PELLETS BRENNER FÜR DIE ELEKTRONISCHE REGELUNG
PIPOJOVACÍ SVORKA "L - IN / OUT" KOTLOVÉHO VENTILÁTORU/PELETOVÉHO HOÁKU DO ELEKTRONICKÉ REGULACE
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN/BURNER - CONNECTOR "PT-C" MUST BE UNCONNECT DEN KONNEKTOR "PT-C" ABKLEMMEN BEI DER KESSELGÄBLESE/BRENNER BEDIENUNG DER ELEKTRONISCHE REGELUNG KONEKTOR "PT-C" ODPOJIT PI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU/HOÁKU ELEKTRONICKOU REGULACÍ
L
N
REG-N (X6:3)
REG-L (X6:4)
REG-PE (X6:2)
L- (X7:5)
0,5
BL
0,75
BL
,75
BL
0,5
BL
BT-L2 H
BT-1 / BT-N2 H
BT-C / BT-N1 H
BT-L1 H
OUT L- / L2 (X7:7)
IN L- / L2 (X7:6)
0,5
BL
G
ST-2 REG
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN/BURNER/PUMP/ - CHANGE CONNECTOR "ST-2" TO CONNECTOR "ST-2 REG"
DEN AUSWECHSELN KONNEKTOR "ST-2" FÜR KONNEKT."ST-2 REG" BEI DER GÄBLASE/BRENNER/PUMPE BEDIENUNG DER ELEKTRON. REGELUNG
PEHODIT SVORKY "ST-2" ZA "ST-2 REG" PI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU/HOÁKU/ERPADLA ELEKTRONICKOU REGULACÍ
G
WHEN ELECTRONIC REGULATION CONTROL PELLETS BURNER - CHANGE ONE CIRCUIT TO DOUBLE CIRCUIT SAFETY THERMOSTAT
DEN AUSWECHSELN EINKREIS FÜR ZWEIKREIS SICHERHEITZTERMOSTAT BEI DER PELLETSBRENNER DER ELEKTRON. REGELUNG
PI OVLÁDÁNÍ HOÁKU NA PELETY ELEKTRONICKOU REGULACÍ VYMTE 1-OKRUHOVÝ BEZPENOSTNÍ TERMOSTAT ZA 2-OKRUHOVÝ
t
PE
BT-2
BT-1
BT-C
SAFETY THERMOSTAT
SICHERHEITSTERMOSTAT
BEZPENOSTNÍ TERMOSTAT
0,5
BL

instruction manual - GB
GB
www.atmos.cz
18-GB
16. Selection and the way of connection of regulation and heat-
ing elements
The boilers are delivered to the customer with the basic boiler output regulation which meets the
demands on the heating comfort and its safety. The regulation ensures the required temperature of the
output water from the boiler (80-90°C). It does not deal with the mixing valves and pumps operation.
Every pump in the system must always be operated by a separate thermostat in order to avoid the bo-
iler chilling below 65°C at the reverse path. When the boiler is connected without the storage tank or
equalizer the pump positioned in the heated facilities circuit must be switched by means of a separate
thermostat or electronic regulation so that it only runs when the pump in the boiler circuit is running.
If we use two thermostats, each for switching one pump, we set the value of 80°C on the thermostat
which switches the pump in the heated facilities circuit and the value of 75°C on the thermostat which
switches the pump in the boiler circuit. Both pumps can also be switched by one thermostat. In case the
boiler is connected with the storage tanks and the gravity water circulation is well functioning in the
boiler circuit thus prolonging the boiler start time to the required temperature we suggest to switch the
pump in the boiler circuit by means of the flue gas thermostat installed in the boiler (at firing-up). When
switching the pump in the boiler circuit by means of the flue gas thermostat installed on the boiler panel
the safety thermostat on 95°C pump should be installed in the boiler (see the wiring diagrams). The
thermostat in the boiler can be alternatively substituted by a surface thermostat at the boiler outlet which
switches the pump in the boiler circuit at 95°C (parallel- connected with the flue gas thermostat).
The required temperature of water to the facilities is always set by means of three-way mixing
valve. The mixing valve can either be operated manually or by means of electronic regulation which
contributes to a more comfortable and economical operation of the heating system. The connection
of all elements is always proposed by the designer according to the specific conditions of the heating
system. The electric installation connected with a sufficient boilers equipment with above mentioned
elements must be carried out by a specialist according to valid ČSN EN.
When installing the boiler we suggest the use of an open expansion tank, but it also
can be closed if it is allowed by the valid standards of a given country. The boiler must
always be installed so that it cannot be overheated or damaged in case of the electricity
outage, because the boiler has certain inertia.
The boiler can be protected against overheating in several ways: by connecting the
cooling loop against overheating with TS 130 3/4 A (95°C) valve or WATTS STS 20
(97°C) to the water main. In case of a private well we can protect the boiler by using
the standby source of electricity (battery with a converter) for backing up the operati-
on of at least one pump. The boiler connection with the after-cooling reservoir and the
inverse zone valve is another possibility.
When installing the boiler please underlay the rear part of boiler by 10 mm to be better
flushed and vented.
The regulators of following firms are recommended for the heating system regulation:
a) ATMOS ACD 01 - the set of equithermal regulation for solid fuel boilers
b) KOMEXTHERM, Praha tel.: [phone]
c) KTR, Uherský Brod tel.: [phone]
d) Landis & Staefa tel.: [phone]

Instruction manual - GB
GB
www.atmos.cz GB-19
17. Boiler corrosion prevention
The boiler connection with the thermoregulation valve is the prescribed solution which enables
to create the separated boiler and heating (primary and secondary) circuits in order to ensure the
minimum 65°C temperature of the reverse water to the boiler. The higher is the temperature of
the reverse water to the boiler the less tars and acids will condense and damage the boiler drum. The
temperature of the outlet water from the boiler must be permanently in the range of 80 - 90°C.
The temperature of the combustion products (flue gases) during the routine operation must not drop
below 110°C. A low temperature of the combustion products will cause the condensation of tars and
acids though the outlet water temperature (80 - 90°C) and the temperature of water returning into the
boiler (65°C) are kept. These situations can occur in case of heating the service water (TUV) by the
boiler in the summer season or when heating only a part of facilities. In such a case either the boiler
connection with the storage reservoirs or daily firing-up are suggested. For 15-100 kW outputs it is
possible to use the three-way mixing valve with the servo-drive and electronic regulation in order to
hold the minimal temperature (65-75°C) of the reverse water to the boiler.
18. Prescribed boiler connection with the thermoregulation
valve and with buffer tanks
Minimal diameters of piping at the connection with the storage tanks
Type and boiler output Part A Part B
In copper In steel In copper In steel
DC50GSX 42x1,5 40 (6/4”) 35x1,5 32 (5/4”)
DC60GSX, DC70GSX 54x2 50 (2”) 42x1,5 40 (6/4”)

instruction manual - GB
GB
www.atmos.cz
20-GB
19. Thermoregulation valve
The thermoregulation valve type TV 60°C or TV 65°C is
used at solid fuel boilers. At+ 60°C water temperature in
the boiler the thermoregulation valve opens and the liquid
from the heated facilities circuit (2) is let into the boiler
circuit(3—>1). The inlets 1 and 3 are permanently opened.
The minimum temperature of the reverse water to the boiler
is ensured in this way. In case of need it is possible to use
the thermoregulation valve set to a higher temperature (e.g.
72°C).
Recommended size of the thermoregulation valve
For boilers: DC50GSX, DC60GSX, DC70GSX ................................................................. DN40, DN50
20. System operation with storage tanks
After firing-up the boiler and at full output operation (with 2 - 4 loadings) we charge the existing
volume of storage tanks to the required 90-100°C temperature and then we let the boiler burn down.
Hereafter we only take off the heat from the reservoir by means of a three-way valve during the time
that corresponds to the size of the accumulator and the outdoor temperature. In the heating season
(while observing the minimum volumes of accumulators-see the table) it might last for 1-3 days. If
we cannot use the accumulation we recommend at least one reservoir of 1000l volume for equalizing
the start and finish of the boiler.
RECOMMENDED MINIMUM VOLUMES OF ACCUMULATORS
Type DC50GSX DC60GSX DC70GSX
Output 49 60 70
Volume 3000-4000 3500-4500 4000-5000
ATMOS storage tanks delivered on regular basis
TYPE OF TANK VOLUME (l) DIAMETER ( mm ) HEIGHT ( mm )
AN 500 500 600 1944/1940*
AN 750 750 750/790* 1974/1752*
AN 800 800 790* 1910*
AN 1000 1000 850/790* 2025/2202*
* typ DH
