Triax CSE 2800 User manual

 AssemblyInstruction
 CSE2800
Model Itemno.
CSE 2800 325001
Version 10 Date 04/2016 EN

- 2 - CSE 2800
Contents
1 Notes about safety and hazards.........................................................................3
2 General information ..........................................................................................4
2.1 Scope of delivery ............................................................................... 4
2.2 Available accessories .......................................................................... 4
2.3 Meaning of the symbols used ............................................................... 5
2.4 Technical data.................................................................................... 5
2.5 Description ........................................................................................ 6
3 Overview ..........................................................................................................7
3.1 Front cover ........................................................................................ 7
3.2 Front view (without front cover) ............................................................ 7
3.3 Rear view .......................................................................................... 8
3.4 Control panel ..................................................................................... 9
4 Assembly ........................................................................................................10
4.1 Remove front cover ........................................................................... 10
4.2 Remove base plate ........................................................................... 10
4.3 Making an earth connection .............................................................. 11
4.4 Installing F terminals ......................................................................... 12
4.5 Installing an additional fan ................................................................ 12
4.6 Mounting ........................................................................................ 13
Wall mounting ............................................................................ 14
Upright mounting ........................................................................ 15
Mounting inside a 19" cabinet ..................................................... 16
5 Installing modules ............................................................................................17
6 Connecting the head-end station ...................................................................... 18
6.1 Potential equalisation (PE) .................................................................. 18
6.2 Mains connection ............................................................................. 18
6.3 LNB Power supply connections ........................................................... 19
6.4 RF connections ................................................................................. 19
7 Settings ...........................................................................................................20
7.1 Contrast of the display ...................................................................... 20
7.2 Settings in the menu .......................................................................... 20
Setting the output level of a retrofitted RF output collector ................. 20
Setting the standard of the output signal ......................................... 20
8 Final procedures ..............................................................................................23

- 3 - CSE 2800
1 notes about safety and hazards
• The head-end station is subject to the regulations of protection class I.
• Never operate the device without a protective earth connection, earth con-
nection to the device and potential equalisation!
• The standards EN/DIN EN 50083 resp. IEC/EN/DIN EN 60728 must be
observed.
• Observe the relevant country-specific standards, regulations and guidelines
on the installation and operation of antenna systems.
• Replace mains cable and power supply unit only by original spare parts.
• Do not perform installation and service work during thunderstorms.
• Assembly, installation and servicing must be carried out by an authorised
electrician.
• Switch off the operating voltage of the system before beginning with as-
sembly or service work or pull out mains plug.
• The device should only be installed in a room where the permissible am-
bient temperature range of 0°C…+50°C can be maintained, even during
fluctuations in climatic conditions.
• To avoid too strong heating of the head-end station it is not admissible to
mount them one upon the other without using thermic precautions (e.g.
permanently air recirculation, ventilation, heat deflectors etc.).
• Do not install the device in cabinets or recesses which are not ventilated.
• If additional fans are to be used to circulate the air, ensure that the system
will be shut down (disconnected from mains) should any one of the fans fail.
• In case of the formation of condensation wait until the system is completely dried.
• Do not cover the ventilation openings!
• During installation, observe a minimum distance of
- 500 mm above/below and 75 mm behind the device at wall mounting,
- 500 mm above and 75 mm below/behind the device at upright mounting,
- 200 mm above/below and 100 mm behind the device at mounting in a
19" cabinet.
• Install the system …
- on a vibration-free wall or floor construction
- In a dry, dust-free environment
- In such a manner that it is protected from moisture, fumes, splashing wa-
ter and dampness
- Where it is protected from direct exposure to sunlight
- Not within the immediate vicinity of heat sources
• Do not place any vessels containing liquids on the device.
• Do not place anything on the head-end station which could initiate fires
(e.g. candles).

- 4 - CSE 2800
• Due to the risk of fires caused by lightning strikes, we recommend that all me-
chanical parts (e.g. distributor, equipotential bonding rail, etc.) be mounted
on a non-combustible base. Wood panelling, wooden beams, plastic cov-
ered panels and plastic panels are all examples of combustible bases.
• Avoid short circuits!
• To ensure electromagnetic compatibility, make sure all connections are tight
and that the covers are screwed on securely.
• No liability is accepted for damage caused by faulty connections or inap-
propriate handling of the device.
Take precautions to prevent static discharge when working on the device
and the modules!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.
2 General information
2.1 sCope of delivery
1 CSE 2800 head-end station (without modules)
1 Power cord
1 Ferrite sleeve
1 CD (assembly instructions)
1 Brief assembly instructions
1 RF connection cable
(RF output when retrofitting a RF output collector)
1 Ribbon cable (for retrofitting a RF output collector)
Mounting material
2.2 available aCCessories
Modules and accessories see website "www.triax.com".

- 5 - CSE 2800
2.3 meaninG of the symbols used
Important note
Danger by electrical shock
—> General note
– /
– / Optional use of the buttons
• Performing works
2.4 teChniCal data
The requirements of the following EU directives are met:
2011/65/EU, 2014/30/EU, 2014/35/EU
The product fulfils the guidelines and standards for CE labelling.
Unless otherwise noted all values are specified as "typical".
General
Slots (unoccupied): .......................................8 modules, 8 add-on modules
Permissible ambient temperature: .........................................0 °C … +50 °C
Dimensions (W x H x D) [cm]: ..................44.3 (19") x 35.5 (8 HU) x 22.8
Weight: ..................................................... approx. 20 kg (fully equipped)
LNB power supply: ...........................................+ 12 V / max. 800 mA
(short-circuit proof/multi-fused)
Mains unit
Mains voltage: ....................................................220–240V~, 50/60 Hz
Power consumption: ......................................210 W max.; fully occupied,
incl. LNB power supply

- 6 - CSE 2800
2.5 desCription
Proper installation of the mounting bracket enables the CSE 2800 head-end
station to be installed in a 19" cabinet as well as on a wall or upright stand-
ing.
The head-end station is modular in design and can be equipped with 8 stand-
ard plug-in modules and 8 add-on modules. A current list of the standard and
add-on modules can be found on the website "www.triax.com". This head-end
station is designed exclusively for use with these modules.
The various expansion options for the head-end station allow for the installa-
tion of a wide range of broadband cable systems.
Input SAT IF distributors and an output collector can be upgraded to offer the
highest degree of flexibility for the distribution of the signals.
The power supply in the CSE 2800 head-end station is designed to supply
power to components (e.g. LNB) connected upstream.
All RF output signals from the modules are combined via the inputs of a retro-
fitted active RF output collector and prepared for distribution through the RF
output socket.
When the head-end station is shipped from the factory, the default setting for
the control voltage for a RF output collector is maximum. If necessary please
set the master output level to the value required for the respective cable system.
When the head-end station is switched on, the two-line LC display shows the
"SETUP" menu and the software version of the control unit. The head-end sta-
tion output level can be adjusted in submenu "OUTPUT", the output standard
can be adjusted in submenu "NORM".
The operating software for the control unit and modules can be updated via
the 9-pin SUB-D socket of the head-end station using a PC or notebook and
the software "BE-Flash". Current versions of the software can be found on the
website "www.triax.com".

- 7 - CSE 2800
3 overview
3.1 front Cover
1
1
1 22
1 22
Fig. 1
1 Locking screws (incl. with delivery in a separate package)
2 Fastening screws
3.2 front view (without front Cover)
3
2
1
4
Fig. 2
1 Knock-outs for upgrading a RF output collector
2 Knock-outs for the SAT IF input distributors
3 Control panel
4 Knock-outs for F terminals

- 8 - CSE 2800
3.3 rear view
4 64 5321 7
Fig. 4
1 Power cord socket
2 M ain power switch
3 Earth connection terminal
4 SAT IF inputs
5 Knock-outs for additional F terminals
6 Knock-out for the optional installation of the earth connection terminal
7 RF output

- 9 - CSE 2800
3.4 Control panel
1
2
3
4
5
6
4
8
9
5
S
M
Fig. 5
1 LC display
2 Button to adjust the contrast of the display
3 Mode indicator
4 – To adjust values and functions
5 – Moves the cursor, adjusts functions
6 – Stores the programmed data
7 – To adjust values and functions
8 – To switch to the next menu
9 9-pin SUB-D socket for updating the operating software of the modules
and the head-end station
0 – Moves the cursor, adjusts functions

- 10 - CSE 2800

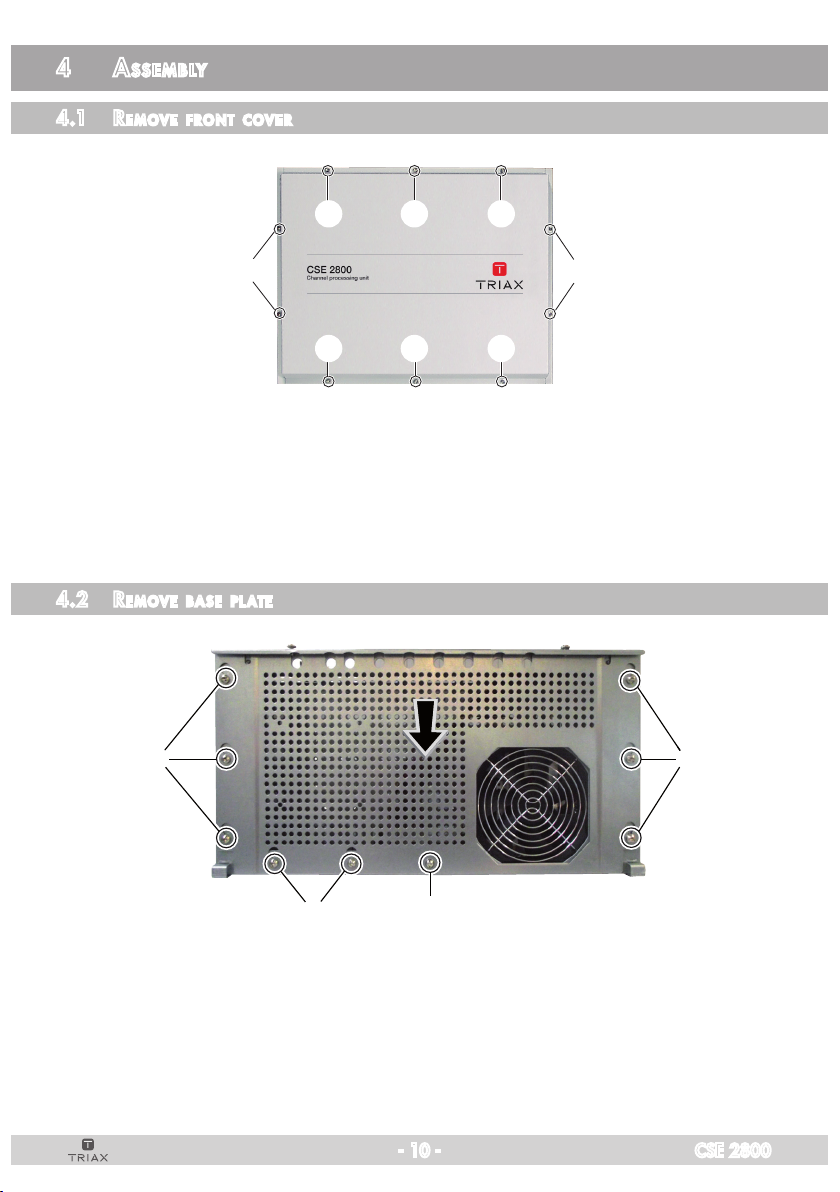

4 assembly
4.1 remove front Cover
1
1
1 22
1 22
Fig. 6
• Loosen 4 fastening screws 2.
• Remove 6 locking screws 1 (not required for initial assembly).
• Slide the front cover upwards and remove it from the head-end station.
4.2 remove base pl ate
1
22
2
Fig. 7
• Remove the locking screw 1.
• Remove the fastening screws 2.
• If applicable, unscrew the nuts of retrofitted F terminals (not required for
initial assembly).
• Push the base plate in direction of the arrow and remove it.

- 11 - CSE 2800
4.3 makinG a potential equalisation (pe)
The pre-installed PE connection terminal in position 1 can be relocated to
position 2 (fig. 8).
1 2
Fig. 8
• Dismount the PE connection terminal so that it can be moved.
• Mount the PE connection terminal (according to fig. 9) in position 2 as
shown in fig. 8.
Housing
Fig. 9
Caution
Tighten the nut until the teeth on the lock washer have penetrated the exterior
coating and a good connection is made between the housing and PE connec-
tion terminal.

- 12 - CSE 2800
4.4 installinG f terminals
Fig. 10
• Insert the required number of standard F terminals in the openings pro-
vided (knock-outs) in the front (page 7, fig. 2, 4) and/or rear panel (page
8, fig. 4, 6).
Caution
Tighten the nuts until the teeth on the lock washers have penetrated the exterior
coating and a good connection is made between the housing and F terminals.
4.5 installinG an additional fan
If environmental conditions require the use of an additional fan, one can be
screwed to the inside of the base plate (hole spacing: 82 x 82 mm).
82 mm
82 mm
Fig. 11
• Remove base plate (page 10).
• Mount the fan (12 V / 1 A max.) in position 1 or 2 (fig. 11) to the
inside of the base plate with screws.
• Make the electrical connection as shown in fig. 12.

- 13 - CSE 2800
+ 12 V / 1 A
–
Fig. 12: Power supply for additional fan
4.6 mountinG
– Install the head-end station vibration-free.
Avoid, for example, mounting the head-end station onto a lift shaft or any
other wall or floor construction that vibrates in a similar way.
– To avoid too strong heating of the head-end stations it is not admissible
to mount them one upon the other without using thermic precautions (e.g.
permanently air recirculation, ventilation, heat deflectors etc.).
– Using the supplied mounting brackets, the head-end station can be mounted
to a wall, upright standing, or in a 19" cabinet. Before proceeding, ensure
that the minimum distance requirements (500 mm above/below and 75
mm behind the device at wall mounting / 500 mm above and 75 mm be-
low/behind the device at upright mounting / 200 mm above/below and
100 mm behind the device at mounting in a 19" cabinet) will be met.
– If mounting to a wall or on a shelf, ensure that ...
- The wall or the shelf can support the weight of the head-end station
- There is adequate air conditioning
- The permissible ambient temperature will be maintained
– If mounting inside a 19" cabinet, ensure that ...
- there is adequate air conditioning.
- the permissible ambient temperature will be maintained.
- the mounting rack in the cabinet can support the weight of the head-end
station.
Note:
To maintain an ambient temperature of < 50 °C, use an additional fan or a
safety temperature limiter with reclosing interlock if necessary.

- 14 - CSE 2800
wall mountinG
75 mm
1
1
1
1
4
4
3
2
Fig. 13
• Align the studs 1 on the mounting bracket 3 with the hole matrix on the
housing and snap it into place. The distance between the back side of the
housing and the back edge of the mounting bracket is approx. 75 mm.
• Screw in the 6 thread-forming countersunk screws 2 that were supplied.
• Attach the mounting bracket to the other side of the housing in the same way.
• Insert wall plugs suitable for the wall properties into the wall so that they
correspond to the dimensions in the following illustration (fig. 14, !).
!
!
140 mm
!
!
465 mm
Fig. 14
• Mount the head-end station and screw it tightly.

- 15 - CSE 2800
upriGht mountinG
75 mm
111 1
3
2
Fig. 15
• Align the studs 1 on the mounting bracket 3 with the hole matrix on the
head-end station housing and snap it into place. The distance between
the underside of the head-end station and the lower edge of the mounting
bracket is approx. 75 mm.
• Screw in the 6 thread-forming countersunk screws 2 that were supplied.
• Attach the mounting bracket to the other side of the housing in the same
manner.

- 16 - CSE 2800
mountinG inside a 19" Cabinet
5
3
2
2
1
1
1
5
1
Fig. 16
• Align the studs 1 on the mounting bracket 3 with the hole matrix on the
housing so that it is flush with the front edge of the head-end station and
snap it into place.
• Screw in the 4 thread-forming countersunk screws 2 that were supplied.
• Attach the mounting bracket to the other side of the housing in the same
manner.
• Install the support elements into the 19" cabinet. The total installation height
of the head-end station is 8 HU (8 height units, approx. 356 mm).
• Fit the 4 prestole nuts into the frame of the rack system according to the
distance of the holes 5 in the mounting bracket 3 (approx. 190 mm).
• Connect the head-end station according to chapter 6 (page 18) .
• Put the head-end station onto the support elements, push it into the 19"
cabinet.
• Fasten the head-end station to the prestole nuts of the 19" cabinet using the
holes 5 in the mounting brackets 3 and appropriate screws.
To avoid too strong heating of the head-end stations it is not admissible to
mount them one upon the other without using thermic precautions (e.g. per-
manently air recirculation, ventilation, heat deflectors etc.). Minimum distance
above/below is 200 mm. If necessary fit additional fans on the base plates of
the head-end stations (see chapter 4.5, page 12).

- 17 - CSE 2800
5 installinG modules
Caution
– Always position modules which belong together next to each other.
– When installing modules, make sure that they are inserted in the long num-
bered grooves in front of the contact strip on the board at the rear wall of
the housing.
The shorter grooves without a contact strip on the board at the rear wall of
the housing are for add-on modules only.
• Open the locking device 1 in the direction of the arrow (fig. 17).
1
Fig. 17
1
2
3
Fig. 18
• Insert a module in grooves 1 and 2 of an open slot (fig. 18) and gently
slide it into the head-end station until it makes contact with the board on the
rear wall.
• After installing a module close the locking device 3 in the direction of the
arrow (fig. 18).

- 18 - CSE 2800
6 ConneCtinG the head-end station
6.1 potential equalisation (pe)
Make the potential equalisation of the SAT receiver system in accordance with
DIN EN60728-11.
• Put the PE wire (Cu 4 - 20 mm2) into
the hole A of the PE connection termi-
nal on the back side of the head-end
station and fasten the PE wire with the
screw B (fig. 19) securely (see also
page 8, fig. 4).
• Connect the PE connection terminal to
a potential equalisation rail (supplied
by customer) using the PE wire.
6.2 mains ConneCtion
Never operate the device without a protective earth connection, earth connec-
tion to the device and potential equalisation!
To maintain compliance with current EMC regulations (electromagnetic com-
patibility), it is necessary to route the power cord through the supplied ferrite
sleeve.
• Open the ferrite sleeve.
• Make a loop in the power cord and lay the loop inside the ferrite sleeve as
shown in fig. 20.
• Close the ferrite sleeve (fig. 21).
• Connect the power cord to the power socket 1 (page 8, fig. 4) on the
head-end station and plug the other end into an earthed mains socket.
B
A
Housing
Fig. 19
Fig. 20 Fig. 21

- 19 - CSE 2800
6.3 lnb power supply ConneCtions
• Connect the DC cable % of a retrofitted input distributor to one of the con-
tacts ^ (12V/800 mA total).
%
^
6.4 rf ConneCtions
To comply with the current EMC regulations, it is necessary to connect the lines
leading in and out of the head-end station using F terminals.
Note:
The F terminal at the rear panel are intended to use for RF input and RF output.
The following connection example shows a possible connection scheme.
• Connect the SAT IF cables coming from the LNBs to the relevant F terminals
(fig. 23, 4).
4 64 5321 7
Fig. 22

- 20 - CSE 2800
7 settinGs
7.1 Contrast of the display
1
2
3
4
5
6
4
8
9
5
S
M
Fig. 24
• Using the main power switch, (page 8, fig. 4, 2) switch on the head-end station.
—> The mode indicator 3 (fig. 24) is activated.
• Adjust the contrast of the display using the button 2 (fig. 24).
7.2 settinGs in the menu
settinG the output level of a retrofitted rf output ColleCtor
settinG the standard of the output siGnal
After the output levels of the modulator modules or the modulators have been
set, check the master output level of the RF output collector and adjust it ac-
cordingly based on the requirements of the cable system. Afterwards set the
standard of the output signal required.
Setting the output level of a retrofitted RF output collector
• Connect the RF outputs of the modulators to the RF inputs of the RF output
collector.
• Connect the antenna test receiver to the output of the RF output collector .
