TRIBU BURST Installation and maintenance manual

RIDER
MANUAL

WELCOME TO THE TRIBE
CONGRATULATIONS ON CHOOSING THE BURST BIKE AS YOUR URBAN AND
ADVENTURE COMMUTER!
YOUR BURST BIKE IS STACKED WITH FEATURES AND WE ARE PLEASED YOU
MADE AN INFORMED DECISION ON YOUR PURCHASE!
• POWERFUL BAFANG MOTOR
• THROTTLE AND PEDAL ASSIST
• ALLOY WHEELS
• SHIMANO ALTUS GEARSET
• TILTING SEAT
• REMOVABLE SAMSUNG BATTERY
• INTEGRATED PHONE CHARGER
• LARGE DISPLAY SCREEN AND MANY MORE...
We are big on adventures and sustainable modes of transport. Burst Bike is
made for urban dwellers and adventurers. The Burst Bike is designed to perform,
making it a good reliable urban commuter with components to back this claim.
It’s built strong with its 6061 aluminium frame, and has a load weight capacity of
170 kgs, making it suitable for a range of users.
Your Burst Bike is foldable for when you need to tuck it away in your car boot for
your weekend getaway or your commute on the train.
It’s powered by a 250W Bafang Rear Hub Motor complimented by a 48V 10.4Ah
(499 Watt Hour) Samsung battery, making riding it easy, safe and fun.
It’s versatile making it suitable for urban riding and light adventures with all terrain
fat tyres.
WHAT’S INCLUDED?
1 X BURST BIKE
2 X KEYS
1 X NZ CHARGER
1 X WELCOME PACK
1 X MOBILE SERVICE (AUCKLAND
ONLY)*
*at 2 or 6 month intervals

THE ANATOMY
- REAR CARRIER
- INTEGRATED LED LIGHT
- MUD GUARD
- BAFANG HUB MOTOR
- SHIMANO ALTUS GEAR SET
- TEKTRO MECHANICAL BRAKES
REMOVABLE SAMSUNG BATTERY
TILTING GEL SEAT
FOLDING MECHANISM
WELLGO ALUMINIUM PEDAL
- ALL TERRAIN TYRES
- ALLOY WHEELS
FOLDING MECHANISM
- FRONT SHOCKS
- LED LIGHT
HANDLE BAR
- LCD DISPLAY
- SHIMANO SHIFTER
- INTEGRATED PHONE HOLDER

FOLDING YOUR
#BURSTBIKE

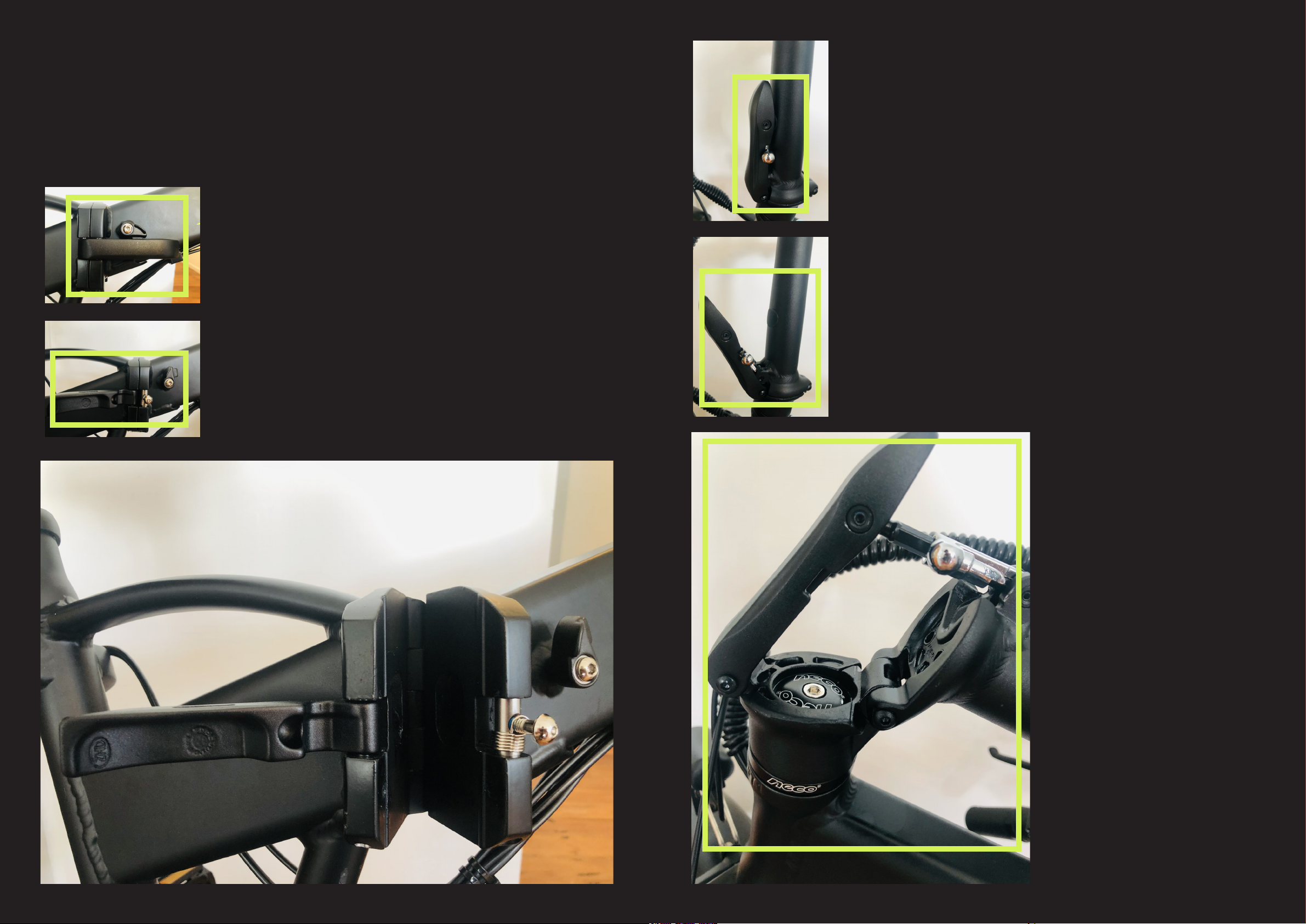

STEP ONE
LOCATE THE FOLDING MECHANISM
ON THE SIDE OF THE BURST BIKE
STEP TWO
LIFT SAFETY PIN AND PULL THE
FOLDING MECHANISM
STEP THREE
LIFT THE FRONT WHEEL AND UNFOLD THE
FRONT SECTION OF THE BURST BIKE
STEP SIX
FOLD THE STEM
STEP FOUR
LOCATE THE RELEASE LEVER ON THE
STEM OF THE BURST BIKE
STEP FIVE
PUSH THE BUTTON AND PULL THE
RELEASE LEVER

REMOVING THE
BATTERY ON YOUR
#BURSTBIKE

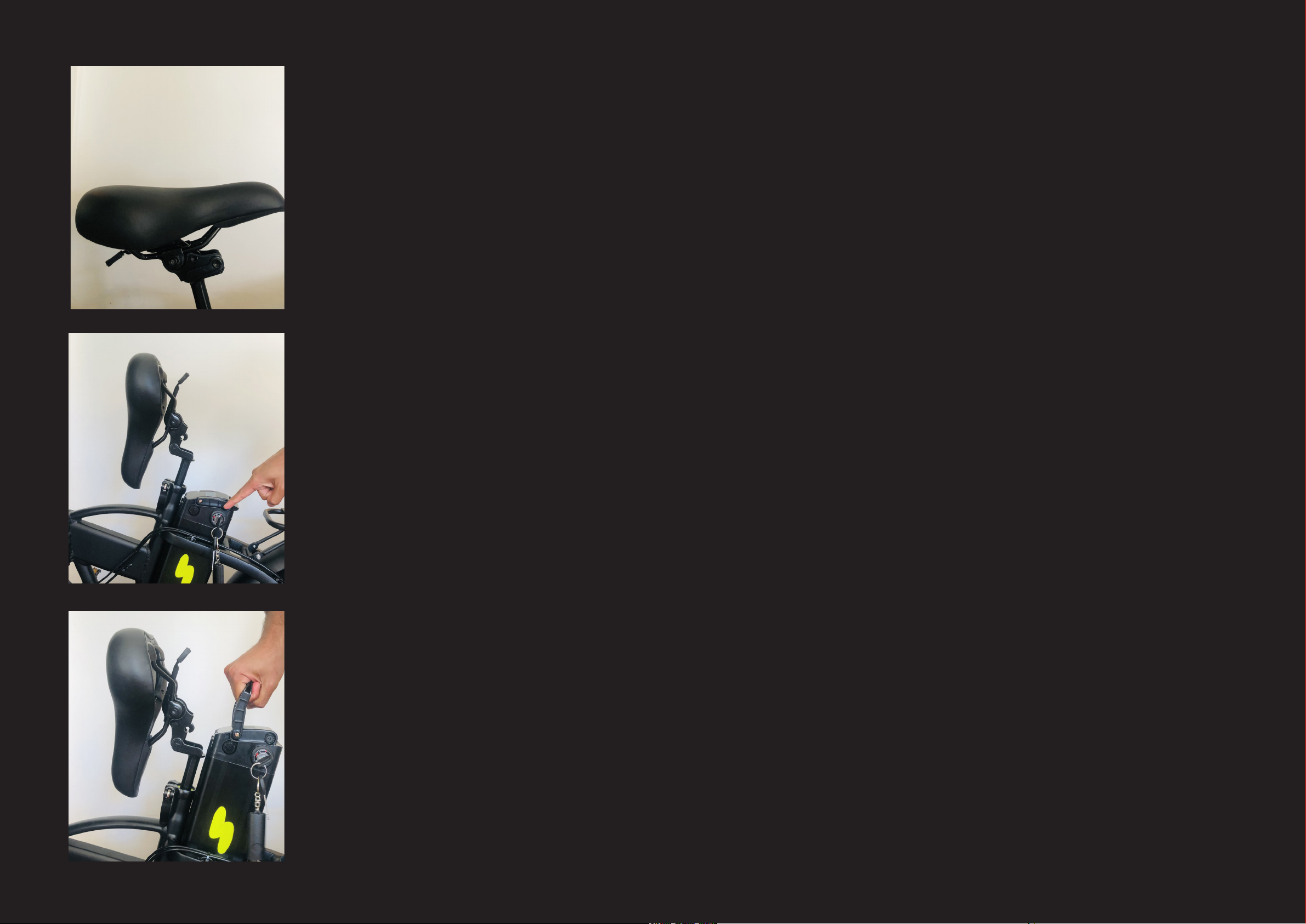

STEP ONE
PUSH THE LEVER UPWARDS
STEP TWO
TILT THE SEAT TO ACCESS THE
BATTERY

RIDING YOUR
#BURSTBIKE
PEDAL = MAX RANGE
RIDE YOUR BURST BIKE LIKE A BIKE ON SPEED
ONE. CHANGE GEARS ACCORDING TO YOUR
PREFERENCE AND TERRAIN
RIDE YOUR BURST BIKE LIKE A BIKE AND
CHANGE YOUR SPEED FROM ONE TO FIVE.
CHANGE GEARS ACCORDING TO YOUR PREFER-
ENCE AND TERRAIN
PEDAL-ASSIST = MEDIUM RANGE
RIDE YOUR BURST BIKE BY TWISTING THE
THROTTLE. YOU CAN USE THIS FUNCTION TO
GIVE YOU A BOOST ON HILLS OR WHEN YOU ARE
STARTING YOUR RIDE.
THROTTLE = LOW RANGE
WHILE RIDING YOU CAN ENGAGE THE CRUISE
CONTROL BY HOLDING THE ‘DOWN’ BUTTON ON
THE CONTROL PANEL FOR 3 SECONDS. BRAKE TO
DIS-ENGAGE.
CRUISE CONTROL
STEP THREE
SWITCH YOUR KEY TO UNLOCK
STEP FOUR
TURN THE KEY TO ‘UNLOCK’ ON
THE BATTERY
STEP FIVE
REMOVE THE BATTERY

RIDER CHECKLIST
FOR YOUR
#BURSTBIKE
STEP ONE - DO A QUICK VISUAL CHECK OF THE BURST BIKE
STEP TWO - CHECK THE NUTS AND BOLTS FREQUENTLY
STEP THREE - CHECK YOUR BRAKES ARE OPERATING
STEP FOUR - CHECK YOUR BATTERY LIFE AND CARRY YOUR
CHARGER WHEN GOING FOR LONGER RIDES
STEP FIVE - THE TYRES SHOULD BE INFLATED TO 20PSI
STEP SIX - CHECK YOUR FRONT AND REAR LIGHTS
STEP SEVEN - CHECK THE FOLDING MECHANISM IS SECURELY
LOCKED IN PLACE BEFORE RIDING YOUR BURST BIKE
BURSTBIKE IS DESIGNED
FOR A SINGLE RIDER IN ITS
CURRENT CAPACITY
SAFETY IS
IMPORTANT
WE LIKE YOUR NOGGIN AND I AM SURE YOU DO
TOO! WE HIGHLY RECOMMEND YOU WEAR A
NZ APPROVED HELMET WHILE YOU RIDE YOUR
BURST BIKE.
PROTECT YOUR HEAD
WE WANT YOU TO ENJOY YOUR RIDE. ALWAYS
WEAR APPROPRIATE FOOTWEAR BEFORE
RIDING YOUR BURST BIKE.
PROTECT YOUR FEET
YOUR BURST BIKE IS NOT A TOY, IT HAS A TOP
SPEED OF 30KM/HR. WE RECOMMEND YOU TO
OPERATE THE BURST BIKE IN ACCORDANCE TO
YOUR SKILL LEVEL AND FITNESS.
NOT A TOY!!
YOUR BURST BIKE IS 28KGS. WE RECOMMEND
YOU TAKE YOUR TIME FOLDING YOUR BIKE
SO YOU DON’T INJURE YOURSELF. YOU CAN
REDUCE THE WEIGHT BY REMOVING THE
CARRIER AND MUD GUARDS.
CAREFUL WHILE FOLDING

CONTROL AND SETTINGS
• Power Switch
• Front Light Control
• 6km/h Pedestrian Mode Control
• Wheel Diameter Setting
• Top Speed Setting
• Idleness Time Setting for Auto-Hibernation
• Backlight Brightness Setting
• Voltage Level Setting
DISPLAY
• Speed Display
• Motor Power Ratio Display
• Battery Level Display
• Error Indication
• Total Mileage
• Single Mileage
• Single Running Time
• Light Signal
#BURSTBIKE LCD
PANEL
TILTING GEL SEAT
LIGHT
BATTERY LIFE
TOTAL MILEAGE: ODO
SINGLE MILEAGE: TRIP
SINGLE RUNNING TIME: TIME
CURRENT VOLTAGE VOL
OPERATING CURRENT: CUR
DST: UNSPECIFIED
6KM/HR WALK
SPEED LEVEL
SPEED DISPLAY
HANDLEBAR FAILURE
MOTOR FAILURE
CONTROLLER FAILURE
LOW BATTERY
POWERED RIDE

#BURSTBIKE
CUSTOM CONTROLS
HOLD UP AND DOWN ARROW BUTTONS TO
ENTER CUSTOMISE SETTINGS INTERFACE.
SELECT MODE TO TOGGLE THROUGH THE
OPTIONS
P01: BACKLIGHT BRIGHTNESS
1 = LOW
2 = MEDIUM (RECOMMENDED)
3 = BRIGHT
P02: MILEAGE OR KILOMETER
0 = KM (RECOMMENDED)
1 = MILES
P03: VOLTAGE CLASS
1 = 24V (DO NOT SELECT)
2 = 36V (DO NOT SELECT)
3 = 48V (RECOMMENDED)
P04: HIBERNATION TIME
0 = NO HIBERNATION
1 UNIT = 1 MINUTE
#BURSTBIKE
CONTROL PANEL
PRESS THE ‘MODE’ BUTTON FOR 3 SECONDS
TO SWITCH THE BURST BIKE ON AND OFF
SHORT PRESS THE UP ARROW TO CHANGE TO
A HIGHER SPEED LEVEL
SHORT PRESS THE DOWN ARROW TO
CHANGE TO A LOWER SPEED LEVEL
SHORT PRESS THE ‘MODE’ BUTTON TO
TOGGLE THE MULTI-FUNCTION SECTION
CRUISE CONTROL
WALKING ASSISTANCE - HOLD DOWN BUTTON FOR 6KM/
HR POWER WHEN PARKED
CRUISE CONTROL - HOLD DOWN BUTTON TO ENGAGE
CRUISE CONTROL WHILE RIDING
HOLD DOWN BUTTON TO DIS-ENGAGE
LED LIGHT
LONG PRESS TO TURN ON/OFF THE LIGHT

P11 GEAR MODE
2 (RECOMMENDED)
P12: ASSIST POWER INTENSITY
RANGE: 0 TO 5 = 5 (RECOMMENDED)
P13: POWER MAGNET STEEL NUMBER
RANGE: 5, 8 AND 12 = 12 (RECOMMENDED)
P14: CURRENT LIMIT VALUE
15A (RECOMMENDED)
P15: UNSPECIFIED
N/A
P16: UNSPECIFIED
N/A
P05 POWER GEAR
0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3: 4V
1/5 Gear Mode: Gear 1: 2V Gear 2: 2.5V Gear 3: 4V
Gear 4: 3.5V Gear 5: 4V
P06: WHEEL DIAMETER
20 (RECOMMENDED)
P07: MAGNET NUMBER FOR SPEED TEST
6 (RECOMMENDED)
P08: SPEED LIMIT
RANGE: 0 - 100 = 80 (RECOMENDED)
SPEED LIMITED TO 30KM/HR
P09: ZERO/ NON ZERO START
0 = ZERO (RECOMMENDED)
1 = NON ZERO START
P10: DRIVE MODE SETTING
0 = POWER DRIVE (The specifi c gear of the assist drive
decides the assist power value)
1 = ELECTRIC DRIVE (The vehicle is driven by the
handlebar. In this status the power gear does not work)
2 = POWER DRIVE + ELECTRIC DRIVE (Electric drive
does not work in zero-start status) DEFAULT

#BURSTBIKE
BATTERY CARE
TIP ONE - DO NOT CHARGE YOUR BATTERY AFTER SHORT
RIDES (10-15KM)
TIP TWO - CHARGING YOUR BATTERY TAKES APPROX 4-5
HOURS
TIP THREE - DO NOT LEAVE YOUR BATTERY CONNECTED TO
THE CHARGER FOR MORE THAN SIX HOURS
TIP FOUR - DO NOT CHARGE WHEN YOUR BATTERY IS OVER
80%
TIP FIVE - STOP USING THE BATTERY IF YOU EXPERIENCE
UNUSUAL SOUNDS OR SMELL - CONTACT US STRAIGHTAWAY
TIP SIX - ONLY USE IT TO POWER YOUR MOBILE PHONE
TIP SEVEN - USE THE APPROVED CHARGER PROVIDED TO
CHARGE THE BATTERY
TIP EIGHT - THE BATTERY AND CONNECTORS ARE NOT
WATERPROOF SO DON’T SUBMERGE THE BURST BIKE
TIP NINE - THE LED LIGHT ON THE CHARGER TURNS RED
WHEN ITS CHARGING THE BATTERY AND IT TURNS GREEN
WHEN THE BATTERY IS FULLY CHARGED
TIP TEN - ALL BATTERIES DEPRECIATE OVERTIME.
#BURSTBIKE
SHIMANO GEARSET
TIP ONE - ONLY CHANGE THE GEARS WHILE RIDING
TIP TWO - GEARS 1 AND 2 MAKE PEDALLING UPHILL EASY
TIP THREE - GEARS 3 TO 5 MAKE PEDALLING FLAT TERRAIN
AND DOWNHILL EASY (THE HIGHER THE GEAR THE FASTER YOU
GO)
TIP FOUR - AVOID SKIPPING GEARS AND RAPID SWITCHING
TIP FIVE - GEAR ADJUSTMENTS SHOULD BE MADE BY A
PROFESSIONAL BIKE MECHANIC
BRAKES
TIP ONE - BRAKES ARE FITTED WITH AUTO MOTOR CUT OFF
TIP TWO - TO SLOW DOWN MAKE SURE YOU APPLY YOUR
LEFT AND RIGHT BRAKE GRADUALLY TOGETHER
TIP THREE - ABRUPT BRAKING IS NOT RECOMMENDED
TIP FOUR - IT IS NORMAL FOR SOME NOISE WHILE BRAKING
TIP FIVE - CHANGING BRAKE PADS AND ADJUSTMENTS ARE
SHOULD BE DONE BY A PROFESSIONAL BIKE MECHANIC

KEY HIGHLIGHTS
RANGE - 40 - 50KM (Depends on rider weight, terrain and mode use)
SPEED - 30km/hr in Throttle Mode
BATTERY LIFE - 800 Charges
KEY FEATURES
CONVENIENCE - Foldable 6061 Aluminium Alloy Frame
POWERFUL - 48V 250W Bafang Rear Hub Motor
RELIABLE - 48V 10.4Ah (499 Watt Hours) Samsung Battery
VERSATILE - Suitable for urban, city and light adventures
ACCURATE - S830 LCD Display
DURABLE - Load capacity of 170Kgs
FLEXIBLE - Pedal Assist and Twist Throttle
#BURSTBIKE
SPECS
#BURSTBIKE
CARE
TIP ONE - DO NOT CLEAN YOUR BIKE WITH A WATER HOSE
TIP TWO - ALWAYS USE A DAMP CLOTH
TIP THREE - AVOID GETTING THE BATTERY PACK,
CONNECTORS AND OTHER ELECTRICAL PARTS WET
TIP FOUR - USE A BRUSH WHERE POSSIBLE TO GET RID OF
DIRT AND DEBRIS
TIP FIVE - USE A DRY CLOTH TO CLEAN THE CHAIN - PEDAL
BACKWARDS TO REMOVE DEBRIS
TIP SIX - DO NOT USE NON-APPROVED LUBRICANTS AND
SPRAYS. ONLY USE BIKE LUBRICANTS FOR BRAKES, CHAIN ETC
MOBILE SERVICE
ALL PURCHASES ON OUR WEBSITE INCLUDES ONE
COMPLIMENTARY MOBILE SERVICE BETWEEN 2 - 6 MONTH
FOR THE FIRST YEAR.
WE DON’T BELIEVE IN CHARGING YOU FOR MAINTENANCE
AND SERVICE DURING YOUR FIRST YEAR OF OWNERSHIP.
WE ARE ON THE MOVE, SO WE CAN KEEP YOU RIDING!

TECHNICAL SPECIFICATIONS
FRAME - 20"x 4.0'', alloy 6061 with decal and painting
FRONT FORK - MOZO 20"x 4.0’’ steel fork with steel Handlebar
STEM - NECO Alloy Stem
CHAIN - KMC CHAIN
MOTOR - 48V 250W Bafang Rear Hub Motor
BATTERY - 18650 LI-ION Samsung Cells
GEAR SET - Shimano Altus
RIMS - Integrated Bafang Wheel
BRAKES - Tektro Mechanical Disc Brakes
TYRE AND TUBE - Jiluer 20’’ 4’’ tyre and tube
FREE WHEEL - Shimano (TZ500-7)
SPEED SENSOR - DMHC Cadence Speed Sensor
CONTROLLER - DMHC Controller
CHARGER - AS/NZ PLUG CHARGER
PEDAL - WELLGO Aluminium Foldable Pedal
WEIGHT - 28kgs
WARRANTY
36 MONTHS - FRAME
12 MONTHS - MOTOR, BATTERY AND OTHER
COMPONENTS
0800 TRIBU NZ
