Tricity Bendix BA 450 Product guide

TRICITY BENDIX
Better Products. Better Value.
Model No.
BA 450
Operating and Installation Instructions

TECHNICAL SPECIFICATIONS
CONTENTS
2
Important information ......................Page 3
Installation ..........................Page 4
Unpacking ..........................Page 4
Positioning ..........................Page 4
Water inlet ..........................Page 4
Water drainage .........................Page 5
Levelling ...........................Page 5
Electrical connection .......................Page 6
Building-in ..........................Page 7
Getting to know your machine ....................Page 8
Control panel .........................Page 8
Washing hints .........................Page 9
Wash care symbols ........................Page 10
Use of detergent and additives ....................Page 11
Programmes for cotton and linen ....................Page 12
Programmes for synthetics, delicates and wool ................Page 13
Using your machine .......................Page 14
Washing 4.5 kg of white cotton at 95°C ..................Page 14
Washing 2 kg of synthetic fabrics at 50°C .................Page 15
Maintenance and cleaning .....................Page 16
Descaling, after each wash, external cleaning ................Page 16
Cleaning the dispenser drawer, cleaning the drawer recess, the dangers of freezing .....Page 16
Cleaning the filter ........................Page 17
The water inlet filters .......................Page 17
Servicing ..........................Page 18
Tricity Bendix guarantee conditions ..................Page 19
Tricity Bendix service centres ....................Page 20
DIMENSIONS Height 82 cm (32.3”)
Width 60 cm (23.6”)
Depth 57 cm (22.4”)
POWER SUPPLY VOLTAGE 220-240 V/50 Hz
TOTAL POWER ABSORBED 2550 W (13A)
WATER PRESSURE Minimum (hot) 005 psi (3.5 N/cm2)
Minimum (cold) 007 psi (4.8 N/cm2)
Maximum 110 psi (76 N/cm2)
MAXIMUM RECOMMENDED Cotton, linen 4.5 kg (10 lbs)
LOAD Synthetics 2 kg (4.5 lbs)
Delicate fabrics 2 kg (4.5 lbs)
Wool 1 kg (2.2 lbs)
SPIN SPEED Maximum 1200 rpm
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

IMPORTANT INFORMATION
3
It is most important that this instruction book should
be retained with the appliance for future reference.
Should the appliance be sold or transferred to
another owner, or should you move house and leave
the appliance, always ensure that the book is sup-
plied with the appliance in order that the new owner
can get to know the functioning of the appliance and
the relevant warnings.
These warnings have been provided in the interest
of safety. You MUST read them carefully before
installing or using the appliance.
INSTALLATION
■This appliance is heavy. Care should be taken when
moving it.
■All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
■Any plumbing work required to install this appliance
should be carried out by a qualified plumber or com-
petent person.
■Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
■Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
■If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
USE
■Always unplug the appliance and turn off the water
after use.
■Do not overload the appliance. See relevant section
in instruction book.
■Only wash fabrics which are designed to be machine
washed. If in doubt, consult the care label on the
clothes.
■Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.
■Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
■Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
■Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is pos-
sible for such items to slip down between the tub and
the inner drum.
■Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer’s recommendations of quantities.
■As some duvets and eiderdowns should be washed
in large commercial machines because of their bulk,
please check with the manufacturer of the item
before washing in a domestic machine.
■Leave the porthole door slightly ajar between washes
to preserve the door seal.
SERVICE/REPAIR
■Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by inexperi-
enced persons may cause injury or serious malfunc-
tioning. Contact your local Tricity Bendix Service
Centre. Always insist on genuine Tricity Bendix
spare parts.
GENERAL SAFETY
■It is dangerous to alter the specifications or attempt to
modify this product in any way.
■This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
■Pets and children have been known to climb into
washing machines. Please check your drum before
use.
■The glass door becomes very hot during the washing
cycle. Keep children away from the vicinity of the
appliance whilst it is in operation.
■When disposing of your old washing machine, the
electric cable must be cut off and the door catch must
be made unusable.

INSTALLATION
4
Unpacking
Before starting the machine up, the packing must be
removed as follows.
You are advised to keep all the packaging for re-use in
case the machine is to be transported again.
Using a spanner unscrew
and remove the rear right
bolt. Lay the machine
gently on its back, making
sure that the hoses are
not squashed.
Remove the polystyrene base and take off the bottom
panel by unscrewing the central screw. Carefully slide
out the right polythene bag.
Repeat the operation for the left and central polythene
bags.
Re-fit the bottom panel using the 4 screws supplied with
the door hinges (in the plastic bag) and the previously
removed screw.
Set the machine upright and remove the two remaining
bolts from the back.
Pull out the three plastic spacers from the holes into
which the bolts were fitted.
Plug the open holes with the plugs you can find on the
back of the appliance.
P0255
P0457
P0015
P0016
P0453
P0256
P0020
Positioning
Your new washing machine has been designed to be
permanently plumbed in to your home’s water supply
and drainage system. However, if this is not possible, it
may be connected to suitable existing taps with the drain
hose discharging into a sink.
The appliance has two inlet hoses, hot and cold, with
female 3/4” BSP thread connectors. If this connection is
not compatible with the plumbing of the existing installa-
tion, a variety of connectors are available from good
hardware stores and plumbers merchants to suit most
domestic plumbing. Any alteration to your existing
plumbing must be carried out by a competent person, or
qualified plumber.
Water inlet
The inlets on the back of the appliance are colour coded,
blue for cold and red for hot. Before connecting the
hoses be sure to fit the
mesh filters supplied as
per diagram.
If only a cold water supply is available, connect the two
hoses to a cold water outlet by means of a «Y» connec-
tion piece.
Installation should comply with local water authority and
building regulations’ requirements.
The appliance must be given a separate cold water sup-
ply and not be connected to a mixer tap, a single outlet
water heater or a booster pump. A minimum water pres-
sure of 7 psi is required for safe operation of the appli-
ance.
If you cannot make the cold water connection direct from
the rising mains, you may be able to operate the appli-
ance from your cold water storage system.
There should be a minimum distance of 5.02m (161/2 ft)
between the appliance’s inlet and the bottom of the
water storage tank.
There will be sufficient pressure for the hot water supply,
providing there is a minimun height of 2.74 metres
(9 ft) between the bottom of the cold water storage tank
and the bottom of the hot water cylinder.
Set the hoses correctly by
loosening the ring nuts.
After positioning the inlet
hoses, be sure to tighten
the ring nuts again to pre-
vent leaks.
P0003
P0021

5
Water drainage
This appliance is designed to be permanently plumbed
into your home’s water supply and drainage system.
Hook the end of the drain hose into a standpipe installed
for the purpose. The standpipe must have an internal
diameter of at least 40 mm (1 1/2") in order that there is
an air gap between the drain hose and the standpipe.
Make sure, that it is designed in such a way, that the
end of the drain hose cannot be covered with water.
The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece is
available from your local service centre. The joining
piece must have an internal diameter of 18 mm.
Important
Before connecting up the machine to new pipework or to
pipework that has not been used for some time, run off a
reasonable amount of water to flush out any debris that
may have collected in the pipes.
When discharging into a standpipe ensure that the end
of the drain hose is neither too high nor too low. The top
of the curve in the hose’s end should be no more than
90 cm (35.4”), and no less than 60cm (23.6”) above floor
level.
Levelling Level the washing ma-
chine by raising or low-
ering the feet. The feet
may be tight to adjust as
they incorporate a self
locking nut, but the
machine MUST be level.
Any necessary adjustment
can be made with a span-
ner. Accurate levelling
prevents vibration, noise and displacement of the ma-
chine during operation.
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.
Special conditions
If the floor is carpeted with a deep-pile carpet or covered
with crumbly or soft material, insert a rigid support base
under the feet to prevent noise, vibration or displace-
ment. The base should protrude a few centimetres
beyond the edges of the machine.
Warning
The machine should NOT be placed on deep pile car-
peting.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a break-
down.
All plumbing and electrical work required to install this
appliance must be carried out by competent persons or
qualified plumbers or electricians.
In the interest of the environment
Washing machines and dishwashers should be connect-
ed to the FOUL drainage system, the water will then be
taken to a sewage works for treatment before being dis-
charged safely into a river.
It is essential that these appliances are not connected to
the surface water drainage system as this water is dis-
charged directly into a river or stream and may cause
pollution.
If you require any further advice please contact your
local authority drainage department.
P0376
3 pin
40 mm
inside dia min
600 mm min
900 mm max
Joining piece
P0850
SHOWER
BATH
SINK TOILET
BIDET
WASHING
MACHINE DISHWASHER
RAINWATER
'RUN-OFF'
SURFACE WATER
DRAINS & SEWERS
UNTREATED
DISCHARGE
RIVER
FOUL DRAIN
FOUL SEWERS
SEWAGE
TREATMENT
WORKS
RIVER
P0987
TREATED
DISCHARGE

6
Electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the appropri-
ate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into a
13 Amp socket in another part of your home.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug, pro-
ceed as follows:
Connect the green and yellow (earth) wire to the terminal
in the plug which is marked with the letter «E» or the
earth symbol or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the plug
which is marked with the letter «N» or coloured black.
Connect the brown (live) wire to the terminal in the plug
which is marked with the letter «L» or coloured red.
The plug moulded on to the lead incorporates a fuse.
For replacement, use a 13 Amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured insert
at the base of the plug.
A replacement cover/carrier must be obtained from your
local Tricity Bendix Service Centre.
There is a list of these at the end of this instruction book.
GREEN & YELLOW 13 AMP FUSE
BROWN
CORD CLAMP
BLUE
13 AMP
P0329

7
Building-in
This appliance has been
designed to be built into
the kitchen furniture.
The recess should have
the dimensions shown in
picture A.
Preparation and assembly of the door
The machine is originally pre-arranged for the assembly
of a door opening from right to left.
In this case it is sufficient
to screw in the hinges (1)
and the counter-magnet
(6) provided with the appli-
ance, at the right level (Fig.
B).
a) Door
The dimensions of the door should be:
- width 595-598 mm
- thickness 16-22 mm
The height (C-Fig. C) depends on the height of the adja-
cent furniture's base.
b) Hinges To mount the hinges it is
necessary to drill two holes
(dia. 35 mm, depth 14 mm)
on the inner side of the
door. The distance be-
tween the holes must be
416 mm.
The distance (B) from
upper edge of the door to
the centre of the hole depends on the adjacent furniture's
dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of screws
for wood (2-Fig. B).
c) Mounting the door
Fix the hinges to the machine by means of the M5x8
screws (3-Fig. B). The hinges can be adjusted to com-
pensate for possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the
screw (3-Fig. B), adjust the door and tighten the screw
again.
d) Counter-magnet (6) The appliance is pre-
arranged for a magnetic
closure of the door. To
enable a correct operation
of this device, it is neces-
sary to screw the counter-
magnet (6) (steel disk +
rubber ring) into the inner
side of the door.
Its position must corre-
spond to the magnet (4) on the appliance (see picture D).
If the door has to be
opened from left to right,
invert the position of the
plates (7), the magnet (4)
and the rubber cap (5)
(Fig. B and E). Mount the
countermagnet (6) and the
hinges (1) as previously
described.
Important: the plastic screw (8) should never be loos-
ened (Fig. B and E).
46
P1014
51
2
3
7
8
E
P0984
6
4
8D
35 Ø 14 depth
16-22
B
C
22+1,5
595-598
416
P0422 C
4
12
3
6
1
2
3
P0982
5
7
8B
P0965
820 min
600 min.
600
596
416 176,5 818
541
195
490
160
120
90
8
515
165
A

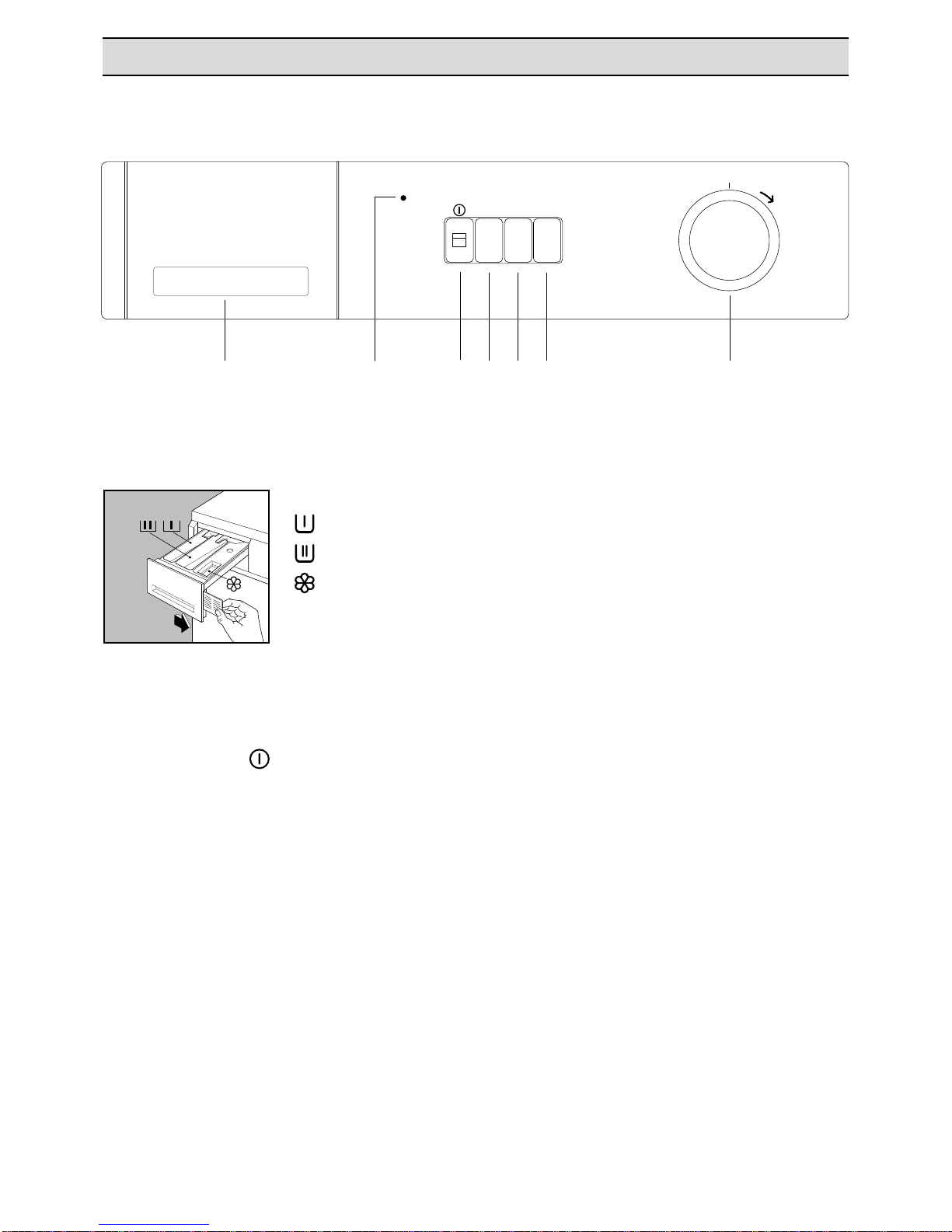

GETTING TO KNOW YOUR MACHINE
8
Control panel
1765432
HALF
LOAD RINSE HOLD QUICK WASH
MAINS ON ON/OFF
1 Detergent dispenser drawer
Symbols
Prewash
Wash
Fabric softener
2 Mains-on light
This light illuminates when the machine starts working
and goes out when the ON/OFF button is released.
3 ON/OFF button
By depressing this button the machine starts operating.
When depressing it again, the machine stops. The push
button is provided with a child-proof safety lock. Move
the small slider placed in the middle of the button down-
wards to lock the button in the «off» position.
4 Half load button
Select this button to reduce water consumption on the
rinse cycle when washing a smaller load of cottons or
linens (maximum load size = 2.25 kg).
5 Rinse hold button
Press this button to make the machine stop with water in
the drum after the synthetic or delicate wash cycles.
This prevents any creasing which may take place if the
clothes are left damp in the drum. When it is convenient
for you to empty the machine, simply press this button
again so that the machine can proceed to drain and
spin, or turn the dial to the drain programme “13”.
If this button is not activated, the washing programmes
will end with a short spin.
Do not press this button for woollens: wool items should
be gently spun.
The Rinse Hold option must not be selected when
using NON-STOP operation (automatic washing and
drying).
6 Quick wash button
By depressing this button on programmes 2, 3, 4and 7
the wash time will be reduced by approx. 20 mins.
This is suitable only for garments which are lightly soiled.
7 Programme selector dial
With the programme selector dial you choose the
desired washing programme. Depress the dial to pop it
out and turn it clockwise.
Before setting the dial to any position the machine must
be switched off by depressing the ON/OFF button.
P0239

9
Washing hints
Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.
The average weights of the most common items are list-
ed below as a guide:
1000g = 1 kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
■Load the laundry loosely alternating large items with
small ones.
■Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
■Avoid washing unhemmed or torn items as they may
unravel.
■Before washing, empty all pockets of small objects
which may have been left inside (coins, keys, screws
etc) as these could damage the drain pump.
■When washing curtains, remove the hooks.
■Close poppers and zips and fasten loose buttons.
■It is essential to wash new coloured items separately
when washing for the first time.
■When washing fabrics requiring different wash tem-
peratures together, always select the lowest tempera-
ture.
■White items should not be washed with coloured
items.
■Very small items (handkerchiefs, ribbons, socks etc)
should be washed in a washing bag or a pillow case.
■Use a good quality detergent suitable for automatic
washing machines.
■Use the correct quantities of detergent.
■For wool, use gentle detergent only in small quanti-
ties.
■Bleach is very corrosive; it should be used with care
and kept out of reach of children.
■Some stains such as fruit, wine, grass, rust etc. are
difficult to remove and should be treated before
washing with specific products, which can be found in
most household shops. In some cases it may help to
soak the stain before washing with a special pre-soak
product or biological detergent.
■Only wool marked «Pure New Wool - washable,
preshrunk» can be washed in the machine using the
wool programme; other types of wool should be
washed by hand or dry cleaned.
■If you have used the machine to wash, rinse or spin
only non-colour fast garments, there may be dye left
in the sump. To ensure any subsequent wash is not
contaminated with the dye, select and carry out a
rinse and spin programme, without any garments, to
ensure that any dye is removed from the sump.
■Once you have finished using the machine, you are
advised to unplug it and turn off the water taps.

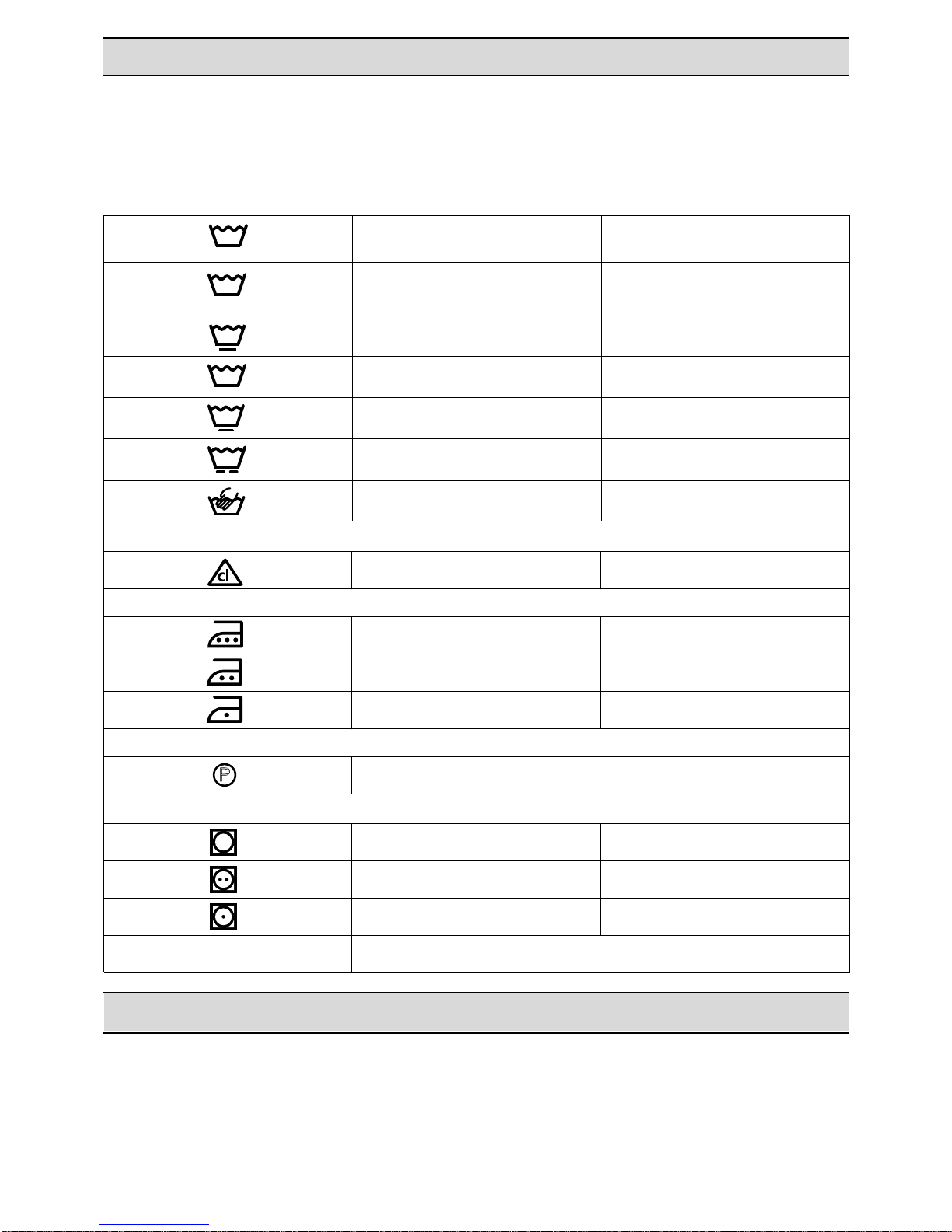

WASH CARE SYMBOLS
10
IMPORTANT NOTES
WASHING SYMBOL
BLEACHING
IRONING
DRY CLEANING
TUMBLE DRYING
WASH ACTION FABRIC
Hot iron
Warm iron
Cool iron
Cotten, Linen, Viscose
Polyester mixtures, Wool
Acrylic, Nylon, Polyester
Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code
is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme
on your washing machine.
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing it
in gently. This is particularly important if you are using
fabric conditioner to avoid the conditioner entering the
machine prematurely.
When using liquid detergent and a prewash programme,
place the detergent into the correct compartment in the
dispenser drawer, after the prewash has finished.
95
60
50
40
40
40
P
Chlorine bleach may be used
May be tumble dried
with high heat setting
with low heat setting
A cross through any symbol means «DO NOT»
May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.
Normal (Maximum)
Normal (Maximum)
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum)
Hand wash only
Nylon, Polyester/Cotton, Viscose with
Special Finishes, Cotton/Acrylic Mix.
Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.
Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.
Wool, wool mixtures, Silks
Do not machine wash
X

USE OF DETERGENT AND ADDITIVES
AND IN WHICH FORM?
WHICH DETERGENT TO USE?....
11
For most clothes and household textiles,
CONVENTIONAL DETERGENTS will give good wash-
ing results. Conventional detergents are available in
either a biological, such as Ariel, or a non-biological
form, such as Fairy, and are particularly suitable for
whites. Biological detergents provide improved stain
removal, especially at lower temperatures.
For coloured clothes and household textiles, you should
use COLOUR DETERGENTS, like Ariel Color, which
are designed to maintain the original colour of these
items, as well as providing excellent cleaning perform-
ance. These are all biological detergents. They are par-
ticularly suitable for matching and co-ordinated sets of
lingerie, bedding or towels.
For washing wool and silk, COLOUR DETERGENTS
ARE NOT SUITABLE.
For wool items, you should use a GENTLE/FINE WASH
DETERGENT, such as Dreft, which has been tested and
approved by the International Wool Secretariat and car-
ries the ‘Woolmark’. A similar detergent should also be
used for silk.
To maintain the appearance of your clothes and house-
hold textiles and to make them last longer, you should
use different types of detergent for different washes,
whether for whites, colours or delicates. Although this
may require buying two or three different products, you
do not need to use any more powder, or liquid, than if
you were buying just one.
Not only are there different types of detergent, but they
are also available in different forms.
POWDERS OR LIQUIDS
Powders and their liquid equivalent provide similar clean-
ing properties, although liquids dissolve faster when
hand washing and at lower temperature washes.
BIOLOGICAL OR NON-BIOLOGICAL
All Biological detergents contain enzymes.
Different types of enzymes assist with the removal of
protein, starch and fat-based stains, such as blood, egg,
chocolate and gravy. However, some people prefer non-
biological detergents which do not contain enzymes.
LOW SUDS
In a front loading automatic washing machine, you
should only use a low suds detergent. The majority of
detergents are now low suds products.
«BIG BOX» OR COMPACT
Compared to their traditional «Big Box»equivalents,
compacts (or concentrates as they are also known) have
an improved performance and environmental profile, as
well as requiring a smaller dosage level.
FABRIC CONDITIONERS
These are ideal for improving ‘softness’. They also re-
duce static cling on synthetics and make ironing easier.
Fabric Conditioners come in three forms:
Liquids (regular or concentrated) which work in the final
rinse.
Sheets for use in the tumble dryer, and
Combined Detergent and Fabric Softener
Choosing the Right Detergent
Always use a low lather powder or liquid. This is impor-
tant as too much lather prevents the articles from being
properly cleansed and may damage the machine.
Use of Powder Detergent
The washing powder should be placed in the appropriate
compartments in the detergent dispenser drawer before
starting the programme.
Use of Liquid Detergent
A liquid detergent can be used in the middle compart-
ment of the dispenser drawer. Start the machine immedi-
ately upon placing the liquid in the dispenser drawer.
Use of Fabric Conditioners
Any liquid additives for softening or dressing the laundry
must be poured into the appropriate compartment of the
detergent dispenser drawer before starting the pro-
gramme.
The compartment with the symbol is for softeners
and dressing agents; never exceed the MAX. Ievel.
When using super concentrated fabric conditioners,
please follow the manufacturer’s instructions carefully.

12

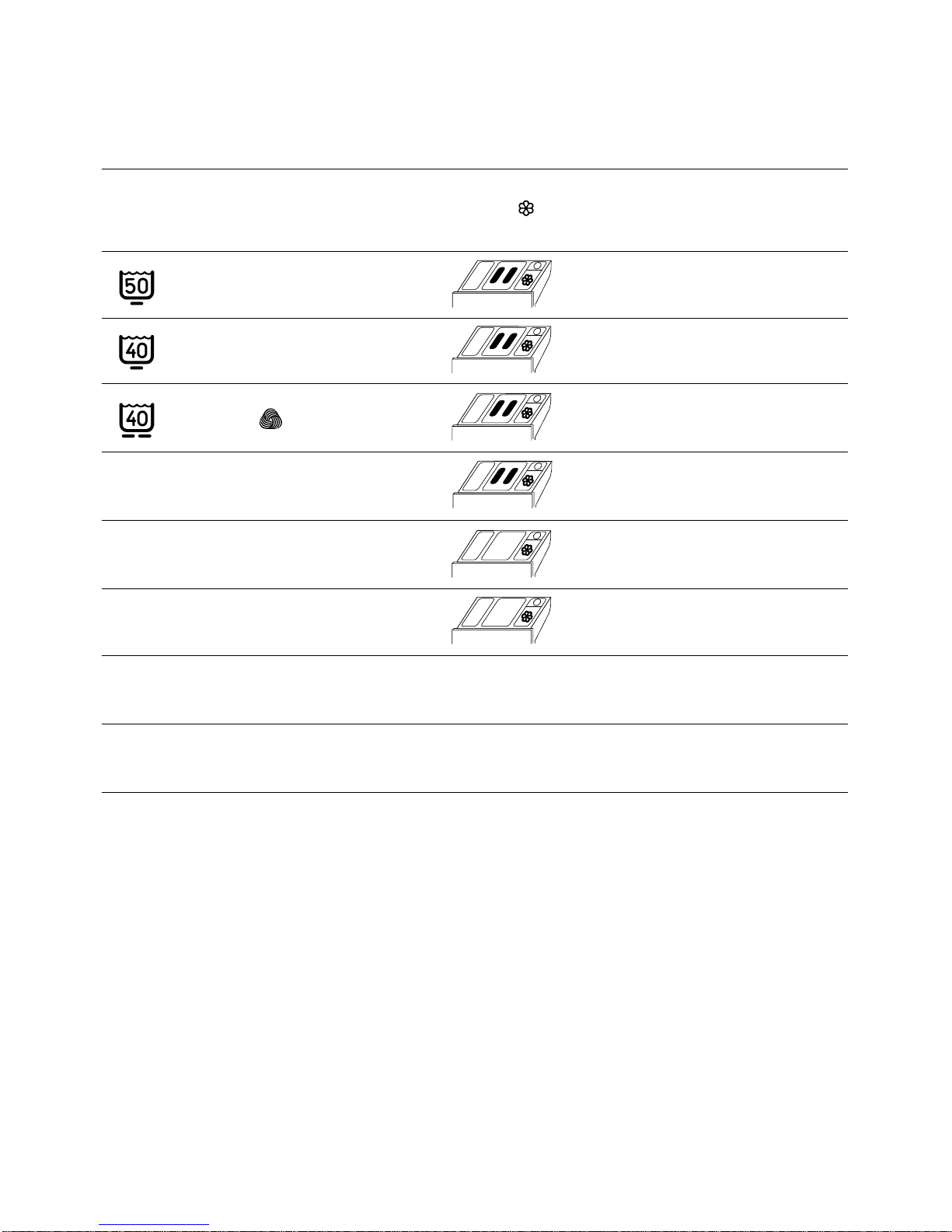

Programmes Degree
of soil
Compartments
to use ( if
required)
Programme
dial position/
Temperature Description
Programmes for cotton and linen
Recommended load: max. 4.5 kg (10 lb)
WHITES
WITH
PREWASH Heavy 1
95°
Prewash at 40°C
Wash at 95 °C
4 rinses
Spin
WHITES
WITHOUT
PREWASH Normal 2
95° Wash at 95 °C
4 rinses
Spin
FAST
COLOUREDS Normal 3
60° Wash at 60 °C
4 rinses
Spin
NON FAST
COLOUREDS Normal 4
40° Wash at 40 °C
4 rinses
Spin
5Spin at 1200 rpmSPIN 1200
Water filling: 30°/40°/50° programmes: cold water filling
Water filling: 60° programmes: hot and cold filling
Water filling: 95° programmes: hot filling only

13
Programmes Degree
of soil
Compartments
to use ( if
required)
Programme
dial position /
Temperature Description
SYNTHETICS Normal 6
50° Wash at 50 °C
3 rinses
Short spin (*)
Programmes for synthetics, delicates and wool
Recommended load: max. 2 kg (4.5 lb); wool max. 1 kg (2.2 lb)
WOOL
Normal Wash at 40 °C
3 rinses
Short spin (*)
8
40°
RINSES
9
30°
3 rinses, with fabric
softener, if required
Short spin (*)
SPIN 650
10
Draining of water
and short spin
at 650 rpm
CONDITIONER
RINSE
1 rinse, with fabric
softener, if required
Short spin (*)
11
DRAIN
12
Draining of water
(*) If the “RINSE HOLD” button has not been depressed.
QUICK & COOL
7
40°
Wash at 30 °C
3 rinses
Short spin (*)
Light
DELICATES
Wash at 40 °C
3 rinses
Short spin (*)
Normal
13

USING YOUR MACHINE
14
WASHING 4.5 KG OF WHITE COTTON AT 95°C
Suppose you have 4.5 kg of normally dirty laundry to
wash. It is white cotton and is suitable for high tempera-
ture washing.

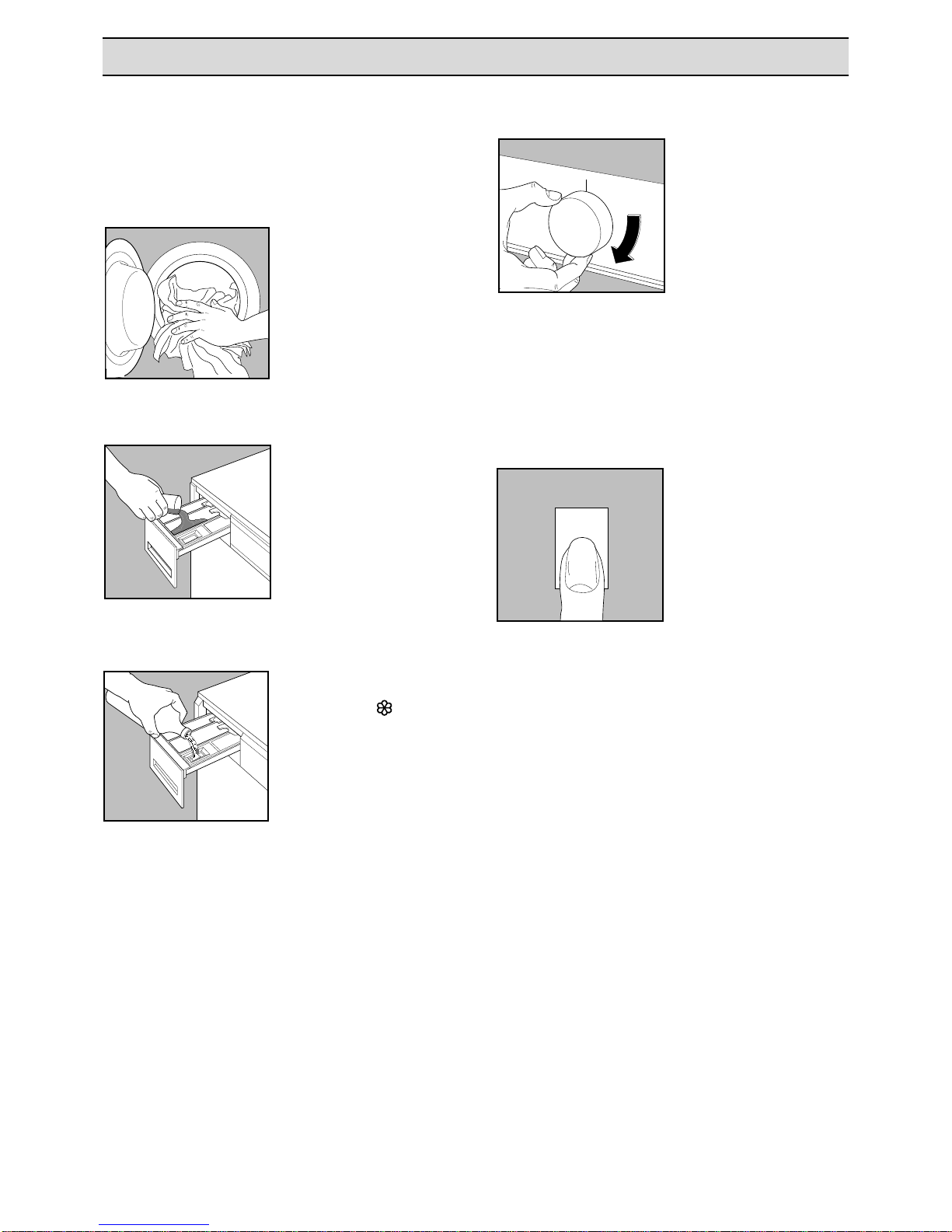

1 Load the laundry Open the door by pulling
the catch outward. Load
the items one at a time
and close the door.
2 Measure out the detergent
Pull out the detergent dis-
penser drawer from the
control panel. Measure
out the amount of deter-
gent required and pour
into the main wash com-
partment.
If you wish to carry out a
programme with prewash,
pour the amount of deter-
gent required into the «prewash» compartment.
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the compart-
ment marked .
Do not exceed the MAX
level and then close the
drawer gently.
4 Select the required option(s)
Depress HALF LOAD and/or QUICK WASH if desired.
5 Select the required wash programme
Turn the programme
selector dial clockwise to
the required programme.
6 Start the machine
Before starting up the machine check that:
■the appliance is plugged in
■the water supply taps are turned on
■the drain hose is correctly and securely positioned
■the door and the detergent dispenser drawer are
closed. Depress the ON/OFF but-
ton: the mains-on light illu-
minates and the machine
starts operating.
7 At the end of the programme
The machine stops automatically.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF but-
ton again. The mains-on light goes out.
When the programme has finished you are advised to
unplug the appliance and turn off the water taps.
P0004
P0006
P0005
P0724
2
P0726
ON/OFF

15
WASHING 2 KG OF SYNTHETIC FABRICS AT 50°C
Suppose you have 2 kg of synthetic fabrics to wash.
They are rather delicate fabrics and should not be
washed at a high temperature.

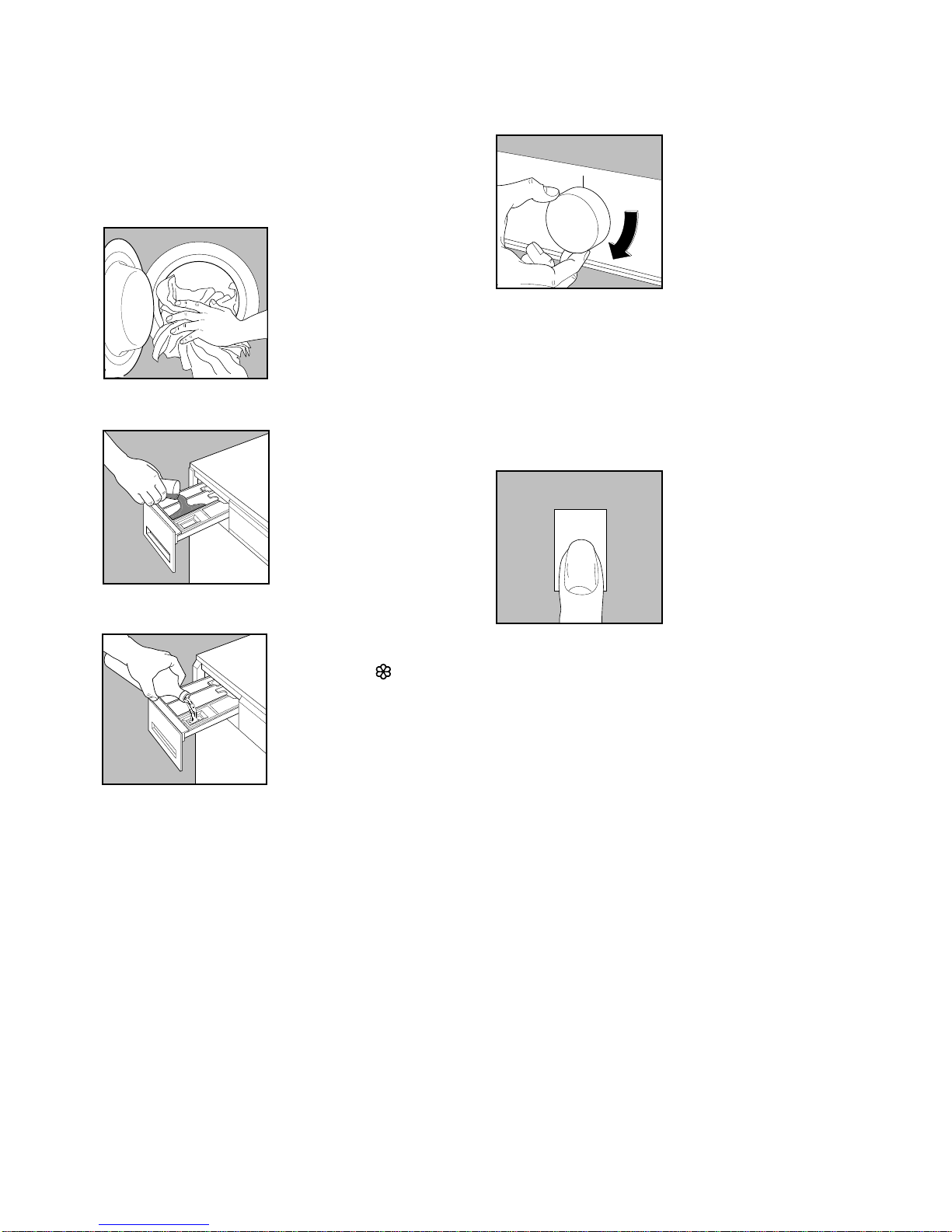

1 Load the laundry Open the door by pulling
the catch outward.
Load the items one at a
time and close the door.
2 Measure out the detergent
Pull out the detergent dis-
penser drawer from the
control panel. Measure
out the amount of deter-
gent required and pour
into the main wash com-
partment.
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the compart-
ment marked .
Do not exceed the MAX
level and then close the
drawer gently.
4 Select the required option
Depress RINSE HOLD and/or QUICK WASH, if desired.
5 Select the required wash programme
Turn the programme
selector dial clockwise to
the required programme .
6 Start the machine
Before starting up the machine check that:
■the appliance is plugged in
■the water supply taps are turned on
■the drain hose is correctly and securely positioned
■the door and the detergent dispenser drawer are
closed. Depress the ON/OFF but-
ton: the mains-on light illu-
minates and the machine
starts operating.
7 At the end of the programme
The machine stops automatically.
If you have selected the RINSE HOLD option, the
machine will stop after the last rinse with the water left in
the wash tub, to prevent the fabric from creasing. To
drain the water release the RINSE HOLD button or
select programme 13.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF but-
ton again. The mains-on light goes out.
When the programme has finished you are advised to
unplug the appliance and turn off the water taps.
P0004
P0006
P0005
P0799
6
P0726
ON/OFF

MAINTENANCE AND CLEANING
16
Before any maintenance or cleaning is carried out you
must DISCONNECT the appliance from the electricity
supply.
Descaling
The water we normally use contains lime. It is a good
idea to periodically use a water softening powder in the
machine. Do this separately from any laundry washing,
and according to the softening powder manufacturer's
instructions. This will help to prevent the formation of
lime deposits.
After each wash
Leave the door open for a while. This helps to prevent
mould and stagnant smells forming inside the appliance.
Keeping the door open after a wash will also help to pre-
serve the door seal.
External cleaning
Clean the exterior cabinet of the appliance with soap and
water only, and then dry thoroughly.

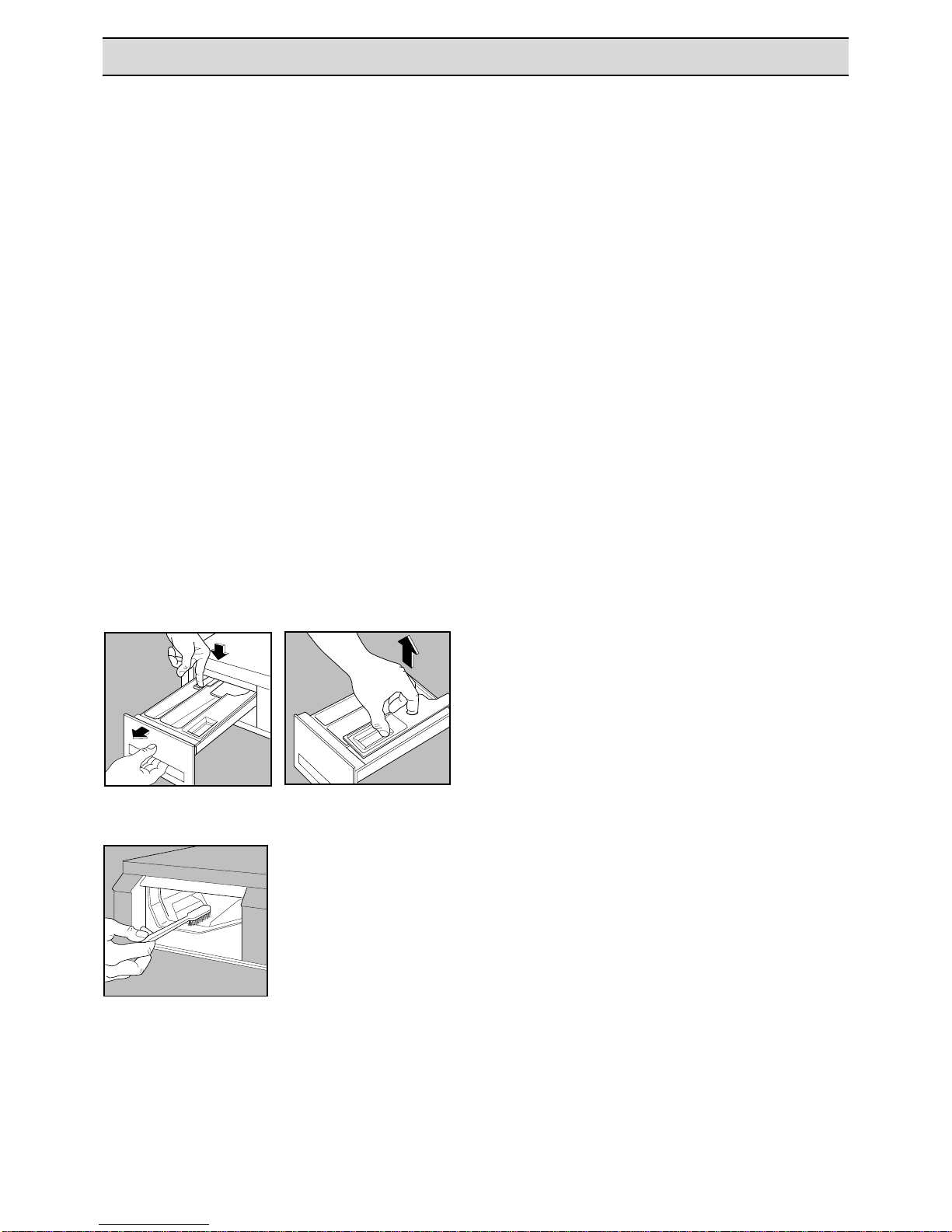

Cleaning the dispenser drawer
From time to time the washing powder and additive dis-
penser drawer should be cleaned.
Remove the drawer by pressing the catch downwards
and by pulling it out. Flush it out under a tap, to remove
any traces of accumulated powder.
Cleaning the drawer recess
Having removed the draw-
er, use a small brush to
clean the recess, ensuring
that all washing powder
residue is removed from
the upper and lower part
of the recess.
Replace the drawer and
run the rinse programme
for a few minutes without
any clothes in the drum.
The dangers of freezing
If the machine is exposed to temperatures below 0°C,
certain precautions should be taken.
■Turn off the water taps.
■Unscrew the inlet hoses.
■Unhook the drain hose from the rear support and
position the end of this hose and that of the inlet
hoses in a bowl. Run the draining programme until
the selector dial is in the “Stop” position.
■Disconnect the appliance.
■Screw the inlet hoses and reposition the drain hose.
■When you intend to start the machine up again,
make sure that the room temperature is above 0°C.
P0010 P0009
P0038

17
Cleaning the filter
The water drain filter
A clean filter is important for the correct functioning of the
machine, and should therefore be cleaned after every
washing and drying programme.
Open the filter door and place a container underneath to
catch any spillage. If the filter is blocked and the machine
is unable to drain you will need to drain the water manu-
ally from the machine at this stage. To do this, unhook
the drain hose from the standpipe or sink and hold the
end of the hose over a bowl on the floor. The water
should drain by gravity into the bowl. When the bowl is
full, hook the hose back up and empty the bowl. Repeat
the procedure until water stops flowing out.
Unscrew and remove the filter.
Clean carefully under a
fast running tap.
Warning
When the appliance is in use and depending on the pro-
gramme selected there can be hot water in the filter.
Never remove the filter during a wash cycle, always wait
until the appliance has finished the cycle, and is empty.
When replacing the filter, ensure it is securely retight-
ened so as to stop leaks and young children being able
to remove it.
P0037 P0039
P0040
The water inlet filters
If your water is very hard or contains traces of lime de-
posit, the water inlet filters may become clogged.
It is therefore a good idea to clean them from time to
time. Turn off the water taps.
Unscrew the water inlet
hoses. Remove and clean
the filters using a hard
bristle brush. Replace the
filters and tighten up the
inlet hoses.
P0041

SERVICING
18
Before contacting your local Tricity Bendix
Service Centre, please make the following
checks:
The machine does not start up
■The ON/OFF button has not been depressed
■The door is not closed properly
■No water is entering the machine (see: the machine
does not fill)
■The selector dial is not correctly positioned
The machine does not fill
■The water tap is not turned on
■The water supply has been disconnected
■The inlet hose is kinked
■The water pressure is too low
■The water inlet filter is clogged
■The door is not closed properly
The machine empties as it fills
■The end of the drain hose is too low
■The end of the drain hose is submerged in water
■Drain pipe has no vent-hole
The machine does not drain or spin
■You have selected a gentle wash cycle with the
Rinse Hold option
■The drain filter is clogged
■The drain hose is kinked
■The drainage system pipes are blocked
■The drain hose extension is incorrect
■The wash load is unbalanced. Redistribute the load
inside the drum to allow the machine to spin.
The machine leaks or overflows
■Too much detergent
■Unsuitable detergent
■The inlet hose is loose
■The detergent dispenser drawer or recess is clogged
■The end of the drain hose is not securely positioned
■The drainage system pipes are blocked
The machine vibrates or is noisy
■The internal packing and transit bolts have not been
removed
■The machine is not level
■The machine is in contact with the wall or furniture
■The washing load is badly distributed
■The machine is overloaded
The door does not open
■The safety device has locked it
■Water in the tub: the door cannot be opened if water
is present in the tub
If, after the above checks, there is still a fault, call your
local Tricity Bendix Service Centre.
Please make sure you give the model and serial number
of the appliance.

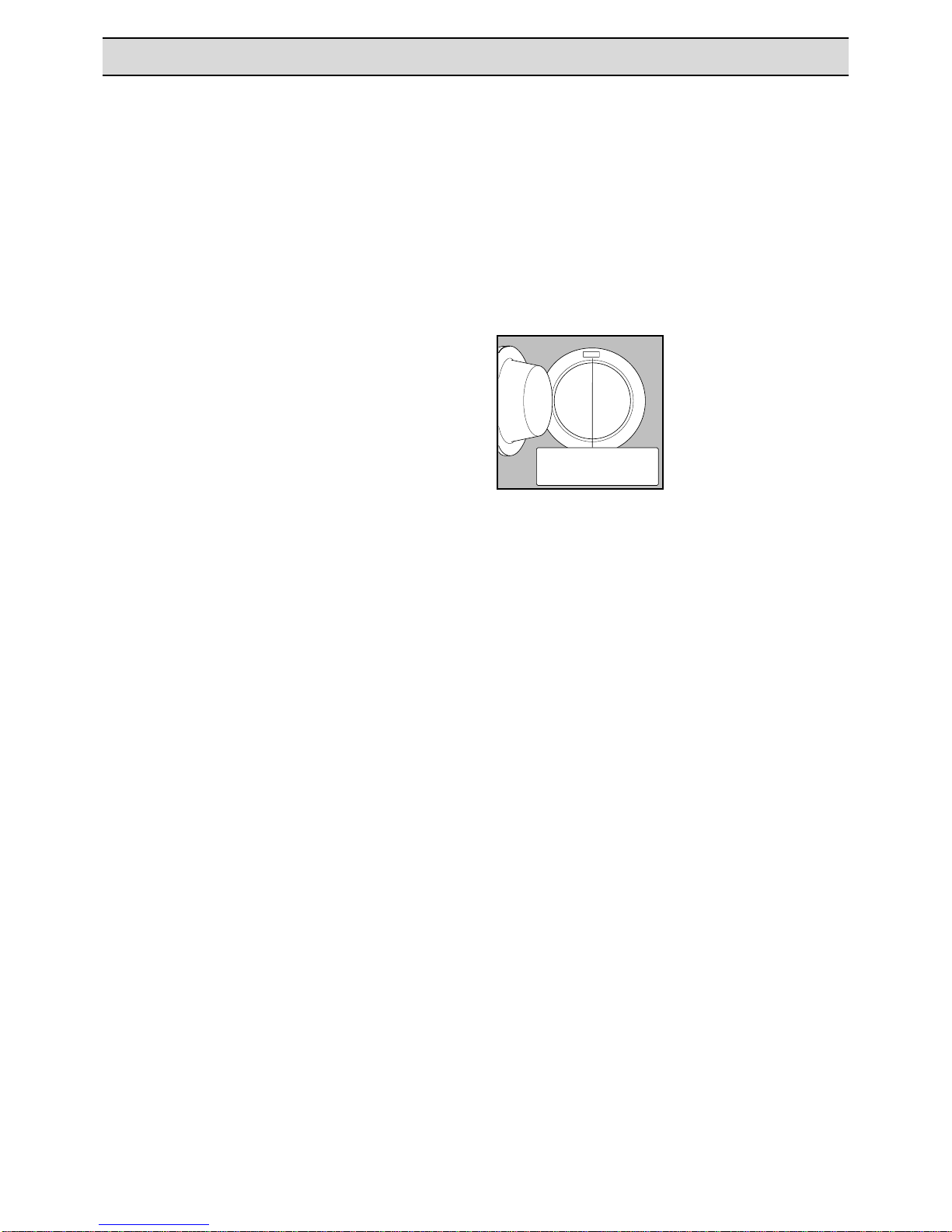

This information can be found on the rating plate (see
picture) or on the guarantee card.
Original spare parts can
be purchased from Tricity
Bendix Service Centres.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Please note that proof of purchase is required for
any in-guarantee service calls.
Mod. ..........
Prod. No. ...........
Ser. No. .........
Mod.
..........
Ser.
P0042

TRICITY BENDIX GUARANTEE CONDITIONS
19
We, Tricity Bendix, undertake that if within 12 months of
the date of the purchase this TRICITY BENDIX appli-
ance or any part thereof is proved to be defective by rea-
son only of faulty workmanship or materials, we will, at
our option repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
■The appliance has been installed correctly and used
only on the electricity supply stated on the rating
plate.
■The appliance has been used for normal domestic
purposes only, and in accordance with the manufac-
turer's operating and maintenance instructions.
■The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any per-
son not authorised by us.
All service work under this guarantee must be undertak-
en by a Tricity Bendix service representative or autho-
rised agent.
Any appliance or defective part replaced shall become
our property.
This guarantee is in addition to your statutory and other
legal rights.
Home visits are made between 8.30 am and 5.30 pm
Monday to Friday. Visits may be available outside these
hours in which case a charge will be made.
Exclusions
This guarantee does not cover:
■Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic, or vacu-
um cleaner drive belts, brushes or dust bags.
■Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
■Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
■Products of Tricity Bendix manufacture which are not
marketed by Tricity Bendix Ltd.
■EU Countries. The standard guarantee is applicable
but subject to the owner's responsibility and cost to
ensure the appliance meets the standards set by the
country to which the product is taken.
Proof of purchase may be required. Electrolux
Aftersales Service in the country concerned, with
whom Tricity Bendix have an arrangement, will be
pleased to advise further.

20
TRICITY BENDIX SERVICE CENTRES
CENTRE
ABERDEEN
ARGYLL
BARNSTAPLE
BORDERS
BRISTOL
CANVEY
CARDIFF
CUMBRIA
DUMFRIES &
GALLOWAY
POSTAL DISTRICTS
AB
PA 24-61
EX 18-23
31-39
TD
BA BS SP TA
EECENNNWWC
AL CB HA HP LU MK SG UB
WD
CM CO IG RM SS
IP NR PE 14-19,30-38 or
CF, NP 1-4, 6, 9-44
SA 1-18 SA 21-32
CA
DG 1-14
SERVICE
APPOINTMENTS
01224-696569
01369-703161
01271-328826
01573-224411
0117-9211876
0181-443-3464
0181-965-9699
0181-965-9699
01268-694144
01603-667017
01266-694144
01222-460131
01228-594747
01387-265166
ADDRESS
Tricity Bendix After Sales Service
Northeast Appliance Service
8 Cornhill Arcade
Cornhill Drive
Aberdeen
AB2 5UT
Tricity Bendix After Sales Service
T.D.C. Refrigeration
Briar Hill
7 Hill Street
Dunoon
Argyll
PA 23 7AL
Tricity Bendix After Sales Service
McBain Refrigeration
Unit 4 Upcott Avenue
Pottington Industrial Estate
Barnstaple
North Devon
EX31 1HN
Tricity Bendix After Sales Service
James Stewart & Son
2-8 Wood Market
Kelso
Borders
TD 5 7AX
Tricity Bendix After Sales Service
Unit BE46
PO Box 37
Bristol
BS 99 1UD
Tricity Bendix After Sales Service
2-4 Sandhurst
Kings Road
Canvey Island
SS8 OQY
Tricity Bendix After Sales Service
Guardian Industrial Estate
Clydesmuir Road
Tremorfa
Cardiff
CF2 2QS
Tricity Bendix After Sales Service
E.T.B. Services
Carlisle Enterprise Centre
James Street
Carlisle
CA2 5AP
Tricity Bendix After Sales Service
Allan Crossan (Service)
93 Irish Street
Dumfries
Scotland
DG1 2PQ
