TRIPLE ONDA TOP.S 318A User manual
TRIPLE ONDA S.A
C/ Bobinadora 95
08302 Mataró (Barcelona-SPAIN)
www.tripleonda.com
User guide TOP.S 318A
TOP.S 15A 2009
2
TRIPLE ONDA,
30 years designing, manufacturing and dealing
TRIPLE ONDA LAUNCHES A NEW PRODUCT
RANGE: TOP.S SERIES
Triple Onda launches a new product range,
called TOP.S Series, designed to cover medium
and little events.
New TOP.S Series cabinets are build-in
amplified and processed for professional
performance. As usual, all Triple Onda’s
products follows the same philosophy: high
quality design, robust and unusual products for
all the professionals who live on the live sound
every day.
.
1. INTRODUCTION
1.1. General
TRIPLE ONDA S.L. would like to thank you for
your confidence in our TOP.S Series cabinets.
A gathered experience of more than 30 years
designing acoustic cabinets and amplifiers,
applying most advanced analysis devices, has
allowed to TOP.S Series become the optimal
and ideal solution for fixed installations and
especially for live events. TOP.S Series’
lightness, quality, power, and reliability will
not fail to surprise!
We suggest you to carefully read the following
instructions in order to obtain the best results in
performance.
1.2. Safety Instructions
1. All the safety and operation instructions
should be read before this product is operated.
2. The exclamation point within an equilateral
triangle is intended to alert the user of the
presence of internal components whose
substitution may affect safety.
3. The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert
the user of the presence of uninsulated
dangerous voltage that may constitute a risk of
electric shock to persons.
4. This product should not be exposed to rain or
moisture. Do not use it, for example, near a
swimming pool, water fountain or any liquid
sources.
5. Clean only with a dry cloth.
6. This product should be situated so that its
location does not interfere with its proper
ventilation.
7. Do not install near heat sources such as
radiators or other devices which produce heat.
8. This equipment should be serviced only by
qualified service personnel when:
9The power-supply cord or the plug has
been damaged; or
9Objects have fallen, or liquid has spilled;
or
9This product does not appear to operate
normally; or
9This product has been exposed to rain; or
9The chassis is damaged.
9. Unplug this product during lightning storms or
when unused for long periods of time.
10. Do not suspend the cabinet from the handle.
2.TOP.S 318A OPERATING
INSTRUCTIONS

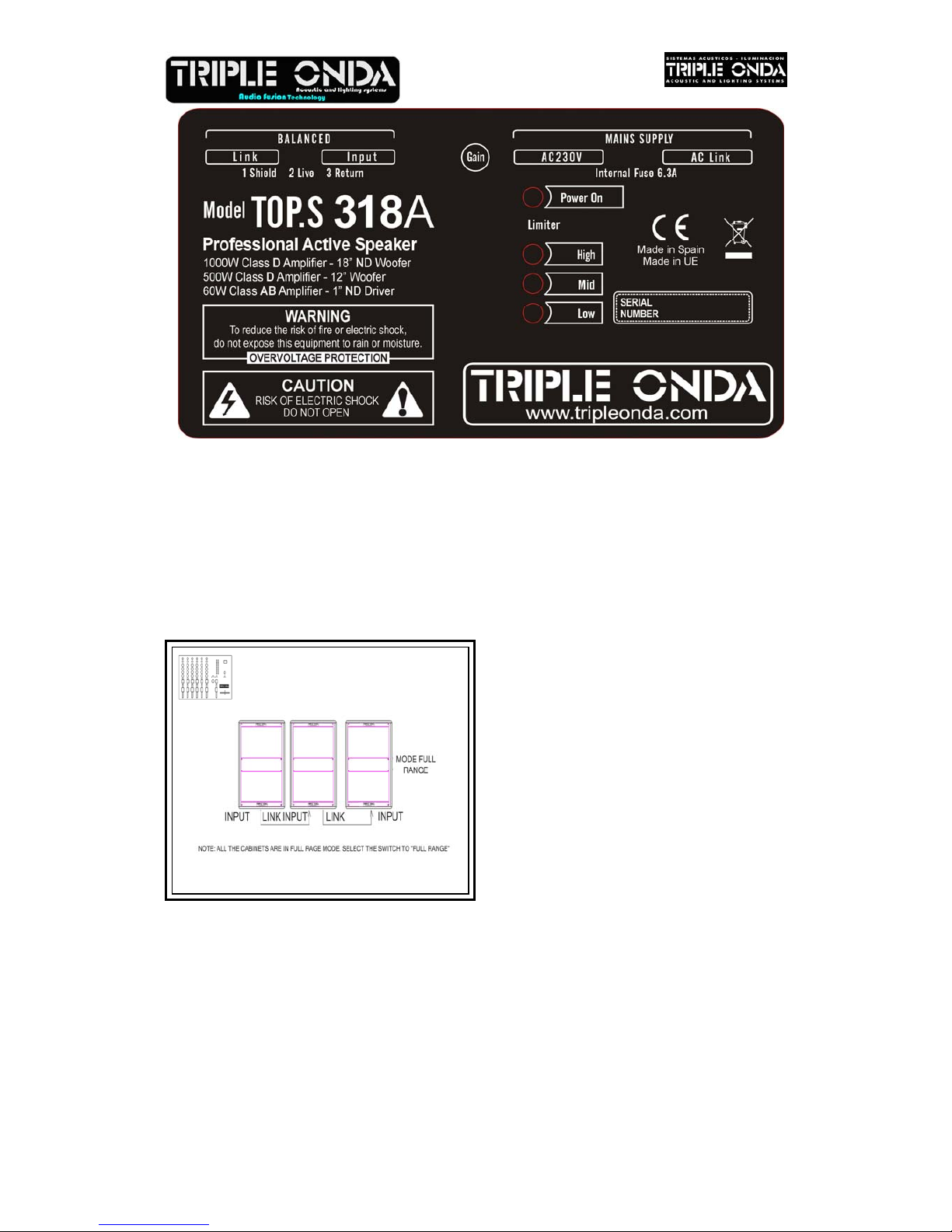

2.1. Connections
1- Balanced Input: Balanced signal XLR:
1= Shield 2= Live 3= Return
2-Link: XLR connector used for paralleling
several units, which will share the same input.
1= Shield 2= Live 3= Return
3-Gain: Adjust LINE Input level
4- Mains Supply: Input AC PowerCon
connector.
5-AC Link (Mains): Output AC PowerCon to feed
a secondary cabinet
6-LIMITER: Prevents the amplifier outputs from
overdriving the transducers. When the LIMITER
indicators are active, they are in red colour. The
LIMITER indicators can be in red occasionally,
but if they are continuously activated, turn down
the level control until the LIMITER indicators
are only in red occasionally
TOP.S 15A 2009
3
Note:
- (*) 10 dB. Half space anechoic
- Specifications subjected to change without
p
revious notice.
2.2. Configurations
2.2.1. Daisy chaining connection
You may daisy chain as many units as required.
Plug into the INPUT of the first unit (from a
Mixer's output). Then connect the LINK output
(first unit) to the INPUT of the second unit, and
so on. All of the units in the chain should be
switched on.
2.3.
Technical
features
TOP.S 15A 2009
4
TOP.S 318A
Line Input XLR
(BALANCED) 1V-10KΩ
Mains 230V +/- 10%
Full power
consumption 6,3 A
Components:
Woofer
Driver
1x12” + 1x18" Neo.
Magnet
1" ¾ Titanium
Diaphragm
Directivity H/V 50º to 100º x 55º
Rotat.Horn
Frequency
Response(*)
40 Hz - 19KHz
Maximum SPL (1m)
130 dB
Dimensions (H x W x
D) 1150 x 580 x 548 mm
Weight 52 Kg
TOP.S 15A 2009
5
3. MOUNTING AND PLACEMENT
For a proper installation of the acoustic cabinet
systems, it is strongly recommended to carefully
read the following advices.
3.1. Placement
The "Full Range" cabinets should be located in a
high position (between two or three meters),
slightly inclined to the audience. If the
loudspeakers are located too low, the listeners
at the end of the room will not receive enough
sound pressure level.
They may be located together, in cluster form,
one next to the other, taking advantage of their
trapezoidal shape.
4. TROUBLESHOOTING
No power
•Make sure that the cabinet is plug in.
•The Fuse is blown. Replace the fuse on fuse
holder with one of the same type. If it blows
again, take the unit to a service centre.
No sound
•Check that the mixer or sound source is
sending signal to the unit.
•Make sure that the VOLUME potentiometer is
well-positioned.
•Check that the cable from the sound source to
the units is connected correctly. Replace the
cable if defective.
•Make sure the output volume (gain) control on
the mixing console is turned up sufficiently to
drive the inputs of the speakers.
•Make sure the mixer does not have a Mute on.
Distorted sound
•The system is overloaded and has reached
maximum power. Turn down the mixer's output
or the channel's gain.
Poor bass performance
•Check the polarity of the connections between
the mixer and the cabinets. You may have the
positive and negative connections reversed at
one end of the cable, causing a loudspeaker to
be out-of-phase.
Noise and Hum
•Make sure all connections to the active unit are
in good conditions.
•Avoid the signal cables to be routed near AC
cables, power transformers, or EMI-inducing
devices.
•Check if there is any light dimmer on the same
AC circuit as the cabinet. Connect the sound
system to a different phase than the lights.
TOP.S 15A 2009
6
