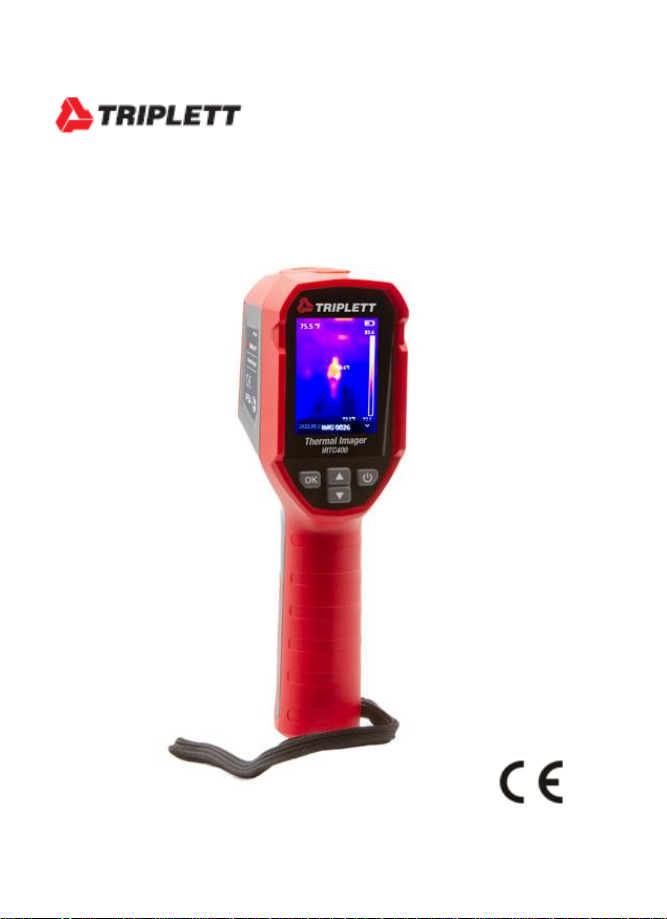

Triplett IRTC400 User manual

User Manual
IRTC400
Thermal Imager

Introduction
Congratulations on your purchase of the Triplett IRTC400
Thermal Imaging Camera. This instrument is useful in many
applicaons such as preventave maintenance,
troubleshoong of electrical and HVAC systems, mechanical
breakdowns, water leaks and moisture buildup, heat loss from
missing insulaon and faulty windows/doors, automove
repair, and other places tond leaks and hot spots. With
proper care the instrument will last for many years of
accuracy and service.
Features
•2.4” (61mm) focus-free, color TFT display with 320 x 240 resoluon
•Center spot and high/low temperature tracking on image
•Audible and visual user programmable high/low temperature alarms
•4-buon easy-to-use menu
•Real me clock/calendar
•Image gallery
•Built-in LED worklight
•Auto power owith disable
•USB interface for transferring images (.bmp) and recharging
•Includes 3.7V rechargeable Lithium-Ion bery, USB cable, soware,
and 32G microSD card

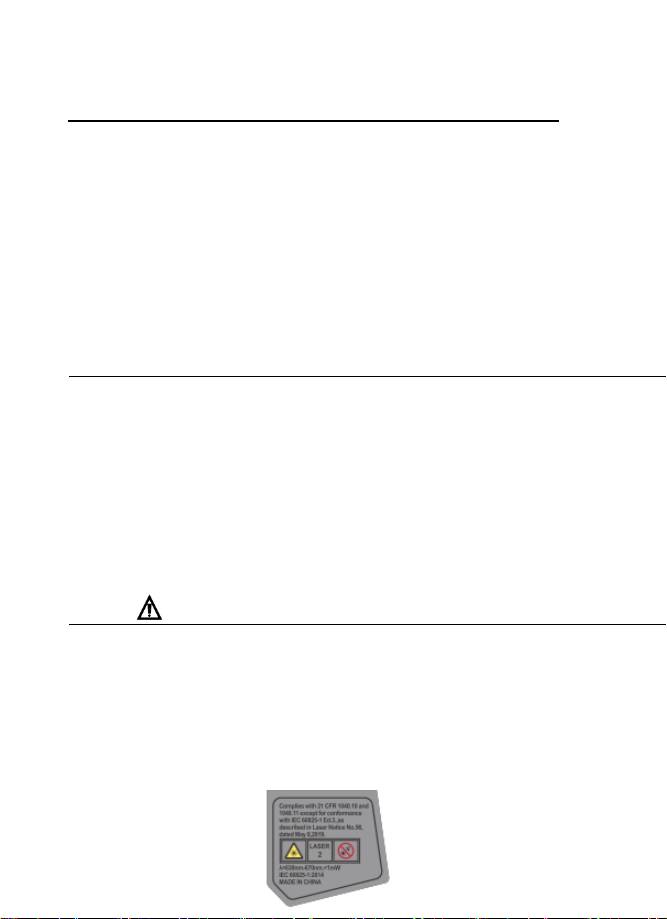

Safety
Internaonal Safety Symbols This symbol, adjacent to another symbol or
terminal, indicates the user must refer to the manual for further
informaon. Cauons o Improper use can damage the meter. Please read
and understand all of the informaon provided in this User Guide and
other included documentaon before use. o Use extreme cauon when
the laser pointers are on. o Do not point the beam toward anyone's eye or
allow the beam to strike the eye from a reecve surface. o Do not use
the laser near explosive gases or in other potenally explosive areas. o
Refer to the CAUTION statement label (shown below) for crical safety
informaon.

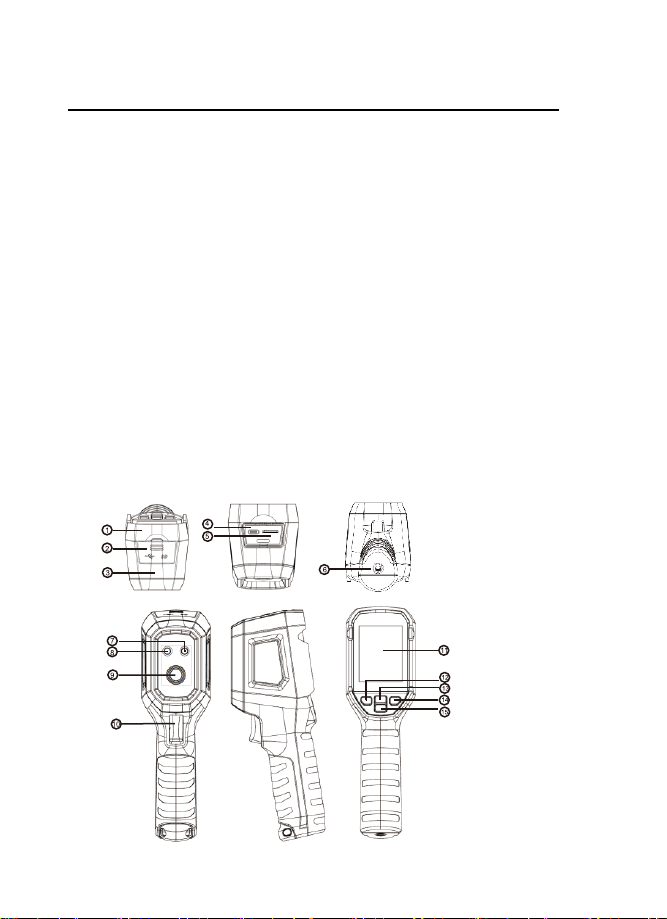

Meter Description
1. Upper Housing
2. Interface Protecve Cover
3. Lower Housing
4. USB Type-C Interface Connector
5. SD Card Slot
6. Tripod Mount
7. Laser Emission Window
8. LED Light
9. Infrared Camera Lens
10. Trigger/Image Capture
11. LCD Display
12. OK Buon
13. Up Buon
14. Power/Back Buon
15. Down Buon

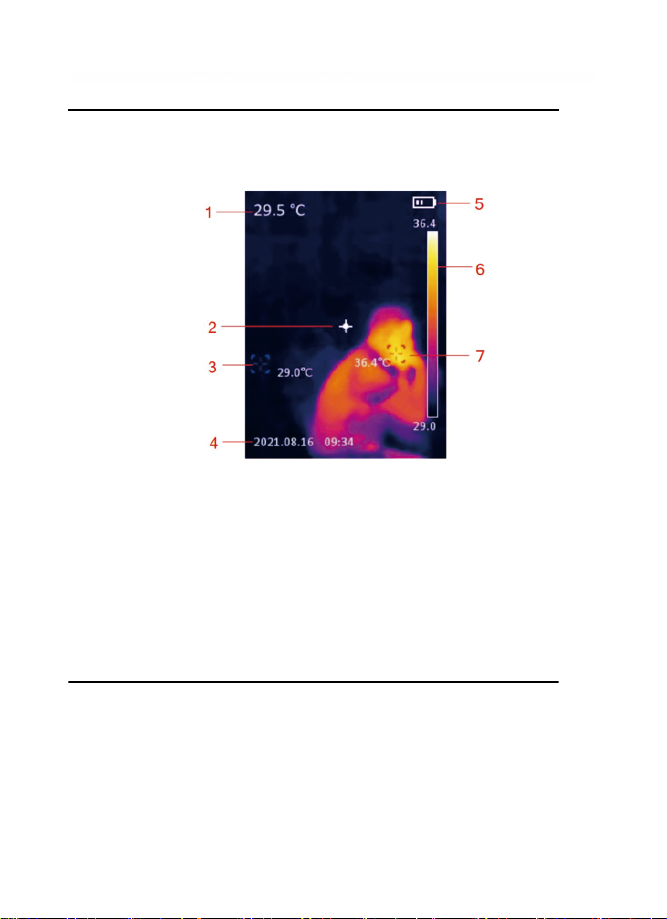

Display Indicators and Icons
•Display size: 2.4" (495mmx377mm)
•Display resoluon: 320 (vercal) x 240 (horizontal)
1. Center Point Temperature
2. CenterPoint
3. Low Temperature Point
4. Date and Time
5. Baery Status
6. Temperature Bar
7. High Temperature Point
Operation
Power On/Off
When the thermal imager is not turned on, long press the power buon
for 3s to power on. When the thermal imager is in the suspend state,
short press the power buon for 1 s to power on. When the thermal
imager is turned on, short press the power buon for 1s to enter the
suspend state. Long press the power buon for 8s,

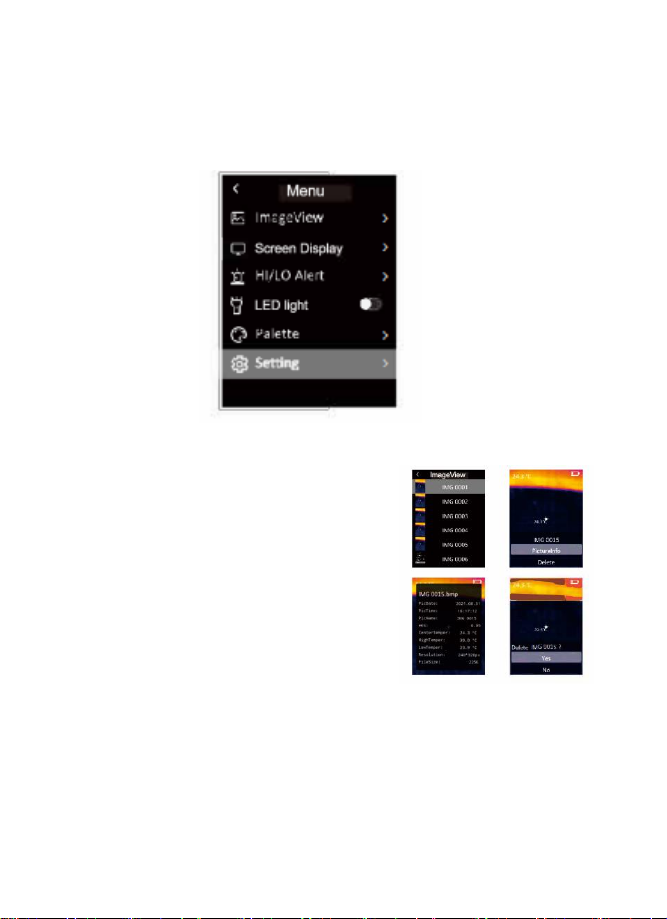

Menu
Short press the OK button to enter the menu interface. Short press the
Back button to return to the upper menu. Short press the trigger to
directly return to the main interface of the thermal imager.
Image View
In the menu, select Image View, and then
short press the OK button to enter the
image viewing interface. Press the
Up/Down button to select an image.
Press the OK button twice to view the
Picture Info or Delete images.

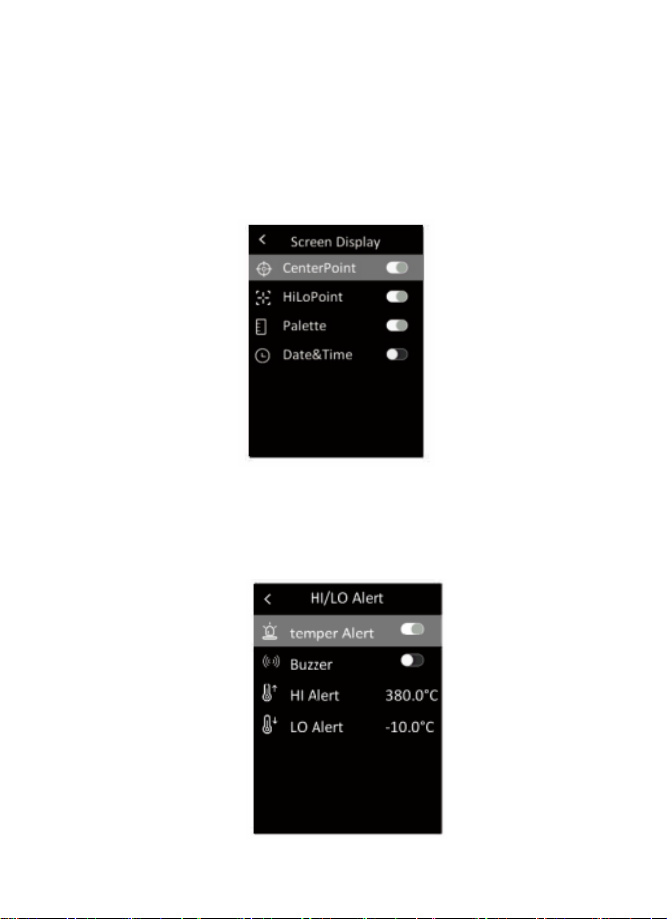

Temperature Mark
In the menu, short press the Up/Down button to select Temper Mark, and
then short press the OK button to enter the temperature mark interface.
Center Point Hi/Lo Point Palette/Date & Time can be set in this interface.
For example, select Center Point, and then press the OK button to turn
on/off this function.
HI/LO Alert
In the menu, short press the Up/Down button to select HI/LO Alert, and
then short press the OK button to enter the alert setting interface.
Temper Alert, Buzzer, HI Alert and LO Alert can be set in this interface.

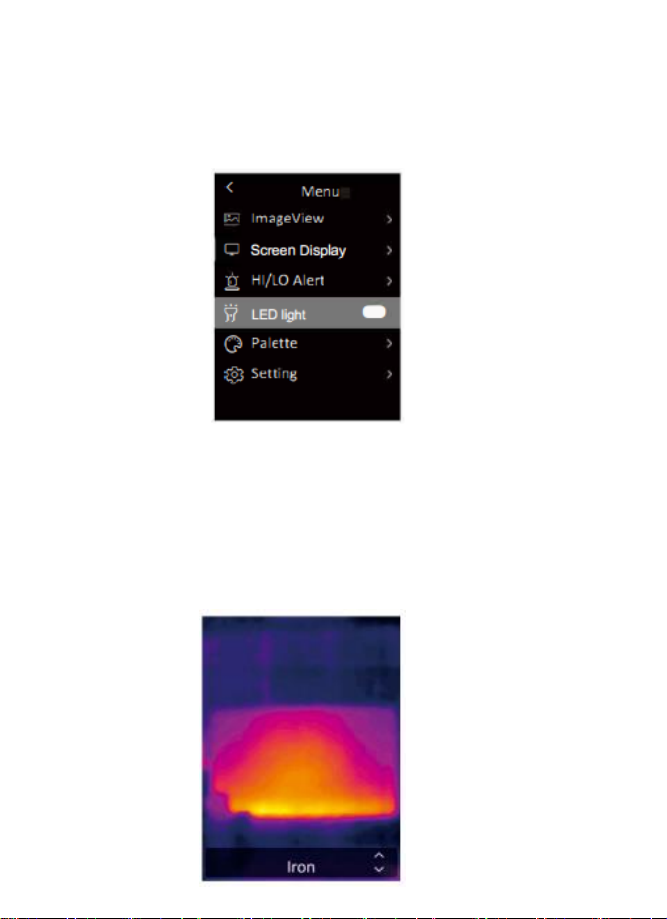

LED light
In the menu, short press the Up/Down button to select Hand Light, and
then short press the OK button to turn on/off the flashlight.
Palette
In the menu, short press the Up/Down button to select Palette,
and then short press the OK button to enter the palette selection
interface. Short press the Up/Down button to step through six
palettes: Rainbow, Iron, White Hot, Black Hot, Rainbow HC, Lava,
and short press the OK button to confirm the selected palette.

Language (English Only)

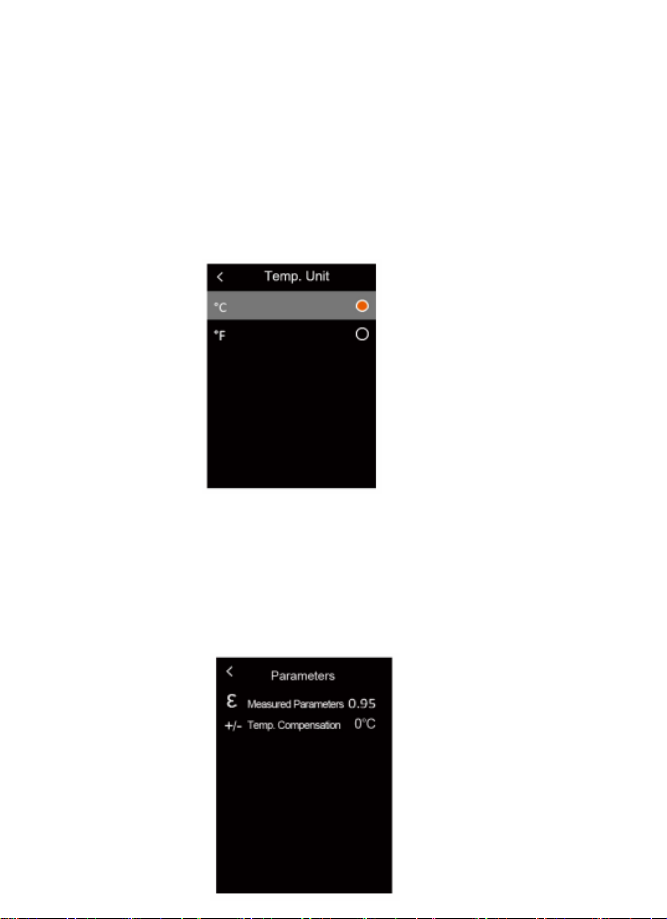

Temperature Unit
In the menu, short press the Up/Down button to select Setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the Up/Down button to select Temper Unit,
and short press the OK button to switch between °C/°F.
Measured Parameters
In the menu, short press the Up/Down button to select setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the UP/Down button to select Emissivity or
Temperature Compensation, and short press the OK button for
settings.

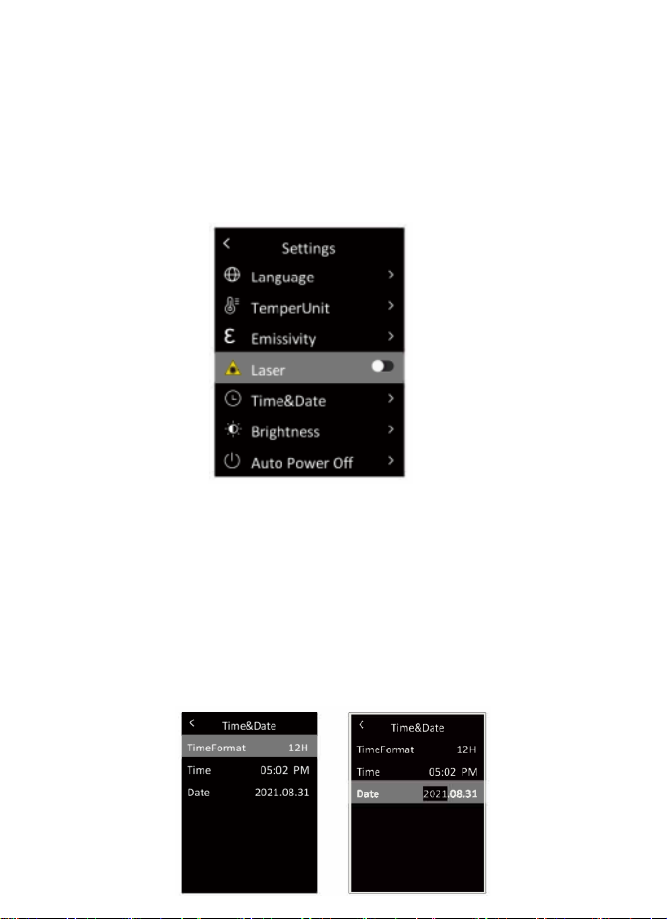

Laser
In the menu, short press the Up/Down button to select
Setting, and then short press the OK button to enter the
submenu. In the submenu, short press the Up/ Down button
to select Laser, and short press the OK button to turn on/off
the laser.
Time & Date
In the menu, short press the Up/Down button to select Setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the Up/ Down button to select Time & Date,
and short press the OK button to enter the setting interface. The
Time Format can switch between 12H and 24H. Press the
Up/Down button to adjust the value of time and date, and short
press the OK button to confirm.

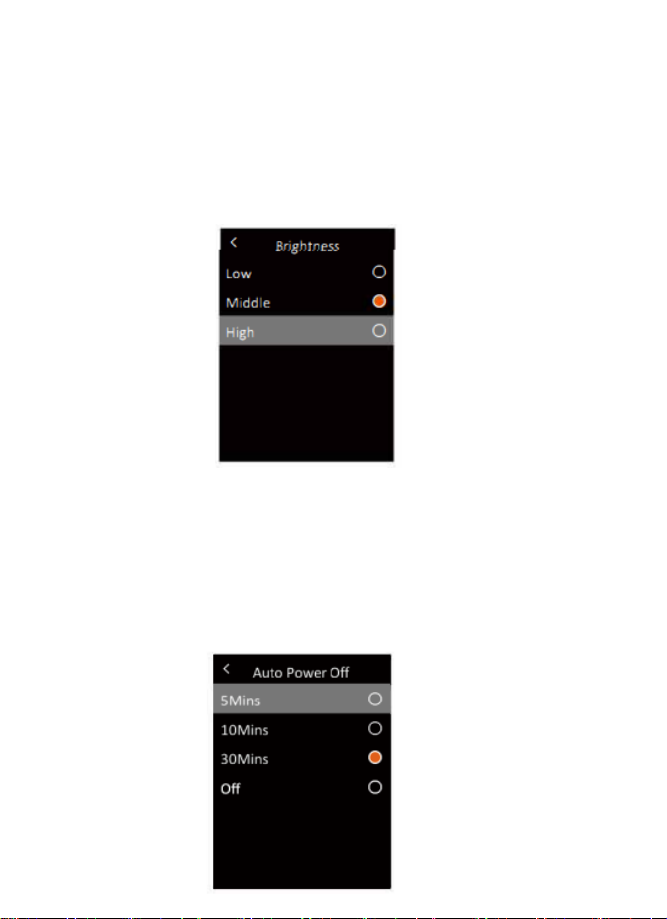

Brightness
In the menu, short press the Up/Down button to select Setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the Up/ Down button to select Brightness,
and short press the OK button to enter the setting interface. The
brightness can be Low, Middle, or High
Auto Power Off
In the menu, short press the Up/Down button to select Setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the Up/ Down button to select Auto Power
Off, and short press the OK button to enter the setting interface. In
this interface, users can set the auto power off time (5/ 10/30min)
or turn off the auto power off function.

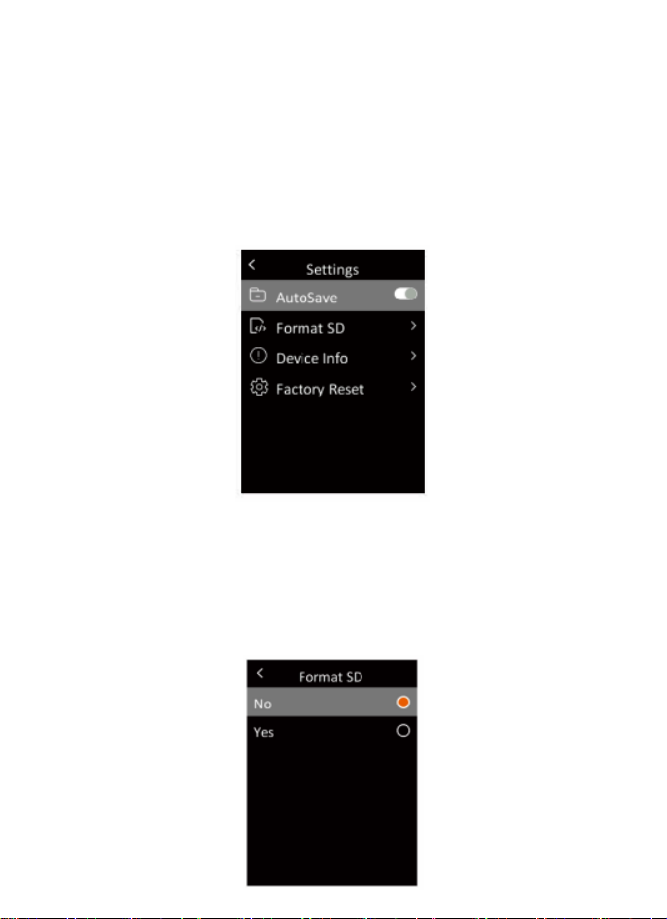

Auto Save
In the menu, short press the Up/Down button to
select Setting, and then short press the OK button to
enter the submenu. In the submenu, short press the
Up/ Down button to select Auto Save. Short press the
OK button to turn on/off the auto save function.
Format SD
In the menu, short press the Up/Down button to select Setting,
and then short press the OK button to enter the submenu. In the
submenu, short press the Up/ Down button to select Format SD
and short press the OK button to enter the setting interface. Press
the OK button select Yes or No

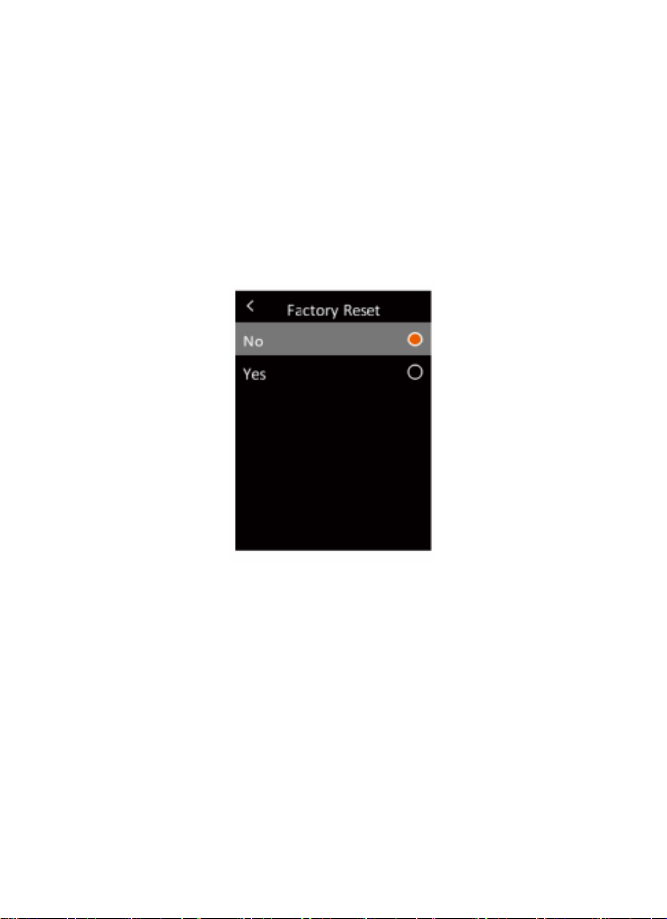

Factory Reset
In the menu, short press the Up/Down button to select
Setting, and then short press the OK button to enter the
submenu. In the submenu, short press the Up/ Down button
to select Factory Reset and short press the OK button to
enter the setting interface. Press the OK button select Yes or
No. In this picture, it will jump back to the main interface
when you touch the screen.
USB Communication and PC Analysis Software
1. Please refer to the instructions to download and install the PC
software.
2. Connect the USB data cable to the computer. Users can view
images and analyze data via the PC software.
3. To use the PC software correctly, please read the Software User
Manual.
4. During USB communication, do not directly unplug the USB
cable. If users want to disconnect the device when it has been
successfully connected to the computer, they can select Remove
Device in the lower right corner of the computer.

Maintenance
Use a wet cloth or weak soap solu�on to clean the outer shell of
the device. Do not use abrasives, isopropyl alcohol or solvents to
clean the outer shell, lens or window.

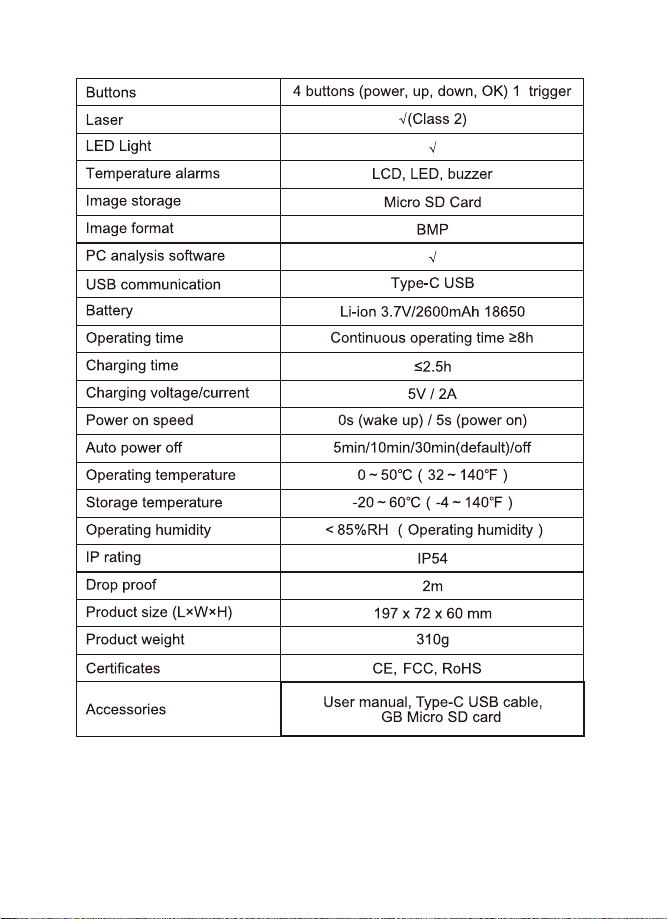

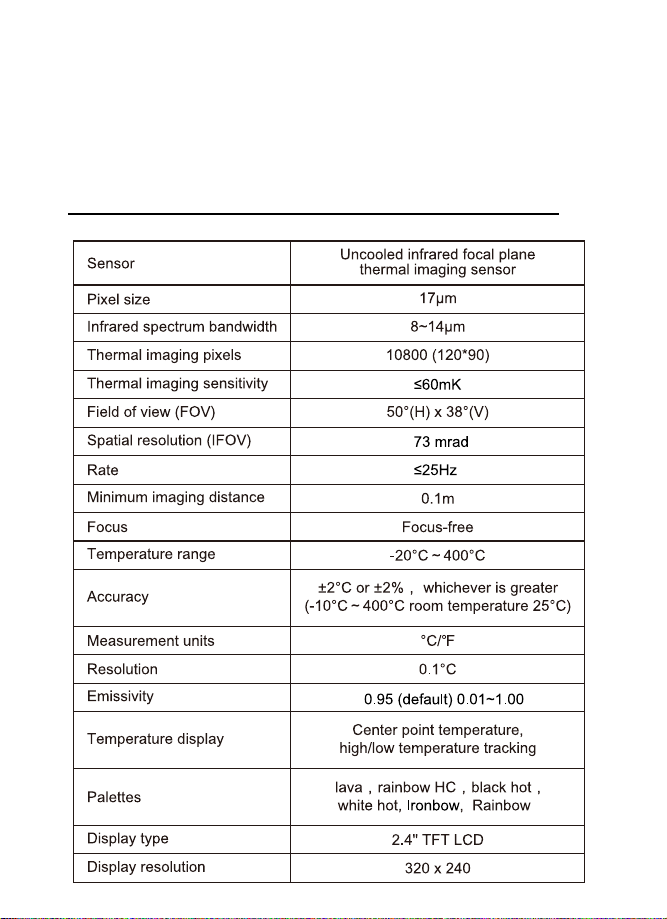

Specifications

32

Warranty
Triplett / Jewell Instruments extends the following warranty to the
original purchaser of these goods for use. Triplett warrants to the
original purchaser for use that the products sold by it will be free
from defects in workmanship and material for a period of (1) one
year from the date of purchase. This warranty does not apply to any
of our products which have been repaired or altered by unauthorized
persons in any way or purchased from unauthorized distributors so
as, in our sole judgment, to injure their stability or reliability, or which
have been subject to misuse, abuse, misapplication, negligence,
accident or which have had the serial numbers altered, defaced, or
removed. Accessories, including batteries are not covered by this
warranty
Copyright ©2022 Triplett
