TRIVIEW TLM-1901W User manual

OPERATING INSTRUCTIONS
TLM-1901W

1
Table of Contents
●FCCInformation -2
●CEInformation -2
●SafetyPrecautions -3
1.Generalfeatures -4
2.Settingup -5
3.ControlsandIndicators -6
4. On-screen display - 8

2
FCC Information
This equipment has been tested and found to be complied with the limits of Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generate, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with
emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Information
The equipment must be installed according to the currently valid installation regulations for
EMC to guarantee the designed use and to prevent EMC problems. In accordance with EC
requirement, both EMC Directive (89/336/EEC) and Low Voltage Directive (73/23/EEC), the
equipment is in compliance with the essential requirement of the following:
EMC: EN 55022
EN 61000-3-2
EN 61000-3-3
EN 50130-4
EN 55024
LVD: EN 60950-1

3
Safety Precautions
1. Do not modify the three-prong grounding type monitor power plug in any way.
2. Operate this unit only from the type of power source indicated on the label.
3. Do not block or cover ventilation openings on the back or bottom of the monitor cabinet.
4. Do not place this monitor near a radiator or heating vent.
5. Do not push objects of any kind through cabinet openings. This may result in fire or
electrical shock.
6. Before adding attachments always ask a service technician to perform routine safety
check to determine that equipment is in safe operating condition. Ground potential test
should be part of the routine safety check by service technician.
7. Do not place monitor on an unstable cart, stand, or shelf where it may fall and cause
personnel injury and equipment damage.
8. Route power cords properly in avoiding of stepped or tripped over. Do not allow anything
to rest on the power cord.
9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not
spill liquid of any kind onto the unit.
10. Unplug the power cord from the unit before cleaning the display. Use only a damp cloth.
Do not use alcohol, spirits, or ammonia to clean the display. DO NOT ATTEMPT TO
CLEAN THE INTERIOR OF THIS UNIT- THIS ACTION MUST BE PERFORMED BY
THE SERVICE TECHNICIANAS REQUIRED DURING NORMAL MAINTENANCE.
11. Refer all servicing to qualified service personnel. REMOVAL OF BACK COVER BY
UNAUTHORIZED PERSONNEL MAY EXPOSE THE USER TO DANGEROUS
VOLTAGES OR OTHER HAZARDS.
12. Unplug the unit immediately and notify the service technician.
A. If liquid has been spilled into the display or the display has been exposed to rain or
water.
B. If the unit has been dropped or the cabinet damaged.
C. If fuses continue to blow.
D. If the power cord is damaged or frayed.
E. If a distinct change from normal operation is apparent.
When replacement parts are required, be sure that the service technician uses components
specified by the manufacturer which have the same characteristics as the original parts.
UNAUTHORIZED SUBSTITUTIONS MAY RESULT IN FIRE, ELECTRICAL SHOCK OR
OTHER HAZARDS.
Upon completion of any service or repairs, ask the technician to perform safety check to
determine that the equipment is in safe operating condition.
WARNING: SERIOUS SHOCK HAZARDS EXIST WITHIN THE COVERS OF THIS
MONITOR. DO NOT OPEN THE COVERS UNDER ANY CIRCUMSTANCES. THERE ARE
NO USER SERVICEABLE COMPONENTS INSIDE.

4
1. General Features
This is a high performance TFT LCD monitor with a 1440X900 WXGA+
resolution.
The LCD monitor has been designed for both PC and Video application, complied
with the power management regulation of VESADPMS, in supporting Plug & Play
and complying with DDC2B.
FEATURES
100 - 240V AC Power Supply
(apply on DC power adaptor)
NTSC/PALAuto-Detect
High Resolution
PC Input
Video BNC Input & output
S-Video Input
Audio Input
OSD with Dual Languages

5
2. Setting up
Read this chapter for important safety information and how to set up and connect
the display to your computer or camera.
․Check the attachment of monitor. There are power cord, power adapter,
operating instructions and PC signal cable.
․Make sure the surface for placing the LCD monitor is stable and level.
․Keep the monitor away from sources of liquids and moisture.
․Keep the monitor's vents free from obstruction.
․If you are not going to use the monitor and computer for a day or longer, please
turn OFF both equipment.
2.1 Connect the monitor to your computer
․Make sure the computer is turned OFF.
․Plug in the power adaptor which comes with monitor and plug the AC power
cord into wall outlet.
․Connect the PC signal cable from the computer to the monitor.
․Turn on the computer.
․Push the power button in front of the monitor.
․Push the CH button to display PC input signal.
2.2 Connect the monitor to the video source
․Plug in the power adaptor which comes with monitor and plug the AC power
cord into wall outlet.
․Connect the video signal to the monitor.
․Push the power button in front of the monitor.
․Push the CH button to display video input signal.

6
3. Controls and indicators

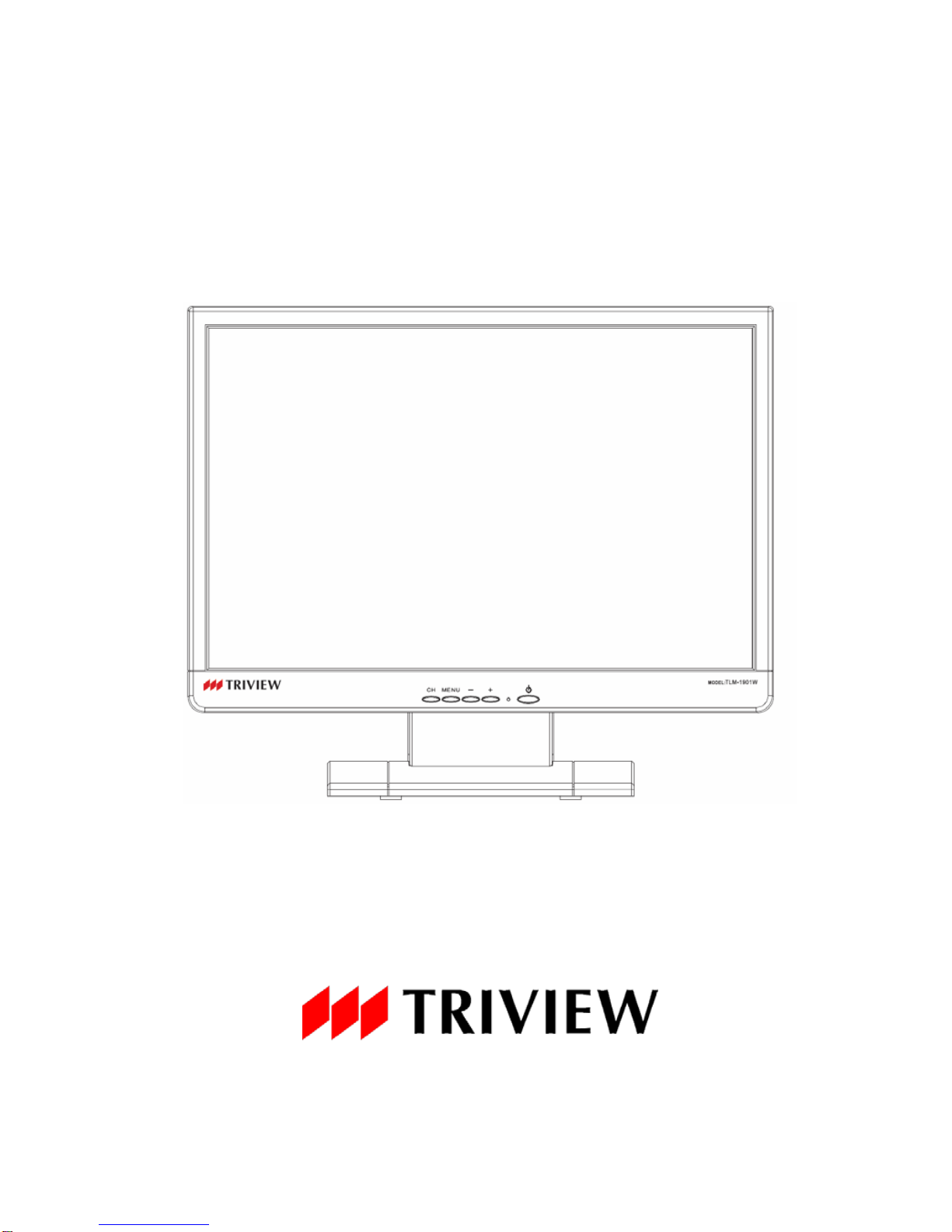

3.1 FRONT PANEL
A. INPUT SELECT / EXIT BUTTON
․Press the button to select input signal.
․Press the button to exit OSD menu.
B. MENU BUTTON
․Press the button to pop-up the OSD main menu.
․As a ENTER key during the OSD operation.
C. UP(+), DOWN(-) BUTTONS
․Press UP(+) / DOWN(-) buttons to scrolling the cursor to desired function.
․Press UP (+)/ DOWN(-) buttons to adjust the value of selected function in sub OSD menu.
D. POWER LED indication
․Green- Power ON
․Black- Power OFF
․Orange- Stand by
․Flash Orange- Sleep mode
E. POWER BUTTON
․Press the button to turn ON or turn OFF the monitor.
F. KEY-LOCK FUNCTION
․Key lock- Press and hold A+B+E buttons for 2.5sec until the OSD Shows “KEY LOCK”
․Key unlock- Press and hold A+B+E buttons for 2.5sec until the OSD Shows “KEY
UNLOCK”

7
3.2 I/O CONNECTORS
A. AUDIO input
B. VIDEO 1 output
C. VIDEO 1 input
D. VIDEO 2 output
E. VIDEO 2 input
F. S-VIDEO input
G. DVI / VGA input
H. DC 12V input

8
4. On-screen display (OSD)
Hot Key：
Volume：Press – or + button to pop up the volume function and then press – or +
button to adjust the volume; Press MENU or CH button to exit OSD menu.
Lock Key：Press and hold CH & MENU buttons simultaneously then press and hold
POWER button for 2.5sec to lock all keys.
Unlock Key：Press and hold CH & MENU buttons simultaneously then press and hold
POWER button for 2.5sec to unlock all keys.

9
Prompt：

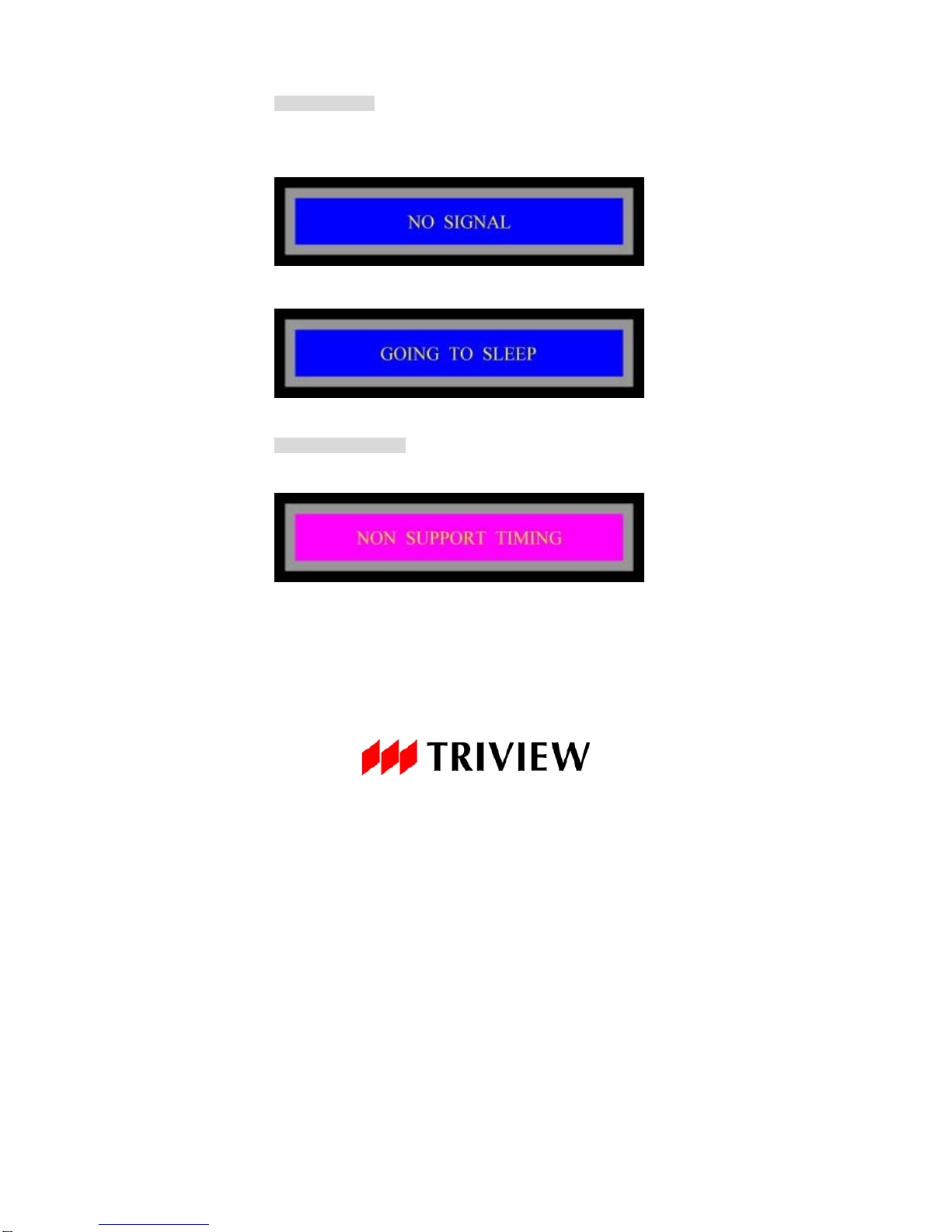

No Available Signal：Under VGAor DVI mode, the “NO SIGNAL” prompt will show up
in 0.5sec. as soon as the cable unplug or signal loss, such as PC get into standby
mode;
then “GOING TO SLEEP” will show up in 6sec.
Input signal can't support：Under VGA or DVI mode, “NON SUPPORT TIMING” will
show on screen in 1sec. during the input signal out of monitor's display capability.
Menu and function：
BRIGHTNESS, CONTRAST, DISPLAYADJUST, COLOR TEMPERATURE,
LANGUAGE, OSD ADJUST, ASPECT RATIO, AUDIO CONTROL, INPUT SELECT,
RESET, EXIT.

10
MAIN MENU：
Press – or + button for scrolling cursor up and down, then press MENU button to
enter the desired function.
BRIGHTNESS：Press – or + button to adjust the brightness value, then press MENU
or CH button to return to the MAIN MENU.

11
CONTRAST：Press – or + button to adjust the contrast value, then press MENU or
CH button to return to the MAIN MENU.
DISPLAYADJUST：
Press – or + button for scrolling cursor up and down，then press MENU button to
enter the desired function.

12

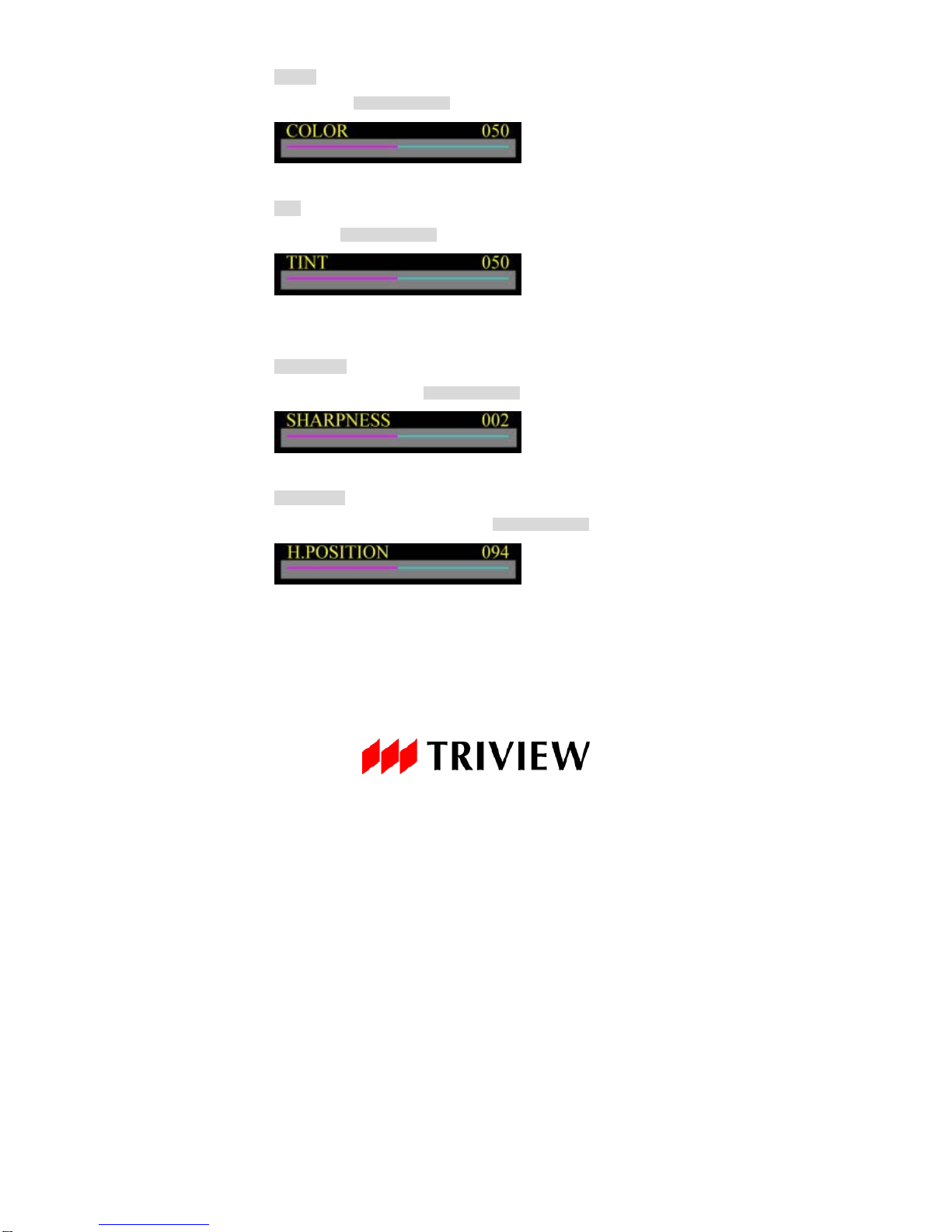

COLOR：Press – or + button to adjust the color value, then press MENU or CH button
to return to the DISPLAY ADJUST menu.
TINT：Press – or + button to adjust the tint value, then press MENU or CH button to
return to the DISPLAY ADJUST menu.
Note：The TINT adjustment is not available for PAL video system.
SHARPNESS：Press – or + button to adjust the sharpness value, then press MENU
or CH button to return to the DISPLAYADJUST menu.
H. POSITION：Press – or + button to adjust the image horizontal position value, then
press MENU or CH button to return to the DISPLAYADJUST menu.
Note : The H. POSITION adjustment only available for VGA input mode.

13

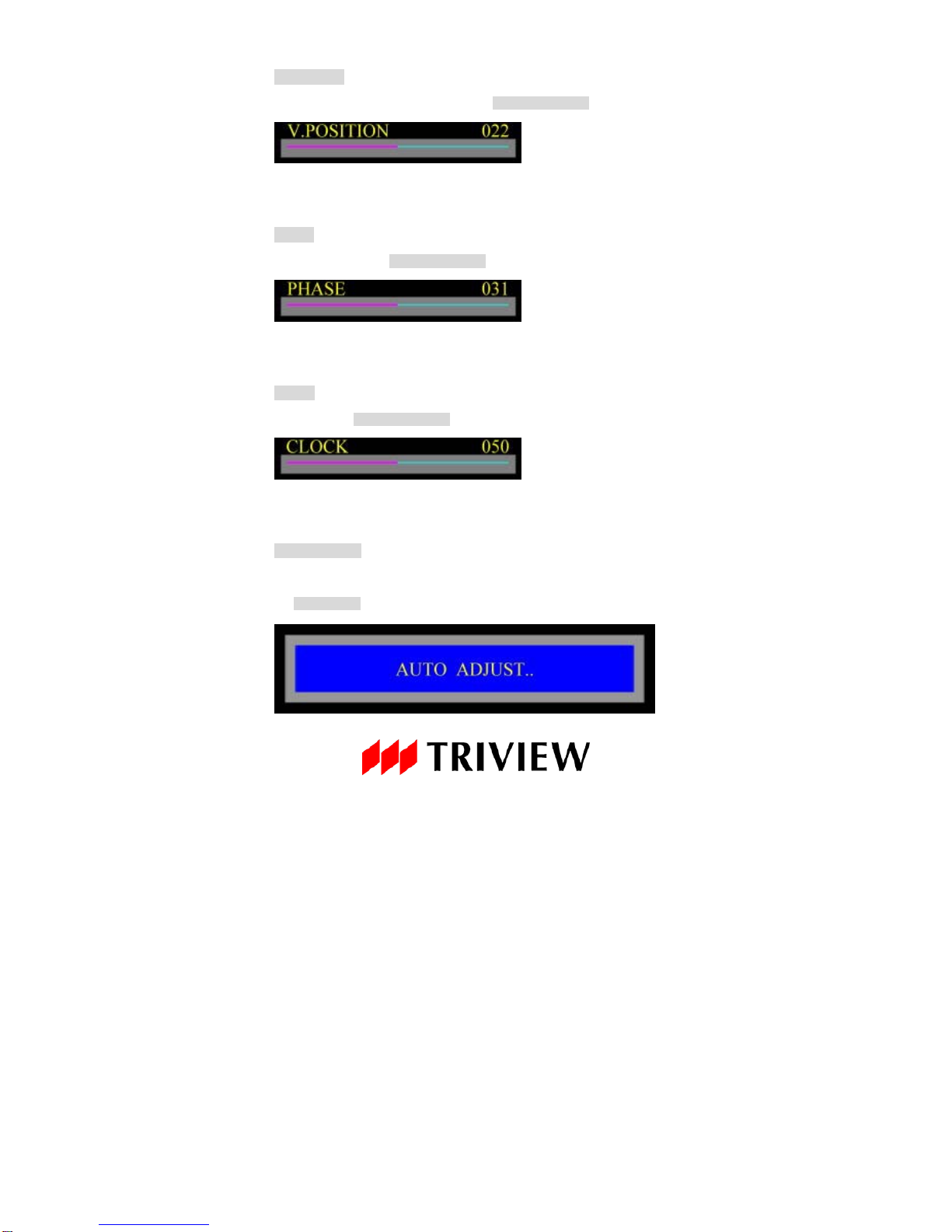

V. POSITION：Press – or + button to adjust the image vertical position value, then
press MENU or CH button to return to the DISPLAYADJUST menu.
Note : The V. POSITION adjustment only available for VGAinput mode.
PHASE：Press – or + button to adjust the phase value, then press MENU or CH
button to return to the DISPLAY ADJUST menu.
Note : The PHASE adjustment only available for VGA input mode.
CLOCK：Press – or + button to adjust the clock value, then press MENU or CH button
to return to the DISPLAY ADJUST menu.
Note : The CLOCK adjustment only available for VGA input mode.
AUTO ADJUST：In VGA mode, this function can automatically adjust image
horizontal and vertical position, phase and clock value, press CH button to return to
the MAIN MENU.

14
RESET：Press MENU button to reset the color, tint and sharpness value, then press
CH button to return to the MAIN MENU.
EXIT：Press MENU or CH button to return to the MAIN MENU.

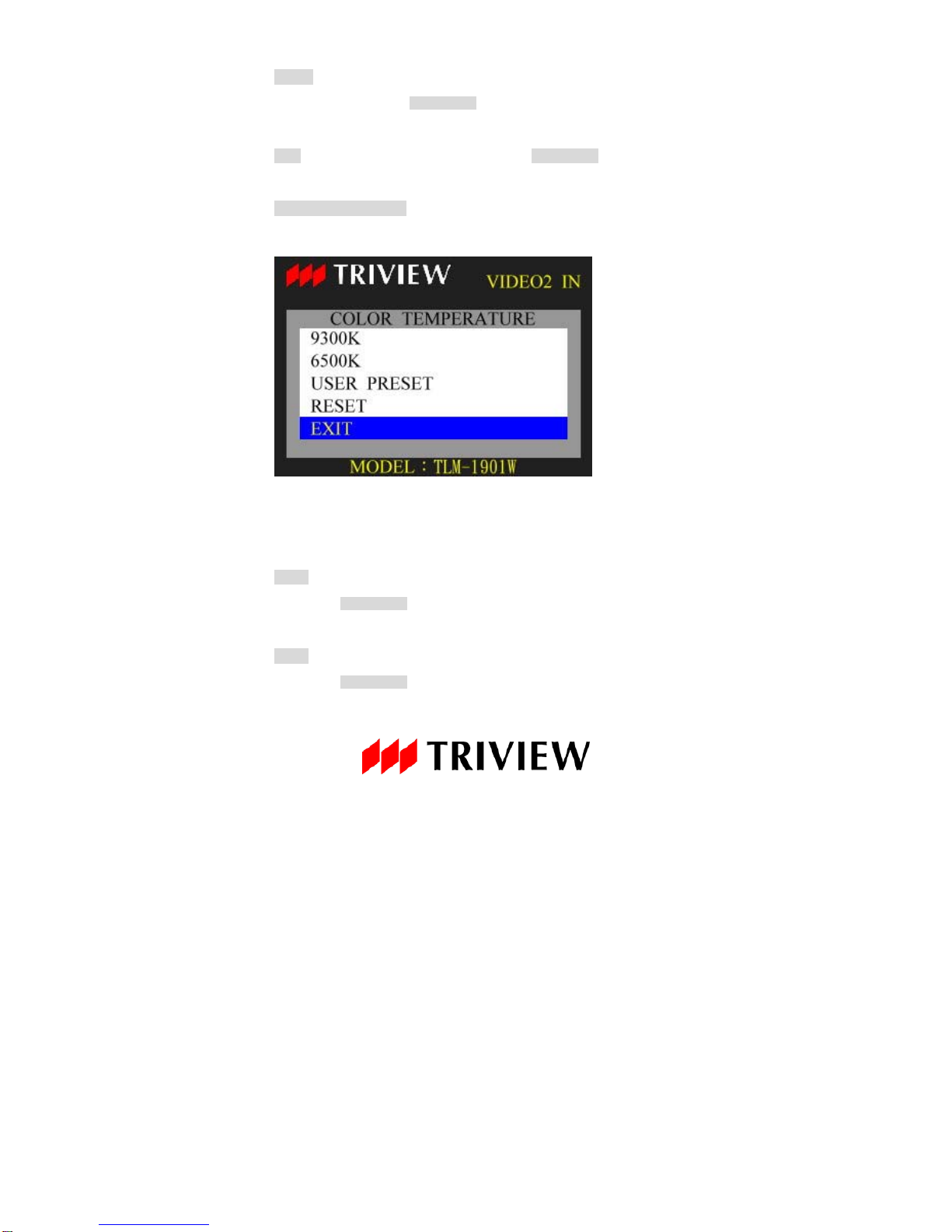

COLOR TEMPERATURE：Set the color temperature of the LCD monitor for the CIE
coordinate 9300K or 6500K or USER PRESET.
Press – or + button for scrolling cursor up and down, then press MENU button to
enter the desired function.
9300K：Press MENU button to select this color temperature, then press CH button to
return to the MAIN MENU.
6500K：Press MENU button to select this color temperature, then press CH button to
return to the MAIN MENU.

15
USER PRESET：Press MENU button to enter the “USER PRESET” sub menu.
Press – or + button for scrolling cursor up and down, then press MENU button to
enable value change.

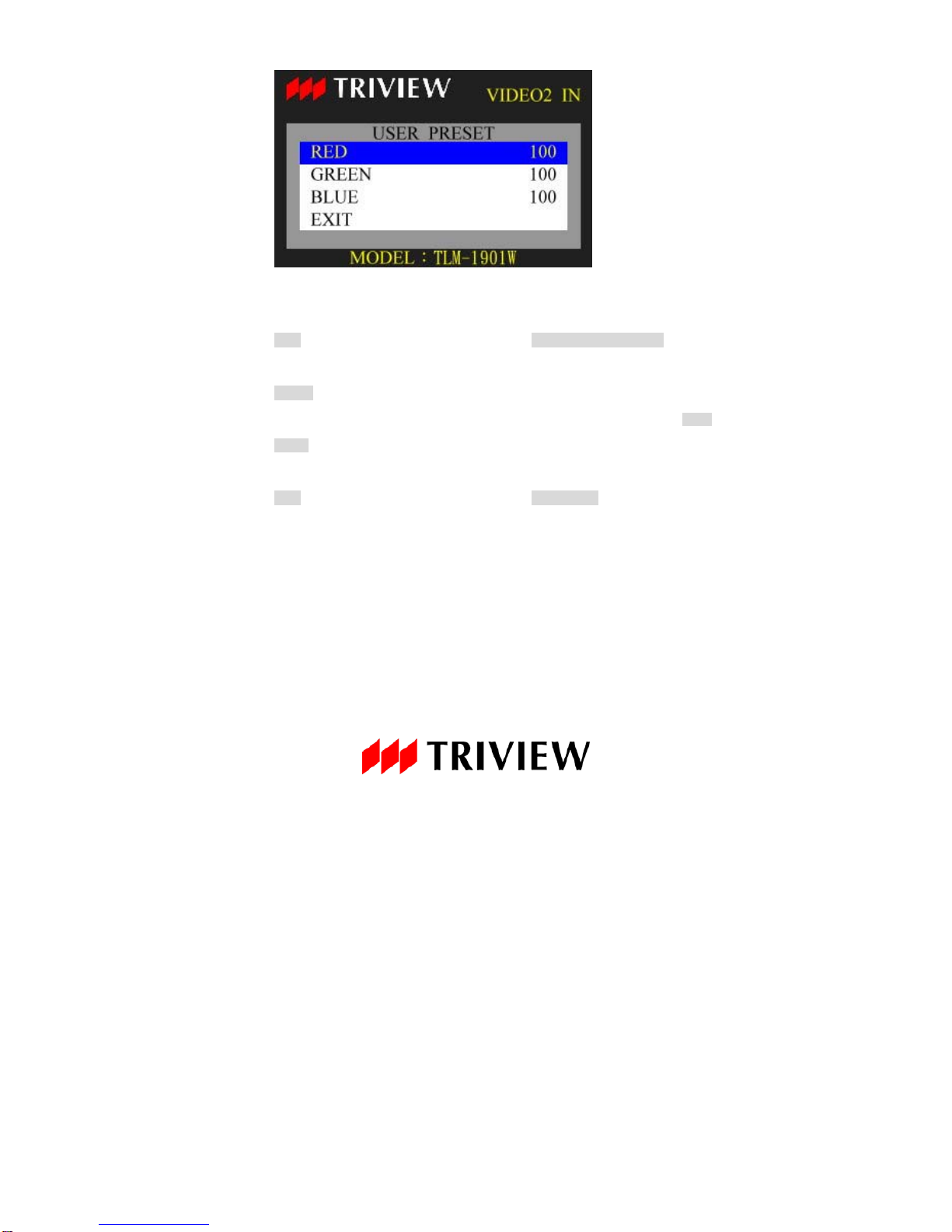

RED：Press MENU button to enable RED color adjustment (the cursor color will
change from blue to cyan), then press – or + to adjust the red value.
Then, press MENU or CH button to disable RED color adjustment (the cursor color
will change form cyan back to blue).

16
Same procedure applies for GREEN and BLUE color adjustment.
EXIT：Press MENU or CH button to return to the COLOR TEMPERATURE menu.
RESET：Press MENU button to reset the red, green and blue value of user preset
and color temperature return to 6500K, then press CH button to return to the MAIN
MENU.
EXIT：Press MENU or CH button to return to the MAIN MENU.

17
LANGUAGE：
Press – or + button for scrolling cursor up and down and press MENU button to
select the language, then press CH button to return to the MAIN MENU.
EXIT：Press MENU or CH button to return to the MAIN MENU.
OSD ADJUST：
Press – or + button for scrolling cursor up and down, then press MENU button to

18
enter the desired function.
OSD H-POSITION：Press – or + button to adjust the OSD horizontal position value,
then press MENU or CH button to return to the OSD ADJUST menu.
OSD V-POSITION：Press – or + button to adjust the OSD vertical position value, then
press MENU or CH button to return to the OSD ADJUST menu.
OSD TIME OUT：Press – or + button to adjust the OSD time out value, then press
MENU or CH button to return to the OSD ADJUST menu.
OSD TRANSPARENCY：Press – or + button to adjust the OSD transparency value,
then press MENU or CH button to return to the OSD ADJUST menu.
RESET：Press MENU button to reset the OSD H-position, OSD V-position, OSD time
out and OSD transparency value, then press CH button to return to the MAIN MENU.
