TROJAN PRO TROILUS User manual

TROILUS STUDIO WORKSTATION
Assembly Instructions
G
F
E
D
C
B
A
Assembly Instructions
Studiospares Europe Ltd. 19-21 Bilton Way, Luton LU1 1UU, UK
www.studiospares.com [email protected] +44 (0)20 8208 9930

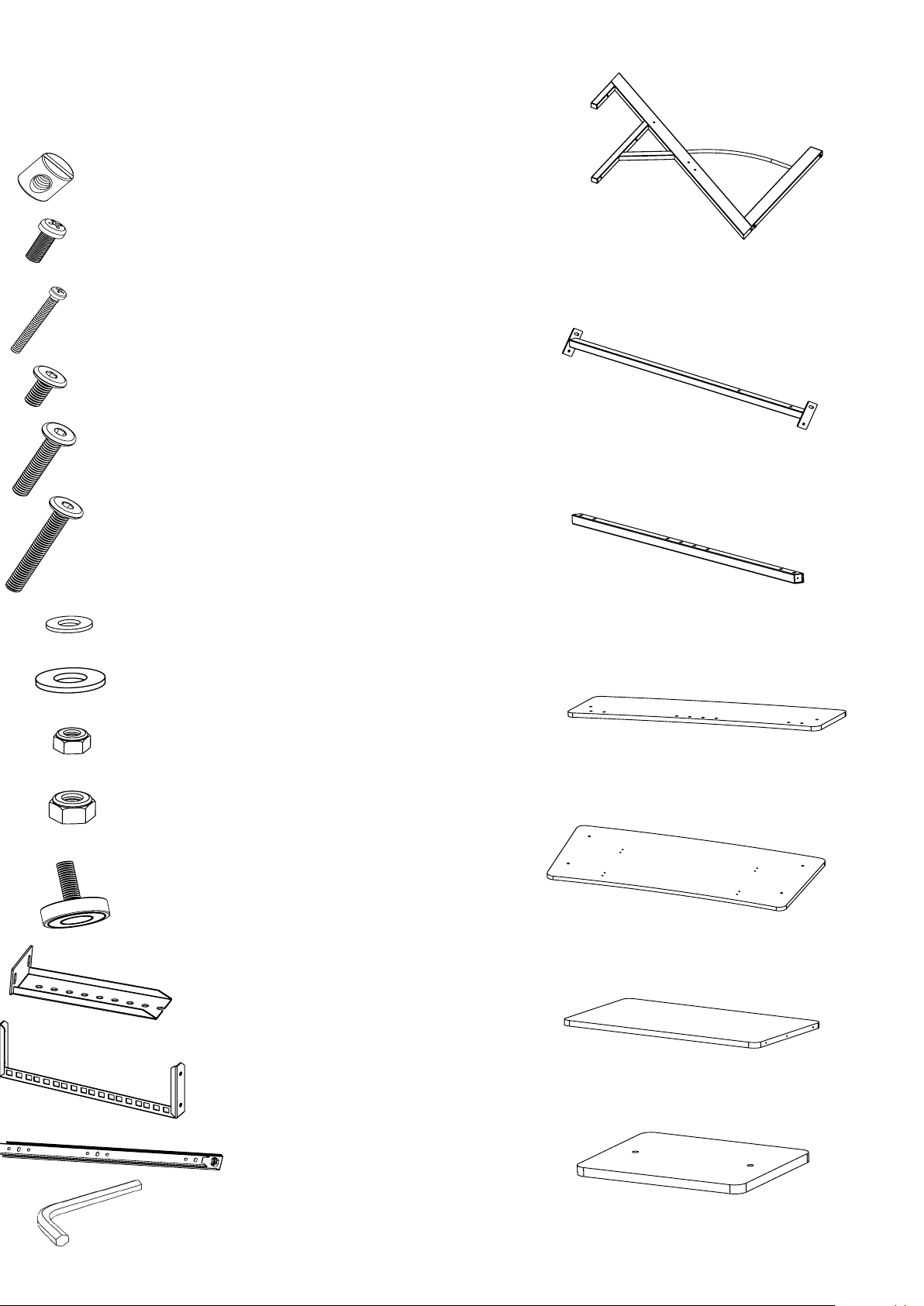

Components:
2 x Leg bracket
1 x Lower cross bar
1 x Upper cross bar
1 x Top desk plate
1 x Middle desk plate
1 x Movable tray plate
Z6: Hex socket countersunk head
furniture screw
12 x M6 x 40mm
Z1: Horizontal hole nut
6 x M4
Z2: Cross Recessed Pan Head Screw 12 x M4
x 10mm
Z3: Cross Recessed Pan Head Screw 6 x M4 x
35mm
Z4: Hex socket countersunk
head furniture screw 8 x M6 x 10mm
Z5: Hex socket countersunk
head furniture screw 10 x M6 x 35mm
Z7: Flat washer 4 x M4
Z8: Flat washer 4 x M6
Z9: Hex lock nut with non-
metallic insert 4 x M4
Z10: Hex lock nut with non-
metallic insert 12 x M6
Z11: Feet, 4pcs
Z12: Guide mounting racks, 4pcs
Z13: Cartridge mounting strip , 4pcs
Z14: Double-folded rail, 1 pair Z15 Hex
Key (Use with Z4, Z5 & Z6) 1x Lower plate
G
F
E
D
C
B
A
Assembly Instructions
Studiospares Europe Ltd. 19-21 Bilton Way, Luton LU1 1UU, UK
www.studiospares.com [email protected] +44 (0)20 8208 9930
Components:
2 x Leg bracket
1 x Lower cross bar
1 x Upper cross bar
1 x Top desk plate
1 x Middle desk plate
1 x Movable tray plate
Z6: Hex socket countersunk head
furniture screw
12 x M6 x 40mm
Z1: Horizontal hole nut
6 x M4
Z2: Cross Recessed Pan Head Screw 12 x M4
x 10mm
Z3: Cross Recessed Pan Head Screw 6 x M4 x
35mm
Z4: Hex socket countersunk
head furniture screw 8 x M6 x 10mm
Z5: Hex socket countersunk
head furniture screw 10 x M6 x 35mm
Z7: Flat washer 4 x M4
Z8: Flat washer 4 x M6
Z9: Hex lock nut with non-
metallic insert 4 x M4
Z10: Hex lock nut with non-
metallic insert 12 x M6
Z11: Feet, 4pcs
Z12: Guide mounting racks, 4pcs
Z13: Cartridge mounting strip , 4pcs
Z14: Double-folded rail, 1 pair Z15 Hex
Key (Use with Z4, Z5 & Z6) 1x Lower plate
You will receive two boxes.
Contents of box 1
Contents of box 2
1) Assemble (Z12) feet on (A) leg
bracket
Repeat this step for both (A) leg
brackets.
Position (A) leg brackets vertically
for easier assembly on the next
step.
2) Assemble (C) upper cross bar
on (A) leg bracket with (Z7).
Assemble (B) lower cross bar on
(A) leg bracket with (Z6), (Z9) and
(Z11), using the the Hex Keys
(Z16) and (Z17).
3) Assemble (Z13) guide
mounting racks on (E) middle
desk plate with (Z2) using a
Phillips-Head screwdriver.
4) Disassemble double-folded rail
(Z15) by extending the rail, lifting
the latch and seperating the two
sections of the rail.
5) Assemble the outer rail on
(Z13) guide mounting rack
with (Z2), (Z8) and (Z10) using a
Phillips-head screwdriver and an
adjustable spanner to hold (Z10)
in place.
6) Assemble the inner rail on (F)
movable tray plate with (Z1) and
(Z3).
Insert (Z1) into the holes as
shown.
Positon the inner rail.
Insert and tighten (Z13) using
a Phillips-head screw driver
holding (Z1) in place with a at-
head screwdriver.
7) Assemble inner rail on (F)
movable tray plate witb (Z1 and
(Z3), using the Hex-Key (Z16)
8) Assemble (Z14) cartridge
mounting stripe on (C) upper
cross bar with (Z5 and (Z11).
Assemble (D) top desk plate on
(A) leg bracket with (Z6).
9) Fix G Lower Plate on B lower
cross bar with (Z5).
10) Fix (E) middle desk plate on
(A) leg bracket with (Z6).
11) Assemble (F) movable tray
plate into (Z15) outer rail. Then
your assembly of the Troilus
Studio Workstation is complete.
