tropitone 401601RD User manual

FIRE PIT INSTALLATION
AND OPERATING INSTRUCTIONS
401601RD MODELS: 401642FPM, 401654FPM, 801654FPM, 801686FPM, 821649FPM,
821686FPM 401601SQ MODELS: 401643FPM, 401667FPM, 401658FPM 401600RCT
MODELS: 401767FPM-18, SB5442FPM-18, SL5442FPM-18 401701RCT MODELS:
401767FPM-24, 801753FPM-24, 821753FPM-24, SB5442FPM-24, SL5442FPM-24 401600RD
MODELS: 401641FPM, SB30RFPM, SL30RFPM 401801SQ MODELS: CM42SFPM-18,
CM42SFPM-25 401801RCT MODELS: CM5030FPM-18, CM5030FPM-25
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference .
WARN I NG
Do not store or use gasoline, or other flammable vapors and liquids, in
the vicinity of this or any other appliance.
An LP-cylinder (Liquefied Petroleum) not connected for use shall not be
stored in the vicinity of this or any other appliance.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
WARN I NG: For Outdoor Use Only.
Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as camper, tent, car, or home.
WARN I NG: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.

R9T15FIRE
Page 2 of 16
Rev. D 04JAN19
INSTALLATION
Tropitone recommends that all gas
products be installed by professionals
that are licensed by the local authority
having jurisdiction in gas piping.
MAINTENANCE
Tropitone recommends that all gas products installed in the
USA and CANADA be serviced and maintained by
professionals that are certified by the National Fireplace
Institute (NFI) as NFI Gas Specialist or by the Wood
Energy Technical Training (WETT).
Follow the instructions in this manual carefully to reduce the risk of personal injury, death or
property loss.
WARNING
Improper installation, adjustment, alteration, service, or maintenance can cause
severe injury or death and may result in property damage. Read these installation, operating and
maintenance instructions thoroughly before installing or servicing this equipment.
Some information listed in this manual has headings which have been highlighted in order to assist
you to identify critical pieces of information. They can be identified as follows:
WARNING Contains information critical to the safe installation and operation of the unit.
DANGER Contains information critical to the safety of you, your personal property and others
around this product.
IMPORTANT Contains information that will help you to have the most enjoyable experience with
this unit and maintain serviceability.
WARNING It is the installer’s responsibility to ensure this product has been installed in
accordance with the local codes applicable and that the end user has been educated
on the safe and proper operation of the unit.
WARNING Tropitone recommends that all gas products installed in the USA and CANADA be
serviced and maintained by professionals that are certified by the National Fireplace
Institute (NFI) as NFI Gas Specialist or by the Wood Energy Technical Training
(WETT).

R9T15FIRE
Page 3 of 16
Rev. D 04JAN19
DANGER This product is not intended to be used as a starter for wood or any other
combustible material.
WARNING It is the installer’s responsibility to ensure this product has been installed in
accordance with all the local codes applicable. In the absence of local codes, please
follow:
 For Fixed Piping Systems: The National Fuel Gas Code, ANSI
Z223.1/NFPA 54 or the International Fuel Gas Code.
 For Electrical: The National Electrical Code, ANSI/NFPA 70.
WARNING Use only the gas or fuel type specified for this unit. See the label near the controls.
Verify the gas or fuel is correct and the proper pressure available. NEVER use an
alternative fuel, including bio-fuel, ethanol, or any other fuel type with this unit.
The proper pressure and gas type must be checked prior to installation. A 1/8” NPT
test port is provided at the burner assembly connection beneath the burner tray.
 LP Gas:
 Supply Pressure: Minimum 8.0” WC (water column), Maximum 15.0”” WC
 Outlet Pressure: Minimum 10.0” WC, Maximum 12.0” WC
DANGER All Fire Pits are designed and intended for outdoor use only. Never install or operate
indoors. Burning gas (both Natural and LP) produces fumes which can be dangerous
if inhaled. Always insure there is proper ventilation when using any fire products.
DANGER All Fire Pits are designed and intended for outdoor use only. Never install or operate
indoors. Burning gas (both Natural and LP) produces very high temperatures.
Always insure all combustible materials are kept far enough away to prevent
accidental ignition.
IMPORTANT When selecting a location for this product, insure that there is at least 48” clearance
to access the controls and the gas tank on LP units. Any guard or other protective
device removed for servicing must be replaced prior to operating the appliance.
WARNING Never leave this product on when unattended. Educate all persons, including
children that may come in contact with this unit of the danger of high temperatures
produced when operating, including surface temperatures. Clothing and other
flammable materials should not be hung from the appliance, or placed on or near the
appliance. Young children should be carefully supervised when they are in the area
of the appliance.
IMPORTANT It is recommended that material such as granite, marble or other dense stone be
kept away from heat and flame due to the risk of cracking. Tropitone will not be held
responsible for materials damaged due to excessive heat.

R9T15FIRE
Page 4 of 16
Rev. D 04JAN19
DANGER Do not install this product under any type of covering, including overhangs, patio
covers, umbrellas, cabanas, tree limbs or branches. The risk of fire, inhalation of
fumes, and exposure to excessive heat increases greatly if this product is installed
under any type of covering, which could result in personal injury, damage to property
or death.
IMPORTANT
 It is important that the gas line feeding the fire pit if piped is a minimum of ¾ ”
or larger, based on the distance from the fuel source.
 Choose a location which has proper drainage.
 Choose a location with a minimum clearance of 48” from other structures.
WARNING It is the responsibility of the person installing this unit to test and verify that there are
no gas leaks after all connections are made. NEVER test for gas leaks with a flame.
Use only a gas leak detector or gas reactant.
WARNING Use only joint compound or tape that is approved for use with all types of gas. Apply
to all male pipe fittings only. DO NOT use on FLARED fittings. Be sure all joints are
tightened securely before lighting.
WARNING Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners, and circulating air passageways of the appliance be kept
clean.
DANGER When using glass media in a fire pit, use only approved fire glass or fire pebbles
and insure that there is only enough to hide burner. Applying over ½”of any media
over the burner may create back pressure which can result in gas leakage from the
air mixer. This may result in a dangerous situation which can result in personal
injury, damage to property or death.
DANGER Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and replace any part of the
control system and any gas control which has been under water.

R9T15FIRE
Page 5 of 16
Rev. D 04JAN19
Vertical Propane Tank Horizontal Propane Tank
WARNING: The LP Gas tank or cylinder used must comply with the following requirements. Use of other
tanks or cylinders which do not meet these requirements may create an unsafe condition which could cause
injury or death to you, or damage to your personal property, including the risk of fire or explosion.
The cylinder or tank used must be:
1. Constructed and marked in accordance with the U. S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2. Provided with a Listed overfilling prevention device; and
3. Provided with a cylinder connection device compatible with the connection for the appliance.
IMPORTANT: The LP Gas tank must be secured in the fire pit.
For 401600RD, 401601RD, 401601SQ, and 401701RCT bases, place the tank in the tank retaining ring.
For 401600RCT base, slide horizontal LP gas tank along middle support until the back mounting bracket
of the tank hits the back of the slot. Line up the hole in the front mounting and the post on the front brace,
then place the tank down.
For 401801SQ and 401801RCT models, place the horizontal LP gas tank so that the back mounting
bracket is in the slot and bracket hits the bumper. Line up the hole in the front mounting bracket and the
post on the front brace, then place the tank down.
DANGER Do not use a vertical LP gas tank in place of a horizontal LP gas tank in 401600RCT,
401801SQ, and 401801RCT base models.

R9T15FIRE
Page 6 of 16
Rev. D 04JAN19

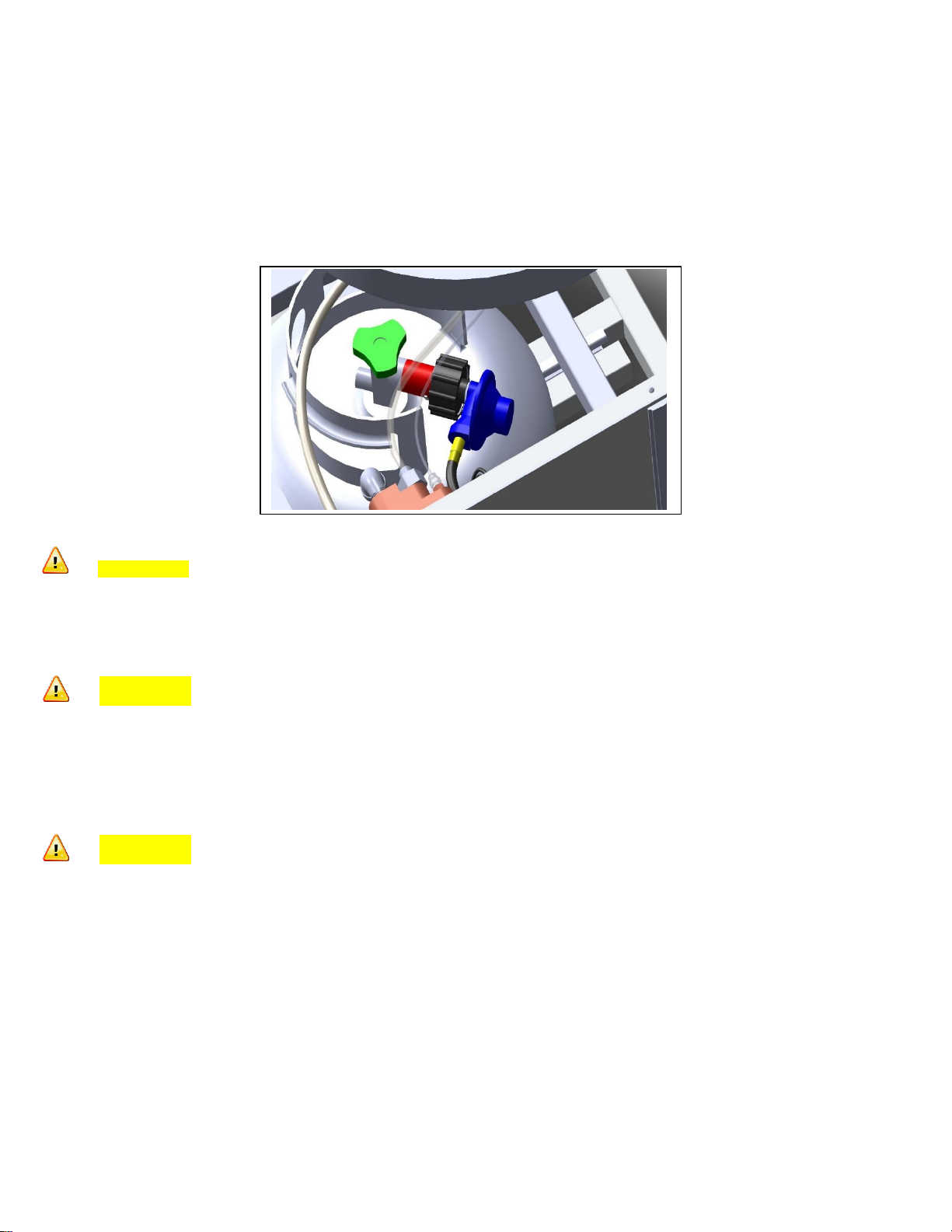

You can now connect your LP gas tank to the Fire Pit, using the standard propane gas hose with
built in regulator (shown in blue). Hand tighten the propane tank gas connector (shown in black), to
the tank valve (shown in red). CAUTION: Do NOT use tools to tighten this connection. Open the
gas valve on the tank by turning the gas valve knob (shown in green) counter-clockwise (to the left)
until fully open. See diagram below.
To remove the gas tank, first turn off the gas valve by turning the knob fully clockwise (right), then
unscrew the gas connector counter-clockwise (left) and move the gas hose to a secure location to
prevent accidental damage.
WARNING: Inspect the hose and tank connector before each use to insure there is no damage
caused by rodents, weather or other conditions. NEVER use any Fire Pit which has any
components, including the gas hose or gas tank connector damaged in any way. If you find any
damage, turn off the valve on the gas tank and call a licensed repair technician to replace damaged
components. Replace any damaged items with components that have the exact same ratings.
WARNING: Before you turn on your Fire Pit for the first time, you must test your connections to
insure there are no leaks. Gas from leaking joints can pose a serious threat to your personal
property, yourself and others near this Fire Pit. NEVER use a lit match, lighter or other sources of
fire to check joints for leaks. Use a gas leak detection kit available from your local home
improvement store and follow all directions supplied by the manufacturer.
WARNING: Inspect the burner assembly at least every six (6) months to insure there is no
damage before use. Clean your burner, pilot and thermocouple at least every six months to insure
proper operation.

R9T15FIRE
Page 7 of 16
Rev. D 04JAN19
FIRE MEDIA INSTALLATION
Please follow the instructions below to add the finishing touch to your Fire Pit. Your Fire Pit needs fire
media in order to get the proper flame characteristics from the burner assembly. The media can
be decorative fire glass, fire pebbles, lava rock or other fire media specifically designed for outdoor
fire pits and fireplaces. Fire media is not included with Fire Pit and must be purchased
separately.
DANGER Do not block the pilot area or blow out box. The burner may be lightly covered by fire
media. Proper air flow is required in order to prevent suffocation and possible gas buildup. Incorrect
media installation will cause the pilot flame to suffocate and turn off the fire pit or delay main burner
ignition. If the main burner does not ignite quickly, gas can build up in the burner tray and ignite
violently. Ignition of gas which has built up can create an unsafe condition, and may cause
injury or death, and may damage personal property. The deeper your decorative glass, fire
pebbles or lava rock, the more risk of reducing or smothering the flame from the burner.
Decorative Glass or Fire Pebbles Application
1) Install your Fire Pit per instructions.
2) Apply decorative glass or fire pebbles just
deep enough to cover bottom of pan. Make sure
you do NOT cover the Blow Out Box.
Blow Out
Box
3) Blow Out Box: Do not cover blow out box vents
or opening with decorative glass or fire pebbles.
Incorrect media installation will cause the pilot
flame to suffocate and turn off pit or delay main
burner ignition.
DO NOT COVER VENTS! DO NOT COVER PILOT
OPENING!
Lava Rock Only Application*
1) Install your Fire Pit per instructions.
2) Apply lava rock ONLY deep enough to cover
ring and pan- no more than ½” above the burner.
3) Blow Out Box: Do not cover vents with lava
rock- leave open. Do not allow any rock to block
flame opening.
Blow Out
Box
4) Blow Out Box: Do not cover blow out box vents
or opening with lava rock or glass. Incorrect media
installation will cause the pilot flame to suffocate
and turn off pit or delay main burner ignition.
*Lava rock not available from Tropitone.

R9T15FIRE
Page 8 of 16
Rev. D 04JAN19
LIGHTING INSTRUCTIONS
To light your new Fire Pit, complete all installation and safety instructions above.
Gas Valve
Knob
Gas Tank
Gas Valve
1. Make sure the gas valve on the gas tank is open (turned all the way to the left).
2. Rotate gas valve knob counter-clockwise (left) to center position.
3. Depress and hold the gas valve knob for 20 seconds.
4. Use a lighter or match to light the pilot located in front of the igniter box.
5. Turn knob counter-clockwise (left) to light main burner. NOTE: If fails to light, rotate
knob to center position, wait 5 minutes for gas to clear, repeat Steps 4 ~ 5. If goes
out, repeat Steps 4 ~ 5.
6. Once Fire Pit has ignited, DO NOT leave unattended.
FIRE PIT SHUTDOWN
1. Turn “off”fire pit by slightly pressing and turning valve knob clockwise (right) to “OFF”
position.
2. Turn “off”gas to Fire Pit at LP tank or other remote location.
3. Once Fire Pit has cooled completely, use appropriate cover (sold separately) to protect Fire
Pit.

R9T15FIRE
Page 9 of 16
Rev. D 04JAN19
INTERNAL CONTROLS
(401600RD, 401600RCT, AND 401701RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Knob, Black, for Gas Valve
R01MS102
2
Nut, Retaining, M1 for Gas Valve
R02NU501
3
Gas Valve
R18VL100
4
3/8” Flare x 3/8” MIPT
R18CO108
5
Gas Hose with Regulator, 3/8” x 12” Long
Gas Hose with Regulator, 3/8” x 36” Long
R18FH100
R18FH103
6
Gas Plumbing Support Weldment
WSL30RFPGVS
Gas Plumbing Support Weldment (not shown)
W401767FPSGV
7
Nipple, 3/8” x 1.5”
R15SP101
8
1/2” x 1/2" FIP 90
R15CO101
9
Gas Flex Line, 24” x 1/2"
R15SP100

R9T15FIRE
Page 10 of 16
Rev. D 04JAN19
BURNER TRAY AND CONTROLS
(401600RD, 401601RD, AND 401601SQ BASE)
PARTS LIST
Item No.
Description
Part No.
1
Burner Tray, Round 12”
Burner Tray, Round 18” (not shown)
R15MS306
R15MS300
Burner Tray, Square 18” (not shown)
R15MS301
2
Blow Out Box Assembly
R19NT113
3
6” Stamped Burner
STMPBA6
12” Stamped Burner (not shown)
STMPBA12
4
Nut, 1/2" Stainless Steel
R02NU500
5
Pilot & Thermocouple Assembly
R19TC101
6
Washer, 1.500 OD x .890 ID x .090
R02WA880
7
Nipple, 1/2" Stainless Steel
R15CO106
8
Elbow, 1/2" FPT x 3/8” FPT
R18CO120
9
3/8” LP Gas/Air Mixer
R18VL106
3/8” LP Gas/Air Mixer
R18VL101
10
3/8” FPT – “TEE”
R15CO109
11
1/2" Flare x 3/8” MIP Flare, Half Union
R18CO107
12
3/8" MPT x 1/8” FPT Reducing Bushing
R15CO110
13
Solid Hex Socket Plug with Thread Sealant
R02SC443

R9T15FIRE
Page 11 of 16
Rev. D 04JAN19
INTERNAL CONTROLS
(401601RD, 401601SQ, 401801SQ, AND 401801RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Knob, Black, for Gas Valve
R01MS102
2
Nut, Retaining, M1 for Gas Valve
R02NU501
3
Gas Valve
R18VL100
4
Brass Adapter, 3/8”
R15CO111
5
Elbow, 3/8” M x 3/8” F
R15CO100
6
3/8” Flare x 3/8” MIPT
R18CO108
7
Gas Hose with Regulator, 3/8” x 12” Long
Gas Hose with Regulator, 3/8” x 36” Long
R18FH100
R18FH103
8
Gas Plumbing Support Weldment
W401442FPSGV
Gas Plumbing Support Weldment
Gas Plumbing Support
W401443FPSGV
R15MS310
9
Nipple, 3/8” x 1.5”
R15SP101
10
1/2” x 1/2" FIP 90
R15CO101
11
Gas Flex Line, 24” x 1/2"
R15SP100

R9T15FIRE
Page 12 of 16
Rev. D 04JAN19

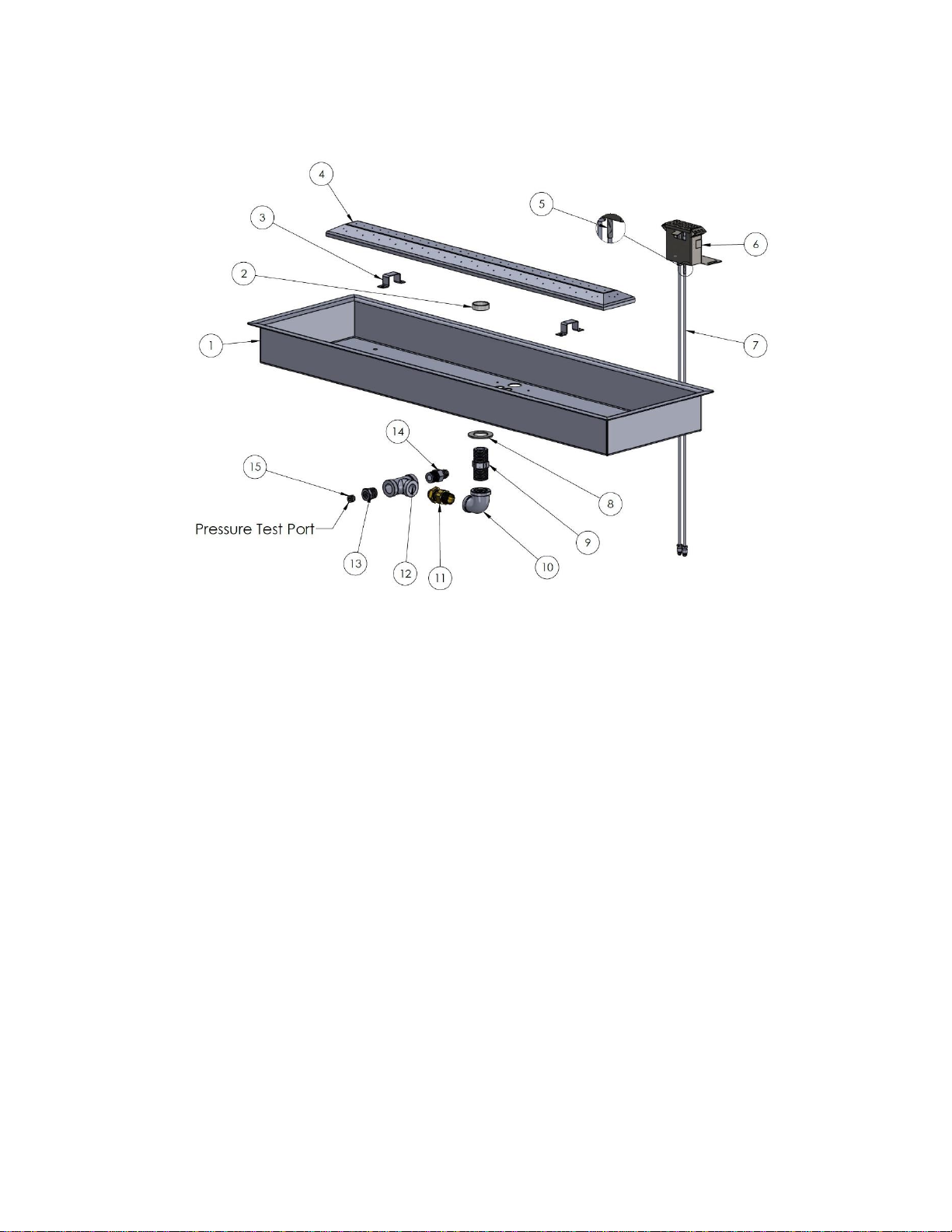

BURNER TRAY AND CONTROLS
(401600RCT AND 401701RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Burner Tray, 30” x 8” Rectangular
R15MS308
2
Spacer
M401767FPS
3
Rectangular Burner Support
R15MS309
4
Rectangular Stamped Burner
STMPBA243
5
Electrical Insulation, Silicone/Fiberglass
R19NS100
6
Blow Out Box Assembly
R19NT107
7
Pilot & Thermocouple Assembly
R19TC101
8
Washer, 1.500 OD x .890 ID x .090
R02WA880
9
Nipple, 1/2" Stainless Steel
R15CO106
10
Elbow, 1/2" FPT x 3/8” FPT
R18CO120
11
3/8” LP Gas/Air Mixer
R18VL101
12
3/8” FPT – “TEE”
R15CO109
13
3/8" MPT x 1/8” FPT Reducing Bushing
R15CO110
14
1/2" Flare x 3/8” MIP Flare, Half Union
R18CO107
15
Solid Hex Socket Plug with Thread Sealant
R02SC443

R9T15FIRE
Page 13 of 16
Rev. D 04JAN19
FIRE PIT NATURAL GAS CONVERSION AND OPERATING
INSTRUCTIONS
First turn the LP Gas tank (if installed) fully off by rotating the valve completely to the left until
closed. Then disconnect the LPGas tank hose with built in regulator by turning the large connector
fully counter-clockwise until the hose is completely disconnected.
The proper pressure and gas type must be checked prior to installation. A 1/8” NPT test port is
provided at the burner assembly connection beneath the burner tray. When converting from LP
to Natural gas, installer must remove the supplied gas hose and LP regulator and install the
correct regulator for Natural gas. The regulator must limit the supply as specified below:
Natural Gas:
Supply Pressure:
Minimum 5.0” WC (water column), Maximum 10.0” WC
Operating Pressure:
Minimum 5.0” WC, Maximum 7.0” WC
Remove the LP Gas tank hose from the gas valve at the elbow (or straight connector) coming out
of the gas valve as shown above. Connect your inlet supply line, including pressure regulator to
this location. Follow all local codes. Do not install without a regulator, which will limit your fuel
supply to 5 inches of water column.

R9T15FIRE
Page 14 of 16
Rev. D 04JAN19
CAUTION: Use a joint compound or thread tape approved for the type of gas this appliance is
intended to use on all male threads EXCEPT compression threads. Never apply thread tape of
compound to compression threads.
Beneath the Burner tray, locate the Gas/Air Mixer in the plumbing. Remove the LP Gas/Air Mixer
and replace with the Natural Gas Orifice.
LP Gas/Air Natural
Mixer Gas Orifice

R9T15FIRE
Page 15 of 16
Rev. D 04JAN19
Once your Fire Pit has been converted to Natural Gas, please locate the small silver label and
remove the bottom strip. Place this strip over the section indicated above, on the large label
located on the inside door.

R9T15FIRE
Page 16 of 16
Rev. D 04JAN19
This Fire Pit has been tested and approved in accordance with ANSI Z21.97 by ICC-ES Listing
No. PMG-1114
Tropitone Furniture Co., Inc.
5 Marconi
Irvine, Ca 92618
949-951-2010
www.tropitone.com
1401 Commerce Blvd.
Sarasota, Fl 34243
© Tropitone Furniture Co., Inc, 2019
