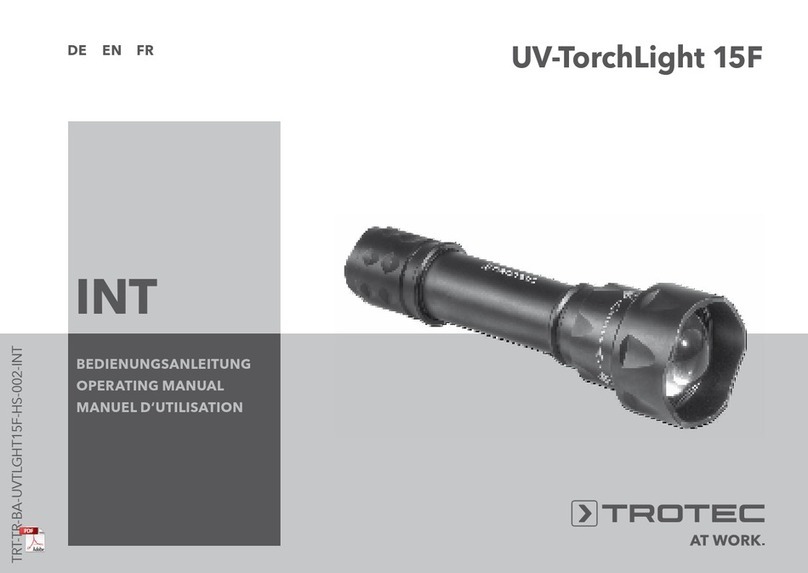

Trotec UV-TorchLight 15F User manual

TRT-BA-UV-TORCHLIGHT15F-TC230616TTRT01-001-EN
UV-TORCHLIGHT 15F
EN
INSTRUCTIONS
UV TORCH

2 EN
UV torch UV-Torchlight 15F
Table of contents
Information on the use of this instructions..........................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................5
Operation ...............................................................................5
Maintenance and repair ........................................................7
Disposal .................................................................................7
Information on the use of this instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning
Information marked with this symbol indicates that the
device generates UVradiation. Information about how
you have to protect yourself from UV radiation will be
provided to you.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
UV-Torchlight 15F
https://hub.trotec.com/?id=47386
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• This appliance is not a toy. Keep away from children and
animals.
• Protect the device from permanent direct sunlight.
• Do not open the device.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Insert the battery into the battery compartment according
to the correct polarity.
• Remove the battery from the device if you will not be using
the device for a longer period of time.
• Only use the charger for rechargeable batteries. A charger
that is suitable for one type of battery pack may create a
risk of fire and explosion, when used with another battery
pack or non-rechargeable batteries.
• Do not expose the charger to rain or wet conditions. Water
entering an electrical appliance increases the risk of
electric shock.
• Keep the charger clean. Contamination entails a risk of
electric shock.

EN 3
UV torch UV-Torchlight 15F
• Check the charger, cable and plug before each use. Do not
use the charger if you detect any damages to the device.
Do not open the charger and have it repaired only by
qualified personnel and only with original spare parts.
Damaged chargers, cables and plugs increase the risk of
electric shock.
• Do not operate the charger on highly combustible ground
(e.g. textiles, paper etc.) or in an inflammable environment.
The heat generated by the charger during charging entails
a risk of fire.
• In case of damage and improper use of batteries, vapours
may be emitted. Provide for fresh air and seek medical
help in case of complaints. The vapours can irritate the
respiratory system.
• Under abusive conditions, liquid may be ejected from a
battery. Avoid contact with liquid ejected from the battery
as it may cause skin irritation or burns. If contact
accidentally occurs, flush with water. Seek medical help if
this liquid contacts eyes.
• Only use the supplied charger for charging a 18650 Li-ion
battery protected against over- and undervoltage. The
battery voltage must match the battery charging voltage of
the charger.
• The use of batteries other than those recommended by the
manufacturer can cause damage to the torch and
endanger your safety. For operating only use a 18650
Li-ion battery protected against over- and undervoltage.
• Never charge batteries that cannot be recharged.
• Never short-circuit the supply terminal in the battery
compartment!
• Do not swallow batteries! If a battery is swallowed, it can
cause severe internal burns within2hours! These burns
can lead to death!
• If you think batteries might have been swallowed or
otherwise entered the body, seek medical attention
immediately!
• Keep new and used batteries and an open battery
compartment away from children.
• Observe the storage and operating conditions (see
Technical data).
Intended use
Only use the device to irradiate objects, e.g. to find cracks or
leaks, or to identify certain UVmarkers when checking
banknotes or hygiene.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Any use other than the intended use is regarded as misuse.
Reasonably foreseeable misuse
The device must not be pointed at people or animals. Do not use
the device in potentially explosive areas. Do not use the device
underwater.
Any unauthorised changes, modifications or alterations to the
device are forbidden.
Personnel qualifications
People who use this device must:
• use the UVlamp in accordance with safe working procedures.
• be aware of the dangers that occur when working with
UVlamps.
• wear UVprotection glasses.
• wear covering clothing.
• have read and understood the instructions, especially the
Safety chapter.
Residual risks
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Please observe the type of protection of the device
when using under water.
Do not use the focus function underwater.
Do not immerse the accessory in water.
Make sure that no water or other liquids can enter the
housing.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of explosive substances
Do not expose the batteries to temperatures above
60°C! Do not let the batteries come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning
Danger from UVradiation!
The device generates UV-Aradiation in the non-visible
range of <400nm. The eyelid closure reflex does not
work in this UVrange. Do not look at the UVLED or into
its beams during operation. Be careful not to shine the
light directly on people or animals.
Do not use optics within the light cone to bundle the
light beams.
When used in direct proximity to the object, the
reflected UVradiation is stronger and thus more
intense than at a distance of several metres. Always
use suitable UVfilters or safety glasses according to
CE-EN166 to avoid eye damage. Also avoid prolonged
exposure of skin or other living tissue.

4 EN
UV torch UV-Torchlight 15F
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Lithium-ion batteries might catch fire in case of
overheating or damage. Ensure a sufficient distance to
heat sources, do not subject lithium-ion batteries to
direct sunlight and make sure not to damage the
casing. Do not overcharge lithium-ion batteries. If the
battery is not permanently installed in the device, only
use smart chargers that switch off automatically when
the battery is fully charged. Charge lithium-ion
batteries in due time before they are discharged
completely.
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.
Information about the device
Device description
The UV-Torchlight 15F generates UV-A light in the 365nm
range.
Possible applications of the device are:
• checking for cracks or fissures using fluorescent testing
agents
• leak detection with fluorescent liquids
• localization of UVactive substances (blood, sweat, urine
etc.)
• geocaching
• security check of documents or banknotes
Device depiction
5
4
3
1
2
No. Operating element
1Focus ring
2UV light source
3Power button
4Battery compartment closure
5Opening for wrist strap
Technical data
Parameter Value
Model UV-Torchlight 15F
Weight incl. battery 232g
Dimensions (diameterx length) 45mm x 155mm
Radiation intensity*
Radiation cone ø250mm
2890 µW/cm²
Radiation intensity*
Radiation cone ø150mm
10030 µW/cm²
Radiation intensity*
Radiation cone ø100mm
22560 µW/cm²
Radiation intensity*
Radiation cone ø60mm
38420 µW/cm²
Radiation intensity*
LED spotlight ø30mm
55480 µW/cm²
Power supply 1 x 18650 Li-ion battery 3.7V
Light source 12 x 365nm LED
Wavelength UV-A light 365± 5nm
Operating time > 2hours
Type of protection IPX7
*at a distance of 38cm

EN 5
UV torch UV-Torchlight 15F
Scope of delivery
• 1 x UV-Torchlight 15F
• 1 x Li-ion battery 3.7V
• 1x Battery charger
• 1x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• the storage temperature complies with the values specified
in the Technical data
• Battery/Batteries removed during prolonged storage
Operation
Charging the battery
Warning of explosive substances
Do not expose the batteries to temperatures above
60°C! Do not let the batteries come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Caution
Lithium-ion batteries might catch fire in case of
overheating or damage. Ensure a sufficient distance to
heat sources, do not subject lithium-ion batteries to
direct sunlight and make sure not to damage the
casing. Do not overcharge lithium-ion batteries. If the
battery is not permanently installed in the device, only
use smart chargers that switch off automatically when
the battery is fully charged. Charge lithium-ion
batteries in due time before they are discharged
completely.
1. Insert the battery into the charger with correct polarity.
Li-Ion 18650 3.7V
2. Connect the charger's power adapter to a mains socket.

6 EN
UV torch UV-Torchlight 15F
Inserting the battery
Note
Make sure that the surface of the device is dry and the
device is switched off.
1. Open the battery compartment by turning the battery
compartment closure(4) counter-clockwise.
I.
II.
4
2. Insert the battery into the battery compartment with the
positive terminal facing the lamp head.
3. Screw the battery compartment closure(4) back onto the
battery compartment.
Li-Ion 18650 3.7V
III.
IV.
4
Attaching the wrist strap
1. Attach the wrist strap to the opening provided using the
connecting ring(5).
Switching on/off
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Please observe the type of protection of the device
when using under water.
Do not use the focus function underwater.
Do not immerse the accessory in water.
Make sure that no water or other liquids can enter the
housing.
Warning
Danger from UVradiation!
The device generates UV-Aradiation in the non-visible
range of <400nm. The eyelid closure reflex does not
work in this UVrange. Do not look at the UVLED or into
its beams during operation. Be careful not to shine the
light directly on people or animals.
Do not use optics within the light cone to bundle the
light beams.
When used in direct proximity to the object, the
reflected UVradiation is stronger and thus more
intense than at a distance of several metres. Always
use suitable UVfilters or safety glasses according to
CE-EN166 to avoid eye damage. Also avoid prolonged
exposure of skin or other living tissue.
Info
For best results, use the device in a darkened
environment.
Note
Wet urine traces cannot be made visible using the
device. Only dry urine traces become visible in the
UVlight.
Note
On a dark background, the colour of the reflected spot
may be similar to the colour of the background and
thus difficult to see.
For continuous light:
1. Press the Powerbutton(3) until you hear a click.
ðThe UVtorch turns on.
2. Illuminate the desired area with the UVtorch.
3. Press the Power button(3) again.
ðThe UVtorch turns off.
For momentary light:
1. Press and hold the Powerbutton(3) lightly without
pressing it down completely.
ðThe lamp is illuminated as long as you hold the button.
2. Illuminate the desired area with the UVtorch.
3. Release the Powerbutton(3).
ðThe UVtorch turns off.

EN 7
UV torch UV-Torchlight 15F
Setting the focus
Info
Do not use the focus function underwater, otherwise
water may enter the torch!
1. Turn the lamp head to the left to enlarge the light cone.
ðThe illuminated area increases while the range of
UVrays is reduced.
2. Turn the lamp head to the right to focus the UVrays.
ðThe illuminated area is reduced while the range of
UVrays is increased.
Maintenance and repair
Charging the battery
The battery should be charged when the light cone is only
faintly visible or the device cannot be switched on. To do so,
please follow the instructions in the chapter Operation.
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Disposal
Always dispose of packing materials in an environmentally
friendly manner and in accordance with the applicable local
disposal regulations.
The icon with the crossed-out waste bin on waste
electrical or electronic equipment is taken from Directive
2012/19/EU. It states that this device must not be disposed of
with the household waste at the end of its life. You will find
collection points for free return of waste electrical and electronic
equipment in your vicinity. The addresses can be obtained from
your municipality or local administration. You can also find out
about other return options that apply for many EU countries on
the website https://hub.trotec.com/?id=45090. Otherwise,
please contact an official recycling centre for electronic and
electrical equipment authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms of
recovery of waste equipment as well as to prevent negative effects
for the environment and human health caused by the disposal of
hazardous substances potentially contained in the equipment.
Li-Ion
In the European Union, batteries and accumulators must
not be treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
Only for United Kingdom
According to Waste Electrical and Electronic Equipment
Regulations 2013 (SI2013/3113) (as amended) and the Waste
Batteries and Accumulators Regulations 2009 (SI2009/890) (as
amended), devices that are no longer usable must be collected
separately and disposed of in an environmentally friendly manner.

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
