Troy-Bilt Storm Tracker 1028 User manual

SNOW THROWER
Storm Tracker Models:
1028
1130
Operator’s Manual
PRINTED IN U.S.A.
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
WARNING: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local
or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on
federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO .
769-00395C.fm
(8/9/2005)

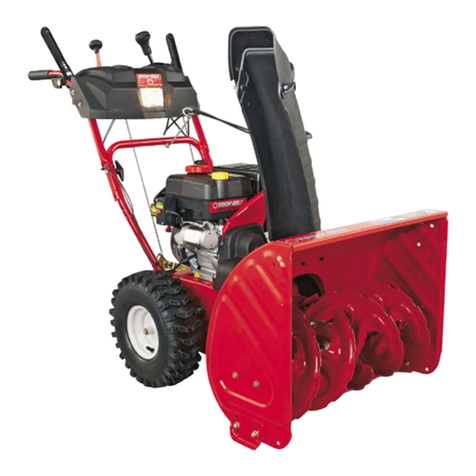

Model 1028 Shown

18
SECTION 8: PARTS LIST FOR MODELS 1028 & 1130
1
11 19
5
6
17
7
22
11
27
21
8
Part of handle panel
for reference only
13
25
4
9
3
24
20
14
26
11
19
30
29
32
34
38
39
40
41
42
9
11
45
45
46
47
48
49
50
51
52
53
54
54
55
56
57
58
59
60
40
61
62
63
64
65
9
67
68
69
72
70
71
9
53
40
16
74
75
76
77
9
64
81
68
79
43
78
28
23
10
75
75
16
15
12
75
66
70
44
2
73
18
11
37
33
80
31
35
84
36
80
83
82
8643
85
87
17
88
19

19
Models 1028 & 1130
Ref.
No.Part No. Part Description
1. 684-0008A Shift Arm Assembly
2. 747-0737† Chute Directional Control
705-5204A* Chute Directional Control
3. 710-0449 Carriage Screw, 5/16-18 x 2.25
4. 710-0458 Carriage Bolt, 5/16-18 x 1.75
5. 710-0643 Hex Bolt, 5/16-18 x 1.0
6. 710-0788 Screw, 1/4-20 x 1.0
7. 710-1880 Hex Bolt, 5/16-18 x 0.75
8. 711-0677 Ferrule
9. 712-04063 Flange Lock Nut
10. 710-0703 Carriage Screw, 1/4-20 x.75
11. 714-0104 Hairpin Clip
12. 720-0201A Chute Directional Control Knob
13. 725-1757† Heated Grip
720-0274* Grip
14. 720-0284 Handle Knob Assembly
15. 726-0100 Push Cap
16. 710-0597 Hex Screw, 1/4-20 x 1.00
17. 736-0119 Lock Washer
18. 736-0185 Flat Washer
19. 736-0275 Flat Washer
20. 736-0451 Saddle Washer
21. 747-0620A Upper Shift Rod
22. 747-0621 Lower Shift Rod
23. 629-04007† Heated Grips Harness Ass’y
24. 749-0951 Lower Handle
25. 749-0952A Upper Handle RH
26. 749-0953A Upper Handle LH
27. 750-0963 Shift Rod Connector
28. 710-0837 Screw, #10-16 x.625
29. 684-0036A Handle Engagement Assembly RH
30. 684-0037B Handle Engagement Assembly LH
31. 710-1003 Screw, #10-16 x 0.625
32. 712-0271 Hex Sems Nut, 1/4-20
33. 712-0693† Jam Nut, 15/32-32
34. 720-0232 Shift Knob
35. 725-1759†† Halogen Lamp, 50W, 12V
36. 725-1672†† Lamp Housing
37. 731-04068† Handle Panel
731-04067* Handle Panel
38. 684-0102 Handle Panel Assembly w/Tilt
39. 710-0459A Hex Bolt, 3/8-24 x 1.5
40. 710-0599 Screw, 1/4-20 x 0.5
41. 711-0653 Clevis Pin
42. 712-0116 Jam Lock Nut, 3/8-24
43. 712-3010 Hex Nut, 5/16-18
44. 714-0145† Click Pin
45. 714-0507 Cotter Pin
46. 732-0145 Compression Spring
47. 732-0193 Compression Spring
48. 732-0746 Torsion Spring
49. 735-0199A Rubber Bumper
50. 736-0105 Bell Washer
51. 736-0509 Flat Washer
52. 746-0778 Z- Fitting, Drive Cable
53. 747-0877 Cam Rod
54. 748-0362 Handle Lock Cam
55. 748-0363 Handle Lock Pawl
56. 784-5619A Shift Handle
57. 784-5679 Handle Support Bracket LH
58. 784-5680 Handle Support Bracket RH
59. 784-5681 Support Bracket LH
60. 784-5682 Support Bracket RH
61. 710-0805 Hex Bolt, 5/16-18 x 1.5
62. 746-0901 Chute Deflector Cable w/Clip
63. 746-0896 Chute Deflector Control Cable
64. 731-1313C Chute Cable Guide
65. 784-5604 Chute Distance Control
66. 705-5266† Chute Directional Control Bracket
67. 736-0506A Special Washer
68. 710-0895 Hi-Lo Screw, 1/4-15 x 0.75
69. 731-1379C Chute Adapter
70. 741-0475 Plastic Bushing
71. 784-5647 Chute Directional Control Bracket
72. 710-0451 Carriage Bolt, 5/16-18 x 0.75
73. 684-0053B† Lower Chute Directional Control
74. 731-0851A Flange Keeper
75. 712-04064 Flange Lock Nut, 1/4-20
76. 731-1300C Lower Chute
77. 731-04427A Upper Chute
78. 784-5594 Cable Bracket
79. 710-04071 Carriage Bolt, 5/16-18 x 1.0
80. 716-0398† Toggle Switch Lock Ring
81. 710-0262 Carriage Bolt, 5/16-18 x 1.5
82. 725-1756† Single Throw Toggle Switch
83. 736-0226† Flat Washer
84. 747-1136†† Headlight Retainer
85. 735-0234* Rubber Grommet
86. 747-0697* Eye Bolt
87. 629-0059* Light Harness
88. 736-0159 Flat Washer, .349 x .879 x .063
Ref.
No.Part No. Part Description
† Model 1028
* Model 1130
†† Model 1130 equipped with one (1)

20
10
47
44
38
46
19
32
45
17
41
40
1
29
42
43
39
24
9
20
31
36
49
23
18
48
50
25
16
33
34
35
15
28
26
22 27
21
12
14
11
16
5
6
3
7
16
8
4
228
13
16
30
37
51
51
Model 1028

21
Model 1028
Ref.
No. Part No. Part Description
1. 714-0507 Cotter Pin
2. 756-0178 Flat Idler
3. 784-5632B Auger Idler Arm
4. 710-0347 Hex Cap Screw, 3/8-16 x 1.75
5. 738-0281 Shoulder Screw
6. 736-0174 Wave Washer
7. 732-0611 Extension Spring
8. 712-3068 Hex Nut 5/16-18
9. 710-0642 Self Tapping Screw, 1/4-20 x.75
10. 711-04283 Auger Axle, 28”
11. 05931A Housing
12. 741-0309 Ball Bearing
13. 710-0451 Carriage Bolt, 5/16-18 x.75
14. 705-5226 Chute Reinforcement
15. 684-04132A Auger Housing Assembly, 28”
16. 712-04063 Flange Lock Nut 5/16-18
17. 714-0161 Hi-Pro Key, 3/16 x 5/8
18. 715-04021 Dowel Pin
19. 717-0528A Worm Gear, 20-tooth
20. 717-0526 Worm Shaft
21. 731-2635 Clean-Out Tool Mount
22. 731-2643 Clean-Out Tool
23. 718-04071 Thrust Collar
24. 790-00087 Bearing Housing
25. 721-0325 Grease Plug
26. 710-0604A Hex Screw, 5/16-12
27. 725-0157 Cable Tie
28. 712-04065 Flange Lock Nut, 3/8-16
29. 741-0245 Hex Flange Bearing
30. 790-00091 Skid Shoe
31. 721-0327 Grease Seal
32. 736-0351 Flat Washer,.76 x 1.5 x.030
33. 790-00118 Shave Plate, 28”
34. 710-0451 Carriage Bolt 5/16-18 x 1.00
35. 684-0065 Impeller Assembly
36. 715-0114 Pin
37. 618-04206 Gear Assembly Complete, 28”
38. 684-04108 Spiral Assembly – RH
39. 736-0188 Flat Washer
40. 741-0493A Flange Bushing
41. 684-04107 Spiral Assembly – LH
42. 738-04124 Shear Pin,.25 x 1.50
43. 731-04870 Spacer, 1.25OD x.75ID x 1.00 Lg.
44. 618-0123 RH Housing (Incl ref. 45 & 46)
45. 721-0179 Oil Seal
46. 741-0661A Flange Bearing
47. 618-0124 LH Housing (Incl ref. 45 & 46)
48. 736-3084 Flat Washer,.51 x 1.12 x.06
49. 741-0662 Flange Bearing,.75 x 1.0 x.59
50. 741-0663 Flange Bearing,.503 ID x.75 OD
51. 737-3000 Lube Fitting, 3/16 Drive
Ref.
No. Part No. Part Description

22
10
43
47
44
38
46
19
32
45
17
9
20
31
36
49
23
18
48
50
25
16
33
13
35
15
28
26
22 27
21
12
14
11
16
5
6
3
7
16
8
4
228
13
16
30
37
34
1
41
40
39
24
29
42
Model 1130

23
Model 1130
Ref.
No. Part No. Part Description
1. 714-0507 Cotter Pin
2. 756-0178 Flat Idler
3. 784-5632B Auger Idler Arm
4. 710-0347 Hex Cap Screw, 3/8-16 x 1.75
5. 738-0281 Shoulder Screw
6. 736-0174 Wave Washer
7. 732-0611 Extension Spring
8. 712-3068 Hex Nut 5/16-18
9. 710-0642 Self Tapping Screw, 1/4-20 x.75
10. 711-04282 Auger Axle, 30”
11. 05931A Housing
12. 741-0309 Ball Bearing
13. 710-0451 Carriage Bolt, 5/16-18 x.75
14. 705-5226 Chute Reinforcement
15. 684-04137 Auger Housing Assembly, 30”
16. 712-04063 Flange Lock Nut, 5/16-18
17. 714-0161 Hi-Pro Key, 3/16 x 5/8
18. 715-04021 Dowel Pin
19. 717-0528A Worm Gear, 20-tooth
20. 717-0526 Worm Shaft
21. 731-2635 Clean-Out Tool Mount
22. 731-2643 Clean-Out Tool
23. 718-04071 Thrust Collar
24. 790-00138A Bearing Housing w/ Hole
25. 721-0325 Grease Plug
26. 710-0604A Hex Screw, 5/16-12
27. 725-0157 Cable Tie
28. 712-04065 Flange Lock Nut, 3/8-16
29. 741-0245 Hex Flange Bearing
30. 790-00091 Skid Shoe
31. 721-0327 Grease Seal
32. 736-0351 Flat Washer,.76 x 1.5 x.030
33. 790-00119 Shave Plate, 30”
34. 710-0451 Carriage Bolt, 5/16-18 x 1.00
35. 684-0065 Impeller Assembly
36. 715-0114 Pin
37. 618-04234 Gear Assembly Complete, 30”
38. 684-04108 Spiral Assembly - RH
39. 736-0188 Flat Washer
40. 741-0493A Flange Bushing
41. 684-04107 Spiral Assembly - LH
42. 738-04124A Shear Pin,.25 x 1.50
43. 731-04870 Spacer, 1.25OD x.75ID x 1.00 Lg.
44. 618-0123 RH Housing (Incl ref. 45 & 46)
45. 721-0179 Oil Seal
46. 741-0661A Flange Bearing – RH Housing
741-0339 Flange Bearing – LH Housing
47. 618-0418 LH Housing (Incl ref. 45 & 46)
48. 736-3084 Flat Washer,.51 x 1.12 x.06
49. 741-0662 Flange Bearing,.75 x 1.0 x.59
50. 741-0663 Flange Bearing,.503 ID x.75 OD
51. 731-04871 Spacer, 1.25OD x.75ID x 3/16 Lg.
Ref.
No. Part No. Part Description

24
Models 1028 & 1130
1
2
3
4
5
6
7
4
8
9
10
11
12
13
14
15
16
18
19
19
16
16
16
20
21
22
23
24
25
26
28
29
27
30

25
Models 1028 & 1130
Ref.
No. Part No. Part Description
1. 710-1652 Hex Washer Screw, 1/4-20 x.625
2. 731-1324 Belt Cover
3. 732-0710 Extension Spring
4. 710-0627 Hex Screw, 5/16-24 x.75
5. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
6. 05896A Drive Clutch Idler Bracket
7. 748-0234 Shoulder Spacer
8. 756-0987 Pulley Half
9. 754-0346 V-Belt
10. 756-0986 Pulley Half
11. 736-0270 Bell Washer
12. 710-0230 Hex Cap Screw, 1/4-28 x.50
13. 756-0313 Flat Idler
14. 710-1245B Lock Hex Cap Screw, 5/16-24
15. 712-0181 Lock Jam Nut, 3/8-16
16. 756-0569 Pulley Half
18. 736-0505 Flat Washer
19. 754-0430B Belt
20. 756-0967 Auger Pulley
21. 736-0247 Flat Washer, 3/8 x 1.25 OD
22. 736-0331 Bell Washer
23. 710-0696 Hex Cap Screw, 3/8-24
24. 748-0360 Adapter Pulley
25. 710-0654A Hex Screw, 3/8-16 x 1.0
26. 629-0071 Extension Cord
27. 731-04049B Engine Shroud
28. 710-04082 Screw, #10-16 x.75
29. 712-3004A Flange Lock Nut, 5/16-18
30. 684-04011 Spark Plug Cap
IMPORTANT: For a proper working machine, use Factory
Approved Parts.
V-BELTS are specially designed to engage and disengage
safely. A substitute (non OEM) V-Belt can be dangerous by
not disengaging completely

26
25 19 26
27
24
23
22
21
16
17
18
19
20
29
30 31
32 32
32
34
30
32
27
26
19 25
36
21
24
23
22
12
2
30
10
18
19
20
2
1
13
11
14
15
9
3
7
6
5
4
2
40
39
38
Models 1028 & 1130
28
8
35
41
33
37
29

27
Models 1028 & 1130
Ref.
No. Part No. Part Description
1. 784-5648 Frame Cover
2. 710-1652 Tap Screw 1/4-20 x.625
3. 748-0190 Spacer.508 ID x.75 OD
4. 732-0264 Extension Spring
5. 712-0711 Jam Nut 3/8-24
6. 736-0105 Bell Washer.401 ID x.87 OD
7. 684-0021 Friction Whl Support Bracket
8. 746-0898B Drive Cable 39.88”
9. 656-0012A Friction Disc
10. 784-5689A Front Support Guide Bracket
11. 713-0413 10T Sprocket
12. 746-0897 Auger Cable 44.75”
13. 750-0997 Spacer.675 ID x 1” OD
14. 711-1042 Hex Track Shaft
15. 684-0042C Friction Wheel Assembly
16. 736-0160 Flat Washer.536 ID x.93 OD
17. 714-0474 Cotter Pin
18. 741-0563 Ball Bearing
19. 736-0242 Bell Washer.34 ID x.872 OD
20. 710-0538 Hex Cap Screw 5/16-18 x.625
21. 710-0875 Tap Screw 1/4-20 x.75
22. 736-0270 Bell Washer.265 ID x.75 OD
23. 736-0176 Flat Washer 1/4 ID x.93 OD
24. 741-1111 Hex Flange Bearing
25. 710-0643 Hex Cap Screw 5/16-18 x 1”
26. 748-0234 Shoulder Spacer
27. 710-0604A Tap Screw 5/16-12 x.6250
28. 684-0031 Frame Assembly
29. 738-0924 Hex Screw 1/4-28 x.375
30. 756-0625 Cable Roller
31. 784-5688 Drive Cable Guide Bracket
32. 710-0599 Tap Screw 1/4-20 x.5
33. 784-5590 Shift Frame Bracket
34. 684-0014B Shift Rod Assembly
35. 784-5687A Auger Cable Guide Bracket
36. 710-0809 Tap Screw 1/4-20 x 1.250
37. 618-0063A Friction Wheel Bearing
38. 718-0301A Friction Wheel Hub
39. 735-0243B Friction Wheel Rubber
40. 790-00011 Friction Plate
41. 790-00010 Friction Plate
Ref.
No. Part No. Part Description

28
Models 1028 & 1130
1
2
6
3
10
12
7
8
5
49
13 15
14
17
16
19 20
22
22
20
19
28
21
18
21
18
15
13
14
29
31
32
30
30
32
34
37
38
36
23
35
27
39
11
40
41
42
44
45
51
46
47
48
52
46
53
51
54
55
54
50
16
17
49
37
24
25
26
26
33
33
56
56

29
Models 1028 & 1130
Ref.
No. Part No. Part Description
1. 720-0223 Grip
2. 710-0604A Tap Screw, 5/16-12 x.625
3. 784-5642 Track Lockout Plate
4. 710-0157 Hex Cap Screw, 5/16-24 x.75
5. 736-0242 Bell Washer,.34 ID x.872 OD
6. 684-0038 Track Lock Handle Assembly
7. 710-0459A Hex Cap Screw, 3/8-24 x 1.5
8. 712-0214 Hex Nut, 3/8-24
9. 748-0353A Lift Shaft Drive
10. 750-0547 Spacer,.628 ID x.875 OD x.5
11. 784-5609 Steering Cable Bracket
12. 684-0009 Track Pivot Rod Assembly
13. 712-0346 Jam Nut, 1/2-20
14. 731-1292 Snow Track
15. 736-0272 Flat Washer,.5 x 1 x.06
16. 731-1538A Track Drive Wheel
17. 631-0032 Track Idler Wheel
18. 750-0995 Spacer,.51 ID x.75 OD x 1.67
19. 738-0140 Screw,.435 x.178-5/16 x.56
20. 736-0406 Flat Washer,.442 x 1.38 x.06
21. 750-0909 Spacer,.51 ID x 1 OD x 1.34
22. 712-04063 Flange Lock Nut, 5/16-18
23. 618-0044 LH Dogg Assembly
24. 684-0024 Idler Axle Assembly
25. 710-1231 Eye Bolt, 5/16-18 x 3
26. 784-5639 Track Side Plate
27. 711-0911 Actuator Shaft
28. 713-0233 Chain
29. 618-0169A Track/Steering Shaft Ass’y
30. 683-0024 Track Hub Ass’y
31. 713-0437 Chain
32. 741-0339 Flange Bearing
33. 736-0287 Flat Washer,.793 x 1.24 x.06
34. 611-0053 Axle Assembly
35. 750-0904 Spacer,.514 x.630 x 1.59
36. 618-0043 RH Dogg Assembly
37. 750-0903 Spacer,.514 x.630 x 2.44
38. 732-0209 Extension Spring
39. 710-0602 Tap Screw, 5/16-18 x 1
40. 719-0295A Track Housing
41. 746-0948A Steering Cable
42. 746-0950A Steering Trigger
44. 710-1233 Screw, #10-24 x 1.375
45. 716-0114 Retaining Ring
46. 618-0046B Carrier Assembly
47. 717-1211B Ring Gear
48. 716-0115 Retaining Ring
49. 713-0414 13-Tooth Sprocket
50. 711-0912 Track Steering Drive Shaft
51. 736-0502 Flat Washer,.58 x 1.06 x.02
52. 736-0336 Flat Washer, 5/8 x 1 x.03
53. 715-0120 Spiral Pin, 3/16 x 1
54. 717-1209A 12-Tooth Gear
55. 717-1210A 18-Tooth Gear
56. 725-0157 Cable Tie
Ref.
No. Part No. Part Description
