True XFW4400 User manual

XFW4400
Triceps Seat
OWNER’S
MANUAL
Model # XFW4400
Revision 091418

2
Thank you for purchasing products from the Paramount XFW line. Because of the many unique
features included inthese machines, this manual was created toprovide you with information on
how toproperly install and maintain your equipment. Proper maintenance will ensure that your
new equipment will last for years.
For your convenience, product questions can beanswered byan Authorized Paramount Dealer
or by contacting a TRUE Fitness Customer Service Representative at:
1-800-883-8783 or 1-800-721-2121
Office hours are Monday-Friday, 8:00 am - 5:00 pm CST
Or email us at [email protected] or [email protected]
Thank You for yourpatronage.
TRUE Fitness
865 Hoff Road
O'Fallon, MO 63366
WARNING
SERIOUS INJURIES TO USERS, BYSTANDERS OR INSTALLERS CAN OCCUR IF THE
INSTRUCTIONS AND WARNINGS CONTAINED INTHIS MANUAL ARE NOT FOLLOWED. TO
MINIMIZE THIS RISK, READ THE MANUAL BEFORE BEGINNING THE INSTALLATION TO
FAMILIARIZE YOURSELF WITH ITS CONTENTS AND THEN BECERTAIN TO FOLLOW EACH
OF THE STEPS AND PRACTICES DESCRIBED. IN ADDITION, REVIEW THE GENERAL
MAINTENANCE MANUAL, FACILITY SAFETY SIGN AND OTHER DOCUMENTS THAT MAY
ACCOMPANY EACH MACHINE, FOR IMPORTANT SAFETY AND MAINTENANCE TIPS. THE
MANUAL HASBEENINCLUDED WITH YOUR MACHINE ORDER AND CAN ALSO BE
DOWNLOADED FROMOUR WEBSITE AT: http://www.truefitness.com
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
A MESSAGE TO OUR CUSTOMERS

3
S AFETY ..............................................................................................................
4
G ENERAL C ARE AND M AINTENANCE ......................................................................
7

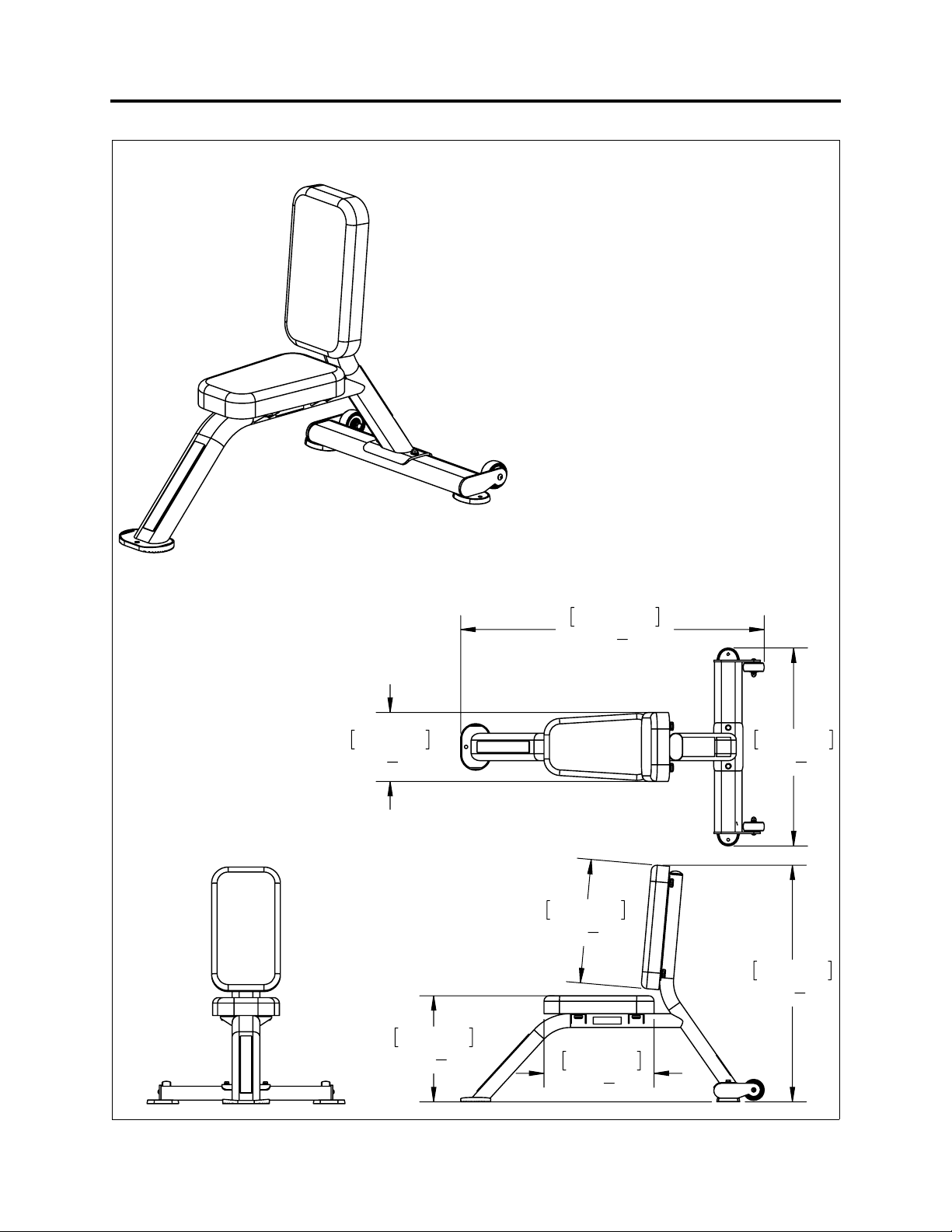

M ACHINE D IMENSIONS & W EIGHTS .......................................................................
8
A SSEMBLY .........................................................................................................
9

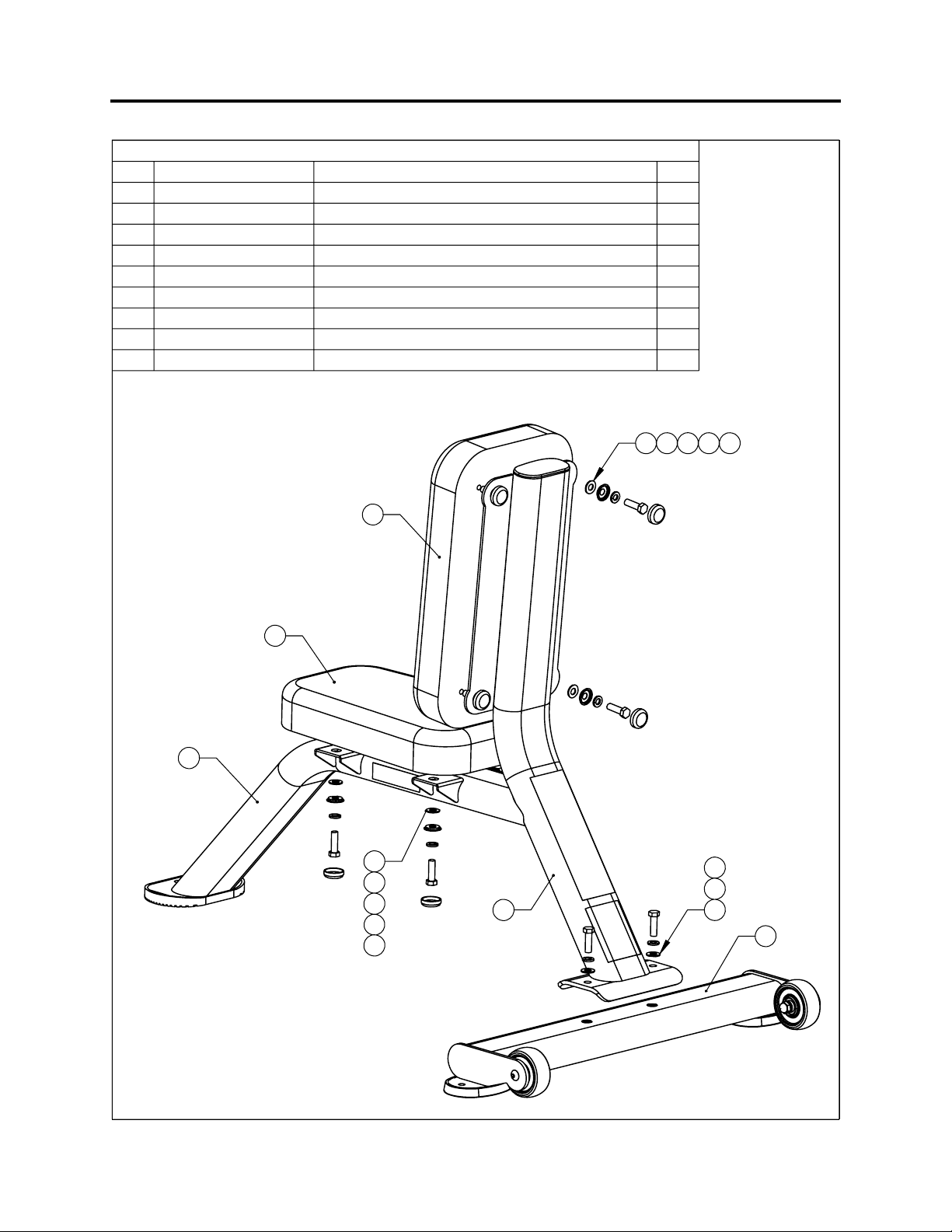

P ARTS D IAGRAM .................................................................................................
10
I NTENDED U SE & W ARNING L ABELS ......................................................................
11
W ARRANTY ......................................................................................................... 12
TABLE OFCONTENTS

4
F ACILITY AND U SER S AFETY P RECAUTIONS
1. Review and understand all of the warning labels affixed to this machine and on the facility
safety sign.
2. Be certain that the machine operation is understood before it is used. Refer to the
instructional Procedure Label affixed to the machine.
3. Make sure all users are properly trained on how to use this equipment. If this machine is
being used in a commercial setting, end users may not have access to this Owners Manual. It
is the responsibility of the facility to instruct users as to the proper usage of the equipment as
well as making them aware of potential hazards.
4. Use each machine only for the intended exercise. Do not allow anyone to invent exercises not
included on the Instructional Procedure Label or the Intended Use Label.
5. Do not modify the machine.
6. This equipment meets industry safety standards for stability when used for the intended
exercise. Do not allow straps, resistance bands or other means to be attached to the
framework of this machine to perform stretching or body weight exercises. This can result in
machine instability and lead to serious crushing injuries.
7. Keep children away from this equipment. Adults should closely supervise use by teenagers.
8. It is recommended that users receive a thorough medical exam before commencing an
exercise program. All medical issues should be reviewed to ensure that weight training will
not aggravate pre-existing medical conditions.
9. If the machine appears damaged or inoperable, contact a facility staff member to place an
“OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use Paramount
supplied replacement components to service this machine.
10. Instruct users not to wear loose or dangling clothes or have headphone wires hanging when
using this equipment.
11. Do not attempt to free any jammed assemblies by yourself as this may cause injury.
12. On Plate Loaded and Free Weight machines:
12a. Use of spotter(s). Instruct users to seek the advice of the facility staff as to the
appropriate use of spotters when lifting. More then one spotter may be required
depending upon the amount of weight being lifted.
12b. Instruct users to load weight plates evenly and carefully (one side and then the other)
to avoid tipping equipment and crushing injuries.
12c. If the machine is equipped with safety stops or catches, inspect them and verify their
proper operation before use and make sure they are securely in place before using or
exiting the machine. Be certain members are instructed on how to operate and adjust
all safety mechanisms.
SAFETY

5
12d. This equipment is designed for standard olympic size weight plates with a 50mm bore
(1.9”).
12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is
45 lbs. (25 kg.).
13. On Selectorized and Cable equipped machines:
13a. Do not allow users to perform any exercise by holding the end of the cable and/or the
cable end fitting. Use only appropriate handles or attachments properly connected to
the cable end.
13b. Do not high-pin or double-pin the weight stack. Do not allow the machine to be used if
the top plate or weight stack is pinned in a raised position. Use an assistant and
carefully return the machine to the proper position with the cap plate resting on the top
weight. Inspect the entire length of the cable to ensure that it is properly seated in all
of the pulley grooves.
13c. Do not allow the use of weight plates or dumbbells to be used as a means to add
additional weight to the weight stacks. Use only the Paramount adder weight system
specifically designed for the machine.
I NSTALLATION S AFETY P RECAUTIONS
1. Read this Installation Manual entirely before assembling this equipment.
2. Verify that there is adequate space surrounding this piece of equipment for safe access and
operation. Installation must meet ADA requirements for accessibility.
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8”
over a 10’ distance (or as defined and required by local building and architectural codes.
4. Paramount strongly recommends that all equipment be anchored to the floor to prevent
movement and increase stability.
• Due to the wide variation of flooring on which the unit can be installed, contact a
qualified contractor to determine an appropriate fastening system for your floor.
• Use 3/8” diameter hardware (10 mm) to anchor the machine. Anchors should have a
minimum pull out force of 220 lbs (110 kgs) for each position.
• When attaching the machine to the floor, if there is a gap between the machine foot
and the floor, do not use the anchor to remove the gap as this can cause the
machine frame to deform. Instead, place a shim between the bottom of the foot and
the floor, then tighten the anchor.
• Anchoring holes are provided on the feet of the frame. All anchoring locations must
be used when anchoring the equipment to the floor.
5. DO NOT install any fitness equipment near a pool, hot tub or other damp locations. Corrosion
caused by installation in these locations can lead to premature failure of components.
6. Be sure all hardware is tight before using this machine.
SAFETY
