True T-24-GC User manual

Specications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T-24-GC
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
®
Underbar Refrigeration:
Solid Slide Lid Glass and Plate Chiller/Froster
T-24-GC

True’s glass and plate chiller/
frosters are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Large storage capacity to
meet the supply and demand
requirements during peak
hours.

Oversized, factory balanced,
refrigeration system holds 0°F
(-17.7°C) and below.

Forced-air cooling,
positively guided airow
provide ecient balanced
temperatures throughout the
cabinet. This unique design
ensures fast frosting of dry
glasses and plates.

Exterior - heavy duty, wear
resistant laminated black vinyl
front and sides, matching
black aluminum back. All
stainless steel countertop and
lid.

Interior - long lasting, heavy
duty galvanized steel.
†Depth does not include 1" (26 mm) for rear bumpers. ▲Plug type varies by country.
Model Lids
Capacity
Shelves
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
8"
(204 mm)
Mugs
10 oz.
Steins L D† H
T-24-GC 1 90 85 2 24¾ 26⁄ 33⁄ ⁄ 115/60/1 2.6 5-15P 9 180
629 677 848 ⁄ 230-240/50/1 2.7 ▲2.74 84
5/13

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

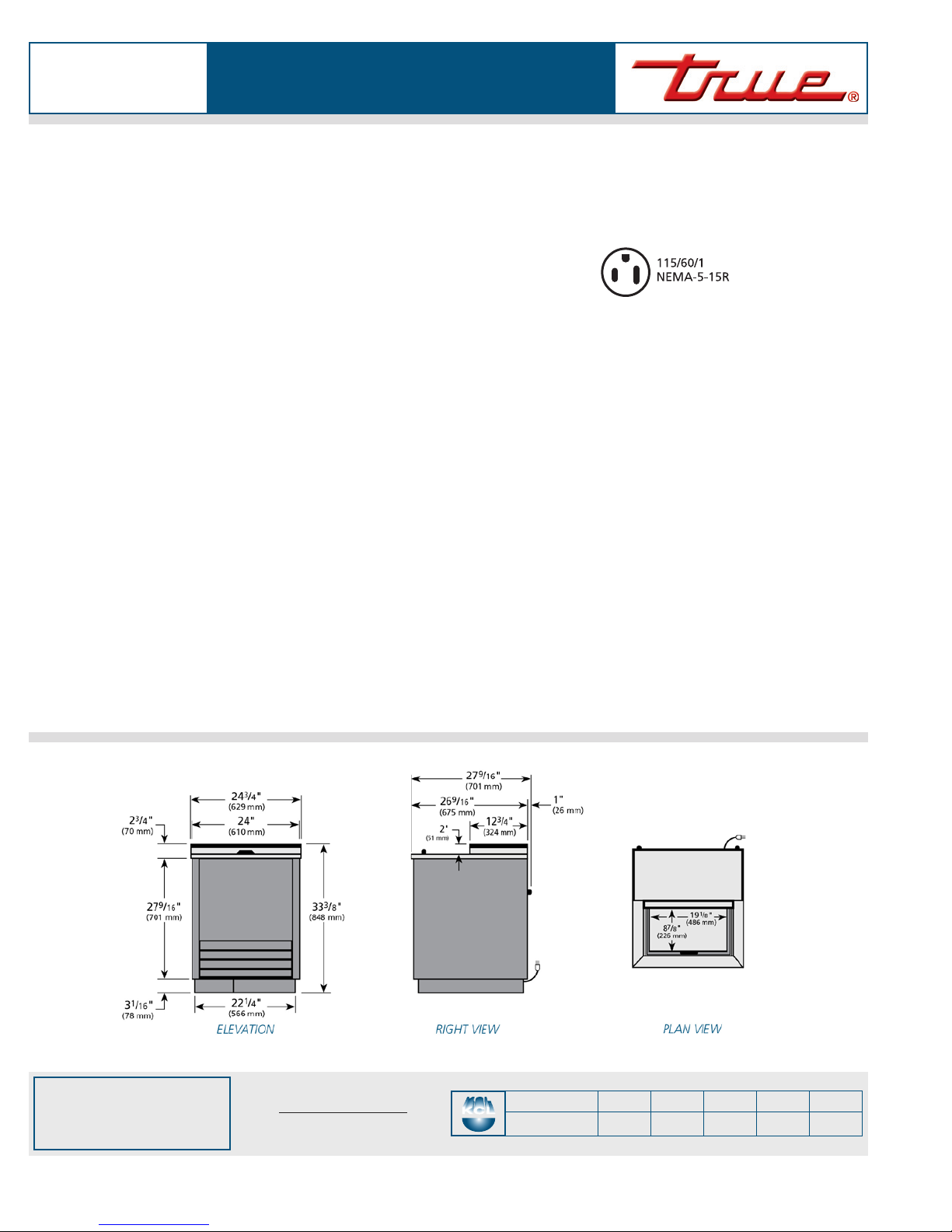

PLAN VIEW
KCL
T-24-GC
DESIGN
• True’s glass and plate chiller/frosters
are designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 0°F (-17.7°C) and below.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True chiller/frosters a more
ecient low velocity, high volume airow
design. This unique design ensures fast
frosting of dry glasses and plates.
• Automatic defrost system time-initiated,
time-terminated.
• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.
• Forced-air cooling, positively guided
airow provide ecient balanced
temperatures throughout the cabinet.
CABINET CONSTRUCTION
• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back. All
stainless steel countertop and lids.
• Interior - long lasting, heavy duty
galvanized steel.
• Insulation - entire cabinet structure is
foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black
powder coated for corrosion protection.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 10 ¼"L x 19 ⁄"D
(261 mm x 491 mm). Split shelf design
allows for eective rotation of chilled
smallware, working with already chilled
plates and glasses on one side while
chilling dry product on the other side.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❑230 - 240V / 50 Hz.
❑6" (153 mm) standard legs.
❑6" (153 mm) seismic/anged legs.
❑2 ½" (64 mm) diameter castors.
❑3" (77 mm) diameter castors.
❑Ratchet lock and handle.
❑Floor racks.
❑Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information. All remote units must
be hard wired during installation.
Underbar Refrigeration:
Solid Slide Lid Glass and Plate Chiller/Froster
Model Elevation Right Plan 3D Back
T-24-GC TFLY03E TFLY03S TFLY03P TFLY033
WARRANTY
Three year warranty on all parts
and laborand an additional 2
year warranty on compressor.
(U.S.A. only)
