True RESIDENTIAL TR-42SBS-SS-B Assembly instructions

TEC_TM_065 REV. B 03/31/2022 TRUE 42/48 INSTALL MANUAL
PRESERVE THE MOMENT®
TRUE RESIDENTIAL®
THE TRUE 42 / 48
INSTALL GUIDE AND USER'S MANUAL

TEC_TM_065 REV. B03/31/2022TRUE RESIDENTIAL®
INSTALLATION CHECKLIST
To ensure no part of the installation process has been overlooked, complete the checklist below.
☐Have all packaging materials been removed?
☐Are the anti-tip brackets securely installed and properly engaging the unit?
☐Has the unit been properly leveled? Do all leveling legs touch the floor?
☐Is the kickplate installed?
☐Is the doorstop being installed (if needed)?
☐Does the customer understand the unit’s operation?
☐Has the customer been given the key and literature package?
☐Have all stainless steel surfaces been inspected for imperfections?*
☐Is the unit operating correctly? If not, is the unit plugged in? Is the control turned on?
*To be completed by either an installer with the customer or an authorized True dealer upon
completion of installation. Stainless steel doors, handles, and shelves are covered by a
limited 30-day warranty for cosmetic defects.
THANK YOU
FOR YOUR PURCHASE

TEC_TM_065 REV. B 03/31/2022 Page 3 of 48TRUE 42/48 INSTALL MANUAL
CONTENTS
SAFETY INFORMATION & OWNERSHIP
OWNERSHIP 6
SAFETY PRECAUTIONS 6
DISPOSAL OF OLD REFRIGERATOR 6
CFC DISPOSAL 6
PRIOR TO INSTALLATION
SITE PREPARATION 8
ELECTRICAL REQUIREMENTS 12
INSTALLATION PLAN VIEWS
PLAN VIEWS 14
INSTALLATION
UNCRATING 20
ANTI-TIP BRACKET INSTALLATION 23
LEVELING THE UNIT 25
JOINING KIT INSTALLATION 26
CABINET SETUP
SHELVING 32
REFRIGERATOR STORAGE 32
FREEZER STORAGE 33
KICKPLATE INSTALLATION 34
REFRIGERATOR / FREEZER OPERATION
BASIC ELECTRONIC CONTROL OPERATIONS 36
SHOWROOM MODE 42
MAINTENANCE, CARE & CLEANING
STAINLESS STEEL EQUIPMENT
CARE & CLEANING 44
GENERAL MAINTENANCE 46
CONDENSATION 46
DATA TAG 46
REMOVING THE DOORS 46
CONTACT US 46
WARRANTY 47
NOTE: AS WE STRIVE FOR CONTINUOUS IMPROVEMENTS, FEATURES AND SPECIFICATIONS
ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TEC_TM_065 REV. B03/31/2022Page 4 of 48 TRUE RESIDENTIAL®
THE TRUE 42 / 48
TR-42SBS-SS-B
STAINLESS SOLID DOOR
TR-48SBS-SG-SS-B
STAINLESS SOLID DOOR
LUXURY REFRIGERATION WITH COMMERCIAL DNA.

PRESERVE THE MOMENT®
TEC_TM_065 REV. B 03/31/2022 Page 5 of 48TRUE 42/48 INSTALL MANUAL
OWNERSHIP
SAFETY PRECAUTIONS
DISPOSAL OF THE OLD REFRIGERATOR
CFC DISPOSAL
SAFETY INFORMATION & OWNERSHIP

TEC_TM_065 REV. B03/31/2022Page 6 of 48 TRUE RESIDENTIAL®
NOTE: WE STRONGLY RECOMMEND THAT ANY
SERVICING BE PERFORMED BY A QUALIFIED
INDIVIDUAL.
PROPER DISPOSAL OF THE OLD
REFRIGERATOR
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
BEFORE YOU THROW AWAY YOUR OLD
REFRIGERATOR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so that children may not
easily climb inside.
CFC DISPOSAL
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed
to harm stratospheric ozone. If you are throwing away
your old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified service. If
you intentionally release this CFC refrigerant you can
be subject to fines and imprisonment under provisions
of the environment legislation.
SAFETY INFORMATION & OWNERSHIP
OWNERSHIP
To insure that your unit works properly from the first
day, it must be installed properly.
NOTE: WE HIGHLY RECOMMEND A TRAINED
REFRIGERATION MECHANIC AND ELECTRICIAN
INSTALL YOUR TRUE RESIDENTIAL®CA BINE T.
THE COST OF A PROFESSIONAL INSTALLATION
IS MONEY WELL SPENT.
Before you start to install your True Residential®
Cabinet, carefully inspect it for freight damage. If
damage is discovered, immediately file a claim with
the delivery freight carrier. True is not responsible for
damage incurred during shipment.
Any questions about the installation please contact
your True dealer or True Technical Service Department
at 844-746-9423. Please have your model and
serial numbers available when you call our Service
Department.
SAFETY PRECAUTIONS
• This refrigerator must be properly installed
and located in accordance with the installation
instructions before it is used.
• DO NOT allow children to climb, stand or hang on
the shelves in the refrigerator. They could seriously
injure themselves or damage the refrigerator.
• DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
• Keep hands away from the “pinch point” areas
(gaps between the doors and between the doors
and cabinet). Small areas are not necessarily safe.
• Unplug the refrigerator before cleaning and making
repairs.
• Setting temperature control to OFF only removes
power from the refrigeration system, it does not
remove power from other circuits. For example,
temperature control and lights.

PRESERVE THE MOMENT®
TEC_TM_065 REV. B 03/31/2022 Page 7 of 48TRUE 42/48 INSTALL MANUAL
SITE PREPARATION
ELECTRICAL REQUIREMENTS
PRIOR TO INSTALLATION

TEC_TM_065 REV. B03/31/2022Page 8 of 48 TRUE RESIDENTIAL®
PRIOR TO INSTALLATION

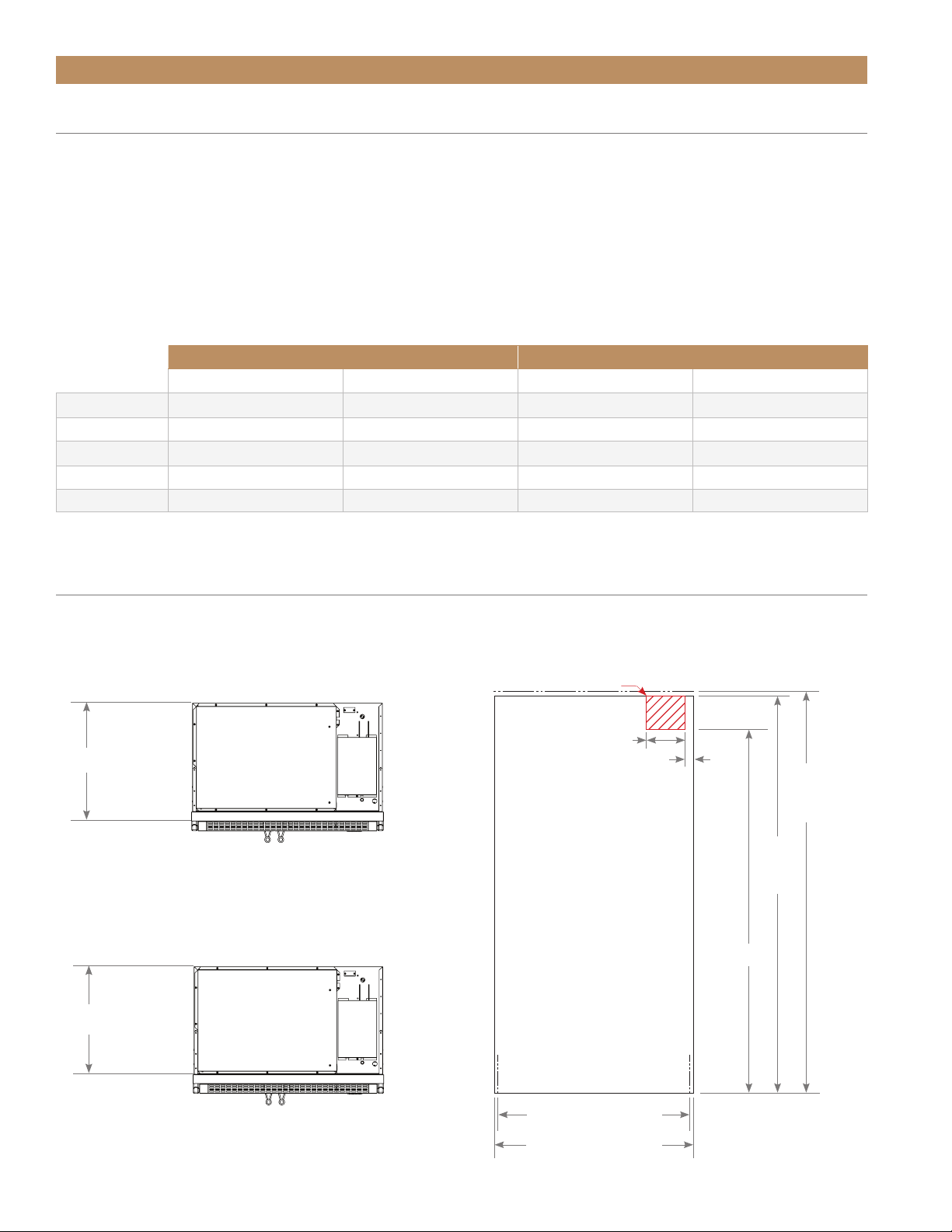

• Rough Opening dimensions. (See figure 1 and 2)
• For FLUSH installations the front face of the unit will be flush with the surrounding cabinets. (See figure 3)
• For PROUD (Standard) installations, the front face of the unit will extend beyond cabinets. (See figure 4)
NOTE: IT IS NOT RECOMMENDED TO INSTALL UNITS SIDE BY SIDE WITH HINGES TOUCHING
EACH OTHER. IF YOU PLAN TO INSTALL UNITS HINGE TO HINGE, CALL TECH SUPPORT AT
844-746-9423 FOR INSTALLATION INSTRUCTIONS.
TR-42 TR-48
FLUSH PROUD FLUSH PROUD
WIDTH 42¼”41¾”481/4”473/4”
DEPTH 26”24”26”24”
HEIGHT 84¼”84”84¼”84”
WEIGHT* 720 Lbs 720 Lbs 820 Lbs 820 Lbs
Cord Length 8 feet 8 feet 8 feet 8 feet
* Because of the weight of this unit, it is recommended to consult a flooring expert prior to installation. The flooring beneath the unit
should be rated to support at least 150 pounds per square foot.
41¾" PROUD INSTALL
42¼" FLUSH INSTALL
8"
Electrical located in
this area
2"
84¼"
FLUSH
INSTALL
84"
PROUD
INSTALL
77"
26" MINIMUM
FLUSH INSTALL
24" MINIMUM
PROUD INSTALL
SITE PREPARATION
MEASUREMENTS & WEIGHT

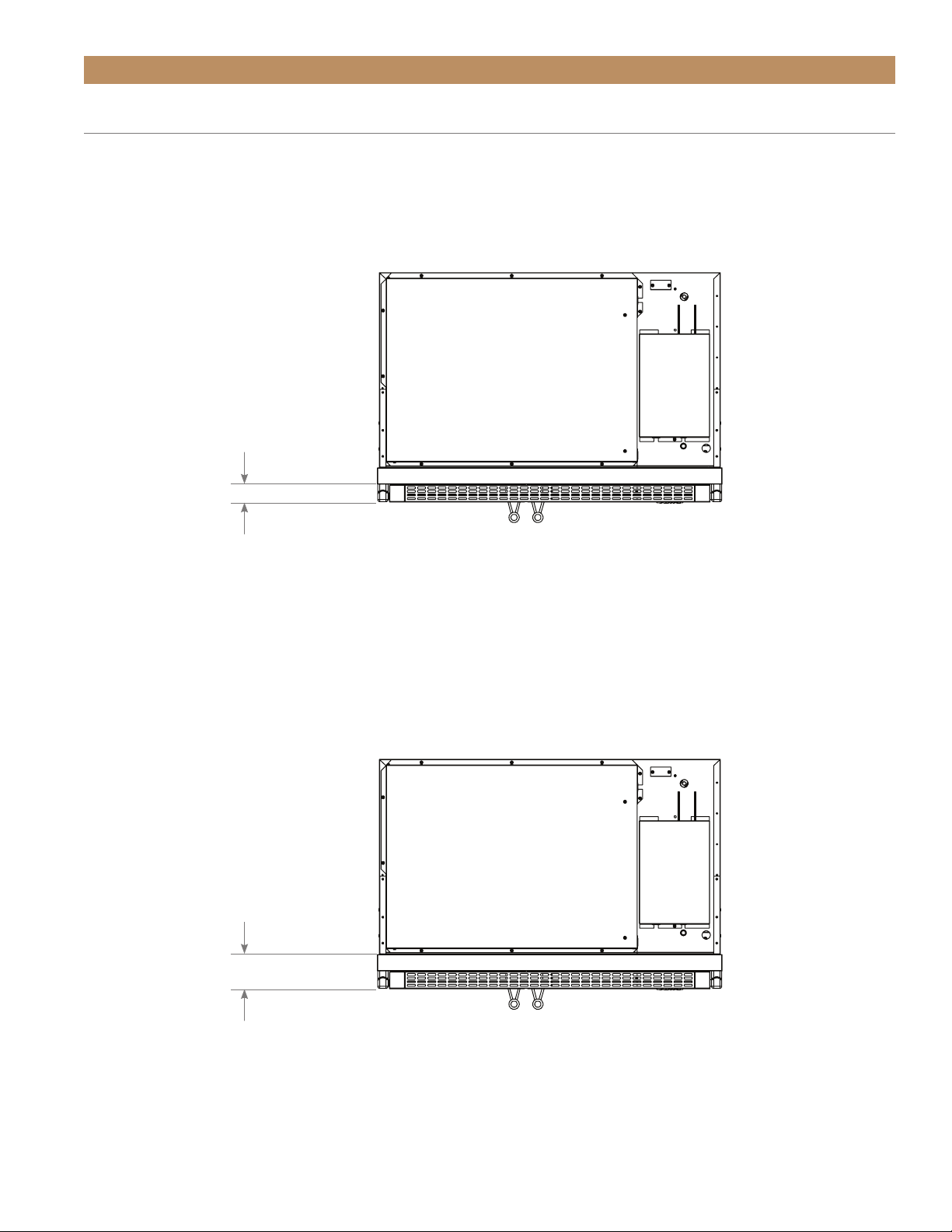

TR-42
TOP VIEW
FIGURE 1 – ROUGH OPENING
FLUSH INSTALL
FRONT VIEW
FIGURE 2 – ROUGH OPENING
TOP VIEW
FIGURE 1 – ROUGH OPENING
PROUD INSTALL
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B 03/31/2022 Page 9 of 48TRUE 42/48 INSTALL MANUAL
PRIOR TO INSTALLATION
23⁄16"
43⁄16"
TR-42
TOP VIEW
FIGURE 3 – FLUSH INSTALL
TOP VIEW
FIGURE 4 – PROUD INSTALL
Dimensions may vary by ± 1/8" (3.2 mm)
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B03/31/2022Page 10 of 48 TRUE RESIDENTIAL®
PRIOR TO INSTALLATION
47¾" PROUD INSTALL
48¼" FLUSH INSTALL
8"
Electrical located in
this area
2"
84¼"
FLUSH
INSTALL
84"
PROUD
INSTALL
77"
26" MINIMUM
FLUSH INSTALL
24" MINIMUM
PROUD INSTALL
TR-48
TOP VIEW
FIGURE 1 – ROUGH OPENING
FLUSH INSTALL
TOP VIEW
FIGURE 1 – ROUGH OPENING
PROUD INSTALL
FRONT VIEW
FIGURE 2 – ROUGH OPENING
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B 03/31/2022 Page 11 of 48TRUE 42/48 INSTALL MANUAL
PRIOR TO INSTALLATION
43⁄16"
TR-48
TOP VIEW
FIGURE 3 – FLUSH INSTALL
TOP VIEW
FIGURE 4 – PROUD INSTALL
Dimensions may vary by ± 1/8" (3.2 mm)
Dimensions may vary by ± 1/8" (3.2 mm)
23⁄16"

TEC_TM_065 REV. B03/31/2022Page 12 of 48 TRUE RESIDENTIAL®
PRIOR TO INSTALLATION
41¾" PROUD INSTALL
42¼" FLUSH INSTALL
8"
Electrical located
in this area
2"
84¼"
FLUSH
INSTALL
84"
PROUD
INSTALL
77"

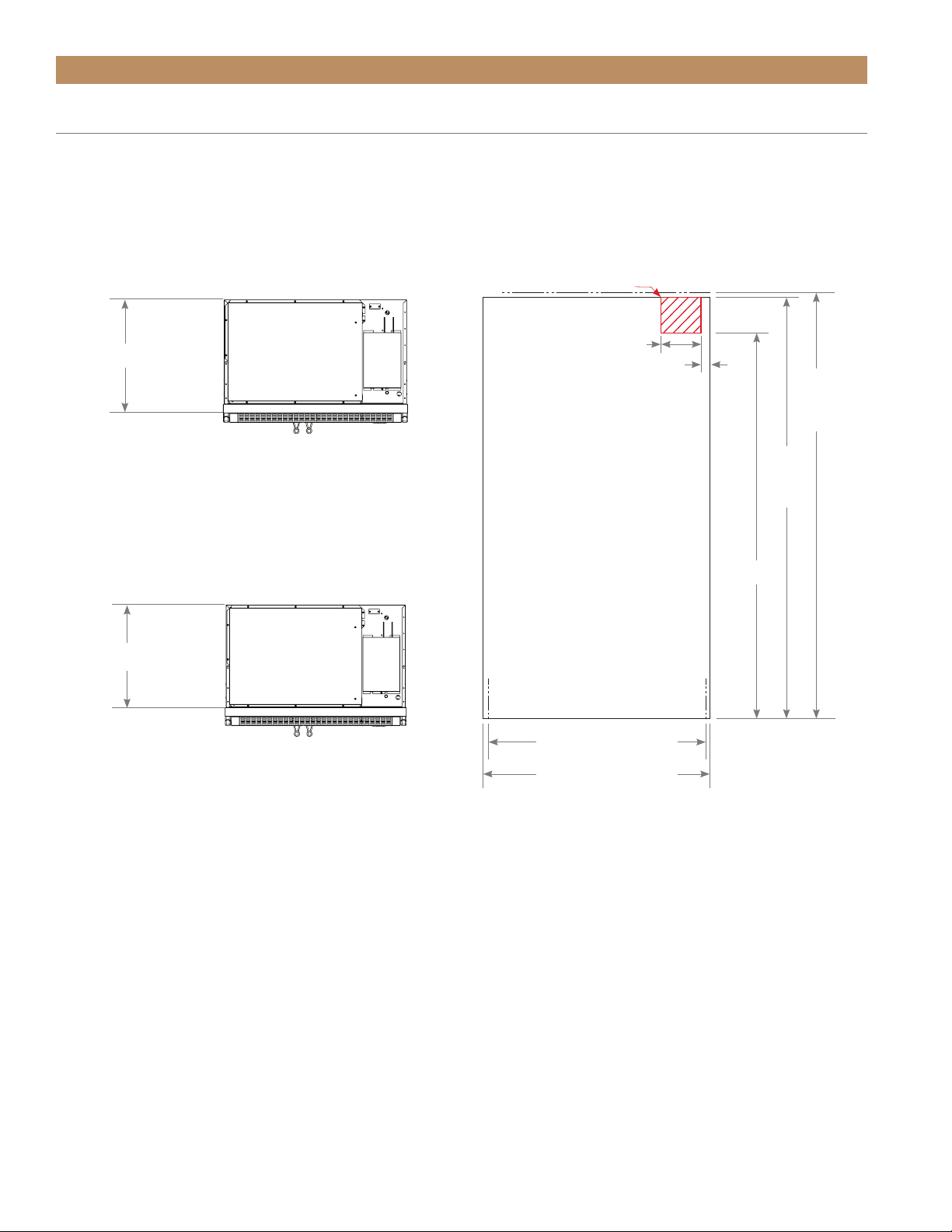

ELECTRICAL REQUIREMENTS
For all built-in models, the electrical supply should be
located within the shaded area shown in the illustration
(See Figure 5). Follow the National Electrical Code
and local codes and ordinances when installing
the receptacle. A dedicated circuit, supplying only
this appliance is required. A ground fault circuit
interrupter (GFCI) is not recommended and may cause
interruption of operation.
• Power Supply 115 V AC, 60 Hz
• Circuit Breaker 15 amp
• Receptacle 3-prong grounding-type
NOTE: THE OUTLET MUST BE CHECKED BY A
QUALIFIED ELECTRICIAN TO BE SURE THAT
IT IS WIRED WITH THE CORRECT POLARITY.
VERIFY THAT THE OUTLET IS PROPERLY
GROUNDED.
FIGURE 5
FRONT VIEW ROUGH OPENING
& ELECTRICAL AREA

PRESERVE THE MOMENT®
TEC_TM_065 REV. B 03/31/2022 Page 13 of 48TRUE 42/48 INSTALL MANUAL
TR-42SBS-SS-B
TR-48SBS-SG-SS-B
INSTALLATION PLAN VIEWS

TEC_TM_065 REV. B03/31/2022Page 14 of 48 TRUE RESIDENTIAL®
INSTALLATION PLAN VIEWS

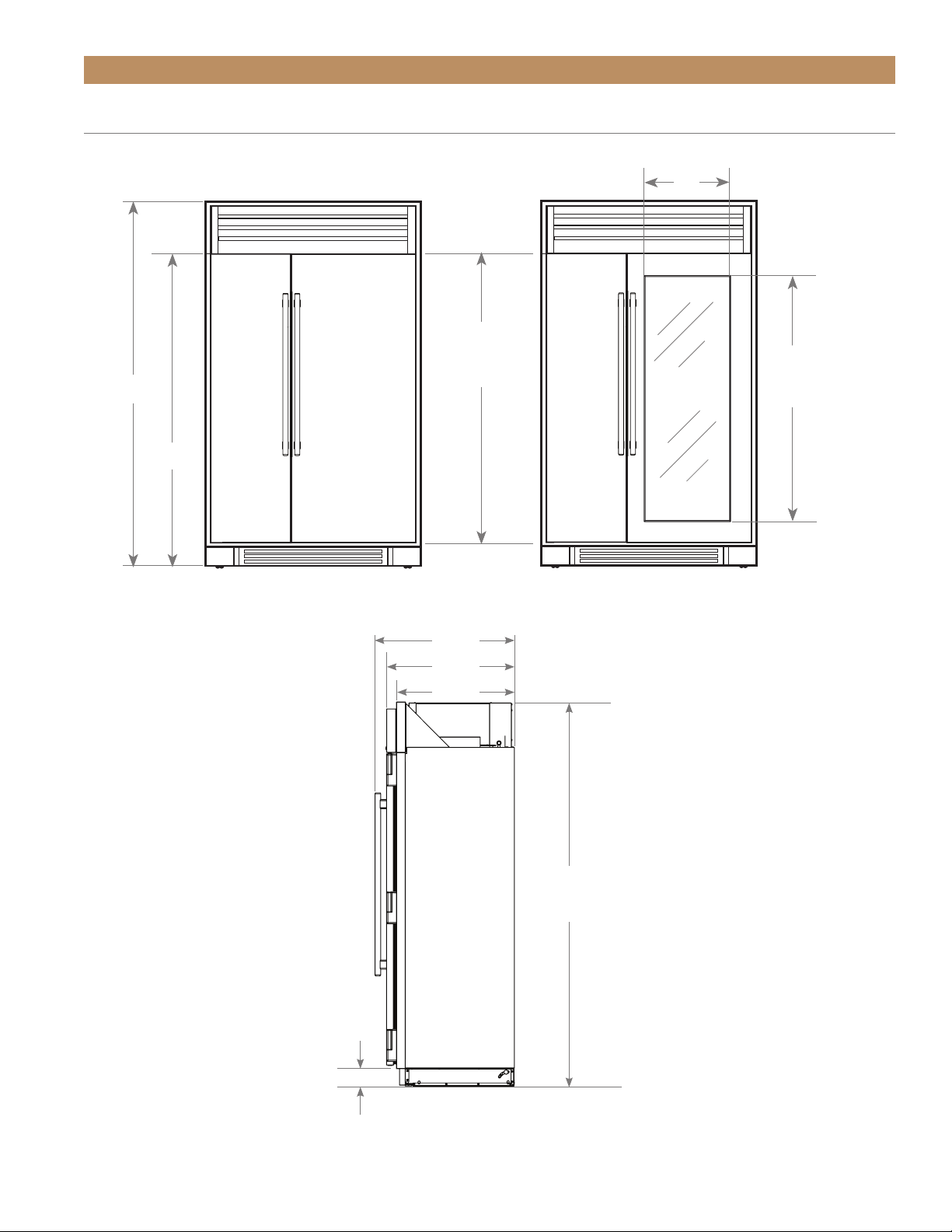

OVERALL DIMENSIONS – TR-42
265⁄8"
2013⁄16"

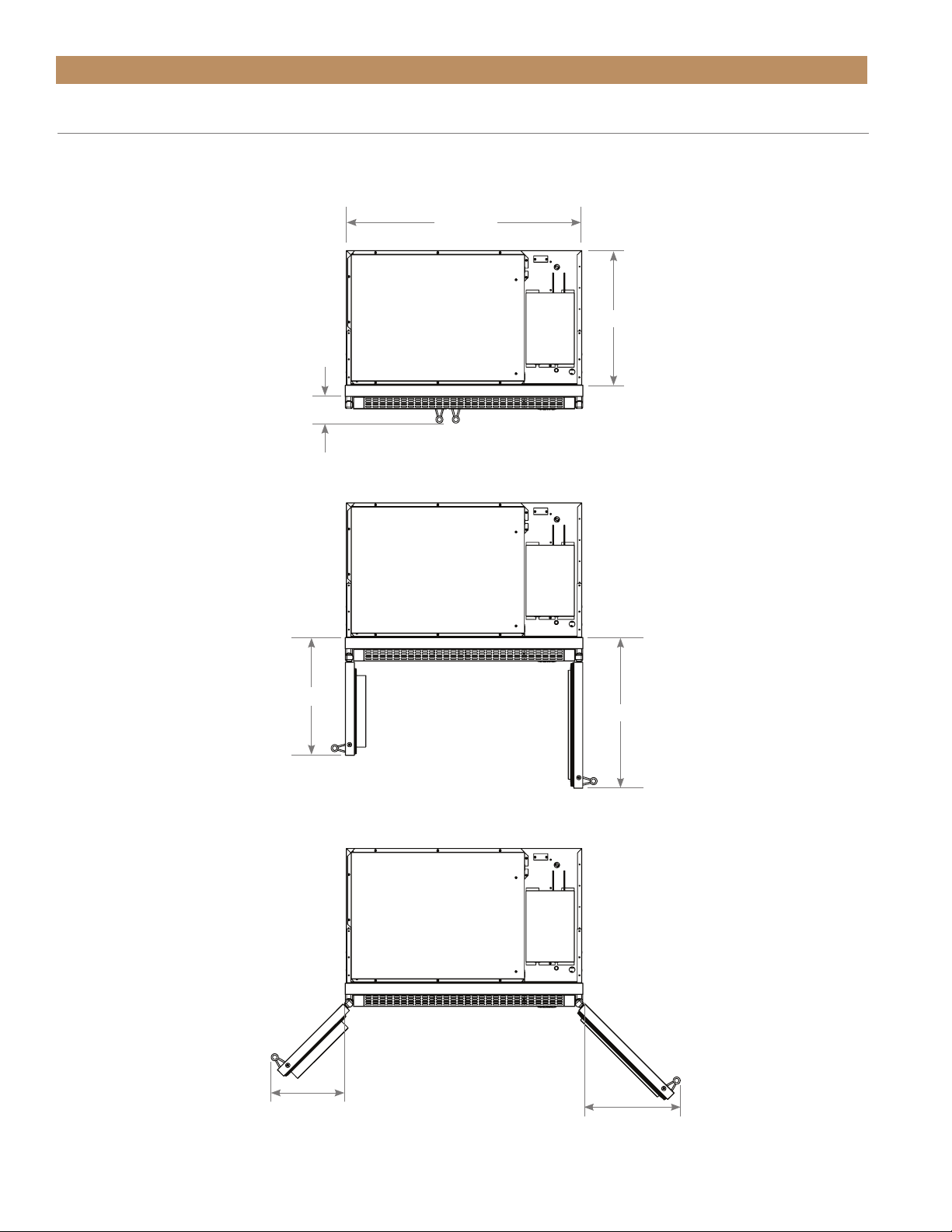

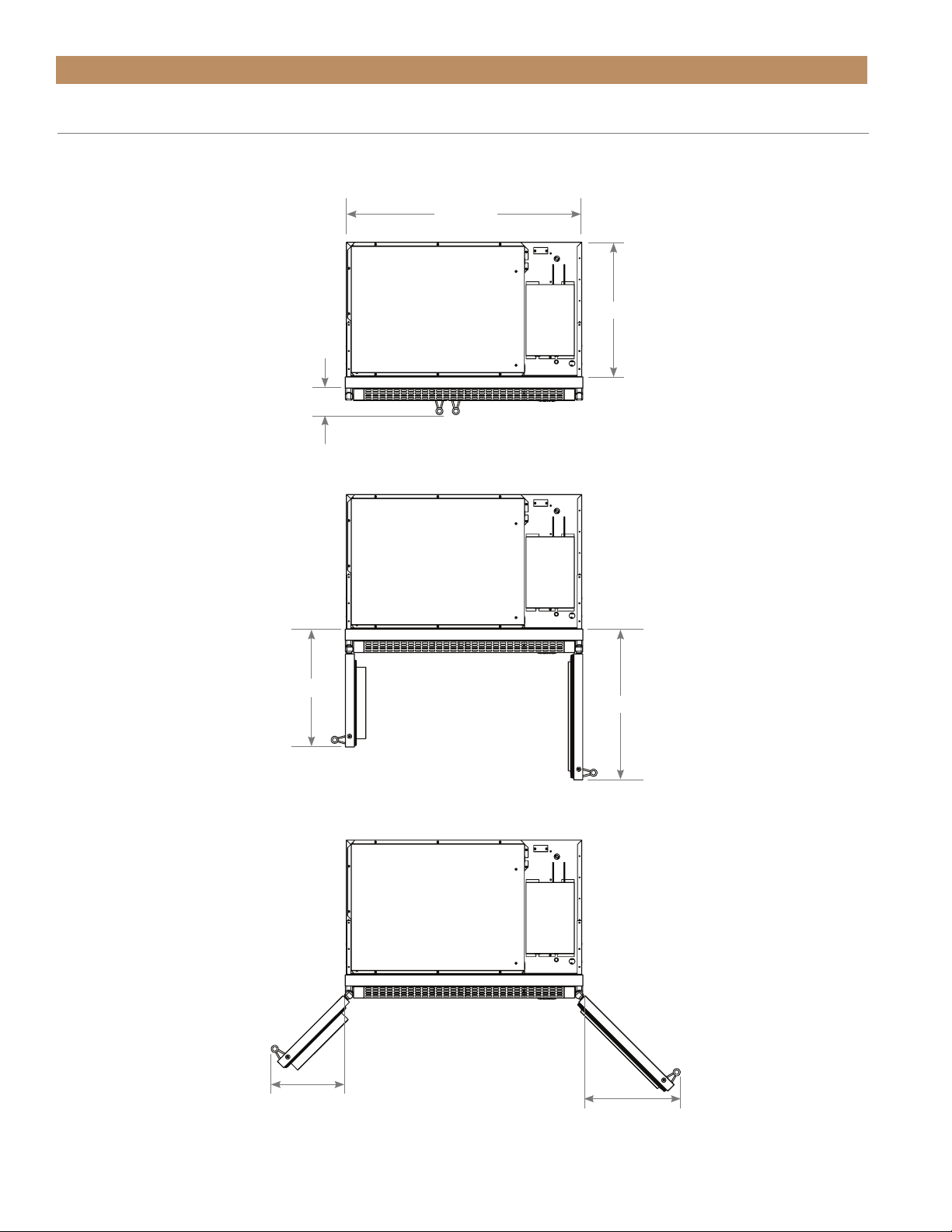

DOORS OPEN 90º
2325⁄32"
419⁄16"
CABINET WIDTH
2½"
DOORS OPEN 135º
131⁄32"
175⁄32"
TOP VIEW
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B 03/31/2022 Page 15 of 48TRUE 42/48 INSTALL MANUAL
INSTALLATION PLAN VIEWS
7221⁄32"6729⁄32"
83¾"
8331⁄32"
2525⁄32"
2729⁄32"
3015⁄32"
DOOR
HEIGHT
CABINET
HEIGHT
315⁄16"
OVERALL DIMENSIONS – TR-42
FRONT VIEW
SIDE VIEW
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B03/31/2022Page 16 of 48 TRUE RESIDENTIAL®
INSTALLATION PLAN VIEWS
DOORS OPEN 90º
2325⁄32"
47 9⁄16"
CABINET WIDTH
21⁄2"
DOORS OPEN 135º
2013⁄16"
325⁄8"
13 1⁄16"21 7⁄16"
OVERALL DIMENSIONS – TR-48
TOP VIEW
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B 03/31/2022 Page 17 of 48TRUE 42/48 INSTALL MANUAL
INSTALLATION PLAN VIEWS
8331⁄32"
7221⁄32"
6729⁄32"
20"
57¾"
DOOR
HEIGHT GLASS
OPENING
83¾"
2525⁄32"
2729⁄32"
3015⁄32"
CABINET
HEIGHT
315⁄16"
OVERALL DIMENSIONS – TR-48
FRONT VIEW
SIDE VIEW
Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_065 REV. B03/31/2022Page 18 of 48 TRUE RESIDENTIAL®
NOTES

PRESERVE THE MOMENT®
TEC_TM_065 REV. B 03/31/2022 Page 19 of 48TRUE 42/48 INSTALL MANUAL
UNCRATING
ANTI-TIP BRACKET INSTALLATION
LEVELING THE UNIT
JOINING KIT INSTALLATION
INSTALLATION

TEC_TM_065 REV. B03/31/2022Page 20 of 48 TRUE RESIDENTIAL®
INSTALLATION
UNCRATING
REQUIRED TOOLS
• Drill or ratchet
• 7/16" Deep well socket
• Cutting Tool
WARNING! TIP OVER HAZARD. Unit
poses a tipping hazard when moving or
during installation. Do not move the unit
without the shipping brackets installed.
Do not remove the appliance from the pallet without
assistance. Failure to do so may result in property
damage, personal injury, or death.
NOTE: YOUR APPLIANCE MAY NOT EXACTLY
MATCH FIGURES SHOWN.
PROCEDURE
1. Inspect the pallet exterior packaging for visible
damage. See fig. 1. Follow TRUE’s recommended
procedure for accepting deliveries.
2. Remove the exterior packaging. Inspect the unit’s
exterior for visible or cosmetic damage. See figs.
2 and 3
NOTE: DO NOT DISCARD THE KICKPLATE
(SEE FIG. 4). IF MOVING THE UNIT A LONG
DISTANCE (E.G., BETWEEN BUILDINGS
OR ON STAIRS), DO NOT DISCARD THE
EXTERIOR CARDBOARD.
FIG. 1. Inspect the exterior packaging for visible damage.
FIG. 2. Inspect the unit’s exterior for visible damage.
FIG. 3. Be sure to inspect behind the rainshield.
FIG. 4. Packaged kickplate ships tucked under the unit’s front.
