True T-49-4-PT User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
T-49-4-PT
T-49-4-PT
Model
Doors
frt / bk
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
T-49-4-PT 4 / 2 49
1388
654
1/8
1375
321/8
816
783/8
1991
1/2
1/2
115/60/1
230-240/50/1
9.5
5.4
5-15P
▲
9
2.74
535
243
*Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs. ▲Plug type varies by country.
4/06
True’s solid door pass-thru’s are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.
300 series stainless steel exterior
and front and back solid doors.
The finest stainless available with
higher tensile strength for fewer
dents and scratches.
Adjustable, heavy duty PVC
coated shelves.
Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.
Bottom mounted units feature:
”No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest,
most grease free area of kitchen.
Easily accessible condenser coil
for cleaning.
T Series:
Pass-Thru Solid Half Door / Full Door Refrigerator
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
T-49-4-PT TFGY20E TFEY43S TFEY23P TFEY433
T-49-4-PT
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains 33°F to 38°F (.5°C to
3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of food service
environments.
• Bottom mounted condensing unit positioned
for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of unit.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel. Anodized
quality aluminum ends and top.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor with
coved corners.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• Four (4) front half doors and two (2) rear full
doors are 300 series stainless steel exterior
with white aluminum liners to match cabinet
interior. Doors extend full width of cabinet
shell. Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Six (6) adjustable, heavy duty PVC coated wire
shelves 249/16"L x 223/8"D (624 mm x 569 mm).
Four (4) chrome plated shelf clips included per
shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Incandescent interior lighting - safety
shielded. Lights activated by rocker switch
mounted above front top half doors and rear
full doors.
MODEL FEATURES
• Exterior mounted temperature monitor.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230-240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ Alternate door hinging (factory installed).
❒ Additional shelves.
❒ Half door bun tray racks. Each holds up to
eleven 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separately).
❒ Full door bun tray racks. Each holds up to
twenty-two 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separately).
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

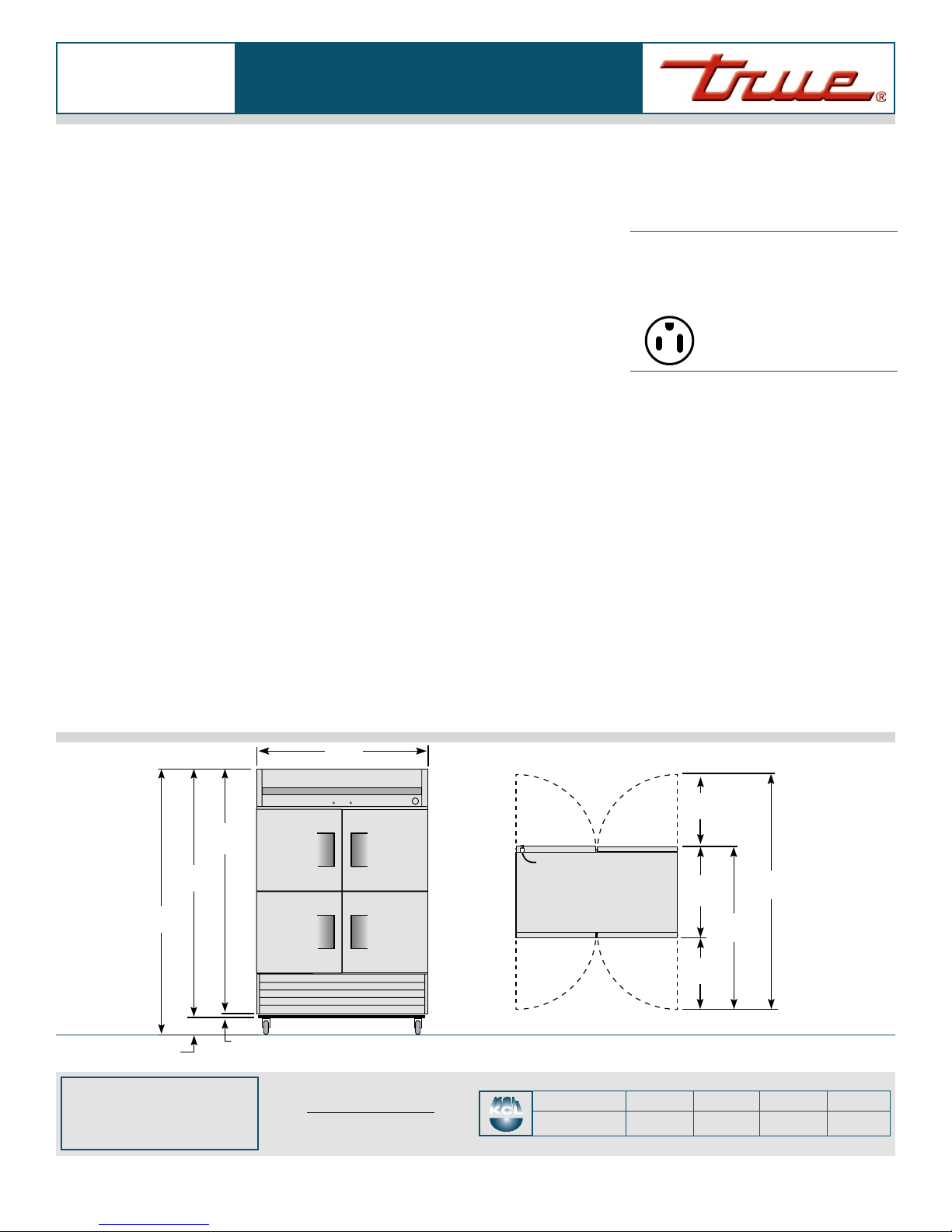

ELEVATION PLAN VIEW
T Series:
Pass-Thru Solid Half Door / Full Door Refrigerator
835/16"
(2117 mm)
785/16"
(1990 mm)
5"
(127 mm)
541/8"
(1375 mm)
321/8 "
(816 mm)
2517/32 "
(649 mm)
5721/32 "
(1465 mm)
833/16 "
(2113 mm)
2517/32 "
(649 mm)
7615/16"
(1955 mm)
13/8"
(35 mm)
