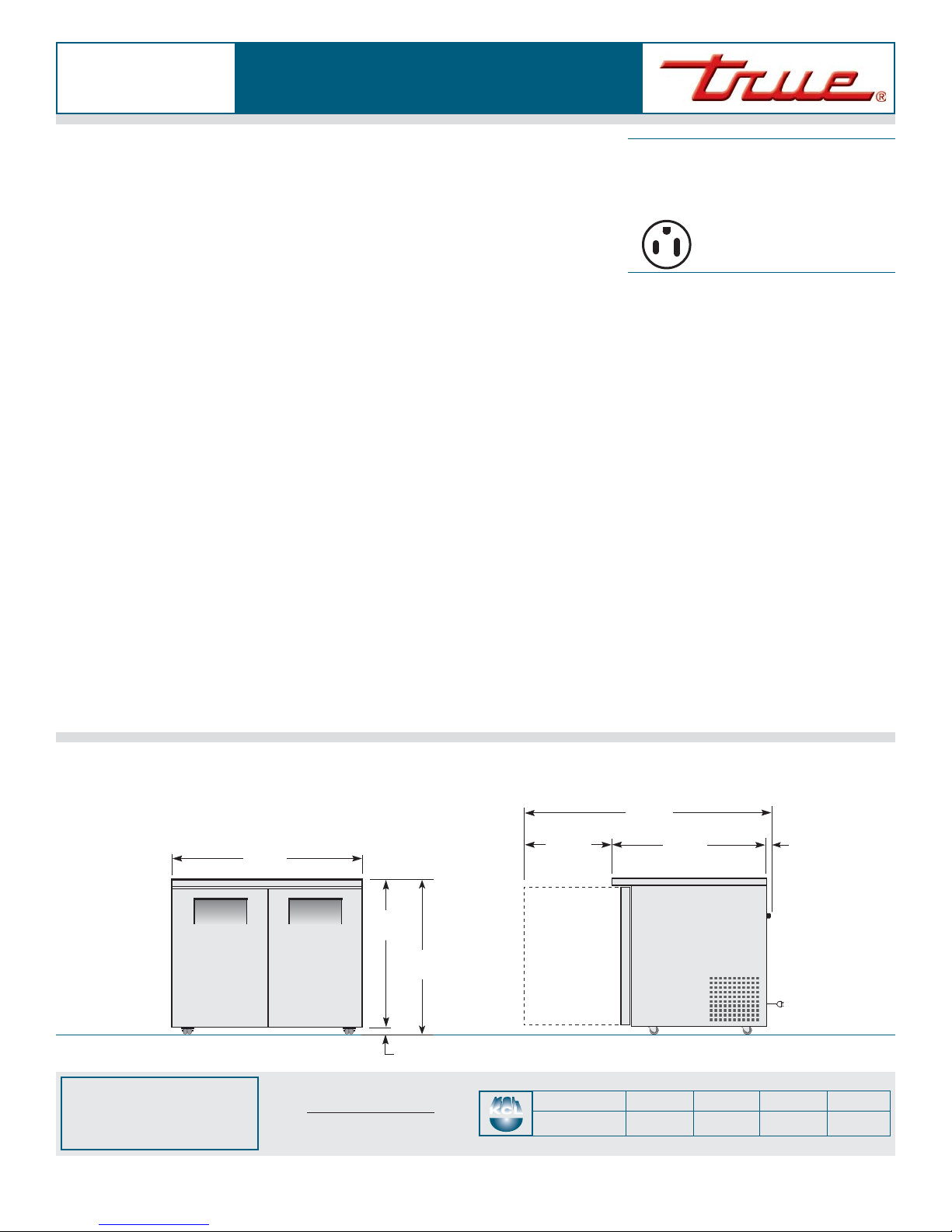

True TUC-36-LP User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TUC-36-LP
TUC-36-LP
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*
Counter
Height HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-36-LP 2 8.5
241
436
3/8
924
301/8
766
293/4
756
317/8
810
1/3
1/3
115/60/1
230-240/50/1
8.3
4.2
5-15P
▲
7
2.13
N/A
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 21/8
" (54 mm) for castors.
7/07
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, superior food safety and
the best value in today’s food
service marketplace.
“Low Profile” models are
designed to slide easily under
custom built countertops.
11/2" (39 mm) diameter dual
swivel castors. 317/8" (810 mm)
work surface height.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
All stainless steel front, top,
and cabinet ends. Matching
aluminum finished back.
Attractive, NSF approved, white
aluminum interior liner with
300 series stainless floor.
Self closing doors. Positive seal,
torsion type closure system.
Entire cabinet structure and
solid doors are foamed in-place
using high density polyurethane
insulation.
R
Undercounter:
Low Profile Solid Door Refrigerator
ADA & Low Profile Comparison
Standard ADA Low Profile
36" height 34" height 317/8" height
(915 mm) (864 mm) (810 mm)
®
Dual swivel castor
for “LP” models.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TUC-36-LP TFPY45E TFPY45S TFPY25P TFPY453
TUC-36-LP
DESIGN
• True’s undercounters are designed
with enduring quality and value that
protects your long term investment. Our
commitment to using the highest quality
materials and oversized refrigeration
ensures exceptional food preservation.
• “Low Profile” models are designed
to slide easily under custom built
countertops.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform product temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (0.5°C to
3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units a
more efficient low velocity, high volume
airflow design. This unique design
ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
• Condensing unit access located in back,
slides out for easy maintenance.
• Electric heated condensate pan.
CABINET CONSTRUCTION
• Exterior - 300 Series stainless steel top,
front and sides with matching aluminum
back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless steel
floor with coved corners.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• 11/2" (39 mm) diameter dual swivel
castors permit easy placement. 317/8"
(810 mm) work surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Positive seal, self-closing doors with 90°
stay open feature. Doors swing within
cabinet dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 159/16"L x 16"D
(396 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ Barrel locks (factory installed). Requires
one per door.
❒ Additional shelves.
❒ 30" (762 mm) deep, 1/2" thick, white
polyethylene cutting board.
❒ 30" (762 mm) deep, 1/2" thick, composite
cutting board.
❒ Heavy duty 16 gauge tops.
❒ Standard height units with 5" (127 mm)
diameter castors. 36" (915 mm) work
surface height.
❒ ADA compliant models with 34"
(864 mm) work surface height.
115/60/1
NEMA-5-15R
Undercounter:
Low Profile Solid Door Refrigerator
ELEVATION RIGHT VIEW
317/8"
(810 mm)
365/16"
(923 mm)
293/4"
(756 mm)
21/8"
(54 mm)
1515/32"
(393 mm)
4617/32"
(1182 mm)
301/16"
(764 mm) 1"
(26 mm)
