True TMC-49-HC User manual

milk coolers
TRUE MANUFACTURING CO., INC.
2001 East Terra Lane • O’Fallon, Missouri 63366-4434
(636)-240-2400 • FAX [phone] • INT'L FAX [phone] • (800)-325-6152
Parts Department (800)-424-TRUE • Parts Department FAX# [phone]
Web: www.truemfg.com
CONGRATULATIONS!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.
TRUE
manufacturing co., inc.INSTALLATION MANUAL
INSTALLATION MANUAL
milk coolers
TABLE OF CONTENTS
SAFETY INFORMATION
Safety Precautions 2
Proper Disposal, Connecting Electricity, & Adapter Plugs 3
INSTALLATION
Ownership, Uncrating, & How to Connect to Electricity 4
Wire Gauge Chart 5
Locating 6
Leveling 7
SETUP

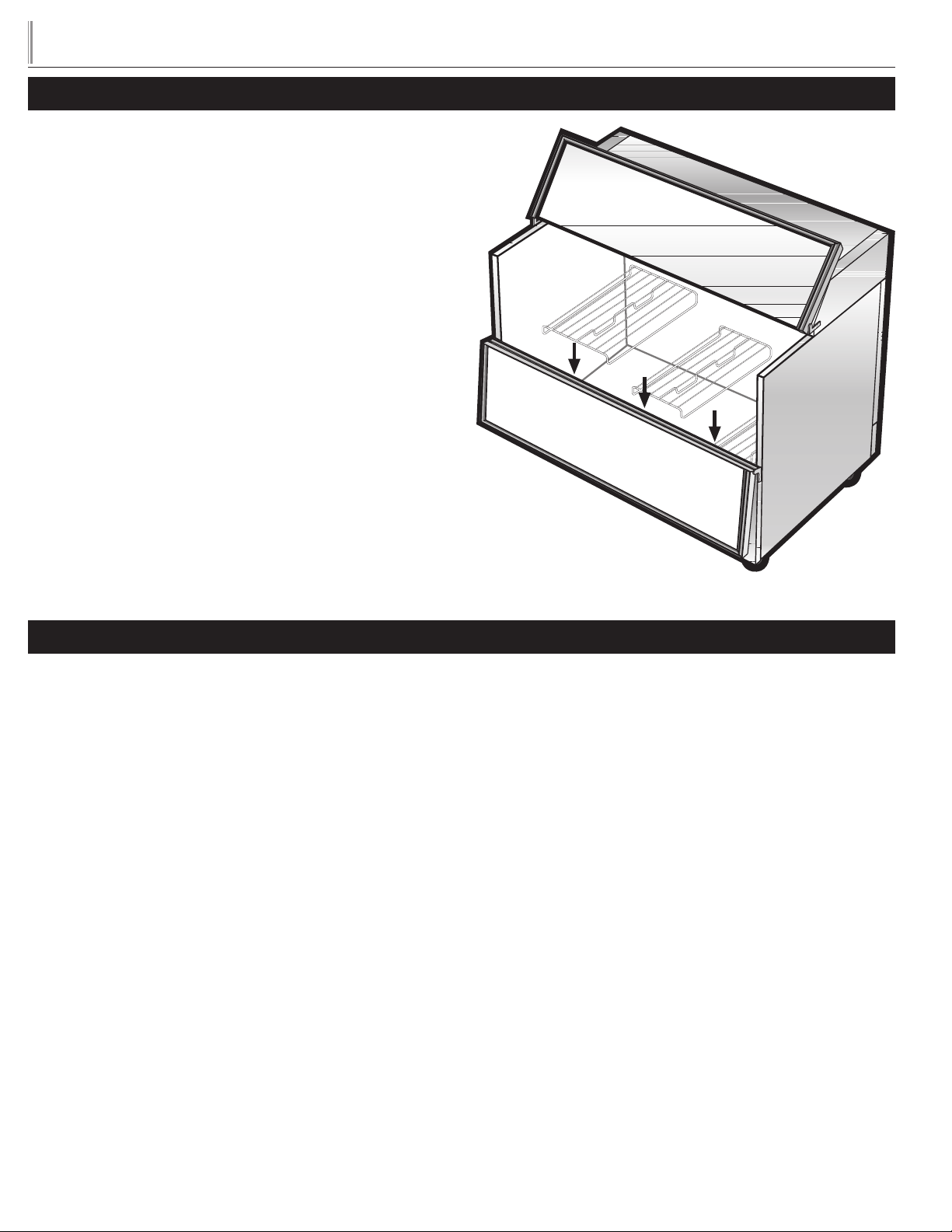

Standard Accessories 8
OPERATION
Startup 8

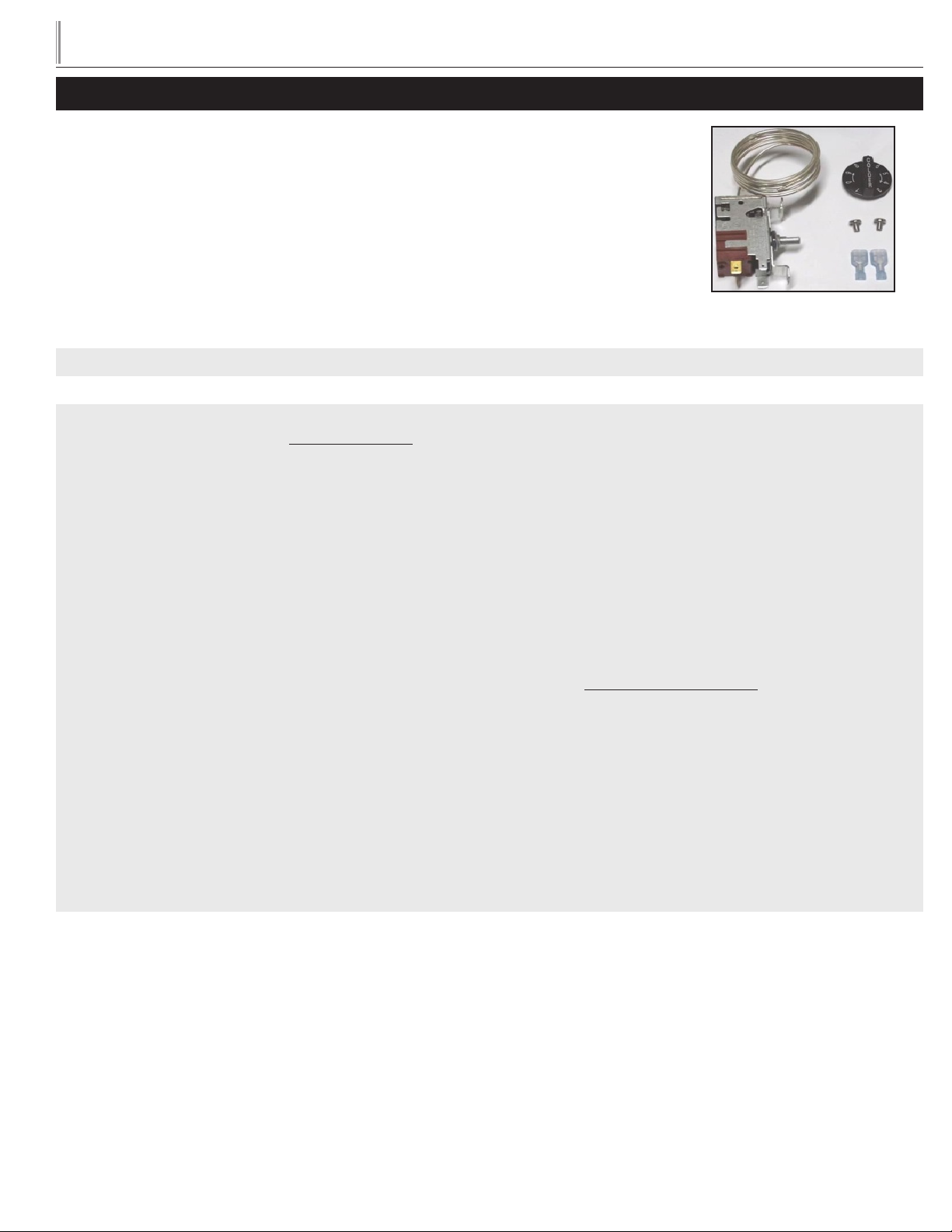

Mechanical Temperature Controls Sequence of Operation 9

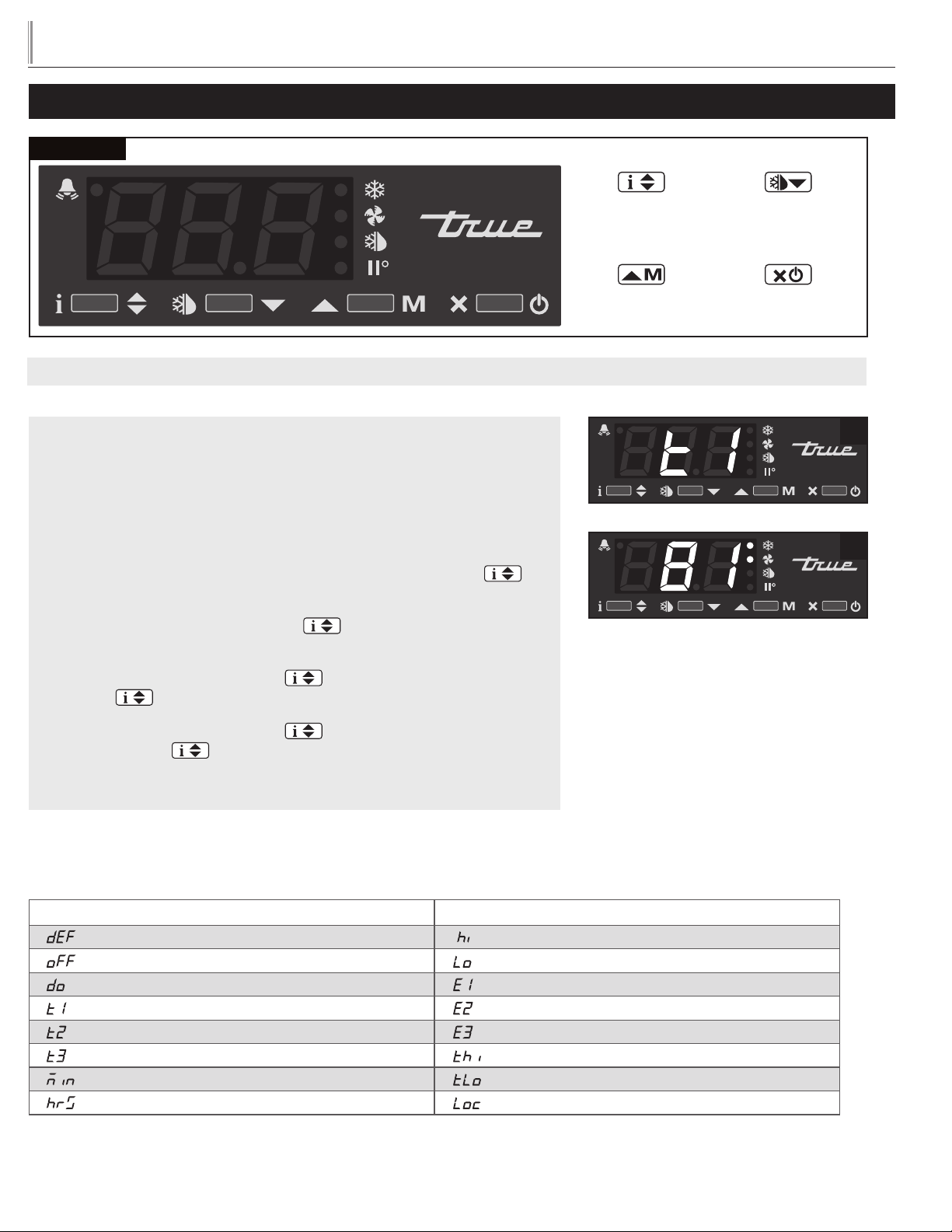

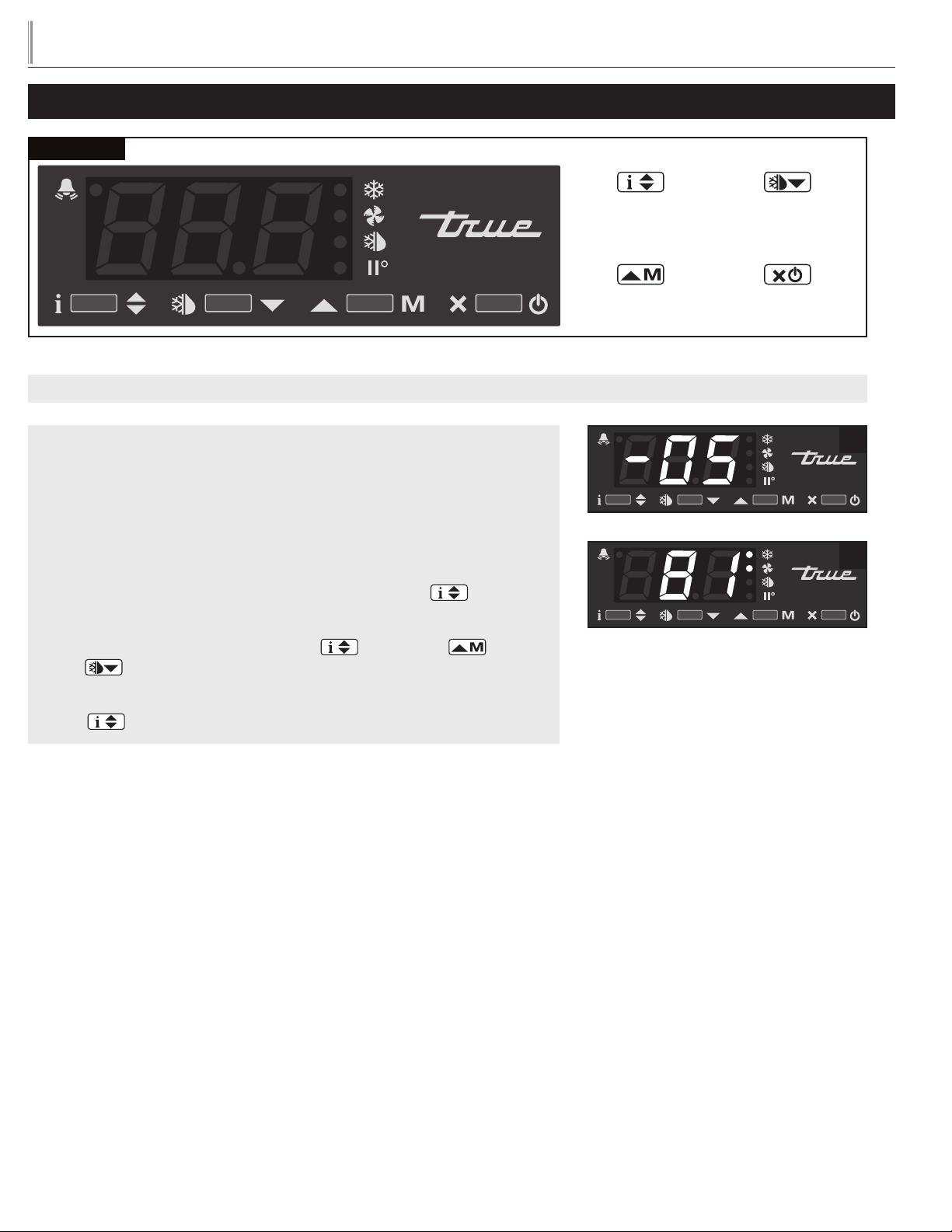

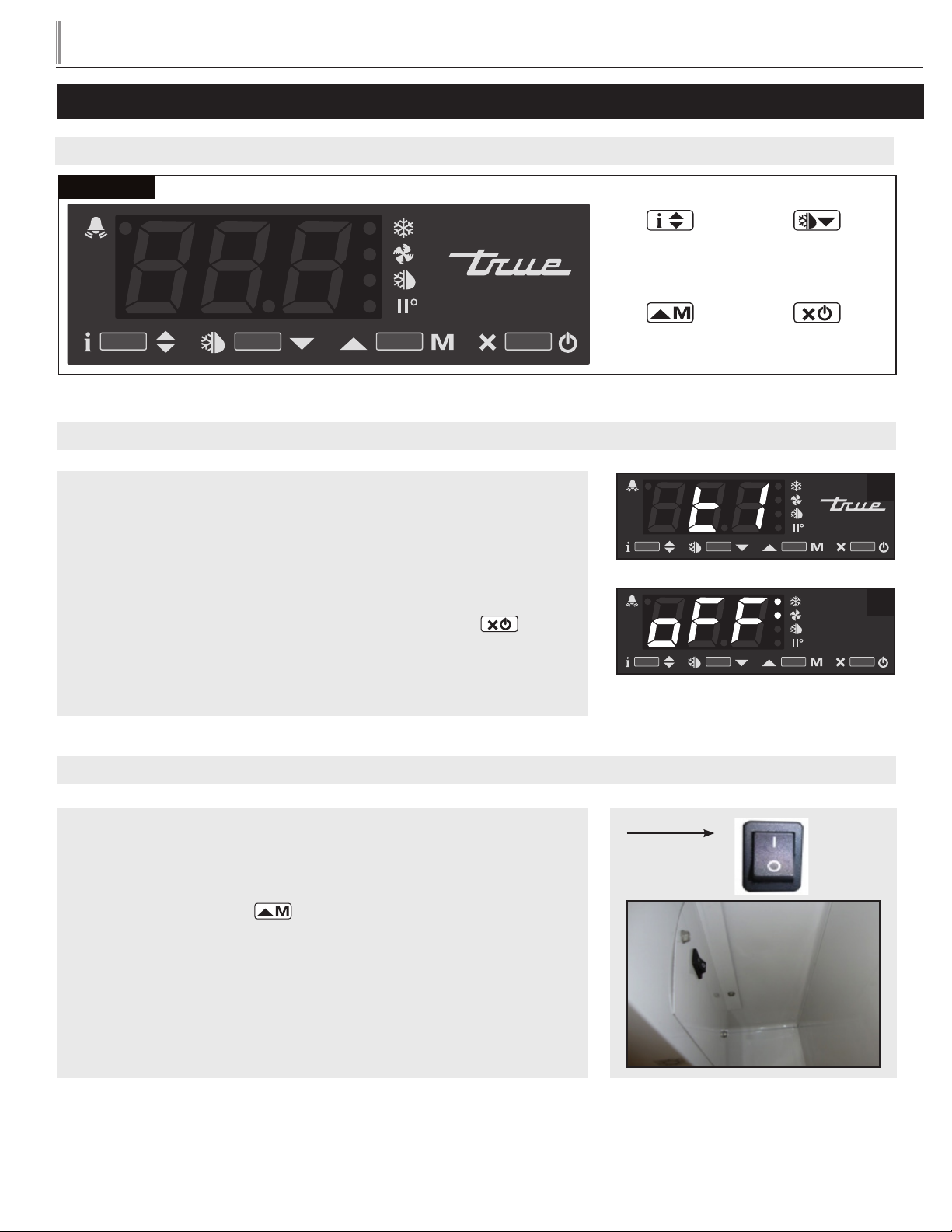

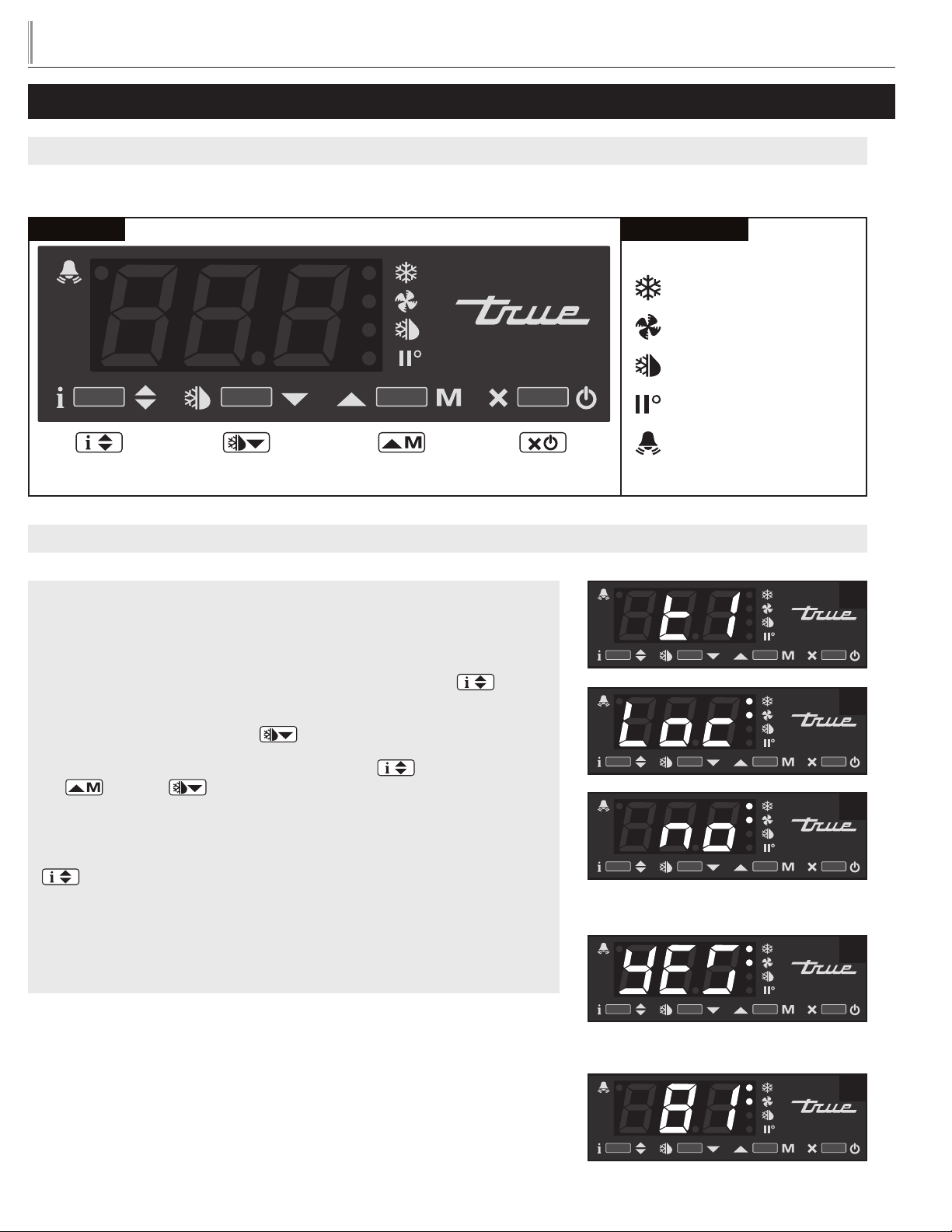

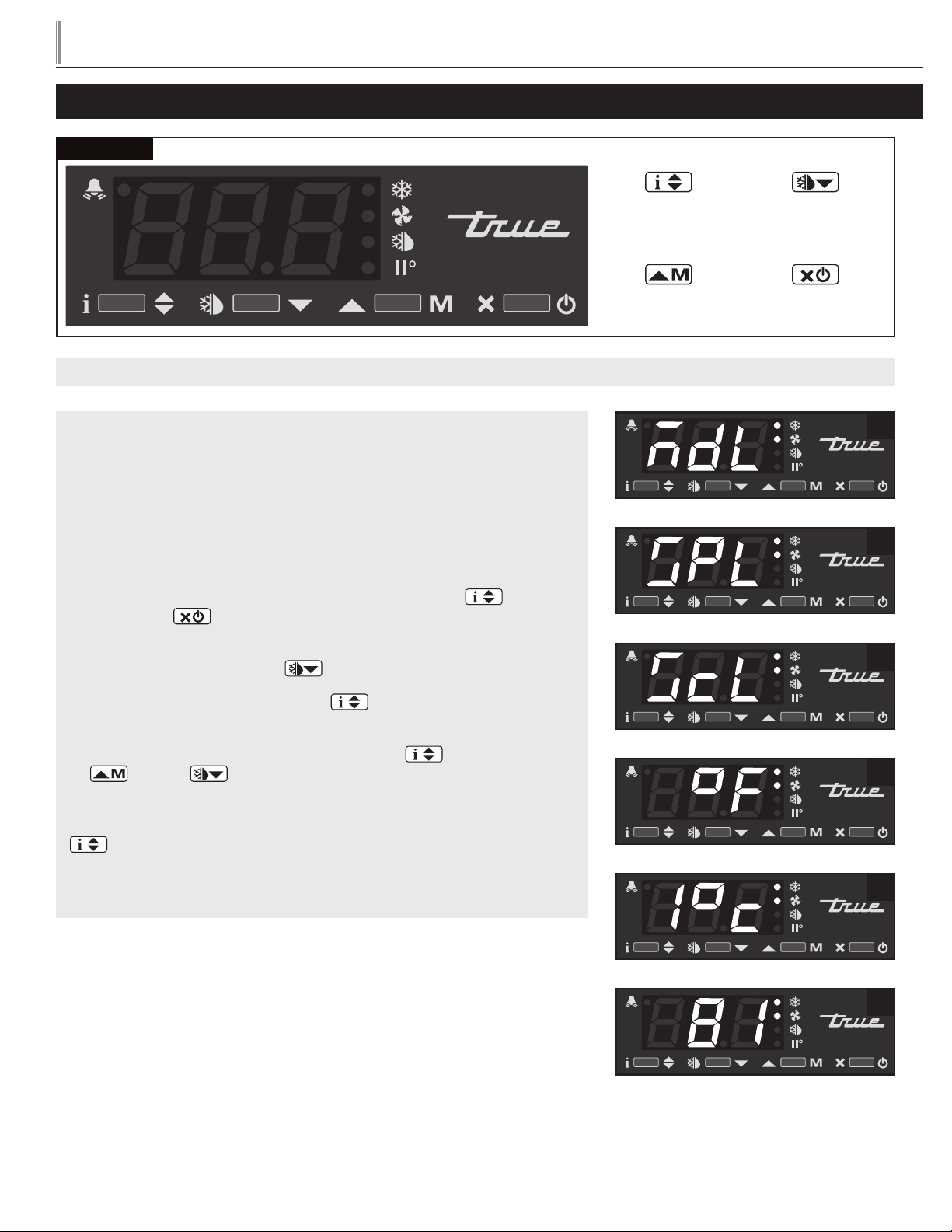

Electronic Temperature Controls Sequence of Operation 12
MAINTENANCE, CARE, CLEANING
Cleaning Condenser Coil 21
Important Warranty Information 22
Stainless Steel Equipment Care and Cleaning 23
General Maintenance 24
WARRANTY
Warranty 25
TMC-34
TMC-49-HC
TMC-58-DS-HC

2
TRUE
milk coolers www.truemfg.com
Loss or spoilage of products in your refrigerator/
freezer is not covered by warranty. In addition to
following recommended installation procedures
you must run the refrigerator/freezer 24 hours
prior to usage.
NOTICE TO CUSTOMER
WARNING: Use this appliance for its intended purpose as described in this Owner Manual.
How to Maintain Your True Refrigerator to Receive the Most Efficient and Successful Operation.
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best
quality materials available.Your TRUE cooler when properly maintained will give you many years of trouble-free service.
TO LOCATE REFRIGERANT TYPE, SEE SERIAL LABEL INSIDE CABINET. This cabinet may contain fluorinated greenhouse
gas covered by the Kyoto Protocol (please refer to cabinet’s inner label for type and volume, GWP of 134a= 1,300. R404a= 3,800).
FOR HYDROCARBON REFRIGERATION ONLY (R-290) SEE BELOW:
• DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not
puncture refrigerant tubing.
• DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture
refrigerant tubing.
• CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service
this product. All safety precautions must be followed.
• CAUTION - Risk of fire or explosion. Dispose of properly in accordance with federal or local regulations. Flammable refrigerant used.
• CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant
used.
• CAUTION - Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
SAFETY INFORMATION
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be
followed, including the following:
• This refrigerator must be properly installed and located in
accordance with the Installation Instructions before it is used.
• Do not allow children to climb, stand or hang on the shelves
in the refrigerator. They could damage the refrigerator and
seriously injure themselves.
• Do not touch the cold surfaces in the freezer compartment
when hands are damp or wet. Skin may stick to these
extremely cold surfaces.
• Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. Do not store
explosive substances such as aerosol cans with a flammable
propellant in this appliance.
• Keep fingers out of the “pinch point” areas; clearances between
the doors and between the doors and cabinet are necessarily
small; be careful closing doors when children are in the area.
• Unplug the refrigerator before cleaning and making repairs.
• Setting temperature controls to the 0 position does not
remove power to the light circuit, perimeter heaters, or
evaporator fans.
NOTE: We strongly recommend that any servicing be preformed
by a qualified technician.

3
TRUE
milk coolers www.truemfg.com
RISK OF CHILD
ENTRAPMENT
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators are still dangerous… even if they
will sit for “just a few days.” If you are getting rid of your old refrigera-
tor, please follow the instructions below to help prevent accidents.
BEFORE YOU THROW AWAY YOUR OLD
REFRIGERATOR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb
inside.
APPLIANCE DISPOSAL
When recycling appliance please make sure that the refrigerants are
handled according to local and national codes, requirements and
regulations.
REFRIGERANT DISPOSAL
Your old refrigerator may have a cooling system that uses “Ozone
Depleting” chemicals. If you are throwing away your old refrigerator,
make sure the refrigerant is removed for proper disposal by a quali-
fied service technician. If you intentionally release any refrigerants you
can be subject to fines and imprisonment under provisions of the
environmental regulations.
USE OF EXTENSION CORDS
NEVER USE AN EXTENSION CORD! TRUE will not war-
ranty any refrigerator that has been connected to an extension cord.
REPLACEMENT PARTS
• Component parts shall be replaced with like components.
• Servicing shall be done by authorized service personnel, to
minimize the risk of possible ignition due to incorrect parts or
improper service.
• Lamps must be replaced by identical lamps only.
• If the supply cord is damaged, it must be replaced by a special
cord or assembly available from the manufacturer or its service
agent.
HOW TO CONNECT ELECTRICITY
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE GROUND PRONG FROM THE POWER
CORD. FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power cord from this appliance is equipped with a grounding
plug which minimizes the possibility of electric shock hazard.
Have the wall outlet and circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
If the outlet is a standard 2-prong outlet, it is your personal respon-
sibility and obligation to have it replaced with the properly grounded
wall outlet.
The refrigerator should always be plugged into it’s own individual
electrical circuit, which has a voltage rating that matches the rating
plate.
This provides the best performance and also prevents overloading
building wiring circuits which could cause a fire hazard from over-
heated wires.
Never unplug your refrigerator by pulling on the power cord. Always
grip plug firmly and pull straight out from the outlet.
Repair or replace immediately all power cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks
or abrasion damage along its length or at either end.
When removing the refrigerator away from the wall, be careful not
to roll over or damage the power cord.
If supply power cord is damaged it should be replaced with original
equipment manufacture parts. To avoid hazard this should be done
by a qualified service technician.
USE OF ADAPTER PLUGS
NEVER USE AN ADAPTER PLUG! Because of potential safety
hazards under certain conditions, we strongly recommend against the
use of an adapter plug.
The incoming power source to the cabinet including any adapters
used must have the adequate power available and must be properly
grounded. Only adapters listed with UL should be used.
NORTH AMERICA USE ONLY!
NEMA plugs
TRUE uses these types of plugs. If you do not have the right outlet
have a certified electrician install the correct power source.
NOTE: International plug configurations vary by voltage and country.
115/60/1
NEMA-5-15R
115/208-230/1
NEMA-14-20R
115/60/1
NEMA-5-20R
208-230/60/1
NEMA-6-15R
WARNING!DANGER!

4
TRUE
milk coolers www.truemfg.com
OWNERSHIP
To ensure that your unit works properly from the first day, it must
be installed properly. We highly recommend a trained refrigeration
mechanic and electrician install your TRUE equipment. The cost of a
professional installation is money well spent.
Before you start to install your TRUE unit, carefully inspect it for
freight damage. If damage is discovered, immediately file a claim with
the delivery freight carrier.
TRUE is not responsible for damage incurred during shipment.
UNCRATING
TOOLS REQUIRED
• Adjustable Wrench
• Phillips Screwdriver
• Level
The following procedure is recommended for uncrating the unit:
A. Remove the outer packaging, (cardboard and bubbles or
Styrofoam corners and clear plastic). Inspect for concealed
damage. Again, immediately file a claim with the freight carrier
if there is damage.
B. Move your unit as close to the final location as possible before
removing the wooden skid.
C. Remove all tape securing the doors to the cooler, and any foam
blocks between doors.
D. Remove any components (castors, floor racks, etc.) packaged
inside the cabinet.
NOTE: KEYS FOR COOLERS WITH DOOR LOCKS
ARE LOCATED IN WARRANTY PACKETS.
INSTALLATION
ELECTRIC INSTALLATION & SAFETY
INFORMATION
• If the supply cord is damaged, it must be replaced by a special
cord or assembly available from the manufacturer or its service
agent.
• Lamps must be replaced by identical lamps only.
• Appliance tested according to the climate classes 5 and 7
temperature and relative humidity.
ELECTRICAL INSTRUCTIONS
A. Before your new unit is connected to a power supply, check the
incoming voltage with a voltmeter. If anything less than 100% of
the rated voltage for operation is noted, correct immediately.
B. All units are equipped with a service cord, and must be
powered at proper operating voltage at all times. Refer to
cabinet data plate for this voltage.
TRUE RECOMMENDS THAT A SOLE USE CIRCUIT BE
DEDICATED FOR THE UNIT.
WARNING: Compressor warranties are void if compressor burns
out due to low voltage.
WARNING: Power supply cord ground should not be removed!
WARNING: Do not use electrical appliances inside the food stor-
age compartments of the appliances unless they are of the type
recommended by the manufacturer.
NOTE: To reference wiring diagram - Remove lower rear grill, wiring
diagram is positioned inside on the ballast box.

5
TRUE
milk coolers www.truemfg.com
230 Volts Distance In Feet To Center of Load
Amps 20 30 40 50 60 70 80 90 100 120 140 160
5 14 14 14 14 14 14 14 14 14 14 14 14
6 14 14 14 14 14 14 14 14 14 14 14 12
7 14 14 14 14 14 14 14 14 14 14 12 12
8 14 14 14 14 14 14 14 14 14 12 12 12
9 14 14 14 14 14 14 14 14 12 12 12 10
10 14 14 14 14 14 14 14 12 12 12 10 10
12 14 14 14 14 14 14 12 12 12 10 10 10
14 14 14 14 14 14 12 12 12 10 10 10 8
16 14 14 14 14 12 12 12 10 10 10 8 8
18 14 14 14 12 12 12 10 10 10 8 8 8
20 14 14 14 12 10 10 10 10 10 8 8 8
25 14 14 12 12 10 10 10 10 8 8 6 6
30 14 12 12 10 10 10 8 8 8 6 6 6
35 14 12 10 10 10 8 8 8 8 6 6 5
40 14 12 10 10 8 8 8 6 6 6 5 5
50 12 10 10 8 6 6 6 6 6 5 4 4
60 12 10 8 6 6 6 6 6 5 4 4 3
70 10 10 8 6 6 6 5 5 4 4 2 2
80 10 8 8 6 6 5 5 4 4 3 2 2
90 10 8 6 6 5 5 4 4 3 3 1 1
100 10 8 6 6 5 4 4 3 3 2 1 1
115 Volts Distance In Feet To Center of Load
Amps 20 30 40 50 60 70 80 90 100 120 140 160
2 14 14 14 14 14 14 14 14 14 14 14 14
3 14 14 14 14 14 14 14 14 14 14 14 12
4 14 14 14 14 14 14 14 14 14 12 12 12
5 14 14 14 14 14 14 14 12 12 12 10 10
6 14 14 14 14 14 14 12 12 12 10 10 10
7 14 14 14 14 14 12 12 12 10 10 10 8
8 14 14 14 14 12 12 12 10 10 10 8 8
9 14 14 14 12 12 12 10 10 10 8 8 8
10 14 14 14 12 12 10 10 10 10 8 8 8
12 14 14 12 12 10 10 10 8 8 8 8 6
14 14 14 12 10 10 10 8 8 8 6 6 6
16 14 12 12 10 10 8 8 8 8 6 6 6
18 14 12 10 10 8 8 8 8 8 8 8 5
20 14 12 10 10 8 8 8 6 6 6 5 5
25 12 10 10 8 8 6 6 6 6 5 4 4
30 12 10 8 8 6 6 6 6 5 4 4 3
35 10 10 8 6 6 6 5 5 4 4 3 2
40 10 8 8 6 6 5 5 4 4 3 2 2
45 10 8 6 6 6 5 4 4 3 3 2 1
50 10 8 6 6 5 4 4 3 3 2 1 1
WIRE GAUGE CHART

6
TRUE
milk coolers www.truemfg.com
LOCATING
A. Remove skid by using a phillips head screwdriver and an
adjustable wrench.
B. For easy removal from the skid, unscrew and remove grill from
the back of the cooler.
C. Remove the four brackets from the base of the cooler.
D. Carefully move the cooler off the back of the skid. Tilt the
cooler backwards just enough to remove the skid from under
the cooler.
E. Free plug and cord from inside the lower rear of the cooler (do
not plug in).
F. Place grill back onto rear of the cooler.
G. The merchandiser should be placed close enough to the
electrical supply so that extension cords are never used.
H. Applicance tested according to the climate classes 5 and 7 for
temperature and relative humidity.
F°
35°
®
Image 1

7
TRUE
milk coolers www.truemfg.com
LEVELING
A. Set unit in its final location. Be sure there is adequate ventilation
in your room. Under extreme heat conditions, (100 F+, 38 C+),
you may want to install and exhaust fan.
WARNING
Warranty is void if ventilation is insufficient.
B. Proper leveling of your TRUE cooler is critical to operating
success. Effective condensate removal and door operation will
be effected by leveling. (See image 2)
C. When the cooler is in its final position adjust the castors as
needed to level the unit. The unit should be leveled front to
back and side to side with a level. To insure proper ventilation
for the compressor, keep the cabinet 1” (2.54 cm) from rear
wall. 1” (2.54 cm) rubber bumpers are attached to the back of
some cabinets.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with the
floor after the cabinet has been leveled.
LEVELING CASTORS
Four sets of shims have been provided in warranty packet for leveling
castored units positioned on uneven floors. Shims must be positioned
between cabinet and castor mounting plate. (See image 3)
Loosen castor bolts with an adjustable wrench enough to slide shims
between the castor mounting plate and cabinet bottom.
Install the desired number of shims (in pairs as shown in image 3),
making sure the slots in the shim are in contact with the castor
mounting bolts.
Tighten and secure the shims and castor(s).
Repeat process until cabinet is level.
D. Ensure that the drain hose or hoses are positioned in the pan.
Leveling Shims
Castor
Snug Fit
Here
Leveling Shims
Side View
Top View
Left Shim
In Position
Castor
Mounting
Plate
F°
35°
®
Image 2
Image 3

8
TRUE
milk coolers www.truemfg.com
SHELF INSTALLATION:
Wire floor racks should be positioned on the floor of the cooler with
legs facing down.
STANDARD ACCESSORIES
SETUP
OPERATION
STARTUP
A. The compressor is ready to operate. Plug in the cooler.
B. Temperature controls are factory-set to give refrigerators
an approximate temperature of 35°F (1.6°C). Allow unit to
function several hours, completely cooling cabinet before
changing the control setting.
Temperature Control Location and Settings.
• Temperature control type will vary upon model and age of
cabinet.
• Mechanical control or electronic control without display:
- Inside cabinet
- Behind cabinet
- Behind front or rear access grill
• Electronic control with display:
- In countertop
- In top louvered panel
- In or behind bottom louvered grill
See website for adjustments, sequence of operation, and more
information.
C. Excessive tampering with the control could lead to service
difficulties. Should it ever become necessary to replace
temperature control, be sure it is ordered from your TRUE
dealer or recommended service agent.
D. Good air flow in your TRUE unit is critical. Be careful to
load product so that it neither presses against the back wall,
nor comes within four inches of the evaporator housing.
Refrigerated air off the coil must circulate down the back wall.
NOTE: If the unit is disconnected or shut off, wait five minutes
before starting again.
RECOMMENDATION - Before loading product we recommend
you run your TRUE unit empty for two to three days.This allows you
to be sure electrical wiring and installation are correct and no ship-
ping damage has occurred. Remember, our factory warranty does not
cover product loss!

9
TRUE
milk coolers www.truemfg.com
MECHANICAL TEMPERATURE CONTROLS
COIL SENSING
An evaporator coil sensing temperature control ensures that the evaporator coil will remain clear
of frost and ice by not allowing the compressor to restart until the coil temperature is above the
freezing temperature. This is considered an off cycle defrost.
MECHANICAL TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION
MECHANICAL CONTROL REFRIGERATOR GENERAL SEQUENCE OF OPERATION
1. Cabinet is plugged in.
a. Interior lights will illuminate on Glass Door Models only. If lights do not come on verify the light switch is in the “ON”
position. Solid door cabinets may or may not have lights that may be controlled by the door switch.
2. The compressor and evaporator fans will start if the temperature control is calling for cooling. (If the compressor does not
start, verify that the temperature control is not in the “OFF” or “0” position.)
3. The temperature control may cycle the compressor and evaporator fan(s) on and off together.
a. The temperature control is sensing the evaporator coil temperature.
b. The temperature control should be set on the #4 or #5.
c. The warmest setting is #1, the coldest is #9, and #0 is the off position.
d. The thermometer is designed to read and display a cabinet temperature not a product temperature.
The thermometer may reflect the refrigeration cycle swings of up and down temperatures.
The most accurate temperature on a cabinet's operation is to verify the product temperature.
4. There is not a defrost timer as the temperature control will initiate the off-cycle defrost during each refrigeration cycle.
a. At this time, the compressor will and the evaporator fan(s) may turn off. Defrost heaters are not installed on refrigerators
and therefore will not be energized.
b. After the evaporator coil temperature has been reached, as determined by the temperature control, the compressor will
restart.
5. There may be a timer located on the condensing unit base. This timer is not used for a defrost event. The timer will change
the rotation of the reversing condenser fan motor.

10
TRUE
milk coolers www.truemfg.com
WHEN TO MAKE AN ADJUSTMENT TO A MECHANICAL TEMPERATURE CONTROL
W
A
R
M
E
R
C
O
L
D
E
R
60
30
45
40
35
50
55
15
20
25
10
5
We advise to make a mechanical temperature control adjustment only for a high altitude location.
Compressor
Ter minals
Ground
Terminal
To adjust the temperature control
take the control knob off to view the
cut-in screw. (See Photo Above)
Front of Temperature Control
Calibration
Screw
1 2
3
ALTITUDE CORRECTION TABLE:
CALIBRATION SCREW ADJUSTS
BOTH CUT-IN AND CUT-OUT
Altitude (Feet)
2000
3000
4000
5000
6000
7000
8000
9000
10,000
Clockwise Turns
7/60
11/60
15/60
19/60
23/60
27/60
30/60
34/60
37/60
HOW TO ADJUST A MECHANICAL TEMPERATURE CONTROL
Altitude Correction
Scale Guide for Measuring Back of Temperature
Control
GE TEMPERATURE CONTROL ADJUSTMENT FOR
HIGH ALTITUDE APPLICATIONS:
REQUIRED TOOLS:
• Jewelers screwdriver (Small screwdriver)
GE CONTROL INSTRUCTIONS:
The scale to the right may be used as a guide for measuring
degrees of rotation required for altitude correction. See
Figure 1. The arrows indicate direction of screw rotation.
Turn calibration screw clockwise to obtain warmer operating
temperatures.
STEP 1 - Unplug cooler.
STEP 2 - Remove the screws that secure the temperature
control to the inset box.
STEP 3 - To make these adjustments it may be necessary to
remove the temperature control from the housing.
NOTE: You may have to remove the wires attached to the
control.Take note as to which wire is on which spade terminal.
STEP 4 - Pull out gently from cabinet.
STEP 5 Each 1/4 turn of the calibration screw is equal to
approximately 2 degrees F. Do not make more than 3/4 turn.
After making adjustment, measure temperature during three
cycles before adjusting again.
NOTE: Only adjust the screw (small flathead) on the face of
the control (next to the cam). See Figure 3.
STEP 6 - Make sure to reconnect the wires to the proper
spade terminal when reinstalling.
Follow the Altitude Correction Table to the right.
MECHANICAL TEMPERATURE CONTROLS

11
TRUE
milk coolers www.truemfg.com
1
Cut-out Adjustment
Screw Allen (5/64" or 2 mm.)
Cut-in Adjustment
Screw Torx (T-7)
Compressor
Connection
Compressor Connection
(double terminal)
Bottom of Temperature Control
DANFOSS TEMPERATURE CONTROL
ADJUSTMENT FOR HIGH ALTITUDE
APPLICATIONS:
REQUIRED TOOLS:
• Allen Wrench (5/64”)
• Torx Screw (T-7)
TERMS:
Cut-out - Temperature sensed by the controller that shuts the
compressor off.
Cut-in - Temperature sensed by the controller that turns the
compressor on.
STEP 1 - Unplug cooler.
STEP 2 - Remove the screws that secure the temperature
control to the inset box.
STEP 3 - To make these adjustments it may be necessary to
remove the temperature control from the housing.
NOTE: You may have to remove the wires attached to the
control.Take note as to which wire is on which spade terminal.
STEP 4 - Pull out gently from cabinet.
NOTE: Mechanical temperature controllers are affected when
functioning at high altitude.The cut-in and cut-out temperatures
will be colder than when the controller functions closer to sea
level.
STEP 5 - For high elevation installations, it may be necessary
to “warm-up” the set points.To make the adjustment, insert
the appropriate tool in each adjustment screw and turn 1/4 of
a revolution clockwise (to the right).This procedure will adjust
both the cut-in and cut-out about 2˚F warmer. Do not turn
more than one (1) full turn.
STEP 6 - Make sure to reconnect the wires to the proper
spade terminal when reinstalling.
MECHANICAL TEMPERATURE CONTROLS

12
TRUE
milk coolers www.truemfg.com
LAE ELECTRONIC CONTROL GENERAL SEQUENCE OF OPERATION
1. Cabinet is plugged in.
a. Display will illuminate.
b. Interior light will illuminate on Glass Door Models only. Solid door cabinet lights are controlled by the door switch.
2. After the LAE control preprogrammed time delay of up to 6 minutes, the compressor and evaporator fan(s) will start if the
control is calling for cooling.
a. Control or condenser fans may be already pre-programmed from the factory so at the start of every compressor cycle or
during a defrost cycle, the condenser fan(s) will reverse for 30 seconds to blow dirt off the condensing coil.
3. The LAE control will cycle the compressor but may also cycle evaporator fan(s) on and off determined by the Set-Point and
Differential temperatures.
a. The Set-Point is the adjustable preprogrammed temperature which shuts off the compressor and evaporator fan(s).
This is not the programmed cabinet temperature.
b. The Differential is the non adjustable preprogrammed temperature that is added to the Set-Point temperature that will
restart the compressor and evaporator fan(s).
c. The LAE control is designed to read and display a cabinet temperature not a product temperature.
This cabinet temperature may reflect the refrigeration cycle of the Set-Point and its Differential, or it may show an average
temperature.
The most accurate temperature on a cabinets operation is to verify the product temperature.
Example: If the Set-Point is -9°F/-23°C and the Differential is 10°F/5°C
(Set-Point) -9°F + 10 (Differential) = 1°F
Or
(Set-Point) -23°C + 5 (Differential) = -18°C
The compressor and evaporator fan(s) will cycle off -9°F/-23°C and back on at 1°F/-18°C
4. The LAE control may be preprogrammed to initiate defrost by interval or at specific times of day.
a. At this time the “dEF” will appear on the display and compressor will turn off until a preprogrammed temperature or duration is
reached. During this time for freezers only, evaporator fan(s) will also turn off and the coil heater and drain tube heaters will also
be energized. Some cabinets may also change the rotation of the reversing condenser fan motor.
b. After the preprogrammed temperature or duration for defrost has been reached there may be a short delay for both the
compressor and evaporator fans to restart. At this time “dEF” may still appear on the display for a short time.
LAE ELECTRONIC TEMPERATURE CONTROLS

13
TRUE
milk coolers www.truemfg.com
PRODUCT ADVISEMENT
DETERMINING THE TYPE OF ELECTRONIC CONTROL DISPLAY
Reason for Advisement
Both Danfoss and LAE electroinc controls utilize similar digital displays.
To provide the visual differences and operations between the displays used for the LAE Electronic Control and the Danfoss
Electronic control
NOTE: Displays do not interchange with each other due to wiring and programming limitations.
LAE electronic control board
Danfoss electronic control board
Previous Danfoss display
DISPLAY FOR LAE CONTROL
DISPLAY FOR DANFOSS CONTROL
Alarm Symbol
No Alarm Symbol
Info / Scroll
Defrost
Defrost / Down
Down
Manual / Up
Up
Power
Power
LAE ELECTRONIC TEMPERATURE CONTROLS

14
TRUE
milk coolers www.truemfg.com
HOW TO USE AN LAE ELECTRONIC CONTROL
LOCKING AND UNLOCKING THE LAE CONTROLLER:
WHY: Locking of control is necessary to prevent changes to program that may
affect cabinet operation.
STEP 1 - To change lock setting press and release the Info button . “t1”
will appear. See image 1.
STEP 2 - Press the Down button until “Loc” appears. See image 2.
STEP 3 - While pressing and holding the Info button press the
Up or Down button to change the lock settings. If “no” appears, the
controller is unlocked. If “yes” appears, the controller is locked. See images 3 and
4.
STEP 4 - Once the lock setting has been set correctly release the info button
. Wait 5 seconds for the display to show temperature. See image 5.
HOW TO LOCK AND UNLOCK LAE CONTROLLER:
Image 3: If “no” appears on screen,
the controller is unlocked.
3
2
1
5
4
Image 4: If “yes” appears on screen, the
controller is locked.
Indicator lights for Refrigeration/Heating Mode, Fan Operation, Defrost Mode.
LAE Control
Info / Set Point
Button
Manual Activation
Up Button
Manual Defrost /
Down Button
Stand-By
Button
LAE Control Icons
Compressor Running
Activation of 2nd Parameter Set
Alarm
Cabinet in Defrost
Evaporator Fan Running
LAE ELECTRONIC TEMPERATURE CONTROLS

15
TRUE
milk coolers www.truemfg.com
HOW TO TURN OFF THE LAE ELECTRONIC CONTROL:
HOW TO TURN THE LIGHTS ON AND OFF:
HOW TO LOCK AND UNLOCK LAE CONTROLLER:
ON Position
TURN OFF THE LAE ELECTRONIC CONTROL:
May need to unlock control.
WHY: Turning off the control will deactivate all electrical components.
CAUTION: Turning off the control will not shut off power to the cabinet.
Cabinet must be unplugged prior to any repair.
STEP 1 - To turn off control, press and hold the Stand-by button until
"OFF" appears. Release Stand-by button. See Image 2.
STEP 2 - To turn on control, repeat prior steps and a temperature
will appear.
May need to unlock control.
WHY: Light may be controlled by LAE Controller or interior light switch.
STEP 1 - To control interior / sign lights by the LAE Controller, press and release
the Manual Activation button .
STEP 2 - To control interior / sign lights by the interior door switch, depress the
rocker switch to the “ON” position. Light switch is located on inside top right of
the ceiling.
NOTE: Not all moels have an interior light switch. Location of interior light
switch will vary by model. Example shown is an interior switch on an Upright
Glass Door cabinet.
1
2
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS

16
TRUE
milk coolers www.truemfg.com
CHANGING THE “SET POINT”:
May need to unlock control.
WHY: To make an adjustment to the product/cabinet temperature.
NOTE: The electronic control CANNOT convert a Freezer to a Refrigerator or a
Refrigerator to a Freezer.
STEP 1 - To see the set point, press and hold the Info button .
See image 1.
STEP 2 - While still holding the Info button , press the Up or
Down button to change the “set point”.
STEP 3 - Once the “set point” has been set correctly release the Info
button .The display will show temperature. See image 2.
1
2
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS
HOW TO CHANGE THE “SET POINT”:

17
TRUE
milk coolers www.truemfg.com
INITIATE A MANUAL DEFROST:
May need to unlock control.
WHY: A one time additional defrost may be necessary to clear accumulated frost / ice from evaporator coil.
The method to initiate a manual defrost is determined by the Defrost Mode Parameter “DFM” preprogrammed in the controller.
REGULAR TIME DEFROST (TIM)
If controller is preprogrammed for “TIM”, press and release the Manual Defrost button until “dEF” appears.
REAL TIME CLOCK (RTC)
If controller is preprogrammed for “RTC” press the and hold the Manual Defrost button for 5 seconds until “dh1” appears.
Release the Manual Defrost button and then press and hold for an additional 5 seconds until “dEF” appears.
NOTE: Defrost will only terminate once a specific preset temperature or a preset time duration is reached.
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS
HOW TO INITIATE A MANUAL DEFROST:

18
TRUE
milk coolers www.truemfg.com
1a
1c
1b
2
3
4
CHANGING “DEFROST INTERVALS”:
May need to unlock control.
This can only be changed if defrost mode parameter “DFM” is set for “TIM”.
WHY: The defrost interval is the time duration between defrost cycles.The
defrost interval time starts when the cabinet is supplied power or after a manual
defrost.
STEP 1 - To see the set point, press and hold the Info button and the
Stand-by button at the same time.
NOTE: Depending on the version of control, one of three parameters will
appear: “ScL” image 1a, “SPL” image 1b, “MdL” image 1c.
STEP 2 - Push the Up button until “dFt” appears. See image 2.
STEP 3 - Press and hold the Info button to see the defrost interval time.
See image 3
STEP 4 - While pressing and holding the Info button , press the
Up or Down button to change the defrost interval times (higher
the number the less frequent the cabinet will defrost).
STEP 5 - Once the defrost interval time has been changed, release the Info
button .
STEP 6 - Wait 30 seconds for the display to show temperature.
See image 4.
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS
HOW TO CHANGE “DEFROST INTERVALS”:

19
TRUE
milk coolers www.truemfg.com
CHANGE DISPLAY READOUT FROM FAHRENHEIT TO CELSIUS:
May need to unlock control.
This can NOT be changed with the LAE model AR2-28 version of the control.
See page 32 for more information.
WHY: Changing readout will assist with customer application.
STEP 1 - To change the display, press and hold the Info button and the
Stand-by button at the same time. “MdL” or “SPL” will appear.
See images 1a and 1b.
STEP 2 - Push the Down button until “ScL” appears. See image 2.
STEP 3 - Press and hold the Info button to see the “readout scale”. See
image 3.
STEP 4 - While pressing and holding the Info button , press the
up or down button to change the “readout scale".
See image 4.
STEP 5 - Once the “readout scale” has been changed, release the info button
.
STEP 6 - Wait 30 seconds for the display to show temperature.
See image 5.
1a
1b
2
3
4
5
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS
HOW TO CHANGE DISPLAY READOUT FROM FAHRENHEIT TO CELSIUS:

20
TRUE
milk coolers www.truemfg.com
2
1
DISPLAYING TEMPERATURE PROBES,T1,T2,T3:
WHY: To display temperature probe readings in different locations of the
cabinet.
Also, display may show an average cabinet temperature and not a specific probe
temperature.
STEP 1 - To display T1 temperature, press and release the info button .
“t1” will appear. See image 1.
STEP 2 - Press and hold the info button .This is the temperature of the
T1 Probe. See image 2.
STEP 3 - By releasing the info button ,“t2” will appear. Press and hold the
info button to display the temperature of the T2 probe.
STEP 4 - By releasing the info button again, “t3” will appear. Press and
hold the info button to display the temperature of
the T3 probe. (If probe T3 is not activated, “t3” will not appear of
the display.)
DISPLAY CODES
DISPLAY
Defrost in progress Room high temperature alarm
Controller in stand-by Room low temperature alarm
Door open alarm Probe T1 failure
Instant Probe 1 temperature Probe T2 failure
Instant Probe 2 temperature Probe T3 failure
Instant Probe 3 temperature Maximum probe 1 temperature recorded
Minutes of the Real Time Clock Minimum probe 1 temperature recorded
Hours of the Real Time Clock Keypad state lock
LAE Control
Manual Activation
Up Button
Info / Set Point
Button
Stand-By
Button
Manual Defrost /
Down Button
LAE ELECTRONIC TEMPERATURE CONTROLS
HOW TO DISPLAY PROBE TEMPERATURES:
