JL40T-C2
Lawnmower User Manual
CUT 400 mm / 16”
CAUTION: Before using the lawnmower, carefully read this manual which
has been purposely drawn up to provide you with all the necessary
information for proper use, which is in compliance with basic safety
requirements.

Trueshopping
www.Trueshopping.co.uk
- 2 –
Manufacturer: Zhejiang Jieling Machine Co.,Ltd.
Address: Dingqiaotou IndustrialArea, Ciwu Town, Zhuji City, Zhejiang Province 311815, P. R.
Caution: Read this manual carefully before use.
Caution: Keep other people well away from the danger area.
Caution: Risk of hand and feet injuries.
Caution: Emission of toxic gas, do not use
the lawnmower in an enclosed area.
Caution: Hot surfaces.
Caution: Before carrying out any operation stop the engine and
disconnect the spark plug cap.
Caution: Never fill up the fuel tank while the engine is
running.
The guaranteed value is: L
WA
=96dB(A)

Trueshopping
www.Trueshopping.co.uk
- 3 –
PRODUCT SPECIFICATIONS
Model JL 40T-C2
Cutting Width(mm) 400
Engine Model JL1P65F
Moving type Hand-push
Cutting Height(mm) 25-55mm
Drive speed Single
Cutting HeightAdjustment 4 wheel individual adjustment
Grass bag capacity 45 L
Max. speed of the blade(r/min) 2800
Noise level(dB) 96
IMPORTANT: Carefully read the security requirements included in the engine manual
before use.
SUMMARY:
1/ DESCRIPTION
2/ ASSEMBLY OF GRASS CATCHER/DEFLECTOR
3/ HANDLE ASSEMBLY
4/ ADJUSTMENT OF CUTTING HEIGHT
5/ SAFETY PRECAUTIONS
6/ OPERATION
7/ SAFETY RULES
8/ MAINTENANCE
9/ EXPLODED VIEW

Trueshopping
www.Trueshopping.co.uk
- 4 –
1
-
DESCRI
PTION
2
-
ASSE
MBLY OF GRASS CATCHER
1 Carter 2 Engine 3 Inferior handle 4 Engine control bar 5 Superior handle
6 Throttle control 7 Grass catcher
a) Put the metallic frame inside the grass catcher fig A
b) Fix the bag on the metallic frame. fig A
c) Pull up the deflector and put the grass catcher in place. fig B

Trueshopping
www.Trueshopping.co.uk
- 5 –
3-ASSEMBLY OF THE HANDLE
4-CUTTING HEIGHTAJUSTMENTS
Open out the handle and screw the handle parts with the two screws and plastic nuts. Put the recoil
starter on the lift of the handle and fix the cable with the plastic collar.
Introduce the rope of the recoil starter handle on its support guide rope.

Trueshopping
www.Trueshopping.co.uk
- 6 –
5-SAFETY PRECAUTIONS
a) Always use the lawnmower with the grass catcher or/ and the deflector in position.
b) Stop the engine before emptying the grass catcher or before you change the cutting
height.
c) While the engine is running, never place your hands or feet under the lawnmower or
under the grass ejection area. fig E
d) Before mowing, remove all foreign objects from the lawn, which could get thrown-up by
the machine. fig F
e) Keep children and domestic animals at a safe distance when the lawnmower is in use.
f) Never lift the mower while starting the engine. fig G

Trueshopping
www.Trueshopping.co.uk
- 7 –
6-OPERATION
7-GEAR BOX
Before using the machine you must read the engine instruction book.

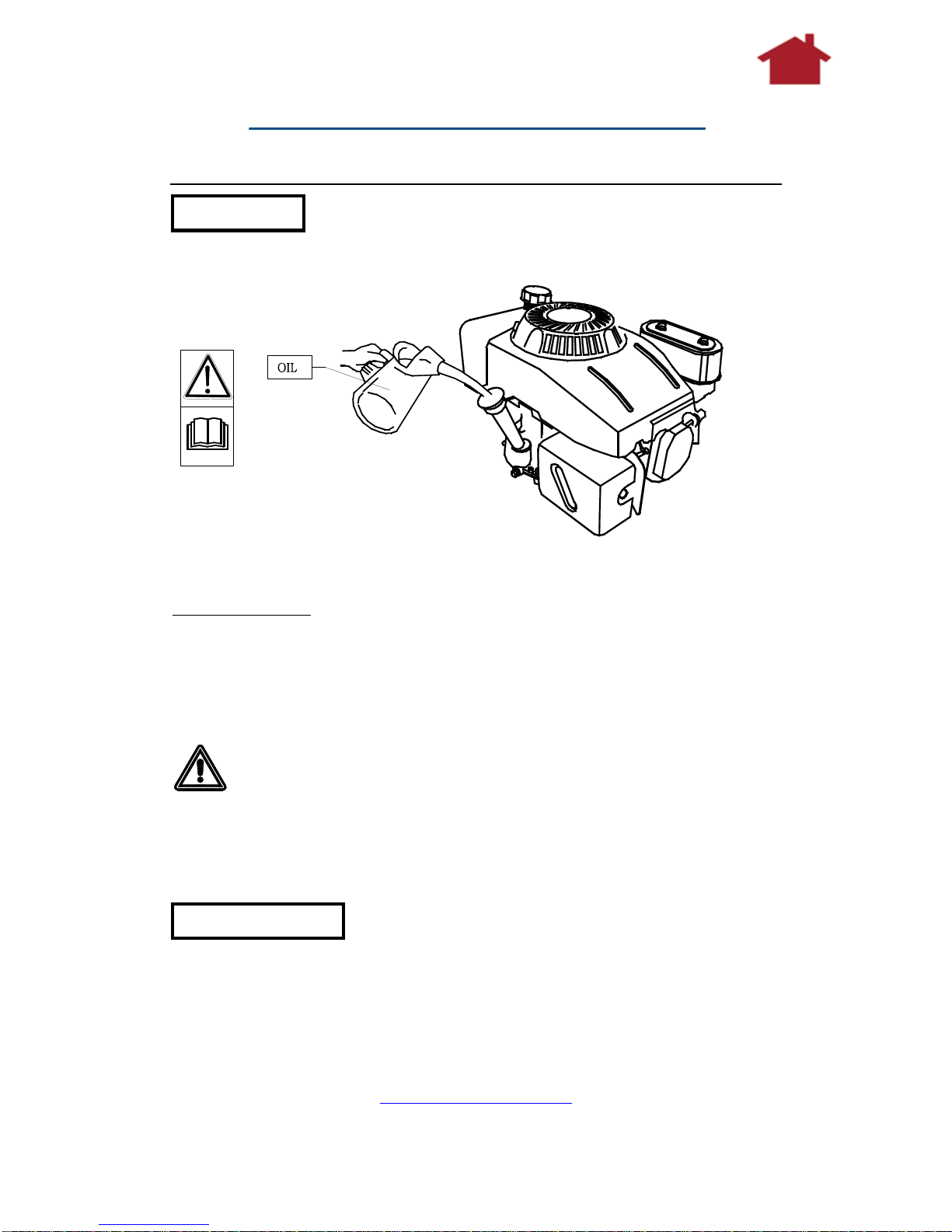

Engine delivered without oil: add 0.6 litre of oil before starting the engine.
ENGINE STARTING:
Once the machine has been set up properly, start the engine as follows:
a) Put the lever on the START position
b) Take the flame out (N
○
3) and maintain it against the superior handle, pull on the recoil starter
handle until you can feel resistance and then pull harshly.
c) Put the lever on RUN position.
The blade is in action as soon as the engine is started. While the machine is working maintain the
security handle (3) in working position. The engine will stop as soon as you release the engine
control bar.
Regularly maintain the self-propelled system. Polish the gears in the wheels and put
grease on them. Repeat the same process on the ball bearing if any.

Trueshopping
www.Trueshopping.co.uk
- 8 –
8
-
SECURITY MEAS
URES
General conditions of use
1. This machine is to be used exclusively for cutting natural grass. Never use the mower for
other purposes. Any other use can lead to damaging the mower.
2. Persons under 16 years of age and persons who are not familiar with the user instructions
must not use the mower.
3. The user is responsible of the safety of other people in the working area. Keep children and
domestic animals at a safe distance while the mower is in use.
4. Before mowing, remove all foreign objects from the lawn.
User Instructions
1. Check that all nuts, bolts and screws are well tightened.
2. Before mowing place the grass catcher in its position.
3. Before mowing make sure that the blade and the blade fixing screw are securely fastened.
When cutting edges the blade may require resharpening, this must be done evenly on both
sides so as to prevent any imbalance. If the blade is damaged, it must be replaced.
4. When mowing always wear long trousers and strong footwear.
5. Do not run the engine in an enclosed and/or poorly ventilated area.
6. Work only when there is sufficient light.
7. Do not use the lawnmower when it is raining or when the grass is wet.
8. Particular precautions must be taken while mowing on slopes. Mow across the face of slopes,
never down or up.
9. Turn off the engine while the lawnmower is unattended.
10. Never lift the rear of the mower while starting the engine and never place your hands and feet
underneath the deck or into the rear discharge chute while the engine is running.
11. Never change in any way the rated speed of the engine.
12. On the self-propelled mowers, disconnect the self-propelled system before starting the engine.
13. Never lift or carry the mower while the engine is running.
14. Stop the engine and remove the spark plug cover in these cases:
-Before any operation under the deck or the grass rear discharge chute.
-Before any maintenance, repairing or checking operations.

Trueshopping
www.Trueshopping.co.uk
- 9 –
-Before carrying, lifting or removing the mower.
-If you leave the mower unattended or changing the cutting height.
-Remove and emptying the grass catcher.
-After hitting a foreign object, stop the engine and check the mower in order to see if it is
damaged. Bring the mower into an agreed service station to carry out repairs if necessary.
WARNING: After you have stopped the engine the blade is still in motion for a few
seconds.
-If the mower vibrates in an abnormal way, find the reasons why, and take your mower to
an agreed service station.
-Regularly check that the bolts, nuts and screws are secularly tightened to ensure of safe
use.
15. WARNING: GASOLINE IS HIGHLY INFLAMMABLE.
-Keep gasoline in a jerry can specially made for this purpose.
-Fill up the tank with a funnel outside.
-Do not smoke.
-Fill up with gasoline and oil before staring the engine. Never open the cap of the fuel
tank to add gasoline while the engine is running or still hot.
-Do not start the engine if there is any gasoline spread around; take the mower away from
the affected area.
-Tighten the fuel tank cap and tightly close the jerry can cap.

Trueshopping
www.Trueshopping.co.uk
- 10 –
9
-
MAINTENANCE
Maintenance and Storage
WARNING: Stop the engine and unplug the spark plug before
repairing or maintenance.
-Make sure that all nuts, bolts and screws are kept well tightened to keep the lawnmower
in a safe operating condition.
-Never store the lawnmower with a tank of gasoline in an enclosed area where gasoline
fumes could reach a strong heat source or a flame. Allow the engine to cool down before
you store your lawnmower away.
-In order to reduce the risk of fire, clean the lawnmower and in particularly the engine, the
muffler and the fuel tank. Suppress all grass traces or leaves or excess of grease.
-Frequently check the condition of the deflector and the grass catcher, replace them if they
are damaged
-If you want to drain the oil tank before winter make sure you do this outside.
-Wear thick gloves for the mounting and the sharpening of the blade. Be sure that the
blade is always well balanced.
WARNING: Stop the engine and unplug the spark plug before
any repairs or maintenance.
-Regularly check the oil level and top up or replace if required.
-Regularly check the lawnmower and ensure that all grass deposits are removed from
beneath the deck.
-Regularly lubricate the wheel axle and the bearings with grease.
-Check the blade regularly to ensure of efficient use.
-At regularly intervals check the tightening of all bolts and screws.
-
The Blade: The blade is made of pressed steel, in order to obtain clean work sharpen the blade
frequently, around every 25 hours’worth of grass cutting. Ensure that the blade is always well
balanced, introduce a small iron axle (φ2 orφ3 mm) in the central hole of the blade, it should
stay horizontal. If the blade does not stay horizontal balance it by taking off some metal on the
side.

Trueshopping
www.Trueshopping.co.uk
- 11 –
10-SPARE PARTS-MODEL JL40T-C2
Ensure that only the manufacturer’s blade is used.
To remove the blade, unscrew the screw, ○
1
check the blade support and change all spare parts if
they are worn out or damaged.
When reassembling the blade, make sure that the cutting edges face in the direction of the engine
rotation. The blade screw must be torqued to 3.7 K·gm(37Nm) with a Dynamometric tool.
1
ONLY USE ORIGINALSPARE PARTS.

Trueshopping
www.Trueshopping.co.uk
- 12 –

Trueshopping
www.Trueshopping.co.uk
- 13 –
JL40T-C2 Parts list
NO.
PARTS NO PARTS NAME Q.T.Y.
1 JL46Z04-04 Blade bolt 1
2 JL40T03-01 Flat washer 1
3 JL46Z04-07 Blade washer 1
4 JL40T03-02 Blade 1
5 JL46Z04-03 Blade adapter 1
6 JL46Z04-08 Key 1
7 JL40T-C02-02 Right mounting panel 2
8 JL40T-C02-01 Left mounting panel 2
9 JL40T-C03-01 Under pan 1
10 JL46Z-C02-02 wheel cover 4
11 JL40T02-06 Left bolt 2
12 JL46Z02-15 Ball bearing 8
13 JL46Z-C02-03 wheel 4
14 GB95-85 Washerφ10.5X30X2 4
15 Engine 1
16 GB96-85 Washer8.4X24X2 2
17 GB/T93-87 Washer8.1X2.1 3
18 GB5789-86 Bolt M8X45 3
19 GB845-85 Screw ST4.2X16 2
20 JL40T-D01-04 Left lower handle 1
21 JL46Z01-09 Clip 2
22 JL40T01-01A NUT 2
23 JL40T01-02
Blot
2
24 JL40T-D01-06 Throttle control cable 1
25 JL46Z01-11.1 Throttle control 1
26 JL40T01-09
Stem
2
27 JL40T01-02A
BlotM6X45
1
28 GB97.2-2002 Washer 6.4X12X1.4 3
29 JL40T01-07 Brake lever 1
30 JL40T01-06 Upper handle 1
31 JL40T01-02B BlotM6X35 1
32
JL40T-D01-03
1
33 GB/T923-88 Nut M6 3

Trueshopping
www.Trueshopping.co.uk
- 14 –
34 JL40T01-03 Rope Guide Support 1
35 JL40T-D01-05 right lower handle 1
36 JL40T-C04-04 Grass bag 1
37 JL40T-C04-01 Frame 1
38 GB896-86 Circlip φ5 2
39 JL40T-C04-02 Rear deflector pole 1
40 JL40T-C04-03 Rear deflector spring 1
41 JL40T04-02 Rear deflector 1
42 JL40T02-04 right bolt 2
