Trynex SweepEx SWB-480 User manual

Assembly Instructions
© TrynEx International 2013
(REV A) F51302C
1
CUSTOMER COPY
Madison Heights, Michigan 48071
877-SWEEPEX
www.sweepexproducts.com
SWB-480
Serial No. R48-0913830001 and higher

2 © TrynEx International 2013 (REV A) F51302C
Table of Contents
Have a question or need assistance?
SweepEx Customer Care
877-SWEEPEX
or [phone]
Monday trough Friday 8:00 AM to 4:30 PM EST
Fax: [phone]
E-mail: [e-mail]
Website: www.sweepexproducts.com
Introduction .................................................................................................................................................................................................... 3
Safety............................................................................................................................................................................................................. 4
Assembly Instructions................................................................................................................................................................................5-12
Notes.......................................................................................................................................................................................................13-15

3© TrynEx International 2013 (REV A) F51302C
Introduction
These assembly instructions have been designed to guide you in assembling your SWB-480 Rotary Sweeper. Follow these instructions with
care to ensure performance and longevity.
Please read and understand the safety warnings associated with the assembly of the equipment before beginning. In addition the safety
information in the these instructions, observe general safety guidelines to maintain your safety and the safety of those around you.
To assemble the SWB-480 you will need a set of metric tools.
THIS SIGN SHOULD ALERT YOU:
This Safety Alert Symbol is used to pinpoint characteristics that, if not carefully followed, can create a safety
hazard. When you see this symbol in this manual or on the machine itself, be alert! Your personal safety and
the safety of others is involved.
Dened below are the Safety Alert Messages.
DANGER
Information that, if not carefully followed, can cause death.
WARNING
Information that, if not carefully followed, can cause serious personal injury or death.
CAUTION
Information that, if not carefully followed, can cause minor injury or damage to equipment.
IMPORTANT
This symbol is used to call out information that is important to follow carefully.
Note: Pictures in this publication may show the SWB-480 with optional accessories or brush kits.
Refer to the “Component Vocabulary” section of the Owner’s Manual to become acquainted with the names of parts.
In each step, hand-tighten all fasteners until the step is complete,
then tighten to the recommended torque. (The chart references thread
diameter, not wrench size.)
To prevent damage to the equipment, do not tighten fasteners with
plastic nuts or directly contacting plastic parts to the recommended
torque. Tighten until rm.
TORQUE CHART FT-LB
Fastener Recommended
Torque
M6 7.8
M8 20.25
M10 42.75
M12 72
M19 250
T20 7.75
RECOMMENDED FASTENER TORQUE

4 © TrynEx International 2013 (REV A) F51302C
Safety
Your SWB-480 is manufactured to state-of-the-art technical regulations. Despite this, it is possible that
operation will result in danger to life and limb for the operator or third parties, impairments to the machine
and other physical assets.
The machine is intended exclusively for use for brushing operations in property maintenance and snow
clearance. Examples of intended use are: snow clearing; sidewalk, driveway & parking lot cleaning (with
multi-purpose brushes); spring debris clean-up; dethatching; clearing debris from articial turf; and leaf
clean-up (with Multi-Purpose brushes). Any operation over and above these uses will be considered as a
non-intended use. SweepEx will not be held liable for any resulting damages. The operator alone is respon-
sible for any risk. Intended Use also includes observance of the Owner’s Manual and keeping to all service
and maintenance procedures.
Always keep the Owner’s Manual available at the machine’s place of work. In addition to this Owner’s
Manual, furnish all users with information regarding legal or other important regulations regarding accident
prevention. These duties can include handling hazardous materials; wearing personal safety equipment; and
trafc regulations. You should supplement this Owner’s Manual with instructions covering information related
to use of powered machinery; and operating equipment near people, other machines and trafc.
Do not smoke or have any open ame near the machine. Gasoline vapors could explode.
Only use the machine in perfect condition and according to applicable regulations. Be aware of your sur-
roundings and alert to what you are doing to reduce hazards. You should always repair faults which could
inuence the safety of the machine.
Personnel operating the machine must read the Owner’s Manual before using – especially all safety in-
formation. This includes people who occasionally work on or operate the machine such as for service and
transport. A clear understanding of how to operate the machine will reduce dangers involved with operating
powered equipment.
You must check that personnel operating the machine are paying attention to safety and hazards and under
observance of this Owner’s Manual. Operating personnel may not have long hair, or wear loose clothing or
jewelry, including rings – these items can catch and be pulled in by moving parts.
Keep all safety and hazard information for the machine complete and in readable condition. If the machine is
altered with regard to its safety or changes its operational behavior, stop operation immediately and report
the malfunction to the responsible department or person.
The SWB-480 may only be operated with brushes approved by SweepEx.
Do not carry out any alteration, addition or rebuilding to the machine which could inuence its safe opera-
tion. This especially applies to addition and alteration to safety devices and machine controls, and to welding
work on load-bearing components.
Personal protection equipment must be worn to prevent accidental injury. Observe all safety and hazard
information for the machine.
Rotating brushes cause ying debris, wear safety glasses with side protection.
Wear high-visibility clothing, especially when working around other machines, people and vehicles.
Be aware of and avoid pinch points when assembling and operating. Pinch points can exist around levers
and when putting two parts together (during assembly).
Use barriers and trafc cones when working in areas of pedestrian and vehicle trafc to keep everything at a
safe distance.
Use genuine SweepEx parts for replacement. These meet the specic technical requirements. Observe all
deadlines indicated in the Owner’s Manual for maintenance checks and service
Suitable and adequate mechanic’s equipment is required for performing maintenance and service proce-
dures.
The SWB-480 is powered by gasoline. Know the location of re extinguishers and observe re safety proce-
dures.
This page contains safety information to highlight safety hazards and precautions involved with operating your SWB-480. This page must be
read and understood by all personnel who have any part with the assembly, use and care of this machine.

5© TrynEx International 2013 (REV A) F51302C
Assembly Instructions
Use metric tools to assemble the SWB-480. Two people are necessary for this procedure.
STEP 3
Rest the handlebar on the clamps.
STEP 1
Remove all loose parts from the box: papers, brushes, and tires.
STEP 2
Cut down at each corner of the box; fold the sides down.
STEP 4
Mount Handlebar to the supports with the knob.
STEP 5
Put the other half of the clamps onto the studs.

6 © TrynEx International 2013 (REV A) F51302C
Assembly Instructions
STEP 6
Put xing plates on the studs. Position as shown.
Front
STEP 7
Put locknuts and washers on the studs.
STEP 9
Secure the handlebar supports to the handlebar with the knobs.
STEP 8
Tighten the nuts so the handlebars will still move, but not fall.

7© TrynEx International 2013 (REV A) F51302C
Assembly Instructions
STEP 10
Attach the Throttle Lever with bolt, washer and locknut to the handlebars.
STEP 11
(Have someone lift up the rear of the machine by pushing up on the handlebars). Put right and left wheels on the drive axle and secure with
the linch pin. Put the linch pin through the axle only. This is the freewheel position – see Owner’s Manual for more information.
You can now roll the machine out of the box on the rear wheels.
STEP 13
Attach Support Wheel.
Continued on next page...
STEP 12
Support the machine at the front with a wooden block. Secure the rear wheels with chocks.
A. Parts. B. Push the sleeve
through the wheel.

8 © TrynEx International 2013 (REV A) F51302C
Assembly Instructions
C. Position the support
wheel as shown.
D. Push the hex bolt
through and thread on
the nut.
F. Completed.
E. Use two wrenches to
tighten the bolt/nut.
STEP 13
Continued from previous page...
STEP 14
Have another person hold the machine rmly by the handlebars.
STEP 15
Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Extension.
DO NOT RE-USE THE REMOVED HARDWARE.
STEP 16
Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Frame. Pull the Brush Drive Frame forward keeping the
frame as level as possible and keeping the frame from scraping the cover.

9© TrynEx International 2013 (REV A) F51302C
Assembly Instructions
STEP 17
Loosely pre-assemble the Brushing Sub-Assembly to the Axle Drive Housing with bolts and washers. Begin at the front.
STEP 18
Tighten the bolts holding the Brushing Mechanism to the Axle Drive Housing in the order shown.
IMPORTANT
Tighten the bottom bolts rst, then tighten the bolts on the side. Please note the
order in which the bolts are tightened. Otherwise, the machine is not exactly
aligned and the drive belt and brush could wear out prematurely.
1.
2. 3.
STEP 19
Fix the Cable to the Handle Bars with cable ties at the locations show. Trim the end off when nished all the cable ties.
Continued on next page...

10 © TrynEx International 2013 (REV A) F51302C
STEP 19
Continued from previous page...
The ties here must form
a loop. Do not tighten.
The cable must be able
to move when the handle
is folded.
Assembly Instructions
STEP 20
Attach the Brush Cover Side Panels.
A. Parts.
B. Position the side
panel so that the holes
are concentric.
D. Repeat this proce-
dure for the second
panel.
C. Push the bolts
through from above.
Push the washers on
from below and screw
on the nuts. Tighten.
A. Parts.
STEP 21
Installing the Brushes.
Axle with Cap, Nuts
Brushes
Locknut
Washer
Cap
IMPORTANT
The brushes must be
assembled so the black
row of bristles touches
the ground before the
white row of bristles
when the brush rotates.

11© TrynEx International 2013 (REV A) F51302C
Assembly Instructions

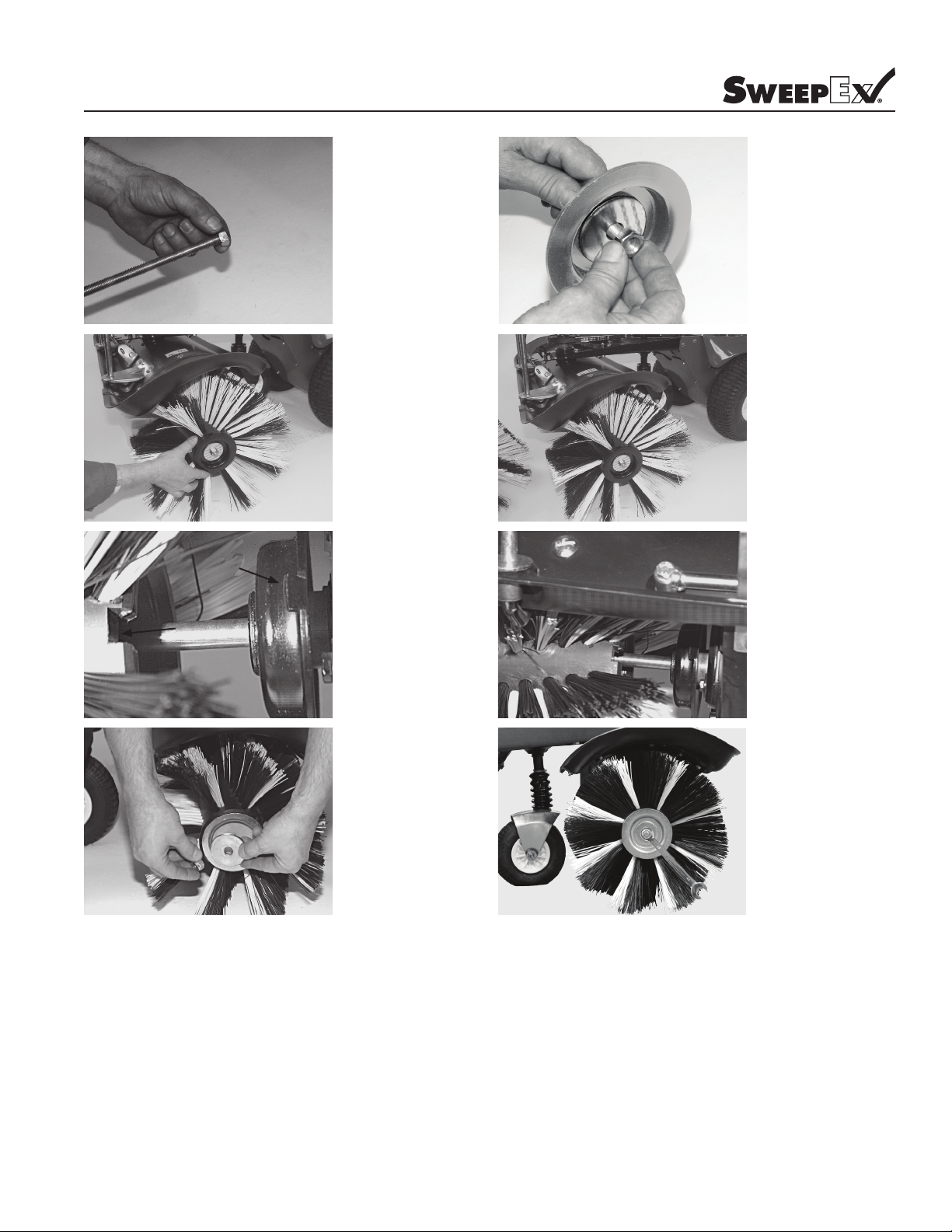

C. Put cap and washer
on the axle. Thread
on the other nut and
tighten, leaving approxi-
mately 3/4” (20 mm) of
threads at the end of
the axle.
B. Screw the nut onto
the axle.
D. Put the Axle with the
Cap, Washer and Right
Brush through the brush
transmission (centered
underneath the brush
cover).
G. Put the Left Brush on
– make sure the brush
is locked onto center
Cap-Gear.
H. Put the cap and
washer on the end.
Thread on the Locknut.
I. Tighten the locknut.
You will need two 19
mm wrenches.
E. Put the Axle with the
Cap, Washer and Brush
through the drive source
(centered underneath
the brush cover).
F. In the center, the tab
on the Cap-Gear should
t the slot on the brush
cylinder.
TAB
SLOT

12 © TrynEx International 2013 (REV A) F51302C
A. Hardware. Torx
Screws, Counter-Sink
Washers, Snap Nuts.
B. Installation of snap
nut.
STEP 22
Install the belt cover.
STEP 23
Thread the Height Adjustment Knob into the Height Adjustment Mechanism: Put a lubricant on the threads. Push the threads through the
rubber bushing. Feel around for the hole in the mechanism. Push down to ensure the threads are lined up. Make sure the knob is standing
vertical. Begin tightening. Do not force the knob to tighten. Refer to “Adjusting Brush Height” for instructions to adjust the brush height.
FINISHED
Assembly Instructions
E. Set the brush at an
angle. Slip the cover
over the belt area and
back so the Snap Nuts
can be seen through the
holes in the cover.
C. Location of Snap
Nuts.
F. Put Torx Screws with
the Counter-Sink Wash-
ers through the mount-
ing holes on the cover
and thread into the snap
nuts. Tighten.
G. Tightening. T20.
D. Location of Snap
Nuts.
IMPORTANT
Now that assembly is nished, ll the motor with oil and fuel tank with unleaded gasoline. See Maintenance Instruc-
tions in Owner’s Manual for oil-lling instructions.

13© TrynEx International 2013 (REV A) F51302C

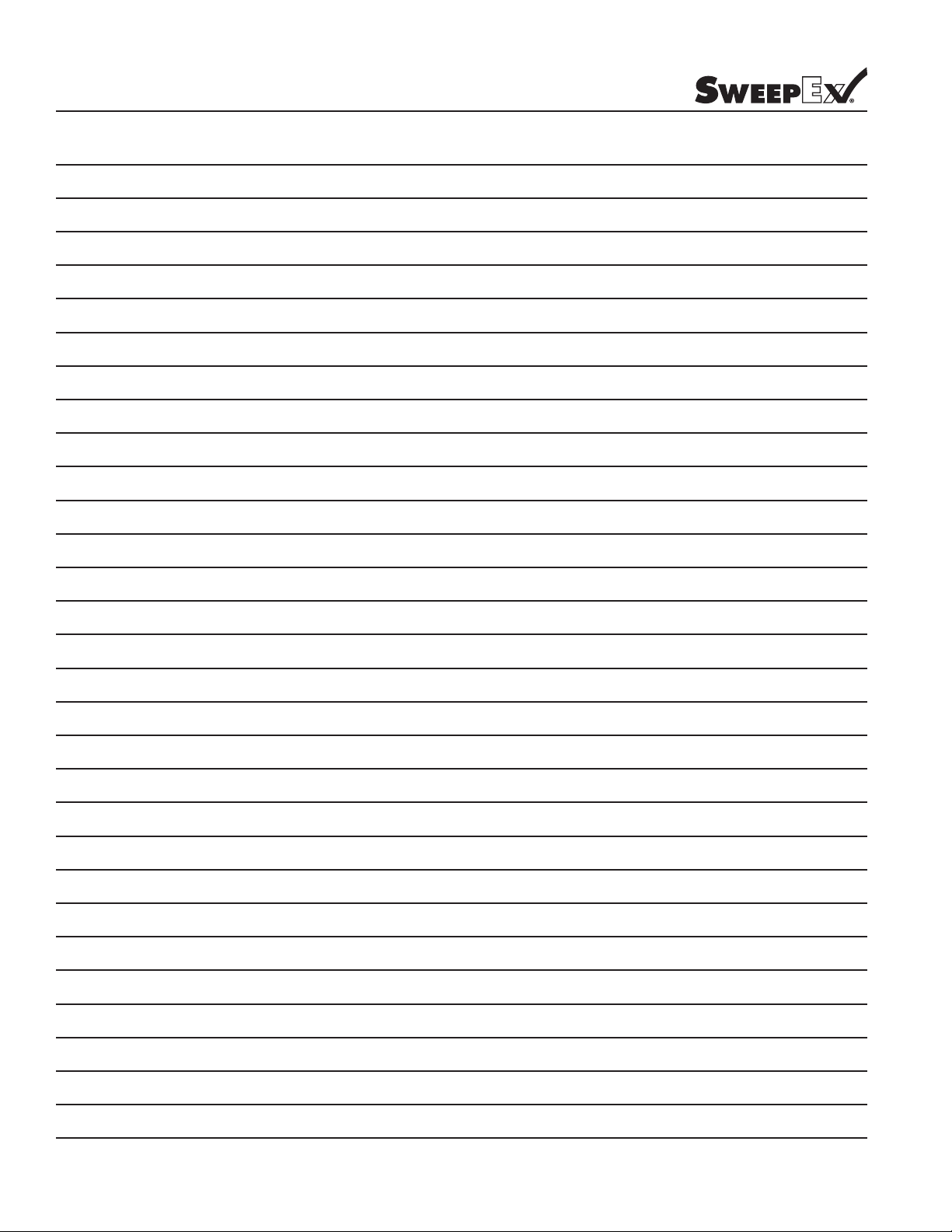

Notes
