TURFCO Torrent User manual

®
OPERATOR’S MANUAL
PARTS LISTS
Torrent
Towed Debris Blower
Product Number 85650
Manual Number 669635-GB Rev A
DANGER - IF INCORRECTLY USED THIS MACHINE CAN CAUSE SEVERE INJURY.
THOSE WHO USE AND MAINTAIN THIS MACHINE SHOULD BE TRAINED IN ITS
PROPERUSE,WARNEDOFITSDANGERS,ANDSHOULDREADTHEENTIREMANUAL
BEFORE ATTEMPTING TO SET-UP, OPERATE OR SERVICE THE MACHINE.
TURFCO MFG. INC.
1655 101st. Avenue NE •Minneapolis, MN 55449-4420 USA
Phone [phone] •FAX [phone] •www.turfco.com
2013 Turfco Mfg., Inc.
TURFCO®
Starting Serial Number T00201

285650RevA
SS85650-01
TURFCO MFG., INC
1655 101ST Avenue NE
Minneapolis, Minnesota
USA 55449-4420 www.turfco.com
[phone] FAX [phone]
PRODUCT SERIAL
TABLE OF CONTENTS
Product Records ......................................................................................................................2
Specications ...........................................................................................................................3
Registered Trademarks ............................................................................................................3
Recognizing Safety Warnings And General Safety Practices .................................................4
Setup And Installation...............................................................................................................6
Description..............................................................................................................................10
Operation
Pre-Operation Check List and Work Site Preparation............................................................13
Tow Vehicle and Tow Vehicle Hitch Requirements ............................................................13
Hitching To Tow Vehicle.....................................................................................................13
Towing and Operating Ground Speed ...............................................................................13
Maximum Angle Of Operation ...........................................................................................14
Starting Blower Engine......................................................................................................14
Auxiliary Control Operation ...............................................................................................14
Wireless Remote Control Operation..................................................................................15
Troubleshooting Table .......................................................................................................16
In Operation Checks and Inspection .................................................................................17
Restoring Wireless Remote Control Communication ........................................................19
Service and Maintenance
How To Obtain Parts And Service .....................................................................................20
Cleaning and Inspection....................................................................................................20
Storage..............................................................................................................................20
Service and Maintenance..................................................................................................21
Lubrication and Adjustments ........................................................................................21
Adjusting V-Belt Tension...............................................................................................22
Decals ..............................................................................................................................23
Electrical System and Schematics ....................................................................................24
Parts Lists...............................................................................................................................26
All specications, information, illustrations or photos in this manual are based on the latest information at
the time of printing. The right is reserved to make changes without notice.
Table of Contents
Product Records
IMPORTANT: Record the information from the serial number plate of your
Debris Blower. It will be necessary to furnish your Model Designation, Product
Number, and Serial Number when ordering parts.
Model Designation Turfco Torrent Towed Blower
Product Number 85650
Serial Number ________________________
Purchased From _______________________________________
_______________________________________
Date Purchased _______________________
OPTIONAL EQUIPMENT (Check if Installed)
86194 Auxiliary Control Kit
86195 Carbon Canister Emissions Kit (California Required)

3
85650RevA
Patents and Registered Trademarks
Patent Pending
TURFCO®is a registered Trademark of Turfco Mfg., Inc.
KOHLER®and Command Pro®are Trademarks of Kohler Co.
Intended Use: The Turfco Torrent Blower is a towed debris blower intended to be used on turf at sports turf
elds and on golf courses. The Blower is NOT intended to be used for any purpose other than blowing debris
from the turf. Use of the Blower is intended at a properly prepared worksite where deciencies have been
corrected to avoid injury to bystanders and/or damage to the machine or surrounding property. The Blower
is not designed for or intended to accept riders.
Product Number:
85650 - Turfco Torrent Tow Behind Debris Blower
Debris Blower Dimensions:
Width (Outside of Tire to Outside of Tire)...................48” Inches (1.22 Meter)
Height (Nozzle Pointing Up).......................................40.5” Inches (1.03 Meter)
(To Top of Engine)........................................... 36” Inches (0.92 Meter)
Length (Hitch To End of Chute)..................................108.8” Inches (2.76 Meter)
Operator Controls ............................................. Wireless Hand Held Remote Control for Nozzle
Direction, Engine Speed and Engine Stop.
Optional Auxiliary Manual Controls for Engine Speed
and Nozzle Direction.
Nozzle Rotation ................................................. Full 360° Degree
Towing Ground Speed
Suggested Operating Speed......................... 5 MPH (8 Km/h)
Maximum Non Operation Towing Speed....... 20 MPH (32 Km/h) Maximum
Engine ................................................................ 725cc 25 HP (18.65 Kw) Kohler Command Pro With
Electric Start and 15 AMP Charging
Electrical ............................................................ Requires 12 Volt DC Battery (Customer
Supplied). Electrical Circuits for Wireless Remote
Control System and Nozzle Rotation Motor.
Tongue and Hitch .............................................. Adjustable Height Pin Hitch (Standard 5/8” Inch Pin)
Tongue Weight................................................... 35 Pounds (15.8 Kg)
Weight ................................................................ 575 pounds (260.8 Kg.)
Specications
SPECIFICATIONS
THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
OPERATE ONLY IN AREAS WITH ADEQUATE VENTILATION. DO NOT OPERATE ENGINE IN ENCLOSED AREAS.
WARNING

485650RevA
Safety on the job should always be a top priority.
Training and experience are important factors in the safe
operation of equipment. Please consider the following
information and realize that safe operation is a matter
of using common sense as it relates to the machine, its
maintenance, the operator, the training, and the operating
conditions. These are general safety instructions that
apply to most turf maintenance equipment.
This list includes many, but not all, general
safety instructions as they relate to turf
equipment. Common sense must always be
used to determine the safest way to operate a
machine under specic conditions.
TRAINING:
● Always read the manual before operating a machine
for the rst time.
● Always read the warning decals before operating a
machine for the rst time.
● Always check the location and use of each control
before operating a machine for the rst time.
● Practice operating the machine in a safe area with no
obstructions until becoming familiar with the controls.
If you have questions, ask your supervisor or call the
factory.
CLOTHING:
● Cloths should be snug t. Loose tting clothing is
hazardous because it may get caught in the mechanism
during service or operation.
● Remove jewelry before operation. Again, jewelry may
get caught in the mechanism.
● Wear shoes that will protect your feet. In most cases,
sneakers do not protect and do not provide the
protection of leather shoes or boots. Steel toed safety
shoes should be considered for many situations.
● Hard Hat: The use of a hard hat should be considered
when using equipment on a golf course. The danger
of being hit by a golf ball should be a major concern as
well as protection while operating under trees .
● Eye Protection: Safety glasses and/or face shields
should be considered when operating, as well as
working in close proximity to high speed rotary
equipment. Watch for rotary mowers, edgers, brush
and string trimmers. Rotary mowers can throw debris
at speed up to 200 MPH.
● Hearing: If the noise level of the equipment is too loud,
consider the use of ear protection.
● Do not use stereo headsets during operation. This is a
distraction that may lead to an accident. Headsets also
make it difcult to hear other people and equipment
while operating in the work area.
● Respirators: When operating in dusty, windy
conditions, wear a respirator. This is also an important
consideration if operating equipment while spraying
chemicals and fertilizers.
● Gloves: Use gloves when handling sharp or hazardous
objects.
THE OPERATOR:
● The operator should never use a machine while under
the inuence of alcohol or drugs. The operator should
be aware of the hazards of working in the sun and
should take proper precautions to avoid heat stress
and dehydration. Use sun screen products when
necessary.
● The operator should never attempt to ride a machine
that is not designed for that propose. Do not allow
others to ride a machine that is not designed for
passengers.
● Care should always be taken when mounting and
dismounting a riding machine. Prevent injuries and
falls by making sure the operator does not slip. Unless
it is an emergency, do not jump off a machine. Injury
may result when an operator’s foot slips trying to jump
from a machine.
General Safety Practices
Recognizing Safety Warnings Used In Manual
LOOK FOR THE SAFETY HAZARD WARNING SYMBOL
The symbol is used to alert the operator of safety hazards.
It is used in conjunction with the words DANGER, WARNING, and CAUTION.
“DANGER” identifies immediate hazards which will result in serious injury or death.
“WARNING” identifies potential hazards which could result in serious injury or death.
“CAUTION” identifies hazardous situations which may result in minor injury and/or could result in
damage or destruction of equipment.
WARNING CAUTION
DANGER
SAFETY

5
85650RevA
● Do not operate any equipment at unsafe speeds.
Speeds should be reduced when turning or operating
on slopes. The operator must use common sense
to determine a safe speed based on the equipment,
the load, the slope, the surface, and other conditions
that may affect safe operation.
● The operator must be aware of the conditions around
the area. Be careful to observe other people and
machines.
● Beware of slippery conditions. Wet turf can be
encountered on slopes, when turning or stopping, or
at higher speeds.
● Keep hands and feet away from cutting devices and
drive components. Shut off the engine and remove
the key or ignition wire when servicing cutting devices
or drive components.
● If required to lift, an operator should ask for help if
the object is too heavy. The operator should lift with
his or her legs instead of the back. Care should be
taken to avoid twisting the back while lifting a heavy
load.
● Never allow children to operate the machine.
THE MACHINE:
● Do not modify the machine in any manner. Always
check the machine to make sure it is in good working
order.
● Do not place hands or feet near moving or rotating
parts. Inspect to insure that all guards are in place. Do
not operate a machine without all guards in place.
● Check to assure that all controls are in good operating
condition. Make sure the brakes are operating
properly.
● Do not overload machinery. The components
are designed for certain weights and capacities.
Overloading machine will cause unsafe conditions.
Shut off the engine before servicing the machine.
Check machines on a level area. Machines on a slope
may roll when the engine is off.
● Refer unfamiliar repairs and adjustments to mechanics
that have been trained to do them properly.
● Replace decals that have become damaged or
illegible.
EQUIPMENT WITH ENGINES:
● Prevent accidental starting by removing the spark
plug wire when servicing the engine or the equipment.
Disconnect the negative wire from the battery terminal
if the engine is equipped with an electric starting
system.
● Do not strike the ywheel with a hammer or any
hard object. This may cause the ywheel to shatter
in operation. Use the correct tools to service the
machine.
● Pull the starter cord slowly until resistance is felt.
Then pull the cord rapidly to avoid kickback and to
prevent hand or arm injury.
● Do not run the engine in an enclosed area. The exhaust
gases contain carbon monoxide, an odorless and
deadly poison. Engine Exhaust Contains Chemicals
Known to the State of California to Cause Cancer,
Birth Defects or Other Reproductive Harm
● Do not store, spill, or use gasoline near an open ame,
nor near an appliance like a stove, furnace, or water
heater that uses a indicator light or can create a spark.
● Do not refuel indoors or in an unventilated area. Check
the fuel level. Do not over ll. Do not add fuel while the
machine is hot because spilled fuel may cause a re.
Use fresh gasoline. Stale fuel can gum the carburetor
and can cause leakage. Check the fuel lines and ttings
frequently for cracks and leaks. Replace if necessary.
● Do not remove the fuel tank cap or ll fuel tank while
the engine is hot or running. Allow the engine to cool
before refueling.
● Do not operate the engine if gasoline is spilled or when
the smell of gasoline is present or other explosive
conditions exist. Move the equipment away from
the spill and avoid any ignition until the gasoline has
evaporated.
● Do not transport the engine with fuel in the tank.
● Do not start the engine with the air cleaner and/or the
air cleaner cover removed.
● Do not choke the carburetor to stop the engine.
Whenever possible, gradually reduce the engine speed
before stopping.
● Do not tamper with the governor springs, links or other
parts to increase the engine speed. Run the engine at
the speed set by the equipment manufacture.
● Do not check for a spark with the spark plug removed.
Use an approved tester. Do not crank the engine with
the spark plug removed. If the engine is ooded, place
the throttle in fast and crank until the engine starts.
● Keep the cylinder ns and the governor parts free of
dirt, grass, and other debris which can affect engine
speed.
● Do not operate the machine without a mufer. Inspect
the mufer periodically and replace it if it is leaking or
worn. If necessary, replace it with correct mufer. Do
not touch a hot mufer, cylinder, or n. It may cause
burns. Do not operate the engine with an accumulation
of grass, leaves, or other combustible material in the
mufer area.
● Do not use the engine on any forest covered, brush
covered, or grass covered unimproved land unless
a spark arrester is installed in the mufer. The spark
arrester must be maintained in working order by the
operator. In the State of California, the above is required
by law (Section 4442 of the California Public Resources
Code). Other state may have similar laws. Federal laws
apply on federal lands.
SAFETY

685650RevA
SETUP AND INSTALLATION
Setup
WARNING
TONGUE
FIGURE 1
DS85650-01RevA
6-1/2” TO 7-1/2” (165 TO 190 mm)
HITCH TONGUE POINTING
SLIGHTLY DOWN
LUG NUTS - TIGHTEN TO 75 FT-LBS
WHEEL & TIRE
Remove machine from shipping pallet. Use
proper lifting and handling equipment. The
Blower weighs 575 lbs. (280.8 Kg.).
SAFETY FIRST!!
To Avoid Serious Injury,
Wear the Appropriate Personal Safety Gear.
Use Caution When Working Near Any Sharp
Edged Parts, Moving and Rotating Parts.
Work Safely and Follow All Safety Warnings In
Blower Operators Manual
Do Not Modify The Blower.
Remove any shipping material from
machine. Check inside the nozzle and
safety cage for any shipping material or
anything remaining from the manufacturing
processes.

7
85650RevA
SETUP AND INSTALLATION
NOZZLE V-BAND
CLAMP
AS85650-05RevA
FIGURE 2
NOZZLE
NOZZLE AND
V-BELT PULLEY
● Adjust the height of the hitch so that when the
blower is hitched to the tow vehicle, the tongue is
at a slight downward angle. TWO BOLTS MUST
ALWAYS BE USED - DO NOT USE WITH JUST
ONE BOLT HOLDING THE HITCH.
● The nozzle should be 6-1/2” to 7-1/2” inches
(165 mm to 190 mm) above the ground when it is
pointed straight down.
STEP 4. (See Figure 2) Install the nozzle.
● Clamp the black plastic nozzle to the nozzle and
V-Belt pulley using the nozzle V-band clamp.
● V-band must clamp both the plastic nozzle and the
nozzle pulley. Clamp must not touch the V-Belt.
● Do not over tighten the clamp, tighten only tight
enough to keep the plastic nozzle from slipping on
the pulley.
STEP 1. (See Figure 1) Install both wheels.
● Remove shipping brackets from the wheel hubs.
● Install both wheels. Valve stems towards the
outside.
● Use four lug nuts per tire. Torque to 75 foot/lbs
(101 newton meters).
STEP 2. (See Figure 1) Install the tongue.
● Clamp the tongue to the front of the Blower frame.
● Use four bolts with washers, secure with nylock
nuts.
STEP 3. (See Figure 1) Install (or adjust) the hitch.
● Use two bolts and nylock nuts to attach the hitch
to the tongue (may have been pre-installed at the
factory).

885650RevA
SETUP AND INSTALLATION
WARNING
FIGURE 3 AS85650-02
BLACK CABLE
NEGATIVE (-)
BATTERY
TERMINAL
RED CABLE
POSITIVE (+)
BATTERY
TERMINAL
DO NOT
START THE ENGINE
Check Engine Oil Level
12 VOLT DC
GROUP U1
(CUSTOMER SUPPLIED)
● Remove the battery box cover and place the battery
in the battery box.
● Attach the red cable battery cable to the positive (+)
post on the battery. Attach the black cable to the
negative (-) post. Use 1/4”-20 screws and nuts.
● Replace the battery box cover and secure with the
hold down belt.
CAUTION
IF BATTERY IS REMOVED, DO NOT OPERATE
THE ENGINE WITHOUT INSULATING
POSITIVE (+) BATTERY CABLE WITH
ELECTRICAL TAPE.
SPARKING FROM BATTERY CABLES CAN
RESULT.
STEP 5. (See Figure 3) Install a 12 Volt battery
(customer supplied) in the battery box. Battery type
is a 12 volt DC Group U1. The battery hardware is
shipped in the loose parts with the other hardware.
TO AVOID SERIOUS INJURY,
Read and Understand the Safety Warnings
Supplied By the Battery Manufacturer and Printed
on the Battery.
WEAR SAFETY GOGGLES.
Batteries Contain Acid Which Can Cause Severe
Burns to Eyes and Skin. Batteries Emit Explosive
Gases, Avoid Sparks and Open Flames.

9
85650RevA
TO AVOID SERIOUS INJURY,
Read and Understand the Entire Operator
Manual For the Blower Before Operating.
WARNING
SETUP AND INSTALLATION
FIGURE 4
AS85650-03RevA
Unleaded
Gasoline
22 PSI
(151 kPa)
(1.51 bar)
READ AND
UNDERSTAND THE
OPERATORS MANUAL
BEFORE OPERATING
THIS MACHINE
Engine
Oil
STEP 6. (See Figure 4) Check all uid levels and tire air pressure.
● CHECK ENGINE OIL LEVEL
● FILL TANK WITH FRESH FUEL
● CHECK AIR PRESSURE IN TIRES

10 85650RevA
STEP 7. (See Figure 5) Test the wireless remote control. Ensure that factory
activation of the remote and the receiver are still active. NOTE: For safety
reasons, a “long push” of the remote buttons is needed to send a signal, expect
a slight time delay.
● Check the batteries in the remote by pushing the “ENGINE STOP” button. The
small red and green indicator lights on the remote should blink. If not, remove
the cover on the rear of the remote and check the batteries.
● If equipped with the optional Auxiliary Control, set the key switch on the control
panel to “Wireless” (key turned straight up and down).
● Turn ignition switch ON - DO NOT START ENGINE. Observe green indicator
lights in the receiver window. If no lights are green and the bottom light
“POWER” is not green, there is no power to the receiver. Check the 12 volt
battery in the battery box.
● Point the remote at receiver window on the control tower and push the “ENGINE
STOP” button. Observe ashing red (orange) lights in receiver window. Top
light “IN” should ash when the button is pushed.
● Point remote at receiver window on the control tower and push the or
button. The nozzle should rotate. Also observe ashing indicator lights in
receiver window.
● Turn ignition switch OFF.
If indicator lights ashed and the nozzle rotated, the remote is in communication
with the receiver.
If no lights change to orange and the nozzle does not rotate, communication with
the receiver has been lost. Refer to the service section in this manual to reactivate
the remote to the receiver and restore communication.
SETUP AND INSTALLATION

11
85650RevA
OPTIONAL AUXILIARY CONTROL KEY SWITCH
FIGURE 5
DS85650-04RevA
RECEIVER
WINDOW IGNITION
SWITCH
WIRELESS
REMOTE
CONTROL
SETUP AND INSTALLATION

12 85650RevA
DESCRIPTION
Description
INTENDED USE AND FUNCTION
The Blower is a towed debris blower intended to be
used on turf at sports turf elds and on golf courses.
The Blower is NOT intended to be used for any
purpose other than blowing debris from the turf. Use of
the Blower is intended at a properly prepared worksite
where deciencies have been corrected to avoid
injury to bystanders and/or damage to the machine or
surrounding property. The Blower is not designed for
or intended to accept riders.
LOCATION AND DESCRIPTION OF THE BLOWER
MAJOR COMPONENTS (See Figure 6, 7 and 8)
See Figure 6, 7 and 8 for the location of the major
components of the Blower. Do not modify the Blower in
any manner. Do not operate the Blower with damaged
or inoperable components.
Tongue and Hitch: The hitch is adjustable to
accommodate different hitch height on tow vehicles.
Adjustment should always keep the tongue at a
slight downward angle to the ground.
Wheels and Tires: The tires are non highway rated.
Towing is limited to 20 mph (32 Km/h).
Fuel Tank: The fuel tank holds 6 gallons (22.7 liter).
Always have the cap on the tank during operation.
Use unleaded gasoline.
Engine: The blower is equipped with a 27 HP (20.13
kW) gasoline engine with electric start. The engine
powers the Blower blades. Engine speed can be
controlled by using the wireless remote or by using
the optional auxiliary control panel. The engine is
equipped with a 15 amp charging system to maintain
The Torrent Tow Behind Blower is Turfco
Product Number 85650.

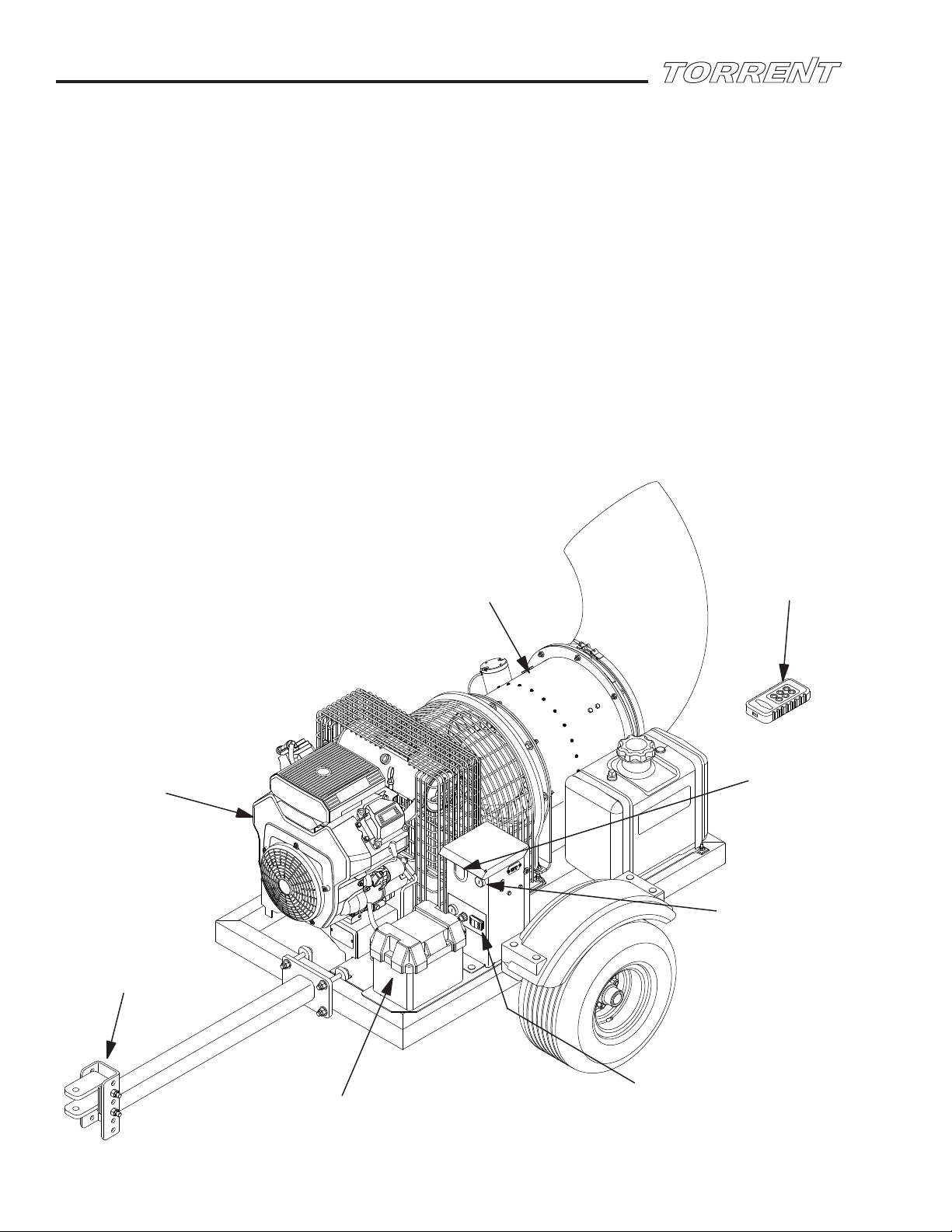

TONGUE
AND HITCH
BATTERY BOX
ENGINE
BLOWER
ASSEMBLY
OPTIONAL
AUXILIARY
CONTROL PANEL
FIGURE 6
DS85650-01RevA
REMOTE
RECEIVER
WINDOW
IGNITION
SWITCH
WIRELESS
REMOTE
CONTROL

13
85650RevA
DESCRIPTION

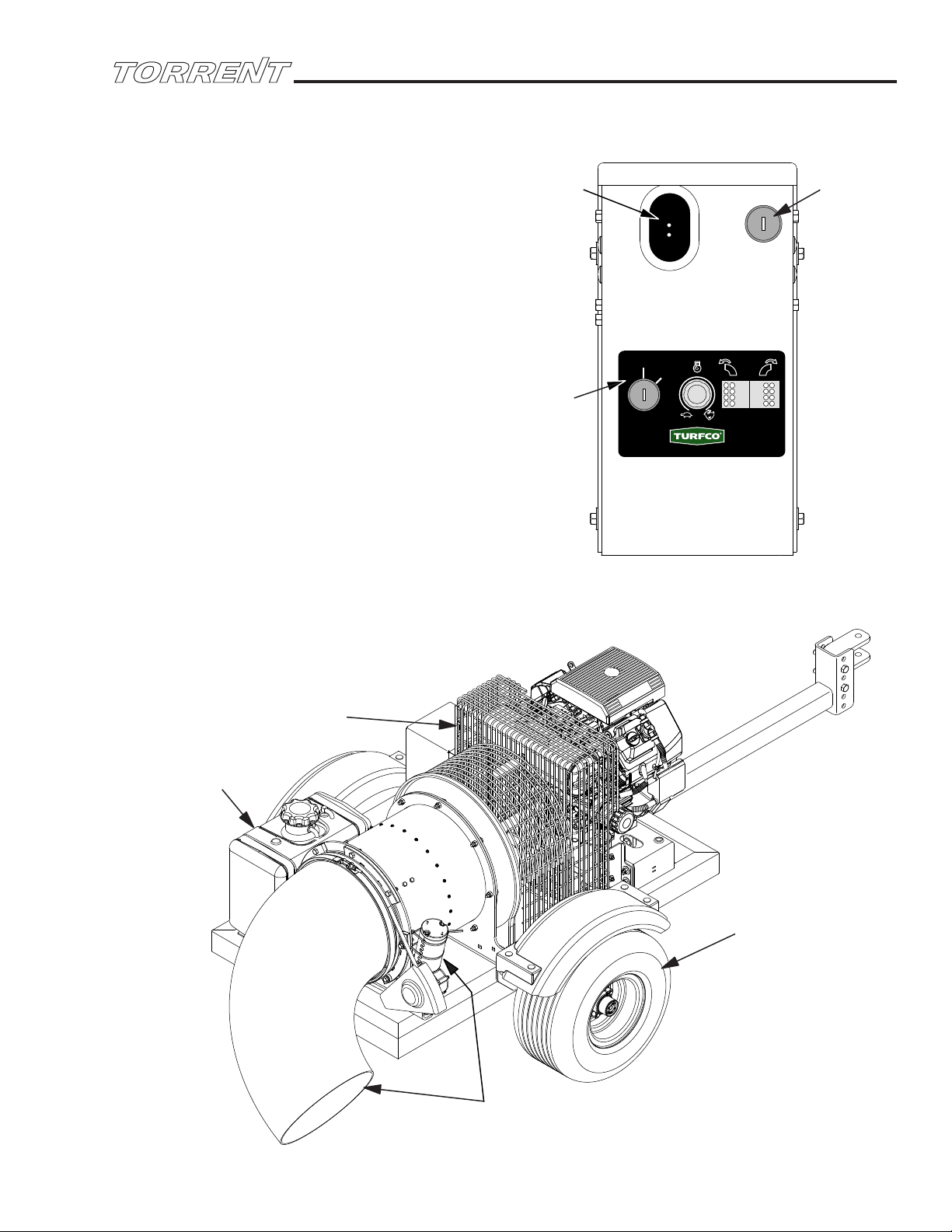

FUEL TANK
NOZZLE AND NOZZLE MOTOR
SAFETY CAGE
WHEEL AND TIRES
DS85650-01RevA
FIGURE 7
the 12 volt battery and provide electrical power for
the starting system, the remote control system and
the electric motor for rotating the nozzle.
Battery Box: The blower uses a group U1 lawn and
garden 12 volt DC battery (Customer Supplied).
The battery box cover should always be secured
with the cover strap.
Blower Assembly: The blower assembly contains
the fan blades that provide the air ow to clear
debris. The blower is a direct drive from the
engine - the blower begins to operate as soon as
the engine is started. Never start the engine when
bystanders are near the nozzle.
Safety Cage: The cage protects the intake opening
for the Blower assembly. The cage must always be
in place before operating the blower. The air intake
can pull items into the Blower blades, including
items of clothing. Serious injury can result.
Nozzle and Nozzle Motor: The nozzle directs the
air ow. The nozzle can be rotated 360° degrees.
Nozzle rotation can be controlled by using the
wireless remote or by using the auxiliary control
panel.
Control Tower: The control tower houses the ignition
switch and the optional auxiliary control panel. The
tower also have a window for the wireless remote
receiver base unit.
AUXILIARY CONTROLS
ENGINE SPEED NOZZLE
ROTATION
SLOW FAST
WIRELESS
AUXILIARY
RECEIVER
WINDOW
IGNITION
SWITCH
CONTROL BOX TOWER
OPTIONAL
AUXILIARY
CONTROL
PANEL
FIGURE 8
OP85650-05
Health
TX/RX
WIRELESS
AUXILIARY
CONTROL

14 85650RevA
WIRELESS
AUXILIARY
CONTROL
AUXILIARY CONTROLS
ENGINE SPEED NOZZLE
ROTATION
SLOW FAST
WIRELESS
AUXILIARY
FIGURE 9
DS85650-03
WIRELESS REMOTE CONTROL
OPTIONAL
AUXILIARY
CONTROL PANEL
NOZL
CCW
NOZL
CW
IDLE
LOWRES
ENGINE
STOP
THRTL
INC
THRTL
DEC
DESCRIPTION
LOCATION AND DESCRIPTION OF THE BLOWER
OPERATOR POSITION
Operator Position: The proper location for the
Blower operator is seated at drivers position of the tow
vehicle.
Always stop the tow vehicle engine and set the parking
brake before leaving the operator’s position. Do not
stand by the nozzle or allow anyone to stand behind
the blower when it is operating. The Blower Can
Throw Objects.
WARNING
TO AVOID SERIOUS INJURY,
Move To the Operator’s Position Before Engaging
Any Controls.
Move to the operator’s position after starting the
engine. All Guards Must Be Installed And Operational.
LOCATION AND DESCRIPTION OF THE OPERATOR
CONTROLS AND ENGINE CONTROLS
Blower Operator Controls (See Figure 9) All operator
controls are on the wireless remote control or on the
auxiliary control panel.
Wireless Remote Control: The remote control
operates the nozzle rotation, engine speed and
engine stop. If equipped, the key switch on the
optional auxiliary panel must be in the “Wireless”
position for the remote to operate engine throttle
speed.
Optional Auxiliary Control Panel: The optional
auxiliary controls panel can be used when the
remote is not available or for when the remote is
not functioning. The auxiliary controls will manually
operate the nozzle rotation and engine speed. The
panel has a key switch to activate the “Auxiliary”
controls which will deactivate the remote control
engine throttle functions.
Engine Controls: The only operator control located
on the engine is the choke. The ignition switch
(Starter) is located on the control tower. Engine
throttle control is located on the remote control or
on the optional auxiliary control panel.
WARNING
TO AVOID SERIOUS INJURY,
Damaging and Harmful Objects Can Be Thrown
or Blown Long Distances At Very High Rate of
Speed. DO NOT Point the Nozzle Towards Any
Person or Any Property.
Be Aware of People and All Bystanders In the
Work Area.
WARNING
To Avoid Serious Injury,
Keep Hands Clear When
Equipment Is Operating
DO NOT OPERATE WITHOUT
GUARDS IN PLACE
To Avoid Serious Injury,
Wear Eye and Ear
Protection During
Operation.
WARNING
To Avoid Serious Injury,
Stay Away From The Air
Discharge Area During
Operation. Do Not Point Air
Discharge Toward People,
Animals or Property.
THROWN OBJECT HAZARD!
WARNING
OP858650-07
KEEP ALL LOOSE CLOTHING AWAY
FROM THE SAFETY GUARD AND
BLOWER ASSEMBLY.
WARNING

15
85650RevA
OPERATION
Operation
PRE-OPERATION CHECK LIST
● Read and understand the entire manual for the
Blower.
● Follow all safety instructions, warnings, and decals.
● Safety First – Wear the appropriate safety
gear. Hearing protection and safety glasses are
recommended when operating the Blower.
● Check – The oil level in the engine.
● Inspect – The Blower assembly for damage, look for
debris inside the safety cage, look for dirt buildup or
foreign objects.
● Check – All guards protective cage, and covers must
be in place.
● Check – Retighten any loose nuts and screws to
ensure safe operation.
● Inspect and prepare the work site.
TOW VEHICLE AND TOW VEHICLE HITCH
REQUIREMENTS
Check the towing capacity of the tow vehicle. The tow
vehicle must have a towing capacity of 575 pounds
and must have adequate brakes to safely control the
weight of the Blower. Never overload or exceed the
capacity of the tow vehicle.
Tow vehicle must have an appropriate hitch to attach
the blower. A 5/8” inch hitch pin is required to safely
attach the blower. The tow vehicle must have a
minimum tongue weight capacity of 35 pounds The
maximum tongue weight capacity of the tow vehicle
should not be exceeded. Heavy duty components are
recommended for your tow vehicle.
The Blower Weighs 575 lbs (260.8 Kg) and
has a Tongue Weight of 35 lbs (15.8 Kg). The
Tow Vehicle Must Be Equipped With Adequate
Horsepower, Proper Hitch, Towing Capacity, and
Functional Brakes.
DO NOT Exceed the Hitch or Towing Capacity of
the Tow Vehicle.
Always use a proper tow vehicle to move the Blower,
even if moving only short distances. Using improper
towing methods may cause damage to the Blower. Safe
movement can only be done with proper equipment.
HITCHING TO TOW VEHICLE
The tongue of the blower should be at a slight downward
angle during operation. When the nozzle is pointed
straight down, it should still be above the ground by at
least 6-1/2” to 7-1/2” (165 mm to 190 mm). Adjust the
height of the hitch as needed.
TO AVOID DAMAGE TO THE BLOWER,
Never Start the Engine Without the Blower
Hitched To The Tow Vehicle. The Blower Must Be
Secured Before Starting The Engine.
The blower must be hitched to the tow vehicle before
starting the engine. The air ow from the nozzle is
strong enough to move the Blower.
Use the proper hitch pin. The tongue weight will change
if the nozzle is pointed straight up - this can cause
the hitch to disconnect if the hitch pin is not properly
secured.
TOWING AND OPERATING GROUND SPEED
TOWING GROUND SPEED - Maximum towing speed
when not operating is 20 MPH (32 Km\h). The tires
are not rated for highway use. Slow down towing
speeds when towing in rough areas.
OPERATING GROUND SPEED - During operation, the
ground speed should be approximately 5 MPH (8 Km/h).
TO AVOID SERIOUS INJURY,
Read and Understand the Entire
Manual For the Blower. Be Trained
and Familiar With the Operators
Controls.
Keep Hands and Feet Away From the Blower
Blade Assembly and Nozzle.
Follow All Safety Precautions And Wear The
Appropriate Safety Gear.
Be Aware Of Others In The Worksite.
Keep Observers and Bystanders Away From The
Blower During Operation. The Air Movement Can
Throw Objects.
WARNING
WARNING
WARNING
WARNING
To Avoid Serious Injury,
Keep Hands Clear When
Equipment Is Operating
DO NOT OPERATE WITHOUT
GUARDS IN PLACE
To Avoid Serious Injury,
Wear Eye and Ear
Protection During
Operation.
WARNING
To Avoid Serious Injury,
Stay Away From The Air
Discharge Area During
Operation. Do Not Point Air
Discharge Toward People,
Animals or Property.
THROWN OBJECT HAZARD!
WARNING
OP858650-07
WARNING
To Avoid Serious Injury,
Keep Hands Clear When
Equipment Is Operating
DO NOT OPERATE WITHOUT
GUARDS IN PLACE
To Avoid Serious Injury,
Wear Eye and Ear
Protection During
Operation.
WARNING
To Avoid Serious Injury,
Stay Away From The Air
Discharge Area During
Operation. Do Not Point Air
Discharge Toward People,
Animals or Property.
THROWN OBJECT HAZARD!
WARNING
OP858650-07

16 85650RevA
OPERATION
STARTING THE ENGINE
Start the engine with the keyed ignition switch (located
on the control tower). Use the choke and allow a
normal warm up period at lower RPM before using the
blower.
NOTE
When started in “Wireless” mode, the engine speed
will automatically go to idle after startup.
When started in optional “Auxiliary” mode, the engine
will go to the RPM setting on the Engine Speed
knob. Turn the knob down to slow before starting the
engine.
WARNING
MAXIMUM ANGLE OF OPERATION
Do not operate the Blower on steep slopes. Maximum
angle of operation is 15° degrees. Serious injury can
occur if operated on steep slopes or when operated in
an unsafe manner.
TO AVOID SERIOUS INJURY, Do Not Operate
Blower On Slopes Over 15° Degrees. Blower Can
Tip or Roll Over If Operated On Steep Slopes.
WIRELESS
AUXILIARY
CONTROL
RETURNS ENGINE
TO IDLE SPEED
ROTATES NOZZLE
CLOCKWISE
ROTATES NOZZLE
COUNTERCLOCKWISE
DECREASE
ENGINE SPEED
INCREASES
ENGINE SPEED
STOPS
ENGINE
AUXILIARY CONTROLS
ENGINE SPEED NOZZLE
ROTATION
SLOW FAST
WIRELESS
AUXILIARY
SWITCH
OPERATION
BETWEEN
WIRELESS
REMOTE
OR
AUXILIARY
PANEL
CONTROLS ENGINE SPEED
ROTATE
NOZZLE
CLOCKWISE
OR
COUNTER-
CLOCKWISE
WIRELESS REMOTE CONTROL
NOZL
CCW
NOZL
CW
IDLE
LOWRES
ENGINE
STOP
THRTL
INC
THRTL
DEC
RETURNS ENGINE
TO IDLE SPEED
ROTATES NOZZLE
CLOCKWISE
ROTATES NOZZLE
COUNTERCLOCKWISE
DECREASE
ENGINE SPEED
INCREASES
ENGINE SPEED
STOPS
ENGINE
WIRELESS REMOTE CONTROL
OP85650-01
OP85650-01
OP85650-01
USING OPTIONAL AUXILIARY CONTROL PANEL
● Set engine speed dial to SLOW before starting engine.
● Turn the key switch on the auxiliary control panel to “On”
Caution
Turn engine speed knob down before switching to auxiliary.
If engine is running, engine will go to speed setting set by the engine speed knob.
● Use nozzle rotation switch to position nozzle.
● Use the engine ignition switch to start motor. Set choke as needed.
● Use engine speed knob to set engine speed. Knob has 10 detents, choose the desired
engine speed. The last two detents on the dial may not result in a noticeable engine
RPM increase.
● To Stop the Engine - Ignition key must be used to stop the engine. Return engine speed
to idle before shutting engine off.
WARNING
To Avoid Serious Injury,
Keep Hands Clear When
Equipment Is Operating
DO NOT OPERATE WITHOUT
GUARDS IN PLACE
To Avoid Serious Injury,
Wear Eye and Ear
Protection During
Operation.
WARNING
To Avoid Serious Injury,
Stay Away From The Air
Discharge Area During
Operation. Do Not Point Air
Discharge Toward People,
Animals or Property.
THROWN OBJECT HAZARD!
WARNING
OP858650-07
WARNING
To Avoid Serious Injury,
Keep Hands Clear When
Equipment Is Operating
DO NOT OPERATE WITHOUT
GUARDS IN PLACE
To Avoid Serious Injury,
Wear Eye and Ear
Protection During
Operation.
WARNING
To Avoid Serious Injury,
Stay Away From The Air
Discharge Area During
Operation. Do Not Point Air
Discharge Toward People,
Animals or Property.
THROWN OBJECT HAZARD!
WARNING
OP858650-07

17
85650RevA
OPERATION
USING WIRELESS REMOTE CONTROL
NOTE: A “long push” of the remote buttons is needed to send a signal, expect a very
slight time delay. This is a safety feature to avoid accidental activation.
● Set the switch on the auxiliary control panel to “Wireless”.
● Use ignition switch to start motor. Engine will automatically go to idle after startup.
● Use nozzle rotation buttons or to rotate the nozzle clockwise or counter
clockwise.
● Use engine speed buttons or to change engine speeds. Engine speed will
ramp up (or down) in 5 different engine speed levels.
Push and release the button to step through the 5 different engine speeds
or
Push and hold the button until the engine reaches full speed.
● The button will return the engine to idle. Push button again when at idle and the
engine will return to the last used speed setting.
● The button will stop the engine.
“Sleep or Time Out” Remote Control and Engine Functions
Remote Control: If the blower is operating and the remote has not been used (a button has not been
pushed) for a time period of 120 minutes, the remote system will time out and go to “sleep”. The engine
will automatically reduce to idle. If this happens, the engine ignition key must be turned to OFF and engine
restarted. This will wake up the system and the remote will function as normal.
Remote Control Batteries: If the batteries in the remote are weak, the remote will do an “Auto-Shutdown”
and no longer function. New batteries are required to restore the remote operations.
Engine: If the engine is shut down using the remote and the engine ignition key is left in the ON position, the
engine control module will time out and go to “sleep” after 30 minutes. The wireless remote control will not
operate if the engine controller is in sleep mode. If this happens, the engine ignition key must be turned to
OFF and engine restarted. This will wake up the system and the remote will function as normal.
“Out of Range” and “Line of Sight” Function
If the remote is taken too far away from the blower or if its signal is obstructed or blocked, the blower will
continue operating in the last set state. A manual shutdown using the ignition key or the auxiliary control
panel will be needed to stop the blower. Normal operation will resume once the remote is back in range,
RETURNS ENGINE
TO IDLE SPEED
ROTATES NOZZLE
CLOCKWISE
ROTATES NOZZLE
COUNTERCLOCKWISE
DECREASE
ENGINE SPEED
INCREASES
ENGINE SPEED
STOPS
ENGINE
WIRELESS REMOTE CONTROL
OP85650-08

18 85650RevA
OPERATION
PROBLEM POSSIBLE CAUSE
Wireless
Remote Not
Operating
Check Wireless/Auxiliary Switch On Control
Tower. Switch Must Be In Wireless Position
Check Batteries In Remote. Push STOP
ENGINE Button and Observe Green Indicator
Light On Remote. Batteries OK if Green
Indicator Lights.
Check Power Indicator Light In Receiver
Window (Ignition Switch Must Be ON). If No
Light, Check 12 Volt Battery In Battery Box.
Check All Battery Cable Connections. Check
15 AMP fuse inside control tower.
Lost Communication Between Remote
and Receiver. See Service Section In This
Manual For Instructions On Restoring
Communications.
Wireless Remote System Has Gone To Sleep
Because Lack Of Use For More Than 120
Minutes With Ignition Switch ON. Turn Ignition
Switch Completely OFF and Restart Engine.
Engine Control Module Has Gone To Sleep
Because Lack Of Use More For Than 30
Minutes With Ignition Switch ON. Turn Ignition
Switch Completely OFF and Restart Engine.
Auxiliary
Control
Panel Not
Operating
Check Wireless/Auxiliary Switch On Control
Tower. Switch Must Be In Auxiliary Position
Engine
Speed
Returns To
Idle Without
Activation
From
Remote
Wireless Remote System Has Gone To Sleep
Because Lack Of Use For More Than 120
Minutes With Ignition Switch ON. Turn Ignition
Switch Completely OFF and Restart Engine.
Check Nozzle For Blockage. Engine Will
Automatically Return To Idle If Nozzle Is
Restricted.
Nozzle Pointed Down and Too Close To
Ground. Engine Will Automatically Return
To Idle If Nozzle Is Restricted. Check Hitch
Height, Nozzle Should Be 6-1/2 to 7-1/2
Above the Ground When Nozzle Is Pointed
Down.
Nozzle Not
Rotating
Check Operation Of the Remote or Auxiliary
Controls
Check Electrical Connections To Nozzle
Motor. Check 25 AMP fuse inside of control
tower.
Check For Foreign Object In Nozzle Rotating
Ring Restricting Movement.
Check Tightness (Or Over Tightness) Of
Nozzle V-Belt.
Troubleshooting Table
TO AVOID SERIOUS INJURY,
Do Not Attempt To Perform
Any Inspection, Adjustment,
or Service Procedure With Any
Part of the Blower Operating.
STOP THE ENGINE.
Work Safely and Wear the Appropriate Safety
Gear When Inspecting, Servicing or Making
Adjustments.
Follow All Safety Hazard Warnings and
Decals.
Before each use and during operation, stop and
check the blower. Stop the engine, set the tow
vehicle parking brake, and check the following
items. Refer any repairs to service personnel.
● Inspect for damaged, inoperable, or
missing components or missing guards.
Do not operate any machine with missing,
inoperable, damaged components or guards.
● The blower operates with vibration. Before
and after each use, check and retighten any
loose nuts and bolts.
● Inspect all controls for proper operation.
Do not operate any machine with missing,
inoperative or damaged controls.
● Check for debris building up inside of the safety
cage. Stop engine and clean as needed.
● Check for thatch or debris building up around
the engine, blower frame and components.
Do not high-pressure wash.
● Check for proper tire Pressure. Inate to
pressure shown on tire sidewall.
● Check for proper lubrication of the entire
machine. Maintain proper lubrication
intervals.
● Check battery, recharge if necessary.
Correct any problems to ensure safe operation.
WARNING
In Operation Checks and Inspection

19
85650RevA
OPERATION
Associating or Restoring Wireless Remote Control Communication
Check these items rst -
● Check the batteries in the remote by pushing the “ENGINE STOP” button. The small green indicator lights
on the remote should light. If not, remove the cover on the rear of the remote and check the batteries.
● If equipped, check that the key switch on the optional auxiliary control panel is in the “Wireless” position
(straight up and down).
● Check for electrical power at the receiver. Turn the engine ignition switch ON - DO NOT START ENGINE.
Observe green indicator light in the receiver window. If no lights are green and the bottom light “POWER”
is not green, there is no power to the receiver. Check the 12 volt battery in the battery box and the 15 AMP
fuse in the wiring harness (inside of the control tower).
● Check that the engine control module or the remote system has not timed out and is in a state of “Sleep”.
Turn the engine key to Off and then turn key to On and restart the engine, this will wake up the systems.
Use these steps to restore communication -
Step 1. Turn the engine ignition key to OFF.
Step 2. Push and hold both top two buttons (nozzle rotation buttons).
Step 3. Release both buttons when the yellow light on remote is blinking. Within 2 seconds, do the next step.
Step 4. Point the remote at receiver window on the control tower.
Push and hold the left “nozzle“ button.
Step 5. Turn on power engine key - DO NOT START ENGINE.
Step 6. Release the nozzle button when the lights on the receiver are blinking.
Step 7. Without the engine running, test the nozzle rotation function buttons. If the nozzle rotates, the remote
is in communication with the receiver.
Step 8. Secure the Blower and start the engine using the ignition key. Test the other functions.
Note: To break (disassociate) communication, use the same steps but push the right button during Step 4.
NOZL
CCW
NOZL
CW
IDLE
LOWRES
ENGINE
STOP
THRTL
INC
THRTL
DEC
In
Out
Health
Power
TX/RX
Health
TX/RX
WIRELESS REMOTE CONTROL RECEIVER BOX
RECEIVER
INDICATOR
LIGHTS
REMOTE
INDICATOR
LIGHTS
FIGURE 9
SV85650-02
WIRELESS REMOTE CONTROL RECEIVER BOX
FIGURE 9 SV85650-02
RECEIVER
INDICATOR
LIGHTS
REMOTE
INDICATOR
LIGHTS
Use the following steps to associate (restore) communication between the remote and the receiver. The receiver
is located inside of the control tower box. The receiver indicator lights are visible through the receiver window in
the control tower.

20 85650RevA
SERVICE
CLEANING
Clean out any debris that may have collected inside
of the safety cage. Wash the excess dust and debris
from the exterior surfaces of the blower. Use only low
pressure wash to clean the blower. Keep wash water
away from the electric control box and the remote
control.
The blower assembly can be washed with low pressure
water. Keep water stream away from the bearings on
the blower shaft.
DO NOT WASH THE BLOWER WITH THE
ENGINE RUNNING AND BLOWER ASSEMBLY
OPERATING. SERIOUS DAMAGE TO THE
BLOWER WILL RESULT.
During operation, periodically inspect for any buildup
of dirt on the blower vanes and ns. A buildup of dirt
will cause vibration or poor blowing results. After every
20 to 25 hours of operation, use a low pressure wash
to clean the blower vanes.
INSPECTION
After the blower has been cleaned, inspect for damage.
Refer any needed repair work to qualied service
personnel.
● Look for loose or missing hardware.
● Visually inspect the blower assembly for damaged
or missing vanes.
● Visually inspect for oil leaks on the engine and on the
nozzle motor. Wipe off any excess oil that will attract
dust, dirt, and debris.
● Check the condition of the battery and battery
cables.
● Check the engine air lter.
To order parts, or to arrange repair service, contact
the nearest authorized TURFCO dealer. For a list
of authorized TURFCO dealers in your area, or for
additional information regarding the Turfco Debris
Blower, direct inquiries to:
TURFCO Mfg. Inc.
1655 101st. Avenue North East
Minneapolis, MN. 55449-4420 USA
Telephone [phone] FAX [phone]
E-mail - [email protected]
Internet - www.turfco.com
To ensure safety and proper operation, always purchase
genuine TURFCO replacement parts from an authorized
TURFCO dealer. Replacement parts from other
sources may damage the Blower and/or create a safety
hazard. Always refer repairs to properly trained service
personnel.
DO NOT ALTER the Blower in any manner. Unauthorized
alterations may affect its operation, performance, and
may result in injury or death to the operator as well as
other individuals in the work area.
How To Obtain Parts and Service
TO STORE THE BLOWER OVER A EXTENDED
PERIOD, perform a complete inspection. Refer any
needed service or repair to service level personnel.
Clean and remove any remaining debris from the blower
safety cage. Use low pressure wash on the blower, DO
NOT use high pressure wash, high pressure wash can
force water onto the bearings and electrical controls.
Perform a complete lubrication procedure. Store
the Blower out of direct sunlight. Disconnect battery
cables.
TO RETURN TO SERVICE AFTER EXTENDED
STORAGE, inspect the entire machine for any damage
that may have occurred during storage. Inspect all
covers and guards. Visually inspect the inside of the
safety cage. Inspect the Inside of the nozzle, remove
any foreign objects and clean as needed. Refer any
needed service or repair to service level personnel.
Perform a complete lubrication of the engine and check
tire air pressure. Reconnect battery cables.
Storage
Cleaning and Inspection
WARNING
CAUTION
The Blower Operates In A Dusty
Environment, Clean or Replace the
Engine Air Cleaner Often.
