Tuvva KSD6270B User manual

TUVVA
CAR CD /DVD /MP3 PLAYER
/RADIO&RDS RECEIVER
/WITH Bluetooth
MODEL: KSD6270B
INSTALLATION CONNECTION MANUAL

INSTRUCTION MANUAL
1
Copyright Information
©2009 All rights reserved. This document may not in whole or in part be reproduced, stored in
a retrieval system, transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, or reduced to any electronic medium or machine-
readable form without prior consent, in writing, from [COMPANY].
[PRODUCT] and [BRAND] are registered trademarks of [COMPANY]. The logo‟s, standards,
software, and/or product names mentioned herein are manufacturer and publisher trademarks
and are used only for the purpose of identification.
Disclaimer
The publishers and author assume no responsibility whatsoever for the uses made of this
material or for decisions based on its use. Further, [COMPANY] makes no warranties, either
expressed or implied, regarding the contents of this product, its completeness, accuracy,
merchantability, or fitness for any particular purpose. Neither the publisher nor anyone else
who has been involved with the creating, production, or delivery of the material shall be liable
for any reason. [COMPANY] may make improvements and/or changes in the products and/or
options described in this document at any time and without notice.
All brand and product names used throughout this document are trademarks or registered
trademarks of their respective companies. The brand and product names are used in editorial
fashion only and for the benefit of such companies. No such use, or the use of any trade
name, is intended to convey endorsement or other affiliation with the document.
Product specifications are subject to change without prior notice
www.tuvva.com
WEEE (Waste Electrical and Electronic Equipment Directive)
If at any time in the future you should need to dispose of this product please
note that: Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
Disposing of the battery / batteries
Please check local regulations for disposal of batteries or call your local city office or your
household waste disposal service or the shop where you purchased the product.
The battery / batteries should never be placed in municipal waste. Use a battery disposal
facility in your neighborhood or community, if available.

INSTRUCTION MANUAL
2
WARNING!
To promote safety, certain functions are disabled unless the parking brake is on. The Unit is
designed to detect parked status and must be connected to the power supply side of the
parking brake switch. Improper connection or use of his connection may violate applicable law
and may result in serious injury or damage. To avoid the risk of damage and injury and the
potential violation of applicable laws, this unit is not for use with a video screen that is visible to
the driver.
To avoid the risk of accident and the potential violation of applicable laws, the front Video
image feature should never be used while the vehicle is being driven. Also, other video
displays should not be in a location where it is a visible distraction to the driver. In some
countries or states the viewing of images on a display inside a vehicle even by persons
other than the driver may be illegal. Where such regulations apply, they must be obeyed
and this unit‟s DVD features should not be used.
Please remember to wear your seat belt at all times while operating your vehicle. If you are
ever in an accident, your injuries can be considerably more severe if your seat belt is not
properly buckled.
The supplier waves any and all liability when these warnings are not followed.
OPERATION PRECAUTIONS
Only connect to a 12Vdc battery and negative grounding.
Avoid placing the product in direct sunlight, in areas with high levels of dust, high
temperatures (over 40°C) or high humidity (over 90%). In case of high temperatures, cool
down the car interior by means of ventilation or air-conditioning.
Operate in well ventilated areas.
Do not turn on or off the product in short intervals. When turning the unit off, wait for at least
10 seconds prior to turning the unit on again. Do not operate the player with scratched,
bended or broken discs and when a disc is not loaded properly, do not force it into the
player.
Do not watch video playback while driving which will cause serious danger and risks of
traffic accident. It may violate the laws and regulations.
(There may be exceptional case, i.e., using rear view camera and navigation system)
Do not install the unit where the operation for safety driving is restrained.
Do not disassembly the unit by yourself, if need repairing, please take the unit to the after
service center.
Do not open and close the monitor manually, it may damage the monitor tilt system.
Do not touch the LCD screen by hard objects, it may damage or give scratch to the LCD
screen.
If the back of monitor touches dashboard or air-conditioner inlet etc after open the monitor ,
then setup TILT level in monitor TILT menu to prevent damage from repeat touching.
Car parking under direct sunlight may increase the temperature inside the car and the unit
may not be in proper operation, please try it again after the temperature returns to normal.
Do not replace the fuse on the power cable without professional guidance, using improper
fuse may cause damage to the unit or even cause burn the unit.
Do not use irregular shaped Disk.
IR remote control operation may be hindered by monitor when the monitor is opened, thus
please use the remote control at the similar level of remote control receiver.
Do not install the unit where the cooling fan is blocked.

INSTRUCTION MANUAL
3
CONTENTS
WARNING! .................................................................................................................................2
OPERATION PRECAUTIONS....................................................................................................2
CONTENTS................................................................................................................................3
ACCESSORIES.......................................................................................................................... 4
INSTALLATION..........................................................................................................................5
WIRING CONNECTIONS...........................................................................................................6
FRONT PANEL...........................................................................................................................8
REMOTE CONTROL................................................................................................................ 10
REMOVE BATTERY................................................................................................................. 13
MAIN MENU............................................................................................................................. 13
◆RADIO PLAYER...................................................................................................................14
◆DVD PLAYER ......................................................................................................................15
◆DISC/USB/SD/MMC INTERFACE ........................................................................................16
◆AV-IN MODE......................................................................................................................... 16
◆SETTING CONTROL............................................................................................................17
SOUND CONTROL............................................................................................................... 17
DISPLAY CONTROL.............................................................................................................17
GENERAL CONTROL........................................................................................................... 18
RADIO CONTROL ................................................................................................................ 18
DVD SETUP MENU..............................................................................................................19
SYSTEM INFORMATION .....................................................................................................20
SWC...................................................................................................................................... 20
CALIBRATION......................................................................................................................20
OTHER FUNCTIONS ............................................................................................................... 21
Subwoofer............................................................................................................................. 21
Parking..................................................................................................................................21
Back View Camera................................................................................................................21
BLUETOOTH SECTION........................................................................................................... 22
NOTES ON DISC ..................................................................................................................... 24
TROUBLESHOOTING.............................................................................................................. 25
TROUBLESHOOTING.............................................................................................................. 26
TECHNICAL SPECIFICATIONS............................................................................................... 27

INSTRUCTION MANUAL
4
Accessories
Package contains the following accessories for installation and operation of the unit.
(1) Washer,
Spring
Washer,
M5 Nut
1
each
(5) Rubber
cushion
1
(2) Mounting
Strap
1
(6) Screw
4
(3) Bolt
1
(7) key
2
(4) Screw
1
(8) sleeve
1
Note:
Product image may vary from the actual delivery.
AV-IN Cable (optional)
User Manual
Remote Control
RCA Cable
Trim ring
ISO Cable
External Microphone Cable

5
INSTALLATION
Note
Before starting installation of the unit, make sure the wiring is connected properly.
Use only the parts provided with the unit to ensure proper installation.
The use of unauthorized parts may cause malfunction.
Install the unit where it does not get in the driver‟s way and will not injure the passenger in case
there is a sudden stop, like an emergency stop.
INSTALLATION （Figure 1）
Insert the unit into dash-board hole and fix it
If necessary, place the mount strap at the rear of the unit and fix it with provided washer as
figure 2.
Place Trim Ring over the unit and installation is completed as figure 1.
UN-INSTALLATION
Insert the supplied extraction keys into the unit and pull the unit out with keeping the extraction
keys. (as Figure. 4)

6

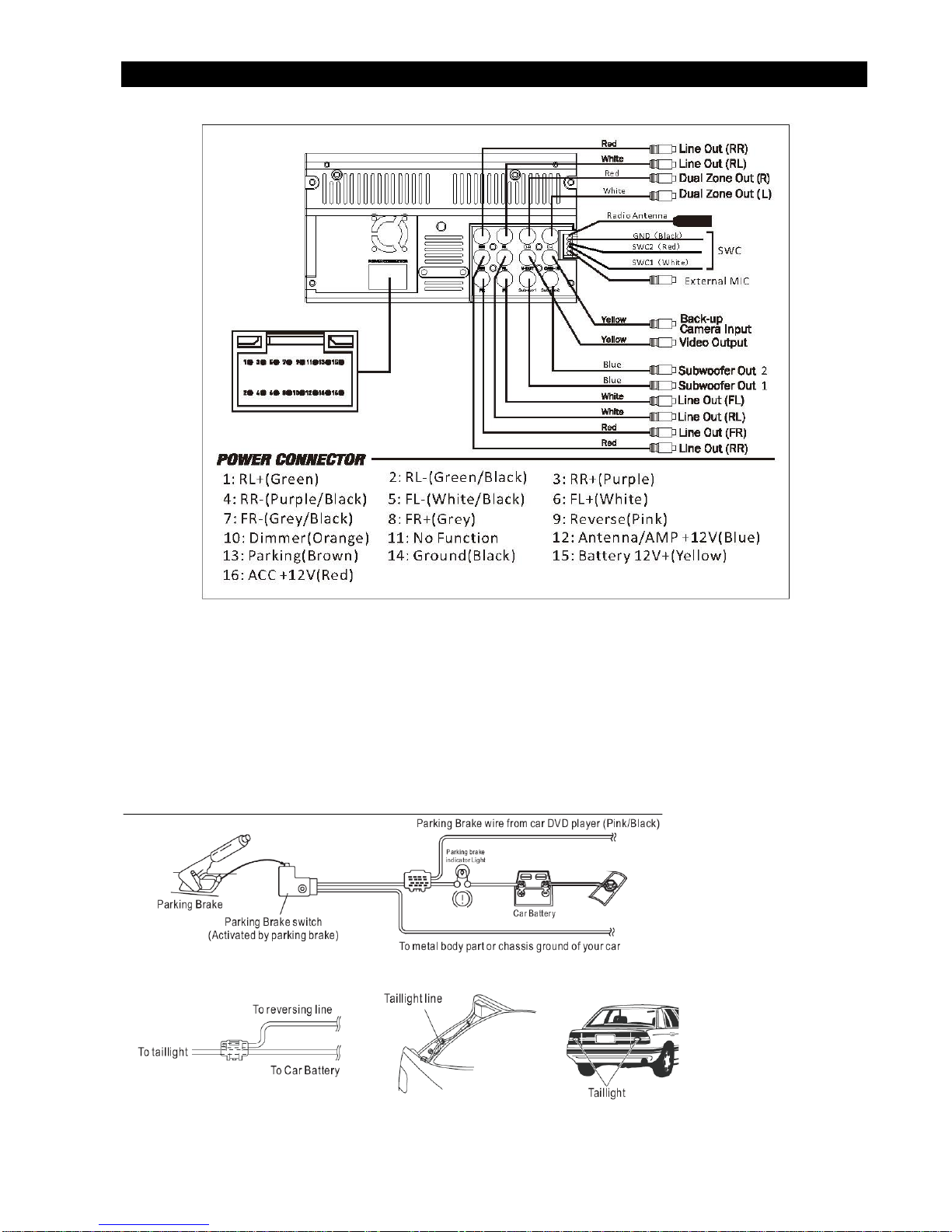

WIRING CONNECTIONS
NOTE: Never connect cable to the system while it is connected to the battery power. Whenever
the unit is disconnected from the battery, the preset memory will be erased and the unit will go
back to its factory defaults.
Note: To watch video the parking wire should be connected to break signal. 2 cables is
connected to a Hands-Free device (not included).
Parking wire
Note: The parking wire is connected with brake signal; for safety, the programs can be seen on
the monitor after braking the car.
Connecting the reversing line to taillight on the car
After connecting, when you start up the reverse gear, the unit will receive the picture from car
rear view camera.

7
Note:
- Only use groundless loudspeakers.
- Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging
your loudspeakers at higher volumes.
- Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may
damage the unit.
- Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car
body (GND). The unit is using a BTL circuit and each loudspeaker must be connected
with insulated cables according the diagram.
- Loudspeaker cables and/or optional external power amplifiers must always be about
30cm away from the antenna and/or antenna extension parts.
Connect the speakers according the following diagram, incorrect connections will damage the
unit or your loudspeakers
Correct connection
Left front - Right front | Left rear - Right rear
Incorrect connections

8

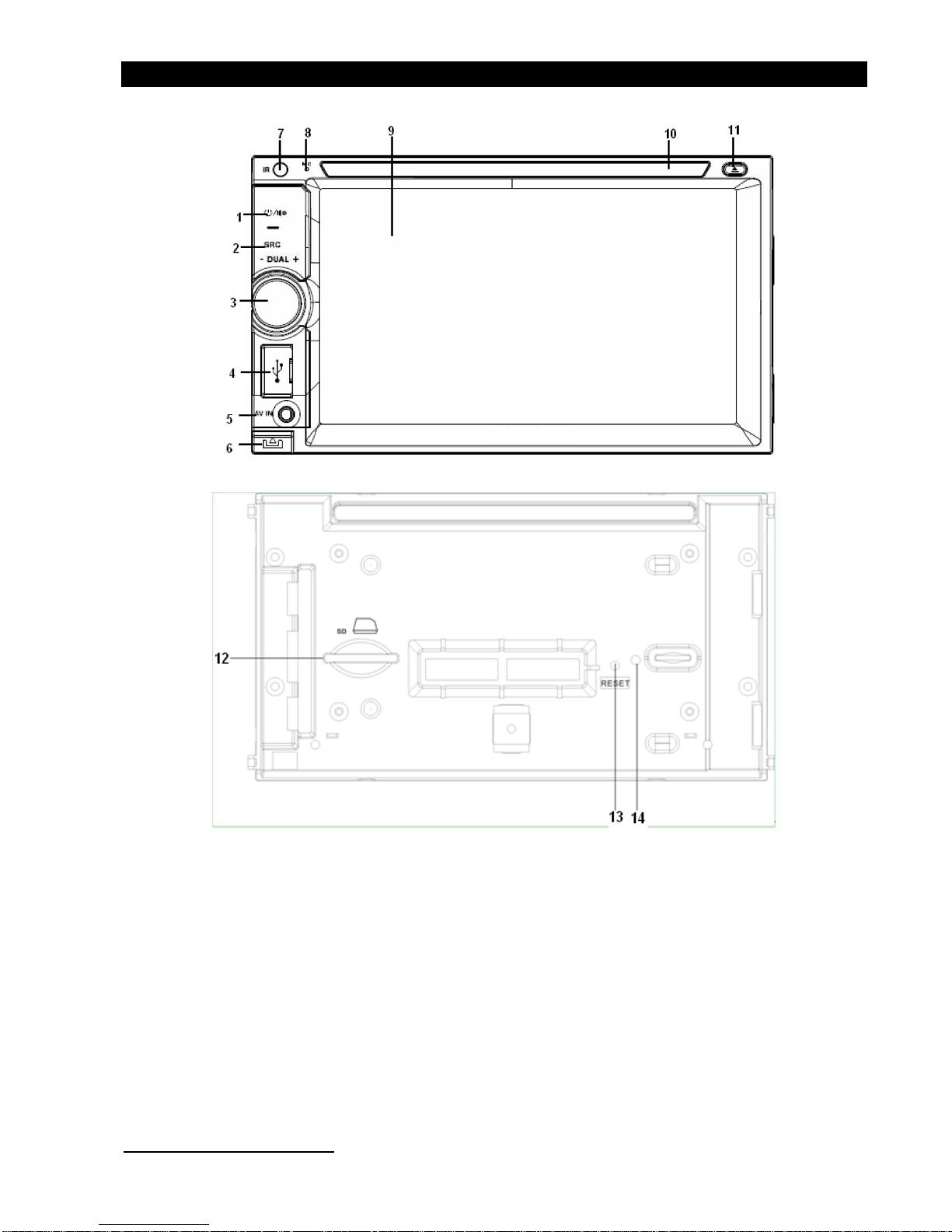

Front panel
1. POWER/MUTE Button
Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button
briefly to Mute .Please note that the volume will be muted on all audio output connector.
(* Press any button to turn on the unit except EJECT button on front panel or remote control)
2. SRC Button
Press to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device
in the unit), SD (if there is a SD/MMC card in the unit), Bluetooth and AV IN.
3. VOL Knob Button
Clockwise rotate VOL knob to increase the volume and counterclockwise rotate the VOL knob
to decrease the volume.
DUAL KEY setting: Press briefly it to switch C-DUAL and DUAL OFF.
During C-DUAL mode, long press it switch C-DUAL and D-DUAL. Again press it briefly it to
close Dual operation.
Activating Dual Zone Mode

9
Access GENERAL setup in the SETTINGS menu and press the icon for DUAL mode
and select ON.
Insert a DVD or begin playing a movie from SD card or USB.
Controlling the Front Zone (C-DUAL)
Press the front panel Volume knob until C-DUAL appears on the screen.
Press the ARROW icon in the top right corner of the screen to return to the main menu.
Select the mode you wish to use in the front zone.
The units screen will change to the selected mode. The DVD or SD/USB movie will
continue to play only on the AV outputs, while the selected mode audio is played through
the front and rear LINE outputs. All front panel and remote controls will affect only the
selected mode activated for the front zone.
Controlling the Rear Zone (D-DUAL)
During C-DUAL mode, press and hold the front panel Volume knob until D-DUAL
appears on the screen.
All front panel and remote control functions for DVD, USB, or SD, including volume, will
control only the media playing for the rear zone.
4. USB slot
USB slot, for Multimedia playback files only. Insert a USB into this slot and the unit will
automatically start reading and playback the card. * Supported Music File Format: MP3, WMA
Files
5. AV-in Jack
Put the AV plug into the AV-IN jack which was marked on front panel.
6. OPEN Button
Press it to release the front panel.
7. IR Sensor
IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.
8. MIC
9. Info Display
Information Display LCD when operation the unit.
10. DISC slot
11. EJECT Button
Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is
reinserted automatically.
12. SD/MMC CARD slot
SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and
the unit will automatically start reading and playback the card. * Supported Music File Format:
MP3, WMA Files
13. RESET Button
Press it with a thin, sharp object. The device will then be reset to factory default settings.
14. ANTI-THIEF LED

10
REMOTE CONTROL
1. MODE button
Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB
device in the unit), SD (if there is a SD/MMC card in the unit), Bluetooth and AV IN.
2. POWER
Power on or off.
3. BAND/ RDM/C
In Radio mode, press to change radio band in sequence of FM1 → FM2 → FM3 → MW1 →
MW2; In DVD mode, press to play randomly; In Bluetooth mode, short press it to clear the
single phone number; long press it to clear all the phone number.
4. ENTER button
Press it to confirm selection or setting.
5: Cursor / / / buttons
Use the / / / buttons to select the menu item: the title, track or to show next frame.
6. EJECT button
Press it to eject the disc.
7. PTY/*
Press to select PTY type and input a digital key on the RC to confirm search. (only for FM band)
In BLUETOOTH mode, press it to make a * symbol.
8. P.SCN/ RPT /#
In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL
In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off.
1: MODE
2: POWER
3: BAND/RANDOM/CLEAR
4: ENTER
5: UP/DOWN/LEFT/RIGHT
6: EJECT
7: PTY/*
8:P.SCN/RPT/#
9: BACKWARD/SEEK-
FAST BACKWARD
10: AF/TA
11:OSD
12:PBC/STOP
13:DIGIT NUMBERS
14:PLAY/PAUSE
15:MUTE/BLUETOOTH
16:MENU
17:SUBTITLE
18:SETUP
19:ANGLE/ACCEPT
20: INT/REJECT
21: VOLUME PLUS
22: A-B/ZOOM
23: SEL
24: FORWARD/SEEK+
FAST FORWARD
25: VOLUME MINUS
26: AUDIO/GOTO
27: DUAL

11
In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current
band and stay on each memory stations for about 5 seconds.
AS (Auto Save): Long press to save the stations with good reception automatically.
In BLUETOOTH mode, press it to make a # symbol.
9. / SEEK- button
In DVD mode, Press button to skip to the previous track. Press and hold button for two
seconds to activate fast reverse (REW) search in a track.
In RADIO mode, press button to start searching automatic, press and hold for two seconds to
start manual searching. button Frequency down.
10. AF/TA
Press to set TA on or off; press and hold AF/TA button for two seconds to set AF on or off.
（only for FM band）
11. OSD button
In DVD mode press to show disc playing information; press and hold for 2 seconds to set video
setup. (RED / GREEN/BLUE / COLOR RESET / BRIGHT / CONTRAST / SHARP / BACK)
12. STOP/PBC button
Press to stop playback from the current position, press again to final stop to the very beginning.
Press PLAY/PAUSE button to play.
Press and hold for two seconds to set PBC on/ off in VCD mode.
13. Digit 0-9 buttons
In radio mode, select 1-6 the desired band; In DVD mode, select track.
In BLUETOOTH mode, press to input phone number，long press 0 number to make a +
symbol.
14. PLAY/PAUSE button
In DVD mode, press it to break playback, press again to resume playback.
15. Mute button/Bluetooth button
: Short press to mute the volume output, press again to resume volume.
Long press this button to enter into Bluetooth mode.
16. MENU button
Press it to show main menu, in DVD mode, long press it to enter TITLE MENU (Enable only if
the DVD disc with title menu).
17. SUBTITLE button
Press it to select the subtitle language (Available only if the disc with subtitle function).
18. SETUP button
In DVD mode press it to enter the setup menu, press again to resume playback.
19. ANGLE Button/Accept Button
In DVD mode, press it repeatedly to change the viewing angle (Available only with a recorded
DVD file or DVD disc that has this function).
In BLUETOOTH mode, press to make a call after inputted a phone number or accept an
incoming call.
20. INT Button /Reject Button
Press it to activate the intro function. You can play the beginning of every track for 10 seconds
in sequence.
In BLUETOOTH mode, press to reject a coming call or hang up while calling
21. VOL+ button
Press to increase volume level.
22. A-B/ZOOM button
During playback, press it at the starting point of section you want to repeat (A), press this
button again at the ending point of the section you want to repeat (B), section A-B repeating
starts. Press it again to cancel the A-B repeat function.
Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of
ZOOM 2-> ZOOM 3-> ZOOM 4-> ZOOM 1/2-> ZOOM 1/3-> ZOOM 1/4-> ZOOM off.

12
23. SEL button
Press it to enter the SOUND SETTING menu, and press Cursor UP/DN buttons to choose an
item and press cursor left/right buttons to set the item. Press SEL button again to exit the menu.
24. / SEEK + buttons
In DVD mode, Press button to skip to the next track. Press and hold button for two
seconds to activate fast forward (FF) search in a track.
In RADIO mode, press button to start searching automatic, press and hold for two seconds to
start manual searching. button Frequency up.
25. VOL- button
Press to decrease volume level.
26. AUDIO/GOTO button
In DVD mode press it to select the audio language.
In VCD mode, press it to select the sound track in the sequence of MONO L =>MONO R
=>STEREO.
Go to: in DVD mode，press and hold for 2 seconds to show TIME SEARCH menu, select
number and confirm to go to certain position directly. When press button to enter
TITLE/CHAPTER selection mode, select number and confirm to go to certain TITLE or
CHAPTER position directly.
27. DUAL button
DUAL KEY setting: Press briefly it to switch C-DUAL and DUAL OFF.
During C-DUAL mode, long press it switch C-DUAL and D-DUAL. Again press it briefly it to
close Dual operation.
Activating Dual Zone Mode
Access GENERAL setup in the SETTINGS menu and press the icon for DUAL mode
and select ON.
Insert a DVD or begin playing a movie from SD card or USB.
Controlling the Front Zone (C-DUAL)
Press the front panel Volume knob until C-DUAL appears on the screen.
Press the ARROW icon in the top right corner of the screen to return to the main menu.
Select the mode you wish to use in the front zone.
The units screen will change to the selected mode. The DVD or SD/USB movie will
continue to play only on the AV outputs, while the selected mode audio is played through
the front and rear LINE outputs. All front panel and remote controls will affect only the
selected mode activated for the front zone.
Controlling the Rear Zone (D-DUAL)
During C-DUAL mode, press and hold the front panel Volume knob until D-DUAL
appears on the screen.
All front panel and remote control functions for DVD, USB, or SD, including volume, will control
only the media playing for the rear zone.

13
REMOVE BATTERY
Note:
The distance may vary according to
the brightness of ambient light.
If the remote is not used for an
extended period of time, remove the
battery to prevent possible damage
from battery leakage and corrosion.
Do not place any objects between
the remote control unit and the
sensor on the unit.
Do not drop the remote control onto the floor; it will damage it beyond repair.
Do not use the remote control unit, while simultaneously operating the remote control unit
of any other equipment; they may interfere resulting in improper operation.
The battery normally last for about one year although depending how often the remote
control is used. If the remote control unit isn‟t working even when it is operated near the unit,
replace the battery with a new battery of the same make and use only a lithium cell battery
type: CR2025 (3V).
Dispose empty batteries in accordance with your local governmental regulations.
Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.
Keep the battery out of reach of children, should the battery be swallowed, immediately
consult a doctor.
MAIN MENU
The best way to discover the program is to explore each screen in detail, and to find out how to
move from one to another. Read this chapter for a guided tour.
Unit starts by displaying the Main menu.
This is the root of the screen hierarchy, and you can simply access all features by tapping on
the touch screen buttons.
Tap the icons to enter a desired mode.

14
◆ RADIO PLAYER
To start Radio, tap RADIO button on main menu screen.
Mute the sound.
Touch this button can choose FM1, FM2, FM3, MW1, MW2.
Touch this button can scan the stations from 1-6, Long Touch it to save the stations with
good reception automatically and scan each station for about 5 seconds
Touch this button to search stations
Touch this button to open manual select station backward
Touch this button to open manual select station forward
Touch this button to search stations
Touch this button to select stereo or mono sound reception..
Touch this button to select reception of local station or DX for distance station.
Touch this button to switch an alternative frequency on or off.
: Touch this button to switch radio traffic service on or off.
: Touch this button to select program type.

15
◆ DVD PLAYER
To start DVD Player, tap on DVD button from main menu screen.
TOUCH SCREEN MENU
You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT
screen. Tap the screen again to hide the buttons.
Insert DVD disc
NOTE
1. DVD Player will automatically start playing when you insert any DVD disc.
2. Warning displays if the vehicle is moving for driver's safety.
3. DVD Player will not only play video, but also picture and music files as well.
PLAY/PAUSE button: In DVD mode, press it to pause, press again to start.
STOP button: press it to stop playback.
Press this button to fast reverse (REW) search in a track, FR×2×4×8×20-play will be
display.
Press this button to fast forward (FF) search in a track. FF×2×4×8×20-play will be display.
In DVD mode, touch it choose Repeat chapter =>repeat title => repeat ALL=>repeat off.
In VCD mode, touch it can choose REP 1 => REP DIR => REP ALL
Touch it to select the subtitle language (Available only if the disc with subtitle function)
in DVD mode touch it to select the audio language (Available only if the disc with subtitle
function)；In VCD mode touch it can choose MONO L---MONO R---STEREO.
In VCD mode touch it can choose PBC ON or OFF.
In DVD mode touch it to enter TITLE MENU (Enable only if the DVD disc with title menu).
/ Touch it to select previous or next track.

16
◆ DISC/USB/SD/MMC INTERFACE
When a file disc, USB or a memory card is played, the screen will show following interface:
Mute the sound.
Stop button. Press it to Stop playback
from the current position; press Play/pause
button to resume playback.
Play/pause button. Press it to break the
track, press again to resume playback.
Press it button to start fast rewind
playback. FR×2×4×8×20-play will be display.
Press it button to start fast forward
playback. FF×2×4×8×20-play will be display.
Press it to skip to the previous track.
Press it to skip to the next track.
Press it to enter previous page.
Press it to enter next page.
Press it to activate the intro function. You
can play the beginning of every track for 10
seconds in sequence.
Press it to repeat REP 1 => REP DIR =>
REP ALL.
Press it to play track randomly.
Press it to open folder and select
desired folder by touch.
◆ AV-IN MODE
To start AV-IN Mode, tap AV-IN icon from main menu screen. Connect the external
audio/video signal source to this unit. Select AV-IN mode
in the main menu or by pressing repeatedly Mode button
on the front pane
Note: If there is no external video input, the TFT displays
“NO SIGNAL”.
Press the icon to be back to main menu.

17
◆ SETTING CONTROL
Your device has default system settings. You can customize the settings to suit your
personal needs. Once you change settings, your new settings will remain until you change it
again. To start SETTING, tap it on main menu.
SOUND CONTROL
Tap SOUND button to show SOUND1 menu.
Tap button to show SOUND 2 menu.
DISPLAY CONTROL
Tap DISPLAY button from setting menu screen.
EQUALIZER
Select EQ mode
BASS
Bass up/down
TREBLE
Treble up/down
BALANCE
Left/Right Balance Control
FADER
Front/Back Fader Control
BEEP
Keypad sound setting on or
off
LOUDNESS
Set LOUD ON/OFF
SUBWOOFER
Set SUBWOOFER ON or
OFF
SCREEN
Screen setting 16:9, 4:3,FULL
BACKLIGHT
Backlight setting LOW, MID, HIGH
BACKLIGHT
TIME
Backlight time setting ON,OFF
AFTER 10S,OFF AFTER 20S,OFF
AFTER 30S

18
GENERAL CONTROL
Tap GENERAL Button to show GENERAL1 menu
Tap button to show GENERAL 2 menu
RADIO CONTROL
Tap RADIO button to show RADIO 1 menu; Tap button to show RADIO 2 menu
Area: Select Europe, USA, South America or Russia.
Stereo: Select ON (stereo reception mode) or OFF (mono reception). When the received
stereo signal is weak, switch to mono mode to improve the signal. The function is available only
in FM bands.
Local: Select ON (only local station reception) or OFF (local and distant station reception).
TA volume: Adjust level of TA volume.
Retune: Long/Short. RETUNE refers to the time period the unit allows for radio scan when
reception is interrupted. “Short” represents a time period of 30 seconds and “Long” represents
a time period of 90 seconds.
PI: Mute/Sound. PI sound refers to the reception noise when the AF function tries to scan
alternative frequency.
REGION: REG ON (the receiver accepts regional variants of the tuned station with REG icon
turned on), and REG OFF (the receiver ignores regional variants).
OSD
LANGUAGE
SET OSD LANGUAGE
ENGLISH OR
CHINESE(TRADTIONAL)
DUAL
Set DUAL ON or OFF
KEY
Key control CURRENT or DVD
DUAL VOL
Adjust the DUAL volume
CLOCK
DISPLAY
Set CLOCK display time
ON or OFF
CLOCK
HOUR
Set 24Hour format or
12Hour format
CLOCK
SETTING
Adjust clock display
AUTO
CONNECT
Automatic Bluetooth connection to
a previously connected mobile
telephone.

19
Mask: DPI/ALL. During MASK DPI mode, the unit will mask only the AF which has different PI,
this is the default mode; during MASK ALL mode, the unit will mask the AF which has different
PI and no RDS signal with high field strength.
EON TA: DX/Local. If you want to receive information from local stations only, select EON TA
Local mode. Otherwise, select EON TA DX mode.
TA: Seek/Alarm. In TA SEEK mode, the unit will seek for traffic announcement program when
TA is pressed; in TA ALARM mode, no TA/TP is displayed and the alarm is set off.
DVD SETUP MENU
During the DVD playback, press the SETUP button to enter into the system settings main menu;
press the up or down arrow buttons to move to the highlighted menu item and select one of the
Setup Pages:
[1].Subtitle Lang setting:
With this option you can select the preferred language for the subtitles. When the selected
language is recorded on the disc then this language will automatically be shown. If not, the first
language recorded on the disc is displayed.
[2].Audio Lang setting:
With this option you can select the preferred language for the audio output. When the selected
language is recorded on the disc (not all discs have multiple languages recorded) then this
language will automatically be played. If not, the first language recorded on the disc is played.
[3]. DVD Menu Lang setting:
With this option you can select the preferred language for the disc menu. When the selected
language is recorded on the disc then this language will automatically be selected. If not, the
first language recorded on the disc is displayed.
[4] Password:
The password for this unit is initially set to factory default 0000. If you want to change your
password, you need to enter the old password first and confirm it, and enter a new password
and confirm. WARNING: if you forget your password, there is no possibility to reset the
password again. Do not forget your password and write it down or store the password in a safe
place.
[5] Rating / PARENTAL SETUP.
The Rating control level is for parents to control playing content and protect your children form
violence and erotic. The disc, the level of which is higher than the setting level can not be
played.
Code
Description
1.NONE
Kid safe
2.G
General Audiences –ALL ages admitted
3.PG
PARENTAL GUIDANCE SUGGESTED-Some material may not be suitable fo
r children
