TV Logic TVC-FA301N User manual

TVC-FA301N
Full HD Motion Video
Camera
User Manual
Ver 3.06

Contents
Caution···················································································································································· 4
Introduction··········································································································································· 6
Features···································································································································································································6
Products & Accessories ···································································································································································8
Ceiling Type Bracket(ZCB-100) Installation·····························································································································9
Wall Mount Bracket(ZWB-100)Installation ···························································································································10
Installation ···········································································································································11
① Camera ADDRESS [ID] Setup···············································································································································11
② Communication PROTOCOL Setup····································································································································12
③ OutputVideo Format SYSTEM SELECT Setup ···············································································································12
④ COMMUNICATION Setup······················································································································································13
⑤ Connection ···················································································································································································14
⑥ Installation Check List······························································································································································16
⑦ Power·······························································································································································································16
Main Features······································································································································17
Screen Menu······················································································································································································17
PRESET ··································································································································································································18
SWING···································································································································································································19
PATTERN·······························································································································································································19
GROUP··································································································································································································20
Other Functions················································································································································································21
Menu Function ····································································································································22
OSD(On Screen Display)·······························································································································································22
Main Menu ·························································································································································································23
➊Focus/Zoom ············································································································································································23
➋White balance·········································································································································································24
➌Auto Exposure········································································································································································24
➍Picture ························································································································································································25
➎Image ·························································································································································································26

otion Video Camera3
➏Motion/Action Setup ··························································································································································27
Motion······················································································································································································27
Home Position Setup·························································································································································28
North Direction Setup·······················································································································································28
Preset Setting ········································································································································································29
Edit Scene-Preset Setup ···················································································································································29
Edit Label-Preset Setup ····················································································································································30
Swing Setup ···········································································································································································30
Pattern Setup·········································································································································································31
Group Setup···········································································································································································31
Edit Group-Group Setup ··················································································································································32
Parking Action Setup ·························································································································································33
➐Display Setup··········································································································································································33
Area Label Setup ·································································································································································34
Edit Scene ···············································································································································································35
Edit Label·················································································································································································36
Area Label Setup ·································································································································································36
➑System Info.·············································································································································································37
Additional Info.·····································································································································································38
System Initialize····································································································································································38
IR IR remote·········································································································································39
Controller ·············································································································································42
Problem Solving··································································································································44
Menu Structure ···································································································································45
Default Value ·······································································································································48
Specifications·······································································································································50
Dimension ···························································································································································································52
Glossary ················································································································································54
Index······················································································································································56

Caution
Caution
Don’t open. There may be electric
shock.
<Cautio
n>
To avoid the risk of electric shock, do not arbitrarily open the cover or disassemble the
product. There are no user serviceable replacement parts.
Get service from qualified service personnel.
This lightning flash with arrowhead symbol is intended to alert the user to the presence
of un-insulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to person.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance(servicing) instructions in the literature
accompanying the appliance.
<Caution
>
To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.

otion Video Camera5
Important Important Safeguard
Read all of the safety and operating instructions before using the product.
Save these instructions for future reference.
Do not use attachments or accessories unless recommended by the appliance manufacturer
as they may cause hazards, damage product and void warranty.
Do not use this product near water or moisture.
Do not place or mount this product in or on an unstable or improperly supported location.
Improperlyinstalledproductmayfall,causingseriousinjurytoachildoradult,anddamagetotheprod
uct.Useonlywithamountingdevicerecommendedbythemanufacturer,orsoldwiththeproduct.Toi
nsurepropermounting,followthemanufacturer'sinstructionsanduseonlymountingaccessoriesre
commendedbymanufacturer.
This product should be operated only from the type of power source indicated on the
marking label.
Precautions
Before using, make sure power supply and others are properly connected.
While operating, if any abnormal condition or malfunction is observed, stop using the
camera immediately and then contact your local dealer.
Do not disassemble or tamper with parts inside the camera.
Do not drop or subject the camera to shock and vibration as this can damage camera.
Care must be taken when you clean the clear dome cover. Especially, scratch and dust will
ruin your quality of camera.
Do not install the camera in areas of extreme temperature, which exceed the allowable
range.
Avoid installing in humid or dusty places.
Never expose the camera to rain and water.
Avoid installation in a place with radioactivity. It may cause a malfunction of the part.
Avoid installation in locations with strong magnetic fields or electrical signals.
Avoid installing in places where the camera would be subject to strong vibrations.

Simultaneous Output Video Interface
Laser Beam Caution
Laser beam can damage CMOS. When shooting a scene where laser beam is involved, do not
let the beam contacts the CMOS directly.
Introduction
Features
1/2.8 inch, 2.14 mega pixels “Exmor” CMOS Sensor installed
Including digital x12 zoom, enables you to reach up to x360(TVC-FA301N)
Various format of HD video output is available, and if you select CVBS. down-graded (squeezed)
video source will be sent out.
※ For the stable use of CVBS, we recommend using P series of output format.
1080p
60/59.94/50/30/25
1080i
60/59.94/50
720p
60/59.94/50/30/25
Various output is available such as 3G-SDI, HDMI, DVI-I, CVBS, and for multi-monitoring,
simultaneous output is supported.
Optical x20/30 ZOOM Lens
Full HD Output Format

otion Video Camera7
Various Protocol & Communication
IR CUT-Filter
Smart Flip Function
Massive Presets & Auto Pan/ Tilt Setup Function
OSD(On Screen Display) Menu Support
VISCA
RS232,RS422
PELCO D/P
RS485
In order to improve the sensitivity by keeping the light absorption time longer at low light level such
as at night, Slow shutter function and Day & Night switching function are provided so that users can
select color change according to illumination.
This function extend the shooting range by setting the camera to flip the image automatically
when it tilts over 90°.
→ When Smart Flip function is enabled, F letter will be shown in the display.
Max 225 assignable presets are supported to save various settings. Also, the CCTV functions like
Swing, Pattern, and Group functions are available for novice users to make stable pan / tilt
operation through preset values.
Enables you to edit detailed settings using the OSD menu.
※ Refer to Page 45 “Menu Structure” to check the menu tree.

Products&Accessories
Basic Components
Camera
IR remote (with battery)
Camera Bracket Bolt
OR
Manual
AC Adapter
9P Connector
232C to UTP Cable
Camera Body Bracket
Ceiling Bracket
Ceiling -Bracket Screw
Plastic Anchor
Cam body/ Ceiling Bracket
Screw

otion Video Camera9
Ceiling Type Bracket(ZCB-100) Installation
Procedure
1) Use the ceiling bracket and the screws(4EA) to fix it
on the ceiling where you wish to install the camera.
2) Use the screws(4EA) to fix it the camera body to the
camera body bracket.
3) Put the camera body bracket to the ceiling bracket
using the cam body/ceiling bracket screws.(4EA)
4) To secure the camera, assemble provided screws on
all four sides.

Wall Mount Bracket (ZWB-100) Installation
ZWB-100 Components(Optional)
Wall mount bracket
Installation Instruction
1) Use the bracket and the screws(4EA) to fix it on the
wall where you wish to install the camera.
2) Fix the bracket to the camera body using the camera
body bracket and screws (4EA).
3) Put the camera body bracket to the wall bracket
using the cam body/ceiling bracket screws. (4EA)
4) To secure the camera, assemble provided screws on
all four sides.
Wall mounting screws
Plastic Anchor
Cam body/ Ceiling Bracket Screw

otion Video Camera11
Installation

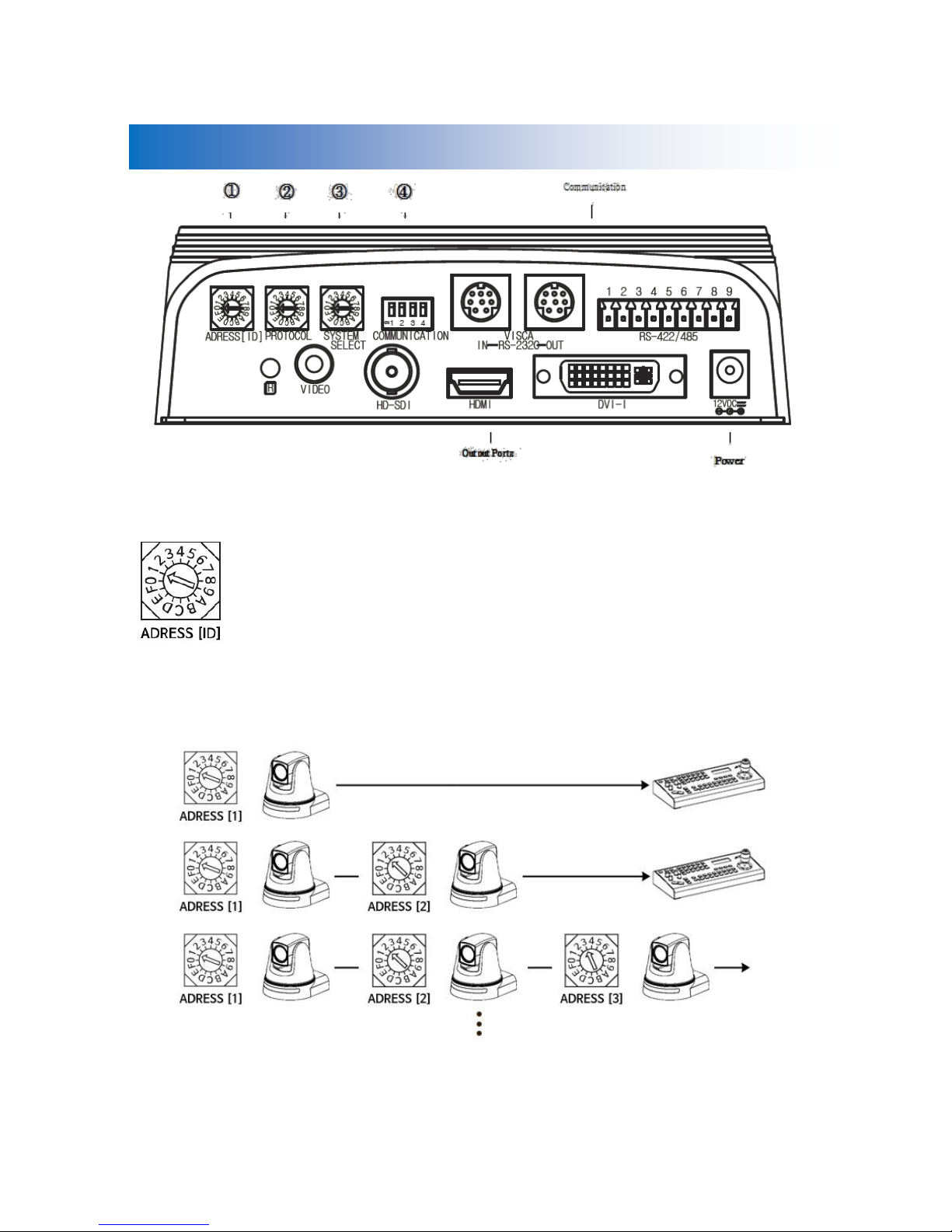

① Camera ADDRESS [ID] Setup
Set the camera ID by changing the switch as shown below.
- Up to 15 addresses can be set for multiple identical camera controls.
※ DO NOT USE NUMBER 0 FOR CAM ADDRESS.
- Default ID is No. 1.
When operating multiple units with the controller, set the ID switches separately.
* We recommend using Micro Screw Driver

② Communication PROTOCOL Setup
Set the communication protocol by changing the switch as shown below.
: Default Setting
Match the protocol used by the controller.
Be sure to change the protocol when the power is off.
③ Output Video Format SYSTEM SELECT Setup
Set the output video format by changing the switch as shown below.
Be sure to change the format when the power is off.
- HDMI, HD-SDI, DVI-I and Composit output simultaneously.
※ It is recommended to set the output format to P series
for stable use of Composit and CVBS.
Protocol
BAUDRATE
Switch
VISCA
9600 bps
0
38400 bps
1
PELCO-D
2400 bps
2
9600 bps
3
38400 bps
4
PELCO-P
4800 bps
5
9600 bps
6
Output Video Format
Switch
1920x1080p60
0
1920x1080i60
1
1920x1080p30
2
1280x720p60
3
1280x720p30
4
1920x1080p59.94
5
1920x1080i59.94
6
1280x720p59.94
7
1920x1080p50
8
1920x1080i50
9
1920x 1080p25
A
1280x720p50
B
1280x 720p25
C
Reserved
D
E
F

otion Video Camera13
④ COMMUNICATION Setup
(OFF: Upward direction / ON: Downward direction)
Set RS-422, RS-485 or RS-232C by using ON/OFF DIP switch
no.1 and 2.
By using ON/OFF DIP switch no.3(Rx) and 4(Tx), set the terminating resister as shown below.
● For RS-485, use the terminating resister when...
When the distance b/w controller and camera is very far (1:1Connection)
When using multiple cameras at the same time(1:N Connection)
COMMUNICATION
1
2
RS-422
OFF
OFF
RS-485
OFF
ON
RS-232C
ON
OFF
If multiple cameras are connected to one controller at the same time, a
communication failure may occur. In this case, set the terminating resister of the
controller to ON, and set OFF on the camera located ate the very end.
※DO NOT SET THE TERMINATING RESISTER OFF ON EVERY CAMERA
If the distance between the controller and the camera is very long, a
communication error may occur due to the impedance problem of the
communication line. In this case, set the terminating resister to OFF in both the
controller and the camera.

⑤ Connection
Connect a controller that sends and receives PTZ control commands.
● RS-232C VISCA Connector(Mini DIN 8Pin, Female)
Example
PIN NO.
VISCA IN
VISCA OUT
1
DTR IN
DTR OUT
2
DSR IN
DSR OUT
3
TXD IN
TXD OUT
4
GND
GND
5
RXD IN
RXD OUT
6
GND
GND
7
NOT CONNECTED
NOT CONNECTED
8
NOT CONNECTED
NOT CONNECTED

otion Video Camera15
● RS-422/485 Connector
PIN NO.
RS-422
RS-485
1
TXD IN+
RXD IN+
2
TXD IN-
RXD IN-
3
RXD IN+
NOT CONNECTED
4
RXD IN-
NOT CONNECTED
5
GND
NOT CONNECTED
6
TXD OUT+
RXD OUT+
7
TXD OUT-
RXD OUT-
8
RXD OUT+
NOT CONNECTED
9
RXD OUT-
NOT CONNECTED

⑥ Installation Check List
Check the cable connection before putting the power in.
Check the ID of each camera, and select the right camera that you wish to control from the
controller. You can check the ID of each camera on the display(screen) or ID setup switch.
If the controller is eligible for various protocols, check if the protocol that was set on the
camera matches its protocol.
When you wish to change protocol and video output format, make sure that the power is
turned off.
The functions related to the controller may differ in some ways depending on the controller. If it
does not work properly, please refer to the controller manual. The controller usage specified in this
manual is based on PELCO and VISCA standard protocol controllers.
⑦ Power
Power rating of this product is DC 12V/1A. Check if you are using DC12V, and if the electrical
load is over 1A.
Power Rating
Input power range
Current consumption
DC 12V
DC 12V ± 10%
Max 1A
In case of DC power supply, if you apply the power while the polarity is wrong, the
product may be damaged.
Pay particular attention to the polarity of the power supply.
When DC power connection is too long, the product may not operate due to its high
voltage. We recommend the connection distance of DC power as short as possible.
We are not responsible for the damage of products that was caused by wrong DC
12V connection.

otion Video Camera17
Main Features
Screen Menu
While viewing the menu displayed on the connected monitor, you can change various status settings
such as camera shooting
conditions, system
settings, information, and
functions.
* When using PELCO-D / P protocol, you can enter Preset 95, too.
IR remote
TVR-200H
GO to MENU or
EXIT
DATA SCREEN
Save
HOME/SET
Joystick button or
Cancel
BACK

PRESET
Preset is a function that saves and recalls the video status, white balance, and exposure adjusted by
pan / tilt and zoom / focus.
Number of assignable presets depends on its protocol
When using VISCA protocol, pattern, swing, group will be carried out in each range from 1 to 8.
When using PELCO D/P protocol, preset will be carried out in its range from 131 to 160 and 95.
*Preset setup range may vary depends on the controller.
ex)TVR-200H can set up to 255 Presets.
You can set the label separately for each preset. The label is automatically set to Blank when you
directly specify the preset position using the IR remote and the controller. If you want to change each
setting value, please use the menu.
You can also run, set position, and delete the preset in the menu.
Interlocking operation with the camera controller(based on TVR-200H)
Set Preset
IR remote: Preset button ￫SHIFT +Preset No.
Controller: PRESET button + Number pad (Press simultaneously)
Run Preset
IR remote: Preset button ￫Preset No.
Controller: PRESET button lights up ￫Number pad
Delete Preset
IR remote: Use the OSD menu
Controller: PRESET button lights up ￫RESET +Number pad (Press simultaneously)
VISCA
Preset 255
PELCO D/P
Preset 224
Preset 95 allows you to enter MENU
Preset 131~138 perform pattern 1~8
Preset 141~148 perform swing 1~8
Preset 151~158 perform group 1~8

otion Video Camera19
SWING
Swing function allows you to make camera move
between 2 preset positions repeatedly.
When swing function activates, the camera moves from
the first preset to the second preset position, and then
from the second preset position to the first preset
position. If you push other buttons or move joystick,
swing will stop running. The operating speed can be set
from 1 ° / sec to 180 ° / sec.
(* The first preset and the second preset can not be set to the same preset.)
Set swing
IR remote: Use the OSD menu, Controller: SWING +Number pad
Run swing
IR remote: SWING button ￫Swing No. Controller: SWING button lights up￫Number
pad
Delete
swing
IR remote: Use the OSD menu, Controller: SWING button lights up￫Number pad
PATTERN
Pattern operation is a function that saves Pan, Tilt, and Zoom operations performed for a certain
period of time and executes them again.
If you push other buttons or move joystick, Pattern function will be inactivated.
Up to 8 patterns can be recorded, and Max. 1200 actions can be stored per pattern.
Set pattern
IR remote: Pattern No. ￫SHIFT+PATTERN ￫PT adjustment ￫Near
Controller: PATTERN button +Number pad ￫PT adjustment ￫Joystick button
or Enter button
Run pattern
IR remote: PATTERN button ￫Pattern No. Controller: PATTERN button lights up
￫Number pad
Delete Pattern
IR remote: Use the OSD menu, Controller: PATTERN button lights up ￫RESET +
Number pad

GROUP
Group function is a function that repeatedly activates preset combinations of the preset, swing, and
pattern functions.
Max. eight groups can be assigned, and each group can set up to 20 actions (presets, swings, patterns).
The presets set in the group can specify the operation speed, and pattern and swing can specify the
number of repetitions. You can also set the resting time for stopping operation after each action.
Set group
IR remote: Use the OSD menu, Controller: GROUP button +Number pad
Run group
IR remote: GROUP button ￫Shift + Group No. Controller: GROUP button lights up
￫Number pad
Delete
Group
IR remote: Use the OSD menu, Controller: GROUP button lights up￫RESET +
Number pad
