TV Logic TVC-FG301E User manual

TVC-FG301E
Full HD Motion Video Camera
User Manual
Ver 1.00

2
User Manual
Contents
Caution................................................................................................................................4
Introduction..............................................................................................................................6
Features ......................................................................................................................................................................................... 6
Products & Accessories............................................................................................................................................................ 8
Ceiling Mount Bracket(ZCB-100) Installation ............................................................................................................... 9
Wall Mount Bracket(ZWB-200)Installation..................................................................................................................... 10
Installation .............................................................................................................................11
① Camera Category-CLASS Setup ..................................................................................................................................... 12

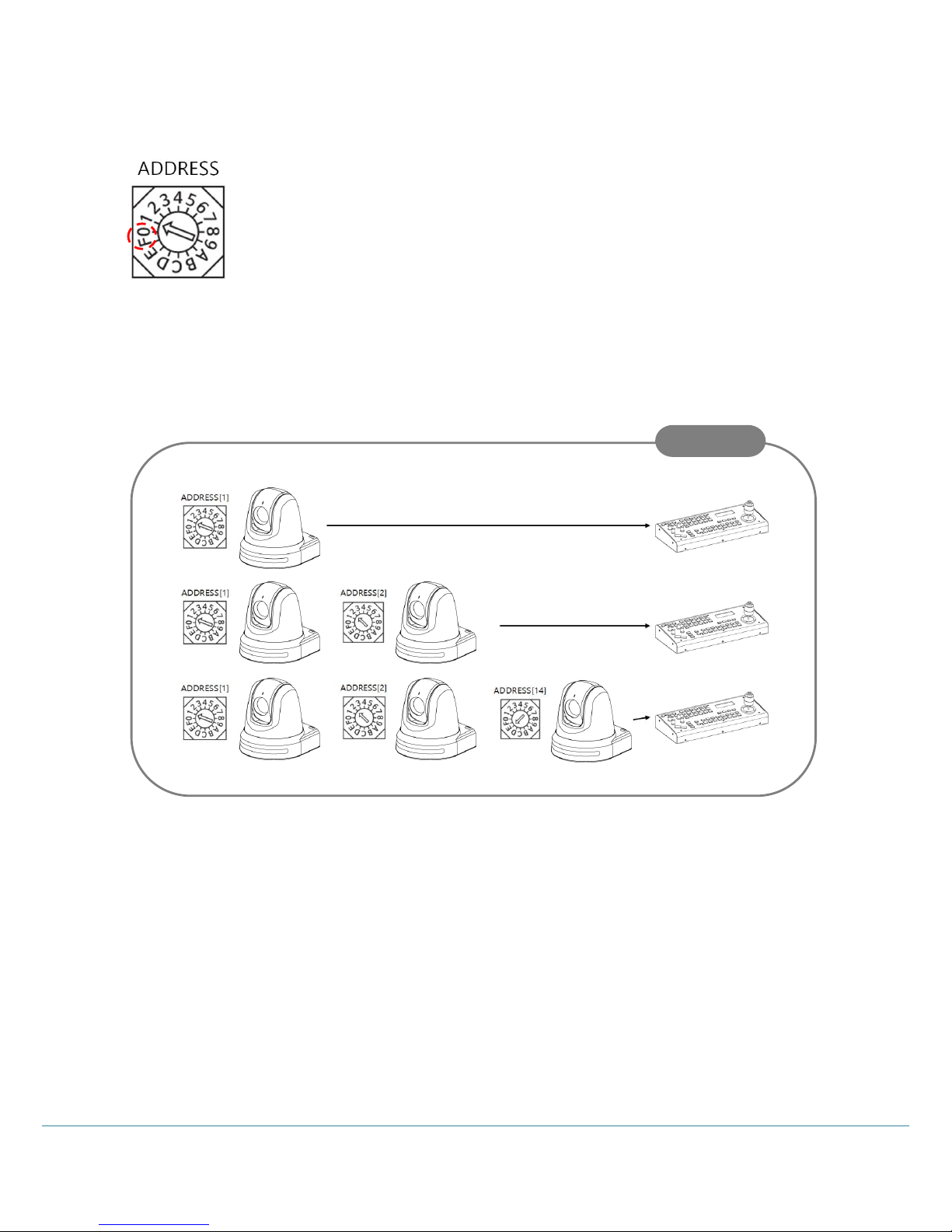

② Camera Address-ADRESS Setup.................................................................................................................................... 13
③ Communication Protocol-PROTOCOL Setup ............................................................................................................ 14
④ Output Video Format-SYSTEM SELECT Setup ......................................................................................................... 14
⑤ Communication Type-COMMUNICATION Setup .................................................................................................... 15
⑥ Connection ............................................................................................................................................................................ 16
⑦ Installation Check ................................................................................................................................................................ 20
⑧ Power ....................................................................................................................................................................................... 21
Main Features ..........................................................................................................................22
Screen Menu .............................................................................................................................................................................. 22
PRESET .......................................................................................................................................................................................... 23
SWING........................................................................................................................................................................................... 24
PATTERN....................................................................................................................................................................................... 24
GROUP.......................................................................................................................................................................................... 25
Other Functions......................................................................................................................................................................... 25
Menu Function.........................................................................................................................26
OSD(On Screen Display) Configuration ........................................................................................................................... 26
Main Menu.................................................................................................................................................................................. 27
➊Focus/Zoom ....................................................................................................................................................................... 27
➋White Balance................................................................................................................................................................... 28
➌Auto Exposure .................................................................................................................................................................. 28
➍Picture .................................................................................................................................................................................. 29
➎Image ................................................................................................................................................................................... 30
➏Motion/Action .................................................................................................................................................................. 30

Full HD Motion Video Camera 3
Motion............................................................................................................................................................................... 31
PT Speed Setup .............................................................................................................................................................. 31
Home Position Setup ................................................................................................................................................... 32
North Direction Setup ................................................................................................................................................. 32
Preset Setting.................................................................................................................................................................. 33
Edit Scene- Preset Setup............................................................................................................................................. 33
Edit Label-Preset Setup ............................................................................................................................................... 33
Swing Setup .................................................................................................................................................................... 34
Pattern Setup .................................................................................................................................................................. 34
Group Setup.................................................................................................................................................................... 35
Edit Group-Group Setup ............................................................................................................................................ 36
Parking Action Setup ................................................................................................................................................... 37
➐Display Setup..................................................................................................................................................................... 37
Area Label Setup ........................................................................................................................................................... 38
Edit Scene......................................................................................................................................................................... 39
Edit Label.......................................................................................................................................................................... 40
Area Label Setup ........................................................................................................................................................... 40
➑System Info. ....................................................................................................................................................................... 41
Additional Info. .............................................................................................................................................................. 42
System Initialize.............................................................................................................................................................. 42
IR Remote Control...................................................................................................................43
Controller.................................................................................................................................46
Problem Solving .......................................................................................................................47
Menu Structure........................................................................................................................48
Default Value ..........................................................................................................................51
Specifications..........................................................................................................................53
Dimension.................................................................................................................................................................................... 55
Glossary ...................................................................................................................................58
Index.......................................................................................................................................60

4
User Manual
Caution
Caution
Don’t open. There may be electric shock.
<Caution>
To avoid the risk of electric shock, do not arbitrarily open the cover or disassemble the
product. There are no user serviceable replacement parts.
Get service from qualified service personnel.
This lightning flash with arrowhead symbol is intended to alert the user to the presence
of un-insulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to person.
This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature accompanying the
appliance.
This symbol indicates to the user that this is important for operation or
maintenance of the product.
<Caution>

Full HD Motion Video Camera 5
Safety Precautions
Read all of the safety and operating instructions before using the product.
Save these instructions for future reference.
Do not use attachments or accessories unless recommended by the appliance manufacturer as they
may cause hazards, damage product and void warranty.
Do not use this product near water or moisture.
Do not place or mount this product in or on an unstable or improperly supported location.
Improperly installed product may fall, causing serious injury to a child or adult, and damage to the
product. Use only with a mounting device recommended by the manufacturer, or sold with the
product. To insure proper mounting, follow the manufacturer's instructions and use only mounting
accessories recommended by manufacturer.
This product should be operated only from the type of power source indicated on the marking label.
Precautions
Before using, make sure power supply and others are properly connected.
While operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.
Do not disassemble or tamper with parts inside the camera.
Do not drop or subject the camera to shock and vibration as this can damage camera.
Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.
Do not install the camera in areas of extreme temperature, which exceed the allowable range.
Avoid installing in humid or dusty places.
Never expose the camera to rain and water.
Avoid installation in a place with radioactivity. It may cause a malfunction of the part.
Avoid installation in locations with strong magnetic fields or electrical signals.
Avoid installing in places where the camera would be subject to strong vibrations.
Precautions for Laser Beam
Laser beam can damage CMOS. When shooting a scene where laser beam is involved, do not let
the beam contacts the CMOS directly.

6
User Manual
Simultaneous Output Video Interface
Introduction
Features
1/2.8inch, 2.38 mega pixels “Exmor”CMOS Sensor Sony Zoom Module Installed.
Supports Max. x360
Various format of HD video output is available and Max. 1920x1080p60 is supported.
1080p
60/59.94/50/30/25
1080i
60/59.94/50
720p
60/59.94/50/30/25
Camera control can be checked by the Tally Led.
Supports the GENLOCK (Tri-Level Sync) function to match video signals of multiple cameras.
Supports the Stereo Audio.
Various output is available such as 3G-SDI, HDMI and for multi-monitoring, simultaneous output is
supported. For MRC series, CVBS is supported.
Optical x30 Zoom Lens
Full HD Output Format
Tally LED
GENLOCK
Audio

Full HD Motion Video Camera 7
Select multiple protocols and communication types
Infrared Cut Filter (IR CUT-Filter) applied
Various Presets & Auto Pan/ Tilt Function
OSD(On Screen Display) Menu Suuport
Smart Flip Function
Powerful Pan/ Tilt Function
Pan: -0˚~ 360˚(Endless), Tilt: total 220˚(-20˚~ 0˚~ 180˚~ -160˚)
This function extend the shooting range by setting the camera to flip the image automatically when it
tilts over 90°.
→When Smart Flip function is enabled, Fletter will be shown in the display.
In order to improve the sensitivity by keeping the light absorption time longer at low light level such as
at night, Slow shutter function and Day & Night switching function are provided so that users can select
color change according to illumination.
Max. 255 assignable presets are supported to save various settings. Also, the CCTV functions like Swing,
Pattern, and Group functions are available for novice users to make stable pan / tilt operation through
preset values.
Enables you to edit detailed settings using the OSD menu.
※Refer to Page 48 “Menu Structure” to check the menu tree.
VISCA
RS232,RS422
PELCO-D/P
RS485

8
User Manual
Products & Accessories
Basic Components
Camera
IR remote (with battery)
Camera Bracket Screw
User Manual
AC Adapter
1m RJ45 Cable(Direct)
232C to UTP Cable
Camera Bracket
Ceiling Bracket
Ceiling Bracket Screw
Plastic Anchor
Camera body/ Ceiling
Bracket Screw

Full HD Motion Video Camera 9
Ceiling Mount Bracket(ZCB-100) Installation
Ceiling bracket installation method
1) Fix the ceiling bracket on the ceiling using the
screws (4EA).
2) Attach the bracket to the camera body as shown
in the picture using the camera bracket and screws
(4EA).
3) Insert the camera bracket into the ceiling
bracket's groove as shown in the picture.
4) Tighten the screws (4EA) on all four sides to fix
the camera.

10
User Manual
Wall Mount Bracket(ZWB-200)Installation
ZWB-200 Components(Optional)
Installation Method
1) Fix the Wall bracket on the wall
using the wall bracket screws
(4EA).
2) Attach the bracket to the
camera body as shown in the
picture using the camera bracket
and screws (4EA).
3) Insert the camera bracket into
the wall bracket's groove as
shown in the picture.
4) Fix the camera bracket with
screws (4EA)
5) Attach the cover with screws
(3EA).
6) Installation complete
Cover
Camera bracket
Wall bracket
Wall bracket screws
Plastic anchor(For fastening
wall screws)
Camera screws
Bracket screws
