TVS LP 46 NEO User manual

Rev : A, Product Description : User Manual LP 46 Neo
U
US
SE
ER
R’
’S
S
M
MA
AN
NU
UA
AL
L
Barcode Printer
LP 46 NEO

LP 46 Neo User’s Manual
Safety Instructions
Before installing and using the printer, please read the following
items carefully.
1.
..
.Safety warning
The print head is a thermal element and it is at a high
temperature during printing or just after operation, therefore do
not touch it or its peripherals for safety’s sake.
The print head is an ESD-sensitive device. To prevent damage,
do not touch either its printing parts or connecting parts.
2.
..
.Notices
1) Install the printer on a flat and stable surface;
2) Reserve adequate space around the printer so that convenient
operation and maintenance can be performed;
3) Keep the printer far away from water source, and do not expose
the printer to direct sunlight, strong light and heat;
4) Do not use or store the printer in a place exposed to high
temperature, high humidity or serious pollution;
5) Do not place the printer in a place exposed to vibration or
impact;
6) No condensation is allowed to the printer. In case of such
condensation, do not turn on the power until it has completely
gone away;
7) Connect the printer power to an appropriate grounding outlet.
Avoid sharing one electrical outlet with large power motors or
other devices that may cause the fluctuation of voltage;

LP 46 Neo User’s Manual
8) Disconnect the power when the printer is deemed to idle for a
long time;
9) Don’t spill water or other electric materials into the printer (e.g.
metal). In case this happens, turn off the power immediately;
10) Do not allow the printer to start printing when there is no
recording paper installed; otherwise the print head and platen
roller will be damaged;
11) To ensure quality print and normal lifetime, use recommended
paper or its equivalent;
12) Shut down the printer when connecting or disconnecting
interfaces to avoid damages to control board;
13) Set the print darkness to a lower grade as long as the print
quality is acceptable. This will help to keep the print head
durable;
14) Avoid turning on and off the printer frequently. It is advised to
turn on the printer at least 2 seconds after the printer is turned
off;
15) Do not disassemble the printer without permission of a
technician, even for repairing purpose;
16) Keep this manual safe and at hand for reference purpose.

LP 46 Neo User’s Manual
Contents
1
11
1
PRODUCT DESCRIPTION
PRODUCT DESCRIPTIONPRODUCT DESCRIPTION
PRODUCT DESCRIPTION
................................
................................................................
....................................................
........................................
....................-
--
-
1
1 1
1 -
--
-
1.1 INTRODUCTION ........................................................................ - 1 -
1.2 UNPACKING AND CHECKING ..................................................... - 2 -
1.3 APPEARANCE AND MODULE ..................................................... - 3 -
1.4 INTRODUCTION OF MAIN MODULES ........................................... - 4 -
2 PRINTER INSTALLATI
2 PRINTER INSTALLATI2 PRINTER INSTALLATI
2 PRINTER INSTALLATION
ONON
ON
................................
................................................................
.....................................................
..........................................
.....................-
--
-
5
5 5
5 -
--
-
2.1 INSTALLATION POSITION .......................................................... - 5 -
2.2 PAPER ROLL INSTALLATION ...................................................... - 5 -
2.3 RIBBON INSTALLATION ............................................................. - 7 -
2.4 POWER ADAPTER CONNECTION ............................................. - 10 -
2.5 COMMUNICATION CABLE CONNECTION ................................... - 10 -
2.6 START THE PRINTER .............................................................. - 11 -
2.6.1 Power-on and self-test ................................................ - 11 -
2.6.2 Mark calibration ........................................................... - 11 -
2.6.3 Printing self-test page ................................................. - 12 -
2.7 DRIVER SETUP ...................................................................... - 13 -
3 PRINTER OPERATIONS
3 PRINTER OPERATIONS3 PRINTER OPERATIONS
3 PRINTER OPERATIONS................................
................................................................
.....................................................
..........................................
.....................
-
--
-
16
16 16
16 -
--
-
3.1 LED, BUTTON AND BUZZER EXPLANATION .............................. - 16 -
3.1.1 LED functions .............................................................. - 16 -
3.1.2 Button functions .......................................................... - 16 -

LP 46 Neo User’s Manual
3.1.3 Buzzer functions ......................................................... - 17 -
3.2 PRINTER STATUS AND OPERATION ......................................... - 18 -
3.2.1 Printer status ............................................................... - 18 -
3.2.2 Daily operations .......................................................... - 18 -
3.3 SENSOR POSITION ADJUSTMENT ............................................ - 19 -
3.4 PRINT POSITION ADJUSTMENT ................................................ - 20 -
4 ROUTINE MAINTENANC
4 ROUTINE MAINTENANC4 ROUTINE MAINTENANC
4 ROUTINE MAINTENANCE
EE
E
................................
................................................................
..................................................
....................................
..................
-
--
-
23
23 23
23 -
--
-
4.1 CLEANING PRINT HEAD .......................................................... - 23 -
4.2 CLEANING PLATEN ROLLER .................................................... - 24 -
5 TROUBLESHOOTING
5 TROUBLESHOOTING5 TROUBLESHOOTING
5 TROUBLESHOOTING
................................
................................................................
........................................................
................................................
........................
-
--
-
25
25 25
25 -
--
-
5.1 TROUBLESHOOTING .............................................................. - 25 -
5.2 PRINT QUALITY PROBLEMS..................................................... - 27 -
APPENDIX
APPENDIXAPPENDIX
APPENDIX
................................
................................................................
................................................................
................................................................
............................................
........................
............
-
--
-
28
28 28
28 -
--
-
APPENDIX 1 TECHNICAL SPECIFICATION ....................................... - 28 -
Appendix 1.1 Main technical specifications ......................... - 28 -
Appendix 1.2 Technical specifications of paper .................. - 31 -
APPENDIX 2 SELF-TEST PAGE ...................................................... - 33 -
APPENDIX 3 PRINT AND PAPER OUT POSITION .............................. - 35 -
APPENDIX 4 COMMUNICATION INTERFACE .................................... - 36 -
Appendix 4.1 Serial interface ............................................... - 36 -
Appendix 4.2 USB interface ................................................. - 37 -

LP 46 Neo User’s Manual
- 1 -
1 Product description
1.1 Introduction
BTP-U100t label printer is an ideal label and barcode printing device
for office use, with delicate appearance and excellent performance.
It can apply to many fields, such as medical treatment, retailing,
manufacture, logistics, asset management and so on.
BTP-U100t label printer can be connected to the peripherals via
serial interface or USB interfaces and can provide universal drivers
under the operating systems such as Windows 2000/Windows
XP/Windows server 2003/ Windows Vista/ Windows server 2008/
Windows 7/ Windows 8.
Main features:
Thermal/thermal transfer printing;
Low noise, high speed printing;
Modular and open ribbon module, easy paper loading operation
and maintenance;
With 32 bit high speed microprocessor;
Adopt heat history and auto temperature adaptation control;
Adopt a new type of print head with long lifetime and high
printing quality;
Support continuous paper, label paper, marked paper, etc;
Mobile sensor with reflective and transmission sensor together,
adaptive for several kinds of paper.

LP 46 Neo User’s Manual
- 2 -
1.2 Unpacking and checking
Unpacking the printer carton and refer to the packing list to check
whether the parts are missing or damaged. If there is, please
contact with SNBC or your local distributor (communication cables
are optional depending on the printer interface type).
Figure 1.2.1

LP 46 Neo User’s Manual
- 3 -
1.3 Appearance and module
1—LOGO plate 2—Top cover
3—Front baffle plate 4—Bottom cover
5—LED 6—Button
7—Paper guide plate 8—Paper roll holder
9—Ribbon thumb wheel 10—Ribbon holder
11—Paper cabinet 12—Ribbon end cap
13—Open spanner
14—Print head 15—Paper guide block
16—Sensor holder 17—Platen roller
18—Buffer shaft 19—Serial interface (optional)
20—USB interface 21—Power interface
22—Power switch

LP 46 Neo User’s Manual
- 4 -
1.4 Introduction of main modules
1) Button (6) and LED (5): indicate the printer status and complete
printing function;
2) Paper roll supporting pole (8) and paper guide plate (7): support
the paper roll to avoid left and right shaking of paper roll;
3) Paper guide block (15): avoid left or right shaking of paper in
the paper out path;
4) Power switch (22): press “O” to power off and press “-” to
power on.
5) Sensor is installed inside the sensor holder (16) to realize the
paper calibration, detection and positioning.

LP 46 Neo User’s Manual
- 5 -
2 Printer installation
2.1 Installation position
Flatly place the printer on the operation table, which must be
waterproof, moisture proof and dustproof. The maximal tilted angle
should not exceed ±15°during installation.
2.2 Paper roll installation
1) Hold the cover open lever with both hands to turn the top cover
upwards, and open the top cover of printer (see figure 2.2.1);
(see figure 2.2.1);
Figure 2.2.1 Figure 2.2.2 Figure 2.2.3
2) Press the cover open lever in the direction of arrow (see figure
2.2.2). After the ribbon holder is uplifted, turn it upwards to the
angle as shown in the figure (see figure 2.2.3);
3) Install the paper roll onto the paper roll holder, and add one
paper guide on each side of the paper roll (see figure 2.2.4);

LP 46 Neo User’s Manual
- 6 -
Figure 2.2.4 Figure 2.2.5
4) Place the paper roll on the holder into the paper cabinet, pull out
the front end of paper and spread it in the print path, and then
lead the paper go through under the buffer shaft and finally
clamp the paper pulled out with the left and right paper guides
(see figure 2.2.5).
Caution:
While opening the top cover, avoid pressing it with force, and
open the top cover with force towards upwards;
The print side of paper should face upwards. If it is marked paper,
please make the black mark face downwards;
The front end of paper should be located in the middle of platen
roller as possible as it can.

LP 46 Neo User’s Manual
- 7 -
2.3 Ribbon installation
1) The carbon ribbon shaft has two inner diameters: 12.7mm (1/2
inch) and 25.4mm (1 inch). When the inner diameters of the
ribbon shafts are different, the methods for loading ribbon are
different:

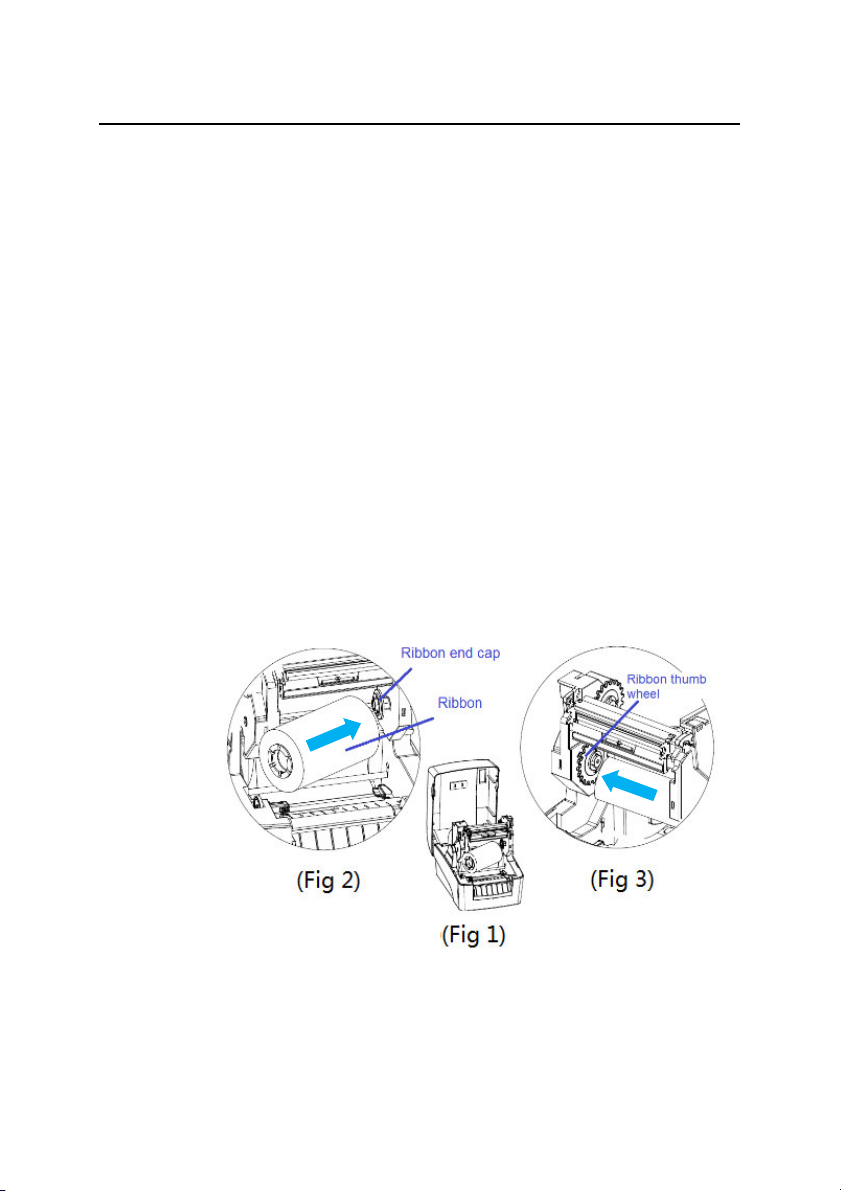

A) For the ribbon shaft with an inner diameter 12.7mm (1/2
inch), the operation method is as shown in Figure 2.3.1
(please pay attention to the installation direction). Firstly,
rotate the ribbon holder to the position shown in Fig.1, then
insert the ribbon into the ribbon end cap in the direction
shown in Fig.2 and insert the other end of ribbon into the
ribbon thumb wheel, and then pull the ribbon outward
slightly until you feel an elastic retraction force which
indicates that the installation of ribbon on releasing shaft is
complete (see Figure 2.3.1);
Figure 2.3.1

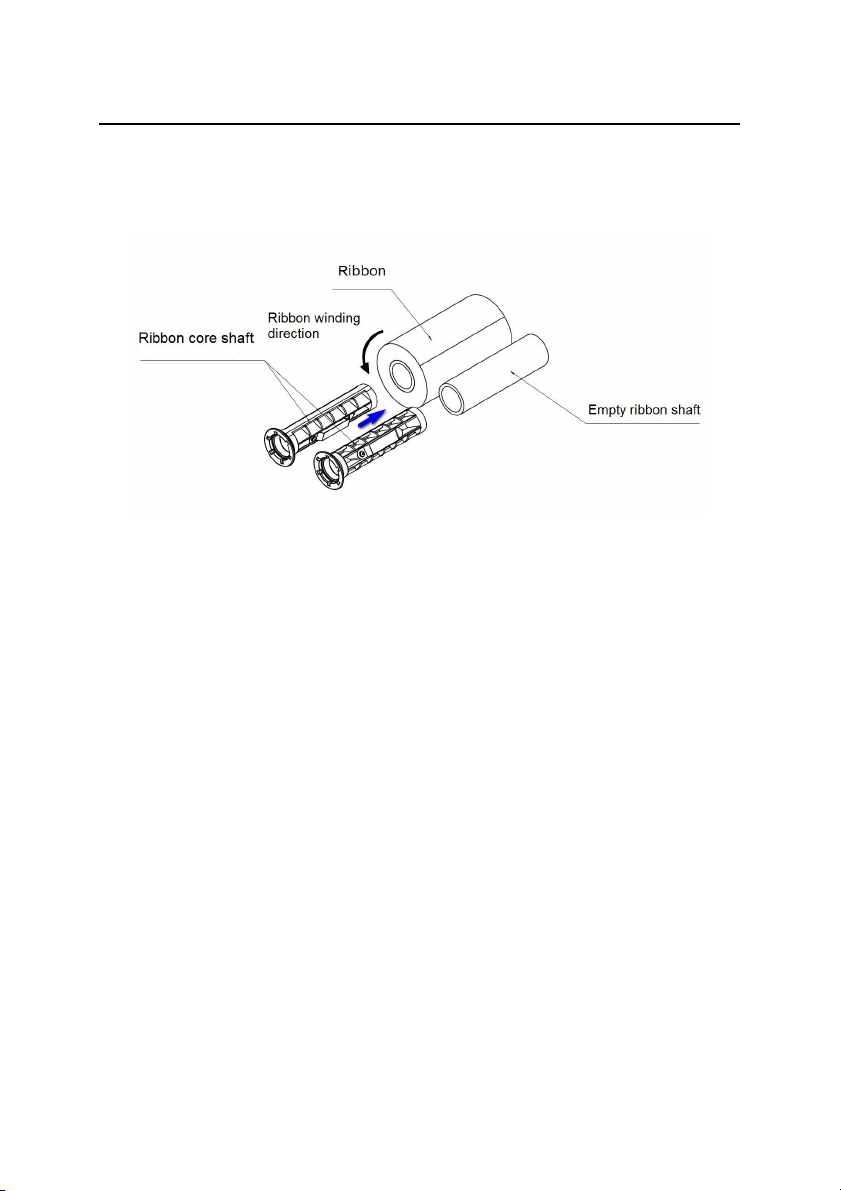

B) For the ribbon shaft with an inner diameter 25.4mm (1

LP 46 Neo User’s Manual
- 8 -
inch), insert the ribbon core shaft into the ribbon and the
empty ribbon shaft separately (see Figure 2.3.2). And the
following operation is the same as in the step A).
Figure 2.3.2

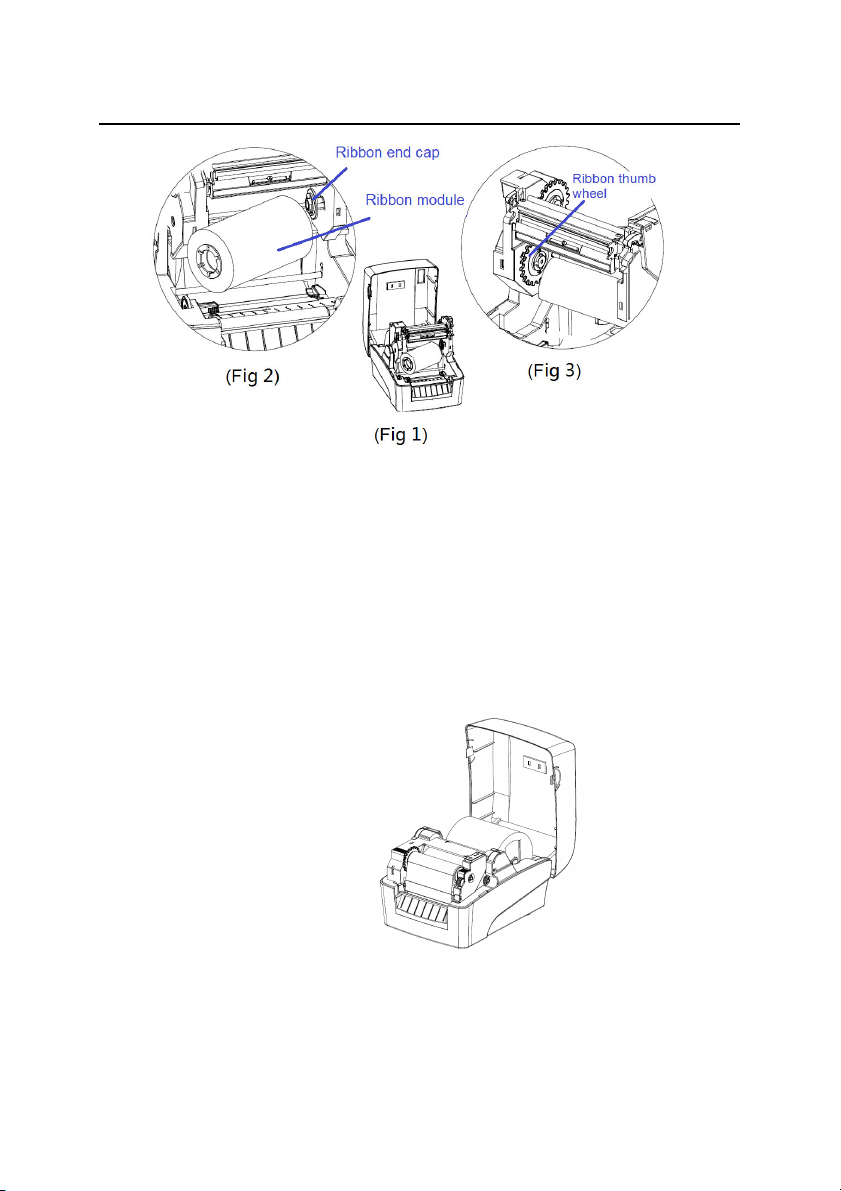

Rotate the ribbon holder to the position shown in Fig. 1, then
insert the assembled ribbon module into the ribbon end cap in
the direction shown in Figure 2 and insert the other end of
ribbon into the ribbon thumb wheel, and then pull the ribbon
outward slightly until you feel an elastic retraction force which
indicates that the installation of ribbon on releasing shaft is
complete (see Figure 2.3.3);

LP 46 Neo User’s Manual
- 9 -
Figure 2.3.3
2) Lead he front end of ribbon go through under the print head
module and wind it around the rewinding shaft of ribbon;
3) Install the rewinding shaft of ribbon onto the ribbon holder
according to the method in step 1);
4) Push the ribbon thumb wheel to tighten the ribbon (installed
paper roll and ribbon refer to figure 2.3.2);
Figure 2.3.2 Figure 2.3.3
5) Press down the ribbon holder to locking status, then close the

LP 46 Neo User’s Manual
- 10 -
top cover of printer (see figure 2.3.3).
Caution:
Make sure the print method:
If selecting thermal transfer printing, the ribbon needs to be
installed;
If selecting thermal printing, there is no need to install ribbon.
Under normal condition, the width of ribbon selected should be
wider than that of print medium;
During the process of installing the ribbon, avoid the wrinkle or
damage of ribbon.
2.4 Power adapter connection
1) Ensure the printer is turned off;
2) Connect one end of the AC power input cable to power adapter,
and then insert the other end of the power adapter into the power
adapter interface on the back of printer;
3) Insert the other end of AC power input cable into the 220V power
socket.
Caution:
If leaving the printer idle for a long time, please disconnect the
power of printer.
2.5 Communication cable connection
1) Ensure the printer is turned off;
2) Insert the communication cable into the suitable interface, and fix
it with screw or latch spring of the plug;
3) Connect the other end of the communication cable to the host.
Caution:
Don’t connect or disconnect the serial/parallel communication

LP 46 Neo User’s Manual
- 11 -
cable when the power has not been turned off.
2.6 Start the printer
2.6.1 Power-on and self-test
1) Ensure the power adapter and the communication cable are
connected correctly, and turn on the printer;
2) The printer starts the self-test. The buzzer beeps once for a short
time after the self-test is finished, and then the LED displays
green and it is always on;
3) If power-on action is set, the printer will perform power-on action.
Note: Power-on action refers to the actions performed automatically
after the printer is turned on, including feeding one label,
starting calibration automatically (only valid under
discontinuous paper mode). The power-on action can be set
by commands or configuration tools.
Caution:
If the printer can not be started or can not work normally after it
is started, please contact SNBC or local dealer in time.
2.6.2 Mark calibration
1) Firstly, install the print medium correctly, and then turn on the
printer;
2) After the printer finishes the self-test, it will enter standby mode.
Keep pressing the button and release it after the power LED
has flashed two times. Then the printer will start feeding paper
and start calibration;

LP 46 Neo User’s Manual
- 12 -
3) If the calibration is successful, the printer will enter standby
mode; If the calibration fails, the printer will alarm. Then please
make sure whether the installation of medium is correct.
If any of the following cases occurs, please calibrate the
medium before the printing:
The first time to install and operate the printer or the first
time to use the printer after the sensor has been cleaned;
Use the printer again after the printer has been idled for a
long time or replace new kinds of paper roll;
Cannot identify the marks effectively during the process of
printing;
The using environment of printer has changed greatly.
Caution:
After the above steps and after having cleaned the sensor, if
still cannot find out the reason of calibration failure, please
contact with maintenance personnel.
2.6.3 Printing self-test page
1) Install the media, and turn on the printer. Keep pressing the
button and release it after the LED has flashed one time, then
the printer will feed paper and print self-test page (see Appendix
2.1);
2) The self-test page lists the current configuration information of
the printer.

LP 46 Neo User’s Manual
- 13 -
2.7 Driver setup
The installation program of the driver can be downloaded from the
website www.snbc.cn.
The 32-bit operating systems supported by the driver are as
follows:
Windows 2000/Windows XP/Windows server 2003/Windows
Vista/Windows server 2008/Windows 7/Windows 8/Windows 10.
The 64-bit operating systems supported by the driver are as
follows:
Windows XP/Windows server 2003/Windows Vista/Windows
server 2008/Windows 7/Windows 8/Windows 10.
1) Run “Setup.exe” in the driver package, and read the related
software license agreement carefully. If you accept the items in
the license agreement, please click “I accept the items in the
software license agreement”, and then click “Next” button;

LP 46 Neo User’s Manual
- 14 -
2) Select printer type and model to be installed. If you want to set
the printer as default printer, please select “Set As Default
Printer” and click “Next”;

LP 46 Neo User’s Manual
- 15 -
3) Select setup type, and click “Next”;
4) The driver will select the current OS type automatically, and click
“Next” button;
5) Set printer port. User can select it according to actual needs. If
it is a serial port driver, please select “COMx” (x equals to 1, 2,
3, 4, 5, 6, 7 or 8); if it is USB port, please select “USB00x” (x
equals to 1, 2, 3, 4, 5, 6, 7 or 8), (if USB port printer is
connected correctly to the computer under power-on status, the
driver setup program will set USB port as default port
automatically). Then click “Install” to end the installation.
Table of contents
