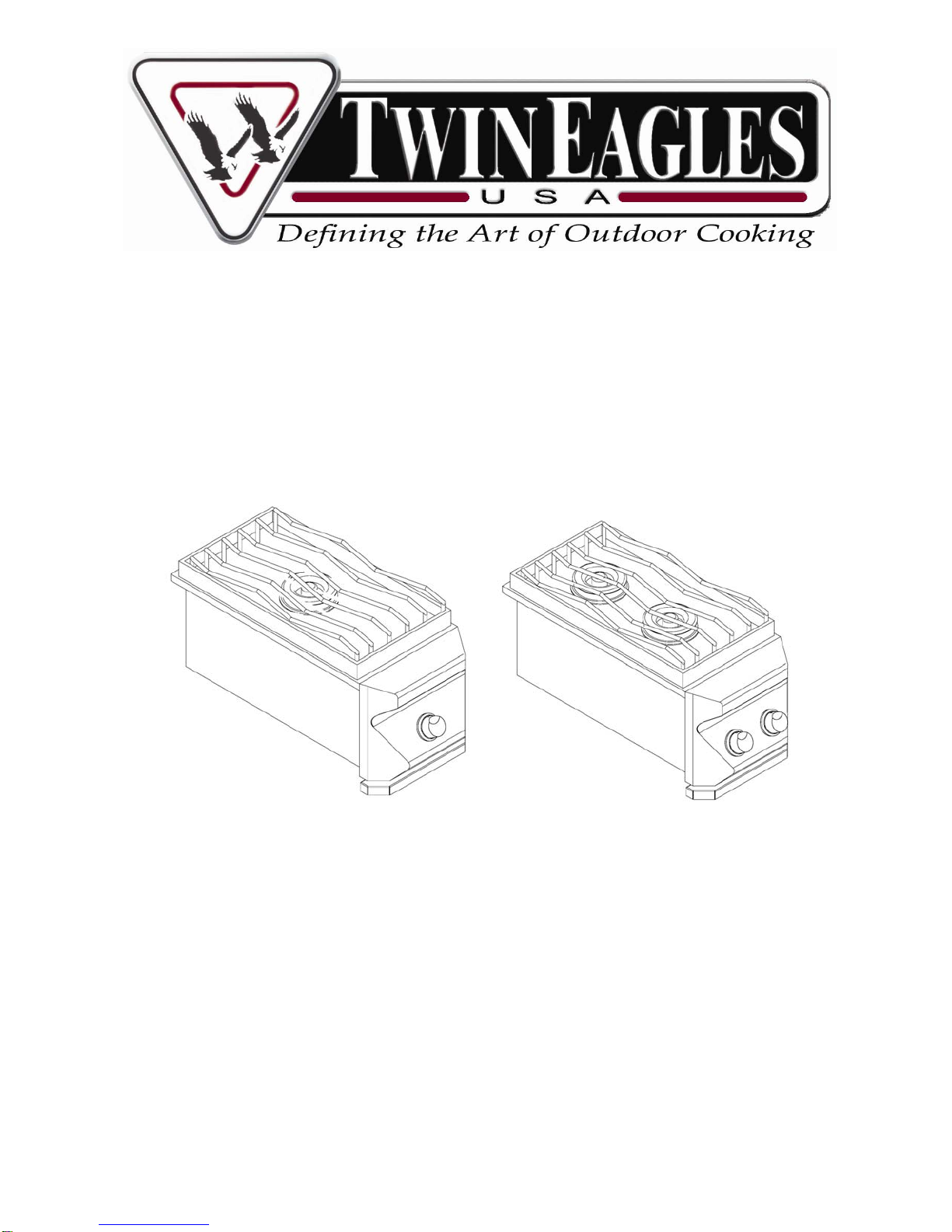

Twin Eagles TESB131-B User manual

P/N: 18523F 09/13
SIDE BURNERS
USE & CARE MANUAL
TESB131-B
TESB132-B
MODEL:

1
FOR YOUR RECORDS
IMPORTANT: Retain original proof of purchase to establish warranty period.
Please record the following information and refer to this information when contacting the company or an
authorized service agent. This information is found on the rating/ data plate located on the inside back of
the unit.
Model #: __________________________________________
Serial #: __________________________________________
Date of Purchase: ___________________________________
Place of Purchase: __________________________________
Type of Gas: NG LP

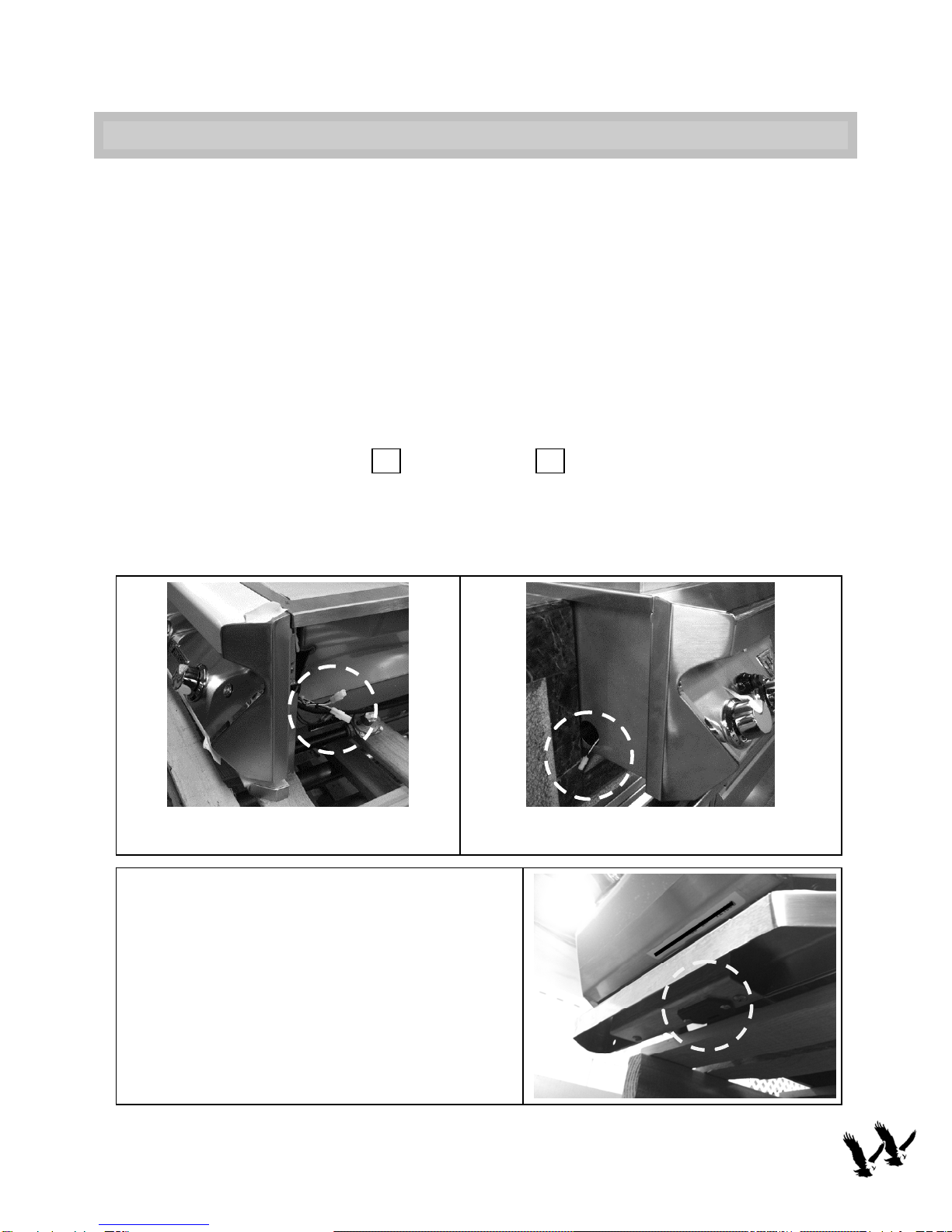

Prior to completing installation to the island, connect the LED light harness to the grill. A
wire connector is provided on the grill light harness for side burner application.
OUTDOOR GAS GRILL SIDE BURNER
The 9 volt battery is located underneath the false drip
pan handle.
Install the battery prior installing in the island.

2
IMPORTANT SAFETY INFORMATION
WARNING! Read this manual carefully and completely before using your grill to ensure proper operation,
proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
AVERTISSEMENT
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3.Si l’odeur continue, évite l’appareil et appelle
tout de suite votre fournisseur de gaz ou les
pompiers.
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this or
any other appliance.
AVERTISSEMENT
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation, ne doit
pas être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors.
C’EST POUR UTILISATION à L’ExTéRIEUR
SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
BEFORE LIGHTING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds,
turn the burner control(s) off, wait 5
minutes, and repeat the lighting
procedure.
AVANT D’ALLUMER
L’APPAREIL
1. Lisez les instructions avant d’allumer l’appareil.
2. Ouvrez le couvercle avant d’allumer l’appareil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 minutes,
et procédez de nouveau à l’allumage.

3
GENERAL SAFETY REQUIREMENTS:
1. The installation of this appliance must conform with local codes or, in the absence of local codes,
either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code.
2. This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and
/or boats.
3. This outdoor cooking gas appliance is intended for use outdoors and shall not be used in a building,
garage or any other enclosed area.
4. Minimum clearance of 12 inches from the back and sides of the unit to adjacent combustible
construction must be maintained. This outdoor cooking gas appliance shall not be located
under overhead-unprotected combustible construction.
5. The utilization of an external electrical source requires that when installed, this outdoor cooking gas
appliance must be electrically grounded in accordance with the local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA
C22.1. Keep any electrical supply cord, or the rotisserie motor cord and the fuel supply hose away
from any heated surfaces.
6. Keep your side burner in an area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
7. DO NOT obstruct the flow of combustion and ventilation air to this appliance. Keep the ventilation
openings of the cylinder enclosure free and clear from debris.
8. Check all gas connections for leaks with soapy water solution and brush. Never use an open flame.
(Reference page 5 for leak test procedure).
9. Check flexible hoses for cuts and wear that may affect the safety before each use.
10. Never use the side burner in a windy area.
11. The pressure regulator and hose assembly supplied with the Twin Eagles Side Burner must be used.
Replacement pressure regulators and hose assemblies must be those specified by Twin Eagles.
12. CALIFORNIA PROPOSITION 65-WARNING: The burning of gas cooking fuel generates some by-
products which are on the list of substances known by the State of California to cause cancer or
reproductive harm. California law requires businesses to warn customers of potential exposure to
such substances. To minimize exposure to these substances always operate this unit according to the
use and care manual, ensuring you provide good ventilation when cooking with gas.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gasfitter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.

4

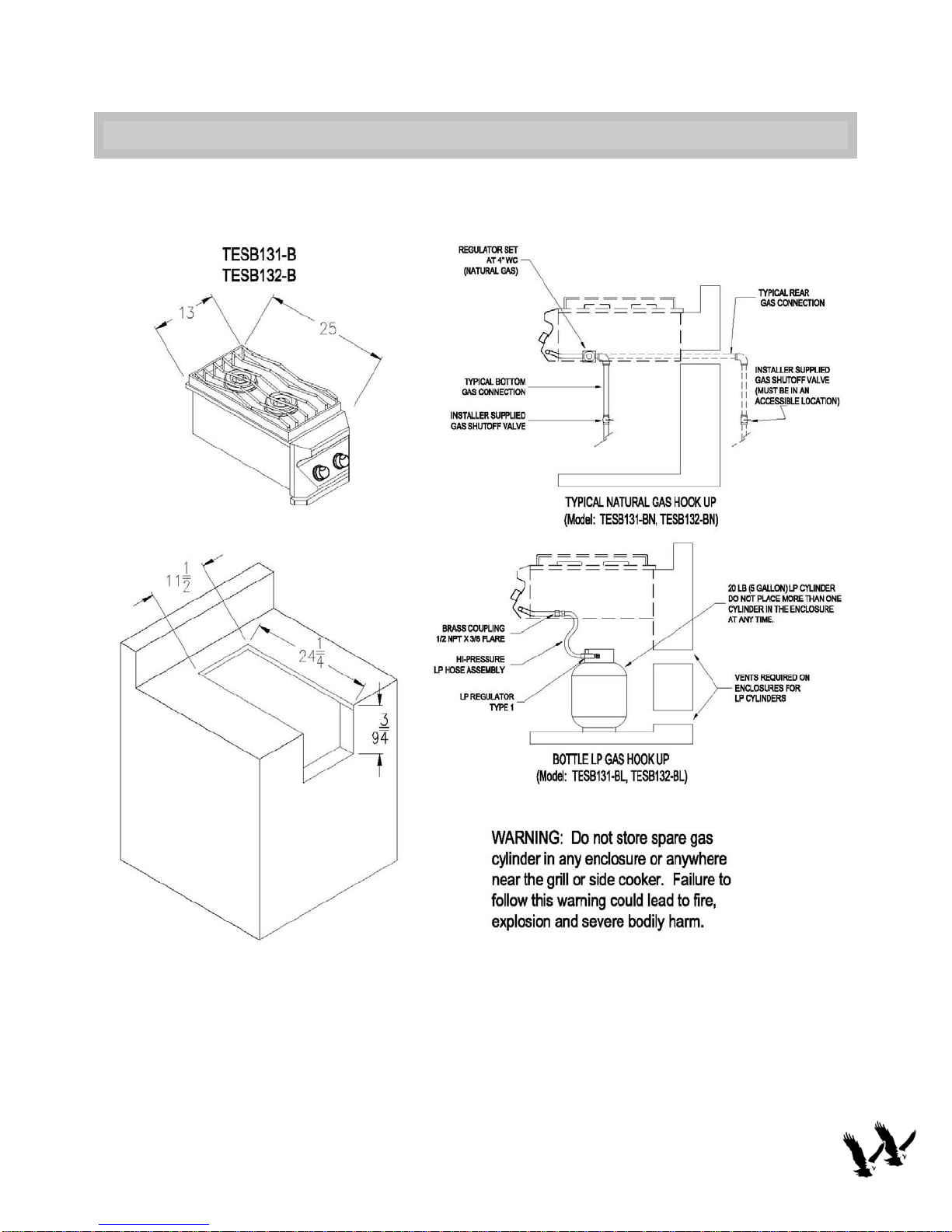

TYPICAL GAS INSTALLATION

5
LEAK TEST
CAUTION BEFORE TESTING
Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
NEVER USE THE SIDE BURNER WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS.
WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
To prevent fire or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before
each use. Only the factory supplied hose and regulator must be used. Use only replacement
regulator and hose assemblies specified by Twin Eagles.
LEAK TEST
1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half
water.
2) Confirm that all control knobs are in the OFF position.
3) Turn the main gas valve supply ON.
4) Apply leak testing solution by spraying on the pipe joints, fittings, and hose.
5) A gas leak is detected if;
a) there is a faint gas smell and/or…
b) …growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to ignite
the side burner and IMMEDIATELY turn off the gas supply valve.
6) When there is a gas leak, call a qualified service technician. DO NOT use the side burner until the
leak is corrected.

6
OPERATING INSTRUCTIONS
1. Make sure all knobs are in the “OFF” position.
2. Turn “on” the gas at source. Caution: If you smell gas, shut off gas supply and call for service.
3. Before lighting, remove the side burner cover or any cooking utensils from the burner grate.
4. Push-in and turn the burner knob counterclockwise to “HI” (LARGE FLAME) position, and hold
the knob in. You should hear a continuous clicking sound and see sparks being provided to the
burner. (If clicking sound is weak, replace the 9V battery. See page 1).
5. If the burner does not ignite within 5 seconds, turn the burner to “OFF” and wait for five minutes.
Repeat the above procedures or try the following manual lighting procedures
a. Hold a lit match next to the burner ports
b. Push and turn the burner knob counterclockwise to ignite the burner.
6. Adjust flame setting to “LOW” or “MEDIUM” or “HIGH”, if desired.
7. Caution: Do not leave the side burner unattended while cooking.
8. To shutdown the burner, push and turn the burner knob clockwise to “OFF”.
9. For complete shutdown, turn “off” the gas at source.
CLEANING & MAINTENANCE
STAINLESS STEEL
The Twin Eagles Side Burner is made of all welded stainless steel. It is non-rusting and non-
magnetic. Never clean the stainless steel when it is hot. After the initial use, certain areas of the side
burner may discolor. This is a normal discoloration caused by the intense heat given off by the burners.
Specks of grease can gather on the surface of the stainless steel and get baked-on. These can be
removed by using a mild abrasive pad (like Scotch Brite) with a stainless steel cleaner. Use the mildest
cleaner and always scrub in the direction of the grain.
Do not use steel wool to clean the side burner. Do not use abrasives on the polished highlights.
Be extra careful when cleaning around the highlights. Metal polisher or mild chrome cleaner can be used
to bring back the luster on highlights. To touch-up minor scratches in the stainless steel, sand the
affected surface very lightly, with 100-dry grit emery sandpaper in the direction of the grain.

7

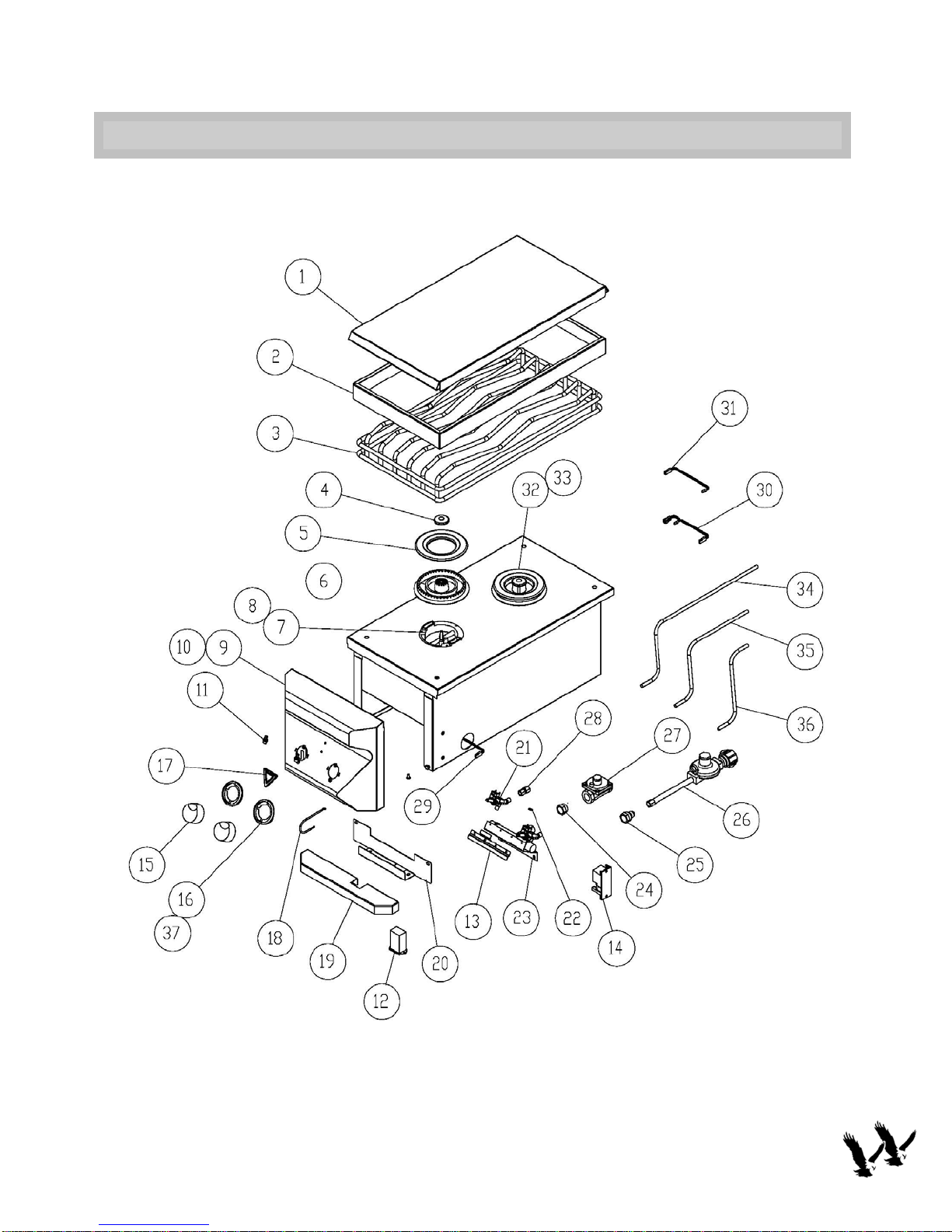

EXPLODED VIEW
*TESB132-B SHOWN*

8
SERVICE PARTS LIST
Number Part Number Description TESB131-B TESB132-B
1 S20256 Top Cover 1 1
2 S20255Y Wind Guard 1 1
3 S13806 S-grates 1 1
4 S13309 Enameled Cap 1 2
5 S13308 Enameled Ring 1 2
6 S13307 Aluminum Bowl 1 2
7 S13306 Base with Electrode, LP 1 2
8 S13320 Base with Electrode, NG 1 2
9 S21790-1Y Front Panel, 1-Burner 1
10 S21790-2Y Front Panel, 2-Burner 1
11 S16192Y LED Holder 1 2
12 S16272 Battery Pack 1 1
13 S21789 Manifold Bracket 1 1
14 S16323 Ignition Module, 2 PT 1 1
15 S13154 Chrome Knob 1 2
16 S13128P Chrome Knob Bezel 1 2
17 S13112 Twin Eagles Logo 1 1
18 S16108 Ground Wire
19 S21792 Drip Pan Handle 1 1
20 S21791 Drip Pan Handle Bracket 1 1
21 S15101YSB Gas Valve with Microswitch 1 2
22 S12606 1/8 Pipe Plug 2 1
23 S12703 Side Burner Manifold 1 1
24 S12610 Brass Bushing Reducer 1 1
25 S12602 Brass Coupling, 3/8 Flare x ½ FIP 1 1
26 S15302 Regulator, LP 1 1
27 S15303 Regulator, NG 1 1
28 S12609 Nut and Sleeve, 1/8 FIP x 5/16 CC 1 2
29 S16260 72” extension, built-in 1 1
30 S16257 Wire harness, blue LED, middle 1
31 S16256 Wire harness, blue LED, end 1 1
32 S13305 Burner LP (Complete) 1 2
33 S13319 Burner, NG (Complete) 1 2
34 S12414 Rear Gas Tubing 1
35 S12415 Single Burner Gas Tubing 1
36 S12413 Front Gas Tubing 1
37 S14121 Bezel Screws 2 4
NON-SHOWN PARTS
S13313 Center Orifice,# 82, NG 1 2
S13314 Outside Orifice, #175, NG 1 2
S13317 Center Orifice, #50, LP 1 2
S13318 Outside Orifice, #100, LP 1 2

9
TWIN EAGLES WARRANTY
ONE-YEAR FULL WARRANTY: Twin Eagles warrants the outdoor Side Burners and all of their component
parts, to be free from defects in materials and workmanship under normal
residential use for a period of one year from the original date of purchase.
Twin Eagles will repair or replace, at its option, any part, which fail or is
found to be defective during the warranty period, at no cost to the original
purchaser. Warranty service must be performed by a Twin Eagles authorized
representative during normal business hours.
WARRANTY LIMITATIONS & EXCLUSIONS
This warranty shall apply only to the products purchased and located in the continental United States and Canada.
The warranty coverage begins on the original date of purchase and proof of date of purchase is required. In order to
activate the warranty, we require that you send in the attached warranty registration card or register on-line at our
website, www.twineaglesbbq.com. This warranty applies only to the original owner and may not be transferred.
This warranty does not apply to damages resulting from negligence, alteration, misuse, abuse, accident, natural
disaster, loss of electrical power to the product for any reason, improper installation or improper operation,
unauthorized adjustments or calibrations, dings, dents, scratches, or damages due to harsh cleaning chemicals. This
warranty does not apply to rust, corrosion, discoloration, surface scratches, weather and atmospheric related staining
and oxidation which are normal conditions and to be expected with any outdoor products unless the affected
component becomes inoperable. This warranty does not apply to commercial use, or to products with altered or
removed serial numbers. Twin Eagles shall not be liable for incidental, consequential, special or contingent
damages resulting from its breach of this written warranty or any implied warranty.
WARRANTY SERVICE & REPLACEMENT PARTS: Call your authorized selling dealer or call Twin Eagles
directly at 800-789-2206. Be prepared to furnish the following information: Purchaser’s name, model and serial
number of the appliance, date of purchase and the accurate description of the problem. Twin Eagles will not pay for
service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing
normal care and maintenance, providing proof of purchase upon request and making the appliance accessible for
service. In the event of any warranty replacement, all removal, replacement, installation and shipping costs are the
responsibility of the grill owner.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusions of or limitations on
consequential damages. This warranty gives you specific legal rights and you may have other rights, which vary
from state to state.

10
Warranty Registration
Customer Name
Model #
Address
Serial #
City
Date Purchased
Zip
Dealer’s Name
Phone #
Dealer’s Address
e-mail:
This Warranty Registration card must be returned within thirty days of purchased to properly activate
your warranty. This information is for our internal use only.
Cut
Here
Or you may register online at http://www.twineaglesbbq.com/contactus.shtml
HOW TO OBTAIN SERVICE
For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789-
2206 or [phone] or fax [phone]
Mailing address:
Twin Eagles, Inc.
13231 East 166th Street
Cerritos, CA 90703
Visit us at www.twineaglesbbq.com
Please provide:
Model number
Serial Number
Date of installation
A description of the problem

11
Customer Service
ATTN: Warranty Department
13231 East 166th Street
Cerritos, CA 90703
Fax no. [phone]
Place
Postage
Here
Cut
Here
