TYAN TRINITY I7205 User manual

1
http://www.TYAN.com
Trinity i7205 /// S2662
Revision 1.04
Copyright © TYAN Computer Corporation, 2001-2002. All rights reserved. No part of this manual
may be reproduced or translated without prior written consent from TYAN Computer Corp.
All registered and unregiste red trademarks and company names contained in this manual are
property of their respective owners including, but not limited to the following.
TYAN, Trinity i7205 are trademarks of TYAN Computer Corporation.
Intel, Pentium, and combinations thereof are trademarks of Intel Corporation.
Microsoft and Windows are trademarks of Microsoft Corporation.
Phoenix BIOS is a trademark of Phoenix Technologies.
Winbond is a trademark of Winbond Electronics Corporation.
LSI is a trademark of LSI Logic Corporation.
AnalogDevice and ADMare trademarks of Analog Devices Inc.
Sony/Philips Digital Interface (SPDIF) is a trademark of Sony Corporation and Philips Electronics.
PS/2 is a trademark of International Business Machines Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
Information contained in this document is furnished by TYAN Computer Corporation and has been
reviewed for accuracy and reliability prior to printing. TYAN assumes no liability and disclaims any
express or implied warranty relating to sale and/or use of TYAN products; we also assume no
including liability or warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications at any time without
notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential
damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of
information contained in this document.

2
http://www.TYAN.com
Table of Contents –
Before you begin…
Chapter 1: Introduction
1.1 Congratulations
1.2 Hardware Specifications
Chapter 2: Board Installation
2.0 Board Image
2.1 Board Parts, Jumpers and Connectors
2.2 Jumper and Connector Settings
2.3 Enable/Disable On board LAN Jumper
2.4 Fan Connectors
2.5 AUX Audio and CD Audio Connector
2.6 ACPI Wake-up Jumper for USB Port A ~ B
2.7 External SCSI LED Input Jumper
2.8 Clear CMOS Jumper
2.9 ACPI Wake-up Jumper for USB Port C ~ F
2.10 Front Panel Audio Connector
2.11 ChassisIntrusion Connector
2.12 Front Panel USB Header-1
2.13 Front Panel USB Header-2
2.14 OEM Reserved Connectors and Jumpers
2.15 Front Panel Connector
2.16 Mounting the Motherboard
2.17 Installing the Memory

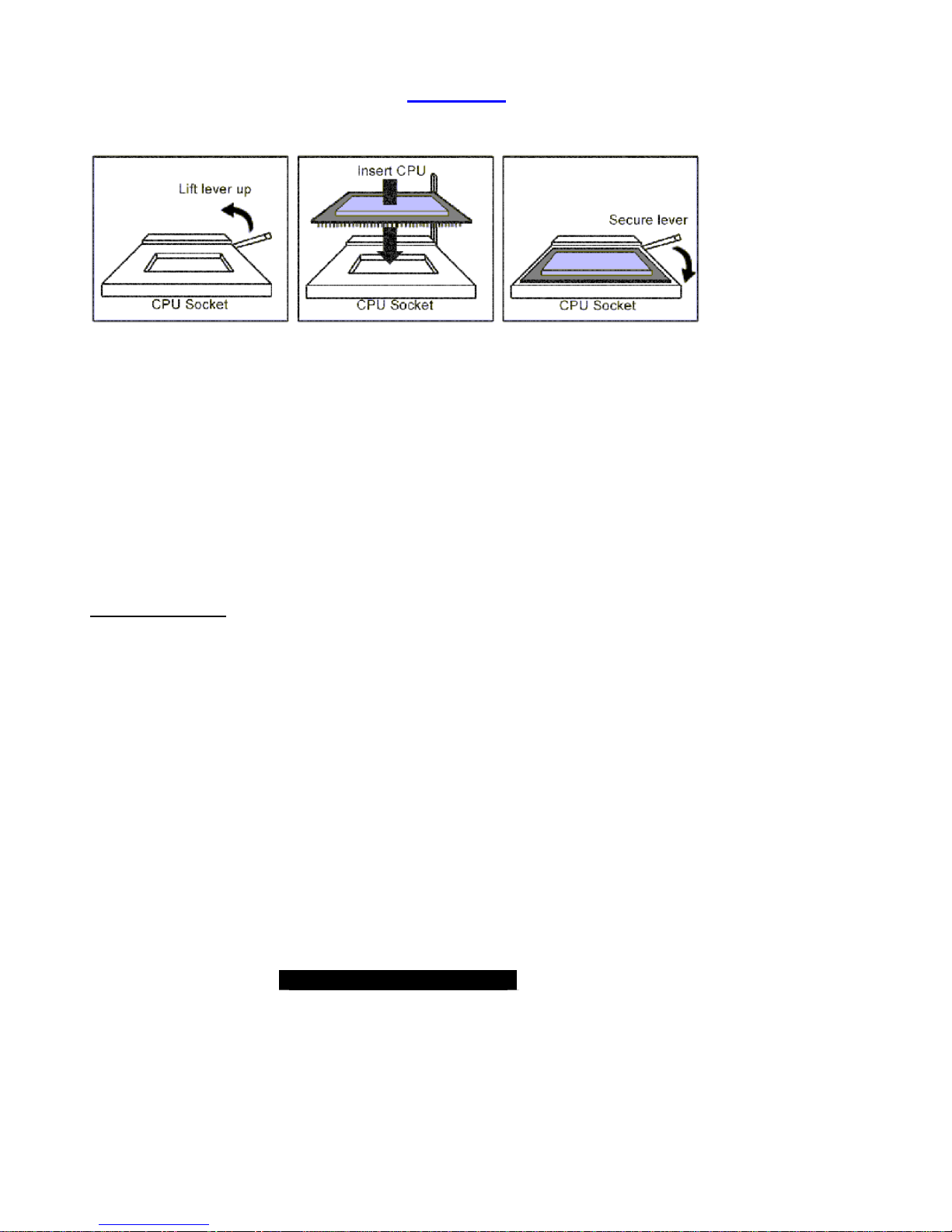

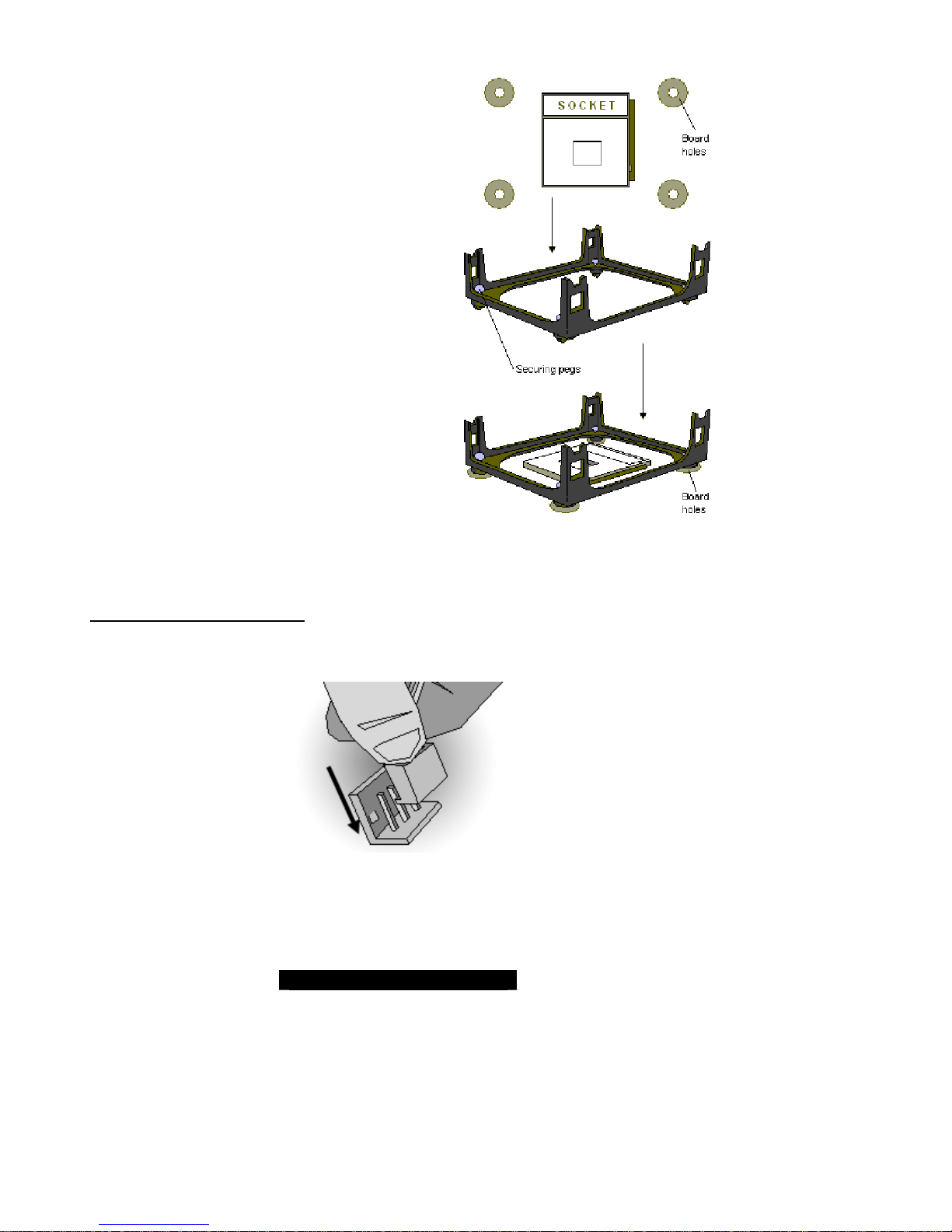

2.18 Installing the Processor and Heatsink
2.19 Installing Add-In Cards
2.20 Connecting External Devices
2.21 Installing the Power Supply
2.22 Attaching IDE and Floppy Drive Cables
2.23 Finishing Up
Chapter 3:BIOS
3.0 BIOS Setup Utility
3.1 BIOS Menu Bar
3.2 BIOS Legend Bar
3.3 BIOS Main Menu
3.4 BIOS Advanced Menu
3.5 BIOS Security Menu
3.6 BIOS Power Menu
3.7 BIOS Boot Menu
3.8 BIOS Exit Menu
Chapter 4: Diagnostics
4.1 Beep Codes
4.2 Flash Utility
Appendix I: Glossary
Technical Support
………………………………….Page 3
………………………………….Page 4
………………………………….Page 4
………………………………….Page 4
………………………………….Page 6
………………………………….Page 7
………………………………….Page 8
………………………………….Page 9
………………………………..Page 10
………………………………..Page 10
………………………………..Page 10
………………………………..Page 11
………………………………..Page 11
………………………………..Page 11
………………………………..Page 12
………………………………..Page 12
………………………………..Page 12
………………………………..Page 13
………………………………..Page 13
………………………………..Page 13
………………………………..Page 14
………………………………..Page 14
………………………………..Page 15
………………………………..Page 18
………………………………..Page 20
………………………………..Page 21
………………………………..Page 22
………………………………..Page 23
………………………………..Page 24
………………………………..Page 25
………………………………..Page 25
………………………………..Page 26
………………………………..Page 26
………………………………..Page 27
………………………………..Page 28
………………………………..Page 31
………………………………..Page 31
………………………………..Page 32
………………………………..Page 33
………………………………..Page 34
………………………………..Page 34
………………………………..Page 34
………………………………..Page 35
………………………………..Page 39

3
http://www.TYAN.com
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x Trinity i7205 S2662 motherboard
1x 34-Pin floppy drive cable
1x LVD SCSI cable (if option SCSI included)
1x Ultra-DMA-100/66/33IDE cable
1x Trinity i7205 S2662 user’s manual
1x TYAN driver CD
1x SCSI driver diskette (if optional SCSI included)
1x I/O shield
1x CPU retention
If any of these items are missing, please contact your vendor/dealer for replacement before
continuing with the installation process.

4
http://www.TYAN.com
Chapter 1: Introduction
1.1–Congratulations!
You are now the owner of one of the most flexible mPGA478-based motherboards available:
Trinity i7205 S2662. Utilizing the latest chipset technology for Pentium 4 workstation-class
computing, the S2662 strengths are its AGP 8X graphics and USB 2.0/1.1 capabilities.
RemembertovisitTyan’s website at http://www.tyan.com. There you can find information on all of
Tyan’sproducts with FAQs, a complete distributors list, and BIOS setting explanations.
1.2–Hardware Specifications
Processor
• mPGA478 ZIF socket
• Supports Intel Pentium 4 processor
• Supports Intel Celeron mPGA478 processor
• Supports 400/533MHz Front-Side Bus
•Supports Hyper-Threading
•Onboard 3-phase switching VRM 9.0
Chipset
• Intel E7205 chipset
• MCH + ICH4 + FWH
• Winbond W83627HF super I/O chip
• Analog Device ADM1027 system monitor chip
Memory
•Four184-pin 2.5-VoltDDR DIMM sockets
•Supports dual/single memory channels
• Supports up to 4GB unbuffered DDR memory
•Supports ECC/non-ECC DDR200/266 DIMM
ExpansionSlots
• One AGP 8X/4X Pro50 slot
• Five 32-bit 33MHz (5V) PCI slots
•Totalofsixusableslots
Integrated I/O
• Six USB 2.0 and 1.1 compatible ports
(2 rear connectors and 4 front panel headers
viaan optional USB cable)
• Supports one floppy drive with 3 mode
• Two 9-pin serial connectors
• One 25-pin ECP/EPP/SPP parallel connector
•PS/2 mouse and keyboard connectors
IDE
•ICH4 provides two PCI bus master channels
for up to four Enhanced IDE devices
• Supports for UDMA 33/66/100 IDE drives and
ATAPIcompliant devices
Integrated LAN
•Intel 82540EM Gigabit Ethernet 10/100/1000Mbit
(Manufacture loading option with Intel
82551QM10/100Mbit Ethernet)
• PME wakeup support
Integrated SCSI (ManufactureLoadingOption)
• LSI 53C1000R SCSI controller
-Ultra 160 single channel SCSI chip
Integrated Audio
• Intel ICH4 AC’97 compliant audio link
• AD1981A CODEC
•Line-in, Line-out, Mic-in rear jacks
• SPDIF digital output with rear RCA connector
•Frontpanelaudioheader
• One 4-pinCD-ROM audio input header
• One 4-pin Auxiliaryaudio header
System Management
• Analog Device ADM1027 at I2C serial bus
•Total four 3-pin fan headers
•Three fan headers with tachometer monitoring
•One 3-pinchassisintrusionheader
•Temperature, voltage and fan monitoring
General Power Management
• ACPI 2.0b compliant
• PCI Bus Power Management 1.1 compliant
•Memorizepower-state before AC power cut &
restoreupon boot
BIOS
•Phoenix BIOS 6.0 on 4/8Mbit Flash ROM
•SupportsHyper-Threadingtechnology
• SupportsBIOS Boot Specification v1.1 (BBS)
• Supports ACPI 2.0 S1, S3, S4 and S5
•Supports SMBIOSv2.3
• Autoconfiguration of IDE hard disk types

5
http://www.TYAN.com
Power Management
• ACPI
-Supports ACPI S1, S3, S4 and S5 modes
-S1 is enabled by default, it can be
disabled via BIOS setting in which case
the suspend mode will be S3 instead of
S1.
•Wake-Up from S1 (stand by)
-PCI_PME#, RI#
-PS/2 keyboard, PS/2 mouse
-USBactivity/connect/disconnect
-RTC
-External Modem Ring Indicator (#RI)
-Power Button
•Wake-Up from S3 (suspend to RAM)
-PCI_PME#
-PS/2 keyboard, PS/2 mouse
-USBactivity/connect/disconnect (optional)
-RTC
-Power Button
•Power-On from S4 (suspend to disk) and S5
-RTC
-Power Button
Form Factor
•Standard ATX footprint (12” x 9.6”)
•Six-layer design
• ATX12V (20pin+4pin) power connectors
•Stacked parallel (one), serial (two) connectors
•Stacked USB (two) connectors
•Stacked PS/2 keyboard and mouse connectors
•Stacked audioLine-in, Line-out, and Mic-in
jacks (Amplifier integerated)
• One SPDIF RCA connector (output)
• OneRJ-45 10/100/1000 LAN connector with
LEDs
Regulatory
• FCC Class B (Declaration of Conformity)
•European Community CE (Declaration o f
Conformity)

6
http://www.TYAN.com
Chapter 2: Board Installation
Installation
You are now ready to install your motherboard. The mounting hole pattern of the S2662 matches
the ATX specifications. Before continuing with installation, confirm that your chassis supports a
standard ATX motherboard.
How to install our products right…. the first time!
The first thing you should do is read this user’s manual. It contains important information that will
make configuration and setup much easier. Here are some prec autions you should take when
installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the antistatic bag.
Unplug the power from your computer power supply and then touch a safely grounded
object to release static charge (i.e. power supply case). For the safest conditions, Tyan
recommends wearing a static safety wrist strap.
(2) Hold the motherboard by its edges. Do not touch the bottom of the board or flex the
board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,
and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the
board was shipped in.
(5) Inspectthe board for damage.
The following pages include details on how to install your motherboard into your chassis, as well
as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

7
http://www.tyan.com

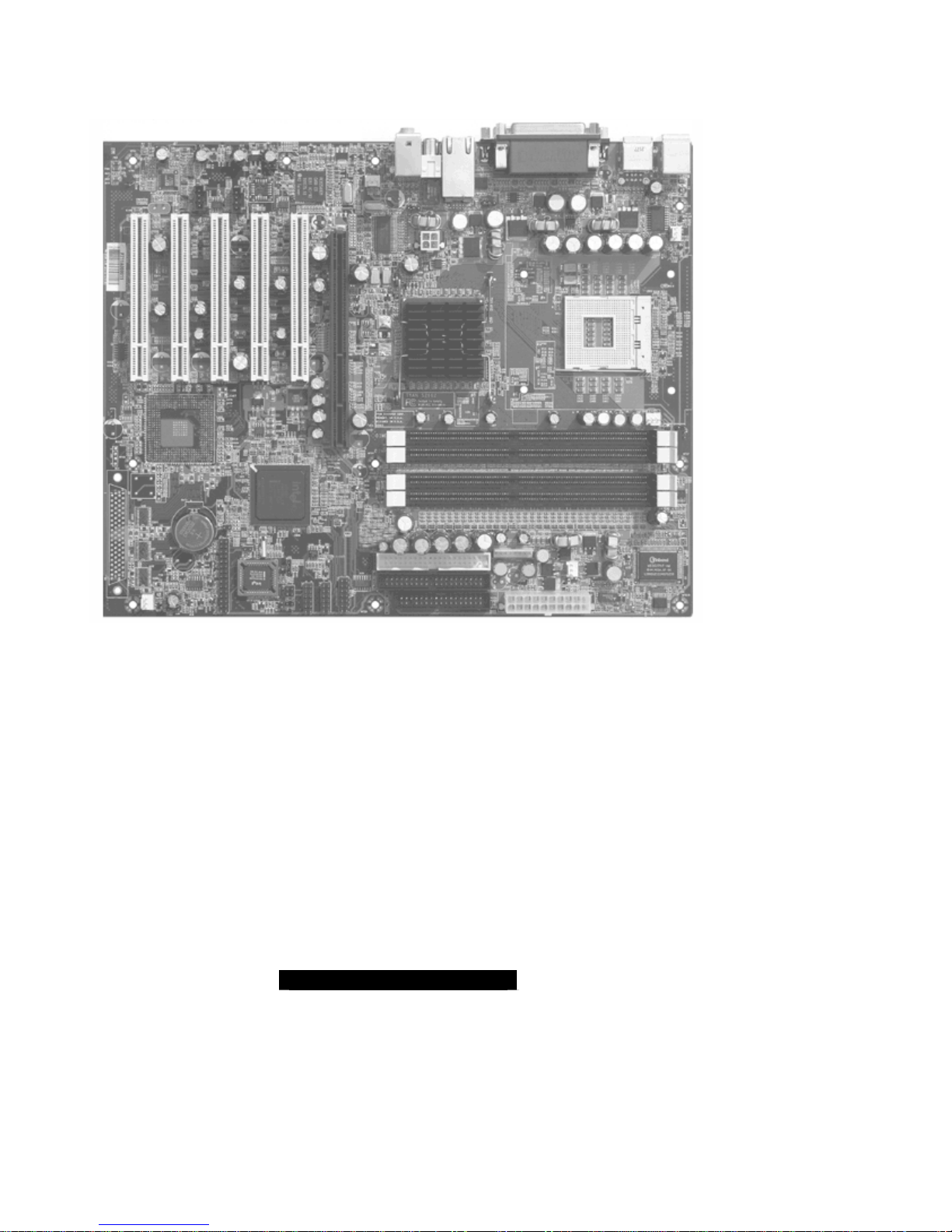

2.0–Board Image
The following is an image of the S2662.
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may or may not look exactly like the above picture.
The following page includes details on the vital components of this motherboard.

8
http://www.tyan.com
2.1–Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
Jumper Legend
Jumper OFF without jumper cover
Jumper ON with jumper cover
To indicate where the location of pin-1
To indicate where the location of pin-1

9
http://www.tyan.com
2.2–Jumper and Connector Settings
Jumper /
Connector Function Settings
J8
Enable/Disable Onboard Intel
82540EM GbE NIC Open: Enable (Default) Close: Disable
J10 Fan Connector Withtachometermonitoring
J11 AUX Audio Connector
J12 CD Audio Input Connector
J13 ACPI Wake-up Jumper
(USBPort-A and USB Port-B)
ClosePin-1 and Pin-2
Rear panel USB devices’ ACPI S1 wake up
ClosePin-2 and Pin-3(Default)
Rear panel USB devices’ ACPI S1/S3/S4 wake up
J16 Fan Connector Withtachometermonitoring
J21 Fan Connector Withtachometermonitoring
J22 Optional SCSI LED Input jumper
J28 ClearCMOS Jumper Open: Normal (Default)
Close: Clear CMOS Mode
J37 Fan Connector Withtachometermonitoring
J39 ACPI Wake-up Jumper (USBPort-C,USBPort-D, USB
Port-EandUSB Port-F)
ClosePin-1 and Pin-2
Front panel USB devices’ ACPI S1 wake up
ClosePin-2 and Pin-3 (Default)
Front panel USB devic es’ ACPI S1/S3/S4 wake up
J71
Front Panel Audio Connector
J72 Chassis Intrusion Connector
J73 Front Panel USB Header-1
J74 Front Panel Connector
J79 Front Panel USB Header-2

10
http://www.tyan.com
2.3–Enable/Disable On board LAN Jumper (J8)
OPEN (Default)
Toenable onboardLAN
CLOSE
To disable onboard LAN
2.4–Fan Connectors (J10, J16, J21 and J37)
Use these headers to connect chassis and
processor cooling fans to your motherboard.
Cooling fans can keep the system stable and
reliable for its product life.
Max 850mA fans supported
2.5–AUX Audio connector (J11) and CD Audio connector (J12)
J11 (AUX Audio connector)
Connects to internal audio sources such as TV
tuner, MPEG, or other similar cards
J12 (CD Audio connector)
Connects to a CD-ROM drive via an optional
CD audio cable

11
http://www.tyan.com
2.6–ACPI Wake-up Jumper for USB Port-A and Port-B (J13)
pin-1
CLOSE Pins 1 and 2
Rear panel USB devices’ ACPI S1 wake up
pin-1
CLOSE Pins 2 and 3 (Default)
Rear panel USB devices’ ACPI S1/S3/S4
wakeup
Total current of all USB devices should not exceed the
standby current rating of the power supply
2.7–External SCSI LED Input Jumper (J22) (ifoptionalSCSI included)
Pin-1
External SCSI LED Input
Pin-2
GND
2.8–Clear CMOS Jumper (J28)
Clear Default
You can reset the CMOS settings by using this
jumperwhenyou
§Have forgotten your system/setup password
§Need to clear system BIOS setting
-Power off system and disconnect power
supply from AC source
-Use jumper to close JP28 for several
secondstoClearCMOS
-Takeoff jumper from JP28 (defaultsetting)
-Reconnect power supply to AC source
-Power on system
-Use“F2”key togo intosystem BIOSsetup

12
http://www.tyan.com
2.9–ACPI Wake-up Jumper for USB Port-C, Port-D, Port-E and Port-F(J39)
pin-3
CLOSE Pins 1 and 2
Front panel USB devices’ ACPI S1 wake up
pin-3
CLOSE Pins 2 and 3 (Default)
Front panel USB devices’ ACPI S1/S3/S4
wake up
Total current of all USB devices should not exceed the
standby current rating of the power supply
2.10 –Front Panel Audio Connector (J71)
Signal
Description Pin #Pin #Signal Description
MIC input 12Analog GND
MIC power 34Analog VCC
Right line
output 56Right line return
NC 78Key
Left line
output 910 Left line return
2.11 –Chassis Intrusion Connector (J72)
Pin-1
Intrusioncable detection (low asserted)
Pin-2
Intrusion detection (low asserted)
Pin-3
GND

13
http://www.tyan.com
2.12 –Front Panel USB Header 1 (J73)
Signal
Description Pin #Pin #Signal Description
Channel C
VCC 12Channel D VCC
Channel C
Datanegative 34Channel D Datanegative
Channel C
Data positive 56Channel D Data positive
Channel C
GND 78Channel D GND
Key 910 Not
connected
2.13 –Front Panel USB Header 2 (J79)
Signal
Description Pin #Pin #Signal Description
Channel E
VCC 12Channel F VCC
Channel E
Datanegative 34Channel F Datanegative
Channel E
Data positive 56Channel F Data positive
Channel E
GND 78Channel F GND
Key 910 Not
connected
2.14 –OEM Reserved Connectors andJumpers (J31 andJ78)
These connectors and jumpers are reserved for OEM use only.

14
http://www.tyan.com
2.15 –Front Panel Connector (J74)
Signal Description Pin # Pin# Signal Description
SleepLED “ —“ 12Speaker “—“
SleepLED “ +“ 34Key
Key 56GND
PowerLED “+“ 78Speaker “+“
PowerLED “+“ 910 Key
GND 11 12 Key
MessageLED “+“ 13 14 Key
MessageLED “—“ 15 16 Not connected
Key 17 18 SCSI LED Input
HD LED “+“ 19 20 SCSI LED Input
HDLED “—“ 21 22 Not connected
GND 23 24 Key
Power Button 25 26 GND
Sleep Button 27 28 GND
ResetButton 29 30 GND
2.16 –Mounting the Motherboard
Before installing your motherboard, make sure your chassis has the necessary motherboard
support studs installed. These studs are usually manufacturer pre-installed, metal and are gold in
color. If you are unsure of stud placement, lay the motherboard inside the chassis and align the
studs.
NOTE YOU MUST make sure that there are no studs where there are no screw holes.

15
http://www.tyan.com
2.17 –Installing the Memory
Before attempting to install any memory, make sure that the memory you have is compatible with
the motherboard as well as the processor. For example, DDR200 and DDR266 memory
modules can be used for FSB=400MHz Intel Pentium 4 processor but only DDR266 memory
modules can be used for FSB=533MHz Intel Pentium 4 processor. For important memory
information, please check Tyan’s web site at: www.tyan.com for recommendations.
DDR200 (PC1600) DDR266(PC2100)
Pentium 4 mPGA478 FSB=400MHz Yes Yes
Pentium 4 mPGA478 FSB=533MHz No Yes
Celeron mPGA478 FSB=400MHz Yes Yes
Here are a few key points to note before installing memory modules onto your board.
•All installed memory will be automatically detected-no need to set any jumpers
•Supports128MB, 256MB, 512MB and 1GBunbuffered DDR200/266 modules
•Supports up to 4GB of memory
DDRUnbuffered Non-ECC
v supported
DDR Unbuffered ECC
v supported
DDR Registered ECC
X unsupported

16
http://www.tyan.com
Memory
Slot Memory Channel Memory Bandwidth
One piece DIMM1 or DIMM3 Single 64-bit
Twopieces DIMM1+DIMM2 or DIMM3+DIMM4 Dual 128-bit
Four pieces DIMM1+DIMM2+DIMM3+DIMM4 Dual 128-bit
Single Memory Channel
•Atleastone unbuffered DDR ECC/non-ECC
module must be installed
•Memorymodules must be installed inbank -A
DIMM1 or
DIMM3
•Single channel64-bit memory bandwidth
•For memory performance, single memory
channel solution is not recommended
Dual Memory Channel
•At least twounbuffered DDR ECC/non-ECC
modules must be installed
•Memory modules must be installed in pairs
DIMM1+DIMM2 or
DIMM3+DIMM4 or
DIMM1+DIMM2+DIMM3+DIMM4
•Dual channel128-bit memory bandwidth

17
http://www.tyan.com
Memory InstallationProcedure
When installing memory modules, make sure the modules align properly with the memory socket.
There should be a key (small indent) on your memory module that fits according to the key in the
memory socket. DDR modules and sockets have only one key, which is slightly off-center of the
module/socket.The method of installing memory modules is detailed in the following diagrams.
Once the memory modules are firmly seated in the socket, two clamps on either side will close
and secure the module into the socket. Sometimes you may need to close the clamps manually.
To remove the memory module, simply push the clamps outwards until the memory module pops
up. Then remove the module.
TIP: When installing memory, a module may require a considerabl e amount of force to seat
properly, although this is very rare. To avoid bending and damaging your motherboard, place it on
itsanti-static bag and onto a flat surface, then proceed with memory installation.
For important memory information, please check Tyan’s web site at www.tyan.com for
recommendations.
NOTE YOU MUST unplug the power supply before performing system hardware
changes in order to avoid damaging the board or expansion device.

18
http://www.tyan.com
2.18 –Installing theProcessor and Heatsink
The S2662 supports the mPGA478 Pentium 4 processors technologies from Intel. For important
CPU information, please check Tyan’s web site at: www.tyan.com .
The following diagrams will detail how toinstallyour processor:
The processors you choose to use may not look exactly like the one pictured above, nor will the
socket look exactly the same. The diagram is a visual guide to help you install processors.
1. Lift the lever on the socket as far back as possible to the socket.
2. Align the processor with the socket. There are keys underneath the processor just like
on memory modules to ensure that they insert the correct way.
3. Seat the processor firmly into the socket by gently pressing down until the processor
sitsflush with the socket.
4. Placethe socket lever back downuntil it snapsinto place.
5. Yourprocessor isinstalled.
Take care when installing the processor as it has fragile connector pins that can bend and
breakif inserted improperly.
Heatsink Installation
After you are done installing the processor, you should proceed to installing the heatsink. The
heatsink will ensure that the processor does not overheat, and will continue to operate at
maximum performance. An overheated processor is also dangerous to the long-term reliability of
themotherboard.

19
http://www.tyan.com
The following diagram will illustrate how to install the most common heatsinks:
Install the mounting bracket onto the motherboard by
aligning the bracket with the four holes around the
processor socket. Once the bracket is aligned, press
down on the four white pegs on the bracket until they
insert securely, locking the bracket onto the
motherboard. Then proceed to installing the heatsink.
Instructions on how to install heatsinks should be
provided with the heatsink itself.
First, use thermal compound (also called heatsink
compound or thermal grease) and apply a small amount
on to the processor’s core –the small shiny square in
the center of the processor.
Then, at an angle, clip one side of the heatsink onto the
socket and then lay the heatsink flat onto the processor.
Then clip the other end of the heatsink down by using a
flathead screwdriver.
Some heatsinks have a small clip on the inside of one of
the clips which you can insert a small flathead screw
driver into to secure the heatsink.
Because one side of the socket is raised (and usually
has “SOCKET” imprinted into it) heatsinks have an
indent on one side to secure flush with the raised side of
thesocket.
Be sure to carefully observe which side your heatsink is
seated before securing it down to avoid damaging the
processor,the heatsink or both.
Finishing Installing the Heatsink
After you finish installing the heatsink onto the processor and socket, attach the end wire of the
fan (which should already be attached to the heatsink) to the motherboard. The following diagram
illustrates how to connect fans onto the motherboard.
After you have finished installing all the fans you can connect your drives (hard drives, CD-ROM
drives, etc.) to your motherboard.

20
http://www.tyan.com
2.19 –Installing Add-In Cards
Before installing add-in cards, it is helpful to know if they are fully compatible with your
motherboard. For this reason, we have provided the diagrams below showing the most common
slots that may appear on your motherboard. Not all of the slots shown will necessarily appear on
your motherboard. However, there will be combinations of what you see here.
Find the appropriate slot for your add-in card and insert the card firmly. Do not force any add-in
cards (or anything else) into any slots if they will not seat in place.
NOTE YOU MUST unplug the power supply before performing system hardware
changes in order to avoid damaging the board or expansion device.
Before Continuing onto section Connecting External Devices, make sure everything is properly
connected. Things like jumpers and case wiring are the most common causes of troubleshooting
frustrations, both for the end-userandforanycompanydoingtechnicalsupport.
