Installation Manual
v3.5
3G3070-CF
Fire Alarm Communicator for central station service fire alarm - commercial
RF communicator 3G (HSPA) network signaling devices
firealarmresources.com
Table of Contents
Introduction ....................................................................................... 1
Features ............................................................................................. 1
Technical Specifications ................................................................... 1
Description ........................................................................................ 2
Approvals Information ...................................................................... 2
Identification of Parts ........................................................................ 3
Installation of GS3070-CF ................................................................. 4
3G3070-CF Connections Description .............................................. 5
Status LEDs ....................................................................................... 6
Operating Modes ............................................................................... 7
Inputs Activation Mode ..................................................................... 8
Activating the Outputs ...................................................................... 8
Contact ID Events Description ......................................................... 8
Event Codes ...................................................................................... 8
Swinger Shutdown ............................................................................ 9
Hardware Default ............................................................................... 9
Connect 24 Remote Programming .................................................. 9
General Information........................................................................... 9
Troubleshooting Guide ................................................................... 10
Troubleshooting Guide ................................................................... 11
Troubleshooting Guide ................................................................... 12
APPENDIX -WIRING DIAGRAMS ............................................ 13
.................................................................................................. 18
firealarmresources.com
1
Introduction
The 3G3070-CF is a wireless communicator for UL commercial fire and/or burglary applications. The
3G3070-CF can send status change events information over the 3G (HSPA) or 2G (GPRS) Network from
the Alarm Control Panel at the protected premises to a supervising station. The device is compatible with
UL listed alarm receiver Models SG-System IV, SG-SYSTEM III (using SG-DRL3-IP line card), SG-
SYSTEM II and SG-SYSTEM I.
This product is UL listed under requirements of UL864 9th Edition and UL1610 Standards as a Fire Alarm
Communicator for central station service fire alarm – commercial and it can be installed in certified
installations in accordance with the requirements of UL827 Standard and NFPA72 2002 (Section 8.5.4
Other Transmission Technologies), NFPA72 2007 (Section 8.6.4 Other Transmission Technologies) or
NFPA72 2010 Code (Section 26.6.3.1).
Features
• Compatible with listed alarm control panels that have an integrated DACT and support a 4 or 10-digit
Contact ID Communication Format
• Complete solution CF Kit includes tamper protection output, listed power supply and battery standby
capability for 24h
• Telephone line overvoltage protection and monitoring with automatic switch over to the 3G (HSPA) or
2G (GPRS) network communication path when a phone line trouble condition exists
• 3G (HSPA) or 2G (GPRS) network connection and signal strength indicator
• 4 Input lines and 4 Open collector outputs available for interfacing with the alarm control panel
• Internet/Intranet IP communication over the 3G (HSPA) or 2G (GPRS) network.
Technical Specifications
Input Voltage: ..................................................................................................... 120V/60HZ/0.3A
Standby Voltage: ............................................................................................................. 12V/7Ah
Standby Time: .......................................................................... 24h (NSC) plus 5 minutes alarm
Standby Battery: ...................................... Sealed, rechargeable type, replace every 3-5 years
Low Battery Trouble Indication Threshold: .................................................................... 11.5VDC
Battery Deep Discharge Protection (cut-off) ................................................................... 9.5VDC
Recharging Current: ............................................................................................. 700mA (max.)
Inputs: .................................................................................... 12V/1mA, 4 available, supervised
Outputs: ............................................... 12V/50mA, 4 open-collector available, not supervised
Loop Resistance:1k ohm (max. loop resistance between devices connected in series on T1/R1)
Operating Frequency: .................................................. 850/1900MHz (Dual Band GSM Radio)
Antenna Gain: ......................... 1.5dB (product shall be used only with the supplied antenna)
Operating Temperature: ....................................................................... 0ºC - 49ºC (32ºF - 120ºF)
Humidity: ......................................................................... 93%RH maximum (non-condensing)
Metal Enclosure: red, with hardwired transformer and high voltage connection box included
Dimensions: ........................................................ 290mm x 254mm x 75mm (11-1/2" x 10" x 3")
Weight: ................................................................... 5.8Kg (12.8 lbs) (including standby battery)
This equipment, 3G3070-CF, is fixed and shall be installed by Service Persons only (Service Person is defined as a
person having the appropriate technical training and experience necessary to be aware of hazards to which that
person may be exposed in performing a task and of measures to minimize the risks to that person or other persons)
according to the local rules and regulations. Itshall be installed and used within an environment that provides the
pollution degree max 2, over voltages category II, in non-hazardous, indoor locations only. This manual shall be
used with the Installation Manual of the alarm control panel. All instructions specified within that manual must be
observed. WARNING: The metal shell of the RS232 connector is not earthed! Before connecting to this port,
checkthemetalshellforHAZARDOUS VOLTAGES!
firealarmresources.com
2
Description
This 3G3070-CF manages transmissions to a central station and can simulate the landline in the event
of trouble (e.g., landline down) or even substitute the landline completely in areas where the 3G or 2G
service is provided and a landline is not available.
The 3G3070-CF has the capability of communicating alarm signals via the GPRS data network. This
capability provides a fast, reliable path to central stations equipped with a Sur-Gard System I / II / III /
IV receiver. By connecting a 3G3070-CF to a control panel's standard PSTN interface, telephone-based
Contact ID signals are decoded and seamlessly routed through the 3G or 2G network to any of the
compatible receiver options.
The performance of the 3G3070-CF depends greatly on wireless Network coverage; therefore, it
should not be mounted without first performing placement tests to determine the best location
for reception (minimum one green LED is ON). Optional antenna kits are available.
The 3G3070-CF requires enrollment with CONNECT 24 to operate. Dealer application forms
and additional information on the CONNECT 24 Voice Response Unit (VRU) and web user-
interface can be found at www.connect24.com or at the following telephone numbers:
USA 1-888-251-7458USA 1-888-251-7458
USA 1-888-251-7458USA 1-888-251-7458
USA 1-888-251-7458 CANADA 1-888-955-5583CANADA 1-888-955-5583
CANADA 1-888-955-5583CANADA 1-888-955-5583
CANADA 1-888-955-5583
Approvals Information
For Commercial Fire Monitoring Installations:For Commercial Fire Monitoring Installations:
For Commercial Fire Monitoring Installations:For Commercial Fire Monitoring Installations:
For Commercial Fire Monitoring Installations:
The 3G3070-CF can be used in the following configurations:
1. Standalone communicator, single communication technology - 5 minute supervision (Heartbeat
sent to supervising station every 97 seconds).
2. Back-up communicator line for a DACT (dual communication technology, no heartbeat sent).
• Alarm signals must be sent first over the primary communication path (DACT) and then if this is
known to have failed, over the secondary communication paths (Other transmission technologies)
- Primary: Compatible Listed control unit's land line to central station (primary).
- Secondary: 3G3070-CF transmission through wireless network to central station.
• Every 24 hours, a check-in signal must be sent to the central station over the primary dialer. The
3G3070-CF sends a heartbeat test transmission to the supervising station every 24 hours.
• Each communication path shall be monitored for integrity (DACT shall have line monitoring
enabled and 3G3070-CF shall have cellular connection supervision enabled).
For UL Central Station Commercial Burglary Installations:For UL Central Station Commercial Burglary Installations:
For UL Central Station Commercial Burglary Installations:For UL Central Station Commercial Burglary Installations:
For UL Central Station Commercial Burglary Installations:
The 3G3070-CF can be used in the following configurations:
1. Standalone communicator, single line-200 second supervision (heartbeat sent to supervising
station every 97 seconds. Alarm receiver supervision window set to 200 seconds).
2. Primary communicator line for a DACT (heartbeat sent to supervising station every 97 seconds.
Alarm receiver supervision window set to 200s).
3. Back-up communicator line for a DACT (no heartbeat sent).
The 3G3070-CF is designed to work with the Contact ID communication format as described in SIA
DC-05 Standard. Before completing the field installation of the alarm monitoring system, please
ensure communication with the supervising central station is successful by sending several events
and getting confirmation that they have been received.
firealarmresources.com
3
Figure 1 - Parts
PS4085
12+V
COM ACT LBT TEST
AC IN
CON1
51
96
LE LI
-
O1
M
O2 O3 O4
+OC
AS
M
L1 L2 L3 L4 +12V-
LOCK
OPEN
12 13
TAMPER
9
PGM3
8
PGM2
19 20
+ 12V -
11
AUX+
16
Z2 17
Z3
15
Z1
14
COM
10
PGM4
7
PGM1
6
COM
4
T1 5
R1
2
TIP 3
RNG
1
18
Z4
JP3
12V/7Ah
Model DSC BD12-7
Cable Tie
A
B
C
AC IN
120 VAC
60 Hz
0.3A
Cable Tie (not provided)
To prevent wires from falling onto batteries,
secure them to the enclosure or to the plastic
stand-off.
All circuits are Power Limited
except AC and Battery
Power
Limited
Power
Limited
Power
Limited
Non-Power
Limited
10
11
12
17
13
1
9
14
2
INSTALL BATTERY & AC WIRING AS SHOWN
IMPORTANT!: All circuits are classified for
UL installations as Power Limited/Class II
Power Limited except for the battery leads
and primary AC wiring which are not power
limited. Do not route any wiring over circuit
boards. Maintain at least 1” (25.4mm)
separation. A minimum 1/4” (6.4mm)
separation must be maintained at all points
between Power Limited wiring and all other
Non-Power Limited wiring. Route wires as
indicated in the diagram.
For UL Commercial Fire Installations,
connections between the fire alarm control
panel outputs (telephone interface Tip/Ring
or output relay contacts) and GS3070-CF
inputs (Tip/Ring, Z1-Z4) shall be run in
mechanical protective conduit within 20ft
and in the same room.
+BAT -BAT
WARNING!: HIGH VOLTAGE
DISCONNECT POWER AND TELEPHONE
LINES PRIOR TO SERVICING
4
3
6
5
15
16
7
8
NOTES: Connection of metal-clad cable, conduit, metal raceway or the like is permitted as a means for grounding.
Use the supplied starwashers to secure the mains connection box cover and the front cover of the enclosure.
PARTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
3G3070-CF Metal Enclosure
External Antenna (supplied)
Antenna mounting hardware
3G3070-CF PCB Assembly
3G Radio with Connector for Antenna
SIM Card Socket
Status LEDs
Tamper Switch

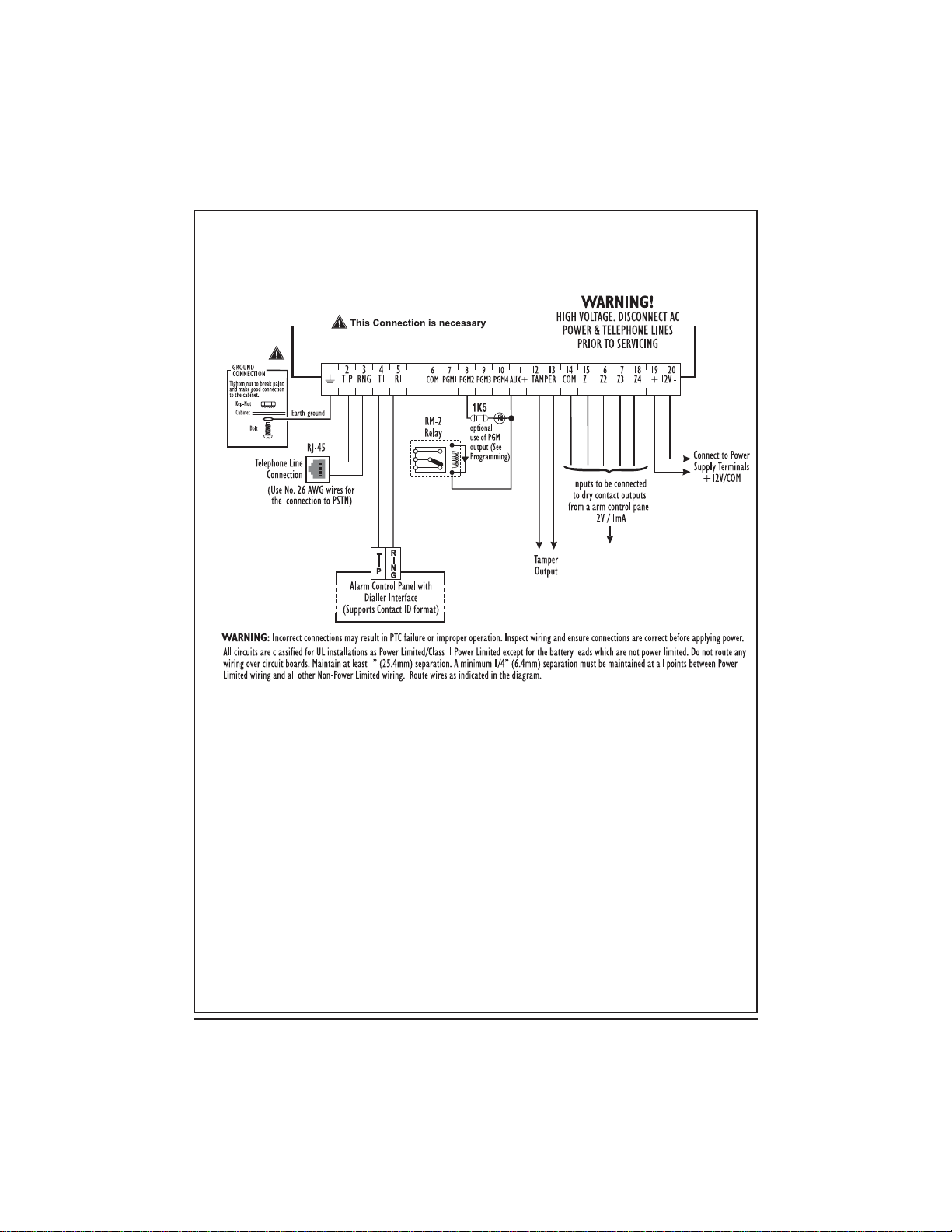

3G3070-CF Connections (see Fig. 2 for details)
Power Supply PCB Assembly
Power Supply Connections (see Fig. 3 for details)
Standby Battery Leads
Standby Battery 12V/7Ah
Transformer 16.5V/37VA
Mains Connections Box with Cover
13/32” 3G3070-CF Stand-offs (4)
11/32” Power Supply Stand-offs (4)
Identification of Parts
The numbers in square brackets [[
[[
[ ]]
]]
] in this manual refer to the main parts of the GS3070-CF (see Fig.1
below) described in this section.
firealarmresources.com
4
Installation of GS3070-CF
CONNECT 24 Enrollment Information
Only authorized dealers can enroll a 3G3070-CF with CONNECT 24. Dealer application forms and
additional information on the CONNECT 24 Voice Response Unit can be found at the CONNECT 24 web
site wwwwww
wwwwww
www.connect24.com.connect24.com
.connect24.com.connect24.com
.connect24.com. Please contact CONNECT 24 at the number below for assistance:
USA 1-888-251-7458USA 1-888-251-7458
USA 1-888-251-7458USA 1-888-251-7458
USA 1-888-251-7458 CANADA 1-888-955-5583CANADA 1-888-955-5583
CANADA 1-888-955-5583CANADA 1-888-955-5583
CANADA 1-888-955-5583
NOTE: Step 1 should be completed before powering the 3G3070-CF unit.
STEP 1 - Initialize the 3G3070-CF with Connect 24
VRU Enrolment
Call the VRU at the toll-free number: 1-866-910-3865. Follow the voice prompts and enter in your profile
number, installer ID number, installer PIN number and SIM number. Ensure all information is available
before calling the VRU. It is recommended that the radio initialization be performed at least 24 hours in
advance of installation to ensure SIM activation will be complete.
NOTE: For UL Commercial Fire listed products the supervision heartbeat shall be enabled.
WEB Enrolment
If you have credentials for www.connect24.com, you may also initialize the 3G3070 via the web. Please
check with your Connect 24 Master Reseller or Connect 24 Customer Service for more details.
STEP 2 - Determine Best Signal Location
1. Remove the screws and the front cover of the 3G3070-CF metal enclosure [11
11
1].
2. Fit the antenna [22
22
2] (ensure that the bolt [33
33
3] is fastened tightly).
3. Connect the antenna to the 3G Radio [55
55
5] and ensure the connector is secure.
NOTE: Before inserting or removing the SIM card, please ensure the unit is powered down.NOTE: Before inserting or removing the SIM card, please ensure the unit is powered down.
NOTE: Before inserting or removing the SIM card, please ensure the unit is powered down.NOTE: Before inserting or removing the SIM card, please ensure the unit is powered down.
NOTE: Before inserting or removing the SIM card, please ensure the unit is powered down.
4. Ensure the SIM card is placed in its socket [66
66
6].
5. Power up the 3G3070-CF module [44
44
4] and check signal strength on status LEDs [77
77
7].
• Use a DC power source rated 12V/0.7A connected to +/- 12V terminals [99
99
9]
• Allow unit to power up
• The green LEDs will indicate the signal strength. The bottom green LED must be ONON
ONON
ON for the location
to be acceptable. Please refer to the “Status LEDs” section for more information.
6. Power down the 3G3070-CF by removing the DC power source.
STEP 3 - Connect the 3G3070-CF
1. Using the cabinet, mark the 4 screw locations then drill the anchor screw holes.
NOTE: Check for cable conduits and water pipes before drilling.
2. Using anchor screws (not included), mount the cabinet to the wall.
3. Run the cables, then pull them through the cable entry or the knockouts provided.
4. Complete the connections to the terminal blocks [99
99
9], [1111
1111
11].
EnsurEnsur
EnsurEnsur
Ensure power and Te power and T
e power and Te power and T
e power and T
elco cirelco cir
elco cirelco cir
elco circuit connectionscuit connections
cuit connectionscuit connections
cuit connections
are made only after the cabinet has been secured to the building or structure and has been connectedare made only after the cabinet has been secured to the building or structure and has been connected
are made only after the cabinet has been secured to the building or structure and has been connectedare made only after the cabinet has been secured to the building or structure and has been connected
are made only after the cabinet has been secured to the building or structure and has been connected
to the protective earth groundto the protective earth ground
to the protective earth groundto the protective earth ground
to the protective earth ground
. Descriptions of the terminals can be found in the “Connecting the
3G3070-CF” section.
5. Using the 4 screws, reattach the front cover securely to the cabinet [11
11
1].
NOTE: Please refer to Figures 2 and 3 at the end of this manual for wiring diagrams.
NOTE: When installing the 3G3070-CF as a stand alone communicator in conjunction with a fire
panel that has an integrated dual telephone line dialer (dual DACT), install only one of the
telephone lines from the dual line dialer to the 3G3070-CF communicator. The second telephone
line of the dual line dialer cannot be connected to the input of the 3G3070-CF and must be
disabled in order to maintain correct functionality of the communication system. Please contact
the panel vendor for details on how to disable the second telephone line.
firealarmresources.com
5
3G3070-CF Connections Description
3G3070-CF Module
(1) Earth Ground -(1) Earth Ground -
(1) Earth Ground -(1) Earth Ground -
(1) Earth Ground - This terminal must be connected to the Mains Earth, in order to comply with the
Telecommunications Network Safety Standards (Overvoltage Protection Requirements).
TIP (2) / RNG (3) External telephone line -TIP (2) / RNG (3) External telephone line -
TIP (2) / RNG (3) External telephone line -TIP (2) / RNG (3) External telephone line -
TIP (2) / RNG (3) External telephone line - These terminals must be connected directly to the incoming
telephone line.
T1 (4) / R1 (5) Internal telephone line -T1 (4) / R1 (5) Internal telephone line -
T1 (4) / R1 (5) Internal telephone line -T1 (4) / R1 (5) Internal telephone line -
T1 (4) / R1 (5) Internal telephone line - These terminals must be connected to the TIP and RING of the
control panel.
COM(6,14) Common -COM(6,14) Common -
COM(6,14) Common -COM(6,14) Common -
COM(6,14) Common - This terminal is connected internally to Power Ground.
PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10)PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10)
PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10)PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10)
PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10) Programmable type open-collector outputs. These
outputs can be activated by programmed events. Refer to “Outputs” section for details. The maximum
current sink of each output must not exceed 50mA. PGM1, PGM2 and PGM3 are active low and PGM4
is active high.
AUX+ (11) AuxiliarAUX+ (11) Auxiliar
AUX+ (11) AuxiliarAUX+ (11) Auxiliar
AUX+ (11) Auxiliary 12V Output -y 12V Output -
y 12V Output -y 12V Output -
y 12V Output - Special applications output, power-limited, 200mA PTC Protected.
This terminal is used in conjunction with the PGM outputs to activate a supervision relay. Recommended
relay: DSC Model RM-2.
NOTE: CurNOTE: Cur
NOTE: CurNOTE: Cur
NOTE: Currr
rr
rent drawn frent drawn fr
ent drawn frent drawn fr
ent drawn from this terom this ter
om this terom this ter
om this terminal is dirminal is dir
minal is dirminal is dir
minal is directly drawn frectly drawn fr
ectly drawn frectly drawn fr
ectly drawn from the power supplyom the power supply
om the power supplyom the power supply
om the power supply..
..
.
TT
TT
Tamper (12-13) -amper (12-13) -
amper (12-13) -amper (12-13) -
amper (12-13) - These terminals are connected in series to the Tamper microswitch [88
88
8]. They will be
closed when the cabinet is properly closed, and will open when the front cover is removed.
Z1-Z4 (15-16-17-18) Inputs -Z1-Z4 (15-16-17-18) Inputs -
Z1-Z4 (15-16-17-18) Inputs -Z1-Z4 (15-16-17-18) Inputs -
Z1-Z4 (15-16-17-18) Inputs - These terminals are set up to trigger events. Refer to “Inputs Activation
Mode” section for details.
+12V (19), -12V (20) Device Power Supply -+12V (19), -12V (20) Device Power Supply -
+12V (19), -12V (20) Device Power Supply -+12V (19), -12V (20) Device Power Supply -
+12V (19), -12V (20) Device Power Supply - These terminals must be connected to the output of the
power supply [1010
1010
10].
When the connections are completed, connect the Red and Black wires [1212
1212
12] to a
12V, 7Ah battery [1313
1313
13].
Power Supply Module
AC -AC -
AC -AC -
AC - Supervised input, connect the secondary of the transformer to these terminals. Connect the
primary of the transformer to a dedicated electrical circuit.
+12V/COM -+12V/COM -
+12V/COM -+12V/COM -
+12V/COM - Special application output circuit, power limited, connect to 3G3070-CF power input circuit.
Connect the +12V output to +12V input on the 3G3070-CF module and the COM output to the -12V input
on the 3G3070-CF module.
ACT (AC TACT (AC T
ACT (AC TACT (AC T
ACT (AC Trr
rr
rouble) -ouble) -
ouble) -ouble) -
ouble) - This open collector output activates when an AC Trouble is detected: Rated 50mA.
NOTE: AC Trouble output shall be connected to an input on the alarm control panel that provides
immediate local annunciation and delayed remote transmission for 1 to 3 hours. If such input is
not able to provide the delay for AC loss transmission, input 1 of the 3G3070-CF can be used.
When Input 1 is triggered, the 3G3070-CF will immediately announciate an AC trouble by flashing
the RED status LED 9 times, and will delay the AC loss event transmission by 2 hours.
LBT (BatterLBT (Batter
LBT (BatterLBT (Batter
LBT (Battery Ty T
y Ty T
y Trr
rr
rouble)ouble)
ouble)ouble)
ouble) -
This open collector output activates when a Battery Trouble condition is detected:
Rated 50mA.
TEST (CharTEST (Char
TEST (CharTEST (Char
TEST (Charger Tger T
ger Tger T
ger Trr
rr
rouble)ouble)
ouble)ouble)
ouble) - This open collector output activates when the charging circuit is in a trouble
condition: Rated 50mA.
These outputs shall be connected to zone inputs of an alarm control panel in order to provide the
required trouble supervision (visual and audible indication required at the control panel). The outputs are
active low (switched to ground) and can be connected to a control panel directly or by using a listed
supervision relay (suggested model: DSC, RM-2 Relay).
+BA+BA
+BA+BA
+BAT/-BAT/-BA
T/-BAT/-BA
T/-BATT
TT
T - This connector is used to connect the standby battery, non-power limited. Use single lead
battery wire assembly provided.
NOTE: When disposing of batteries, follow the instructions and precautions printed on the
batteries, and contact your municipal offices for information on the disposal of used batteries.
firealarmresources.com
6
Status LEDs
The 3G3070-CF has 4 LEDs used for local indication of module functionality, status (trouble conditions)
and receiving signal strength.
REDRED
REDRED
RED — This LED is Normally OFF, but will blink in the event of trouble. This LED will switch ON
within 3 minutes in the event of 3G Radio [55
55
5] trouble, or when the wireless Network is unavailable
(NO SERVICE). If this LED blinks, the following list indicates the specific trouble based on the
number of blinks, by priority. On power-up, the 3G3070-CF will check for trouble conditions to be
restored in the order listed below. The 3G3070-CF indicates the status of the highest priority,
unrestored trouble condition with the corresponding number of flashes of the red LED. Once the
highest priority trouble condition has been cleared, the next highest priority trouble condition is
displayed.
The 3G3070-CF indicates the status of the highest priority,unrestored trouble condition with the
corresponding number of flashes of the red LED. Once the highest priority trouble condition has
been cleared, the next highest priority trouble condition is displayed.
1 flash1 flash
1 flash1 flash
1 flash - Power Trouble (
low input voltage)
2 flashes2 flashes
2 flashes2 flashes
2 flashes - Radio/SIM Failure
(check SIM card connection)
3 flashes3 flashes
3 flashes3 flashes
3 flashes - WirelessNetwork Problem
(SIM card not active, poor signal strength, antenna not
connected)
4 flashes4 flashes
4 flashes4 flashes
4 flashes - Insufficient Signal Strength
(poor location)
5 flashes5 flashes
5 flashes5 flashes
5 flashes - Connect 24 Configuration SMS Failure
(improper VRU programming)
When the configuration is ready, remove power for 2-3 seconds to allow the unit to restart and
recheck status (if applicable).
6 flashes6 flashes
6 flashes6 flashes
6 flashes - Receiver not available
(Improper VRU programming, receiver absent)
8 flashes8 flashes
8 flashes8 flashes
8 flashes - Primary Receiver absent
(receiver not acknowledging)
9 flashes9 flashes
9 flashes9 flashes
9 flashes - AC Trouble (Input 1) triggered.
OfOf
OfOf
Offf
ff
f - No Troubles
YELLOWYELLOW
YELLOWYELLOW
YELLOW
—
When this LED is On (solid), a Phone Line Trouble condition exists. This LED switches
on when the interface switches to the GSM Network (due to a Landline trouble condition). use. This
LED can also blink quickly once (Wireless TX) or twice (Wireless RX).
NOTE: The top two LEDs will blink during the initialization activation stages.
GREEN (Top)
—
When this LED is ONON
ONON
ON, the reception is optimal. This LED will switch ON only
when the other GREEN LED is ON.
GREEN (Bottom)GREEN (Bottom)
GREEN (Bottom)GREEN (Bottom)
GREEN (Bottom) — If this LED is OFFOFF
OFFOFF
OFF and the RED LED is ON, the wireless Network service is
unavailable (NO SER(NO SER
(NO SER(NO SER
(NO SERVICE)VICE)
VICE)VICE)
VICE). This LED flashesflashes
flashesflashes
flashes when the 3G (HSPA) or 2G (GPRS) Network
reception is poor. If this LED is ONON
ONON
ON, the 3G3070-CF3G3070-CF
3G3070-CF3G3070-CF
3G3070-CF will be able to communicate to the 3G (HSPA)
or 2G (GPRS) network.
firealarmresources.com
7
Operating Modes
Simulated Landline Mode
The simulated land line mode provides the fire alarm control panel (with dialer interface) with a
communication path for standalone type applications (Wireless network being the sole communication
technology used) or for back-up type applications (where two communication technologies PSTN and
wireless are used).
In applications where the 3G3070-CF is also connected to the telephone line (back-up configuration),
if the voltage on the land line terminals (TIP/RNGTIP/RNG
TIP/RNGTIP/RNG
TIP/RNG) drops below 2.8V for a period of 10 to 45 seconds
(depending on the device connected to the T1/R1T1/R1
T1/R1T1/R1
T1/R1 terminals), the 3G3070-CF will switch the connected
alarm control panel to the wireless Network for approximately 30-40 seconds. At the end of this interval,
it will check the land line and do one of the following:
•
if the land line is restored, it will switch the connected alarm control panel back to the land line;
•
if the land line is still down, it will continue to simulate the land line until it is restored. The 3G3070-CF
will not switch during ongoing calls.
PanelTransmission Monitoring (PTM)
The The 3G3070-CF can also monitor the panel’s attempt to communicate with the central station. If it
determines that the panel is having difficulty, it switches the line to the wireless network. This feature is
only active when the 3G3070-CF is configured as a back up communicator. This feature is in addition to
the regular line voltage detection.
The 3G3070-CF monitors the phone line for four consecutive failed attempts within a 12-minute window.
A failed attempt is assumed to have occurred when a line seizure takes place during dialing (either the
alarm panel or the customer telephone), but no 1400Hz tone (or Contact Kiss-off) is sent from the
receiver. Once the conditions for a failed attempt are met, the 3G3070-CF connects the panel to the
wireless network
to communicate the events. When the 3G3070-CF switches the line it stays in this mode until the panel
hangs up. On the next event the 3G3070-CF restarts the error detection sequence before switching.
The 3G3070-CF performs this sequence on any phone number that is detected on the line. Specific
central station phone numbers can be programmed into the 3G3070-CF if desired. Up to four, 20-digit
numbers can be added to your profile at Connect 24. If programmed, the 3G3070-CF will only look for
Contact ID Kiss-off after these numbers are dialed. A Telephone Line Monitoring trouble (PGM output
activation and/or reporting code if applicable) is also activated and/or transmitted when the PTM is
activated. A restoral is sent at the end of the call.
Wireless Communication Sequence:
•When an event is triggered, the alarm control panel dialer goes off-hook
•The 3G3070-CF will assert dial tone
•The Alarm Control Panel dials the number of the central station. Ensure the alarm control panel
inserts a 1-second pause (minimum), or has dial tone search enabled before dialing the number
•The 3G3070-CF detects the DTMF dialing and stops the dial tone
NOTE: The 3G3070-CF is unable to decode pulse dialing.
•The 3G3070-CF will send the required Contact ID dual tone handshake to the alarm control panel
•After receiving the handshake, the alarm control panel transmits the event alarm message in
Contact ID format
•The 3G3070-CF decodes and transforms the Contact ID digits into an IP packet and sends it to
the Supervising Station Receiver over the wireless network
• The receiver acknowledges the received event and sends a command to the 3G3070-CF to
generate the corresponding 1400Hz kiss-off signal for 800ms minimum
• After the 3G3070-CF generates the kiss-off, the alarm control panel sends the next event or goes
on-hook if no more events need to be sent.
firealarmresources.com
8
Inputs Activation Mode
The 3G3070-CF also has 4 inputs that can be used to trigger specific event transmissions. The events
associated with these inputs will be transmitted using Contact ID Communication Format. The default
settings for these inputs (as they should be correlated at the supervising station) are:
INPUT 1- AC LOSS INPUT 3 - FIRE ALARM
INPUT 2 - FIRE SUPERVISORY INPUT 4 - TROUBLE
These inputs are normally open type and will activate when a short condition is detected between the
terminal and the COM. Refer to the 3G3070-CF Wiring Diagram (Figure 2) at the back of this manual.
NOTE: When the 3G3070-CF is configured in Land Line Mode, these inputs should be restricted
to monitoring of trouble conditions.
NOTE: For UL listing, connections between alarm panel outputs and 3G3070-CF inputs shall be
run in mechanical protective conduit within 20ft and in the same room. To reduce interference with
the antenna, it is recommended that metal conduit is not connected to the knock-outs on the top
of the cabinet.
Activating the Outputs
The 3G3070-CF has four programmable outputs to activate in response to the associated events. Refer
to the 3G3070-CF Wiring Diagram (Figure 2) at the back of this manual.
The 3G3070-CF has 4 open collector outputs, switched to ground, capable of a maximum of 50mA.
Internal events on the 3G3070-CF can trigger the outputs to turn on an LED or activate an input on the
alarm control panel. The default settings are as follows:
OUTPUT 1 - Land Line TOUTPUT 1 - Land Line T
OUTPUT 1 - Land Line TOUTPUT 1 - Land Line T
OUTPUT 1 - Land Line Trr
rr
rouble:ouble:
ouble:ouble:
ouble: Output is normally high and will switch to ground when the telephone
line is down.
NOTE: Thisoutput isnot required when the 3G3070-CF isused as astandalone device.
OUTPUT 2 - WOUTPUT 2 - W
OUTPUT 2 - WOUTPUT 2 - W
OUTPUT 2 - Wirir
irir
ireless Module or Network Teless Module or Network T
eless Module or Network Teless Module or Network T
eless Module or Network Trr
rr
rouble:ouble:
ouble:ouble:
ouble: Output is normally high and will switch to ground
when the 3G3070-CF cannot connect or communicate to the wireless network.
OUTPUT 3 - Activation:OUTPUT 3 - Activation:
OUTPUT 3 - Activation:OUTPUT 3 - Activation:
OUTPUT 3 - Activation: Output is normally high and will switch to ground during activation.
OUTPUT 4 - General Module TOUTPUT 4 - General Module T
OUTPUT 4 - General Module TOUTPUT 4 - General Module T
OUTPUT 4 - General Module Trr
rr
rouble:ouble:
ouble:ouble:
ouble: Output is normally low and will switch to high when any of the
previous troubles occur and/or a Failure to Communicate (FTC) trouble is detected.
NOTE: Once an output has been activated automatically, it will not restore its state until all the
causes of activation are cleared.
Contact ID Events Description
Event Codes
Input 1 Activation: ............................................................................................. E301 AC LOSS ZONE 991
Input 1 Restoral: ................................................................................................ R301 AC LOSS ZONE 991
Input 2 Activation: ................................................................................. E200 Fire Supervisory ZONE 992
Input 2 Restoral: .................................................................................... R200 Fire Supervisory ZONE 992
Input 3 Activation: ..................................................................................................... E110 FIRE ZONE 993
Input 3 Restoral: ........................................................................................................ R110 FIRE ZONE 993
Input 4 Activation: ................................................................................... E300 System Trouble ZONE 994
Input 4 Restoral: ...................................................................................... R300 System Trouble ZONE 994
PSTN Line Down: .............................................................................................. E351 TELCO 1 FAULT 000
PSTN Line Restoral: .......................................................................................... R351 TELCO 1 FAULT 000
Periodic Report: ........................................................................................ E603 Periodic RF Xmission 000
Periodic report with off-normal condition .. E608 Periodic Test Xmission with System Trouble Present 000
GSM UNIT ACTIVATION: ....................................................................... R552 Radio Xmitter Disabled 000
GSM INTERNAL BUFFER FULL: ...................................................... E624 EVENT LOG OVERFLOW 000
FTC RESTORAL: ......................................................................... R354 FAILURE TO COMMUNICATE 000
NOTE: The 3G3070-CF does not support local or remote programming. Upon activation through
Connect 24 the product will operate as described in the previous sections of this manual.
firealarmresources.com
9
Swinger Shutdown
Swinger Shutdown is followed by a PSTN line trouble, limiting this event to a maximum of 3 trouble
reports every 24 hours (including the PSTN line trouble sent when PTM is active). The condition will
restore at midnight at which point the counter is reset.
Hardware Default
To perform a hardware default and force the unit to get the latest configuration from Connect 24,
follow these steps:
• Power down the unit.
• Place a short between the PGM1 and Input 1 terminals.
• Power up the unit. This will perform a hardware default and request the configuration from
Connect 24.
• Remove the short between PGM1 and Input 1.
NOTE: A Hardware default must be performed when the SIM card is being swapped.
NOTE: If the unit has previously received programming from Connect 24, a hardware default is required
to initiate the download of the latest configuration from Connect 24. Failure to do so will result in the unit
transmitting with the previously programmed configuration.
Connect 24 Remote Programming
The inputs, outputs, and other features can be remotely programmed through Connect 24 for
fast and convenient installation using the internet.
NOTENOTE
NOTENOTE
NOTE: This programming option has not been investigated by UL.
General Information
The following table provides some general information on basic operations with installation of communicator,
antenna, SIM card and checking SIM status of the communicator.
noitamrofnIlareneGnoitamrofnIlareneG noitamrofnIlareneG noitamrofnIlareneGnoitamrofnIlareneG
ehtgnitcennoC/gnivomeR annetna
ruoyecalp,FC-0703G3ehtmorfannetnaehtevomeroT- ecalpneht,medomehttarotcennocehtfodneehtnobmuht yltneG.rotcennocdnamedomehtneewtebrevirdwercsa morfrotcennocehttuo’pop‘otyawarevirdwercsehtnrut medomeht otnirotcennocehtehthsupylmrif,annetnaehtllatsnioT- ecalpotni’spans‘tilitnumedomeht
FC-0703G3agnillornE
ehthguorhtgniogybdellorneebnacFC-0703G3ehT- ehtfonoitavitcaehtgnitelpmocdna,tpmorpeciovURVG FC-0703G3ehtfonoitazilaitiniehtdna,dracMIS tcennoCehtgnisudellorneeboslanacFC-0703G3ehT- )moc.42tcennoc.www(etisbew42
doirepnoitavitcadracMIS ybdetavitcaebotsruoh42otpuekatnacdracMISA- ruohnanahtsselsekatyllacipytti,revewoH.redivorpeht detavitcaebotdracMISehtrof
sutatsMISgnikcehC ebnachcraesA.nigoldnamoc.42tcennoc.wwwotoG- sutatstnerrucstidnatnuoccacificepsarofdemrofrep URVGehthguorhtdekcehceboslanacsutatsMIS-
rofnwodtuhSregniwS rotinoMeniLenohpeleT rofsnoissimsnart)MLT( stinupukcab
dnesnacti,pukcabasaderugifnocsiFC-0703G3ehtfI- yadrepslarotserdnaselbuortMLT3fomumixama ,snoissimsnartlangisstceffaylnonwodtuhSregniwSMLT- MGProsthgilFC-0703G3ehtfoytilanoitcnufehtton stuptuo
firealarmresources.com
10
Troubleshooting Guide
Powering up the 3G3070-CFPowering up the 3G3070-CF
Powering up the 3G3070-CFPowering up the 3G3070-CF
Powering up the 3G3070-CF – when powering up the 3G3070-CF, always connect the battery first before
connecting primary DC power from the control panel or transformer.
WW
WW
Wiring Primariring Primar
iring Primariring Primar
iring Primaryy
yy
y – R-1/T-1 of 3G3070-CF to RING/TIP of control panel, DC power from provided DC
power supply DC input, backup battery connected to provided power supply.
WW
WW
Wiring Backupiring Backup
iring Backupiring Backup
iring Backup – Incoming line to RING/TIP on 3G3070-CF, R-1/T-1 of 3G3070-CF to RING/TIP of control
panel, R-1/T-1 of control panel to house phones, DC power from provided DC power supply, JP3 ON to
DC input, connected to provided power supply, JP3 ON.
TT
TT
Testing Communicationsesting Communications
esting Communicationsesting Communications
esting Communications – when the 3G3070-CF transmits a signal for the control panel, or for an internal
transmission, the YELLOW light will flash one time when the signal is transmitted and two times when it
gets a kiss-off.
SIMSIM
SIMSIM
SIM – the SIM should be activated at least 24 hours prior to installation. The 3G3070-CF will show
signal strength with an inactive SIM, however it will display the signal strength of any available wireless
network. The SIM must be active to ensure the signal strength displayed is that of the wireless network
provider for which the SIM belongs to.
Panel ProgrammingPanel Programming
Panel ProgrammingPanel Programming
Panel Programming – the control panel should be programmed to communicate Contact ID exactly the
same way it would be programmed to communicate Contact ID over the telephone line.
thgiLneerGthgiLneerG thgiLneerG thgiLneerGthgiLneerG sutatS :snaemtitahW:snaemtitahW :snaemtitahW :snaemtitahW:snaemtitahWsutatShtgnertSlangiSsutatShtgnertSlangiS sutatShtgnertSlangiS sutatShtgnertSlangiSsutatShtgnertSlangiS
neerGhtoB NOsthgiL langiStnellecxE htgnertS gnitnuomtnerrucehtnidellatsniebnactinU noitacol
thgiLneerGenONO htgnertSlangiSdooG gnitnuomtnerrucehtnidellatsniebnactinU noitacol
neerGmottoB thgiL GNIHSALF
htgnertSlangiSrooP
ylerucesdeggulpsielbacannetnaehterusnE- rotcennocoidarehtotni ehtotyrettabatcennoc,evitcasiMISehtfI- rofsnoitacolsuoiravtsetdnatinu htgnertslangistnellecxe/doog -SG(tiknoisnetxeannetnanatcennoC- )TNA05-SGroTNA52-SG,TNA51
neerGhtoB FFOsthgiL htgnertSlangiSoN
otrefer,GNIHSALFoslasithgilderehtfI- trahcthgilDEReht detavitcasidracMISyfireV- ylerucesdeggulpsielbacannetnaehterusnE- rotcennocoidarehtotni ehtotyrettabatcennoc,evitcasiMISehtfI- rofsnoitacolsuoiravtsetdnatinu htgnertslangistnellecxe/doog -SG(tiknoisnetxeannetnanatcennoC- )TNA05-SGroTNA52-SG,TNA51
firealarmresources.com
11
Troubleshooting Guide
thgiLwolleYthgiLwolleY thgiLwolleY thgiLwolleYthgiLwolleY sutatS rotacidnInoitacinummoC/sutatSrotacinummoCsseleriW:snaeMtItahWrotacidnInoitacinummoC/sutatSrotacinummoCsseleriW:snaeMtItahW rotacidnInoitacinummoC/sutatSrotacinummoCsseleriW:snaeMtItahW rotacidnInoitacinummoC/sutatSrotacinummoCsseleriW:snaeMtItahWrotacidnInoitacinummoC/sutatSrotacinummoCsseleriW:snaeMtItahW
NOthgiLwolleY
.NOebsyawlalliwthgilwolleyeht,rotacinummocyramirpehtsadesunehW- asierehtnehwNOeblliwthgilwolleyeht,rotacinummocpukcabasadesunehW- seogegatlovenilehtro,GNIRdnaPITFC-0703G3ehtotdetcennocenilenohpon .CDV8.2woleb
FFOthgiLwolleY CDV8.2nahterom(.FC-0703G3ehtotdetcennocsienilenohpdoogasetacidnI- .)slanimretGNIRdnaPITFC-0703G3ehtssorcadetceted
thgiLwolleY GNIHSALF owtdnalangisastimsnartFC-0703G3ehtnehwemitenohsalflliwthgilwolleyehT- .deviecersiffosikanehwsemit
thgiLdeRthgiLdeR thgiLdeR thgiLdeRthgiLdeR sutatS :snaemtitahW:snaemtitahW :snaemtitahW :snaemtitahW:snaemtitahW sutatSelbuorT spetSgnitoohselbuorT-sutatSelbuorTspetSgnitoohselbuorT-sutatSelbuorT spetSgnitoohselbuorT-sutatSelbuorT spetSgnitoohselbuorT-sutatSelbuorTspetSgnitoohselbuorT-sutatSelbuorT
hsalFenO rewoPFC-0703G3 tupniwol(elbuorT )egatlov
.ecruosCAV021otnideggulpsiremrofsnartCAehttahtyfireV- "niCA"ehtotdetcennocsiremrofsnartCAehttahterusnE .ylppusrewopehtnoslanimret ehtotdetcennocsiylppusrewopehtfotuptuov21+ehterusnE- folanimretMOCehterusnE.FC-0703G3ehtfolanimretCD"+" ehtfolanimretCD"-"ehtotdetcennocsiylppusrewopeht .FC-0703G3 NOsi3JrepmujFC-0703G3ehterusnE-
sehsalFowTelbuorToidaR/MIS ylmrifdnayltcerrocdetresnisidraCMISehterusnE- oidarehtotniylerucesdeggulpsielbacannetnaehterusnE- rotcennoc
sehsalFeerhT krowteNsseleriW melborP
detavitcaneebsahdracMISehterusnE- oidarehtotniylerucesdeggulpebdluohselbacannetnaehT- rotcennoc )NOthgilneergenotsaelta(htgnertslangisdoogsierehterusnE- egatuokrowtenagnicneirepxetonsiaeranoitallatsniehtyfireV-
sehsalFruoF langiStneiciffusnI htgnertS
FC-0703G3enotsaelta(htgnertslangisdoogsierehterusnE- )NOthgilneerg oidarehtotniylerucesdeggulpsielbacannetnaehterusnE- rotcennoc
sehsalFeviFelbuorTnoitarugifnoCdetavitcasidracMISehterusnE
sehsalFxiSelbaliavAtoNrevieceR
FC-0703G3ehttahtyfirevotnoitatsgnirotinomehttcatnoC- )SIND,sserddaPI,trop(tcerrocsignimmargorp ynagnicneirepxetonerayehtyfirevotnoitatslartnecruoytcatnoC- seussireviecer
sehsalFthgiE tnesbarevieceRyramirP tonreviecer( )gnigdelwonkca
ynagnicneirepxetonerayehtyfirevotnoitatslartnecruoytcatnoC- seussireviecer
sehsalFeniN 1tupnI(elbuorTCA )dereggirt rewopfoTCAotdetcennocsiFC-0703G3ehtno1ZtahterusnE .tneserpCAsahylppusrewopehttahtyfireV.ylppus
firealarmresources.com
12
Troubleshooting Guide
The Red light will flash to indicate various trouble conditions outlined previously. If multiple trouble
conditions are present, the red light will flash according to the highest priority trouble. For example, if
both a 3G3070-CF Power trouble (one flash) and an insufficient signal strength trouble (four flashes) are
present; the red light will flash one time. Once the 3G3070-CF Power trouble condition is corrected, the
red light will then begin flashing four times.
metsySruoYhtiWselbuorTlareneGmetsySruoYhtiWselbuorTlareneG metsySruoYhtiWselbuorTlareneG metsySruoYhtiWselbuorTlareneGmetsySruoYhtiWselbuorTlareneG
agniyalpsidsilenaplortnocehT noitidnocelbuortenilenohpelet
dnaPITehtotderiweraFC-0703G3ehtfo1Rdna1TerusnE- lenaplortnocehtfoslanimretGNIR eht,rotacinummocyramirpehtsadesugniebsiFC-0703G3ehtfI- NOebsyawlalliwthgilwolley thgiLdeRehtotrefer,GNIHSALFsithgilderFC-0703G3ehtfI- trahCsutatS
asyalpsidlenaplortnocehT noitidnocelbuortnoitacinummoc
DItcatnoCrofdemmargorpsilenapehterusnE- elbuortMLTaetacidnitonseodlenaplortnocehterusnE- noitidnoc thgiLdeRehtotreferGNIHSALFsithgilderFC-0703G3ehtfI- ediugsihtnitrahcsutatS
lartnecehttadeviecereraslangisoN sinoitidnocelbuortontubnoitats deyalpsid
rebmunenohpnoitatslartnecasahlenaplortnocehterusnE- demmargorp rebmuntnuoccatcerrocehtsahlenaplortnocehterusnE- demmargorp DItcatnoCotuaehtrodemmargorperasedocgnitroperehtyfireV- delbanesinoitpo delbanesirotacinummoclenaplortnocehterusnE- rotinomniFC-0703G3ehtfo1Rdna1TottesdnahatcennoC- etacinummootgniyrtsilenaplortnocehtyfirevotedom
slangislanretnigniviecertoN -0703G3ehtmorfyltceriddetarenegFC
tnuoccatcerrocehthtiwdezilaitinisawFC-0703G3ehterusnE- 42tcennoCehtotnigniggolybdekcehcebnacsihT.rebmun etisbew FC-0703G3ehtnosnoitidnocelbuortoneraerehttahterusnE-
deRdnawolleYFC-0703G3ehT yltnatsnochsalfsthgil
FC-0703G3enotsaelta(htgnertslangisdoogsierehterusnE- )NOthgilneerg langisdnaMISyfirevdnarewopelcyC-
ehtnehwdeziessienilenohpehT detcennocsiFC-0703G3
gniriwenilenohptcerrocyfireV- gniebtonsi)NER(rebmuNycnelaviuqEregniRehterusnE- enilehtnodedeecxe
firealarmresources.com
13
Fig. 2 - 3G3070-CF Module Wiring Diagram
APPENDIX -Wiring Diagrams
NOTE: If the control panel PGM output connected to the 3G30XX input latches (remains closed)
after an alarm has occurred, the 3G30XX input will remain active. The latched PGM output must be
reset or future alarms will not be reported via the zone input of the 3G30XX and additional alarms
may be triggered when the 3G30XX is locally or remotely restarted. Please contact panel vendor
for details on how to reset the control panel PGM.
DG009660
Phone line connection is required only for
back-up configurations. In stand-alone applica-
tions, no other communication technology is
required for Fire Alarm Monitoring. Refer to Fig.
4 for wiring details. These inputs are typically used to interface with
fire alarm panels that do not have a dialer
interface and use the fire alarm, fire supervisory
or fire trouble output relay contacts to send the
events to the communicator.
Connect relay contacts to a zone
input on the alarm control panel
for 3G3070-CF troubles supervision
(24 h type zone)
3G3070-CF
Suggested compatible DACT models
for use with 3G3070-CF are DSC
models: PC4020CF with PC470I
Interface or PC5020CF with
PC5700 Interface
firealarmresources.com
14
Fig. 3 - Power Supply Wiring Diagram
Fig. 2a - 3G3070-CF Module Wiring Diagram - Standalone Configuration
NOTE: If the control panel PGM output connected to the 3G30XX input latches (remains
closed) after an alarm has occurred, the 3G30XX input will remain active. The latched
PGM output must be reset or future alarms will not be reported via the zone input of the
3G30XX and additional alarms may be triggered when the 3G30XX is locally or remotely
restarted. Please contact panel vendor for details on how to reset the control panel PGM.
DG009661
These inputs are typically used to
interface with fire alarm panels that do
not have a dialer interface and use the
fire alarm, fire supervisory or fire
trouble output relay contacts to send
the events to the communicator.
3G3070-CF
Connect relay contacts to a zone
input on the alarm control panel
for 3G3070-CF troubles supervision
(24 h type zone)
PS4085
+12V
COM ACT LBT TEST +BAT
AC IN
TEST - CHARGER TROUBLE OUTPUT 50mA, 12V Max.
LBT - LOW BATTERY OUTPUT 50mA, 12V Max.
ACT - AC FAILURE OUTPUT 50mA,12V Max.
Primary
120VAC
60Hz, 0.3A
TRANSFORMER
ATC Frost Model FTC3716\
SPECIAL APPLICATION OUTPUT
RATING: 11.5VDC - 12.6VDC,
700mA max. Use for DSC,
Model 3G3070-CF
WARNING!
HIGH VOLTAGE. DISCONNECT AC
POWER & TELEPHONE LINES
PRIOR TO SERVICING
DG0009662
firealarmresources.com
15
Fig. 4 - Telephone Connection (Not required when 3G3070-CF is used as a
standalone device)
RED (R)
GREEN (T)
GRAY (R)
BROWN (T)
RJ-31X
RING
TIP
CONTROL PANEL
Incoming
Phone line
Handset
R1
T1
4
3
2
15
3G3070-CF
TIP T1 R1
RNG
DSC RM-2 Relay
NC
C
NO
Power Supply
(used to power the
3G3070-CF
Module)
+12VDC
GND
Control
Panel
EOL
Resistor
See Note 3
ZONE
TERMINALS
(See Note 1)
- +
+12VDC
GND
CONTROL PAN EL
Aux Power
+ -
Supervision
Relay
See Note 2
19
18
17
1614 20
15
12
1110
9
713
8
6
COM 12 34
AUX+
PGM
TAMPER COM Z1 Z2 Z3 Z4
+ 12V -
NOTES:
1. Program the Control Panel’s input
Zone/Point as 24h “Supervisory” type
with the keypad only annunciation
when activated.
2. A supervision relay, DSC model
RM-2 can be used, as indicated in
Fig. 4 in order to provide supervision
of the control panel (for total power
loss) when the 3G3070-CF is
powered by a Separate Power Supply.
When the 3G3070-CF is powered by
the control panel the relay is not
required since a loss of voltage at the
power input terminals on the GS3055-I
CF will generate a trouble signal
transmission to the monitoring station.
3. Output 4 on the 3G3070-CF must
be set as “Active High”.
3G3070-CF
Fig. 5 - Optional Power Supply And Supervision Wiring Diagram
firealarmresources.com
FCCCOMPLIANCESTATEMENT
CAUTION:Changes ormodificationsnot expresslyapproved byDigital
SecurityControls could voidyour authorityto usethis equipment.This
equipment generates and uses radio frequency energy and if not
installed and used properly, in strict accordance with the manufacturer's
instructions, may cause interference to radio and television reception.
It has been type tested and found to comply with the limits for Class B
device in accordance with the specifications in Subpart "B" of Part 15
of FCC Rules, which are designed to provide reasonable protection
against such interference in any residential installation. However, there
isno guarantee that interference will not occurin aparticular installation.
If this equipment does cause interference to television or radio reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Re-orient the receiving antenna
• Relocate the alarm control with respect to the receiver
• Move the alarm control away from the receiver
• Connect the alarm control into a different outlet so that alarm control
and receiver are on different circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may
findthe followingbooklet preparedby theFCC helpful:"How toIdentify
and Resolve Radio/Television Interference Problems". This booklet is
available from the U.S. Government Printing Office, Washington, D.C.
20402, Stock # 004-000-00345-4.
IMPORTANT INFORMATION
This equipment complies with Part 68 of the FCC Rules. On the side of
this equipment is a label that contains, among other information, the
FCC registration number and ringer equivalence number (REN) for
this equipment. If requested, this number must be provided to the
Telephone Company.
3G3070-CF Product Identifier US: F53MO00B3G3070
REN: 0.0B
USOC Jack: RJ-31X
Telephone Connection Requirements
Aplug andjack usedto connect this equipment tothe premiseswiring and
telephone network must comply with the applicable FCC Part 68 rules
and requirements adopted by the ACTA. A compliant telephone cord
andmodularplugis provided withthisproduct.It is designedtobeconnected
to a compatible modular jack that is also compliant. See installation
instructions for details.
Ringer Equivalence Number (REN)
TheREN is usedto determine thenumberof devicesthatmay beconnected
to a telephone line. Excessive RENs on a telephone line may result in the
devices not ringing in response to an incoming call.
In most but not all areas, the sum of RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to a line,
as determined by the total RENs, contact the local Telephone Company.
Forproducts approvedafter July23, 2001, theREN forthis productis part
of the product identifier that has the format. US: AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (e.g.,
03 is a REN of 0.3). For earlier products, the REN is separately shown on
the label.
Incidence of Harm
If this equipment 3G3070-CF causes harm to the telephone network, the
telephone company will notify you in advance that temporary discontinuance
of service may be required. But if advance notice is not practical, the
Telephone Company will notify the customer as soon as possible. Also, you
will be advised of your right to file a complaint with the FCC if you believe
it is necessary.
ChangesinTelephone CompanyEquipment orFacilities
The Telephone Company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the equipment. If
this happens the Telephone Company will provide advance notice in order for
you to make necessary modifications to maintain uninterrupted service.
EquipmentMaintenance Facility
Iftrouble is experienced with this equipment for repair orwarranty information,
please contact the facility indicated below. If the equipment is causing harm
to the telephone network, the Telephone Company may request that you
disconnect the equipment until the problem is solved. This equipment is of a
type that is not intended to be repaired by the end user.
DSC c/o APL Logistics, 757 Douglas Hill Rd., Lithia Springs, GA 30122
AdditionalInformation
Connection to party line service is subject to state tariffs. Contact the state
public utility commission, public service commission or corporation
commission for information.

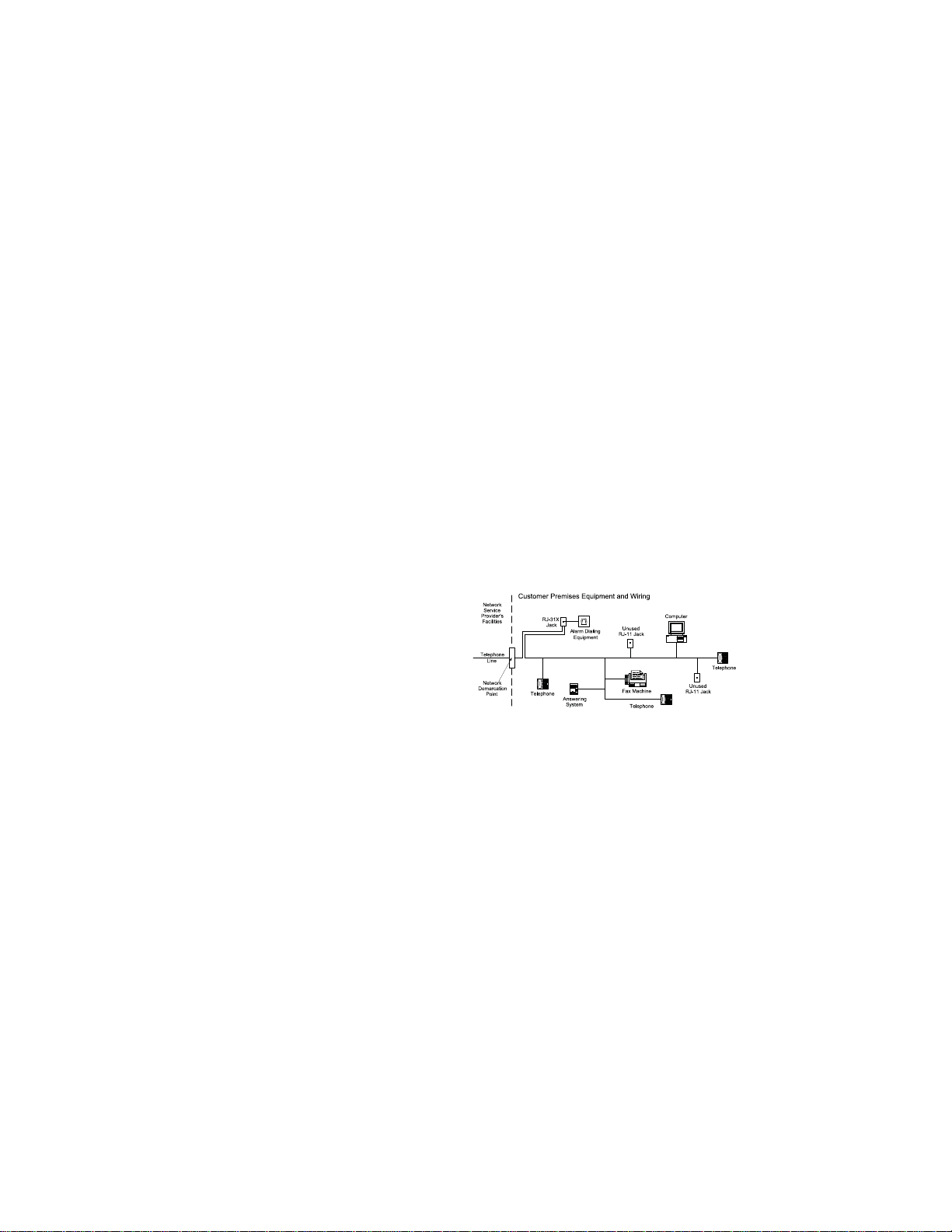

Alarm dialling equipment must be able to seize the telephone line and place
a call in an emergency situation. It must be able to do this even if other
equipment (telephone, answering system, computer modem, etc.) already
has the telephone line in use. To do so, alarm dialling equipment must be
connected to a properly installed RJ-31X jack that is electrically in series with
and ahead of all other equipment attached to the same telephone line. Proper
installationis depictedin thefigure below. Ifyou haveany questionsconcerning
these instructions, you should consult your telephone company or a qualified
installer about installing the RJ-31X jack and alarm dialling equipment for
you.
WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance
of 20cm or more must be maintained between the antenna of this device and persons during device operation.
firealarmresources.com
IMPORTANT - READ CAREFULLY: DSC Software purchased with or without
Products and Components is copyrighted and is purchased under the following license
terms:
This End-User License Agreement (“EULA”) is a legal agreement between You
(the company, individual or entity who acquired the Software and any related
Hardware) and Digital Security Controls, a division of Tyco Safety Products
Canada Ltd. (“DSC”), the manufacturer of the integrated security systems and the
developer of the software and any related products or components
(“HARDWARE”) which You acquired.
If the DSC software product (“SOFTWARE PRODUCT” or “SOFTWARE”) is
intended to be accompanied by HARDWARE, and is NOT accompanied by new
HARDWARE, You may not use, copy or install the SOFTWARE PRODUCT.
The SOFTWARE PRODUCT includes computer software, and may include
associated media, printed materials, and “online” or electronic documentation.
Any software provided along with the SOFTWARE PRODUCT that is associated with
a separate end-user license agreement is licensed to You under the terms of that license
agreement.
By installing, copying, downloading, storing, accessing or otherwise using the
SOFTWARE PRODUCT, You agree unconditionally to be bound by the terms of this
EULA, even if this EULA isdeemed to be a modification of any previous arrangement
or contract. If You do not agree to the terms of this EULA, DSC isunwilling to license
theSOFTWARE PRODUCT to You, and Youhave no right to use it.
SOFTWARE PRODUCT LICENSE
The SOFTWARE PRODUCT is protected by copyright laws and international copyright
treaties, as well as other intellectual property laws and treaties. The SOFTWARE
PRODUCT is licensed, not sold.
1. GRANT OF LICENSE. This EULA grants You the following rights:
(a) Software Installation and Use - For each license You acquire, You may have only one
copy of the SOFTWARE PRODUCT installed.
(b) Storage/Network Use - The SOFTWARE PRODUCT may not be installed,
accessed, displayed, run, shared or used concurrently on or from different
computers, including a workstation, terminal or other digital electronic device
(“Device”). In other words, if You have several workstations, You will have to
acquire a license for each workstation where the SOFTWARE will be used.
(c) Backup Copy - You may make back-up copies of the SOFTWARE PRODUCT, but
You may only have one copyper license installed at any given time. You may use the
back-up copy solely for archival purposes. Except as expressly provided in this EULA,
You may not otherwise make copies of the SOFTWARE PRODUCT, including the
printed materials accompanying the SOFTWARE.
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.
(a) Limitations on Reverse Engineering, Decompilation and Disassembly - You may
not reverse engineer, decompile, or disassemble the SOFTWARE PRODUCT, except
and only to the extent that such activity is expressly permitted by applicable law
notwithstanding this limitation. You may not make any changes or modifications to the
Software, without the written permission of an officer of DSC. You may not remove
any proprietary notices, marks or labels from the Software Product. You shall institute
reasonable measures to ensure compliance with the terms and conditions of this EULA.
(b) Separation of Components - The SOFTWARE PRODUCT is licensed as a single
product. Its component parts may not be separated for use on more than one
HARDWARE unit.
(c) Single INTEGRATED PRODUCT - If You acquired this SOFTWARE with
HARDWARE, then the SOFTWARE PRODUCT is licensed with the HARDWARE
as a single integrated product. In this case, the SOFTWARE PRODUCT may only be
used with the HARDWARE as set forthin this EULA.
(d) Rental - You may not rent, lease or lend the SOFTWARE PRODUCT. You may not
make it available to others or post it on a server or web site.
(e) Software Product Transfer - You may transfer all of Your rights under this EULA
only as part of a permanent sale or transfer of the HARDWARE, provided You retain
no copies, You transfer all of the SOFTWARE PRODUCT (including all component
parts, the media and printed materials, any upgrades and this EULA), and provided the
recipient agrees to the terms of this EULA. If the SOFTWARE PRODUCT is an
upgrade, any transfer must also include all prior versions of the SOFTWARE
PRODUCT.
(f) Termination - Without prejudice to any other rights, DSC may terminate this EULA if
You fail to comply with the terms and conditions of this EULA. In such event, You
must destroyall copies of the SOFTWARE PRODUCT and all ofits component parts.
(g) Trademarks - This EULA does not grant You any rights in connection with any
trademarks or service marks of DSC or its suppliers.
3. COPYRIGHT.
All title and intellectual property rights in and to the SOFTWARE PRODUC
T
(including but not limited to any images, photographs, and text incorporated into the
SOFTWARE PRODUCT), the accompanying printed materials, and any copies of the
SOFTWARE PRODUCT, are owned by DSC or its suppliers. You may not copy the
p
rinted materials accompanying the SOFTWARE PRODUCT. All title and intellectua
l
property rights in and to the content which may be accessed through use of the
SOFTWARE PRODUCT are the property of the respective content owner and may be
p
rotected by applicable copyright or other intellectual property laws and treaties. This
EULA grants You no rights to use such content. All rights not expressly granted under
this EULA are reserved by DSC and its suppliers.
4. EXPORT RESTRICTIONS.
You agree that You will not export or re-export the SOFTWARE PRODUCT to an
y
country, person, or entity subject to Canadian export restrictions.
5. CHOICE OF LAW: This Software License Agreement is governed by the laws of the
Province of Ontario, Canada.
6. ARBITRATION
All disputes arising in connection with this Agreement shall be determined by final an
d
binding arbitration in accordance with the Arbitration Act, and the parties agree to be
b
ound by the arbitrator’s decision. The place of arbitration shall be Toronto, Canada,
and the language ofthe arbitration shallbe English.
7. LIMITED WARRANTY
(a) NO WARRANTY
DSC PROVIDES THE SOFTWARE “AS IS” WITHOUT WARRANTY. DSC DOES
NOT WARRANT THAT THE SOFTWARE WILL MEET YOU
R
REQUIREMENTS OR THAT OPERATION OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE.
(b) CHANGES IN OPERATING ENVIRONMENT
DSC shall not be responsible for problems caused by changes in the operating
characteristics of the HARDWARE, or for problems in the interaction of the
SOFTWARE PRODUCT with non-DSC-SOFTWARE or HARDWARE
PRODUCTS.
(c) LIMITATION OF LIABILITY; WARRANTY REFLECTS ALLOCATION OF
RISK
IN ANY EVENT, IF ANY STATUTE IMPLIES WARRANTIES OR CONDITIONS
NOT STATED IN THIS LICENSE AGREEMENT, DSC’S ENTIRE LIABILIT
Y
UNDER ANY PROVISION OF THIS LICENSE AGREEMENT SHALL B
E
LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY PAID BY YOU
TO LICENSE THE SOFTWARE PRODUCT AND FIVE CANADIAN DOLLARS
(CAD$5.00). BECAUSE SOME JURISDICTIONS DO NOT ALLOW TH
E
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL O
R
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
(d) DISCLAIMEROF WARRANTIES
THIS WARRANTY CONTAINS THE ENTIRE WARRANTY AND SHALL BE I
N
LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER EXPRESSED O
R
IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) AND OF
ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF DSC. DS
C
MAKES NO OTHER WARRANTIES. DSC NEITHER ASSUMES NO
R
AUTHORIZES ANY OTHER PERSON PURPORTING TO ACT ON ITS BEHALF
TO MODIFY OR TO CHANGE THIS WARRANTY, NOR TO ASSUME FOR I
T
ANY OTHER WARRANTY OR LIABILITY CONCERNING THIS SOFTWARE
PRODUCT.
(e) EXCLUSIVE REMEDY AND LIMITATION OF WARRANTY
UNDER NO CIRCUMSTANCES SHALL DSC BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES BASED UPO
N
BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRIC
T
LIABILITY, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE,
BUT ARE NOT LIMITED TO, LOSS OF PROFITS, LOSS OF THE SOFTWARE
PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COS
T
OF SUBSTITUTE OR REPLACEMENT EQUIPMENT, FACILITIES O
R
SERVICES, DOWN TIME, PURCHASERS TIME, THE CLAIMS OF THIR
D
PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY.
WARNING: DSC recommends that the entire system be completely tested on a
regular basis. However, despite frequent testing, and due to, but not limited to,
criminal tampering or electrical disruption, it is possible for this SOFTWARE
PRODUCT to fail to perform as expected.
firealarmresources.com
29008179R001
© 2012 Tyco International Ltd. and its Respective Companies. All Rights Reserved.
The trademarks, logos, and service marks displayed on this document are registered in the United
States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International
Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including
pursuit of criminal prosecution wherever necessary. All trademarks not owned by Tyco International Ltd.
are the property of their respective owners, and are used with permission or allowed under applicable
laws.
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales
representative.
Tech Support: 1-800-387-3630 (Canada&
U.S.) or 905-760-3000 • www.dsc.com
Printed in Canada
firealarmresources.com
Table of contents
Other Tyco Cell Phone manuals
