Tyco Gs2060-rs User manual

Alarm

Communicator

GS2060-RS

GPRS/GSM Wireless Communicator

TL260-RS

Ethernet/Internet Communicator

TL260GS-RS

Ethernet/Internet and GPRS/GSM Dual-Path Communicator

v2.0

Installation Manual

Warning: This manual contains information on limitations regarding product use and function and

information on the limitations as to liability of the manufacturer.

GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

UL/ULC Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Ratings Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Pre Installation Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Communicator Pre Installation Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Running the Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Running the RS-232 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing the GSM/ETHERNET Communicator in PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing Communicator with PC1616/1832/1864 Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Initial Panel Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Keypad Data Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Entering HEX values at keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Entering ASCII Characters at keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PC1616/1832/1864 Initial Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Communicator Troubles displayed on a PC1616/1832/1864 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Communicator Placement Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Communicator Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Yellow Trouble LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Red Network Connection Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

(Green LED 1) (Green LED 2) and (Yellow LED) Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Communicator Reset / Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Factory Defaults Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Communicator Reset / Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Appendix A: Communicator Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ETHERNET/GPRS PROGRAMMING SECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Communications Reporting Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

System Test Options [026 - 029]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Ethernet Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Ethernet Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Ethernet Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

GPRS Receiver 1 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

GPRS Receiver 2 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

GPRS Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Interactive Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

System Information (Read Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

System Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ETHERNET/GPRS PROGRAMMING WORKSHEETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

System Test Options [026 - 029]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Ethernet Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Ethernet Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ethernet Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

GPRS Receiver 1 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

GPRS Receiver 2 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

GPRS Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Interactive Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

System Information (Read Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

End User Licence Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

/LPLWHG:DUUDQW\. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

TABLE OF CONTENTS

WARNING Please Read Carefully

Note to Installers

This Warning contains vital information. As the only individual in contact with system users, it is the

installer’s responsibility to bring each item in this Warning to the attention of all users of this system.

System Failures

This system has been carefully designed to be as effective as

possible. There are circumstances, however, involving fire, bur-

glary, or other types of emergencies where it may not provide

protection. Any alarm system of any type may be compromised

deliberately or may fail to operate as expected for a variety of

reasons. Some but not all of these reasons may be:

Access by Intruders

Intruders may enter through an unprotected access point, cir-

cumvent a sensing device, evade detection by moving through

an area of insufficient coverage, disconnect a warning device, or

interfere with or prevent the proper operation of the system.

Component Failure

Although every effort has been made to make this system as

reliable as possible, the system may fail to function as intended

due to the failure of a component.

Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances

which could include metal objects placed on or near the radio

path or deliberate jamming or other inadvertent radio signal

interference.

Criminal Knowledge

This system contains security features which were known to be

effective at the time of manufacture. It is possible for persons

with criminal intent to develop techniques which reduce the

effectiveness of these features. It is important that your security

system be reviewed periodically to ensure that its features

remain effective and that it is updated or replaced if it is found

that it does not provide the protection expected.

Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to pro-

vide several years of battery life under normal conditions. The

expected battery life is a function of the device environment,

usage, and type. Ambient conditions such as high humidity, high

or low temperatures, or large temperature fluctuations may

reduce the expected battery life. While each transmitting device

has a low battery monitor which identifies when the batteries

need to be replaced, this monitor may fail to operate as

expected. Regular testing and maintenance will keep the system

in good operating condition.

Inadequate Installation

A security system must be installed properly in order to provide

adequate protection. Every installation should be evaluated by a

security professional to ensure that all access points and areas

are covered. Locks and latches on windows and doors must be

secure and operate as intended. Windows, doors, walls, ceilings

and other building materials must be of sufficient strength and

construction to provide the level of protection expected. A

reevaluation must be done during and after any construction

activity. An evaluation by the fire and/or police department is

highly recommended if this service is available.

Inadequate Testing

Most problems that would prevent an alarm system from operat-

ing as intended can be found by regular testing and mainte-

nance. The complete system should be tested weekly and

immediately after a break-in, an attempted break-in, a fire, a

storm, an earthquake, an accident, or any kind of construction

activity inside or outside the premises. The testing should

include all sensing devices, keypads, consoles, alarm indicating

devices, and any other operational devices that are part of the

system.

Insufficient Time

There may be circumstances when the system will operate as

intended, yet the occupants will not be protected from an emer-

gency due to their inability to respond to the warnings in a timely

manner. If the system is remotely monitored, the response may

not occur in time to protect the occupants or their belongings.

Motion Detectors

Motion detectors can only detect motion within the designated

areas as shown in their respective installation instructions. They

cannot discriminate between intruders and intended occupants.

Motion detectors do not provide volumetric area protection. They

have multiple beams of detection and motion can only be

detected in unobstructed areas covered by these beams. They

cannot detect motion which occurs behind walls, ceilings, floor,

closed doors, glass partitions, glass doors or windows. Any type

of tampering whether intentional or unintentional such as mask-

ing, painting, or spraying of any material on the lenses, mirrors,

windows or any other part of the detection system will impair its

proper operation.

Passive infrared motion detectors operate by sensing changes

in temperature. However their effectiveness can be reduced

when the ambient temperature rises near or above body tem-

perature or if there are intentional or unintentional sources of

heat in or near the detection area. Some of these heat sources

could be heaters, radiators, stoves, barbeques, fireplaces, sun-

light, steam vents, lighting, and so on.

Power Failure

Control units, intrusion detectors, smoke detectors and many

other security devices require an adequate power supply for

proper operation. If a device operates from batteries, it is possi-

ble for the batteries to fail. Even if the batteries have not failed,

they must be charged, in good condition and installed correctly. If

a device operates only by AC power, any interruption, however

brief, will render that device inoperative while it does not have

power. Power interruptions of any length are often accompanied

by voltage fluctuations which may damage electronic equipment

such as a security system. After a power interruption has

occurred, immediately conduct a complete system test to ensure

that the system operates as intended.

Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute

for property or life insurance. An alarm system also is not a sub-

stitute for property owners, renters, or other occupants to act

prudently to prevent or minimize the harmful effects of an emer-

gency situation.

Smoke Detectors

Smoke detectors that are a part of this system may not properly

alert occupants of a fire for a number of reasons, some of which

follow. The smoke detectors may have been improperly installed

or positioned. Smoke may not be able to reach the smoke

detectors, such as when the fire is in a chimney, walls or roofs, or

on the other side of closed doors. Smoke detectors may not

detect smoke from fires on another level of the residence or

building.

Every fire is different in the amount of smoke produced and the

rate of burning. Smoke detectors cannot sense all types of fires

equally well. Smoke detectors may not provide timely warning of

fires caused by carelessness or safety hazards such as smoking

in bed, violent explosions, escaping gas, improper storage of

flammable materials, overloaded electrical circuits, children play-

ing with matches or arson.

Even if the smoke detector operates as intended, there may be

circumstances when there is insufficient warning to allow all

occupants to escape in time to avoid injury or death.

Telephone Lines

If telephone lines are used to transmit alarms, they may be out of

service or busy for certain periods of time. Also an intruder may

cut the telephone line or defeat its operation by more sophisti-

cated means which may be difficult to detect.

Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not

warn people or waken someone sleeping if there is an interven-

ing wall or door. If warning devices are located on a different

level of the residence or premise, then it is less likely that the

occupants will be alerted or awakened. Audible warning devices

may be interfered with by other noise sources such as stereos,

radios, televisions, air conditioners or other appliances, or pass-

ing traffic. Audible warning devices, however loud, may not be

heard by a hearing-impaired person.

IMPORTANT

This Installation Manual shall be used in conjunction with the Alarm Controller Power Panel manual. All the

safety instructions specified within that manual (or equivalent) shall be observed. The Alarm Controller Power

Panel is referenced as “panel” throughout this document.

The GPRS/Ethernet Communicator is a fixed, wall-mounted unit and shall be installed in the location specified

in these instructions. The equipment enclosure must be fully assembled and closed, with all the necessary

screws/tabs and secured to a wall before operation. Internal wiring must be routed in a manner that prevents:

• Excessive strain on wire and on terminal connections,

• Interference between power limited and non power limited wiring,

• Loosening of terminal connections, or

• Damage of conductor insulation.

WARNING: Never install this equipment during a lightning storm!

Safety Information

The Installer must instruct the System user on each of the following:

• Do not attempt to service this product. Opening or removing covers may expose the user to dangerous

voltages or other risks.

• Any servicing shall be referred to trained service personnel only.

• Use authorized accessories only with this equipment.

• Do not stay close to the equipment during device operation.

• Do not touch the antenna.

Model Information

GS2060-RS: Is a General Packet Radio Service/Global System for Mobile (GPRS/GSM) wireless alarm Com-

municators that send alarm communication to Sur-Gard System I, II, III (SG-DRL3IP), and IV (SG-DRL4IP)

central station receivers via a GPRS/GSM digital cellular network.

TL260-RS: Is an Ethernet alarm Communicator that send alarm communication to Sur-Gard System I, II, and III

central station receivers through Ethernet/Internet connection.

TL260GS-RS: Is a Dual-path GSM/Ethernet alarm Communicators that send alarm communication to Sur-Gard

System I, II, III, and IV central station receivers through Ethernet/Internet or a GPRS/GSM digital cellular network.

The Communicator can be used as either a backup or primary Communicator. The Communicator supports Internet

Protocol (IP) transmission of panel and Communicator Events over Ethernet/Internet and/or GPRS/GSM.

The GPRS/GSM performance of the GS2060-RS and TL260GS-RS Communicators depends greatly on GSM

network coverage. The unit should not be mounted in the final location without first performing the Communica-

tor Placement Test on page 10 to determine the best location for radio reception (minimum of one green LED

ON). Optional antenna kits are available from DSC at: http://www.DSC.com.

NOTE: Prior to installation of the GS2060-RS/TL260GS-RS Communicator, confirm with your carrier

that the GPRS/GSM network is available and active in the area where the Communicator will be

installed, and that radio signal strength (CSQ) is adequate.

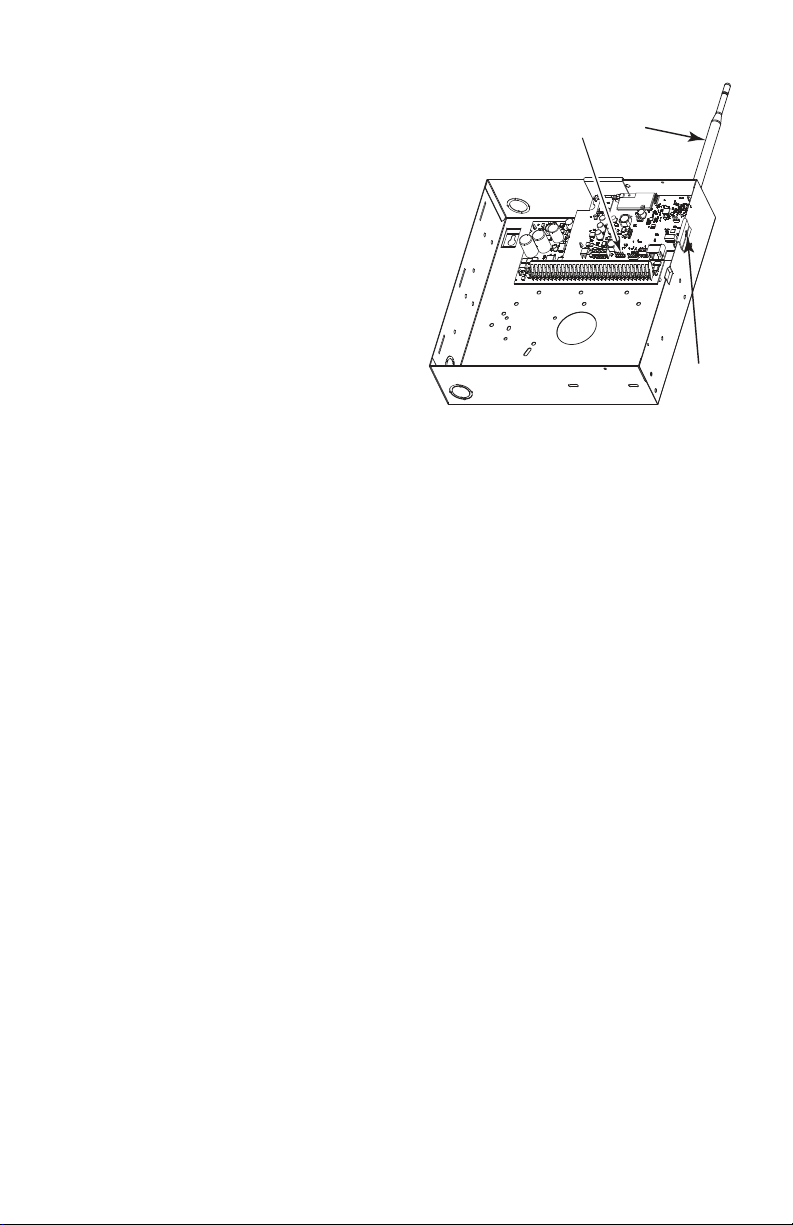

Panel Mounting

The following Communicators are compatible with PC1616/PC1832/PC1864 Panels:

•GS2060-RS (GPRS/GSM only)

•TL260-RS (Ethernet/Internet only)

•TL260GS-RS (Ethernet/Internet + GPRS/GSM dual-path)

Features

• 128-bit AES encryption via GPRS/GSM and Ethernet/Internet (NIST Validation Certificate No. 1627).

• Back up or primary GPRS/GSM alarm communication.

• Ethernet LAN/WAN 10/100 BaseT (TL260-RS/TL260GS-RS only).

• Full event reporting to central station (UL/ULC Listed), and external equipment via RS-232

(This supplementary feature is in addition to what is required for a UL/ULC Listed system configuration and it does

not affect the required UL/ULC Listed signaling).

• Fully redundant Ethernet/Internet and GPRS/GSM Dual-path Alarm Communication (TL260GS-RS only).

• Individual Ethernet and/or GPRS Periodic test transmission.

• Integrated call routing.

• Panel remote uploading/downloading support via GPRS/GSM and Ethernet/Internet.

• PC-LINK connection.

• Programmable Labels.

• Quad-Band Operation: 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz.

• RS-232 unbalanced line communication to external equipment up to 50 ft. (16 m).

(This supplementary feature is in addition to what is required for a UL/ULC Listed system configuration and it does

not affect the required UL/ULC Listed signaling).

• SIA and Contact ID (CID) formats supported.

• Signal strength and Trouble display LEDs.

• Subscriber Identity Module (SIM) card included with Communicator. (GS2060-RS/TL260GS-RS only).

• Supervision heartbeats via GPRS/GSM and Ethernet/Internet.

Technical Specifications

The input voltage to the Communicator can be drawn from the Underwriters Laboratories/Underwriters Labora-

tories Canada (UL/ULC) Listed Control Panel or provided by an external UL/ULC Listed power supply rated for

the application (external power-limited source).

NOTE: The power supply must be Class II, Power Limited.

GENERAL

UL/ULC Installation Requirements

NOTE: For equipment used at the protected premises and intended to facilitate IP communications (hubs,

routers, Network Interface Device (NID)s, Digital Subscriber Line (DSL/Cable modems) 24 hour back-up

power is required. Where such cannot be facilitated, a secondary (back-up) communication channel is

required. Programming for Domain Name Service (DNS) is not permitted in UL/ULC Listed systems.

Notes for using Private, Corporate, and High Speed Data Networks:

Network access and domain access policies shall be set to restrict unauthorized network access, and spoofing

or Denial of Service (DoS) attacks. Select an Internet Service Provider (ISP) that has redundant servers/sys-

tems, back-up power, routers with firewalls enabled, and methods to identify and protect against DoS attacks

(e.g., via spoofing).

Notes for using Public Switched and Wireless Data Networks:

Communication channels shall be facilitated such that the Communicator will restrict unauthorized access,

which could otherwise compromise security. Communicators shall be located in secured areas.

• For ULC Residential fire and burglary applications the TL260GS-RS can be used as primary communication

channel via either GSM or Ethernet or as a back-up in conjunction with the Digital Alarm Communicator

Transmitter (DACT). Test transmission every 24 hours shall be enabled on each channel.

• For ULC Commercial Fire and Burglary applications the GS2060-RS and TL260GS-RS can be used as a

passive communication module with the following Security Levels:

• P1 (each channel GSM or Ethernet is independent),

• P2 (GSM and Ethernet in back-up configuration, panel Section [851][005] Toggle Option [5] OFF),

• P3 (GSM and Ethernet in redundant configuration, panel Section [851][005] Toggle Option [5] ON).

• The module can be also used as an Active communication system with the Security Levels A1-A4 (each

channel GSM or Ethernet independent or together in a back-up/redundant configuration). For Active Line

Security systems AES128 bit encryption shall be enabled at the monitoring station receiver and the supervi-

sion heartbeat rate shall be set as 90 seconds (panel Section [851] [004] = 005A/90). The supervision win-

dow at the Signal Receiver Centre (SRC)'s receiver shall be programmed as maximum 00B4/180 seconds.

• For UL Residential fire and burglary applications the GS2060-RS andTL260GS-RS can be used as primary

communication channel via either GSM or Ethernet, or as a back-up in conjunction with the DACT (30 day

test transmission is required on each channel).

• For UL Commercial Burglary applications the TL260GS-RS module can be used as Dual Signalling Line

communication system (GSM and Ethernet channels used in redundant configuration), Standard Line Secu-

rity and as Encrypted Line Security.

• The supervision heartbeat shall be enabled (panel Section [851] [005] Toggle Option [1] (Ethernet) and/or

Toggle Option [2] (GSM) shall be ON), Toggle Option [3] (Supervision Type) shall be ON and the supervision

heartbeat rate shall be selected as 0087/135 seconds Option [004] = 0087. The supervision window at the

supervising station shall be maximum 00C8/200 seconds. For Encrypted Line Security systems the encryp-

tion AES128 bit shall be enabled at the monitoring station receiver.

• For UL Commercial Burglary installations, the GS2060-RS is listed as a primary (sole) communication

means (heartbeat must be enabled) or for supplementary (back-up) use in conjunction with a Plain Old Tele-

phone Service (POTS) line (dialer). When the heartbeat transmission over the Ethernet or GPRS/GSM net-

work is enabled, using the TL260GS-RS with a compatible control unit listed for standard/encrypted line

security, it can provide line security for the alarm system over the primary line.

• The TL260GS-RS is also suitable to be used with a compatible control unit listed for dual line security trans-

mission when used in conjunction with a Digital Alarm Communicator Transmitter (DACT) or a Public

Switched Data Network (PSDN) transmitter, where the PSDN provides the line security and is the primary

line. In this mode, alarm signals are required to be sent simultaneously over both communication methods.

• For UL Residential Fire installations, a test transmission is sent to the Monitoring station every 7 days. This is

the default setting of the product.

Ratings Compatibility

Table 1: Communicator Ratings

Model GS2060-RS

GPRS/GSM only

TL260-RS

Ethernet only

TL260GS-RS

Ethernet and GPRS/GSM

POWER SUPPLY RATINGS

Input Voltage

13.6V DC:

The panel Bell output shall be derated:

700mA - (Communicator mA) = (derated Bell output).

CURRENT CONSUMPTION

Standby Current

70mA @ 13.66V 80mA @ 13.66V 100mA @ 13.64V

Alarm (Transmitting) Current

400mA @ 13.6V

Operating Frequency

Quad band 850MHz, 900MHz, 1800MHz, 1900MHz

Typical Antenna Gain

2dBi

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature 0°C - 49°C (32°F- 120°F)

Humidity 5% ~ 93% relative humidity, non-condensing

MECHANICAL SPECIFICATIONS

Board Dimensions (mm) 100 × 150 × 15 100 × 150 × 18 100 × 150 × 15

Weight (grams) with bracket 310 290 320

NOTE: Enter [*][8][Installer Code] [900] at keypad to view the Panel Version number.

Products or components of products, which perform communications functions only shall comply with the

requirements applicable to communications equipment as specified in UL60950 or CAN CSA C22.2. No.

60950-1, Information Technology Equipment - Safety - Part 1: General Requirements. Where network inter-

faces are internal to the control unit or receiver, compliance to CAN CSA C22.2. No. 60950-1 is adequate. Such

components include, but are not limited to: hubs; routers; NIDs; Third party communications service providers;

DSL modems; and Cable modems.

Customer Furnished Equipment

The Communicator provides monitoring and control via an RS-232 link to an external device, Customer Fur-

nished Equipment (CFE). The default communication link speed is 115.2 KB and this option is programmable

by the installer. All life-safety events are encrypted and transmitted by the GPRS path to the central monitoring

station. All life-style events are transmitted by the RS-232 link, using IT V2.0 protocol to the customer device.

NOTE: Customer furnished equipment may be an interface device which connects to security panels,

IP cameras, sensors, Z-wave based home automation devices, etc. to deliver a host of advanced

functionality.

The following features are available with the RS-232 Communications Interface:

• Communicator faults can be transmitted.

• Panel communication errors are reported to the CFE.

• Real time reporting of zone status information to the CFE.

• Remote update the Communicator (flash upgrade).

• SMS incoming “wake up” for the GPRS channel.

• WEB login will request an incoming session with the Communicator.

• Zone Label Programming.

NOTE: Communicator buffers 1,000 date/time stamped Life Style events to CFE as First In First Out (FIFO).

Encryption

The Communicator uses 128 Bit AES Encryption. Encryption can only be enabled from the monitoring station

receiver. Each receiver can independently have encryption enabled or disabled. When encryption is enabled,

the central station will configure the device to encrypt communications the next time the Communicator module

performs a communication to that receiver.

NOTE: Packets will start being encrypted only after the next event is sent to that receiver, or if the unit

is restarted.

Before leaving the installation site, the Communicator TL260-RS/TL260GS-RS shall be connected via

an APPROVED (acceptable to the local authorities) Network Interface Device (NID) (e.g., for UL Installa-

tions, U60950 listed NID). All wiring shall be performed according to the local electrical codes.

This GSM/Ethernet -RS Communicator is fixed and shall be installed by Service Persons only. (Service Person is

defined as a person having the appropriate technical training and experience necessary to be aware of hazards to

which that person may be exposed in performing a task and can also take measures to minimize the risks to that per-

son or other persons). The Communicator shall be installed and used within an environment that provides the pollu-

tion degree max 2, over voltages category II, in non-hazardous, indoor locations only. This manual shall be used with

the Installation Manual of the panel which is connected to the GSM/Ethernet Communicator. All instructions specified

within the panel manual must be observed.

All the local rules imposed by local electrical codes shall be observed and respected during installation.

Running the Ethernet Cable

(TL260-RS/TL260GS-RS only)

A Category 5 (CAT 5) ethernet cable must be run from a source with Ethernet/Internet connectivity to the Com-

municator module, inside the Power Panel. The Communicator end of the cable must be terminated with an

RJ45 plug, which will connect to the Communicator’s RJ45 jack after the Communicator is installed. All require-

ments for installation of CAT5 ethernet cable must be observed for correct operation of the Communicator,

including, but not limited to, the following:

• Do NOT strip off cable sheathing more than required for proper termination.

• Do NOT kink/knot cable.

• Do NOT crush cable with cable ties.

• Do NOT untwist CAT5 pairs more than 1.2cm (½ in.).

• Do NOT splice cable.

• Do NOT bend cable at right angles or make any other sharp bends.

NOTE: CAT5 specification requires that any cable bend must have a minimum 5 cm (2 in.) bend radius.

Do NOT exceed maximum 15cm (6 in.) from center of ferrite to T-Link Network Connector. Maximum

length of CAT 5 cable is 100m (328 ft.).

Table 2: Compatible Receivers, and Power Panels

Communicator Receiver/

Panel Description

GS2060-RS

TL260-RS

TL260GS-RS

Receiver

• Sur-Gard System I Receiver, version 1.30+

• Sur-Gard System II Receiver, version 2.10+

• Sur-Gard SG-DRL3-IP, version 2.30+ (for Sur-Gard System III Receiver)

• Sur-Gard SG-DRL4-IP version 1.20+ (for Sur-Gard System IV Receiver)

Power Panel

• Power Series PC1616, version 4.5+

• Power Series PC1832, version 4.5+

• Power Series PC1864, version 4.5+

PRE INSTALLATION CONFIGURATION

COMMUNICATOR PRE INSTALLATION CONFIGURATION

Running the RS-232 Cable

An RS-232 cable must be connected to the CFE and cable run to the Communicator module inside the panel.

NOTE: Maximum cable length for RS-232 cable is 16 m (50 ft.)

At the communicator, attach wires as follows:

1. Securely fasten the TX wire on the terminal block.

2. Securely fasten the RX wire on the terminal block.

3. Securely fasten the GND wire on the terminal block.

4. Connect the other end of the RS-232 cable to the Customer Furnished Equipment.

Inserting and Removing the SIM Card

1. Remove the front cover of the Panel to access SIM holder.

2. Remove power from the panel, disconnect the battery and telephone line.

3. On the SIM card holder push gently to slide the cover towards the Printed Circuit Board (PCB) antenna, as

indicated by the arrow on SIM holder, to OPEN. This will unlatch the SIM card holder on the side closest to

edge of the Communicator PCB.

4. Lift up the SIM card holder from the side that is not hinged.

NOTE: The SIM can be damaged by bending, or scratching contacts. Use caution when handling SIM

cards.

5. Insert or remove the SIM card, noting the orientation of the notches on the SIM card and the SIM card holder.

6. When inserting a SIM card, insert the card in the proper orientation and gently push the SIM card holder

down and slide the holder as indicated by the arrow on SIM holder, to LOCK. (See Figure 3).

7. Reconnect the battery, apply AC power, reconnect telephone line and replace the panel cover.

Hardware Reset

The Communicator can be hardware reset by installing a jumper between Pins 4 and 5 on the AUDIO/

DEFAULT connector and restarting the Communicator. Installing jumper during normal operation has no effect.

Installing Communicator with PC1616/1832/1864 Panel

WARNING!

BEFORE INSTALLING THE COMMUNICATOR WITHIN THE PANEL, DISCONNECT POWER AND

TELEPHONE LINE FROM THE PANEL.

1. To assemble mounting bracket, perform the following (See Figure 1).

a. Remove the 4 white plastic

standoffs from the bag provided

with the Communicator kit.

b. Insert the 4 standoffs through

the back of the supplied mount-

ing bracket, into the holes at

each corner. (The antenna

mounting tab should be facing

away from you).

c. Place the bracket on a flat,

solid surface. Hold the Commu-

nicator face up and orient the 4

holes on the Communicator

with the 4 standoffs protruding

from the bracket. Push the

Communicator firmly and

evenly onto the standoffs until it

is securely attached to the

mounting bracket.

d. Remove the alarm panel front

cover.

e. TL260-RS/TL260GS-RS only: Remove and discard the circular knockout located in the top-right section

of the panel. (This hole will be used for connection of the supplied radio antenna).

f. TL260-RS/TL260GS-RS only: Connect the supplied 12.7cm (5”) antenna cable to the radio, by passing

the connector through the hole on back of the mounting bracket to the Communicator board. Push the

antenna connector firmly into the socket on the GSM radio. (See Figure 3).

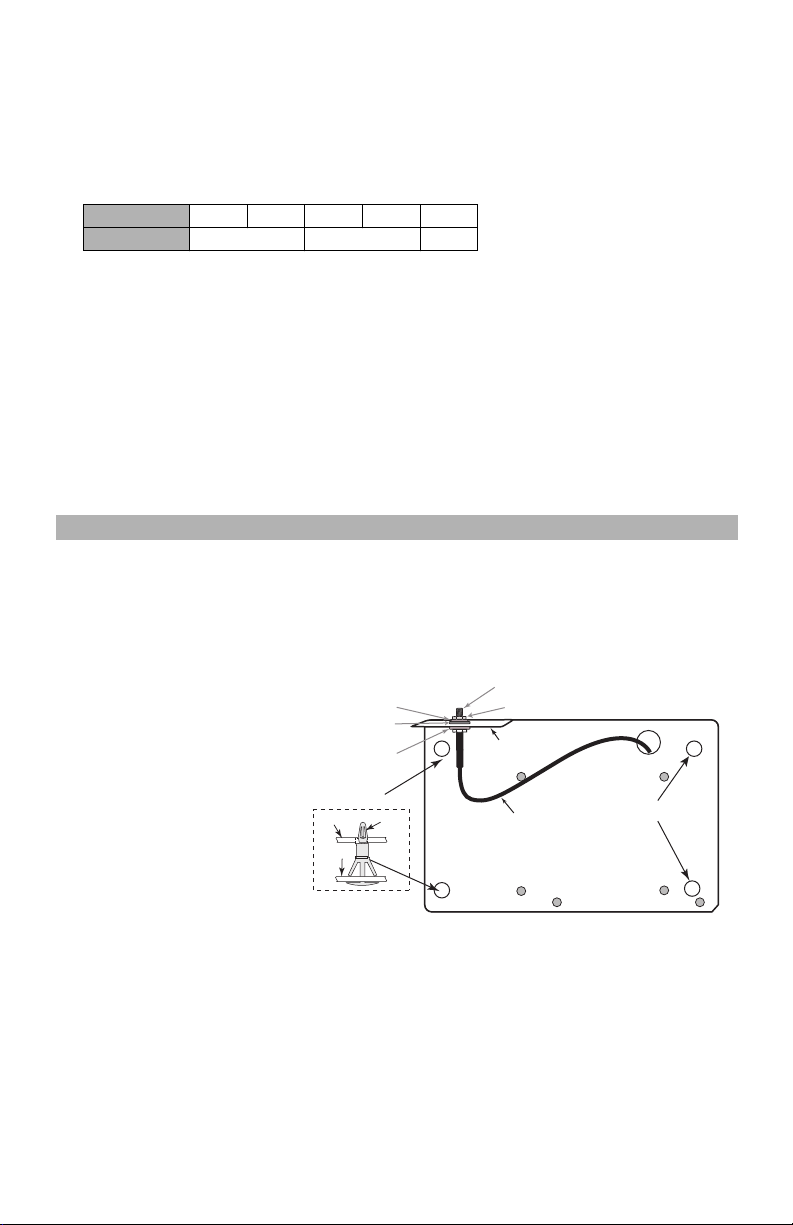

Table 3: RS-232 Connector Pin Assignment

PIN 12345

Signal Name TX RX GND

INSTALLING THE GSM/ETHERNET COMMUNICATOR IN PANEL

DG009344

Brass Washer

Nylon washer (flat)

Nylon Washer

with bushing

(thicker flat washer)

Brass nut

Antenna

Mounting Tab

Mounting

Holes

Mounting Holes

Antenna

Cable

Mounting Plate

for UA585

External Antenna

Screw Thread

Communicator

Board

Mounting

Plate

Stand Off

Figure 1 Communicator Mounting Bracket

g. TL260-RS/TL260GS-RS only: Place the nylon

washer with bushing (thick flat washer) onto the

threaded section of the antenna cable. Insert the

threaded section through the antenna mounting

knockout hole. Place the second nylon washer (flat),

followed by the brass washer and the brass nut, onto

the threaded section of the cable, outside the panel.

Tighten the assembly by hand only (Finger Tight - Do

not overtighten the assembly).

2. Install the Communicator module into the panel:

(See Figure 3).

a. Attach one end of the supplied PC-LINK cable to the

panel PC-LINK header on the panel (red wire goes

on Pin 1 of the panel PC-LINK header).

b. Insert the assembled Communicator into the panel.

NOTE: Ensure that the threaded antenna connection

point is visible through the knockout hole at the top

right of the panel.

c. Locate the screw hole on the right side wall of the

panel. See Figure 2 (screw). Line up the assembled

Communicator with the side wall of the panel and,

using the screw provided, secure the mounting

bracket to the panel.

d. Attach the other end of the PC-LINK cable to the con-

nector on the Communicator (black wire goes on

Pin 1 of the Communicator). See Figure 3.

e. TL260-RS/TL260GS-RS only: Using light pressure

(finger tight), attach the supplied 12.7 cm (5”) white quad band whip antenna to the threaded antenna

connection point at the top of the panel.

WARNING!

GS2060-RS/TL260-RS/TL260GS-RS MODULES ARE POWER LIMITED. DO NOT ROUTE ANY

WIRING OVER THE CIRCUIT BOARD. MAINTAIN AT LEAST 25.4MM (1IN.) SEPARATION BETWEEN

CIRCUIT BOARD AND WIRING. A MINIMUM OF 7MM (¼ IN.) SEPARATION MUST BE MAINTAINED AT

ALL POINTS BETWEEN NON-POWER LIMITED WIRING AND POWER LIMITED WIRING.

3.To electrically connect the Communicator to the panel, perform the following steps (See Figure 3

Module Power Connection

a. Attach a wire from the Communicator’s left PWR terminal to the panel’s BELL+ terminal.

NOTE: For ULC Commercial Fire Monitoring applications: Do NOT connect any devices on the Bell +

terminal other than the Communicator.

b. Attach a wire from the Communicator’s GND terminal (beside PWR) to the panel’s AUX - terminal.

c. Attach a wire from the Communicator’s SHLD terminal to the panel’s EGND terminal.

(Protective earth ground).

External Bell/Siren Connection (Optional)

d. Attach a wire from the Communicator’s right PWR terminal to the positive (+) terminal on the Bell/Siren.

e. Attach the panel’s BELL

terminal to the negative (

) terminal on the Bell/Siren.

NOTE: If a Bell/Siren is not used, install the 1KΩ½ W 5% resistor (Brown, Black, Red, Gold) (supplied

with the panel) between the panel’s Bell + and Bell

terminals, then only wire the BELL + to the PWR

terminal on the Communicator.

f. Confirm that the SIM card is inserted and locked. (See Figure 3).

DG009545

PC-Link

Cable Connector

(screw)

Quad band

Whip Antenna

PC1616/1832/1864

GSM Radio

RJ-45

UA585

Use light pressure

to attach antenna

Finger Tight only.

Figure 2 PC1616/1832/1864 Control Panel

g. Insert the PC-LINK connector into the Communicator’s PC-LINK socket.

(Black wire on Pin 1 on the Communicator).

RS-232 Connection for Customer Furnished Equipment

4. Run a 3 wire RS-232 cable from the CFE to the Panel and Communicator.

5. Terminate the wires on the Communicator, as follows:

a. Connect the TX wire to the TX terminal on the Communicator.

b. Connect the RX wire to the RX terminal on the Communicator.

c. Connect the ground wire to the GND terminal on the Communicator.

d. Connect the other end of the RS-232 cable as required by the CFE installation guide.

Install Network Cable (TL260-RS/TL260GS-RS only)

6. Route the CAT 5 Ethernet cable through back of the panel and plug it into the Communicator’s RJ45 jack.

Before leaving the premises the Ethernet communication lines must first be connected to an approved

(acceptable to local authorities) type NID, (UL installations, UL 60950 listed NID, for ULC installations

CAN/CSA C22.2. No. 60950-1 Certified NID). All wiring shall be performed according to the local

electrical codes.

Figure 3 Communicator Wiring Diagram

DG009593

AUDIO/DEFAULT

DSC

UA585

PC-LINK

GND

TL260-RS

TL260GS-RS

GS2060-RS

Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8

AUX+

BELL +

PGM1 PGM3

RING

T-1

PC1616/1832/1864

GSM Radio

RX 1 & RX 2

UA503

To external antenna

Input Ratings from Bell +:

+11.1V ~ +12.6 VDC

100mA standby; 400mA alarm

DSC Panel min power requirements:

- 16 AC 40 VA transformer;

- 12 VDC 7Ah batter

External Bell/Siren

Black

Jumper pins 4 and 5

to reset.

GRN

RS-232

To External Device

Maximum cable length

16m (50 ft)

From NID

(GS2060-RS/TL260GS-RS)

Use only CAT5

Supervised

RJ-45

YEL

COM

PWR

GRN

YEL

TIP

R-1

BLK

RED

AUX -

BELL -

EGND

TX+

GND

RX+

SHLD

Green

Yellow

SIM

Network Link

(TL260-RS only)

YELLOW

PGM2 PGM4

Maximum cable length

100 m (328 ft)

PWR

REV01

(GS2060-RS

TL260GS-RS only)

7. Perform the following steps for initial power on of the panel with Communicator installed:

a. Reconnect the telephone line, AC power and battery + connector to the Panel. (The Communicator and

Panel will power up together).

b. Observe that the Communicator’s red and yellow LEDs are flashing together while it initializes. The red

and yellow LEDs will continue to flash until the Communicator has successfully communicated to all pro-

grammed receivers. If this is the first time the Communicator has been powered up, the module will

request programming remotely.

NOTE: Initialization may take several minutes to complete. Red and yellow LEDs will flash together dur-

ing initialization. Do not continue to next step until the red and yellow LEDs have stopped flashing. (If

only the yellow LED is flashing, there is a Communicator trouble and the Green LEDs are not valid for

Communicator Placement Test). Correct trouble indicated by flashes on yellow LED before continuing.

(See Table 6 for troubleshooting assistance).

c. At the keypad, enter [*][8][Installer Code][382] and confirm that Toggle Option [5] is ON

(GPRS/Ethernet Module Enabled).

8. TL260-RS/TL260GS-RS only: Perform the Communicator Placement Test on page 10.

9. Mount the Panel in final location.

Domain Name Service (DNS) programming is not permitted in UL/ULC listed systems.

Keypad Data Display

•Section-Toggle Options: The number is displayed when Toggle is ON, the number is not displayed when

Toggle is OFF. (e.g., Toggle Options displays: “[

]”. Options 3 and 6 are ON, all others are OFF).

Pressing keys 1 through 8 will alternately turn the Toggle ON and OFF.

•HEX/Decimal Data: Values that are provided with two defaults, separated by a slash “/” character, use the

format: hexadecimal followed by decimal equivalent (e.g., Default [0BF5/3061]). Hexadecimal numbers are

shown, with all leading zeroes, to the full field length defined for the number.

Entering HEX values at keypad

To enter HEX values at the keypad, you must press the * key before entering the HEX value. (e.g., to enter “C” at

the keypad, press [*][3].

Entering ASCII Characters at keypad

1. Press [*] and use scroll buttons [<] [>] to display “ASCII Entry” on the LCD screen.

2. Press [*] to select ASCII entry mode.

3. Use the [<] [>] scroll keys to display the character you want and press [*] to save and exit ASCII entry.

4. Repeat the steps above to enter another ASCII character.

PC1616/1832/1864 Initial Programming

Perform the following steps to ensure that the Communicator and the panel work together as intended.

These Sections must be programmed at the panel keypad. Enter [*][8][Installer Code][Section Number]. Record

any values that are modified from their default, in the appropriate Worksheets for the Panel or Communicator.

1. In Panel Section [167] program 060 (seconds).

2. A valid Account Number must be entered in Section [851][021]. See Programming Section for details.

3. In Panel Sections [301], [302], and [303], program the central station telephone numbers that will be used for

the GPRS/Ethernet Communicator. Valid entries are:

a. A valid telephone number; signals will be routed to the central station using the Public Switched Tele-

phone Network (PSTN).

b. DCAA (Receiver 0); signals will be routed to GPRS/Ethernet Receivers 1 - 4 depending on programming

in Communicator Section [851] [006].

c. Panel Section [301] sets the Primary communication path, and may be configured as either PSTN or

Communicator routing. Panel Section [302] is redundant, and Panel Section [303] is the backup tele-

phone number for Panel Section [301].

NOTE: The leading digit ‘D’ (dial tone detection) in the telephone number is pre-programmed.

4. In Panel Section [350], program the communication format as CID (03) or SIA FSK (04).

NOTE: If any of the panel telephone numbers have been set to DCAA, this section must be set to [04 ].

5. In Panel Sections [351] - [376], program the Communicator call direction options. Refer to the Panel Installa-

tion Manual for options.

6. In Panel Section [382], ensure Toggle Option [5] ‘GPRS/Ethernet Module Enabled’ is ON. If this option is

OFF, the yellow status LED on the Communicator will indicate ‘Panel Supervision Trouble’ (2 flashes) and

the unit can not be programmed via PC-LINK cable.

7. In Panel Section [401] set Toggle Option [2] ‘User Enable DLS’ to ON in order to perform panel DLS session

through GPRS or Ethernet.

NOTE: Before leaving the premises, the installer should verify all programmed communications paths.

Refer to Programming Worksheets Section [901] to send immediate test transmissions.

Communicator Troubles displayed on a PC1616/1832/1864

The General System trouble is the only trouble that will appear on the keypad Liquid Crystal Display (LCD)

when encountered by a Communicator installed in a PC1616/1832/1864. For more information about the trou-

ble on the Communicator module refer to the panel event buffer. Log entry will show Fault or Restore for each

of the following events:

•T-LINK Network Fault/Restore: This log will occur for the following trouble conditions: SIM Lock Trouble,

GSM Trouble, Ethernet Trouble, or Connect 24 Configuration Trouble.

•T-LINK Receiver Trouble/Restore: This log will occur for the following trouble conditions: Receiver Not

Available Trouble, Receiver Supervision Trouble, or Failure to Communicate (FTC) Trouble.

•T-LINK Comm. Fault/Restore: This log will occur when the panel loses communications with the Communi-

cator and will clear when communications is restored.

INITIAL PANEL PROGRAMMING

To confirm that the panel/antenna location is suitable for radio operation, perform this test as follows:

NOTE: You may need to relocate the panel or install an optional extension antenna during this

procedure, if radio signal strength is too low and can not be corrected.

1. Confirm that the yellow Trouble LED on the Communicator is not flashing. A flashing yellow LED indicates

trouble on the Communicator. See Table 6 to troubleshoot and correct the cause of this trouble before con-

tinuing to the next step.

2. Observe the strength of the radio signal on the yellow LED and the 2 green LEDs) on the Communicator

board meet or exceed the minimum signal level requirement. Minimum Signal Level: The yellow LED must

be OFF and the Green LED 1 (furthest from the yellow LED) ON. (i.e., not flashing) for the panel loca-

tion to be acceptable. See table for Radio Signal Strength on page 11 for interpretation of receiver GSM sig-

nal strength on LEDs.

NOTE: If the required signal strength is too low with the panel in its current location, it must be relo-

cated or an external antenna is required.

a. If required, the following GSM extension antenna kits are available to the installer:

• GS15-ANTQ - 4.57m (15’ Internal Antenna Extension Kit (suitable for interior mounting only).

• GS25-ANTQ - 7.62m (25’ External Antenna Extension Kit (suitable for exterior mounting only).

• GS50-ANTQ - 15.24m (50’ External Antenna Extension Kit (suitable for exterior mounting only).

Specific instructions for the installation of the extension antenna are included with the kit. Observe all the electrical

safety instructions regarding the installation of the antenna. All the wiring of the equipment shall be fully compliant

with the local rules and regulations.

3. If required, install the antenna extension and perform the following steps to determine the best location for

placement of the antenna :

a. Disconnect the white whip antenna from the panel.

b. Attach one end of the antenna extension cable to the threaded antenna connector on the panel and the

other end to the external antenna.

4. Move the extension antenna to various locations while observing the two Green LEDs on the panel.

a. Continue to reposition the extension antenna until you receive an acceptable (minimum one green LED

ON solid) signal strength.

NOTE: Minimum strength is: green LED 1 flashing and yellow LED OFF. If green LED 1 is flash-

ing, relocation should be considered.

b. Mount the supplied antenna extension bracket at the location that provided the best signal strength.

5. Alternately, you can reposition the panel to improve signal strength. Dismount the panel and move it to

another location to achieve the required signal strength. If the panel is relocated to improve signal strength,

mount it in the new location.

6. When final location is determined, continue installation at Initial Panel Programming section.

The Communicator has 4 onboard LED indicators. These include 1 yellow trouble LED, 1 red Network Connec-

tion Status LED, and 2 green Signal Strength LEDs. The LED meaning is described in this Section.

Yellow Trouble LED

This yellow LED will flash to indicate a trouble on the unit. The number of flashes indicates the type of trouble.

See the table below for the coded flashes and the conditions which will activate the Trouble Status LED.

NOTE: Only the highest priority trouble (1 Flash is highest priority) is indicated. When this trouble is

restored, the next highest trouble will indicate, if present. This will continue until all Troubles have been

cleared (yellow LED OFF).

The following paragraphs describe the conditions associated with the trouble indicated:

Panel Supervision Trouble (2 Flashes)

This trouble will be indicated when communication between the Communicator module and the control panel

fails. If the module can not communicate with the panel (e.g., loss of power to the panel) the Communicator will

send the ‘Panel Absent Trouble Event’ message to the central station receiver. When communication returns, a

‘Panel Absent Restore Event’ is sent by the Communicator to the central station receiver. The reporting codes

are ET0001 for Trouble and ER0001 for Restore. The panel absent event always uses the primary receiver

account code when communicating to the central station.

NOTE: The Panel Supervision Trouble/Restore is an internally generated event by the Communicator. It

is the only internal event; all other events are generated by the control panel. Trouble is generated if the

Communicator misses 6 Polls. Trouble is restored on receipt of first Poll from the panel.

SIM Lock Trouble (4 Flashes)

This trouble will signify that the SIM lock feature has been enabled and the unit has not been programmed with

the correct PIN for the SIM card.

COMMUNICATOR PLACEMENT TEST

COMMUNICATOR STATUS LEDS

Table 4: Yellow Trouble Status LED

# of

Flashes Trouble # of

Flashes Trouble

2 Panel Supervision Trouble 8 Receiver Supervision Trouble

4 SIM Lock Trouble 9 FTC Trouble

5 GSM Trouble 10 Configuration Failure

6 Ethernet Trouble 11 Remote Programming

7 Receiver Not Available Trouble 12 Module Configuration Trouble

GSM Trouble (5 Flashes)

This trouble is indicated for any of the following 4 conditions:

1. Radio Failure: Trouble is indicated after 8 failed attempts to communicate with the GSM radio.

2. SIM Failure:Trouble is indicated after 10 failed “AT +CPIN” commands.

3. GSM Network Trouble: Trouble is indicated for loss of the registration to the network provider. (3 consecu-

tive init or refresh failures, failure to connect to an APN, failure to open a socket, total error count in cyclic

command = 20, or on receiving an MSDI (1/2), (7/8/14). Trouble will clear after init and cyclic commands suc-

ceed and MIPCALL and MIPOPEN commands succeed.

4. Insufficient Signal Strength: Trouble is indicated if calculated average signal strength is too low. (Both green

LEDs OFF). Trouble will clear when the calculated average signal strength is above minimum (i.e., > CSQ 5).

Ethernet Trouble (6 Flashes)

This trouble is indicated when Ethernet link between the transmitter and the local switch or router is absent.

This trouble will also be indicated if the unit fails to get Dynamic Host Control Protocol (DHCP) settings from the

DHCP server. (Not active if Ethernet Receivers are not programmed).

Receiver Not Available (7 Flashes)

This trouble is indicated if the unit is not able to successfully initialize with any of the programmed receivers.

Unprogrammed receivers are excluded.

This trouble is also indicated if the receiver APNs have not been programmed in Sections [205] and [215].

Receiver Supervision Trouble (8 Flashes)

This trouble is indicated when receiver supervision is enabled and communication between the Communicator

module and the receiver fails. Trouble is indicated if Ethernet 1 is supervised and does not receive a heartbeat

from the receiver or if GPRS is supervised and the unit does not receive an acknowledgment to 4 heartbeats

sent to the receiver.

FTC Trouble (9 Flashes)

This trouble is indicated when the unit Fails To Communicate (FTC) module events to the central station. Trou-

ble is displayed after the Communicator has exhausted all communications attempts to all programmed receiv-

ers for events generated by the Communicator.

Configuration Failure (10 Flashes)

This trouble is indicated when the unit fails to receive remote programming.

Remote Programming (11 Flashes)

This trouble is indicated during a remote firmware upgrade. Indicates that a remote firmware update is in prog-

ress over GPRS/Ethernet. Trouble will clear automatically when update completes successfully.

Module Configuration Trouble (12 Flashes)

This trouble is indicated when the System Account Code or the Receiver Account have not been programmed.

Disabled receivers are excluded.

Red Network Connection Status LED

(TL260-RS/TL260GS-RS)

BLINKING: Indicates communications in progress.

• Once quickly for outgoing Ethernet transmission.

• Twice quickly to indicate incoming Ethernet ACK/NACK.

OFF: This is the normal state of the Red Network Connection Status LED. There are no network connection

issues present.

ON: There is a problem with the Ethernet or the GPRS network connection. LED will be ON if any of the following occur:

• Ethernet cable is not connected,

• DHCP configuration times out,

• Unit fails to get an IP address from the GPRS network, or

• GPRS connection has been reset.

(Green LED 1) (Green LED 2) and (Yellow LED) Signal Strength

NOTE: If the yellow LED is flashing, Signal Strength in table below is not valid.

See 7DEOH  for troubleshooting flashing yellow LED.

NOTE: The Communicator will indicate GSM Trouble (yellow LED = 5 flashes) if the average CSQ Level

is 5 or less. The Communicator Signal Strength can be viewed remotely.

Table 5: Radio Signal Strength

Signal

Strength

CSQ

Level

Yellow

LED

Green

Led 2

Green

LED 1

Signal Level

dBm Action Required

No Signal 0 ON OFF OFF -108.8

• Check all antenna connections.

• Confirm GSM service is active in area.

• Relocate panel or install external

antenna.

1 Bar 1 - 4 ON OFF Flashing -108 ~ -103 Relocate panel or install external antenna

if Yellow GSM Trouble LED has: 5

flashes.

2 Bars 5 - 6 OFF

See Note OFF Flashing -102 ~ -99

3 Bars 7 - 10 OFF OFF ON -98 ~ -91

Location is OK. GSM Signal Strength is

greater than CSQ 5.

4 Bars 11-13 OFF Flashing ON -90 ~ -85

5 Bars 14 + OFF ON ON -84 and

higher

Network Activity LEDs (Red and Green)

(TL260GS-RS only)

Ethernet Activity: Red LED will blink quickly once for Ethernet Transmit, or twice for Ethernet Receive.

GPRS Activity: Green LED 2 will blink quickly once for GPRS Transmit, or twice for GPRS Receive.

Network Link LED (Yellow)

(TL260-RS only) See Figure 3.

The TL260-RS uses an additional Link LED on the board. LED is lit to indicate an active Ethernet connection.

Factory Defaults Reset

You can reset the programming options for the Communicator to the factory settings by installing the hardware

jumper. Perform the following steps to reset the Communicator:

NOTE: A jumper is required on AUDIO/DEFAULT pins 4 and 5 to reset the hardware values.

1. Remove panel front cover.

2. Locate the AUDIO/DEFAULT 5 pin connector in the middle of the Communicator board. On the PC1616/1832/1864 pan-

els pins 4 and 5 are on top. (See Figure 3).

3. Apply a jumper to short the hardware default pins 4 and 5.

4. Remove all power from the panel and then reapply power to the panel. Wait until the two green LEDs on the

Communicator begin flashing rapidly.

5. Remove the jumper from the hardware default pins 4 and 5. (Green LEDs will stop flashing).

NOTE: Your Communicator has now been reset to the factory default values.

Firmware Update

The firmware of the device can be updated over GPRS or Ethernet (Remote or Local updating):

• When the firmware update begins, all LEDs are ON.

• During the firmware update process, the LEDs will be cycled individually in a chaser pattern.

• After a successful update, the unit will automatically restart.

• Should the update fail, all 4 LEDs will flash ON, then OFF together at 1 second intervals.

NOTE: If the firmware update fails, restart the unit. For persistent update failures, contact your dealer.

COMMUNICATOR RESET / UPDATE

APPENDIX A: COMMUNICATOR TROUBLESHOOTING

Table 6: Trouble LED indications

Trouble

indication

Possible

Causes Trouble Possible Solution

No Indication No Power

• Check the power connections between the control panel and the Communicator.

See Figure 3.

• Confirm PC-LINK cable is properly installed between communicator and panel.

Yellow LED –

ON Solid

Insufficient

Signal Strength

• Confirm that GSM network service is active in your area.

• Ensure the antenna is securely connected to the GSM radio. Check antenna stub

cable is securely connected to the GSM radio.

• If an external antenna is used ensure the antenna is securely screwed on to the

antenna cable connector. Check external antenna for damage or open/short.

Trouble LED –

2 Flashes

Panel

Supervision

Trouble

• Check Section [382]Toggle Option[5] is ON.(GPRS/Ethernet Module Enabled)

• Ensure the PC-LINK cable between the control panel and Communicator is con-

nected properly (not reversed) and is securely in place.

Yellow LED -

4 Flashes

Lockout

Trouble

• The SIM card has incorrect PIN programmed or has a PIN that the module does

not recognize. Replace the SIM card.

Yellow LED –

5 Flashes GSM Trouble

• Confirm that GSM service is available and active in your area.

• Check all antenna connections.

• Ensure average radio signal strength is CSQ 6 or higher. (See Table 5 ).

• Ensure the SIM card is properly inserted into the SIM card holder.

• Ensure the SIM card has been activated.

• If this trouble persists, you must relocate the Panel (and communicator) or install

an external antenna extension kit.

Yellow LED –

6 Flashes

Ethernet

Trouble

• Check with your ISP to confirm Internet service is active in your area.

• Ensure your Ethernet cable is securely inserted into the RJ45 jack of the Commu-

nicator and the Hub/Router/ Switch.

• Check the link light on the Hub/Router/ Switch is ON . If link light is OFF, try restart-

ing the Hub/Router/ Switch.

• If DHCP is used, ensure that the unit has an assigned IP address from the server.

In Panel Section [851] [992] verify a valid IP address is programmed. If not contact

the Network administrator.

• If problem persists, replace the Ethernet cable and RJ45 connector.

Yellow LED –

7 Flashes

Receiver Not

Available

• Ensure that the Ethernet path has internet connectivity.

• If you are using a static IP address make sure the gateway and subnet mask are

entered correctly.

• If the network has a firewall, ensure the network has the programmed

outgoing ports open (Default UDP Port 3060 and Port 3065).

• Ensure that all the receivers are programmed for DHCP or have the proper IP

address and port number.

• Ensure the GPRS Receiver APNs have been programmed with the Access Point

Name provided by your GSM provider.

Yellow LED –

8 Flashes

Receiver

Supervision

Trouble

• This trouble is indicated when supervision is enabled and the unit is not able to

successfully communicate with the receiver.

• If this trouble persists, contact your central station.

Yellow LED -

9 Flashes FTC Trouble

• The unit has exhausted all communications attempts to all programmed receiver

for events generated by the Communicator.

• Restart the system, if trouble persists, contact your dealer.

Yellow LED –

10 Flashes

Connect 24

Configuration

Failure

• This trouble is indicated when the SIM is active but there is no programming for

the unit.

• Ensure a profile has been programmed in Connect 24 for the SIM.

• You can confirm your programming by calling the Connect 24 VRU, or by logging

into the Connect 24 VRU web site.

Yellow LED –

11 Flashes

Remote

Programming

• The LEDs will flash when a remote firmware upgrade is in progress over Ethernet

or GPRS. The LEDs will extinguish when update is complete.

• The LEDs will flash to indicate a remote programming session is active over

Ethernet or GPRS. The LEDs will extinguish when the session terminates.

Yellow LED –

12 Flashes

Module

Configuration

Trouble

This indication appears when Section [021] System Account Code or

Section [101]; [111]; [201]; and [211] Receiver Account Code have not been pro-

grammed. Ensure that a valid account code has been entered in these Sections.

All LEDs flash-

ing together

Boot Loader

Failed

Disconnect power, then reconnect power to the Communicator module.

Red and Yellow

LEDs flashing

together

Initialization

Sequence

The unit is still initializing please wait while the unit gets its programming and estab-

lishes a connection to all programmed receivers. Note that this process may take

several minutes.

Only Green

LEDs flashing

Hardware

Default Jumper

The hardware default jumper must be removed. See Figure 3.

The Programming Sections in this document are accessed via panel Section for Ethernet/GPRS Programming.

Enter: [*][8][installer code][851][###], Where ### is the 3 digit Section number referenced in this document.

The Programming Worksheets at the end of this document can be used to record the new values when pro-

gramming changes have been made from the default values. Default values are provided for each Section.

Programming Sections can not be modified from the keypad. Installers may review/record programming

Options at the keypad.

NOTE: Ethernet/GPRS Programming Sections accessed through the panel are for display purposes

only. Configuration changes must be done remotely. Specified panel Sections must be configured for

proper operation of the Communicator and the panel.

System Options

[001] Ethernet IP Address

Default (000.000.000.000)

Enter the IP address of the Communicator. Ensure that the IP address is unique to your Communicator on the local

network. Format is 4 fields, each field is a 3 digit decimal number. Valid range: 000-255. If an IP address is pro-

grammed in this Section, the unit will operate with Static IP (DHCP disabled). Sections [002] and [003] must also be

programmed when using Static IP addresses.

NOTE: Default for this Section is Dynamic Host Configuration Protocol (DHCP) enabled. When enabled,

the DHCP Server will set values for: IP Address [001], Subnet Mask [002], and Gateway [003]. Program-

ming an IP address in this Section will disable DHCP (Static IP).

[002] Ethernet IP Subnet Mask

Default (255.255.255.000)

Enter the Ethernet IP Subnet Mask of the dual Communicator. Format is 4 fields, each field is a 3 digit decimal

number. Valid range: 000-255.

NOTE: If DHCP is enabled, the DHCP Server will assign the subnet mask for this Section and the pro-

grammed value will be ignored.

[003] Ethernet Gateway IP Address

Default (000.000.000.000)

Enter the Ethernet Gateway IP address of the dual Communicator. The gateway IP address is required when a

router is used on the local network to reach the destination IP address specified in Section [001]. Format is 4 fields,

each field is a 3 digit decimal number. Valid range: 000-255.

NOTE: If DHCP is enabled, the DHCP Server will assign the Gateway IP address for this Section and the

programmed value will be ignored.

[004] Receiver Supervision Interval

Default (0087/135)

When receiver supervision is enabled (ON) in Section [005] Toggle Option [3], the unit sends heartbeats to Ether-

net Receiver 1 or GPRS Receiver 1 to test the communication path. Use this Section to set the interval time (in sec-

onds) when heartbeats will be sent. Valid range 000A-FFFF seconds.

If the programmed value is less than (000A/10) seconds, supervision is disabled.

•Receiver Window: This is the supervision timeout that needs to be configured at the central station receiver.

•Recommended Values: This is the recommended heartbeat interval that should be programmed into the

Communicator module.

• For ULC passive systems (not using heartbeat supervision), the daily test transmission must be enabled over

each available communication channel Section [125] and [225]. When programming with Connect24, the

recommended intervals will be programmed automatically when the required window is selected.

[005] System Toggle Options

[1] Ethernet Receiver 1 Supervised

Default (OFF) TL260-RS/TL260GS-RS only.

ON: Ethernet Receiver 1 will be supervised and heartbeats will be sent to Ethernet Receiver 1 based on the

supervision interval programmed in Section [004].

OFF: Ethernet Receiver 1 will not be supervised. When disabled, heartbeat 1 is sent to the Ethernet receiver

once every hour, regardless of supervision type (heartbeat 1 or 2). The heartbeat is resent every 5 seconds until

ACK. If no event or heartbeat ACK is received after (Receiver Supervision Interval + 75 seconds), Supervisory

trouble is indicated (8 flashes).

NOTE: Ethernet Receiver 2 can not be supervised.

[2] GPRS Receiver 1 Supervised

Default (OFF)

ON: GPRS Receiver 1 will be supervised and heartbeats will be sent to GPRS Receiver 1 based on the super-

vision interval programmed in Section [004]. If ACK to heartbeat is not received, it is retransmitted every 5 sec-

onds. Failure to ACK 2 consecutive heartbeats will reset the radio.

ETHERNET/GPRS PROGRAMMING SECTIONS

Table 7: Supervision Intervals for UL/ULC

Jurisdiction Receiver Window

(Timeout)

Recommended Supervision

Interval

UL Commercial Burglary 200 seconds (0087/135) seconds

UL Residential Fire 30 days Panel Test Transmission

UL Residential Burglary 30 days Panel Test Transmission

ULC Commercial Burglary Active 180 seconds (005A/90) seconds

ULC Commercial Burglary Passive 24 hours Panel Test Transmission

ULC Commercial Fire Active 180 seconds (0073/115) seconds

ULC Commercial Fire Passive 24 hours Panel Test Transmission

OFF: GPRS Receiver 1 will not be supervised. When disabled, heartbeat is not sent to the receiver.

NOTE: GPRS Receiver 2 can not be supervised.

[3] Supervision Type

Default (OFF)

ON: Heartbeat 1 (Commercial Supervision). This supervision type is suitable for applications where swap detec-

tion is required on the supervisory packet.

OFF: Heartbeat 2 (Residential Supervision). This supervision type is suitable for applications where supervision

of the communication path to the receiver is required. (No swap detection).

NOTE: Commercial supervision is more data intensive than residential supervision and should only be

used when required to meet the approval for the installation.

[4] GSM Primary

Default (OFF - TL260-RS/TL260GS-RS) (ON - GS2060-RS)

ON: GPRS channel is the primary path. Ethernet channel is the secondary path, if it exists.

OFF: Ethernet channel is the primary path in a dual Communicator. GPRS channel is the secondary path.

[5] Redundant Communications

Default (OFF) (TL260GS-RS only)

ON: Events will be communicated to Ethernet Receiver 1 and GPRS Receiver 1 at the same time. Events will be

communicated to Ethernet Receiver 2 and GPRS Receiver 2 at the same time. As long as the event is successfully

communicated to 1 of the 2 paths (Ethernet or GPRS) the Communicator will move on to the next event.

NOTE: Do not configure Ethernet Receiver 1 and GPRS Receiver 1 to communicate using a common

receiver configuration (i.e., identical Receiver IP address and Receiver Remote Port).

OFF: Events will be communicated to the receivers individually.

NOTE: This Toggle should be OFF for applications where guaranteed message delivery to both receivers is

required.

[6] Remote Firmware Upgrade

Default (ON)

ON: The Communicator module firmware can be remotely upgraded using the Ethernet/GPRS paths.

OFF: The Communicator module firmware can not be remotely upgraded. Local firmware upgrade is still possible.

[7] Alternate Test Transmissions Default (OFF).

ON: When the periodic test transmission interval occurs, the test transmission will alternate between being sent

to the primary and secondary receivers with each test transmission interval.

OFF: When the periodic test transmission interval occurs, the test transmission will be sent to the programmed

receivers, based on the settings of the periodic test transmission reporting codes.

[8] GSM Low Signal Trouble. Default (OFF).

[006] System Toggle Options 2

[1] Ethernet 1 Receiver Enabled. Default (ON) [OFF for GS2060-RS]

ON: Ethernet Receiver 1 is enabled.

OFF: Ethernet Receiver 1 is disabled.

[2] Ethernet 2 Receiver Enabled. Default (ON) [OFF for GS2060-RS]

ON: Ethernet Receiver 2 is enabled.

OFF: Ethernet Receiver 2 is disabled.

[3] Reserved. (OFF).

[4] GPRS 1 Receiver Enabled. Default (ON).

ON: GPRS Receiver 1 is enabled.

OFF: GPRS Receiver 1 is disabled.

[5] GPRS 2 Receiver Enabled. Default (ON).

ON: GPRS Receiver 2 is enabled.

OFF: GPRS Receiver 2 is disabled.

[6] Reserved (OFF).

[7] DLS Over GPRS. Default (ON).

NOTE: Program this toggle as OFF if you want to completely disable DLS from using the GPRS path.

ON: DLS is enabled on the GPRS path.

OFF: DLS is disabled on the GPRS path.

NOTE: If Toggle Option [7] is OFF, DLS sessions will occur on the Ethernet path only, regardless of Pri-

mary Path set in Section [005] Toggle Option [4]. If it is ON then the Communicator will connect to the

primary path first for DLS and if the session fails, the secondary path will be used.

[8] Interactive Over GPRS. Default (ON).

[007] DNS Server IP 1

Default (000.000.000.000)

Programming this Section is not permitted on a UL/ULC listed system.

Enter the IP address for DNS Server 1. Format is 4 fields, each field is a 3 digit decimal. Valid range: 000-255.

NOTE: If no value is programmed and DHCP is used, the DHCP Server will configure the address. If an

address is programmed and DHCP is used, the address that you program will be used instead of the

DHCP address.

[008] DNS Server IP 2

Programming this Section is not permitted on a UL/ULC listed system.

Default (000.000.000.000)

Enter the IP address for DNS Server 2. Format is 4 fields, each field is a 3 digit decimal. Valid range: 000-255.

NOTE: If no value is programmed and DHCP is used, the DHCP Server will assign this value. If an address is pro-

grammed and DHCP is used, the address that you program will be used instead of the DHCP address.

[009] Language

Default (01)

NOTE: Immediately after programming this Section, perform a Default Languages in Section [999][11] to

have programmable labels available in the selected language. Programming this Section with an invalid

language number will default to English [01]. Connect24 will automatically update all programmable lan-

guage labels when this Section is changed.

[010] System Toggle Options 3

Default (OFF)

[1] Two way Audio over GSM.

ON: Two way audio over the GSM Voice channel is enabled.

OFF: Two way audio over the GSM Voice channel is disabled.

[2]-[8] Reserved. Default (OFF)

Programming Options

[011] Installer Code

Default (CAFE)

Program your installer code for this Communicator module. The installer code will be required when programming

the Communicator module. Valid range: 0000 - FFFF.

[012] DLS Incoming Port

Default (0BF6/3062)

The DLS Incoming Local Port (listening port) is the port DLS IV will use when connecting to the Communicator. If a

router or gateway is used, it must be programmed with a Transmission Control Protocol (TCP) port forward for this

port to the Communicator module IP address. Valid range: 0000-FFFF.

[013] DLS Outgoing Port

Default (0BFA/3066)

The DLS Outgoing Port is used for outgoing session to DLS IV after an SMS request has been sent to the Commu-

nicator. Use this Section to set the value of the local outgoing port. The value must be changed if the Communicator

is located behind a firewall and must be assigned a particular port number, as determined by your network adminis-

trator. In most cases, changing the default value or configuring your firewall with this port is not required. Valid

range: 0000-FFFF.

NOTE: If Section [006] Toggle Option [7] is ON, DLS will use the primary path for session. If Section

[006] Toggle Option [7] is OFF, DLS will use the Ethernet path, if available.

[020] Time Zone

Default (00)

Use Offset Hours column to find your local time zone offset from GMT/UTC. Record the two digit HEX value

from the HEX column on same row. Program this HEX value as your Time Zone. Valid range is 00 - FF.

Table 8: Programming Label Languages

OPT Language OPT Language OPT Language OPT Language

00 Reserved 08 Czech 16 Turkish 24 Lithuanian

01 English 09 Finnish 17 Reserved 25 Ukrainian

02 Spanish 10 German 18 Croatian 26 Slovak

03 Portuguese 11 Swedish 19 Hungarian 27 Serbian

04 French 12 Norwegian 20 Romanian 28 Estonian

05 Italian 13 Danish 21 Russian 29 Slovenian

06 Dutch 14 Hebrew 22 Bulgarian 30 - 99 Reserved

07 Polish 15 Greek 23 Latvian

Table 9: Time Zone Offset

HEX Offset

Hours

Std

Abbrev Location HEX Offset

Hours

Std

Abbrev Location

01 -12 BIT Baker Island Time 47 +5.5 IST Indian Standard Time

05 -11 NUT Niue Time 48 +5.75 NPT Nepal Time

SST Somoa Standard Time

49 +6

XJT Xinjiang Standard Time

09 -10

HAST Hawaii-Aleutian Standard Time EKST East Kazakhstan Standard Time

THAT Tahiti Time LKT Sri Lanka Time

TKT Tokelau Time VOST Vostok Time

CKT Cook Island Time OMSK Omsk Standard Time

0B -9.5 MIT Marquesas Island Time NOVT Novosibirsk Time

0D -9 AKST Alaska Standard Time BTT Bhutan Time

GIT Gambier Island Time BIOT British Indian Ocean Time

11 -8

PST Pacific Standard Time 4B +6.5 CCT Cococ Islands Time

PST Pitcarirn Standard Time MMT Myanmar Time

CIST Clipperton Island Standard Time

4D +7

CXT Christmas Island Time

15 -7 MST Mountain Standard Time KOVT Khovd Time

19 -6

CST Central Standard Time KRAT Krasnoyarsk Time

GALT Galapagos Time WIB Waktu Indonesia Bagian Barat

PIT Peter Island Time ICT Indochina Time

EAST Easter Island Standard Time BDT Bangladesh Standard Time

1D -5

EST Eastern Standard Time

51 +8

AWST Australian Western Standard Time

COT Colombia Time CST China Standard Time

ECT Ecuador Time HKST Hong Kong Standard Time

PET Peru Time WITA Waktu Indonesia Bagian Tengah

ACT Acre Time TWT Taiwan Time

1F -4.5 VST Venezuela Standard Time SST Scarborough Shoal Time

21 -4

AST Atlantic Standard Time SIT Spratly Island Time

CLST Chile Standard Time SGT Singapore Time

BWST Brazil Western Standard Time PST Philippine Standard Time

SLT San Luis Time PIT Pratas Islands

PYT Paraguay Time PIT Parcel Island Time

JFST

Juan Fernandez Island Standard Time

MYT Malaysia Time

GYT Guyana Time MNT Mongolia Time

FKST Falkland Island Standard Time MBT Macclesfield Bank Time

BOT Bolivia Time IRKT Irkutsk Time

23 -3.5 NST Newfoundland Standard Time BDT Brunei Time

25 -3

CGT Central Greenland Time ACIT Ashmore and Cartier Island Time

ART Argentina Time 52 +8.25 APO Apo Island Time

BRT Brazilia Time 54 +8.75

ACWST

Australian Central Western

Standard Time

UYT Uruguay Standard Time

55 +9

YAKT Yakutsk Time

SRT Suriname Time JST Japan Standard Time

ROTT Rothera Time KST Korea Standard Time

PMST St. Pierre & Miquelon Standard Time WIT Waktu Indonesia Bagian Timur

GFT French Guiana Time TPT East Timor Time

29 -2 GST South Georgia and the South

Sandwich Islands PWT Palau Time

BEST Brazil Eastern Standard Time 57 +9.5 ACST Australian Central Standard Time

2D -1

EGT Eastern Greenland Time

59 +10

AEST Australian Eastern Standard Time

CVT Cape Verde Time GST Guam Standard Time

AZOST Azores Standard Time YAPT Yap Time

31 0

WET Western Europian Time VLAT Vladivostok Time

GMT Greenwich Mean Time (UTC) TRUT Truk Time

SLT Sierra Leone Time PGT Papua New Guinea Time

IST Ireland Standard Time DTAT District de Terre Adelie Time

35 +1

CET Central Europian Time ChST Chamorro Standard Time

WAT Western Africa Time 5B +10.5 LHST Lord Howe Standard Time

BST British Summer Time

5D +11

KOST Kosare Standard Time

39 +2

EET Eastern Europian Time NCT New Caledonia Time

CAT Central Africa Time VUT Vanuatu Time

SYT Syrian Standard Time SBT Solomon Island Time

SAST South Africa Standard Time PONT Phonpei Standard Time

IST Israel Standard Time MAGT Magadan Island Time

Table 9: Time Zone Offset (Continued)

HEX Offset

Hours

Std

Abbrev Location HEX Offset

Hours

Std

Abbrev Location

[021] Account Code

Default (FFFFFF)

The account code is included when transmitting any events generated by the Communicator. (e.g., Panel Absent

Trouble). It is recommended that the account code be the same as the control panel account number. Valid range:

000001-FFFFFE. If 4 digit account codes are needed the 2 lowest digits shall be programmed as FF;(e.g., Account

1234 is programmed as:1234FF). Programming this Section as all 0 or all F will cause a Module Configuration

Trouble (yellow LED=12 flashes).

[022] Communications Format

Default (04)

Program 03 for CID. Program 04 for SIA. The module can be configured to send Communicator Events in SIA or

CID format. The SIA communication format follows the level 2 specifications of the SIA Digital Communication

Standard - October 1997. This format will send the account code along with its data transmission. The transmission

will look similar to the following at the receiver: Nri0 ET001

Where: N = New Event; ri0 = Partition/Area identifier; ET = Panel Absent Trouble; 001 = Zone 001.

Communications Reporting Codes

[023] Panel Absent Trouble

Default (FF)

Program 00 to disable this event or FF to enable. This event will occur when communications with the panel have

been lost for more than 60 seconds.

3D +3

MSK Moscow Standard Time 5F +11.5 NFT Norfolk Island Time

EAT Eastern Africa Time

61 +12

NZST New Zealand Standard Time

AST Arabic Standard Time FJT Fiji Time

AST Arabia Standard Time WFT Wallis and Futuna Time

AST Al Manamah Standard Time TVT Tuvalu Time

3F +3.5 IRST Iran Standard Time PETT Petropavlovsk Time

41 +4

AMST Armenia Standard Time NRT Nauru Time

SCT Seychelles Time MHT Marshall Island Time

GST Gulf Standard Time GILT Gilbert Island Time

SAMT Samara Time ANAT Anadyr Time

RET Reunion Time 64

+12.75

CHAST Chatham Island Standard Time

MUT Mauritius Time 65 +13 PHOT Phoenix Island Time

ICT Iles Crozet Time TOT Tonga Time

GET Georgia Standard Time 69 +14 LINT Line Island Time

AZT Azerbaijan Time

70 - FF Reserved

43 +4.5 AFT Afghanistan Time

45 +5

CAST Chinese Atlantic Standard Time

WKST West Kazakhstan Standard Time

PKT Pakistan Time

YEKT Yekaterinburg Time

UZT Uzbekistan Time

TMT Turkmenistan Time

TJT Tajikistan Time

TFT French Southern and Antarctic Time

MVT Maldives Time

MAWT Mawson Time

KGT Kyrgyzstan Time

HMT Heard and McDonald Island Time

DAVT Davis Time

Table 10: Communications Reporting Codes

Event SIA

Identifier

SIA

Reporting

Code

CID

Qualifier

CID

Event

Code

CID

Reportin

g Code

CID

User/

Zone

[023] Panel Absent Trouble ET 001 1 3 55 001

[024] Panel Absent Trouble Restore ER 001 3 3 55 001

[025] Radio Activation Restore RS 001 3 5 52 001

[026] Ethernet 1 Test Transmission RP 001 1 6 A3 951

[027] Ethernet 2 Test Transmission RP 002 1 6 A3 952

[028] GPRS 1 Test Transmission RP 003 1 6 A3 955

[029] GPRS 2 Test Transmission RP 004 1 6 A3 956

[030] FTC Restore YK 001 3 3 54 001

Table 9: Time Zone Offset (Continued)

HEX Offset

Hours

Std

Abbrev Location HEX Offset

Hours

Std

Abbrev Location

[024] Panel Absent Trouble Restore

Default (FF)

Program 00 to disable this event or FF to enable. This event will occur when communications with the control panel

have resumed.

[025] Radio Activation Restore

Default (FF)

Program 00 to disable this event or FF to enable. This event will occur after any successful Connect24 program-

ming session.

System Test Options [026 - 029]

Test Transmissions to Primary Receiver, with Backup to Secondary Receiver:

Set Ethernet Section [026] to (FF); [027] to (00). Set GPRS Section [028] to (FF); [029] to (00).

• If the test transmission fails to the primary receiver it will backup to the secondary receiver.

• If the test transmission fails to the secondary receiver an FTC trouble will be generated.

Test Transmission Unique to Primary and Secondary Receivers:

Set Ethernet Section [026] to (FF); [027] to (FF). Set GPRS Section [028] to (FF); [029] to (FF).

• The module will send periodic test transmissions to each receiver independently, with no backups.

• If the test transmission fails to any of the programmed receivers, an FTC trouble will be generated.

Alternate Test Transmission

Alternate Test Transmission can be enabled or disabled in Section [005] Toggle Option [7].

[026] Ethernet 1 Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. See System Test Options (above) for details on settings.

[027] Ethernet 2 Transmission

Default (00)

Program 00 to disable this event transmission or FF to enable. See System Test Options (above) for details on settings.

[028] GPRS 1 Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. See System Test Options (above) for details on settings.

[029] GPRS 2 Transmission

Default (00)

Program 00 to disable this event transmission or FF to enable. See System Test Options (above) for details on settings.

NOTE: The time interval (in minutes) between periodic tests is programmed in Section [125] (Ethernet)

and Section [225] (GPRS).

[030] FTC Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur when an FTC Trouble on the

system restores.

[031] Panel Tamper Alarm

Default (FF)

This event will occur when a Panel Tamper is detected during the Entry Delay time. The panel shall notify the

communicator immediately, creating a Priority Tamper Alarm condition. Setting this option to 00 will disable

monitoring of this condition. See Table 11 for SIA and CID reporting codes. Program 00 to disable this event

transmission or FF to enable event transmission.

[032] Panel Tamper Alarm Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur when a Panel Tamper event on

the system restores. See Table 11for SIA and CID reporting codes.

Ethernet Receiver 1 Options

[101] Ethernet Receiver 1 Account Code

Default (0000000000)

The account code is used by the central station to distinguish between transmitters. This account code is used

when transmitting heartbeat signals to the central station receiver. Signals received from the control panel will use

the control panel account number. Valid range: 0000000001-FFFFFFFFFE.

Programming this Section as all 0 or all F will cause a Module Configuration Trouble (yellow LED=12 flashes).

NOTE: If Ethernet Receiver 1 and GPRS Receiver 1 are programmed as the same receiver (IP and port

number are identical), Ethernet Receiver 1 account code will be used.

Table 11: Panel Tamper Reporting Codes

Event SIA

Identifier

SIA

Reporting

Code

CID

Qualifier

CID

Event

Code

CID

Reporting

Code

CID

User/

Zone

[031] Panel Tamper ES 001 1 1 45 001

[032] Panel Tamper Restore EJ 001 3 1 45 001
