tylr TYL-BS238 User manual

INSTRUCTIONS
MANUAL
www.tylrhome.com
TYL-BS238

BOOMBOX
PORTABLE

Table of Contents
IMPORTANT SAFETY INSTRUCTIONS................................... 2
PARTS AND FUNCTIONS ........................................................ 4
Control Panel ...................................................................................5
OPERATING YOUR PORTABLE BOOMBOX .......................... 7
Powering On/Off ..............................................................................7
Wireless Connection ........................................................................7
USB Connection ..............................................................................8
AUX Connection ..............................................................................9
Volume Control ................................................................................9
Music Control...................................................................................9
Light Effects Control ......................................................................10
EQ Presets .....................................................................................10
TWS (True Wireless Stereo) Function............................................. 10
Hands-Free Calling ........................................................................11
Resetting The Boombox ................................................................12
Charging the Boombox..................................................................12
CLEANING AND MAINTENANCE.......................................... 13

2
IMPORTANT SAFETY INSTRUCTIONS
When using your appliance, basic precautions should always be
followed, including the following:
1. This appliance is for domestic use only. Do not use outdoors or
on wet surfaces.
2. Do not handle the plug or appliance with wet hands.
3. Do not immerse the unit in water.
4. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
5. Children must not play with the appliance.
6. Keep the appliance and its cord out of reach of children less than
8 years.
7. This product is not a toy.
8. Do not use the appliance if any parts appear to be faulty, missing
or damaged.
9. Always unplug the unit before carrying out any cleaning,
performing user maintenance or changing accessories.
10. Do not use the appliance if it has been dropped or damaged in
any way.
11. Check to ensure that the electricity supply matches that shown
on the rating plate.
12. If the supply cord is damaged, it must be replaced by a qualified

3
service agent in order to avoid a hazard.
13. Only use this appliance for its intended domestic use.
14. Keep the appliance and its power supply cord away from heat or
sharp edges that could cause damage.
15. Keep the power supply cord away from any parts of the
appliance that may become hot during use.
16. Do not disconnect the appliance from the electric outlet by
pulling the cord; switch it off and remove the plug by hand.
17. Do not move the appliance when it is in use.
18. Use of an extension cord with the appliance is not
recommended.
19. This appliance should not be operated by means of an external
timer or separate remote control system.
20. Keep the appliance away from flammable materials.
SAVE THESE INSTRUCTIONS.
HOUSEHOLD USE ONLY.

4

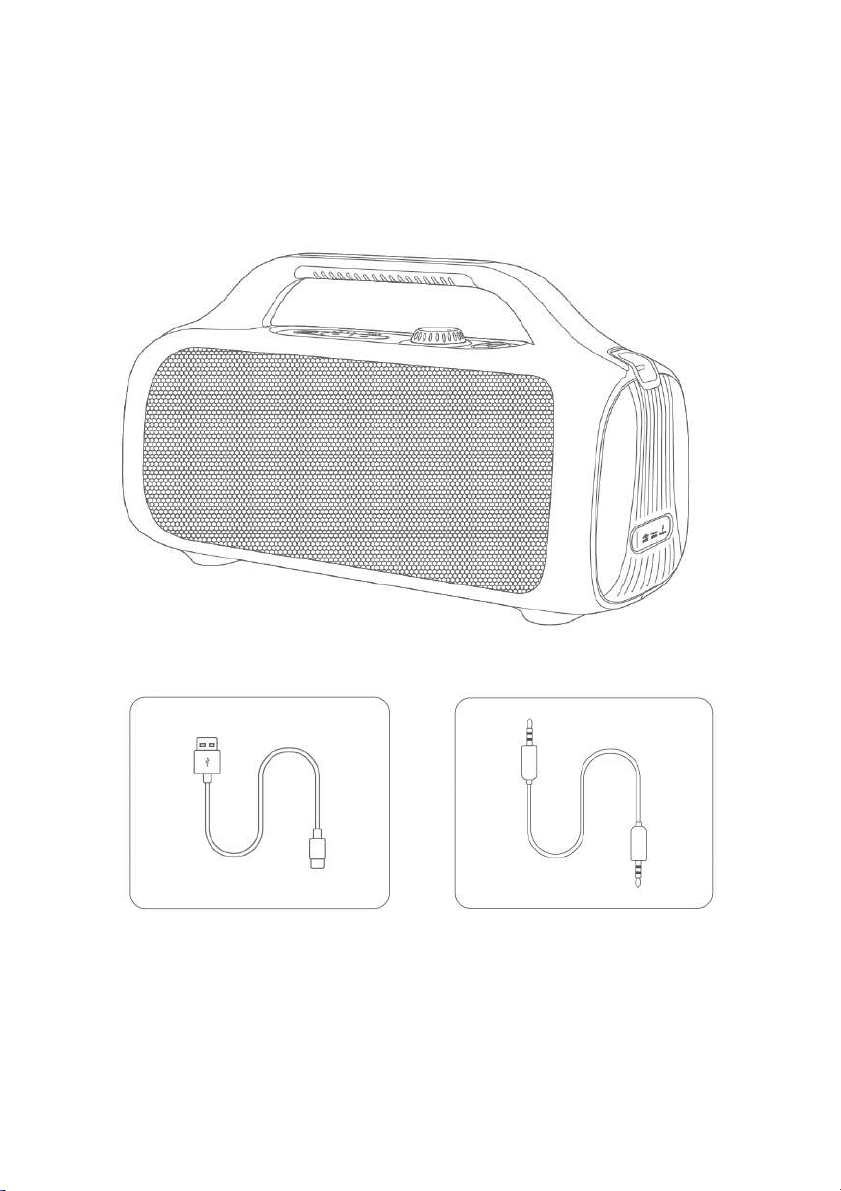

PARTS AND FUNCTIONS
USB-C charging
cable
AUX audio cable

5

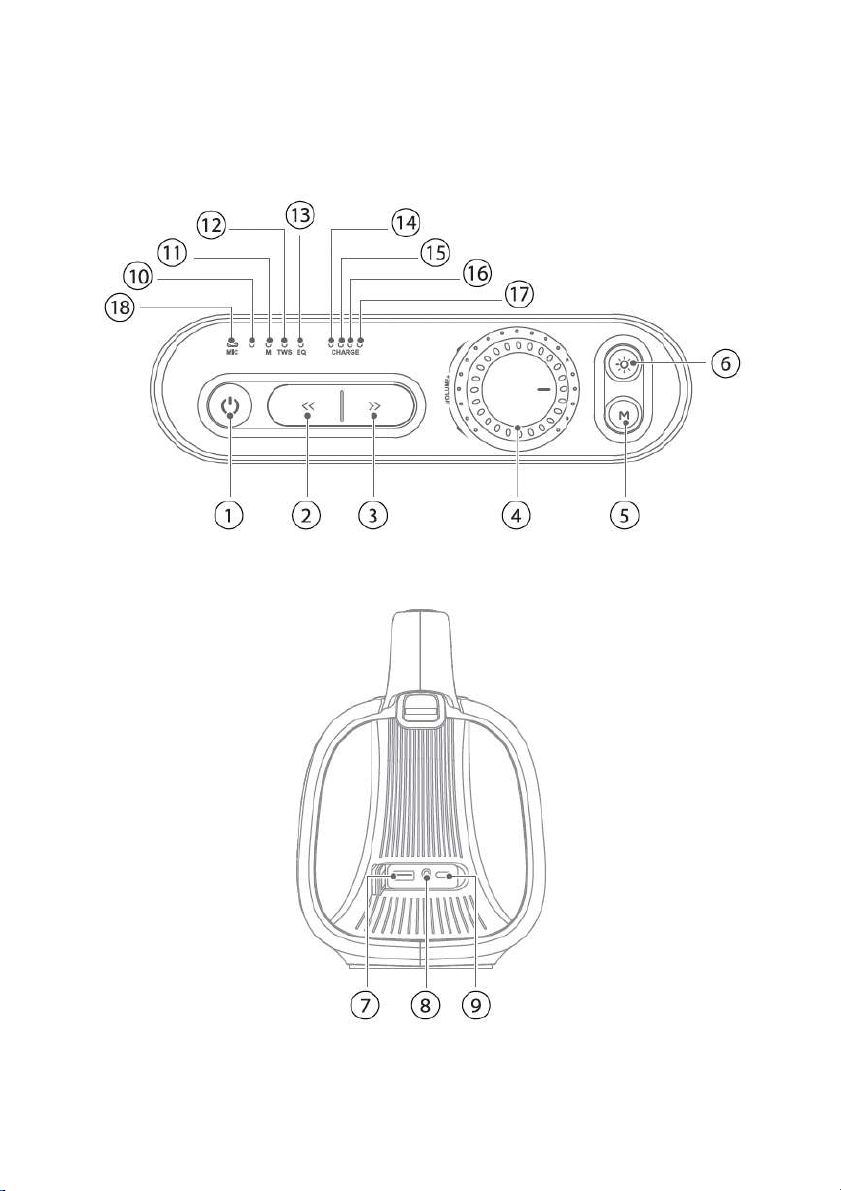

Control Panel

6

7
OPERATING YOUR PORTABLE BOOMBOX
Powering On/Off
1. Press and hold the button to turn the unit on. When turned on,
the boombox automatically enters wireless playing mode and the
mode button indicator blinks to indicate that the boombox is
searching for a device to pair with.
To turn the unit off, press and hold the button again.
NOTES:
• Fully charge the boombox before first-time use to prolong the
lifespan of the built-in battery.
• The boombox automatically turns of after 10 minutes of inactivity
when not connected to any device.
Wireless Connection
1. On the device that you would like to connect to your boombox,
turn on wireless connectivity and ensure that it is ‘discoverable.”
2. Search for available devices and select “TYLR.” Once connected
successfully, an alert will sound, and the mode indicator light will
remain illuminated in blue.
3. The boombox will connect to the device when it is within range,
which is about 10 meters or less from line of sight. Your device will

8
remain paired with the boombox unless you decide to disconnect
or ‘unpair’ it.
4. Press the button thrice to disconnect the wireless
connection.
NOTE:If your device should be come unpaired for any reason, follow
the steps above to ‘pair’ it again.
USB Connection
1. Plug the USB drive into the USB port. The audio files on the USB
drive will start to play automatically.
2. Press the or buttons on the boombox to restart a track,
go back to a previous track, or skip to the next track.
3. Press the button on the boombox once to play or pause the
song.

9
NOTE:Plugging the USB drive will automatically disconnect the
wireless playing function and switch to USB mode. Press the
button twice to switch to wireless playing mode again.
AUX Connection
1. Connect an external music player or sound source to the
boombox. Plug the supplied 3.5mm audio cable into the AUX-IN
port and connect the other end to your external audio source.
2. Use the controls on the external audio device to start playback, or
adjust volume.
NOTE:Connecting an external device will automatically
disconnect the wireless playing mode and switch to USB mode.
Press the button twice to switch to wireless playing mode again.
Volume Control
Rotate the volume control dial clockwise to turn up the volume.
Rotate counterclockwise to turn down the volume.
Music Control
1. Press the or buttons on the boombox (or on the device)
to restart a track, go back to a previous track, or skip to a
forward track.

10
2. Press the button once to play or pause the song.
Light Effects Control
This boombox has 10 lighting effects. The lights come on when the
boombox is powered on.
Press the button to select a light effect, or press and hold
the button for 2 seconds to turn the light effect off.
EQ Presets
This boombox has 3 EQ presets:
BALANCED : no EQ indicator light
BASS : white EQ indicator light
PURE : yellow EQ indicator light
Press the button to cycle through the presets. The default EQ
preset is BALANCED.
TWS (True Wireless Stereo) Function
Connect two boomboxes to each other via TWS.
1. Press the button twice on either boombox to pair with the
other. Once paired successfully, an alert will sound and the TWS
button will remain illuminated.

11
2. Connect your device wirelessly to the boombox.
3. Press the button again twice to disable the TWS function.
Hands-Free Calling
Once a mobile phone is connected wirelessly to the boombox and
there is an incoming call, press the button once to accept, or
press twice to reject the call.
To answer the call on your phone, press and hold the button for
2 seconds.

12
Resetting The Boombox
Press the button 3 times to restore to factory settings.
Charging the Boombox
Make sure the unit is turned off. Plug the included charging cable
into the charging port of the unit, then connect the other end to a
5V/2A USB charger.
• To protect battery lifespan, fully charge at least once every 3
months. Battery life will vary due to usage patterns and
environmental conditions.
• Charge the unit as soon as you hear the “low power” prompt.
• While charging, the charging indicator lights blink. When the
boombox is fully charged, the charging indicator lights remain
steady.

13
CLEANING AND MAINTENANCE
• Refrain from using the boombox in extreme temperatures.
• When not in use, store the boombox in a cool and dry area away
from objects that generate heat such as radiators and stoves.
• Use a soft, dry cloth to wipe and clean the boombox. For more
stubborn stains, use a soft cloth dampened with water.

14
WARRANTY TERMS AND CONDITIONS
ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR
TYLR provides a warranty to the original purchaser of this product
against defects in materials and workmanship for one year. If a
product covered by this warranty is determined to be defective
within the warranty period, TYLR will repair or replace the defective
part with a new or remanufactured part free of charge subject to
terms and conditions stated herein.
To obtain warranty service, proof of purchase in the form of a sales
invoice or copy thereof is required to show that a product is within
the warranty period. If any one of the documents cannot be
produced, corresponding fees for labor and replacement parts will
be charged.
Parts and Labor
There will be no charge for parts and labor during the warranty
period. Replacement parts or units may be new or recertified and are
upon TYLR’s option and sole discretion. Replacement parts and
units are warranted for the remaining portion of the original warranty.
Our decision on all questions relating to complaints as a result of
defects, either workmanship or materials, shall be conclusive and
you shall agree to abide by such decision. Any unit or defective part
that have been replaced shall become TYLR’sproperty. After the
lapse of this warranty, a charge will be made on all labor and
replacement of parts.

15
Types of Services
Defective Products must be sent to any TYLR service center to
obtain warranty service. TYLR is neither responsible for
transportation costs to the service center nor TYLR will cover return
shipping to the customer. Product returns to TYLR service centers
must utilize either the original carton box and shipping material or
packaging that affords an equal degree of protection.
For home service, the transportation fee of TYLR service personnel
will be charged to the customer, depending on the location. Our
service personnel reserve all rights to refuse to attend to any
equipment installed in an inaccessible location or any other
hazardous situation.
LIMITATIONS AND EXCLUSIONS
TYLR one-year limited warranty only covers defects in materials and
workmanship; however, this warranty does not cover the following:
1. Damage resulting from accidents, transport, misuse, abuse,
alteration, tampering, or failure of the purchaser to follow normal
operating procedures outlined in the user's manual.
2. Damage caused by negligence and poor maintenance.
3. Defects or damage due to spillage of food/liquids or improper
usage of electrical supply or electrical circuit, major fluctuations
in voltage, exposure to rain or moisture, wrong fuel or oil used.
4. Damage, losses, and defects as a result of fire, flood, or other
Acts of God.
5. Normal wear-and-tear, corrosion, rusting, or stains.

16
6. Defects & damage arising from improper testing, operation,
usage of the wrong component, demonstration, maintenance,
installation, adjustment, or any alteration or modification of any
kind.
7. Scratches & damage to the outer surface areas and externally
exposed parts that are due to normal customer use.
8. General maintenance & routine servicing.
9. Claims for damaged/missing parts after 7 days from the date of
purchase.
10. If any part or parts of the unit are replaced with a part or parts not
supplied or approved by us, or if the unit has been dismantled or
repaired by any person other than a TYLR authorized technician.
11. Any equipment/product which has its serial number removed or
made illegible/tampered with.
12. If the warranty card is altered, defaced, or erased in any manner
whatsoever.
13. If the unit is used for purposes other than household use, such as
commercial use.
The (6) months warranty period covers the battery and one (1) year
for the main PCB and power PCB. However, this warranty does not
cover parts (i.e., speakers, accessories such as USB cable, AUX
cable, controls and casing) that are subject to wear and tear, rust,
stains, or corrosion.
This one-year limited warranty does not cover Products sold “AS
IS”, “FACTORY RECTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE
LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,

17
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED
IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE.
TYLR’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND
DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER
INCLUDING TYLR’SNEGLIGENCE, ALLEGED DAMAGE, OR
DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE
DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE
PURCHASE PRICE OF THE PRODUCT. TYLR SHALL NOT BE
RESPONSIBLE FOR LOSS OF USE, COMMERCIAL LOSS, LOST
REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES. THIS WARRANTY IS SUBJECT TO
CHANGE WITHOUT NOTICE.
IMPORTANT: Please present sales invoice as proof of purchase
whenever you require our service during the warranty period.
www.tylrhome.com
