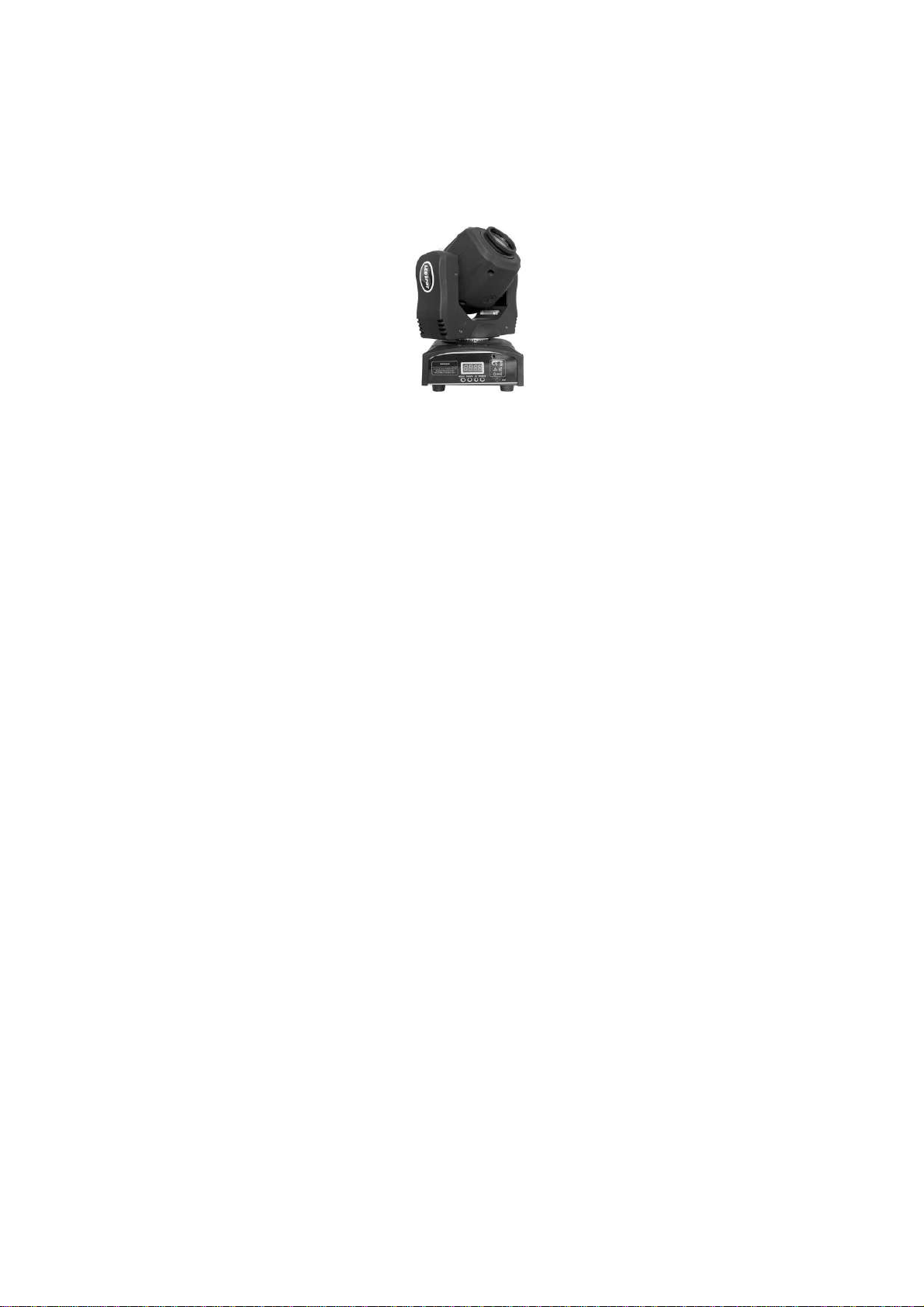

U'King ZQ-B147 User manual

LED Spot Moving Head Light
Thank you for your patronage. We are confident that our excellent
products and service can satisfy you. For your own safety, please read this
user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly. We
suggest that the installation and operation should be done by the verified
technician and follow the instruction strictly.
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing.
Every person involved with the installation, operation and maintenance of
this device has to:
-be qualified
-follow carefully the instructions of this manual

1. INTRODUCTION
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One XLR power cable
2. One user manual
3. One pcs omega
Please check carefully that there is no damage caused by transportation.
Should there be any, please consult your dealer and don’t install this
device.
2 Mounting and installation
2.1 Cautions: for added protection mount the fixyures in areas outside
walking paths ,seating areas,or in areas were the fixture might be reached
Never stand dirrctly below the device when mounting ,removing ,or
servicing the fixture, from a ceiling,or set on a flat level surface (see
illustration below).Be sure this fixture is kept at least 0.5m (1.5ft) away
from any flammable (decoration etc.)
Always use and install the supplied safety cable as a safe cable as safety
measure to prevent accdental damage and /or injury in the event the
clamp fails.
2.2 Mounting points:
Overhead mounting requires extensive experience , including amongst

others calculating working load limits, a fine knowledge of the
installation material being used ,and periodic safety inspection of al
installation material and the fixture. If you lack these qualifications ,
Do not attempt the installation yourself ,improper installation can result
in bodily injury.
Be sure to complete all rigging and installation procedures before
connecting the main power cord to the appropriate wall outlet.
2.3 Clamp mounting :
The LED moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘omega bracket’ and the
safety cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately
rated clamp to the included omega bracket using a M10 screw fitted
through the center hole of the ‘omega bracket’.As an added safety
measure be sure to attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point integrated in the base
assembly.
2.4 DMX-512 control connection

Connect the provided XLR cable to the female 3-pin XLR output of your
controller and the other side to the male 3-pin XLR input of the moving
head. You can chain multiple Moving head together through serial
linking. The cable needed should be two core, screened cable with XLR
input and output connectors. Please refer to the diagram below.
2.4 DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in
an electrically noisy environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between
pins 2 and 3,which is then plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.

1.Channel Table
9 Channel mode
Channel
Function
Explain
1
Horizontal operation
0-255
2
Vertical operation
0-255
3
Color
0-139
Color select
140-255
Color changed automatically,from
slow to fast
4
Pattern
0-63
Fixed pattern
64-127
Pattern dither
128-255
Pattern changed
automatically,from slow to fast
5
Strobe
0-255 from slow to fast
6
Dimming
0-255

7
Horizontal vertical
operation speed
0-255
from fast to slow
8
Automatic mode
0-255 upward adjustment ，
downward adjustment
9
0-20
Other mode
21-100
X motor Automatic mode
101-200
Y motor Automatic mode
201-249
XY motor Automatic mode
Reset
250-255（5 seconds）
11 Channel mode

Channel
Function
Explain
1
Horizontal operation
0-255
2
Horizontal fine tune
0-255
3
Vertical operation
0-255
4
Vertical fine tune
0-255
5
Color
0-139
Color select
140-255
Color changed automatically,from
slow to fast
6
Pattern
0-63
Fixed pattern
64-127
Pattern dither
128-255
Pattern changed automatically,
from slow to fast
7
Strobe
0-255 from slow to fast
8
Dimming
0-255
9
Horizontal vertical
operation
0-255
from fast to slow
10
Automatic mode
0-59
Other mode
60-84
Automatic mode 3
85-109
Automatic mode 2
110-134
Automatic mode 1
135-159
Automatic mode 0
160-184
Sound mode 3
185-209
Sound mode 2
210-234
Sound mode 1

235-255
Sound mode 0
11
0-20
Other mode
21-100
X motor Automatic mode
101-200
Y motor Automatic mode
201-249
XY motor Automatic mode
Reset
250-255（5 seconds）
Explain ： Set to hold mode,unplug the 512 signal line,and so on for
30 minutes, then turn off the power supply,the system saves the
last 512 signals automatically.

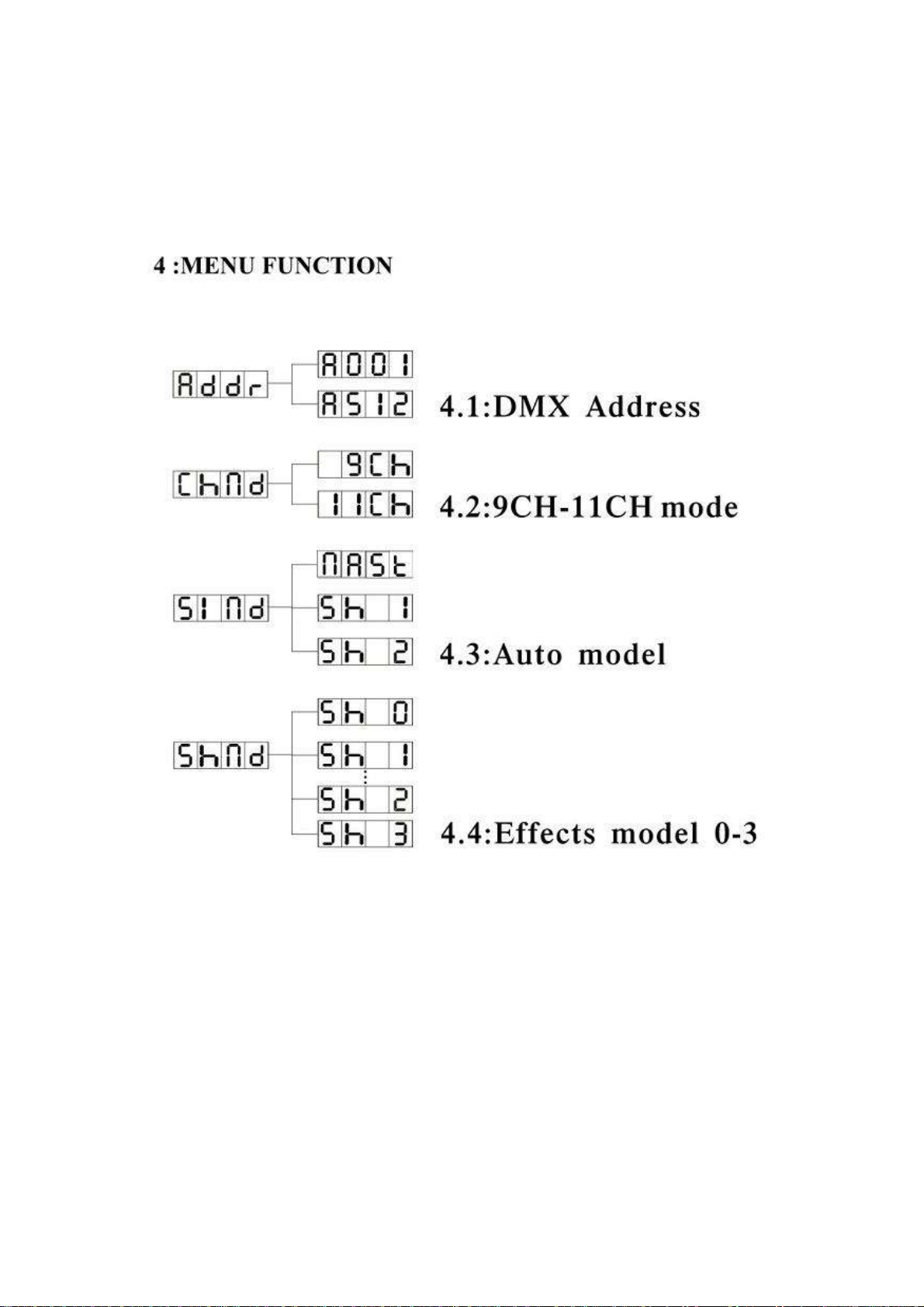

About fine-tuning ：
In the A001 ,pressing the fourth key for about 10 seconds,
the system will call up a menu.
H000-255
X motor offset data
Y000-255
Y motor offset data
C000-255
Color film motor offset data
G000-255
Pattern motor offset data
DEFR
The above 4 paramrters are initialized.

Pressing the fourth key for about 10 seconds ， the system
saves automatically.
This step is indispensable,otherwise the system can not be saved.
3 TECHNICAL PARAMETERS POWER SUPPLIE
Input power:AC100-240V 50/60 Hz
Output LUX :Max 1700 LUX at 5 meters
LED:1PCS high powe rwhite LED
DMX channel:9/11channels
Movement:Pan/Tilt:X axis540degree, Y axis 270degree
Control mode:DMX512/Master-Slave/Auto run/sound
Display: LED display
8 internal program , sound mode can control by DXM 512
WEIGHT&SIZE
N.W: 3.1kgs
Packing size 33x22x22Cm (4pcs)
