USER GUIDE u-line.com

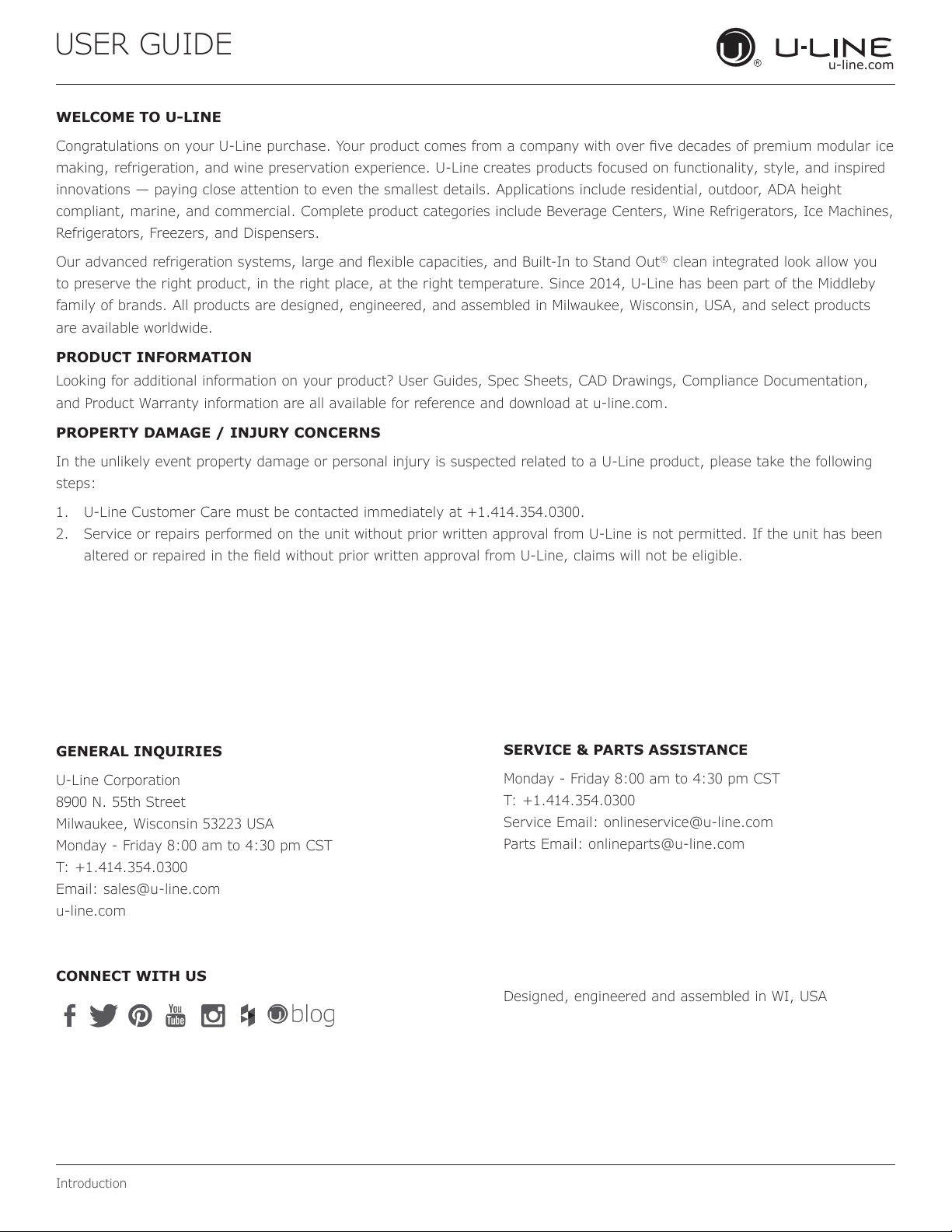

Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired
innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height
compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers.
Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you
to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby
family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products
are available worldwide.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,
and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
3
USER GUIDE u-line.com
Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE u-line.com
Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE
Environmental Requirements
u-line.com
Environmental Requirements
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE
Electrical
u-line.com
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7
USER GUIDE u-line.com

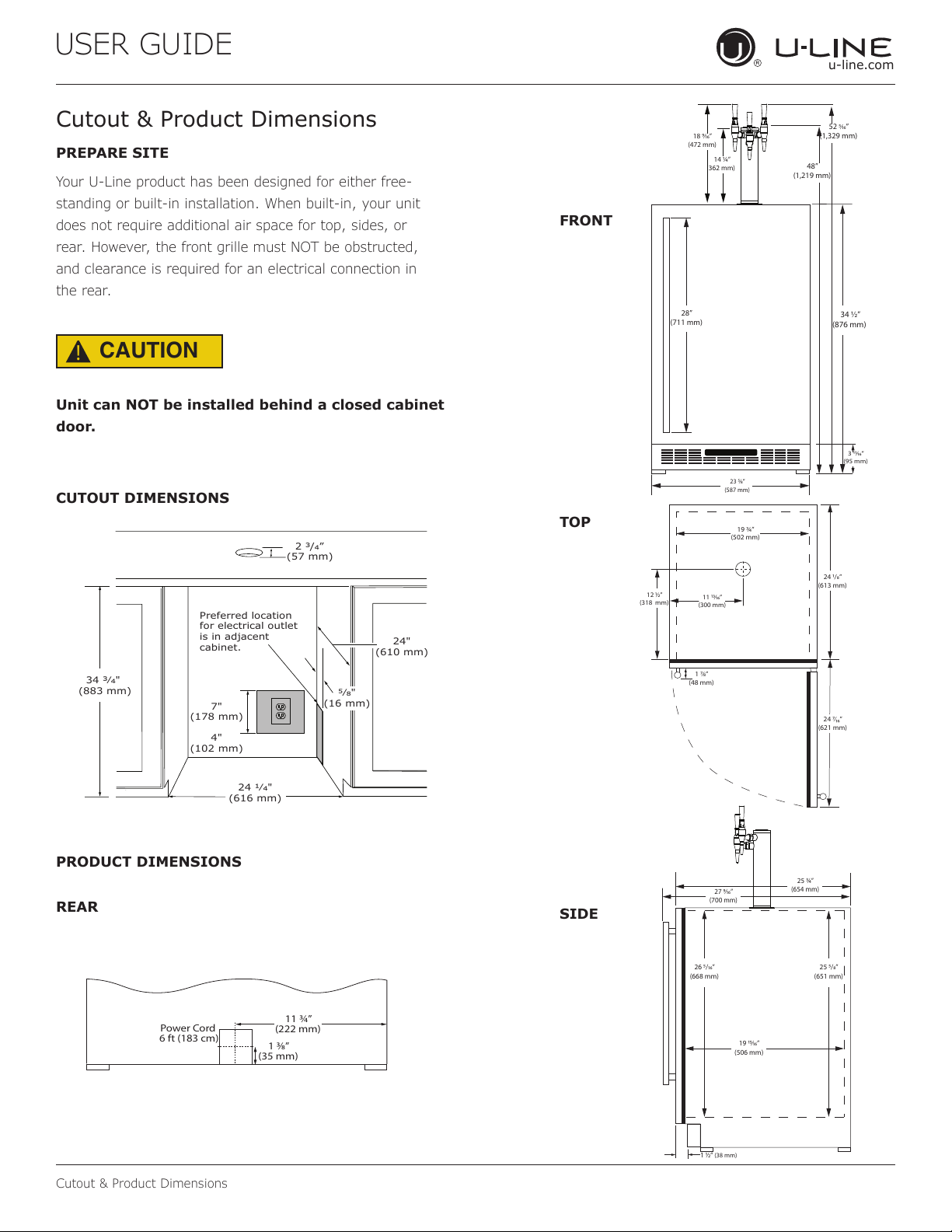

Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
26 /”
(668 mm)
25 /”
(651 mm)
25 ¾”
(654 mm)
27 ⁄”
(700 mm)
1 ⁄“ (38 mm)
19 ⁄”
(506 mm)
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
2 3/4”
(57 mm)
24 1⁄4"
(616 mm)
34 3⁄4"
(883 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5⁄8"
(16 mm)
1 ⁄”
(35 mm)
6 ft (183 cm)
Power Cord
11 ¾”
(222 mm)
28”
(711 mm)
23 ⁄”
(587 mm)
3 ⁄”
(95 mm)
34 ½”
(876 mm)
52
⁄
”
(1,329 mm)
48”
(1,219 mm)
18 ⁄”
(472 mm)
14 ¼”
362 mm)
1 ⁄”
(48 mm)
19 ¾”
(502 mm)
24 ⁄”
(621 mm)
24 /”
(613 mm)
11 ⁄”
(300 mm)
12 ⁄”
(318 mm)
8
USER GUIDE u-line.com
Anti-Tip Bracket
Anti-Tip Bracket
1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately 1⁄8”
(3 mm) below the countertop.
6. Secure bracket into adjoining surface.
9
USER GUIDE u-line.com
General Installation
The following components are shipped inside the unit:
1. Triple Tower (faucets, handles, & hardware)
2. Nitrogen hose (connecting hardware)
3. Infuser regulators (mounting hardware)
5. Drip tray
6. Cleaning solution (2-ounce packet)
(Additional cleaner, ULACOFFEECLEAN, is available at u-line.com)
7. Four casters (2 locking, 2 non-locking)
Safety and Warning
Keep nitrogen tank in an upright position and
handle with care.
Never exceed 60 PSI.
Ventilate area after nitrogen leak.
Required (not included):
1. Food grade nitrogen - available at your local
gas supplier. 22 cubic feet aluminum empty
tank (ULANITROTANK) and nitrogen regulator
(ULANITROREG) are
available at u-line.com.
Note: If using an external
nitrogen source, see
CONNECTING EXTERNAL
NITROGEN SOURCE
section.
2. Food-grade lubricant if
connecting to external
nitrogen source
3.
General Installation
WARNING
!
1
2
3
4
56
7
10
USER GUIDE u-line.com
General Installation
2. Install adapter plate to unit with 4 long screws and nuts
(a) then place foam rubber gasket on top - align holes (b).
3. Insert all 4 hoses into the opening.
Note: 2 of the connections inside tower have color banding to
refrigerator.
4. Install tower to unit with 4
short Philips screws.
NOTE: It will be necessary
tightening the screws.
Compressing the foam rubber
gasket ensures an airtight seal
between the unit and the tower.

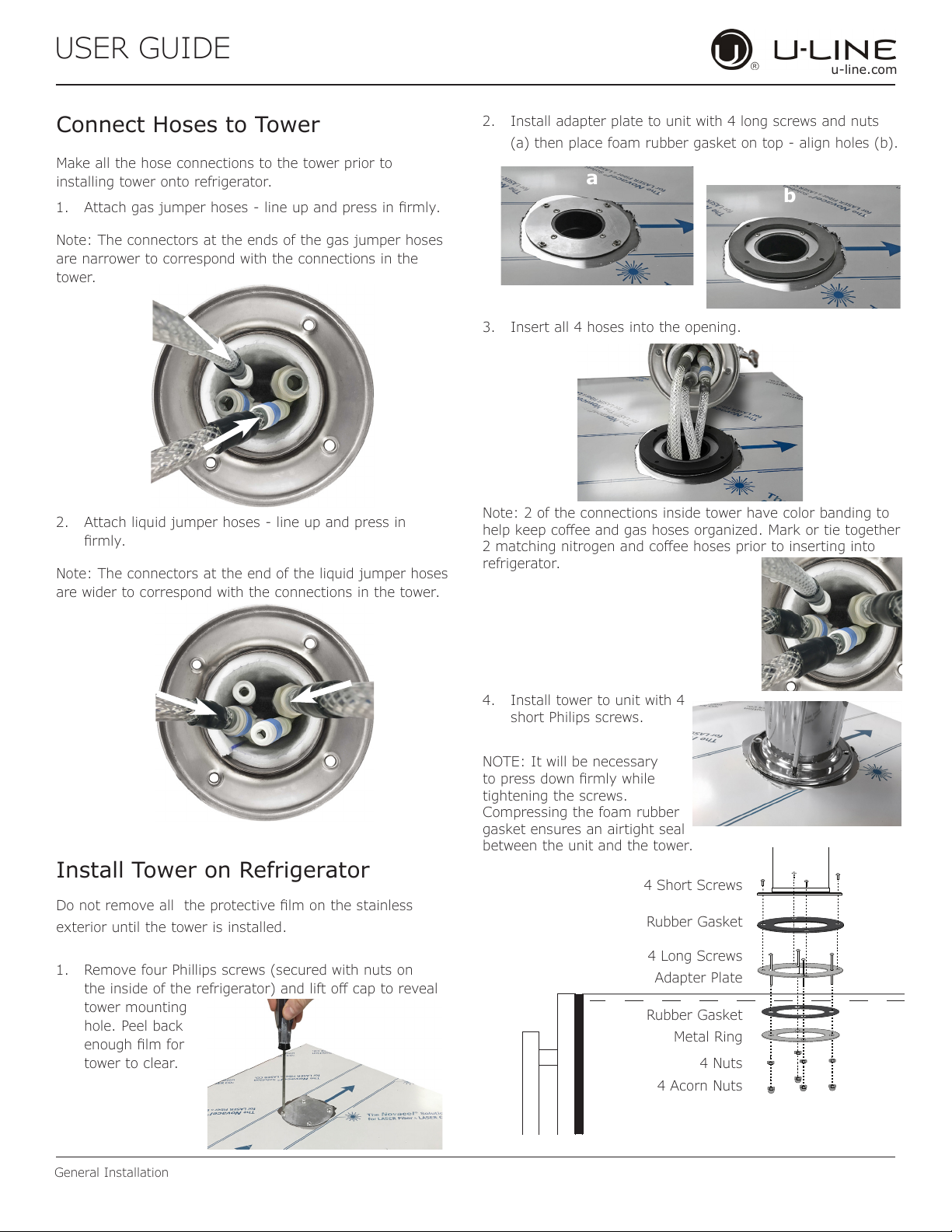

Connect Hoses to Tower
installing tower onto refrigerator.
1.
Note: The connectors at the ends of the gas jumper hoses
are narrower to correspond with the connections in the
tower.
2. Attach liquid jumper hoses - line up and press in
Note: The connectors at the end of the liquid jumper hoses
are wider to correspond with the connections in the tower.
Install Tower on Refrigerator
exterior until the tower is installed.
1. Remove four Phillips screws (secured with nuts on
tower mounting
hole. Peel back
tower to clear.
Rubber Gasket
Adapter Plate
4 Long Screws
Rubber Gasket
4 Short Screws
4 Nuts
4 Acorn Nuts
a
b
11
USER GUIDE u-line.com
General Installation

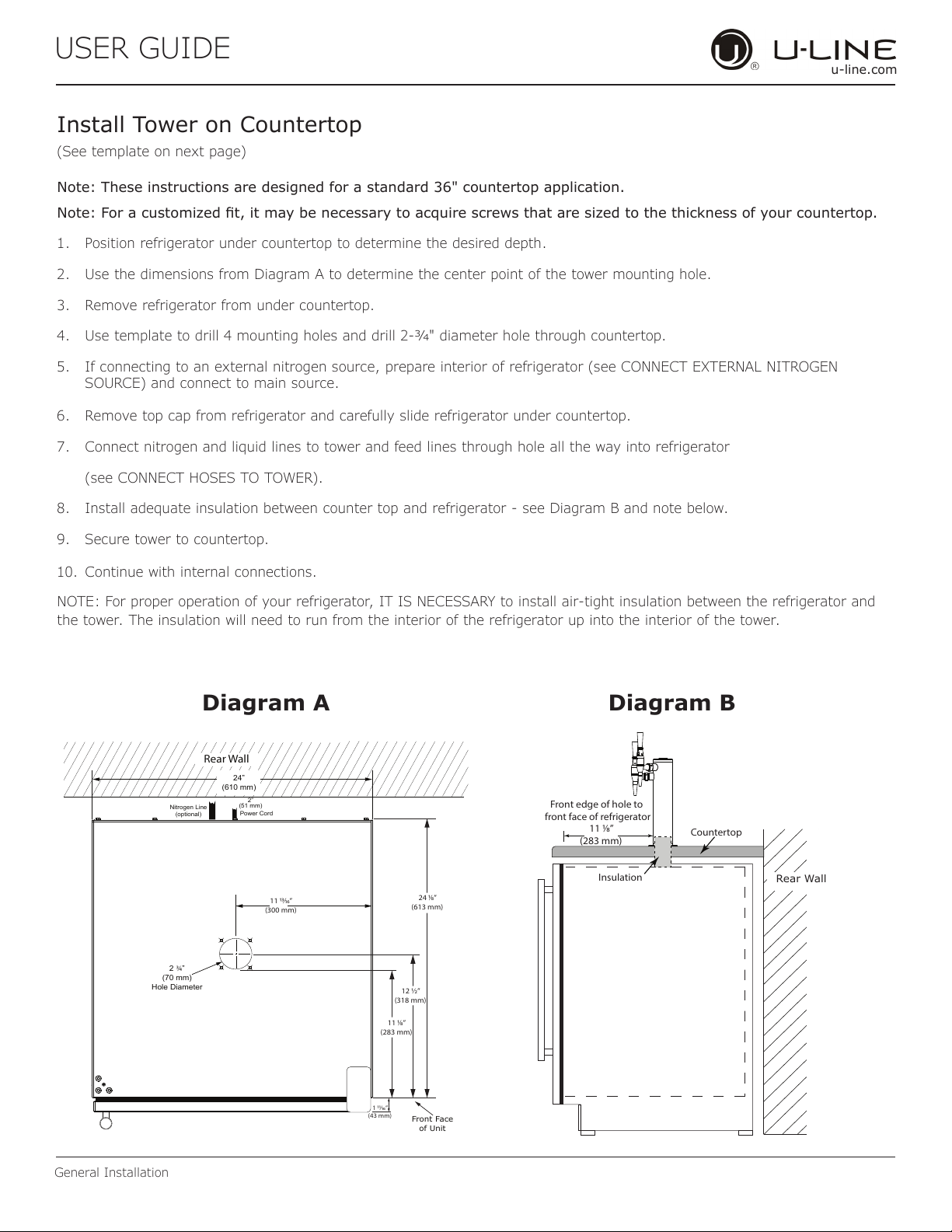

Install Tower on Countertop
(See template on next page)
Note: These instructions are designed for a standard 36" countertop application.
Note: For a customized t, it may be necessary to acquire screws that are sized to the thickness of your countertop.
1. Position refrigerator under countertop to determine the desired depth.
2. Use the dimensions from Diagram A to determine the center point of the tower mounting hole.
3. Remove refrigerator from under countertop.
4. Use template to drill 4 mounting holes and drill 2-" diameter hole through countertop.
5. If connecting to an external nitrogen source, prepare interior of refrigerator (see CONNECT EXTERNAL NITROGEN
SOURCE) and connect to main source.
6. Remove top cap from refrigerator and carefully slide refrigerator under countertop.
7. Connect nitrogen and liquid lines to tower and feed lines through hole all the way into refrigerator
(see CONNECT HOSES TO TOWER).
8. Install adequate insulation between counter top and refrigerator - see Diagram B and note below.
9. Secure tower to countertop.
10. Continue with internal connections.
NOTE: For proper operation of your refrigerator, IT IS NECESSARY to install air-tight insulation between the refrigerator and
the tower. The insulation will need to run from the interior of the refrigerator up into the interior of the tower.
Front Face
of Unit
2 ¾”
(70 mm)
Hole Diameter
Power Cord
Nitrogen Line
(optional)
2”
(51 mm)
24”
(610 mm)
Rear Wall
24 ⁄”
(613 mm)
12 ½”
(318 mm)
11 ⁄”
(283 mm)
1 ⁄”
(43 mm)
11 ⁄”
(300 mm)
Rear Wall
Insulation
Front edge of hole to
front face of refrigerator
Countertop
11 ⁄”
(283 mm)
Diagram A Diagram B
12
USER GUIDE u-line.com
General Installation
12-1/2 “
TO FRONT OF
REFRIGERATOR
11-13/16 “
TO SIDE OF
REFRIGERATOR
1/4” HOLE
2-3/4” HOLE
Note: Verify template has printed true to scale - double check hole dimensions and placement.

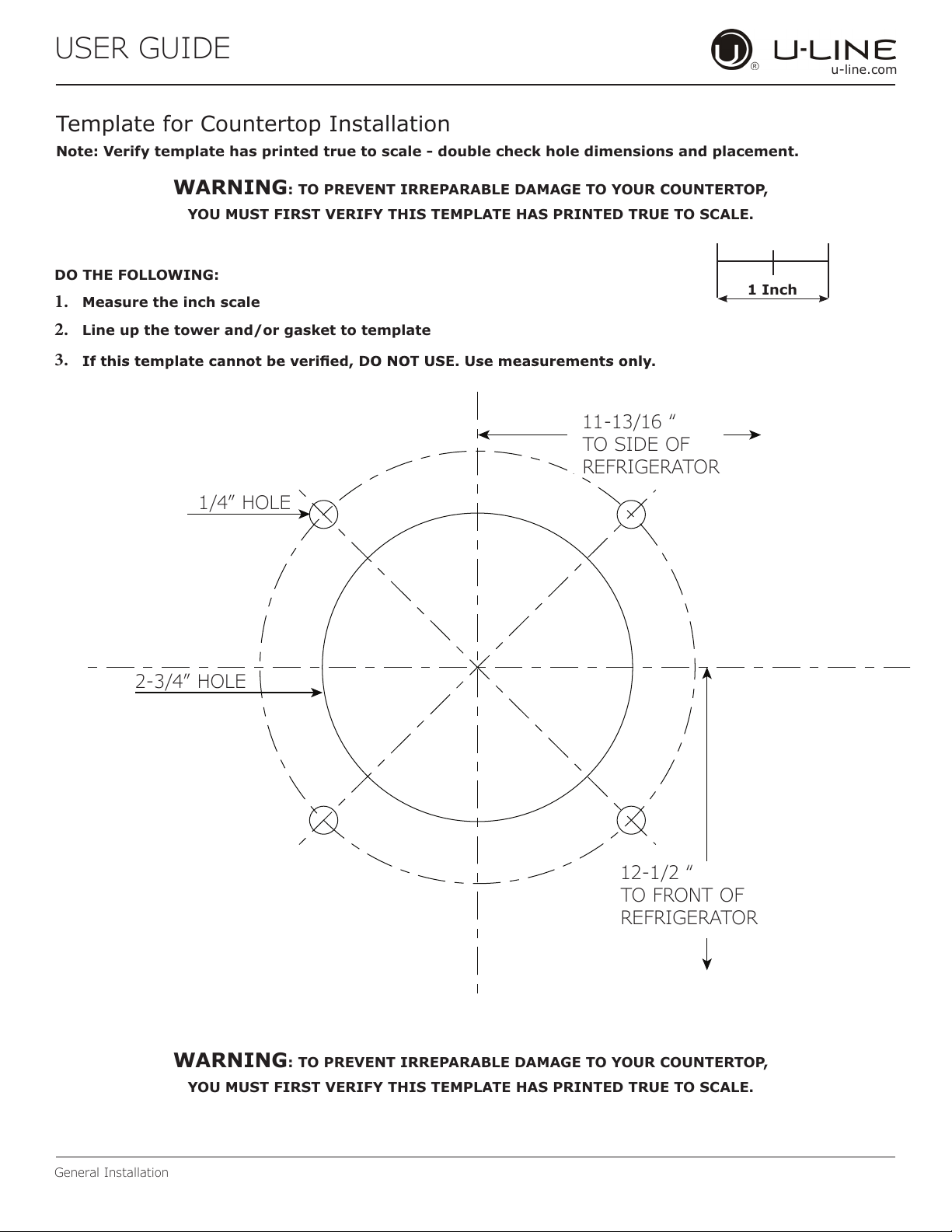

Template for Countertop Installation
WARNING: TO PREVENT IRREPARABLE DAMAGE TO YOUR COUNTERTOP,
YOU MUST FIRST VERIFY THIS TEMPLATE HAS PRINTED TRUE TO SCALE.
DO THE FOLLOWING:
1. Measure the inch scale
2. Line up the tower and/or gasket to template
3.
1 Inch
WARNING: TO PREVENT IRREPARABLE DAMAGE TO YOUR COUNTERTOP,
YOU MUST FIRST VERIFY THIS TEMPLATE HAS PRINTED TRUE TO SCALE.
13
USER GUIDE u-line.com
General Installation
Connecting Internal Nitrogen
Source
Install Infuser Regulators
1. Align each infuser regulator with pre-drilled holes in
upper left/right of each side wall. Use 2 screws to
attach each regulator.
Assemble and connect tank regulator to tank
1. Attach ball valve to tank regulator (not included).
go.
2. Attach regulators to nitrogen tank. Hand tighten the
coupling nut and then use an adjustable wrench for an
additional quarter turn. DO NOT OVER TIGHTEN.
3. Attach nitrogen hose to ball valve on tank regulator.
clockwise as far as it can go.
4. Attach other end of nitrogen hose to T- connector on
gas line that goes to each infuser regulator.
Interior Left
Side Wall
To Tap Tower
Ba
c
k
W
a
ll
B
u
lkhe
ad
psi
0
2
4
6
8
1
0
1
2
1
4
Nitrogen IN
From Source
Nitrogen OUT
To Ball-tap Keg
Nitrogen OUT
To Slim Keg and Tower
T-Connector
14
USER GUIDE u-line.com
General Installation
Connect nitrogen to keg
1. Attach gas jumper lines to elbow connectors on infuser
2. Attach gray coupler of the gas jumper lines to kegs.
With your thumb press down on the top of the coupler
onto "in" valve. Release collar - listen for a click. Pull
up on the coupler to ensure it is locked down.
3. Attach infuser hoses to T-connectors on infuser
regulators.
In Valve
1. Attach black couplers of the liquid jumper lines to keg.
With your thumb press down on the top of the coupler
onto "out" valve. Release collar - listen for a click. Pull
up on the coupler to ensure it is locked down.
Out Valve
Connect keg to tower
Other ends are connected
to Infuser Regulators
15
USER GUIDE u-line.com
General Installation

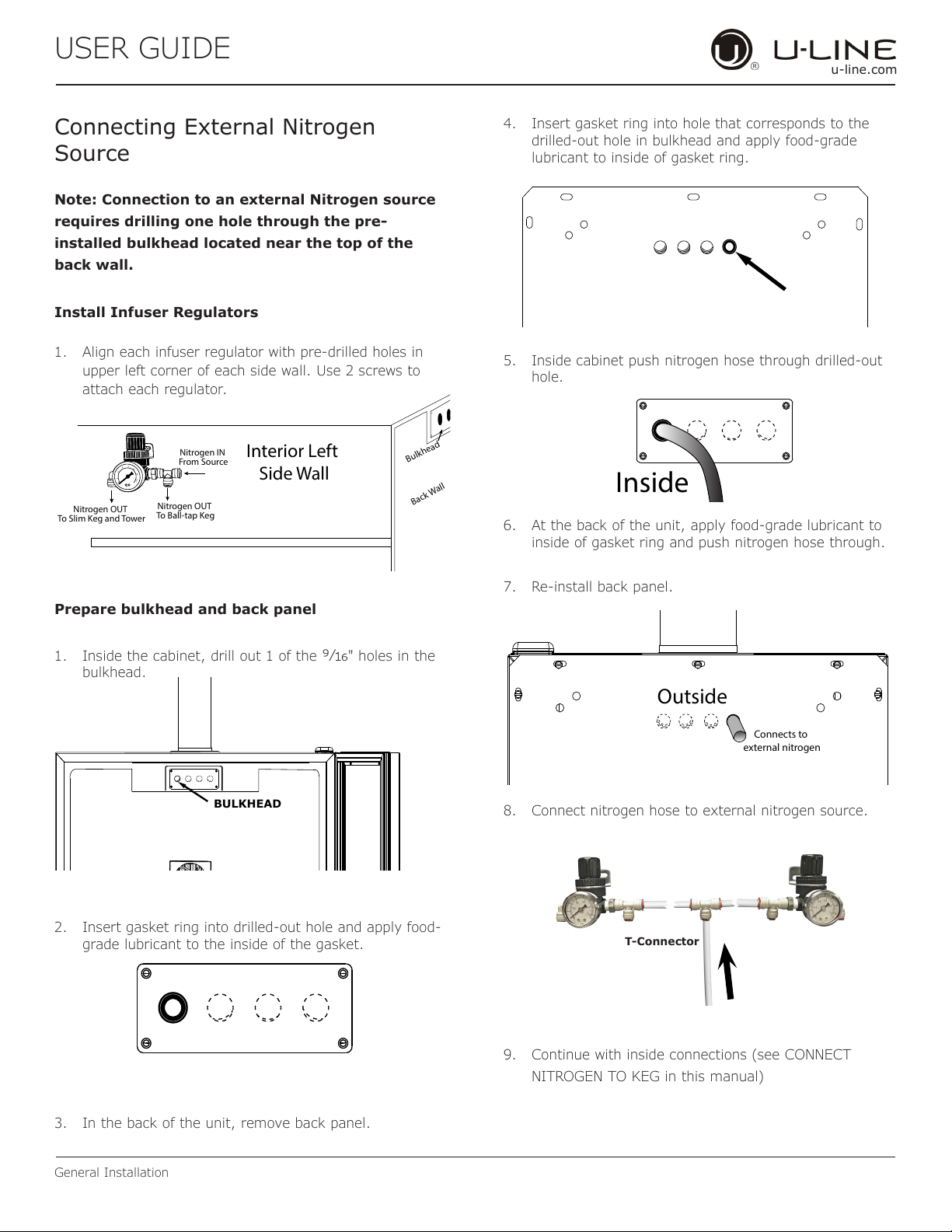

Connecting External Nitrogen
Source
Note: Connection to an external Nitrogen source
requires drilling one hole through the pre-
installed bulkhead located near the top of the
back wall.
Install Infuser Regulators
1. Align each infuser regulator with pre-drilled holes in
upper left corner of each side wall. Use 2 screws to
attach each regulator.
Prepare bulkhead and back panel
1. Inside the cabinet, drill out 1 of the " holes in the
bulkhead.
2. Insert gasket ring into drilled-out hole and apply food-
grade lubricant to the inside of the gasket.
3. In the back of the unit, remove back panel.
4. Insert gasket ring into hole that corresponds to the
drilled-out hole in bulkhead and apply food-grade
lubricant to inside of gasket ring.
5. Inside cabinet push nitrogen hose through drilled-out
hole.
6. At the back of the unit, apply food-grade lubricant to
inside of gasket ring and push nitrogen hose through.
7. Re-install back panel.
8. Connect nitrogen hose to external nitrogen source.
9. Continue with inside connections (see CONNECT
NITROGEN TO KEG in this manual)
Interior Left
Side Wall
To Tap Tower
BackWall
Bulkhead
psi
0
2
4
6
8
1
0
1
2
1
4
Nitrogen IN
From Source
Nitrogen OUT
To Ball-tap Keg
Nitrogen OUT
To Slim Keg and Tower
BULKHEAD
Connects to
external nitrogen
Outside
Inside
T-Connector
16
USER GUIDE u-line.com
General Installation
Connections
When complete, the connections should look like this:
LEVELING INFORMATION
1.
unit is level. Level should
be placed along top edge
and side edge as shown.
2. If the unit is not level,
shim as needed.
3.
after each adjustment
and repeat the previous
steps until the unit is
level.
Keg
Keg
Infuser
Regulators
Filter
Assembly
Filter
Assembly
To comply with applicable federal, state,
and local codes, it may be necessary to
caulk the refrigerator to the oor.
CASTERS (optional)
1. Remove grille and back panel to access nuts.
2. Remove each nut and unscrew each leg.
3. Install each caster and secure with nut.
Tighten with included wrench.
4. Replace grille and back panel.
When ready to use, see FIRST USE section in
this manual.
CAUTION
!
17
USER GUIDE u-line.com
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Removing the grille
Note: Grille and display are attached. The length
of the display wire is sucient to allow access to
the front base components.
1. Disconnect power to the unit.
2. Loosen the two screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
2. Reconnect power to the unit.
WARNING
!
1
2
18
USER GUIDE
Door Swing
u-line.com
Door Swing
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel models require 2-1/8" (54 mm) door
clearance to accommodate the handle if installed next to a
wall.
Wall
90°
Door Swing
2-1/8" Min.
(54 mm)
19
USER GUIDE u-line.com

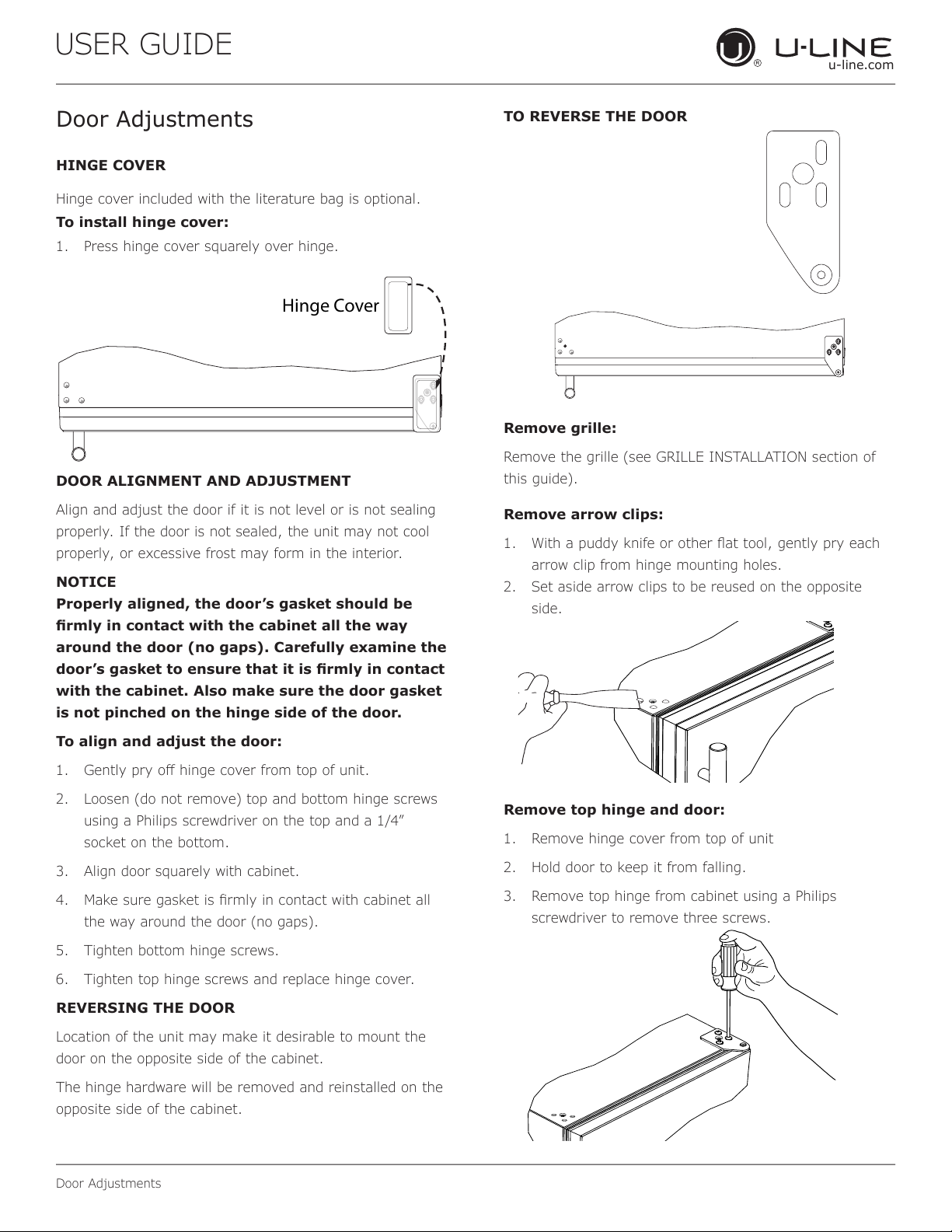

Door Adjustments
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry o hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws
using a Philips screwdriver on the top and a 1/4”
socket on the bottom.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove grille:
Remove the grille (see GRILLE INSTALLATION section of
this guide).
Remove arrow clips:
1. With a puddy knife or other at tool, gently pry each
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove top hinge and door:
1. Remove hinge cover from top of unit
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Philips
screwdriver to remove three screws.
Hinge Cover
20
This manual suits for next models
1
Table of contents
Other U-Line Beverage Dispenser manuals
