uandksound M6 Series User manual
NEW M6 & M8
SERIES
Owner’s Manual
SLIM AS MOTTO !
Following the similar concept as M8 Series, the new M6 Series can be
wall mounted or flush to the wall because Uandksound has recently
redesigned a new extra slim body cabinet for being adapted to
complex custom installation.
Our main innovation to perform the best sound is the introduction of
our last Air Motion tweeter. More precise and clean high frequencies
are highly appreciated so that M6 Series have a strong sense of
commitment with its acoustic and visual esthetic design. Naturally,
their technical reliability and value are beyond our motto. Even the
most innovative design is constantly improving so that Uandksound
builds progress into every product investing effort to satisfy even the
most discerning customers. That being so, M6 Series only offer the
latest in audio technology for long term enjoyment.
M6 Series design is easily integrated into your living room. Their full
enjoyment should not require a complex installation. Either to watch a
movie or listening to your favourite singer, Uandksound brings to you an
extensive catalog where young or elderly audio enthusiast can find the
most suitable solution according to their preferences and possibilities
without issue or compromise thanks to best value for money features.
M6 SERIES
WWW.UANDKSOUND.COM

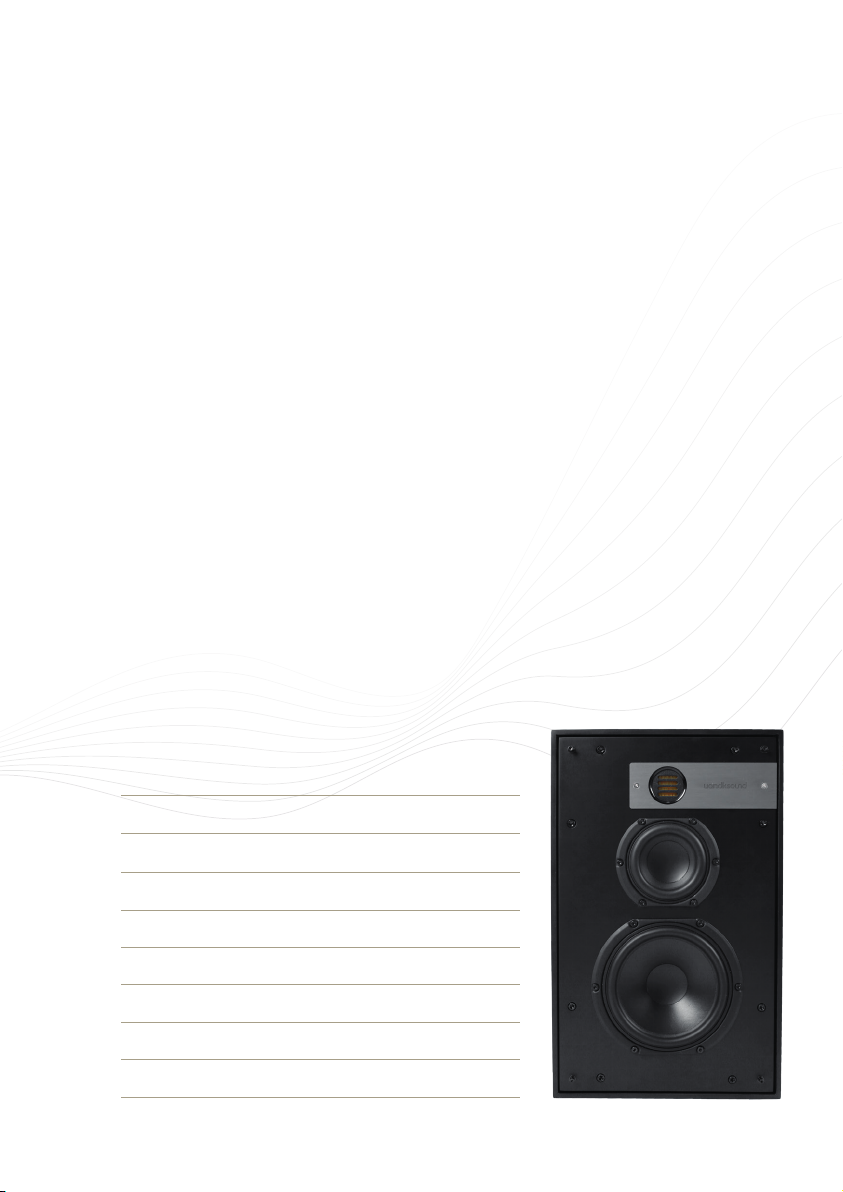

M620N M610N M610IW M600IW M1200N
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
2X4 inch mid speaker/ 2X6.5-inch woofer
Frequency response + /- 3 dB: 55Hz-25kHz
160/320W Power Handling
SPL 90dB + / - 1.5dB
Impedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W) :708 x 120 x 260mm
MODELS AND FEATURES
FEATURES
1. Extra slim body measured at only 12.0 cm in thickness
2. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
3. Three-way sealed enclosure, 12dB/oct makes sound performance
more perfect.
4. The new M6, M8 series tweeter uses Air Motion Transformer
technology to make the sound leap forward.
WWW.UANDKSOUND.COM

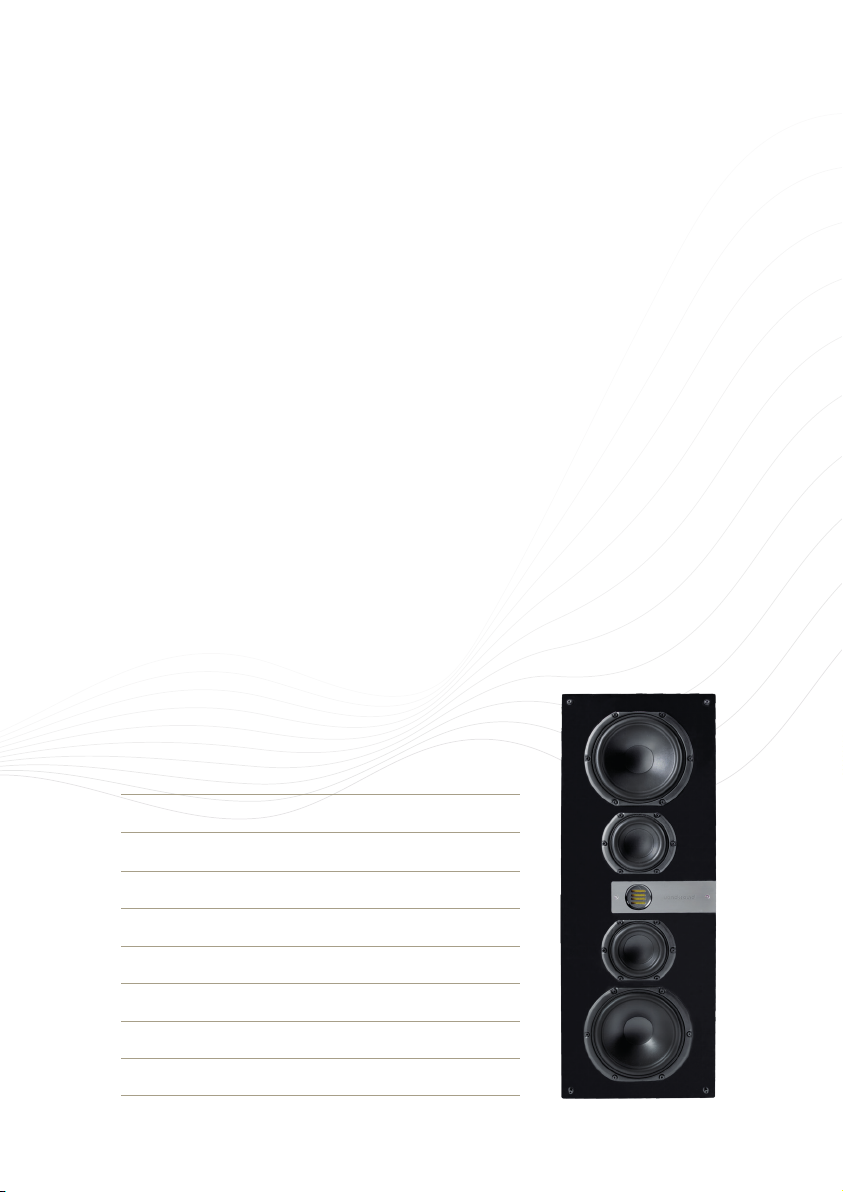

M620N
WWW.UANDKSOUND.COM
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
4 inch mid speaker/ 6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
I60/320W Power Handling
SPL 89dB +/-1.5dB
Impedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 411.5 x 130 x 260mm
MODELS AND FEATURES
FEATURES
1. Extra slim body measured at only 12.0 cm in thickness
2. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
3. Three-way sealed enclosure, 12dB/ oct makes sound performance
more perfect.
4. The new M6, M8 series tweeter uses Air Motion Transformer
technology to make the sound leap forward.
M610N
M6 SERIES
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
2X4 inch mid speaker/ 2X6.5-inch woofer
Frequency response + /- 3 dB: 55Hz-25kHz
160/320W Power Handling
SPL 90dB + / - 1.5dB
Impedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W) :708 x 120 x 260mm
WWW.UANDKSOUND.COM
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
4 inch mid speaker/ 6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
l60/320W Power Handling
SPL 89dB + /-1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 411.5 x 130 x 260mm
MODELS AND FEATURES
FEATURES
1. Sleek design perfect for in-wall installation that blends seamlessly
into your home
2. Sturdy wooden enclosure featuring Uandksound signature acoustic
suspension design, ensures an extensive low bass with minimal
distortion
3. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
4. Three-way sealed enclosure, 12dB/oct makes sound performance
more perfect.
5. The new M6, M8 series tweeter uses Air Motion Transformer
technology to make the sound leap forward.

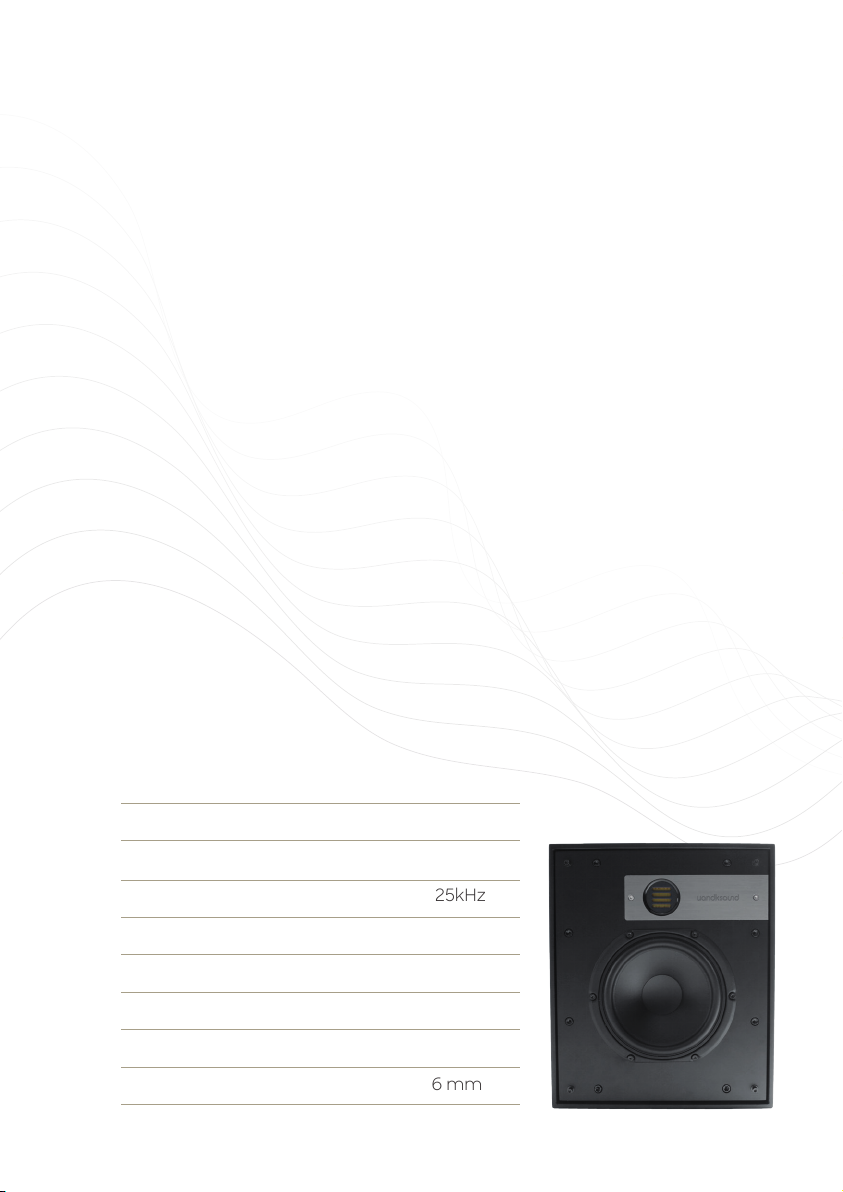

M610IW
M6 SERIES
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
4 inch mid speaker/ 6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
I60/320W Power Handling
SPL 89dB +/-1.5dB
Impedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 411.5 x 130 x 260mm
WWW.UANDKSOUND.COM
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
l60/320W Power Handling
SPL 89dB + /-1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 327 x 93 x 276 mm
MODELS AND FEATURES
FEATURES
1. Sleek design perfect for in-wall installation that blends seamlessly
into your home
2. Sturdy wooden enclosure featuring Uandksound signature acoustic
suspension design, ensures an extensive low bass with minimal
distortion
3. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
4. Two-way sealed enclosure, 12dB/oct makes sound performance
more perfect.
5. The new M6, M8 series tweeter uses Air Motion Transformer
technology to make the sound leap forward.
M600IW
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
4 inch mid speaker/ 6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
l60/320W Power Handling
SPL 89dB + /-1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 411.5 x 130 x 260mm
WWW.UANDKSOUND.COM
MODELS AND FEATURES
PERFORMANCE SPECIFICATIONS
Low-frequency oriented design
30 Hz - 250 Hz
400(W) X 478(H) X 420(D) mm.
SUB AMP POWER
Built-in 2400 watt class D Amplifier
ENCLOSURE
Fully engineered, MDF enclosure. Oriented design.

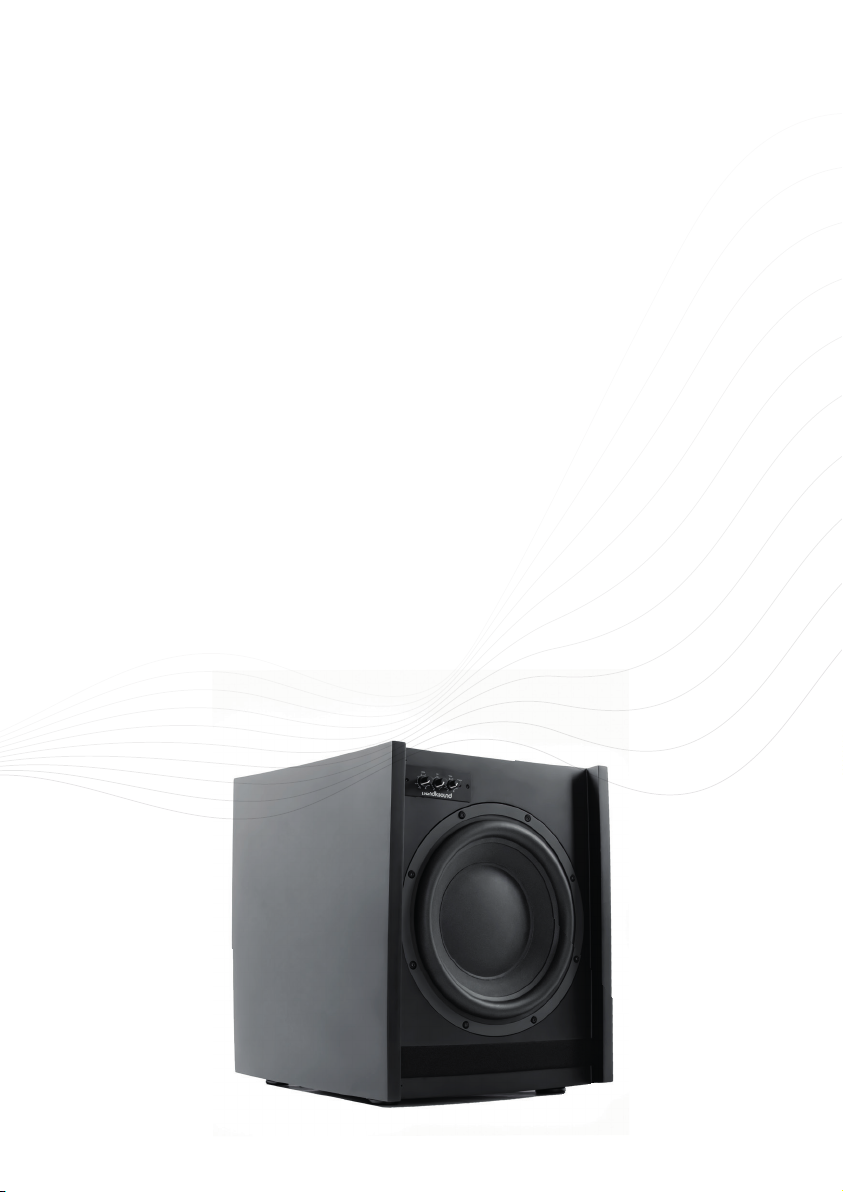

Powered subwoofer
FINISHES
Uandksound basic finishes is available for this product.
The standard finish for this product is black matte paint.
WOOFER TYPE
Long-excursion coated paper
WOOFER SIZE
12" /30cm
M1200N
M6 SERIES
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
6.5-inch woofer
Frequency response + / - 3 dB: 55Hz-25kHz
l60/320W Power Handling
SPL 89dB + /-1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 327 x 93 x 276 mm
WWW.UANDKSOUND.COM
MODELS AND FEATURES
PEQ
The EQ adjustment knobs
enable the user to
custom-tailor one band of
parametric equalization for
their subwoofer, which can
be used to add boost to the
low end of the response, or can be used to cut out an excessively
loud room resonance. The frequency knob selects the frequency for
the filter, the bandwidth knob selects how wide or narrow the fiIter is
(the higher the bandwidth, the broader the effect) , and the level
knob can be used to add up to 6dB of boost or 14.5 dB of cut.
POWER MODE
Selects the turn on stimuli that will put the
amplifer in ready mode .“AUTO” setting senses
a signaI on the inputs and automaticaIly puts
the amp in ready mode. “ON” setting puts the
amplifier constantly in ready mode so that it
can be controlled by the master power switch
on the front panel. In “AUTO” mode, the
amplifer will take approximately 15 minutes to
turn off from ready to standby mode.
LOW LEVEL UNBALANCE INPUT
RCA style jacks receive the audio signaI from standard line level audio
sources. When used in a two channel stereo system, both the left and
right audio inputs should be connected and are internally summed to
a mono output. The adjustable crossover is in effect when using the
left or right inputs. When using an amplifer with an audio source that is
mono and prefiltered, the LFE input should be used; this bypasses the
onboard low pass crossover for more accurate reproduction of the
incoming signal.

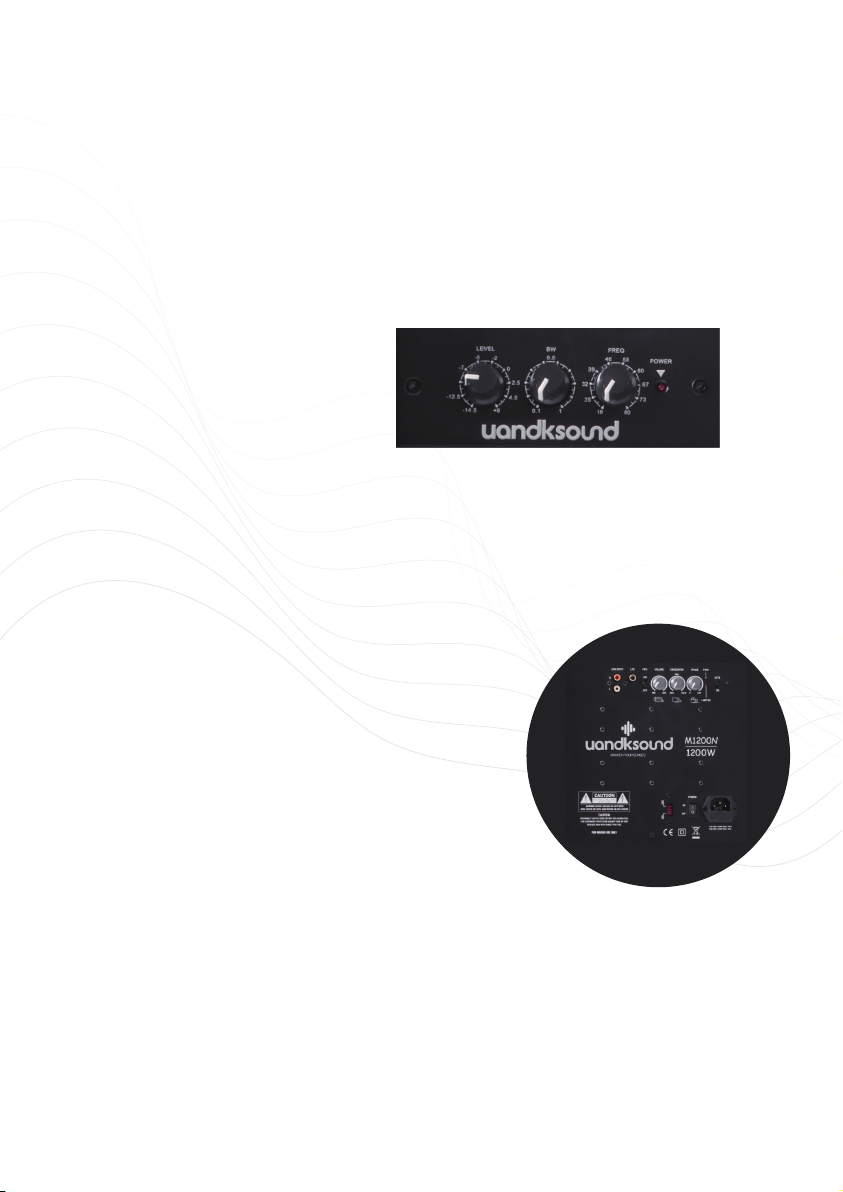

M1200N amplifier panel layout
PERFORMANCE SPECIFICATIONS
Low-frequency oriented design
30 Hz - 250 Hz
400(W) X 478(H) X 420(D) mm.
SUB AMP POWER
Built-in 2400 watt class D Amplifier
ENCLOSURE
Fully engineered, MDF enclosure. Oriented design.
Powered subwoofer
FINISHES
Uandksound basic finishes is available for this product.
The standard finish for this product is black matte paint.
WWW.UANDKSOUND.COM
AMPLIFIER DISPLAY
A. BLUE LIGHT - Power Mode is ON
B. RED LIGHT -This indicate standby or a fault condition. Standby
(Continue to the red light and turn on when signal input) Excessive
Operating Temp (Continue to the red light and is no effected by
signaI input until the temperature dropped below 70 degrees)
Excessive Current/ Short Circuit (Continue to red light and is no
effected by signal input until solve the problem and power on again).
LEVEL CONTROL
This control adjusts input sensitivity effectively increasing or decrea-
sing output volume level.
PHASE ADJUSTMENT CONTROL
This control allows from an inffinitely variable adjustment of the
acoustical phase from 0—180 degrees.
PEQ SWITCH
Selects the switch that will turn on/off the EQ function. “ON” setting
that the EQ function effectiveIy. “OFF” setting that close the EQ
function if you do not need it.
AC VOLTAGE SWITCH
The unit set at the factory for 230V operation; simply connect the
included IEC power cord to your waII outlet. For 115V operation, move
the voltage selector switch to the 115V position. When operation at
115V the internal fuse located in the IEC socket should aIso be chan-
ged. In most 115V aplications a separate power cord will be required
and is not included.
AC POWER INPUT PLUG
Connect supplied power cord here. Make all other connections to the
subwoofer before connecting the power cord to a wall outlet.
AC MAINS SWITCH
This switch wilI connect/ disconnec AC power to/from the subwoofer.
M6 SERIES
NOTES ABOUT HUM
While the M1200N amplifier has been designed to minimice the
possibility of hum in the subwoofer system, it is still possible that a
hum will occur in rare circumstances. Safely grounding can create a
path for smaII amounts of 50/ 60Hz energy to travel trough the line
level audio system. While no dangerous, this energy can cause
difficulty with the subwoofer auto signal sensing circuit, and at the
very least will interfere with the quiet enjoyment of your system. The
first course of action should be trying to make sure that all of the
audio components are connected to either the same electrical
outlet, or at least into the same circuit branch. Next, cable TV systems
are notoriously the culprit, so be sure to try disconnecting all coaxial
feeds that are connected to the system. If this solves the problem,
install a coaxiaI line isolator and reconnect the system. In the very
worst case, a line level audio isolator/transformer connected to the
line in of the subwoofer amplifier will usualIy solve the problem.
WWW.UANDKSOUND.COM
STATE OF ART REDEFINED
After intensive studies Uandksound has completed a new step to
renew its flagship referente models. As previous, M8 Series compo-
nents are carefully selected and only those conforming to tightly
defined tolerances are ultimately processed. The sorne care and
attention is dedicated to the production of the crossover network,
which along with the loudspeakers, is of fundamental importance to
the quality of the diffusers.
AII models are three-way design. lts separate low, medium and treble
use 12dB/ OCT divider, thus making the sound more clean, more
precise in positioning specilly thanks to the new developed tweeter.
Sorne Uandksound tweeters use now Air Motion Transformer Techno-
logy to make the sound leap forward. A new extra slim body cabinet for
M850N is redesigned to be adapted to whatever custom installation.
The power of the new M1500N subwoofer has been improved. With its
unique 2400W output power our new subwoofer will gives out a true
and immersive experience. The subwoofer is also equipped with class
D amplifier besides EQ room regulation and can be placed randomly.
Our extensive listening tests are a crucial part of the manufacturing
process before each speaker and electronic are burned-in and
thoroughly measured for several days. M8 Series advance to the final
manufacturing step only if the measurements show no deviation.
M8 SERIES
M850N M820IW M1500N
WWW.UANDKSOUND.COM
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
2X4 inch mid speaker / 2X8-inch woofer
Frequency response + /- 3 dB: 45Hz-25kHz
300/600W Power Handling
SPL 90dB + / - 1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 807 x 135 x 273 mm
MODELS AND FEATURES
FEATURES
1. Extra slim body measured at only 13.5 cm in thickness
2. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
3. Three-way sealed enclosure, 12dB/oct makes sound performance
more perfect.
4. The new M6, M8 series tweeter uses Air Motion Transformer
technology to make the sound leap forward.
M8 SERIES
M850N
WWW.UANDKSOUND.COM
ACOUSTIC SPECIFICATIONS
Tweeter uses Air Motion Transformer
4 inch mid speaker / 8-inch woofer
Frequency response + /- 3 dB: 45Hz-25kHz
300/600W Power Handling
SPL 90dB + /- 1.5dB
lmpedance 4 Ohms
Finish: Satin black
Dimensions (H x D x W): 472 x 130 x 289 mm
MODELS AND FEATURES
FEATURES
1. Sleek design perfect for in-wall installation that blends seamlessly
into your home
2. Sturdy wooden enclosure featuring Uandksound signature acoustic
suspension design, ensures an extensive low bass with minimal
distortion
3. Uandksound authentic air suspension technology that delivers
deeper bass with low distortion
4. Three-way sealed enclosure, 12dB/oct makes sound performance
more perfect.
5. The new M6, MB series tweeter uses Air Motion Transformer
technology to make the sound leap forward.
M820IW
WWW.UANDKSOUND.COM
MODELS AND FEATURES
PERFORMANCE SPECIFICATIONS
Low-frequency oriented design
20 Hz - 250 Hz
482 (W) X 557 (H) X 480 (D) mm.
SUB AMP POWER
Built-in 2400 watt class D Amplifier
ENCLOSURE
Fully engineered, MDF enclosure. Oriented design.
Powered subwoofer.
FINISHES
Uandksound basic finishes is available for this product.
The standard finish for this product is black matte paint.
WOOFER TYPE
Long-excursion coated paper
WOOFER SIZE
15" /38.1 cm
M1500N
M8 SERIES
WWW.UANDKSOUND.COM
WWW.UANDKSOUND.COM
MODELS AND FEATURES
PEQ
The EQ adjustment knobs
enable the user to custom-tai-
lor one band of parametric
equalization for their subwoofer,
which can be used to add
boost to the low end of the response, or can be used to cut out an
excessively loud room resonance. The frequency knob selects the
frequency for the filter, the bandwidth knob selects how wide or narrow
the fiIter is (the higher the bandwidth, the broader the effect) , and the
level knob can be used to add up to 6dB of boost or 14.5 dB of cut.
POWER MODE
Selects the turn on stimuli that will put the amplifer
in ready mode .“AUTO” setting senses a signaI on
the inputs and automaticaIly puts the amp in
ready mode. “ON” setting puts the amplifier
constantly in ready mode so that it can be
controlled by the master power switch on the
front panel. In “AUTO” mode, the amplifer will
take approximately 15 minutes to turn off from
ready to standby mode.
LOW LEVEL UNBALANCE INPUT
RCA style jacks receive the audio signaI from standard line level audio
sources. When used in a two channel stereo system, both the left and
right audio inputs should be connected and are internally summed to a
mono output. The adjustable crossover is in effect when using the left
or right inputs. When using an amplifer with an audio source that is
mono and prefiltered, the LFE input should be used; this bypasses the
onboard low pass crossover for more accurate reproduction of the
incoming signal.
M1500N amplifier panel layout
WWW.UANDKSOUND.COM
M8 SERIES
AMPLIFIER DISPLAY
A. BLUE LIGHT - Power Mode is ON
B. RED LIGHT -This indicate standby or a fault condition. Standby
(Continue to the red light and turn on when signal input) Excessive
Operating Temp (Continue to the red light and is no effected by signaI
input until the temperature dropped below 70 degrees) Excessive
Current/ Short Circuit (Continue to red light and is no effected by
signal input until solve the problem and power on again).
LEVEL CONTROL
This control adjusts input sensitivity effectively increasing or decrea-
sing output volume level.
PHASE ADJUSTMENT CONTROL
This control allows from an inffinitely variable adjustment of the
acoustical phase from 0—180 degrees.
FREQUENCY ADJUSTMENT CONTROL
This control allows infinitely variable adjustment of the lowpass
frequency from 30-l20Hz
PEQ SWITCH
Selects the switch that will turn on/off the EQ function. “ON” setting
that the EQ function effectiveIy. “OFF” setting that close the EQ
function if you do not need it.
AC VOLTAGE SWITCH
The unit set at the factory for 230V operation; simply connect the
included IEC power cord to your waII outlet. For 115V operation, move
the voltage selector switch to the 115V position. When operation at
115V the internal fuse located in the IEC socket should aIso be chan-
ged. In most 115V aplications a separate power cord will be required
and is not included.
AC POWER INPUT PLUG
Connect supplied power cord here. Make all other connections to the
subwoofer before connecting the power cord to a wall outlet.
AC MAINS SWITCH
This switch wilI connect/ disconnec AC power to/from the subwoofer.
WWW.UANDKSOUND.COM
NOTES ABOUT HUM
While the M1500N amplifier has been designed to minimize the
possibility of hum in the subwoofer system, it is still possible that a
hum will occur in rare circumstances. This safely grounding can
create a path for small amounts of 50/60Hz energy to travel trough
the line-level audio system. While no dangerous, this energy can
cause difficulty with the subwoofer auto signal sensing circuit, and at
the very least will interfere with the quiet enjoyment of your system.
The first course of action should be trying to make sure that all of the
audio components are connected to either the sorne electrical
outlet, or at least into the sorne circuit branch. Next, cable TV systems
are notoriously the culprit, so be sure to try disconnecting all coaxial
feeds that are connected to the system. lf this solves the problem,
install a coaxial line isolator and reconnect the system. In the very
worst case, a line-level audio isolator/transformer connected to the
line-in of the subwoofer amplifier will usually solve the problem.
WWW.UANDKSOUND.COM
LOUDSPEAKERS
TECHNICAL
SHEETS
SPL VS FREQ
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
dBSPL
0
10
20
30
40
50
60
70
80
90
100
110
120
130
M600IW
IMPEDANCE VS FREQ
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
Ohm
1
2
5
10
20
50
70
If you precise more technical information or detailed laboratory measurements
our team will be happy to assist you
This manual suits for next models
9
Table of contents
Other uandksound Speakers manuals
