Ugo Vs 4.0 User manual

Congratulations!
You have one of the most versatile and innovative personal speakers available.
Package Contents
1. Speaker
2. 2 in 1 cable for charging and playing
3. FM detachable antenna
4. Instruction sheet
Vs 4.0 Operating Manual
Speaker Modes & Controls
The Speaker can operate in four different modes. To switch between modes press the Mode button.
Mode 1. Bluetooth.
PAIRING INSTRUCTIONS: Turn your UGO speaker on. You will hear a beep. The blue light will blink rapidly. This indicates that the UGO is
ready to pair. Use the following chart to help pair to your device. To play audio you must pair and connect. Your UGO can pair to many
devices but can only connect to one at a time.
PLAYING: Your UGO can play audio from a variety of devices. Once you have paired and connected your device to the UGO follow
instructions from your app or program to play audio.
TO PAIR TO AN ANDROID PHONE
1. Open: Settings
2. Open: Wireless and Network
3. Open:Bluetooth Settings.
4. Turn: Bluetooth on if it is off.
5. Touch: Search for Devices
6. Touch and hold - UGO
7. Touch Connect.
TO PAIR TO AN I PHONE OR IPAD
1. Open: Settings
2. Turn: Bluetooth on (if it is off).
3. Touch and hold: UGO found under Devices, it will be
labeled
Not Paired
4. Touch: The word UGO - it will say Connected
TO PAIR TO A MAC OS COMPUTER
1. Open: System Preferences
2. Open: Bluetooth
3. Click: the + button to add a
Bluetooth device.
4. Select: UGO
5. Click: Continue - the computer will
Pair with the device. If asked:
The pass code is 0000
TO PAIR TO A WINDOWS OS COMPUTER
1. Open: Devices and printers
2. Click: Add a device
3. Select: UGO or Bluetooth headset
4. Click: Next
5. Input: Pass code 0000 if necessary
Mode 2. Micro SD card: Use a computer or Android phone to transfer music files to a Micro SD card. Note: You must use MP3 files. To convert
files to MP3 format see our troubleshooting guide at ugospeakers.com.
Insert the Micro SD card directly into the slot labeled Micro SD. It will click into place. Your music will play automatically. When playing in
MICRO SD mode the green light will blink slowly. To switch to a different mode with the Micro SD card inserted in the speaker – push Mode.
Mode 3. FM Radio. Attach the included antenna to the UGO into the slot labeled LINE/ANT. Note: (The 2 in 1 cable is also an excellent
antenna when connected to the UGO.)
Push the mode button until you hear static. Push the green pause/play button. The UGO will automatically scan and load all FM radio
stations within range. Once it stops scanning you can switch stations by pushing the Vol. up or down buttons. To change the volume push
and hold the Vol. up or down button until the volume reaches the desired level.
When the UGO is searching for FM stations the yellow light will blink rapidly. When playing an FM station the yellow light will blink slowly.
Mode 4. Line Connection. Plug the single end of the 2 in 1 cable (mini USB plug) into the UGO speaker. The double end of the 2 in 1 cable
has a 3.5 mm headphone plug - this can be inserted into any audio device with a corresponding 3.5 mm jack. The audio signal will travel
through this connection. If the audio does not play press the mode button until you are in the Line mode.
When the UGO is playing through the Line connection the light will be a constant yellow.

WHAT THE BUTTONS DO:
Off/On. This button turns the UGO on and off. The UGO has a lengthy stand by mode but to conserve your battery do not leave the UGO on
if not in use.
Mode. Push this button to cycle through audio modes. You can switch easily between the Line connection, Bluetooth, Micro Sd or FM Radio
mode.
Pause/Play. Pauses or plays audio in every mode except FM Radio. In FM Radio Mode push the green Pause/Play button once and the UGO
will automatically search and load available FM radio stations.
While in Bluetooth mode - when connected to a cell phone- this button will also answer/end incoming phone calls.
Volume up/down. Push and hold to increase or lower volume in all modes. Push once to change tracks or radio stations in Micro SD, or FM
Radio mode. While in Bluetooth Mode push once and the UGO will change tracks on your device.
WHAT THE LIGHTS MEAN:
Switch Is On Using The Battery
Blue rapid binking UGO is ready to pair
Blue slow blinking UGO paired to device but not connected
Blue constant UGO paired to device - connected and playing
Yellow constant Line connected and playing
Yellow blinking rapidly UGO searching and loading FM stations
Yellow slow blinking FM radio is playing
Green slow blinking Micro SD is playing
Switch On And Connected To Charger
Red-Blue rapid blinking UGO is ready to pair and is charging
Red-Blue slow blinking UGO paired to device but not connected and charging
Red-Blue constant UGO paired to device–connected, playing - and charging
Red-Yellow Constant Line connected, playing and UGO is charging
Red-Yellow blinking rapidly UGO searching & loading FM stations and charging
Red-Yellow slow blinking FM radio is playing and UGO is charging
Red-Green slow blinking Micro SD is playing and UGO is charging

Switch Off and Connected to Charger
Red Light Constant UGO is charging
No light UGO is charged
Headphone Jack: Plug headphones into your UGO for private listening. Use UGO Tangle Free ear buds for enhanced listening without the
hassle of tangled wires. Get these at ugospeakers.com
CHARGING YOUR UGO: Your UGO comes partially charged. To charge the UGO connect the 2 in 1 cable to the speaker. Connect the USB
plug on the other end of the cable to any USB port. This can be the USB port on a computer, wall adaptor or car charger. Once connected the
UGO will automatically charge. A full charge takes approximately 2 hrs.
If the UGO is switched off and charging a constant red light will show. If the light goes off the UGO is fully charged. Partial charging will not
affect the life of the battery. Do not store the UGO with a dead battery.
CHARGING WHILE PLAYING: You can charge the UGO and play audio at the same time. If the sound quality starts to distort the battery is
fully charged, to eliminate this distortion unplug the charging cable.
CARE OF YOUR UGO: Do not let the UGO come in contact with water. Do not leave it in direct sunlight or other hot place. Do not store your
UGO with a dead battery. Clean with soft cloth. Do not use harsh chemicals to clean. Do not drop or place heavy objects on the UGO. Never
try to repair or open your UGO yourself.
TECHNICAL SPECIFICATIONS
1. Operating voltage 3.7V
2. Charging Voltage 5V
3. Output power 3V
4. Speaker spec: 40mm 2.6Ω3W
5. Battery capacity: 430 mA/H
6. Frequency response: 60 Hz – 18Khz
7. THD: <0.5%
8. SNR: >95dB
9. Size: D 60mm H 54cm
10. Play time is approximately 4 hours at full volume.
More Information:
For additional tips, and troubleshooting go to ugospeakers.com
Warranty Info
Your UGO speaker is guaranteed to be free of defects for 12 months from date of purchase. Simply return the defective UGO with your
original receipt for free repair or replacement. Warranty void if the speaker has been tampered with.
Lifetime Warranty
If your 12-month warranty has expired or you have damaged your UGO and would like it replaced see web site to purchase a Lifetime
Warranty.
Contact:
Website: ugospeakers.com Email: [e-mail]

Troubleshooting your Bluetooth UGO Vs 4.0
PROBLEM: SOLUTION:
The speaker doesn’t play Turn the power button to ‘ON’ position.
Make sure the speaker is charged. If you
are not sure that the battery is charged
attach the charging cable to the UGO and
plug the other end into any active USB
port.
Make sure the volume of your device is
turned up. Make sure the volume on the
speaker is turned up.
Check to be sure the UGO is in the correct
MODE. Do this by pushing the MODE
button.
Make sure that the play/pause button is
not in pause position.
If connected wirelessly check status of the
device that is connected. Make sure that
the UGO is paired – connected and that
the media is playing.
Try pressing the Mode button to switch
modes.
Try turning the power Off then back On.
Your Micro SD card is inserted into the
UGO but the music doesn’t play.
Make sure the power button is in the ‘ON’
position.
Songs must be in MP3 format. If your
songs are in a different format go to the
trouble-shooting guide on our web site,
ugospeakers.com. Choose support for
MICRO SD card. There you will find
instructions that will help you reformat
your files to MP3.
Check that the battery is charged.
Try Pressing the Pause/ Play button.
Make sure SD card is inserted with
printing up and is pushed in until you
hear a click.
Try pressing the MODE button to be
certain you are in Micro SD mode.

I can’t pair my device to the UGO. See instructions for the Bluetooth UGO on
our web site ugospeakers.com. There are
detailed instructions on how to pair most
devices. If you still cannot pair your device
contact the manufacturer of your device
for additional information.
Try using an alternate device to pair to
the UGO. Many times the problem is with
the device not the speaker.
PAIRING MULTIPLE DEVICES:
The UGO can be paired to multiple
devices, but can only CONNECT to one
device at a time. Pairing and connecting
are two different things.
To play audio using Bluetooth you must
be paired and connected to the device.
If another device is already paired to the
UGO you need to turn off the Bluetooth
function or power of that device or un-
pair it from the UGO to connect a new
device.
When you turn on the UGO you will know
it is available to pair if the blue light blinks
rapidly. Once paired the light will stay
solid blue.
If you are still unable to pair your device,
the UGO is paired to another device.
The Bluetooth function is connected but
has poor sound quality.
Charge the battery.
There are different versions of Bluetooth
technology. These (older) versions are
sufficient to use a wireless mouse or
keyboard but do not transfer data quickly
enough to play music.
You can still plug the UGO to the device
using the supplied audio cable for
excellent sound quality.
The sound quality coming from the
speaker is poor.
If the UGO is completely charged and still
attached to the charger the sound quality
may distort or crackle. Unplug the
charging cable.
In FM Mode try using the charging cable
for an antenna. Try moving the cable into
different positions for better reception.

My FM radio stations do not come in
clearly.
Try using the charging cable as an
antenna. Plug in normally. You can even
charge the UGO at the same time. Radio
signals must be strong for a good
connection.

Specification

Contents:
1. Generalspecification
2. Productphoto
3. PinFunctions

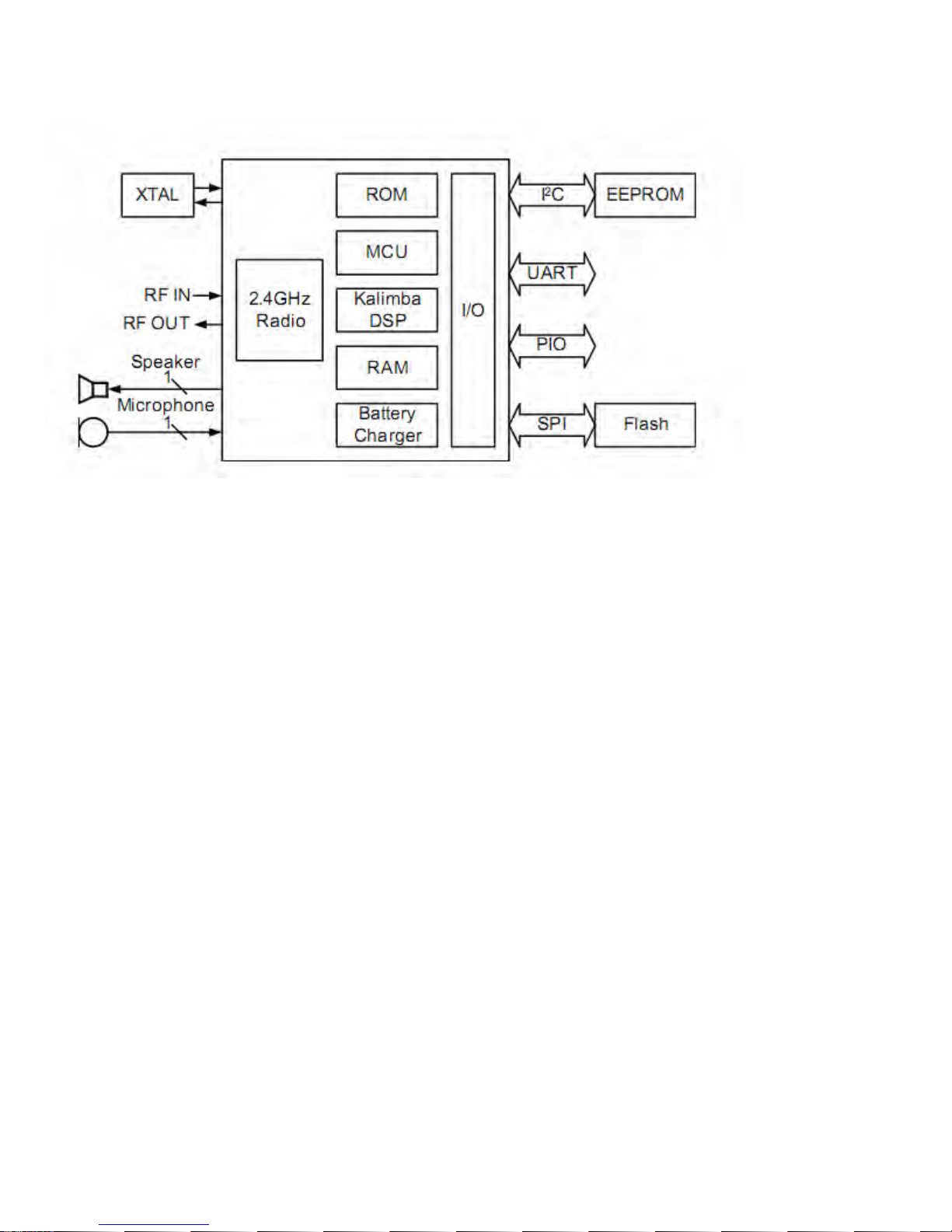

4. Blockdiagram

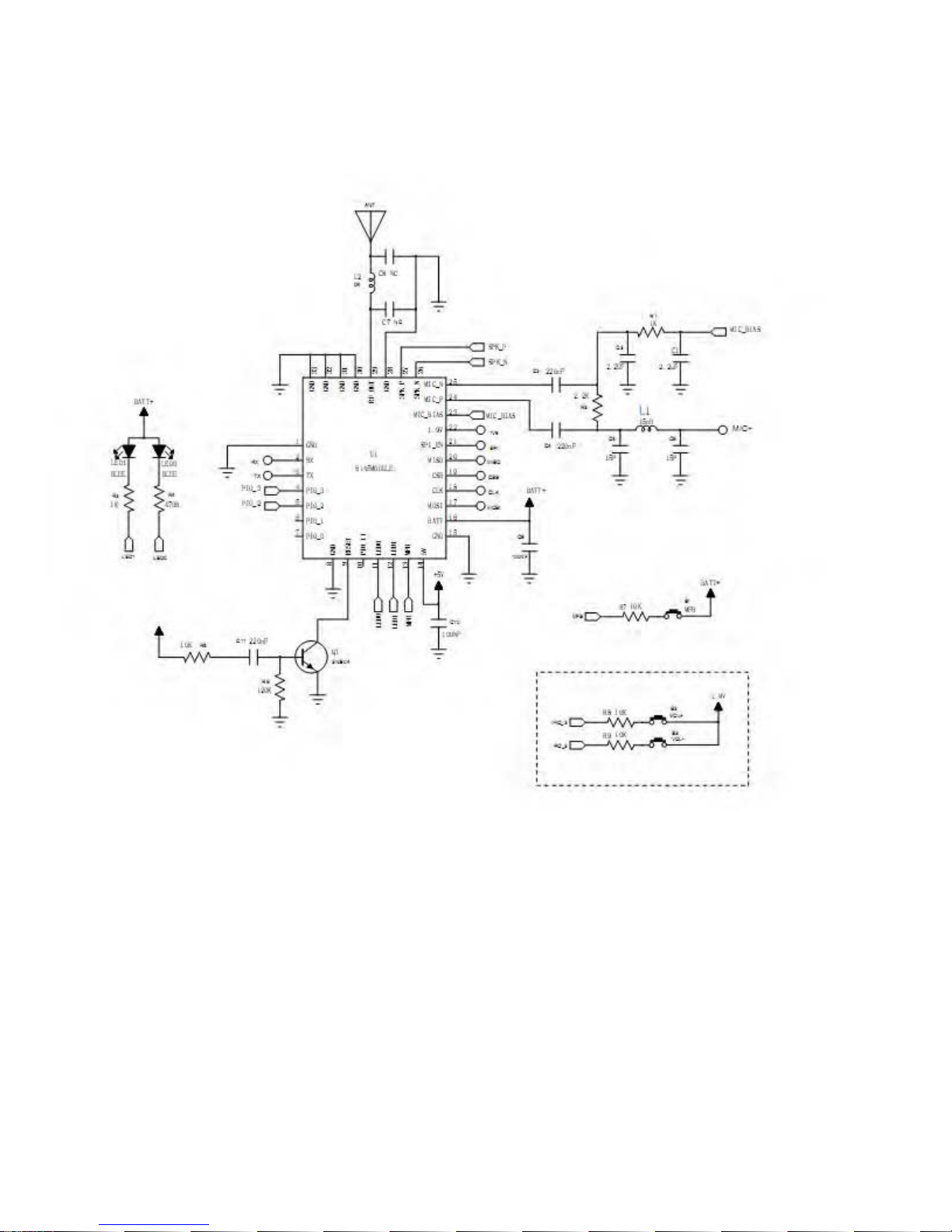

5. ExampleApplicationSchematic
6. Applicationsoftware


1. GeneralSpecification 
GeneralDescription
BlueCore®BC6145™Module isa lowcostfullyfeaturedROMIC solutionforBluetoothmonoheadsetswith
extremely low power consumption. The BC6145 module ensures increased speech clarity and improves
intelligibilitythroughspectralenhancement,withthebidirectionalnoisereductionHearandBeHeardfeature.
BC6145 module reduces the number of external components required, minimising production costs. It
includesaBluetoothradio,baseband,KalimbaDSP,DAC/ADC,switchmodepowersupplyandbatterycharger
inaQFNpackageforlowcostdesigns.
TheKalimbaDSPcoprocessorsupportsenhancedaudioapplications.A2DPstreamingenablesmusicplayback
onamonoheadset.BC6145moduleincludesCVCsinglemicrophoneechoandnoisereduction,whichreduces
headsetechoenablingtheheadsetusertobeheardmoreclearly.Alowpowerwindnoisereductionfeature
improvesintelligibilityinwindyenvironments.


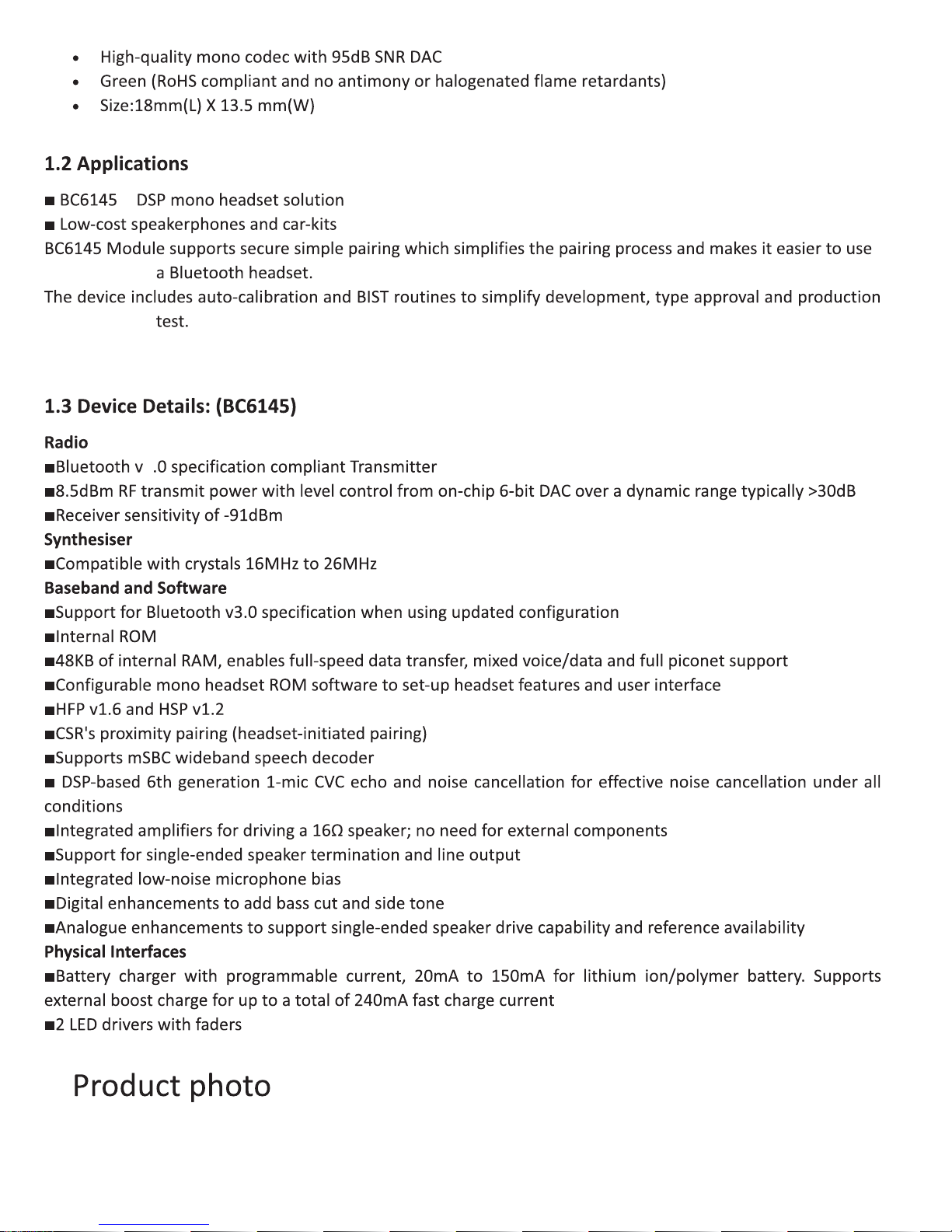

1.1DeviceFeatures:
x6thgeneration1micCVCaudioenhancements
xHFPv1.6andHSPv1.2.
xA2DPv1.2forhighqualitymonomusicstreaming
xNonLinearEchoReduction(NLER)featureforlowcostspeakerphonesandcarkits
xLowpowerconsumption:over11hourstalktimefroma120mAhrbattery
xAdvancedmultipointsupport:enablesaheadset
x(HFP)connectionto2phonesforvoice
xMultipointA2DPstreaming:enablesamonoheadset(A2DP)connectionto2A2DPsourcedevicesfor
musicplayback
xSecuresimplepairing,CSR'sproximitypairingandCSR'sproximityconnection 
x64MIPSKalimbaDSPcoprocessor

2.
4

 


3.PinFunctions
PINName  PIN# Description  PadType
GND 1,8,15,28,30,31,3
2,33
Groundport VSS
RX 2 UARTdatainput,activehigh. Bidirectional with weak
internalpulldown
TX 3 UARTdataoutput,activehigh.Bidirectionalwithweak
internalpullup
PIO_3 4 Programmableinput/outputline
PIO[3]ischipselectforSPIflash
interface(BC6145ismaster).
Bidirectionalwith
programmable
strength internal
pullup/down
PIO_2 5 Programmableinput/outputline Bidirectionalwith 
programmable
strength internal
pullup/down
PIO_1 6
PIO_0 7
RESET 9 Resetiflow.Inputdebouncedsomustbelow
for>5mstocauseareset
Input with weak
internalpullup
PIO_11 10 Programmableinput/outputline. Bidirectionalwith 
programmable
strength internal
pullup/down
LED0 11 LEDdriver Opendrainoutput
LED1 12 LED driver Open drain output

MFB 13 MultiFunctionalButton VREGENABLE_H
5V 14 Lithium ion/polymer battery charger
input
VDD_CHG
BATT 16 Lithium ion/polymer battery positive
terminal.Battery
charger output and input to
switchmoderegulator
BAT_P
MOSI 17 SPIdatainput Input, with weak
internalpulldown
CLK 18 SPIclock Bidirectional with
weak internal
pulldown
CSB 19 ChipselectforSPI,activelow Bidirectional with
weak internal
pulldown
MISO 20 SPIdataoutput Bidirectional with
weak internal
pulldown
SPI_EN 21 Debuginterfaceinput

Input with strong
internalpulldown
1.9V 22 Highvoltageregulatoroutput VREGOUT_H
MIC_BIAS 23 Microphonebias Analogue
MIC_P 24 Microphoneinput,positive Analogue
MIC_N 25 Microphoneinput,negative Analogue
SPK_N 26 Speakeroutput,negative Analogue
SPK_P 27 Speakeroutput,positive Analogue
RF_OUT 29 SPIclock  Transmitter
output/switched
receiver
  










4.ApplicationBlockdiagram 



5.ExampleApplicationSchematic 












6.ElectricalCharacteristics
7.1  AbsoluteMaximumRatings 
Rating Min Max
Storagetemperature 40ɗ +85ɗ
Supplyvoltage:+5V(ChargerIN) 0.4 6.5V


7.2 RecommendedOperatingConditions

OperatingCondition Min Max
Operatingtemperaturerange 20ɗ +60ɗ
Supplyvoltage:+5V(ChargerIN) 4.75V 5.25V
Supplyvoltage:BATT 3.0V 4.2V




Warranty Info
Your UGO speaker is guaranteed to be free of defects for twelve (12) months from date of
purchase. Simply return the defective UGO with your original receipt for free repair or
replacement. Warranty void if the speaker has been tampered with.
Lifetime Warranty Purchase
If your 12-month warranty has expired or you have damaged your UGO and would like it
replaced see web site to purchase a Lifetime Warranty www.ugospeakers.com
To obtain warranty service on your UGO product, please visit our web site:
www.ugospeakers.com
or email us directly:
[email protected]
The Bluetooth word, mark and logos are owned by Bluetooth SIG, Inc.
