Ultra Max 724TA User manual

IL2924
MODELS 760TA- & 772TA-
Not approved for Canada
ANSI/NSF 4
®
®
®
®
®
ELECTRIC
GRIDDLES
MODELS
724TA, 736TA, 748TA, 760TA, 772TA
CHROME MODELS
724TCHSA, 736TCHSA, 748TCHSA, 760TCHSA, 772TCHSA
Installation and
Operation
Instructions
2M-Z16214 Rev. A 11/14/14
724TA

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
2M-Z8514, Ultra-Max Electric Griddle
GENERAL INFORMATION
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations. For equipment to be used by the general public, please
contact the factory.
INSTALLATION
The griddles are equipped for the voltage indicated on the nameplate mounted on the front panel.
They will operate on alternating current (AC) only.
DO NOT CONNECT TO DIRECT CURRENT (DC).
The installation of the electric griddle should conform to the:
NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC CODES AND
ORDINANCES AND THE LOCAL ELECTRIC COMPANY RULES AND
REGULATIONS
For your protection we recommend that a qualied electrician install this griddle. He should be
familiar with electrical installations and all electric codes. Proper connections and power supply are
essential for efcient performance. The external wiring should be in conduit or an approved type
of exible cable suitable for operation at the temperature indicated on the wiring diagram, and of a
proper size to carry the load. The supply circuit should be properly fused and equipped with a means
of disconnecting, as required by local electrical code. THE BODY OF THE GRIDDLE SHOULD BE
GROUNDED (DO NOT GROUND TO A GAS SUPPLY LINE).
EXHAUST CANOPY
Griddles inherently create a good deal of heat and smoke and should be installed under an efcient
exhaust hood with ame proof lters. A vertical distance of not less than 48” shall be provided
between the top of the appliance and lters or any other combustible material. Exhaust installation
must conform to local codes.
AIR SUPPLY: Provisions for adequate air supply must be provided.
GENERAL OPERATING PROCEDURES
The Ultra-Max series electric griddles may be wired for operation in the eld for either 1-phase or
3-phase power supplies by making line connections at the junction box(es) located at the rear of the
unit. Models 724T-230/400V, 736T-230/400V & 748T-230/400V, should be wired for 3-phase power
supply only. Two junction boxes are provided on the 760T & 772T for making line connections.

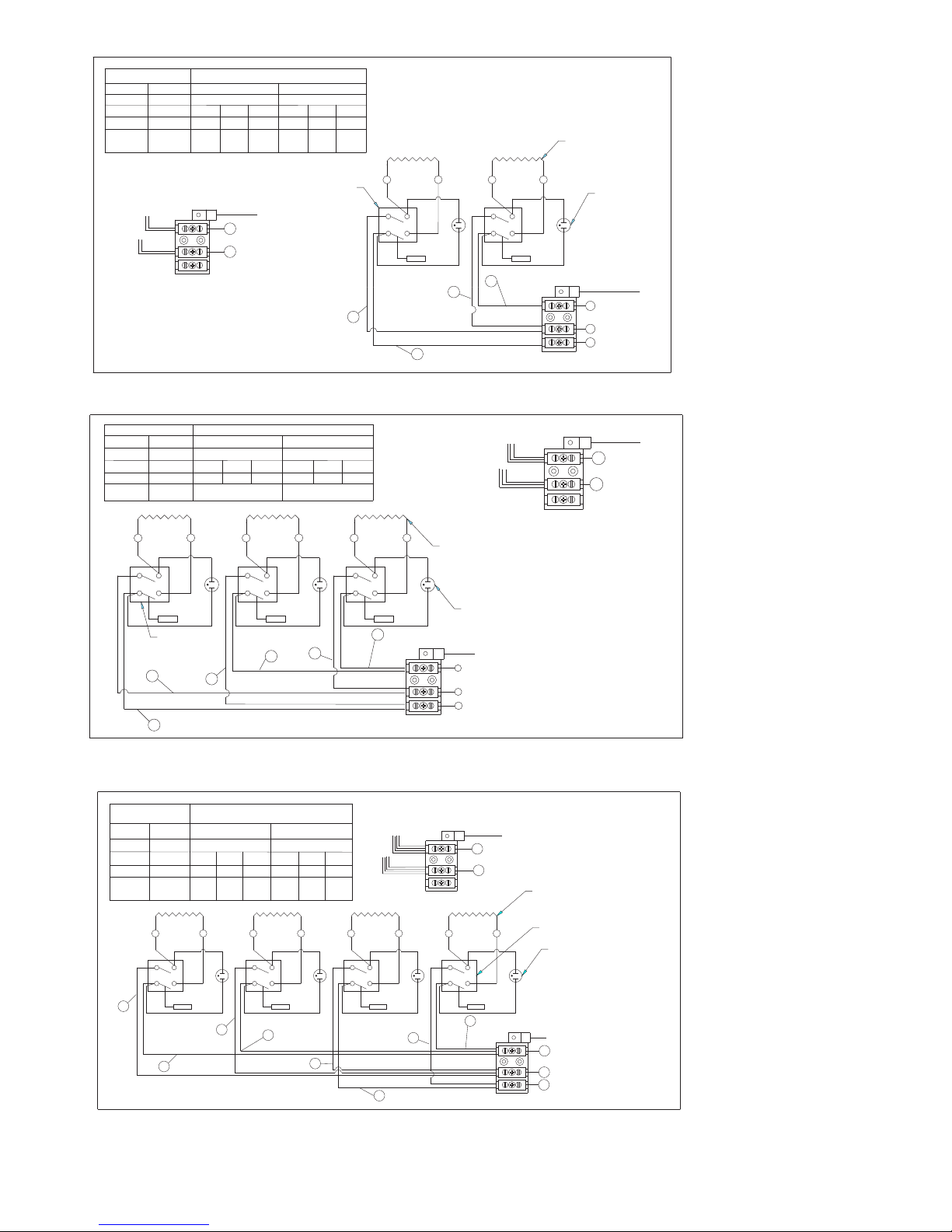

CONNECTING POWER SUPPLY
Detach cover on junction box at rear of unit. There is a terminal block for the supply connection in the
junction box. Wires can be rerouted in the terminal block for 3phase hook-up. See wiring diagrams
and model voltage on unit panel
LOCATING AND LEVELING THE UNIT
Do not install the unit closer than 1-inch from a side wall and/or closer than 1-inch from a rear
wall. Make sure the unit is properly ventilated. Level unit by adjusting the (4) feet which have an
adjustment of 1-3/4” (43.75mm) for accurate leveling and perfect line-up with other Ultra-Max series
units.
CAUTION
WARNING

4
2M-Z8514, Ultra-Max Electric Griddle
GENERAL OPERATING PROCEDURES continued
SEASONING THE GRIDDLE HEATING SURFACE
Before initial use, clean the griddle surface thoroughly with hot soap and water. See Griddle care on
page 4 for further information. After the griddle has been thoroughly cleaned, it should be seasoned
to prevent food from sticking. Before using and after each thorough scouring, season the griddle
heating surface in the following manner.
1. Remove any shipping material from the cooking surface and thouroughly clean the entire grill
with hot soap and water.
2. Turn temperature control dials to 350°F (177°C).
3. Using a clean cloth, not a spatula, brush a thin lm of cooking oil over the griddle cooking surface.
This lm should remain on the hot griddle surface for half an hour.
4. Remove the excess oil and wipe clean.
5. Apply another lm of cooking oil over the hot cooking area for another half hour and again
remove excess oil and wipe clean. The griddle surface should now be ready for use.
Even with careful seasoning, food may, to some extent, stick to the griddle cooking surface until the
griddle plate is broken in.
TEMPERATURE CONTROL
The temperature controls are combination “ON/OFF” switches and thermostats. Turning the dial knob
automatically maintains the selected heat range.
The Ultra-Max electric griddle line has one thermostat for every 12” (30cm) section of griddle that
operates independently of one another. Each thermostat controls the section of the griddle above it
and may be set at different temperatures as desired.
COOKING
Set the thermostat dial knob at the temperature desired. After a short pre-heating period, the
thermostat will automatically maintain the selected temperature.
IDLING
During idle periods, to save on operating costs, lower the temperature setting of the thermostat to
about 250°F (121°C). It is not necessary to maintain cooking temperature during idle periods, as the
griddle can quickly be reheated to the desired temperature.
SIGNAL LIGHTS
Each thermostat has its own signal light which indicates when the unit’s control knob is in the on
position. Cooking surface will be hot when the control knob is in this position.

5
2M-Z8514, Ultra-Max Electric Griddle
CAUTION
CLEANING
GRIDDLE CARE (NON-CHOME SURFACES)
It takes very little time and effort to keep the griddle attractive and performing at top efciency.
If grease is permitted to accumulate, it will form a gummy cake and then carbonize into a hard
substance which is extremely difcult to remove. To prevent this condition, the following suggestions
for cleanliness should be followed:
1. After each use, scrape the griddle with a scraper or exible spatula to remove excess grease
and food. A waste drawer is provided for the drippings. If there is an accumulation of burned
on grease and food, the griddle should be thoroughly scoured and re-seasoned. Use pumice
or griddle stone while the griddle is warm. Do not use steel wool because of the danger of steel
slivers getting into the food.
2. Daily, use a clean cloth and a good non-abrasive cleaner to clean the stainless steel body of
the griddle. Wipe the polished front with a soft cloth.
3. At least once a day, remove the waste drawer and wash in the same way as an ordinary cooking
utensil. The drawers are removed by pulling forward until they are released from their track.
GRIDDLE CARE (CHROME SURFACES)
(Chrome surface griddles are marked with “CHS” at the end of the model number designation on the
nameplate.) It takes very little time and effort to keep this Industrial Chrome griddle surface sparkling
clean and performing at top efciency. DO NOT allow grease to accumulate as it will carbonize and
become difcult to remove. To prevent this condition, the following cleaning suggestions should be
followed:
1. Remove excess oil and food regularly with a 4” (100mm) wide razor sharp type scraper and
wipe surface with a damp cloth if desired.
2. Following the scraping, for end of the day cleaning, a damp cloth and a non-silicated, non-
abrasive, non-chlorinated cleaner such as Bon-Ami may be used to wipe surface clean, followed
by wiping with clean wet cloth.
3. Follow steps 2 and 3 from Griddle Care (Non-Chrome Surfaces).
ON CROME SURFACES:
1. Never use pumice, griddle stones, or abrasives on the surface.
2. Never strike the griddle surface with a sharp instrument or spatula edge.
3. Never use steel wool.
4. Never use commercial liquid grill cleaner on the griddle surface.
5. Abusing the surface voids the warranty.
GREASE DRAWER
A grease drawer is located at the front can be removed for cleaning by pulling drawer forward. This
drawer contains hot grease and should be checked and emptied when necessary or at least once a
day.
EXERCISE EXTREME CARE IN HANDLING THE GREASE DRAWER
CONTAINING HOT GREASE.
Never pour large amounts of water onto a hot griddle surface, the sudden
temperature change generated by the steam can cause the surface to warp
and possibly the thermal sensors in your hood re suppression system to
discharge. Instead follow the cleaning procedures in this manual.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative, or a local service company for service or required
maintenance.
CAUTION
CAUTION

6
2M-Z8514, Ultra-Max Electric Griddle
2M-4497-2 11/21/14
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-A Only)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which
the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation
company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the Ultra-Max, Hot Plates, Griddles, Charbroilers is (3) years parts & labor.
* The warranty period for the Star-Max, Charbroilers, Griddles, Hot Plates, Fryers & Finishing Oven is (2) years parts & labor.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* ThewarrantyperiodfortheChrome-MaxGriddlesisve(5)yearsonthegriddlesurface.Seedetailedwarrantyprovidedwithunit.
*The warranty period for Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Dura-Teccoatingsfromimpropercleaning,maintenance,useofmetallicutensils,orabrasivecleaners,abrasivepads,productidentiersand
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted, the labor to replace the part is NOT warranted.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Traveltimeandmileagerenderedbeyondthe50mileradiuslimit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damagesduetoimproperinstallation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resettingofcircuitbreakersorsafetycontrolsorresetbuttons
16. Replacementofbulbs
17. Replacementoffuses
18. Repairofdamagecreatedduringtransit,delivery,&
 installationORcreatedbyactsofGod
* TheModel510FD,510FFFryer.
* TheModel526TOAToasterOven.
* TheModelJ4R,4oz.PopcornMachine.
*TheModel518CMA&526CMACheeseMelter.
* TheModel12MC&15MC&18MCPHotFoodMerchandisers.
* TheModel12NCPW&15NCPWNachoChip/PopcornWarmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* AllQCS/RCSSeriesToastersexcept Model QCS3 & RCS3 Series.
* All Fast Steamer Models except Direct Connect Series.

NOTE: Wattage is 4.35 kw
per heated zone. See unit
nameplate on front panel
for correct supply voltage.
TO CONVERT TO 3 PHASE
MOVE WIRE #3 TO
THE 3RD OPEN TERMINAL
CONNECTOR Z SHOWN.
FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR
AT LEAST 90°C (194°F). USE GAUGE SHOWN OR LARGER.
2M-Z8445
TERMINAL BLOCK
SINGLE PHASE
FIELD WIRING
GROUND WIRE
TERMINAL BLOCK
3 PHASE
FIELD WIRING
GROUND WIRE
PILOT
LIGHT
HEATING ELEMENT
THERMOSTAT
3
1
4
2
NOMINAL AMPS PER LINE 3 PH.
208V-3 PHASE
X
20.9
Y Z
240V-3PHASE
X Y Z
18.120.936.2 31.3 18.1
208V 240V
8.7 KW
SINGLE PHASE
41.8 36.3
#6
AWG #8 AWG
X-Y X-Y
#12
AWG
#8
AWG
#12
AWG
#12
AWG
#8
AWG
#12
AWG
1
2,4
3
X
Y
1,3
2,4
8.7 KW 8.7 KW 8.7 KW
X
Y
Z
TO CONVERT TO 3 PHASE
MOVE WIRES #4 AND #5 TO
THE 3RD OPEN TERMINAL
CONNECTOR Z SHOWN.
NOTE:
1) FOR SUPPLY
CONNECTIONS USE COPPER
WIRE ONLY, SUITABLE FOR
AT LEAST 90°C (194°F). USE
GAUGE SHOWN OR LARGER.
2M-Z8446
TERMINAL BLOCK
SINGLE PHASE
FIELD WIRING
GROUND WIRE
TERMINAL BLOCK
3 PHASE
FIELD WIRING
GROUND CONNECTOR
GROUND WIRE
THERMOSTAT
HEATING ELEMENT
PILOT
LIGHT
3
6
5
4
2
NOMINAL AMPS PER LINE 3 PH.
208V-3 PHASE
X
36.2
Y Z
36.236.2
240V-3PHASE
X Y Z
31.4 31.4 31.4
208V 240V
13.05 KW
SINGLE PHASE SUPPLY
62.7 54.4
#8
AWG #8
AWG
#4
AWG #6 AWG
X-Y X-Y
1,3
2,6
4,5
X
Y
1,3,5
2,4,6
13.05 KW 13.05 KW 13.05 KW
1
X
Y
Z
TO CONVERT TO 3 PHASE
MOVE WIRES #2 AND #3 TO
THE 3RD OPEN TERMINAL
CONNECTOR Z SHOWN.
FOR SUPPLY CONNECTION USE
COPPER WIRE ONLY, SUITABLE
FOR AT LEAST 90°C (194°F).
USE GAUGE SHOWN OR LARGER.
2M-Z8447
TERMINAL BLOCK
1 PHASE FIELD WIRING
GROUND WIRE
TERMINAL BLOCK
3 PHASE FIELD WIRING
GROUND CONNECTOR
GROUND WIRE
PILOT LIGHT
THERMOSTAT
HEATING ELEMENT
3
1
4
2
NOMINAL AMPS PER LINE 3 PH.
208V-3 PHASE
X
55.3
Y Z
240V-3 PHASE
X Y Z
4836.255.3 48 31.4
208V 240V
17.4 KW
SINGLE PHASE
83.6 72.5
#3
AWG
#3
AWG
X-Y X-Y
5
6
8
7
2,3
4,6,8
1,5,7
AWG
#6
AWG
#6
AWG
#8
AWG
#6
AWG
#6
AWG
#8
X
Y
1,3,5,7
2,4,6,8
17.4 KW 17.4 KW 17.4 KW
X
Y
Z
MODEL 724T AND 760T (1SIDE)
MODEL 736T, 760T (1 SIDE), 772T (BOTH SIDES EACH)
MODEL 748T
7
2M-Z8514, Ultra-Max Electric Griddle

NOTE: Wattage is 4.35
kw per heated zone.
(1450 watts per-element)
See unit
nameplate for correct
supply voltage.
X
TERMINAL BLOCK
FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT LEAST 90°C (194°F).
USE #10 AWG OR LARGER. DO NOT CONNECT TO A SYSTEM OPERATING AT MORE THAN 250
VOLTS TO GROUND
230/400 VOLT Y - 8.7 KW
XYZ
2M-Z8449 REV A 2-20-07
21.8 21.8
6
5
43
21
Y
Z
15
14
15
14
21.8
NOM. AMPS
PER LINE
N
16 16 16 16 16 16
17
13 13
CONTACTOR
HEATING
ELEMENT
N
THERMOSTAT
PILOT
LIGHT
G
G
X
TERMINAL BLOCK
FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT LEAST 90°C (194°F).
USE #6 AWG OR LARGER. DO NOT CONNECT TO A SYSTEM OPERATING AT MORE THAN 250
VOLTS TO GROUND
230/400 VOLT Y - 13.05 KW
XYZ
2M-Z8552 REV A 2-20-07
32.7 32.7
9
876
5
43
21
Y
Z
15
14
15
14
15
14
32.7
NOM. AMPS
PER LINE
N
16 16 16 16 16 16 16 16 16
17 17
13 13 13
CONTACTOR
HEATING
ELEMENT
THERMOSTAT
N
PILOT LIGHT
G
G
X
Y
Z
N
G
TERMINAL BLOCK
FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT
LEAST 90°C (194°F). USE #8 AWG OR LARGER. DO NOT CONNECT TO A
SYSTEM OPERATING AT MORE THAN 250 VOLTS TO GROUND
2M-Z8450 REV B 7-15-08
16 16 16
15
14
10
12
9
876
543
21
15
14
15
14
15
14
NOM. AMPS
PER LINE
16 16 16 16 16 16 16 16 16
11
1717 17
13 13 13 13
CONTACTOR
HEATING
ELEMENT
THERMOSTAT
N
PILOT
LIGHT
G
230/400 VOLT Y - 17.4 KW
XYZ
25.2 25.2 25.2
MODEL 724T 230V 3 PHASE
MODEL 736T 230V 3 PHASE
MODEL 748T 230V 3 PHASE
8
2M-Z8514, Ultra-Max Electric Griddle

X
FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR
AT LEAST 90°C (194°F). USE #8 AWG OR LARGER. DO NOT CONNECT
TO A SYSTEM OPERATING AT MORE THAN 250 VOLTS TO GROUND
760T 230/400 VOLT Y - 21.75 KW
XYZ
31.5 31.5
16 16 16
15
14
10
12
7
5
43
21
Y
Z
15
14
15
14
15
14
31.5
NOM. AMPS
PER LINE
N
16 16 16 16 16 16 16 16 16
11
1717 17
13 13 13 13
N
G
G
16 16 16
15
14
7
17
13
16 16 16
15
14
13
A
B
C
D
LEGEND
A HEATING ELEMENT
B CONTACTOR
C PILOT LIGHT
D THERMOSTAT
E TERMINAL BLOCK E
9
8
6
9
8
2M-Z11776
MODEL 760T 230/400V Y 3 PHASE
9
2M-Z8514, Ultra-Max Electric Griddle

10
2M-Z8514, Ultra-Max Electric Griddle
NAMEPLATE
1
6
7
8
9
10
11
12
13
20
22
23
24
25
26
27
21 14
15
17
18
19
16
5
4
2
3
29
28
CERTAIN INSTANCES MAY NOT BE AVAILABLE
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR

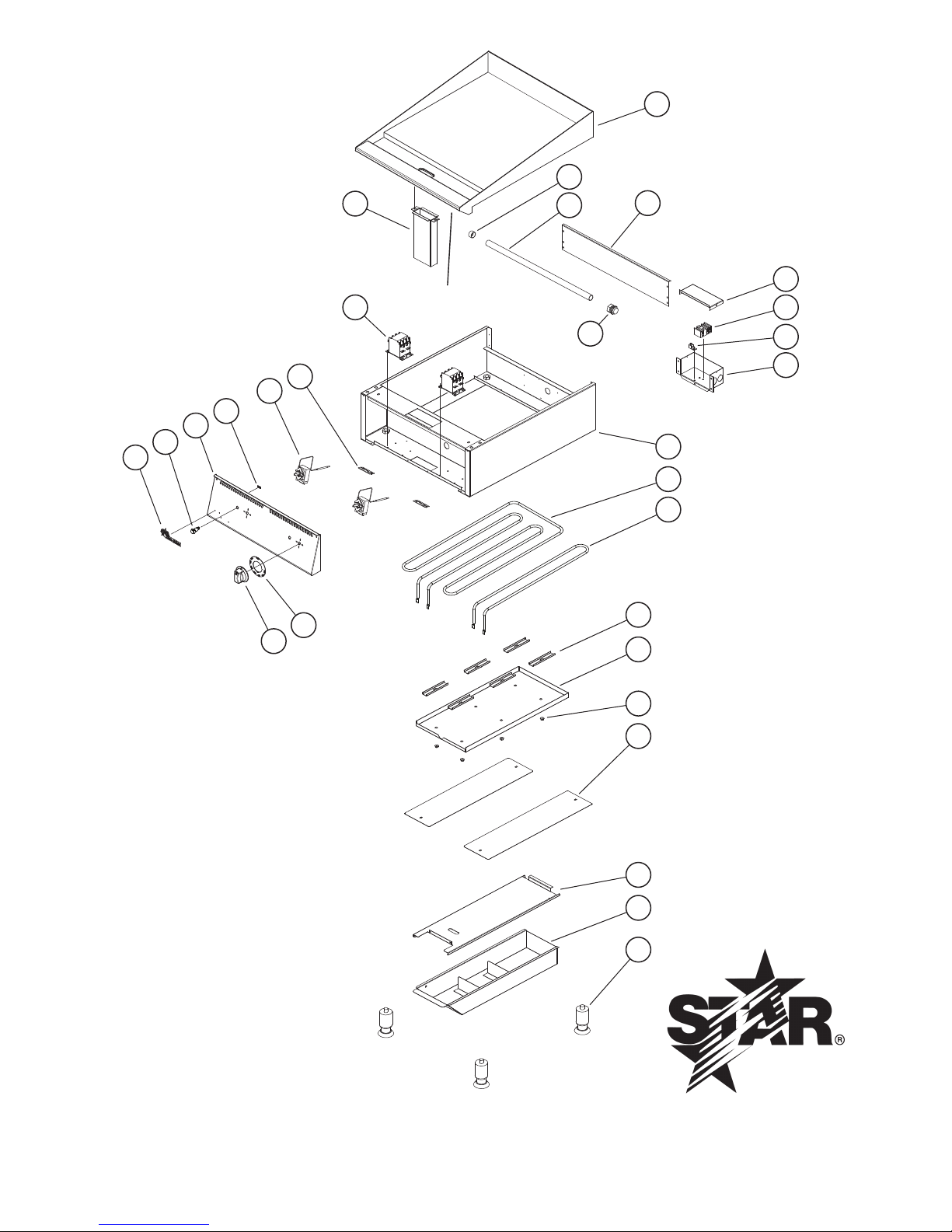

MODEL 724TA, 736TA, 748TA, 760TA, 772TA
STAR MANUFACTURING INTERNATIONAL, INC.
SK2122 REV A. 8/02/2012

11
2M-Z8514, Ultra-Max Electric Griddle
PARTS LIST November 14, 2014, Rev. A
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
Model: 724TA ULTRA-MAX ELECTRIC GRIDDLE
Fig No. Part No. Description Qty Application
1G5-824034 GRIDDLE PLATE ASSY 724 1724TA
G5-824035 GRIDDLE PLATE ASSY 724CHS 724TCHSA
2 2E-Z8356 3/4” PLASTIC END BUSHING 1
3 2E-Z8361 3/4”x 22 3/4 EMT TUBE 1
4 2E-Z8358 3/4” EMT CONNECTOR 1
5 G5-Z8491 REAR PANEL 24 1
6G5-Z10349 ELECTRICAL BOX COVER 1230V
G5-Z8481 JUNCTION BOX COVER
72E-Z8482 TERMINAL BLOCK 1208/240V
2E-Z9565 TERMINAL BLOCK 5 POS #4 230V
8 2E-Z8423 TERMINAL LUG 14-2 AL-CU 1 208/240V
9G5-824023 JUNCTION BOX ASSY 1208/240V
G5-Z10348 ELECTRICAL BOX 230V
10 G5-824021 BODY ASSY 24” 1
11 2N-Z8484 HEATING ELEMENT 4350W 208V 2208V
2N-Z8485 HEATING ELEMENT 4350W 240V 240V
12 2N-Z8487 HEATING ELEMENT 1450W 6 230V
13 G5-Z8489 HEATER ELEMENT CLAMPS 12
14 G5-Z8488 HEATER ELEMENT SHIELD 2
15 2C-6517 NUT 1/4-20 HEX STL NP 24
16 G5-Z8468 BOTTOM PANEL 24 2
17 G5-Z8515 DRAWER SLIDE 1
18 G5-824014 GREASE DRAWER ASSY 1
19 2A-Z4614 FOOT, FLANGED NON-SKID 4
2R-Z19119 FOOT, TAPERED STEEL
20 2M-Z16040 GRAPHIC, DIAL 450F CW 2
21 I4-Z15487 KNOB ASSEMBLY LG E-F KEY 2
22 2M-Z15805 LOGO, ULTRA-MAX 1
23 2J-Y6690 PILOT LIGHT 240V 2
24 G5-Z16208 FRONT PANEL - 724TA 1
25 2C-8477 CLIP .125 PO STL PHOS 4
26 2T-Z5958 THERMOSTAT 2
27 2P-Z8478 HINGE, 2.5” U-MAX 2
28 2E-302789 CONTACTOR 50A 3 PH 208 2 724TA-230V
29 G5-824012 CHUTE ASSEMBLY 1
NI 2M-Z8445 WIRING DIAGRAM LABEL 24” 1 724TA
NI 2M-Z8449 WIRING DIAGRAM LABEL 24CE 1 724TA-230V, 724TCHSA-230V

12
2M-Z8514, Ultra-Max Electric Griddle
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
PARTS LIST November 14, 2014, Rev. A
Model: 736TA ULTRA-MAX ELECTRIC GRIDDLE
Fig No. Part No. Description Qty Application
1G5-836034 GRIDDLE PLATE ASSY 736 1736TA
G5-836035 GRIDDLE PLATE ASSY 736CHS 736TCHSA
2 2E-Z8356 3/4” PLASTIC END BUSHING 1
3 2E-Z8361 3/4”x 22 3/4 EMT TUBE 1
4 2E-Z8358 3/4” EMT CONNECTOR 1
5 G5-Z8492 REAR PANEL 36 1
6G5-Z10349 ELECTRICAL BOX COVER 1230V
G5-Z8481 JUNCTION BOX COVER
72E-Z8482 TERMINAL BLOCK 1208/240V
2E-Z9565 TERMINAL BLOCK 5 POS #4 230V
8 2E-Z8423 TERMINAL LUG 14-2 AL-CU 1 208/240V
9G5-824023 JUNCTION BOX ASSY 1
G5-Z10348 ELECTRICAL BOX 230V
10 G5-836019 BODY ASSY 36” 1
11 2N-Z8484 HEATING ELEMENT 4350W 208 3208V
2N-Z8485 HEATING ELEMENT 4350W 240 240V
12 2N-Z8487 HEATING ELEMENT 1450W 230 9 230V
13 G5-Z8489 HEATER ELEMENT CLAMPS 18
14 G5-Z8488 HEATER ELEMENT SHIELD 3
15 2C-6517 NUT 1/4-20 HEX STL NP 36
16 G5-Z8468 BOTTOM PANEL 24 1
G5-Z8469 BOTTOM PANEL 36
17 G5-Z8515 DRAWER SLIDE 1
18 G5-824014 GREASE DRAWER ASSY 1
19 2A-Z4614 FOOT- 2 IN D.X 4 IN L. 4
2R-Z19119 FOOT, TAPERED STEEL
20 2M-Z16040 GRAPHIC, DIAL 450F CW 3
21 I4-Z15487 KNOB ASSEMBLY LG E-F KEYT 3
22 2M-Z15805 LOGO, ULTRA-MAX 1
23 2J-Y6690 PILOT LIGHT 240V 3
24 G5-Z16153 FRONT PANEL - 736TA 1
25 2C-8477 CLIP .125 PO STL PHOS 4
26 2T-Z5958 THERMOSTAT 3
27 2P-Z8478 HINGE, 2.5” U-MAX 2
28 2E-302789 CONTACTOR 50A 3PH 208V 3 230V
29 G5-824012 CHUTE ASSEMBLY 1
NI 2M-Z8446 WIRING DIAGRAM LABEL 36” 1
NI 2M-Z8552 WIRING DIAGRAM LABEL 36CE 1 736TA-230V, 736TCHSA-230V

13
2M-Z8514, Ultra-Max Electric Griddle
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
PARTS LIST November 14, 2014, Rev. A
Model: 748TA ULTRA-MAX ELECTRIC GRIDDLE
Fig No. Part No. Description Qty Application
1G5-848034 GRIDDLE PLATE ASSY 748 1748TA
G5-848035 GRIDDLE PLATE ASSY 748CHS 748TCHSA
2 2E-Z8356 3/4” PLASTIC END BUSHING 1
3 2E-Z8361 3/4”x 22 3/4 EMT TUBE 1
4 2E-Z8358 3/4” EMT CONNECTOR 1
5 G5-Z8493 REAR PANEL 48 1
6G5-Z8481 JUNCTION BOX COVER 1208/240V
G5-Z10349 ELECTRICAL BOX COVER 230V
72E-Z8482 TERMINAL BLOCK 1208/240V
2E-Z9565 TERMINAL BLOCK 5 POS #4 230V
8 2E-Z8423 TERMINAL LUG 14-2 AL-CU 1 208/240V
9G5-824023 JUNCTION BOX ASSY 1208/240V
G5-Z10348 ELECTRICAL BOX 230V
10 G5-848019 BODY ASSY 48” 1
11 2N-Z8484 HEATING ELEMENT 4350W 208 4208V
2N-Z8485 HEATING ELEMENT 4350W 240V 240V
12 2N-Z8487 HEATING ELEMENT 1450W 230V 12 230V
13 G5-Z8489 HEATER ELEMENT CLAMPS 24
14 G5-Z8488 HEATER ELEMENT SHIELD 4
15 2C-6517 NUT 1/4-20 HEX STL NP 48
16 G5-Z8468 BOTTOM PANEL 24 1
G5-Z8470 BOTTOM PANEL 48
17 G5-Z8515 DRAWER SLIDE 1
18 G5-824014 GREASE DRAWER ASSY 1
19 2A-Z4614 FOOT- 2 IN D.X 4 IN L. 4
2R-Z19119 FOOT, TAPERED STEEL
20 2M-Z16040 GRAPHIC, DIAL 450F CW 4
21 I4-Z15487 KNOB ASSEMBLY LG E-F KEYT 4
22 2M-Z15805 LOGO, ULTRA-MAX 1
23 2J-Y6690 PILOT LIGHT 240V 4
24 G5-Z16209 FRONT PANEL - 748TA 1
25 2C-8477 CLIP .125 PO STL PHOS 3
26 2T-Z5958 THERMOSTAT 4
27 2P-Z8478 HINGE, 2.5” U-MAX 2
28 2E-302789 CONTACTOR 50A 3 PHASE 208 4
29 G5-824012 CHUTE ASSEMBLY 1
NI 2M-Z8447 WIRING DIAGRAM LABEL 48” 1 208/240V
NI 2M-Z8450 WIRING DIAGRAM LABLE 48CE 1 230V

14
2M-Z8514, Ultra-Max Electric Griddle
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
PARTS LIST November 14, 2014, Rev. A
Model: 760TA ULTRA-MAX ELECTRIC GRIDDLE
Fig No. Part No. Description Qty Application
1G5-860034 GRIDDLE PLATE ASSY 760 1760TA
G5-860035 GRIDDLE PLATE ASSY 760CHS 760TCHSA
2 2E-Z8358 3/4” EMT CONNECTOR 2 208/240V
1 230V
3 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2 208/240V
1 230V
4 2E-Z8356 3/4” PLASTIC END BUSHING 2 208/240V
1 230V
5 G5-Z8494 REAR PANEL 60 1 760TA-208V
6G5-Z10349 ELECTRICAL BOX COVER 1 230V
G5-Z8481 JUNCTION BOX COVER 2 208/240V
72E-Z8482 TERMINAL BLOCK 2 208/240V
2E-Z9565 TERMINAL BLOCK 5 POS #4 1 230V
8 2E-Z8423 TERMINAL LUG 14-2 AL-CU 2 208/240V
9G5-824023 JUNCTION BOX ASSY 2 208/240V
G5-Z10348 ELECTRICAL BOX 1 230V
10 G5-860012 BODY ASSY 760T 230V 1230V
G5-860019 BODY ASSY 60” 208/240V
11 2N-Z8484 HEATING ELEMENT 4350W 208 5208V
2N-Z8485 HEATING ELEMENT 4350W 240 240V
12 2N-Z8487 HEATING ELEMENT 1450W 230 15 230V
13 G5-Z8489 HEATER ELEMENT CLAMPS 30
14 G5-Z8488 HEATER ELEMENT SHIELD 5
15 2C-6517 NUT 1/4-20 HEX STL NP 60
16 G5-Z8468 BOTTOM PANEL 24 2
G5-Z8471 BOTTOM PANEL 60 1
17 G5-Z8515 DRAWER SLIDE 2
18 G5-824014 GREASE DRAWER ASSY 2
19 2A-Z4614 FOOT- 2 IN D.X 4 IN L. 4
2R-Z19119 FOOT, TAPERED STEEL
20 2M-Z16040 GRAPHIC, DIAL 450F CW 5
21 I4-Z15487 KNOB ASSEMBLY LG E-F KEYT 5
22 2M-Z15805 LOGO, ULTRA-MAX 1
23 2J-Y6690 PILOT LIGHT 240V 5
24 G5-Z16210 FRONT PANEL - 760TA 1
25 2C-8477 CLIP .125 PO STL PHOS 4
26 2T-Z5958 THERMOSTAT 5
27 2P-Z8478 HINGE, 2.5” U-MAX 2
28 2E-302789 CONTACTOR 50A 3 PH 208 5
29 G5-824012 CHUTE ASSEMBLY 2
NI 2M-Z11776 LABEL-WIRE DIAGRAM 1 230V
NI 2M-Z8445 WIRING DIAGRAM LABEL 24” 1 208/240V

15
2M-Z8514, Ultra-Max Electric Griddle
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
PARTS LIST November 14, 2014, Rev. A
Model: 772TA ULTRA-MAX ELECTRIC GRIDDLE
Fig No. Part No. Description Qty Application
1G5-872034 GRIDDLE PLATE ASSY 772 1772T
G5-872035 GRIDDLE PLATE ASSY 772CHS 772TCHSA
2 2E-Z8356 3/4” PLASTIC END BUSHING 2
3 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2
4 2E-Z8358 3/4” EMT CONNECTOR 2
5 G5-Z8495 REAR PANEL 72 1
6 G5-Z8481 JUNCTION BOX COVER 2
7 2E-Z8482 TERMINAL BLOCK 2
8 2E-Z8423 TERMINAL LUG 14-2 AL-CU 2
9 G5-824023 JUNCTION BOX ASSY 2
10 G5-872019 BODY ASSY 72” 1
11 2N-Z8484 HEATING ELEMENT 4350W 208 6208V
2N-Z8485 HEATING ELEMENT 4350W 240 240V
13 G5-Z8489 HEATER ELEMENT CLAMPS 36
14 G5-Z8488 HEATER ELEMENT SHIELD 6
15 2C-6517 NUT 1/4-20 HEX STL NP 60
16 G5-Z8468 BOTTOM PANEL 24 2
16 G5-Z8472 BOTTOM PANEL 72 1
17 G5-Z8515 DRAWER SLIDE 2
18 G5-824014 GREASE DRAWER ASSY 2
19 2A-Z4614 FOOT- 2 IN D.X 4 IN L. 4
2R-Z19119 FOOT, TAPERED STEEL
20 2M-Z16040 GRAPHIC, DIAL 450F CW 6
21 I4-Z15487 KNOB ASSEMBLY LG E-F KEYT 6
22 2M-Z15805 LOGO, ULTRA-MAX 1
23 2J-Y6690 PILOT LIGHT 240V 6
24 G5-Z16211 FRONT PANEL - 772TA 1
25 2C-8477 CLIP .125 PO STL PHOS 4
26 2T-Z5958 THERMOSTAT 6
27 2P-Z8478 HINGE, 2.5” U-MAX 2
29 G5-824012 CHUTE ASSEMBLY 2
NI 2M-Z8446 WIRING DIAGRAM LABEL 36” 2

STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
[phone]
www.star-mfg.com
