Ultra PRO-ONE A60 User manual

VANDALPROOF IR DOME CAMERA 650TVL
Packing List
No Name Model Number
1.
Vandalproof IR Dome Colour Camera A60 1
2.
User Guide A60 1
Distributor -
PLEASE NOTE - Before connecting the
camera up to a power source, please
read the instruction Manual provided.
A60
Specification
Model A60
Pick up Element 1/3" SONY Super HAD CCDII
Effective Picture Elements
(H×V) NTSC:768(H)×494(V) PAL:752(H)x582(V)
Horizontal Resolution 650 TV Line
0.001 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
S/N Ratio More than 52dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL:
1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance 20 Meters (with ￠5X24 PCS Infrared LED)
Video Output 1Vpp, 75Ω
Auto Gain Control Auto
Power/Current DC12V(+/-10%)/350mA
Lens Board Lens 3.6mm /F2.0
Dimension (mm) ￠94 x 69(H)
Weight (g) 400
Storage Temperature -30~+60℃RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX
IP Rating IP66
USER MANUAL
The unit comes with a unique warranty reference sticker that will be
void if the camera is disturbed. Please NOTE that in order to retain the
cameras warranty you must not dismantle the camera.
IMPORTANT We advice that in order to protect the camera
from water, dust and ingress you use the screws and SEALS provided
that have been carefully selected to protect the unit.

Image Sensor (CCD)
Adopt SONY 1/3"CCD Sensor.
Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The camera
will display a high resolution image in Low Lux light
conditions
Scanning Mode
NTSC or PAL mode.

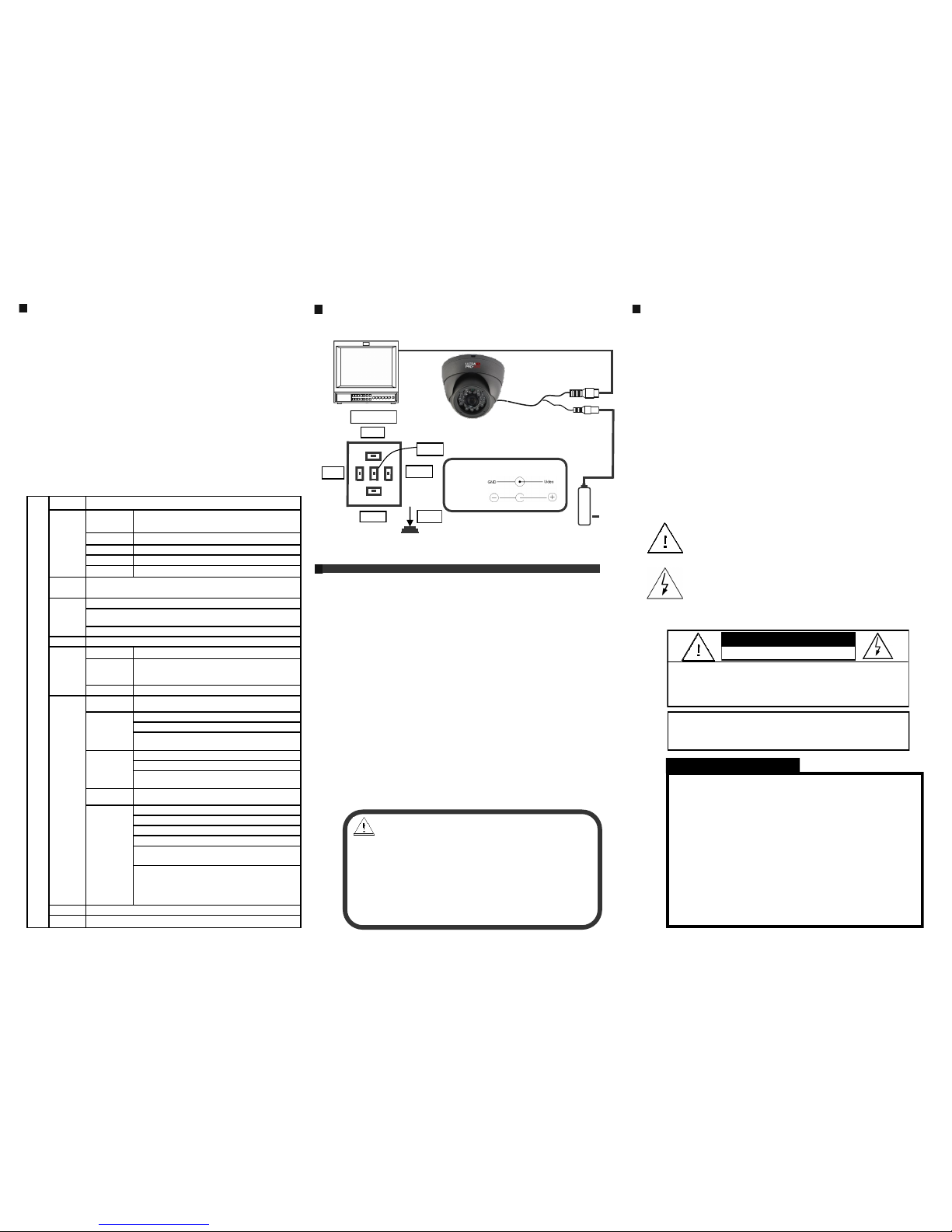

* OSD SETTING
DC12V Power Supply
Monitor
A60B
TROUBLE SHOOTING
Link wire rule：
Power
Video
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors to see if this is
connected in the correct manor.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipment's used.
3. The pictures background colour changes continuously
. The fluorescent lamp’s electromagnetic field causes colour roll.
This is perfectly normal in changing light conditions
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use the power supply external sync. The camera can solve it
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
insulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to consti-
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER TO SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
Note
:
Notes：
●Please apply care when installing the power supply. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
Properties Connecting Introduction
Congratulations on purchasing your new A60 Vandal
Dome camera Designed and Manufactured by ULTRA PRO-
ONE. The unit adopts the latest SONY technical image sensor
and drivers. The most attractive characteristics are small and
easy hidden and suits covert Surveillance In addition, it owns
the characters of high definition and stability, strong anti-
jamming, rich and real colour. Please carefully read the in-
struction manual before install the unit. We recommend that a
professional installer is present during the installation.
ULTRA PRO-ONE ISSUE 06.13
● DO NOT INSTALL the camera in extreme temperature conditions. (We
recommend the operating temperature is -10~+50°.)
● Do not install the camera under unstable lighting conditions. Severe
lighting change or flicker can cause the camera to work incorrectly.
● Do not submerge the camera in water, or expose to abrasive liquids as
this may cause long term damage to the unit.
The unit comes with a unique warranty reference sticker that will be void
if the camera is disturbed. Please NOTE that in order to retain the cameras
warranty you must not dismantle the camera. We also advise that in order
to protect the camera from water, dust and ingress you use the screws
and SEALS provided that have been carefully selected to protect the unit.
MOST IMPORTANT:
OSD
SET
LENS MANUAL/DC/VIDEO
EXPO-
SURE
SHUTTER AUTO,FLK,1/50,1/250,1/500,1/2000,1/40000,
1/5000,1/10000,1/100000
BRIGHTNESS 0－255
AGC LOW/MIDDLE/HIGH/OFF
D-WDR OFF/ON(LEVEL:0-63)
RETURN
WHITE
BAL
ATW1/ATW2/AWC-SET/MANUAL:(INDOOR、OUTDOOR、
MANUAL)
BACK
LIGHT
OFF
BLC:AREA SEL/AREA STATE/GAIN/HEIGHT/LEFT/RIGHT/TOP/
BOTTOM
HLC:LEVEL(0-255)/ MODE(ALL DAY/NIGHT ONLY)
DPC COVER THE LENS THEN PRESS ENTER KRY
DAY &
NIGHT
COLOR
B/W
BURST(OFF/ON)/IR SMART(OFF/ON:IR GAIN/
HEIGHT/WIDTH/LEFT/RIGHT/TOP/ BOTTOM)/IR
LEVEL(HIGH/LOW)
AUTO D-N(LEVEL/DELAY) /N-D(LEVEL/DELAY)
SPECIAL
CAM TITLE ON/OFF
MOTION
OFF/ON
AREA SEL:AREA1-4
AREA STATE:OFF/ON
HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /
DEGREE/VIEW
PRIVACY
OFF/ON
AREA SEL:AREA1-8
AREA STATE:OFF/ON
HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /
COLOR
PARK.LINE OFF/ON(LT/LB/RT/RB/F/N/T)
IMAGE ADJ
LENS SHAD:OFF/ON
2DNR:OFF/ON
MIRROR:OFF/ON
FONT COLOR:FONT(0-15)/ID&TITLE(0-15)
CONTRAST:0-255 SHARPNESS:0-31
NEG.IMAGE:OFF/ON
DISPLAY:CRT(PED LEVEL:0-63/COLOR GAIN:0-
255)/LCD(GAMMA:0-1/PED LEVEL:0-63/COLOR:0-
255)/USER(GAMMA:0-1/PED LEVEL:0-63/
COLOR:0-255)
RESET FACTORY RESET
EXIT
This unit can be used both internally and externally.
