UMC X32/60G-GB-3B-TCDUP-UK User manual

X32/60G-GB-3B-TCDUP-UK
HD Ready LCD TV with Freeview, DVD & USB PVR
Model No
User Guide

4

5
5

6

7
7
CONTENTS
Manufacturers Guarantee Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching/Detaching the stand and wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Important installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Getting Started - Initial Set Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TV Buttons and Input Source Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

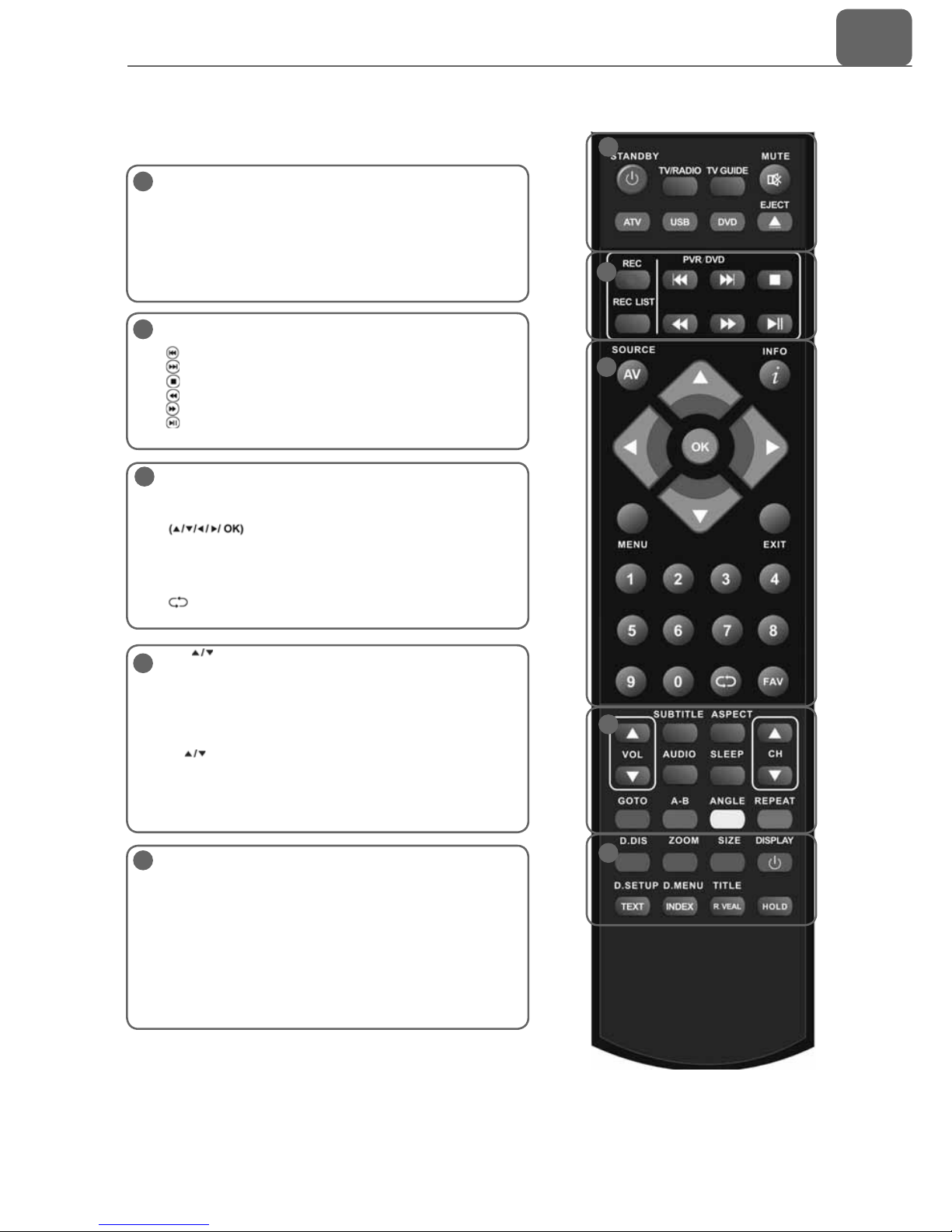

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

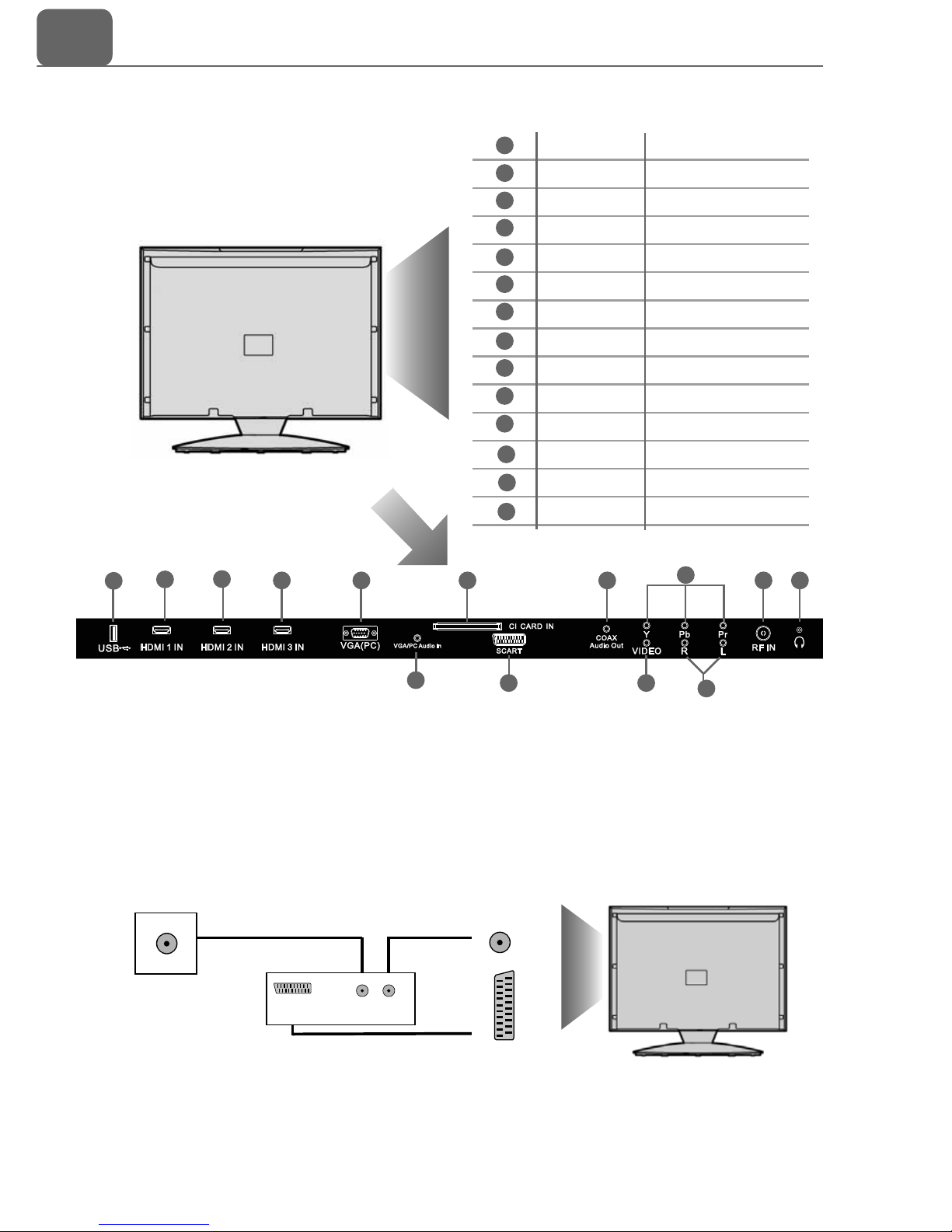

Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-21

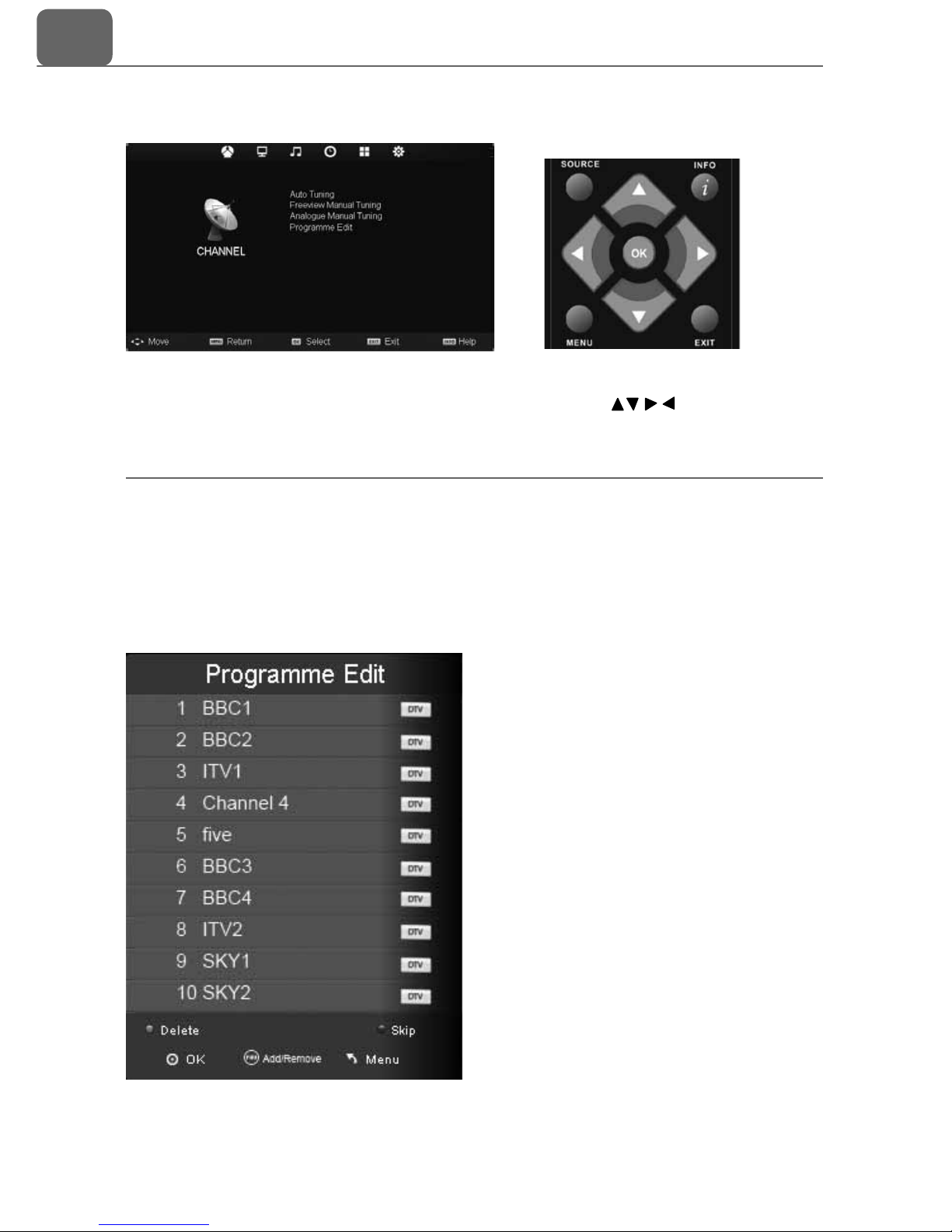

Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

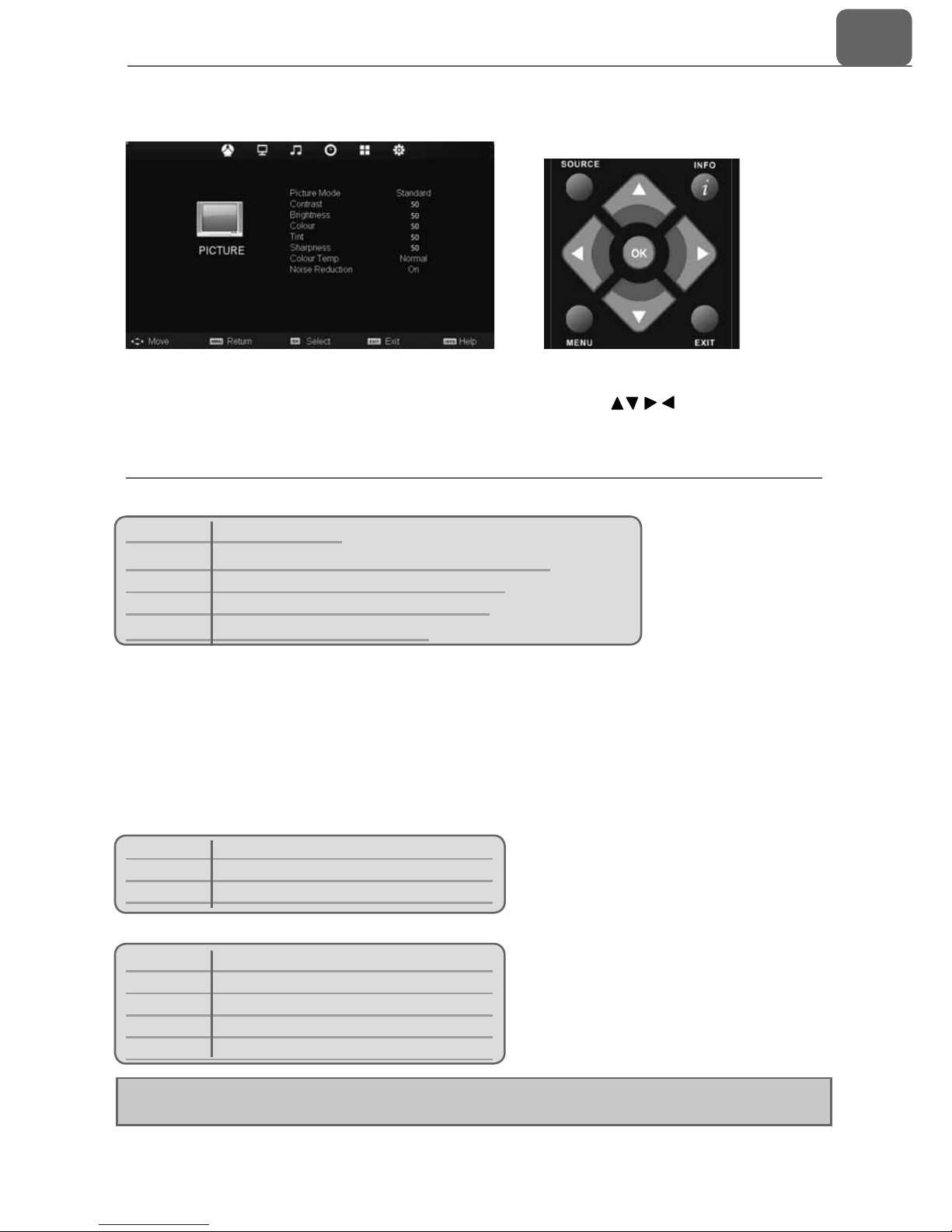

Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

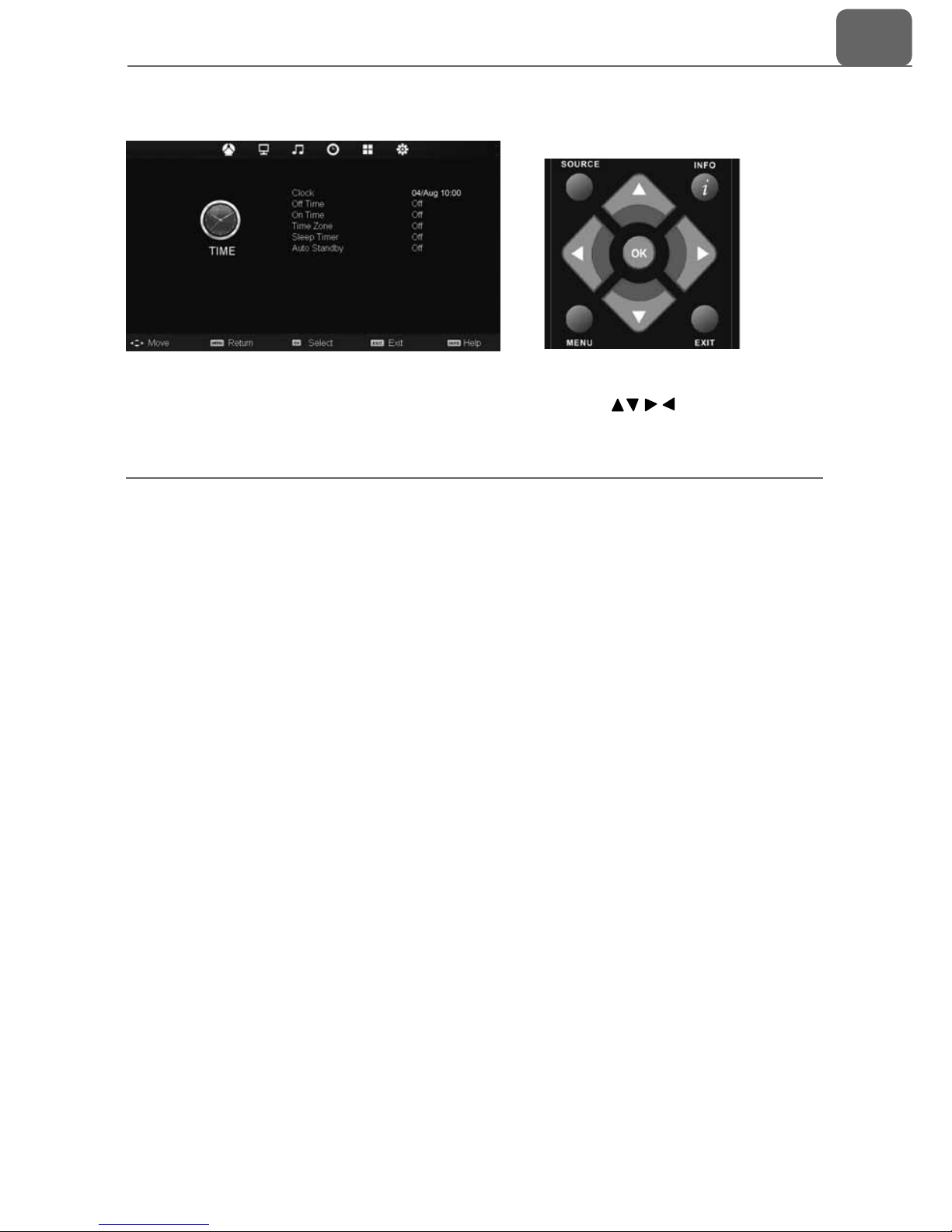

Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Feature Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DVD Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
PC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
7 Day TV Guide / USB Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB Record / Digital Freeview mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-33
Operating the TV with a universal or Sky (BSKYB) remote control . . . . . . 29
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Digital Switchover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8
Please save your packaging as you will need this in the event of warranty/service repair or support. We
are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.
WHAT IS INCLUDED IN THE BOX
Accessories
Included with this TV are the following accessories:
1 x User Guide
1 x Quick Start Guide
2 x AAA Batteries
1 x TV
1 x RF Cable
1 x Remote Control
What is included in the box
User Guide
Quick Start
Guide
1 x Blanking plate for use when
wall mounting
1 x Stand plus screws
(4 x screws for stand base plate
1 x screw for stability)

9
9
ATTACHING THE STAND
Attaching/Detaching the stand and wall mounting
2) Use the assembly screws to fasten the stand base securely.
Make sure that the screws are securely tightened.
Detaching the Stand
1) Remove the screws highlighted
2) Although there are no live parts exposed when removing
the stand, (in the event of wall mounting the TV) for aesthetic
purposes, included in the accessory pack is a cover plate which can
be clipped into the underside of the TV.
IMPORTANT - Before drilling any holes in the wall
ensure you are not drilling where there could be
any electric wires, water or gas pipes.
Wall mounting the TV
This television requires a VESA 400 x 200 wall mount, or equivalent.
1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes
are indicated in the picture below.
Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.
Using other screws which are longer could cause irreparable damage to internal parts.
Max length is 12mm
For optimum viewing, if wall mounting the TV higher than eye level, the TV should be
tilted downwards so that the TV’s screen is ‘face on’. See fig 1 and 2
DETACHING THE STAND
1) Insert the stand (PART A) into the stand neck (PART B)
fig 2
TV
Viewing angle
CORRECT
fig 1
Viewing angle
INCORRECT

10
Important installation instructions
TV base
Desk/TV stand
WARNING
To prevent injury, this apparatus must be securely attached to the floor, wall or
TV cabinet in accordance with these installation instructions
IMPORTANT INSTALLATION INSTRUCTIONS
Securing the TV to a Desk/TV Stand
Image shown may differ from your TV. The TV
must be attached to desk so it cannot be pulled in
injury or damaging the product. Use only the screw
supplied.
Using the screw provided, screw through the hole
in the TV base to secure the TV to the desk/stand.
Securing the TV to a Wall
• Position the TV close to the wall to avoid the
possibility of it falling when pushed.
• The instructions shown below are a safer way to
set up the TV, by fixing it tothe wall, avoiding the
possibility of it falling forwards if pulled. This will
prevent the TV from falling forward and causing
injury. This will also prevent the TV from damage.
• This method is used if the TV is placed on a glass
surface or you do not wish to screw anything
into your furniture.
• Ensure that children do not climb or hang onto
the TV.
For this type of installation you will need a
fastening chord
(available free of charge from the helpline)
A) Using one/both of the top wall-mounting holes
and screws (the screws are already supplied in the
wall mounting holes) fasten one end of the
fastening chord/s to the TV.
B)Secure the other end of the fastening chord/s to
your wall. (you will need screws/fixings suitable for
your wall type - available separately from most
DIY stores)
•

11
11
GETTING STARTED  INITIAL SET UP
Getting Started - Initial Set Up
1) Using the RF cable supplied, connect the TV
to the TV Aerial wall socket (Fig A)
2) Connect the power cable to the Electrical
outlet (Fig B)
5) You will now be welcomed with the initial
set-up screen.
If it does not appear, on the remote control,
please press [MENU] then 8-8-8-8 and the
menu will appear.
Press OK on the remote control and tuning
will start.
6) After tuning the following screen will
appear.
If you are missing channels, the reason for this is likely to be signal strength, you should
consider connecting signal booster and re-tuning the TV.
Fig A
Fig B
4) Insert the batteries supplied into the
Remote control and press the Standby
button to power on the TV
3) Switch on the television using the
power on/off switch.
Power on/off
As part of our ongoing development to reduce power consumption, we have added an extra function to this Television
called ‘Ecohome’ (you will see this during the first time installation set up). Power consumption using the Ecohome
function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome
function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please
note, ‘Professional’ mode is for optimum default picture settings, however, power consumption is approximately 15%
higher than ‘Ecohome’ mode)
Please refer to the user guide section ‘Picture settings’ in order to change the mode to one that maybe more suitable for
your environment. There is also a shortcut button on the remote control called ‘P-Mode’ should you wish to change to
another mode.

12
TV BUTTONS & SOURCE MENU
Choosing Mode Input/Source
To switch between the different input/
connections.
A) Using the buttons on the remote control:
1) Press [SOURCE/ AV] - The source menu will
appear
2) Press [\/] or [/\] to select the input you
require.
3) Press [OK]
B) Using the buttons on the Television:
1) Press [SOURCE]
2) Scroll up / down using CH+/ CH- buttons to
the input/source you require
3) Press Vol+ to change input/source to the
one selected.
TV Buttons and Source Menu
Eject
Pause/Play
Displays the input source menu
Displays Menu/OSD
Volume up and menu right
Volume down and menu left
Programme/Channel up and menu up
Programme/Channel down and menu down
Standby Power On/Off
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
