Unibor ELP50 User manual

Magnetic drilling machine
Model Number
ELP50/1
This machine (Serial Number ...........................) is CSA approved.
Unibor
77 Eisenhower Lane S
Lombard
IL 60148
Tel: [phone] Fax: [phone]
Email: [email protected] Website: www.uniborusa.com

ELP50 Low Profile Manual Original instructions 2019
2
CONTENTS OF THE MANUAL
Page
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
Intended use
General safety rules
Information plate symbols
Specification
Operational safety procedures
Operating instructions
Extension cable selection
Mounting of cutters
Remedies for hole making problems
Wiring diagram

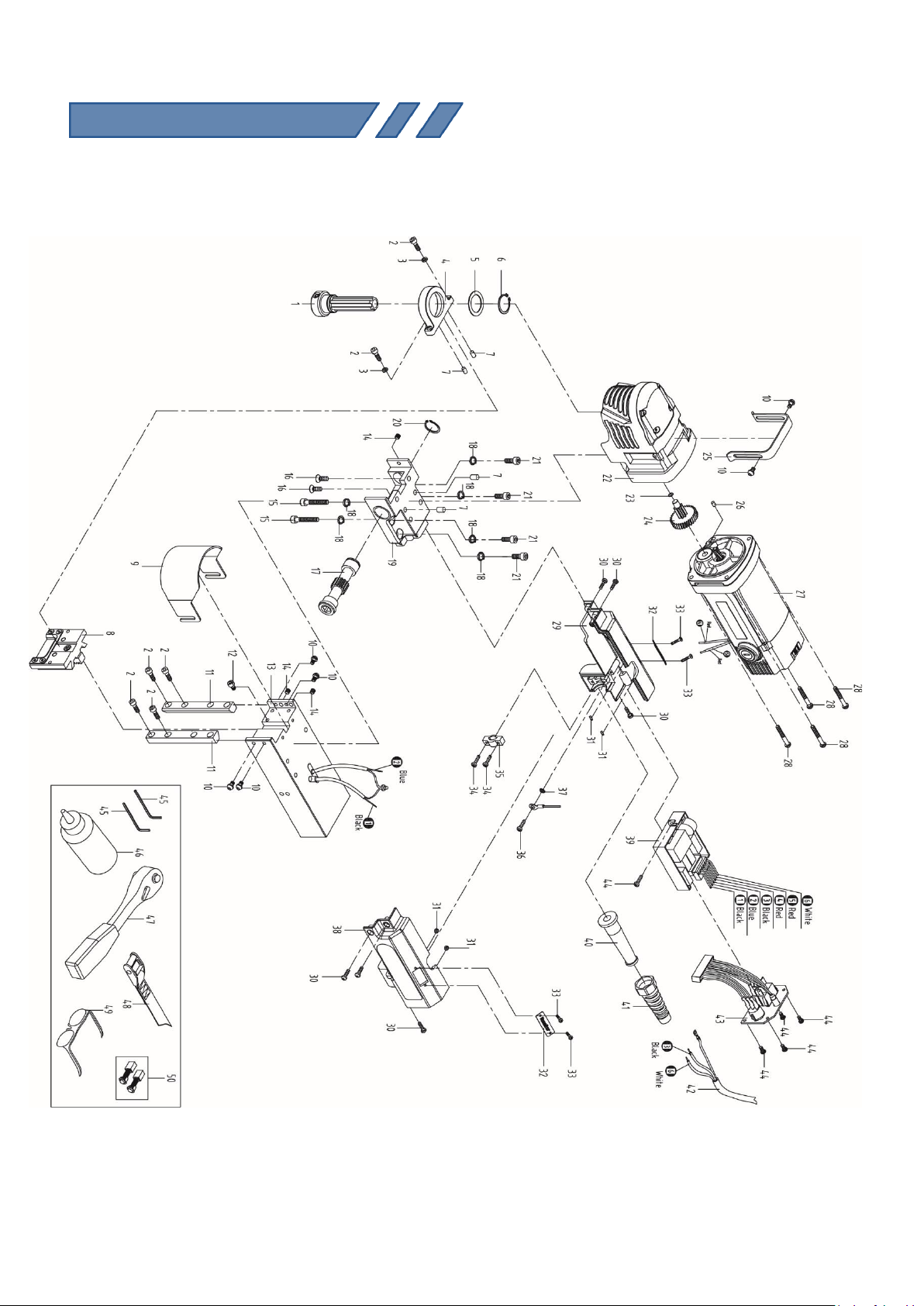

Exploded view

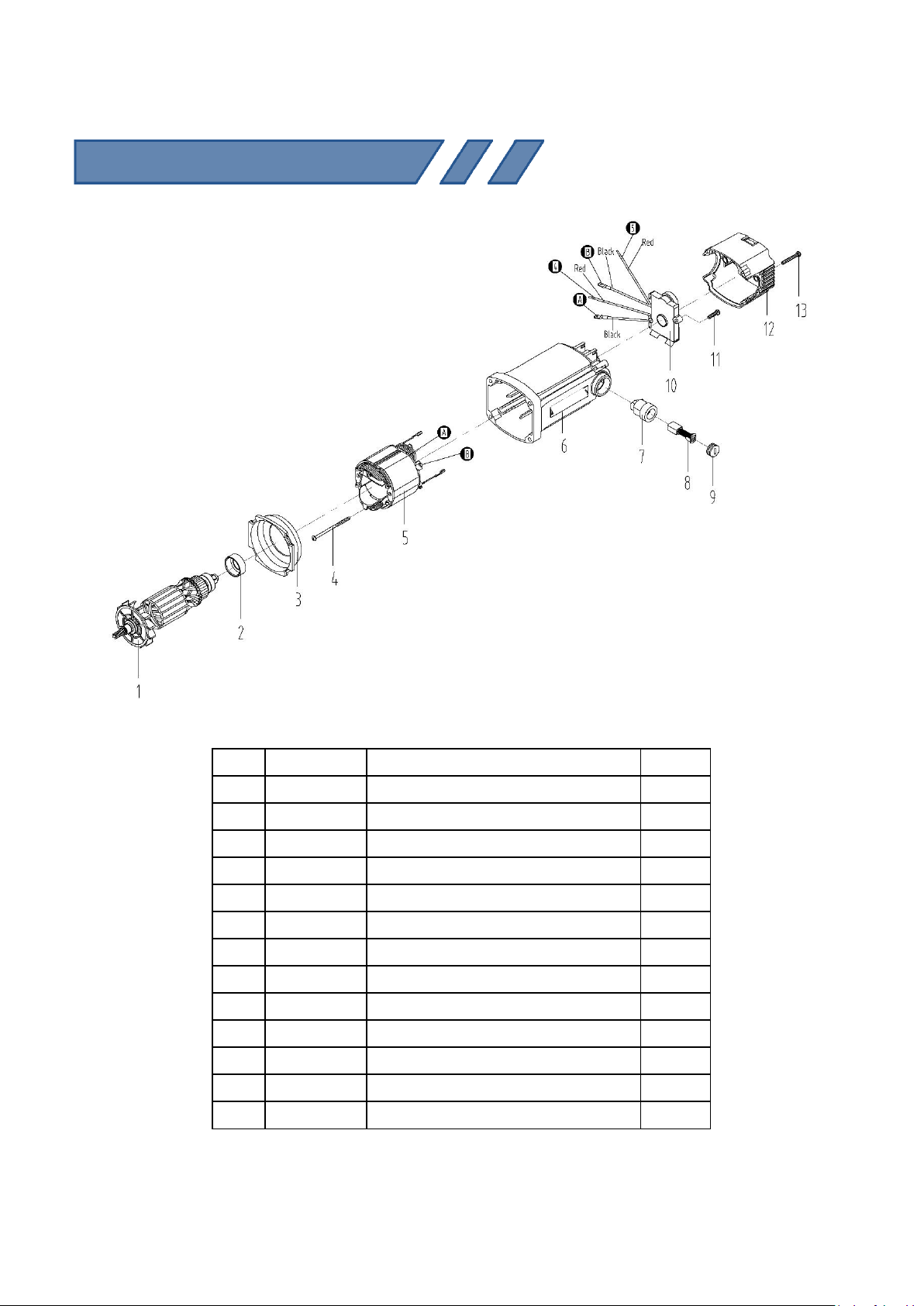

Motor Breakdown

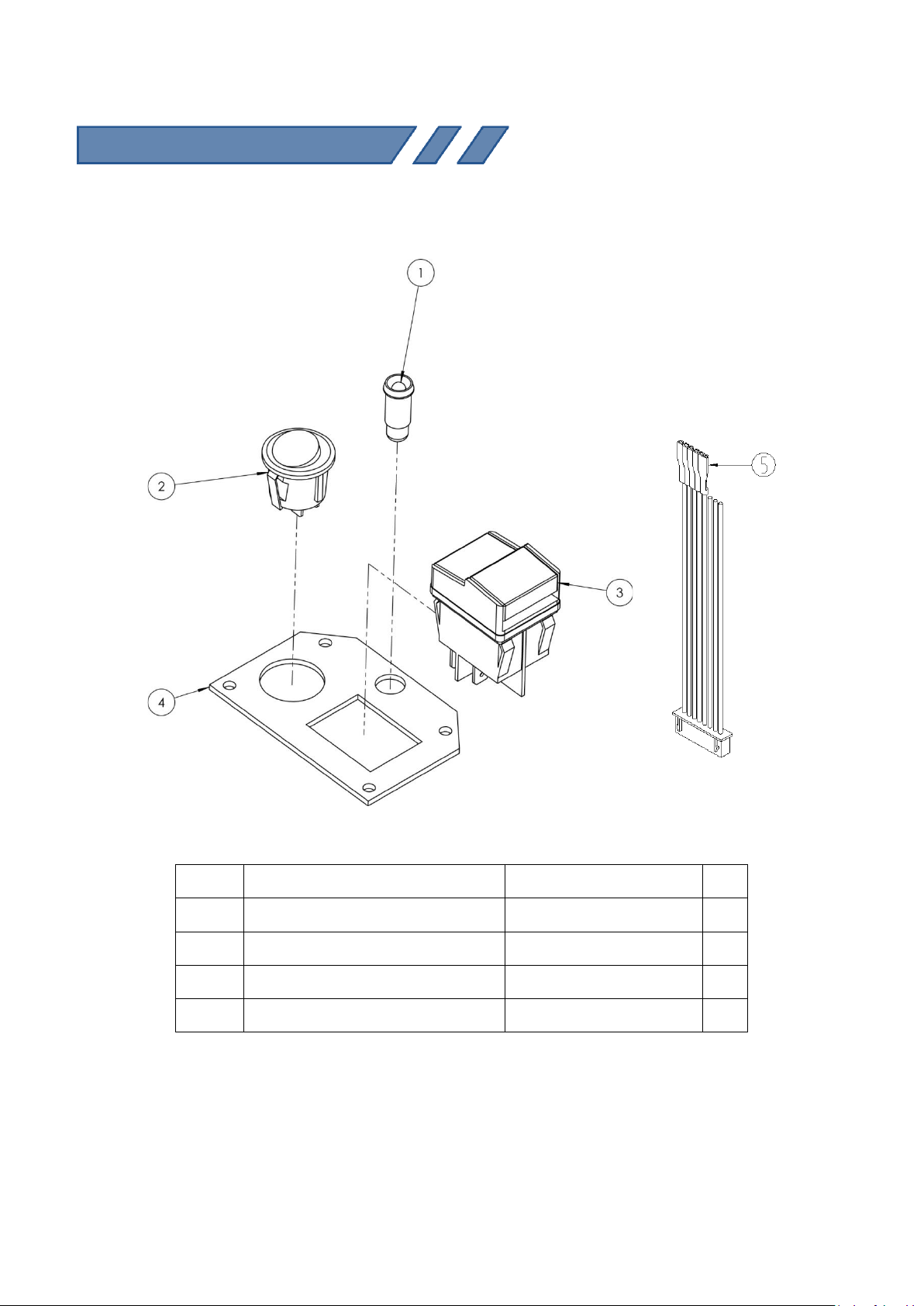

Control panel and parts List
Pipe adapter kit RD2311
Maintenance
Trouble shooting
Cutter selection, speeds and feeds
Additional warnings
3
3
4
5
6
6
7
7
8
9
10
13
14
15
16
17
18
19
Part
Description
Quantity
RDF4030
4mm Hexagonal Wrench
2
RDF4031
Coolant Bottle
1
RDF4032
Ratchet Handle
1
RD4329B
Safety Strap
1
RDF4033
Safety Goggles
1
RDF3005
Carbon Brush Set
1
1)
2) SE

ELP50 Low Profile Manual Original instructions 2019
3
1) INTENDED USE
The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place
whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other
applications when drilling ferrous metal.
Any deviation from its intended use will not be covered by warranty.
2) GENERAL SAFETY RULES
WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS.
Work area
1.Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2.Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
3.Keep bystanders, children and visitors away while operating a power tool. Distractions can cause you to lose control
Electrical safety
1.Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and
ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adaptor plugs. Check
with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If the tools should
electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the
user.
2.Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is grounded.
3.Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from
heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
5. When operating a power tool outside, use an outdoor extension cord marked” W-A” or” W”. These cords are rated
for outdoor use and reduce the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while
tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools
may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or
plugging in tools that have the switch on invites accidents.
4. Remove adjusting keys or switches before turning the tool on. A wrench or a key that is left attached to a rotating
part of the tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of
the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hardhat, or hearing
protection must be used for appropriate conditions.
Tool use and care
1.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by

ELP50 Low Profile Manual Original instructions 2019
4
hand or against your body is unstable and may lead to loss of control.
2.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the
rate for which it is designed.
3.Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous
and must be repaired.
4.Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the
tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
5.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained
users.
6.Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are
less likely to bind and are easier to control.
7.Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the
tools operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained
tools.
8.Use only accessories that are recommended by the manufacturer or your model. Accessories that may be suitable
for one tool, may become hazardous when used on another tool.
Service
1.Tool service must be performed only by qualified repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
2.When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this
manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or
injury.
WARNING!
Always use safety chain. Mounting can release.
3) INFORMATION PLATE SYMBOLS
2 3 4
1 2 3 4
1. Refer to the user manual for operational and safety issues with regard to this machine.
2. Dispose of the machine and electrical components correctly.
3. Eye protection must be worn when operating the machine.
4. Ear defenders must be worn when operating the machine.

ELP50 Low Profile Manual Original instructions 2019
5
4)SPECIFICATION
Maximum hole cutting capacity in .2/.3C steel = 2” dia. x 2” deep
Arbor bore = 3/4" dia.
Motor Unit
Voltages
120V 50-60Hz
Normal full load
10 A
Electro Magnet
0.53A
Size
7 -9/16” long
3-1/4”wide
Holding Force at 20°C with 1”
minimum plate thickness
The use on any material less than 1” thick will progressively
reduce the magnetic performance. If possible, substitute
material should be positioned under the magnet and work
piece to equate to a suitable material thickness. If this is not
possible, an alternative secure method of restraining the
machine MUST be used.
2250 lbs
Overall Dimensions
Height - minimum
7”
Width (including Capstan fitting)
3 –15/16”
Length Overall (including Guard)
13”
Nett Weight
24 lbs
Part No.
ELP50/1
Vibration total values (triax vector sum) in accordance with
EN62841-1:
Vibration emission value
a W= 5,782 m/s2
Uncertainty(K):1.5m/s²
Level of sound pressure in accordance with EN62841-1:
LpA: 85 dB(A)
LwA: 98 dB(A)
uncertainty(K)：3dB(A)
Ear and eye defenders must be worn when operating this machine. Wear gloves to protect hands when operating the
machine.
These tools are UK designed and manufactured with globally sourced components and conform to the requirements of
EEC Document HD.400.1 and BS.2769/84
Suitable only for a single phase 50-60Hz A.C. power supply
DO NOT USE ON D.C. SUPPLY
Do not use your magnetic drill on the same structure when arc welding is in progress.
D.C. current will earth back through the magnet and cause irreparable damage.
WARNING: THIS APPLIANCE MUST BE EARTHED!
NB: ANY MODIFICATIONS TO THIS MACHINE WILL INVALIDATE THE GUARANTEE

ELP50 Low Profile Manual Original instructions 2019
6
5) OPERATIONAL SAFETY PROCEDURES
READ BEFORE USING THE MACHINE
▪When using electrical tools, basic safety precautions should always be followed to reduce the risk of electric shock, fire, and personal
injury.
▪Ensure the magnet is OFF before plugging in the machine.
▪Do NOT use in wet or damp conditions. Failure to do so may result in personal injury.
▪Do NOT use in the presence of flammable liquids, gases or in high risk environments. Failure to do so may result in personal injury.
▪BEFORE activating the machine, inspect all electrical supply cables (including extension leads), and replace if damaged. DO NOT use if
there are any signs of damage.
▪Only use extension cables approved for site conditions.
▪BEFORE activating the machine, ALWAYS check the correct function of all operational systems, switches, magnet etc.
▪BEFORE operating, the machine MUST be securely restrained to a fixed independent feature (by using safety strap RD4329B, or other
means) to reduce the potential free movement, should the magnet become detached from the work piece. Failure to do so may result in
personal injury.
▪ALWAYS wear approved eye protectors, ear defenders and recommended PPE at ALL times when operating the machine.
▪Disconnect from power source when changing cutters or working on the machine.
▪Cutters and swarf are sharp, ALWAYS ensure that hands are adequately protected when changing cutters or removing swarf. Use a tool or
brush where necessary to remove any swarf or the cutter from the arbor.
▪Before operating the machine, ALWAYS ensure cutter-retaining screws are secured tightly.
▪Regularly clear the work area and machine of swarf and dirt, paying particular attention to the underside of the magnet base.
▪ALWAYS remove tie, rings, watches and any loose adornments that might entangle with the rotating machinery before operating.
▪ALWAYS ensure that long hair is securely enclosed by an approved restraint before operating the machine.
▪Should the cutter become stuck in the work piece, stop the motor immediately to prevent personal injury. Disconnect from power source
and turn arbor to and from. DO NOT ATTEMPT TO FREE THE CUTTER BY SWITCHING THE MOTOR ON AND OFF. Wear safety gloves to
remove the cutter from the arbor.
▪If the machine is accidentally dropped, ALWAYS thoroughly examine the machine for signs of damage and check that it functions correctly
BEFORE resuming drilling.
▪Regularly inspect the machine and check for any damaged or loose parts.
▪ALWAYS ensure when using the machine in an inverted position that only the minimum amount of coolant is used, and that care is taken
to ensure that coolant does not enter the motor unit.
▪Cutting tools may shatter, ALWAYS position the guard over the cutter before activating the machine. Failure to do so may result in
personal injury.
▪On completion of the cut, a slug will be ejected. DO NOT operate the machine as the ejected slug may cause injury.
▪When not in use ALWAYS store the machine in a safe and secure location.
▪ALWAYS ensure that approved UNIBOR™ agents conduct repairs.
6) OPERATING INSTRUCTIONS
▪Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter.
▪Ensure that the coolant bottle contains sufficient cutting oil to complete the required operating duration. Refill as required.
▪Occasionally depress the pilot to ensure cutting fluid is being correctly metered.
▪To start the machine, follow the control panel operation instructions.
▪ALWAYS switch off the motor by depressing the MOTOR stop button. DO NOT switch off the motor by depressing the MAGNET switch.
▪Apply light pressure when commencing the cut of a hole until the cutter is introduced into the work surface. Pressure can then be
increased sufficiently to load the motor. Excessive pressure is undesirable, it does not increase the speed of penetration and will cause the
safety overload protection device to stop the motor, (the motor can be restarted by operating the motor start button), and may cause
excessive heat which may result in inconsistent slug ejection
▪Always ensure that the slug has been ejected from the previous hole before commencing to cut the next.
▪If the slug sticks in the cutter, move the machine to a flat surface, switch on the magnet and gently bring the cutter down to make contact
with the surface. This will usually straighten a cocked slug and allow it to eject normally.
▪Apply a small amount of light oil lubricant regularly to the slide and arbor support bearing.
▪Cutter breakage is usually caused by insecure anchorage, a loosely fitting slide or a worn bearing in the arbor support. (Refer to routine
maintenance instructions).
▪Only use approved cutting fluid.

ELP50 Low Profile Manual Original instructions 2019
7
7) EXTENSION CABLE SELECTION
The machines are factory fitted with a 6ft length of cable having three conductors 5/64”²
LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be
taken in using a cable of adequate capacity. Failure to do so will result in a loss of traction by the magnet and a
reduction of power from the motor.
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or an approved agent in
order to avoid a safety hazard.
Assuming a normal AC supply of the correct voltage, it is recommended that the following extension lengths shall not
be exceeded:
For 120v supply: 11.5ft of 3 core x 5/64”²(14AWG)
ALWAYS DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE CHANGING CUTTERS.
8) MOUNTING OF CUTTERS
▪The machine has been made to accept cutters having 3/4”dia. Weldon shanks.
The following procedure is to be used when mounting cutters:
▪Lay the machine on its side with feed handles uppermost, ensuring arbor is wound down to its lowest point to
enable access to socket screws.
▪Take appropriate pilot and place through the hole in cutter shank. Insert shank of cutter into bore of arbor,
ensuring alignment of two drive flats with socket screws.
▪Tighten both screws using hexagon key.
STAN OPERATION

ELP50 Low Profile Manual Original instructions 2019
8
9) REMEDIES FOR HOLE MAKING PROBLEMS
Problem
Cause
Remedy
1) Magnetic base
won’t hold
effectively
Material being cut may be too thin for efficient
holding.
Swarf or dirt under magnet.
Irregularity on magnet contact or work-piece.
Insufficient current going to magnet during drilling
cycles.
Attach an additional piece of metal under the
magnet, or mechanically clamp magnetic base to
work-piece.
Clean magnet.
Use extreme care; file any imperfections flush to
surface.
Confirm power supply and output from control unit,
check supply cable.
2) Cutter skips
out of centre-
punch mark at
initiation of cut
Magnetic base is not holding effectively.
Worn arbor bushing and/or ejector collar.
Too much feed pressure at start of cut.
Cutter is dull, worn, chipped or incorrectly
sharpened.
Poor centre-punch mark; weak pilot spring; pilot not
centred in centre-punch mark.
Worn or bent pilot, worn pilot hole.
See causes and remedies above.
New arbor bushing is needed.
Light pressure only is needed until a groove is cut.
The groove then serves as a stabilizer.
Replace or re-sharpen. Sharpening service is
available.
Improve centre-punch and/or replace worn parts
Replace part or parts
3) Excessive
drilling pressure
required
Incorrectly re-sharpened, worn or chipped cutter.
Coming down on swarf lying on surface of work-
piece.
Swarf accumulated (packed) inside cutter.
Re-sharpen or replace.
Take care not to start a cut on swarf.
Clear cutter.
4) Excessive
cutter breakage
Steel swarf or dirt under cutter.
Incorrectly re-sharpened or worn cutter.
Cutter skipping.
Cutter not attached tightly to arbor.
Insufficient use of cutting oil or unsuitable type of
oil.
Incorrect speed
Remove cutter, clean part thoroughly and replace.
Always have a new cutter on hand to refer to for
correct tooth geometry, together with instruction
sheet.
See causes and remedies (2).
Retighten.
Inject oil of light viscosity into the coolant-inducing
ring and check that oil is being metered into cutter
when pilot is depressed. If not, check pilot groove
and arbor internally for dirt or apply oil externally.
(Even a small amount of oil is very effective).
Ensure correct speed is use for the cutter.
5) Excessive
cutter wear
See cause and remedy above
Incorrectly re-sharpened cutter.
Insufficient or spasmodic cutting pressure.
Refer to instructions and a new cutter for proper
tooth geometry.
Use sufficient steady pressure to slow the drill down.
This will result in optimum cutting speed and chip
load.

ELP50 Low Profile Manual Original instructions 2019
9
10) WIRING DIAGRAM
No
Function
Wire Colour
A
Magnet Switch +12V
White
B
Magnet LED +12V
White
C
Magnet Switch And LED 0V
White
D
Motor Switch 0V
White
E
Motor Switch +5V
White
F
Current 'ON' LED 0V
White+ Red
G
Current 'ON' LED 0V
White+ Green
H
Current ‘ON' LED +5 V
White Brown
No
Function
Wire Colour
1
Magnet Negative Output
Black
2
Magnet Positive Output
Red
3
Mains Neutral Input
White
4
Motor Neutral Output
Red
5
Motor Live Output
Red
6
Mains Live Input
Black

ELP50 Low Profile Manual Original instructions 2019
10
11) EXPLODED VIEW OF MACHINE

ELP50 Low Profile Manual Original instructions 2019
11
Item#
Unibor P/N
Description
Qty/pcs
1
RDF2000
Spindle assembly
1
2
RDF4000
Screw
6
3
RDF4001
Circlip
2
4
RDF3000
Bearing bracket
1
5
RDF4002
Gear Shaft Washer
1
6
RDF4003
Circlip
1
7
RDF4004
Straight Pin
4
8
RDF2001
Slide assembly
1
9
RDF3020
Guard
1
10
RDF4005
Screw
6
11
RDF3002
Guide Bar
2
12
RDF4006
Screw
1
13
RDF2002/1
Magnet assembly 120v
1
14
RDF4007
Screw
3
15
RDF4008
Screw
2
16
RDF4009
Screw
2
17
RDF3003
Capstan spindle
1
18
RDF4010
Circlip
6
19
RDF2029
Connected base assembly
1
20
RDF4011
Circlip
1
21
RDF4012
Screw
4
22
RDF2030
Gear Box assembly
1
23
RDF4013
Gear Shaft Washer
1
24
RDF2005
Shaft gear assembly
1
25
RDF3004
Handle
1
26
RDF4014
Straight Pin
1
27
RDF2025/1
Motor assembly 120v
1
28
RDF4015
Screw
4
29
RDF2026
Right cover shell subassembly
1
30
RDF4016
Screw
6
31
RDF4017
Nut
4

ELP50 Low Profile Manual Original instructions 2019
12
32
RDF3024
Indicator cover
2
33
RDF4019
Screw
4
34
RDF4020
Screw
2
35
RDF4023
Cable Clamp
1
36
RDF4024
Screw
1
37
RDF4025
outer sawtooth washer
1
38
RDF2027
Left cover shell subassembly 120v
1
39
RDF2016/2
PCB panel subassembly 120v
1
40
RDF4027
Cable jacket
1
41
RDF4028
Jacket
1
42
RDF2024
Cable Plug Assembly 120v
1
43
RDF2028
Panel subassembly
1
44
RDF4029
Screw
5
45
RDF4030
Hexagon spanner
2
46
RDF4031
Coolant bottle
1
47
RDF4032
Rachet handle
1
48
RD4329
Safety rope
1
49
RDA3105
Goggles
1
50
RDF3005/1
Spare Brush 120v
1

ELP50 Low Profile Manual Original instructions 2019
13
12) MOTOR BREAKDOWN
No.
Part
Description
Qty
1
RDF2021/1
Armature Assembly 120v
1
2
RDF3014
Bearing Sleeve
1
3
RDF3009
Field Coil Baffle
1
4
RDF4038
Field Coil Screws
2
5
RDF2019/1
Field Coil Assembly 120v
1
6
RDF3021
Motor Frame
1
7
RDF3011
Brush Holder
2
8
RDF3005/1
Carbon Brush Set 120v
1
9
RDF3012
Brush Caps
2
10
RDF2020/1
Speed Controller Assembly 120v
1
11
RDF4040
Speed Controller Screws
2
12
RDF3022
End Cap
1
13
RDF4039
End Cap Screws
2

ELP50 Low Profile Manual Original instructions 2019
14
13)CONTROL PANEL AND PARTS LIST
1
RDC4092
Red/Green LED
1
2
RDF4036
Magnet Switch
1
3
RDF4037
Motor Switch
1
4
RD33264
Facia Plate
1
5
RDF3017
Connection Line
1

ELP50 Low Profile Manual Original instructions 2019
15
14)PIPE ADAPTOR KIT RD2311
FITTING INSTRUCTIONS
▪Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates RD3328
with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. Do not tighten.
▪Locate the machine on the centreline of the pipe taking care that the magnet is in line with the
longitudinal axis of the pipe.
▪Switch on the magnet and move the sliding plates down to the outside diameter of the pipe. Tighten the
screws on both sides by hand then check once again that the full length of the moving plates is touching
the pipe at the front and back, fasten the plate securely. Feed the safety strap through the lugs at the
front of the housing, around the pipe and pull tight.
▪When cutting theholeDO NOT use excessive pressure but rather let the cutter ease into the cutting
surface.

ELP50 Low Profile Manual Original instructions 2019
16
HE CHUCK
15) MAINTENANCE
In order to ‘get the best life’ out of your Unibor machine always keep it in good working order.
A number of items must always be checked on Unibor machines.
Always before starting any job make sure the machine is in good working order and that there
are no damaged or loose parts. Any loose parts must be tightened.
Before proceeding with any maintenance work be certain that the power supply is
disconnected.
Description
Every operation
1 week
1 Month
Visual check of
machine for damage
X
Operation of machine
X
Check brush wear
X
Check magnetic base
X
Check grease
X
Check armature
X
Visually check the machine for damage.
The machine must be checked before operation for any signs of damage that will affect the
operation of the machine. Particular notice must be taken to the mains cable, if the machine
appears to be damaged it should not be used, failure to do so may cause injury or death.
Check operation of the machine.
The machines operation must be checked to ensure that all components are working correctly.
Machine Brushes - should be checked to make sure there is no abnormal wear present (this
should be checked at least once a week if used frequently). If the brush has worn more than 2/3
the original length the brushes should be changed. Failure to do so may cause damage to the
machine.
Magnetic base –before every operation the magnetic base should be checked to make sure
that the base is flat and there is no damage present. An uneven magnet base will cause the
magnet not to hold as efficiently and may cause injury to the operator.
Check machines grease.
The gearbox grease should be checked once a month to ensure all moving components are
covered to prevent wear. The grease should be changed at least once a year to ensure you gain
the best from your machine.
Check Armature of the machine.
This should be checked at least once a month to check that there are no visual signs of damage
to the body or to the commutator. Some signs of wear will be seen on the commutator over a
period of time, but this is normal (this is the part that comes into contact with the brushes)
however, if there are any signs of abnormal damage the part should be replaced.

ELP50 Low Profile Manual Original instructions 2019
17
16) TROUBLE SHOOTING
Magnet and motor do not function
- The magnet switch is not connected to the power supply
- Damaged or defective wiring
- Defective magnet switch
- Defective control unit
- Defective power supply
Magnet does function, the motor does not
- Damaged or defective wiring
- Carbon brushes are stuck or worn out
- Defective magnet switch
- Defective on / off switch
- Defective control unit
- Defective armature and/or field
Magnet does not function, the motor does
- Defective magnet
- Defective control unit
Hole cutters break quickly, holes are bigger
than the hole cutter
- Play in the guide
- Bent spindle
- Shaft extending from the motor is bent
- Pilot bent
Motor running roughly and/or seizing up
- Bent spindle
- Shaft extending from the motor is bent
- Triangular guide not mounted straight
Motor making a rattling sound
- Gear ring (bottom of the armature) worn out
- Gear(s) worn out
- No grease in gear box
Motor humming, big sparks and motor has no
force
- Armature damaged
- Field burned
- Carbon brushes worn out
Motor does not start or fails.
- Damaged or defective wiring
- Damage to armature or field coil
- Damaged or defective brushes
Insufficient magnetic force
- Damaged or defective wiring
- Bottom of magnet not clean and dry
- Bottom of magnet not flat
- Work piece is not bare metal
- Work piece is not flat
- Work piece is too thin less than 3/8”
- Defective control unit
- Defective magnet
Frame under voltage
- Damaged / defective wiring
- Defective magnet
- Motor seriously dirty
Fuse blows when magnet switch is turned on
- Damaged or defective wiring
- Wrong value fuse
- Defective magnet switch
- Defective control unit
- Defective magnet
Fuse blows when motor is started up
- Damaged or defective wiring
- Motor running roughly
- Defective armature and / or field
- Carbon brushes worn out
- Defective control unit
Rotation system free stroke too long
- Loose or defective gear-rack
- Defective rotation system

ELP50 Low Profile Manual Original instructions 2019
18
17) CUTTER SELECTION
AND CE STATEMENTS
Material
Material Hardness
Cutter
Mild and free cutting steels
<700N/mm²
M2
Mild and free cutting steels
<850N/mm²
M42
Steel angle and joists
<700N/mm²
M2
Steel angle and joists
<850N/mm²
M42
Plate and sheet steel
<700N/mm²
M2
Plate and sheet steel
<850N/mm²
M42
Aluminium
<750Nmm²
M2
Aluminium
<850N/mm²
M42
Brass
<700N/mm²
M2
Brass
<850N/mm²
M42
Cast iron
<700N/mm²
M2
Cast iron
<850N/mm²
M42
Stainless steel
<700N/mm²
M2
Stainless steel
<850N/mm²
M42
Stainless steel
>850N/mm²
TCT
Rail track
>850N/mm²
M42
Tool steel
>850N/mm²
TCT
Die Steel
>850N/mm²
TCT

ELP50 Low Profile Manual Original instructions 2019
19
18) Warranty
Unibor™warrants its machines to be free from faulty parts, under normal usage of machines, for a period of
12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days,
provided that the warranty registration card (or online registration) has been completed and returned to
Unibor™ or its designated distributor within a period of (30) days from the purchase date. Failure to do so
will void the warranty. If the stated is adhered to, Unibor™ will repair or replace (at its option) without
charge any faulty items returned.
This Warranty does not cover:
1. Components that are subject to natural wear and tear caused by the uses not in accordance with the
operator’s instructions
2. Defects in the tool caused by non-compliance with the operating instructions, improper use, abnormal
environment conditions, inappropriate operating conditions overload or insufficient servicing or
maintenance.
3. Defects caused by using accessories, components or spare parts other than original Unibor™parts.
4. Tools to which changes or additions have been made.
5. Electrical components are subject to manufacturer’s warranty.
Your online registration can be submitted atwww.Unibor.co.uk
The warranty claim must be logged within the warranty period. This requires the submission or sending of
the complete tool in question with the original sales receipt which must indicate the purchase date of the
product. A complaint form must also be submitted prior to the return.
This can be found online at www.Unibor.co.uk.Failure to complete this form will result in the delay of your
claim.
All goods returned defective must be returned pre-paid to Unibor™, in no event shall Unibor™be liable for
subsequent direct, or indirect loss or damage.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, (EXPRESSED OR IMPLIED) INCLUDING ANY
WARRANTY OF MERCHANTABLITY OR FITNESS FOR A PARTICULAR PURPOSE. UNIBOR™RESERVE THE
RIGHT TO MAKE IMPROVEMENTS AND MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE
Known and Trusted Worldwide for Quality, Performance and Reliability
