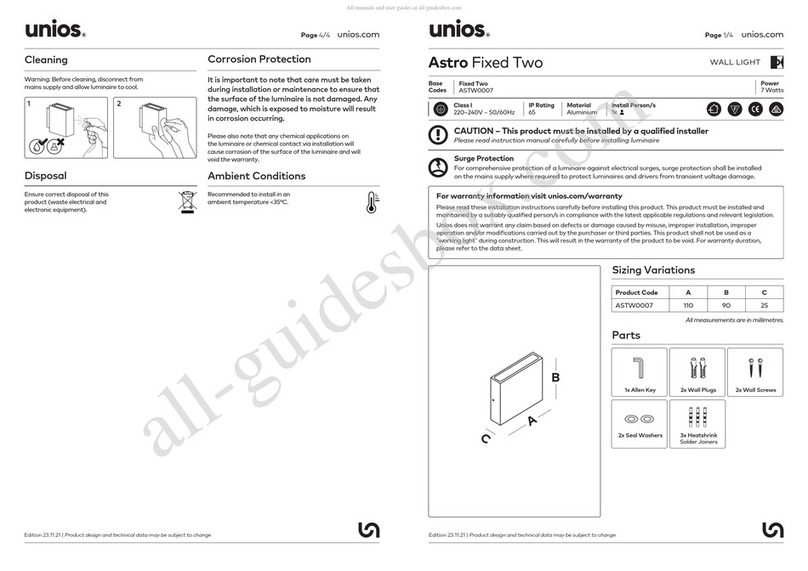

unios Astro Fixed Two User manual

Edition 23.11.21 | Product design and technical data may be subject to changeEdition 23.11.21 | Product design and technical data may be subject to change
A B C
A
C
B
unios.com
Page 4/4 unios.com Page 1/4
Astro Fixed Two
Install Person/s
1x
Sizing Variations
Product Code
For comprehensive protection of a luminaire against electrical surges, surge protection shall be installed
on the mains supply where required to protect luminaires and drivers from transient voltage damage.
CAUTION – This product must be installed by a qualified installer
Please read instruction manual carefully before installing luminaire
Surge Protection
For warranty information visit unios.com/warranty
Please read these installation instructions carefully before installing this product. This product must be installed and
maintained by a suitably qualified person/s in compliance with the latest applicable regulations and relevant legislation.
Unios does not warrant any claim based on defects or damage caused by misuse, improper installation, improper
operation and/or modifications carried out by the purchaser or third parties. This product shall not be used as a
'working light' during construction. This will result in the warranty of the product to be void. For warranty duration,
please refer to the data sheet.
Power
7 Watts
Material
Aluminium
IP Rating
65
Fixed Two
ASTW0007
Base
Codes
Class I
220–240V ~ 50/60Hz
WALL LIGHT
Disposal
Ensure correct disposal of this
product (waste electrical and
electronic equipment).
Ambient Conditions
Recommended to install in an
ambient temperature <35°C.
Corrosion Protection
It is important to note that care must be taken
during installation or maintenance to ensure that
the surface of the luminaire is not damaged. Any
damage, which is exposed to moisture will result
in corrosion occurring.
Please also note that any chemical applications on
the luminaire or chemical contact via installation will
cause corrosion of the surface of the luminaire and will
void the warranty.
110 90 25
ASTW0007
All measurements are in millimetres.
Parts
2x Wall Screws2x Wall Plugs1x Allen Key
2x Seal Washers 3x Heatshrink
Solder Joiners
Cleaning
Warning: Before cleaning, disconnect from
mains supply and allow luminaire to cool.
1 2

Edition 23.11.21 | Product design and technical data may be subject to change
27.4
Ø15.5
57.5
105.5
Page 2/4 unios.com Page 3/4
1
75
6
ON
OFF
Dimming
This luminaire can be dimmed. Unios
® recommends a
phase-cut dimmer optimised for LED technology. For
non-standard configurations refer to driver data sheet.
For full list of compatible drivers, see unios.com
2
Wiring Mounting Plate
Driver Compatibility
ASTW0007
Output
Power
Driving
Current
Forward
Voltage
Product Code
7W 500mA 11-13V
All measurements are in millimetres.
See below
AC
Power Source
L
E
DRIVER
LED
N
1 2
3
Strip 7mm 7mm
Heat Heat until tin melts
4
IP65/66 Installations
To ensure a complete seal around the mounting area, an
exterior grade caulk must be used around the perimeter of
the back of the mounting plate.
Do not caulk bottom of
mounting plate to ensure sufficient drainage.
3
See details on
page 4
