Unique Klasse KUD-WC1113KUD-WD1117 User manual

Service Manual
KUD-WC1113
KUD-WD1117

DRUMWASHINGMACHINE
SERVICEGUIDE
1. WHAT IS DRUM?...............................................................2
2. SPECIFICATION OF DRUM WASHING MACHINE ......................6
3. VERIFICATION OF DRUM ASSY............................................7
4. PARTS LIST FOR EACH ASSY...............................................9
5. SEQUENCE CHART OF PCB...............................................21
6. SPECIFICATION OF ELECTRONIC PARTS..............................31
7. WIRING DIAGRAM........................................................... 50
8. TROUBLESHOOTING REGARDING DRAIN .............................51
9. INSTALLATION GUIDE ......................................................52
10. ATTENTION POINT WITH SERVICE .....................................54

2
One of the famous washers in the globe which uses laundry falling energy.
1. WHAT IS DRUM ?
1. WHAT IS DRUM WASHER?
◈ The biggest capacity with compact size
◈ No damage and entanglement but excellent washability
◈ 4way savings-noise, vibration, washing times, energy
◈ Self-cleaning course of Drum
◈ Good washing performance with heating system
◈ Condensing dry system with saving energy
◈ Big door glass with easy laundry take-in/out
◈ The higest spin speed
2. Sales point of our washer

3
• DD CONTROL : DIRECT DRIVE TYPE
• BLDC MOTOR
3. THE DRIVE SYSTEM OF DRUM WASHING MACHINE
TUB
DRUM
LIFTER
WASH
BLDC
DRAIN
PUMP

4. DRIVE SYSTEM

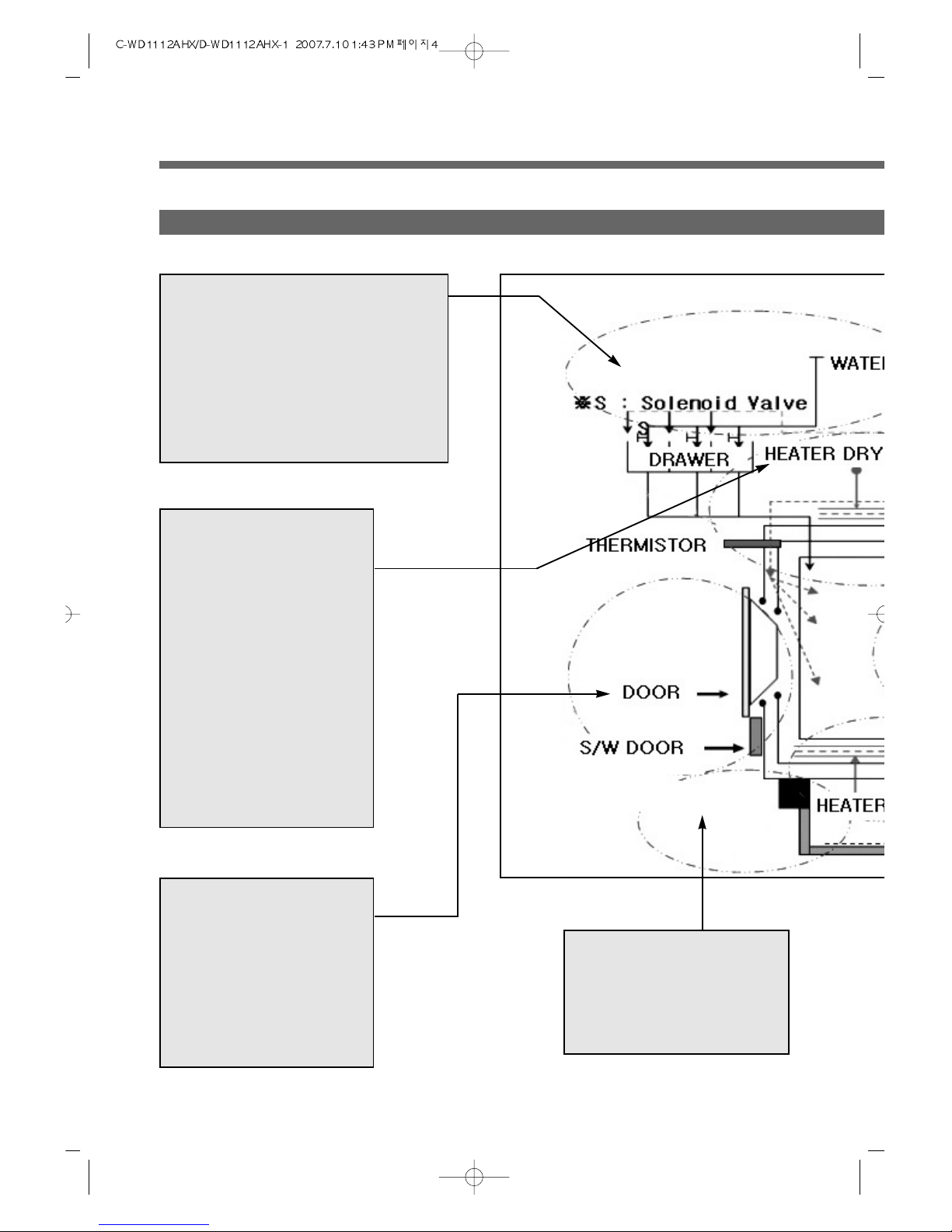

4
3. INLET PARTS
•COMBO
- COLD : 3-WAY (COLD, PREWASH, DRY)
- HOT : 1-WAY
•WASHER
- COLD : 2-WAY (COLD, PREWASH)
- HOT : 1-WAY
5. DOOR부
•DOOR LOCK S/W
: WATER ADDING
FUNCTION
•LOCK HINGE
•DOOR AS : GLASS
•GASKET
7. DRAIN PARTS
•DRAIN PUMP
•VALVE HOUSING
•DRAIN HOSE I
6. DRY PARTS
•HEATER DRY : 1300W
•BLOWER FAN
• FAN MOTOR : BLDC
•THERMISTOR
•THERMOSTAT
: FUSE, BI-METAL
• CONDENSING SYSTEM
• DRY FAN DRIVE
-` GENERATION OF
HEATER’S HEAT
-` TEMP. SENSOR
DRAIN PARTS

5
1. CONTROLLER
•MAIN PCB
•FRONT PCB
•HARNESS
•NOISE FILTER
•POWER CORD : 13A
2. DRIVE PARTS
•BLDC MOTOR
•DRUM
•BEARING
•SPIDER/SHAFT
•TUB
•WEIGHT BALANCER
4. WASH HEATING
•WASH HEATER : 1000W
•THERMISTOR
8. SUPPORTER
•BASE
•DAMPER AS : 4(70N)

6
2. SPECIFICATION OF DRUM WASHING MACHINE
1. PANEL TYPE 1
DIMENSION(WxDxH) 686mm(W) x 807mm(D) x 1020mm(H)
MACHINE WEIGHT 96 ㎏
POWER SOURCE 120V / 60Hz
POWER WASHING 10 A
CONSUMPTION DRY 11.5 A
WASHING TYPE DRUM TYPE
DRY TYPE Digital condensing dry system
OPERATION WATER PRESSURE 29kPa ~ 784kPa(0.3㎏f/cm
2
~8㎏f/cm
2
)

7
3. VERIFICATION OF DRUM ASSY

8

9
1. THE EXPLODED VIEW OF CABINET ASSEMBLY
4. PARTS LIST FOR EACH ASSY

10
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
C01 CABINET 3610811730 SGCC 0.8T, PUMP COMBO 1
C02 FRAME LOWER 3612206700 SBHG 1.2T 1
C03 FRAME TOP L 3612206500 SGCC 1.6T 1
C04 FRAME TOP R 3612206600 SGCC 1.6T 1
C05 FRAME UPPER 3612206400 SBHG 1.2T 1
C06 STOPPER SPRING 3615202200 POM 2
C07 FIXTURE PLATE 3612008000 POM 8
SCREW TAPPING 7121401211 T2S PAN 4X12 MFZN 8
C08 NOZZLE AIR 3618103110 PP 1
C09 HANDLE CABINET 3612608100 PP 2
C10 COVER BACK AS 3611425510 COVER B + PAD CABINET 1
C11
C12SENSOR PRESSURE 3614825220DWD-130RP 1
C13 REACTOR 52G043A110 UL L=150MM 1 BASE U
C14UNIT DRAIN PUMP AS 36189L5600PUMP+FILTER 1
C15 HOSE DRAIN I AS 3613271200 PUMP HOSE 1
C16HOSE WATER REMAIN 3613271400EPDM 1
C17 CAP WATER REMAIN 3610916800 PP 1
C18GUIDE DRAIN HOSE 3612510400PP 1
C19 PCB AS 3610PCB490 MEX COMBI 1 COMBO
 3610PCB495 MEX WASHER 1 WASHER
C20COVER PCB M 3611427700UL,ABS VE-0856, MAIN PCB 1

11

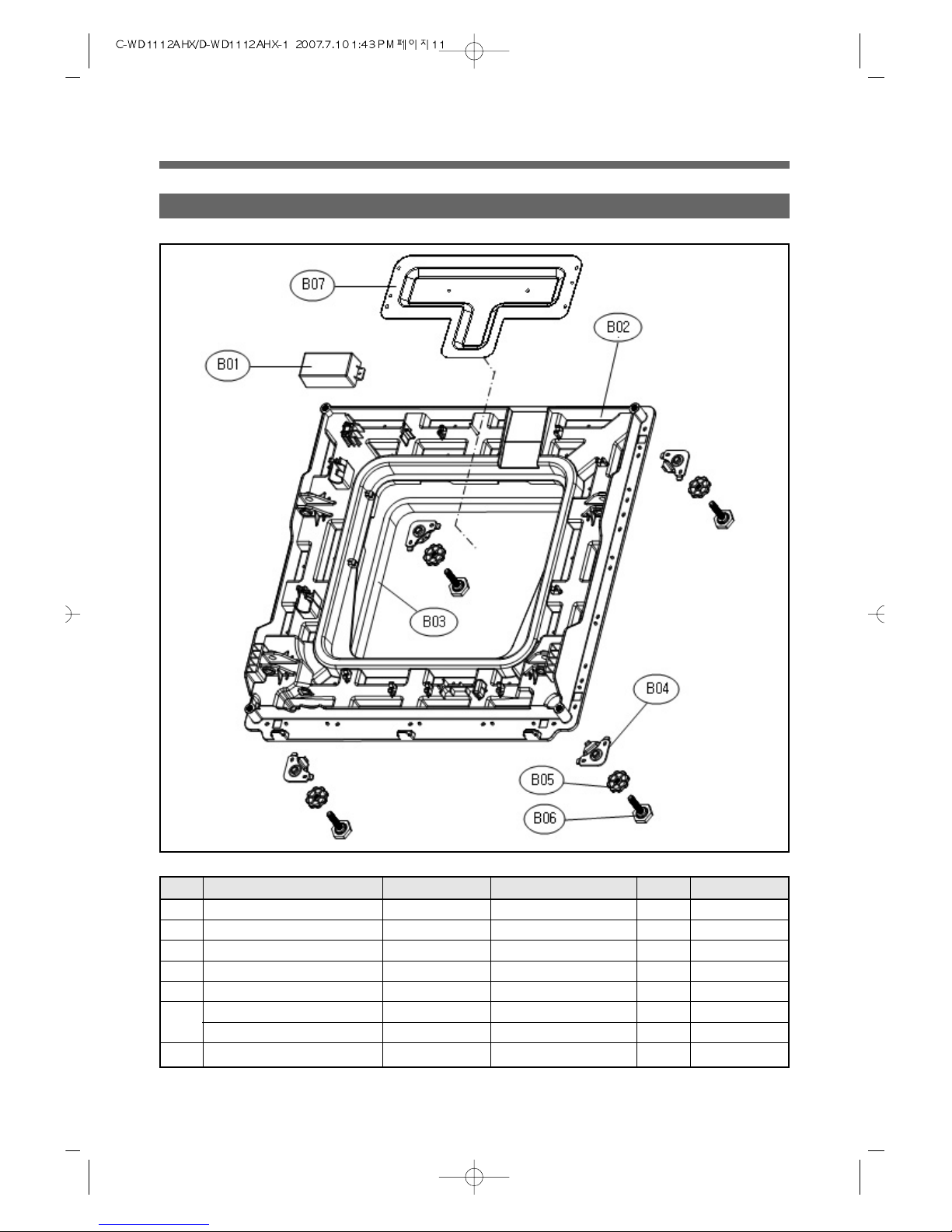

2. THE EXPLODED VIEW OF BASE U ASSEMBLY
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
B01 EMI FILTER 3611908700 DWLF-K23 1
B02 BASE U 3610392700 PP 1
B03 ABSORBER BASE 3610115400 PEM, 12X1500, 25T 1
B04 SUPPORTER LEG 3615303600 3.0T 4
B05 FIXTURE LEG 3612006400 ABS, DWD-100DR 4
B06 FOOT 3612100600 BUTYL, DWD-100DR 4
SPECIAL BOLT 3616029000 10 X 1.25, 51MM 4
B07 PROTECTOR HEATER 3618304600 SECC 0.35T 1

12
3. THE EXPLODED VIEW OF TUB ASSEMBLY

13
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
H01 BALANCER WEIGHT AS(L) 3616106900 13KG DRUM 1
H02 BALANCER WEIGHT AS(R) 3616106800 13KG DRUM 1
H03 GASKET 3612321900EPDM 1COMBO
3612322000EPDM 1WASHER
H04 CLAMP GASKET AS 3611205300 WIRE 1
H05 SPRING SUSPENSION 361511480013KG DRUM 2
H06 TUB FRONT 3618828Y00 FRPP 1
H07 FIXTURE HEATER 3612006700 SUS 1
H08 DAMPER PIN 361A700200AKS D=14.5 4
H09 DAMPER FRICTION 361A700110 70N AKS ST=170-260 DL=197.5 4
H10 DRUM AS 3617008X00 SUS 1
H11 LIFT AS 361A400510 NON-NANO, SUS FILTER 3
H12 SPIDER AS 361A300600 ALDC+S45C 1
H13 - - - -
H14 HOSE DRAIN 3613269000 EPDM,PUMP 1
H15 AIR TRAP AS 3610AAR600 HOSE+TRAP 1
H16 GASKET TUB 3612321100 EPDR FORM 1
H17 WATER SEAL 361A600200 NBR 1
H18 BEARING INNER 3616303800 6306DD 1
H19 BEARING HOUSING 3616303700ALDC 1
H20 BEARING OUTER 3616303900 6305DD 1
H21 HOSE AIR 3613266300 EPDM 1
H22 BASE 3610392600SESEN 1
H22 UNIT STATOR BL C 36189L4810 ¥Õ265X30H,36SLOT,2SNESOR,WS2A30G001 1
H24 UNIT ROTOR BLDC 36189L4900MAGNET24,SERRATION,WR1238F001 1
H26 HEATER WASH 3612801740 120V 1KW.1R0A721005.RW8TF1PE.IRCA 1
H27 UNIT BUBBLE PUMP36189L4130 100-130 DBK-115DC RP-CUSH COM. 1

14
4. THE EXPLODED VIEW OF DUCT B AS AND DUCT PIPE ASSEMBLY

15
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
E01 UNIT FAN MOTOR 36189L3Z10 ISM-77806DWWA 24V CW 8P 14W 1
E02 DUCT COVER 361A200400 AL, 2.5T 1
E03 DUCT B UPPER AS 361A200670 ALCOSTA UPPER, NON-COATING 1
E04 CLAMP CORD 3611203330 DABE-2 A=9 B=5.3 L=105 4
E05 FAN AS 3611885900D133 FAN, GFPP30% _- NYLON66 1
E06 SCREW TAPPING 7122400811 T2S TRS 4x8 MFZN 1
E07 WASHER PLAIN 7400432011 PW 4.3*20*1T 1
E08 FUSE TEMPERATURE 361A800130128℃,DF-128S,15A,250V,VDE 1
E09 FRAME HEATER FRANGE 3612206200 SBHG 1
E10 DUCT B LOWER 361A200101 AL, 3T 1
E11 PACKING THERMOSTAT 3614009900 SILICON 1
E12 SWITCH THERMOSTAT 3619046 500UL,150ON-120OFF,125V/15A,250V/10A 1
E13 HEATER DRY 3612802100 120V/1.3KW_12OHM3.5W/SQ.INCOLOY800.RA8.1R3A034008 1
E14 THERMISTOR DRY 361AAAAC00UL APPROVED.R40=26.065K.R90=4.4278K 1
E15 PACKING RUBBER 3614009800 SILICON 1
E16 CUSHION DRY 3611562800 NBR 2
E17 GASKET SEAL B 3612320810 EPDM FOAM, L=412, 4.9*4.4*4.8 1
E18 GASKET SEAL A 3612320820 Φ5,L=1385 1
E19 GASKET INLET 3612320900 DWD-100DR 1
E20 DUCT GUIDE 361A201700 ALDC 1
E21 DUCT PIPE AS 361A201400 13KG 1
E22 CLAMP AS(DUCT) 3611203700 DUCT 1
E23 BELLOWS DUCT 3616403000 EPDM 1

16
5. THE EXPLODED VIEW OF INLET BOX ASSEMBLY
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
I01 INLET BOX 3617505800 ABS 1
I02 HOSE INLET 3613270300 EPDM 1
I03 CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT 2
I04 NOZZLE AS 3618103500 PP 1
I05 HOSE HOT 3613270400 EPDM, ID=10, OD=16, L=460mm 1
I06 HOSE MAIN 3613270500 EPDM, ID=10, OD=16, L=410mm 1
I07 HOSE C 3613267020 EPDM, ID=10, OD=16, L=230mm 2
I08 PIPE JOINT(HOSE INLET) 3614413300 PP 1
I09 HOSE SHOWER 3613270110 EPDM, L=590mm 1
I10 CLAMP SPRING 3611203800 ID=15.5, T=0.6, B=10 8
I11 CLAMP 4507D08152 HOSE ID=7 2
I12 CASE DETERGENT 3611141800 ABS 1
I13
I14 CAP SOFTENER 3610917200 PP 1
I15 CASE HANDLE 3611141700 ABS 1
I16 HANDLE CAP 3612609100 ABS 1
I17
I18VALVE INLET 3615415700UL.120V60HZ.BITRON.1WAY 1
I19 VALVE INLET 3615415070 100~130V,3WAY,RINSE GUIDEÀ,PP/BRACKET 1 1

17

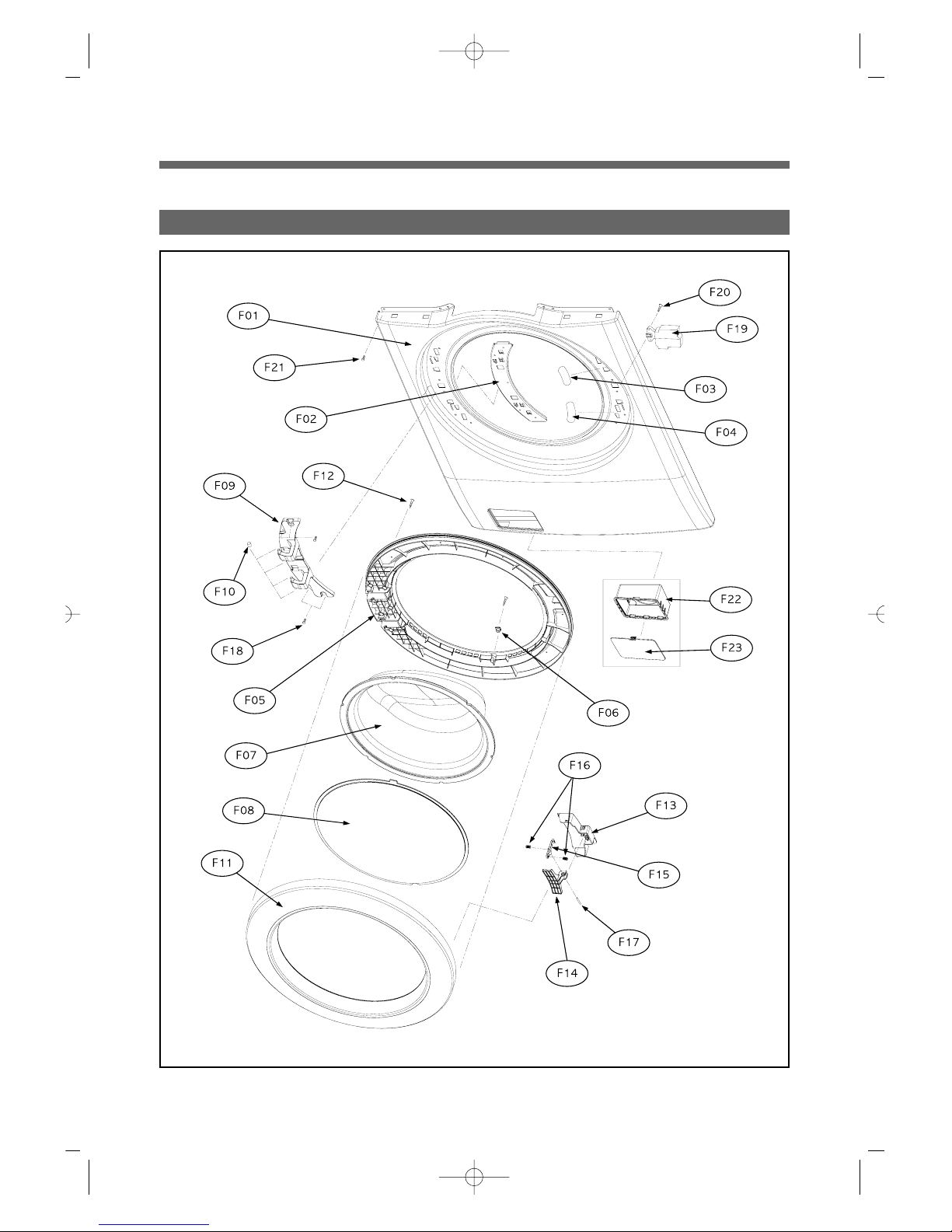

6. THE EXPLODED VIEW OF CABINET F ASSEMBLY

18
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
F01 CABINET F 3610811820 SECD 1.0T PUMP 1
F02 SUPPORT HINGE 3615304000 SGCC 1.6T 1
F03 LABEL SAFETY R 3613555800 PVC 1
F04 LABEL DRY R 3613555900 PVC 1
- DOOR AS 361A110800 130RP'S DOOR AS 1
F05 FRAME DOOR IN 3612206800 TB53 1
F06 STOPPER DOOR 3615202300 PP 1
F07 DOOR GLASS 361A110600 GLASS 1
F08 PROTECTOR GLASS 3618304300 PC 1
F09 HINGE DOOR 3612902900 ALDC 1
F10 CAP HINGE DOOR 3610916500 POM 4
F11 FRAME DOOR OUT 3612206900 CR BASE, 732G 1
F12 SCREW TAPPING 7115402008 T1S FLT 4x20 SUS430 16
F13 COVER HANDLE 3611426700 ABS 1
F14 HANDLE DOOR 3612609000 ABS 1
F15 HOOK DOOR 3613100800 ZNDC 1
F16 SPRING HOOK 3615113700 SUS ID=4.3, NI=7, D=Ø0.9 2
F17 PIN HANDLE 3618200100 SUS D=3.0 1
F18 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 4
F19 SWITCH DOOR LOCK 3619046410 DF F11 110 125V 16A PTC-SOLENOID 1
F20 SCREW TAPPING 7122401608 T2S TRS 4X16 SUS 430 2
F21 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 4
F22 CASE PUMP 3611141400 PP 1
F23 COVER PUMP 3611426800 ABS 1

19

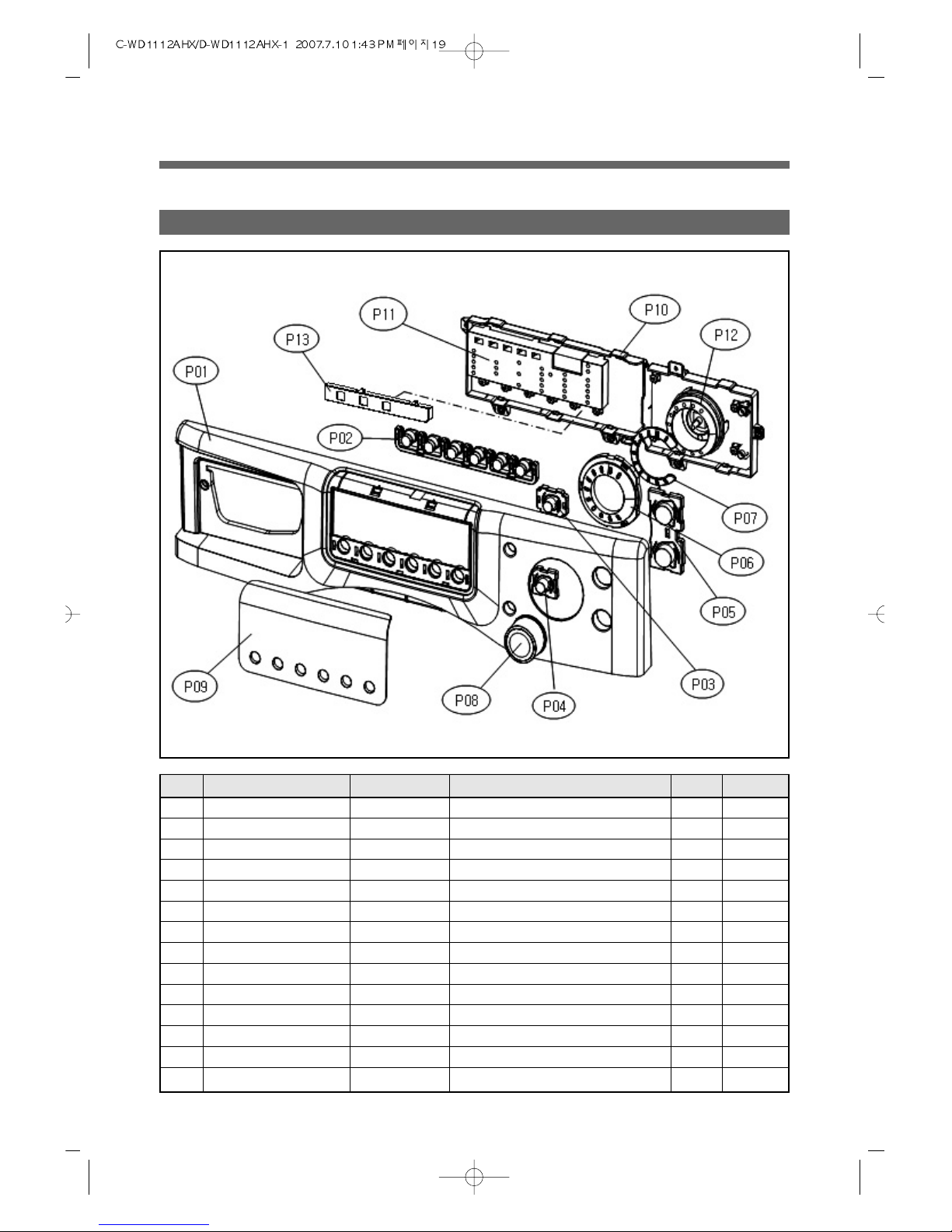

7. THE EXPLODED VIEW OF CABINET F ASSEMBLY
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
P01 PANEL F 3614284800 ABS 1
P02 BUTTON FUNCTION 3616604500 ABS 1
P03 BUTTON RESERVE 3616604700 ABS 1
P04 BUTTON LOCK 3616604300 ABS 1
P05 BUTTON P-S 3616604600 ABS 1
P06 DECO. COURSE 3611683000 ABS 1
P07 WINDOW COURSE 3615503600 ABS 1
P08 BUTTON DIAL AS 3616634700 130RP'S BUTTON DIAL AS 1
P09WINDOW INMOLD AS 3615504000130RP'S WINDOW INMOLD 1
P10 PCB FRONT AS PRPSSWAD27 FRONT,WASHER,PAIR0DRY 1 COMBO
PRPSSWAD28 FRONT,WASHER,KUD-WD1117 1 WASH
P11CUSTOM LED DISPLAY 4500D72092UL ENGLISH C-130 CPMBO 1
P12HOLDER COURSE 3613050910UL,ABS(VE-0856) 1
P13 COVER PCB F 3611427800 UL,ABS(VE-0856),FRONT PCB 6
