Unique UGP-120L1 W User manual

120L / 4.2 cu/ft
AC/DC PORTABLE
FRIDGE/FREEZER
UGP-120L1 W
OWNER’S GUIDE
serial number:
JUL18V1

TABLE OF CONTENTS
03 Installation and operation of your Unique portable AC/DC
fridge/freezer
04 Defrosting the cabinet
05 UGP-120L1 W Portable fridge/freezer: features
06 Power requirements
06 AC power connection
06 DC power connection
06 Emergency overide
07 Replacing the fuse
09 Operation
11 Error codes
11 Bluetooth APP
12 Connecting to a battery
12 Using solar panels
13 Using portable generators
14 Tips and suggestions
15 Technical specifications
16 Troubleshooting
17 Wiring diagram

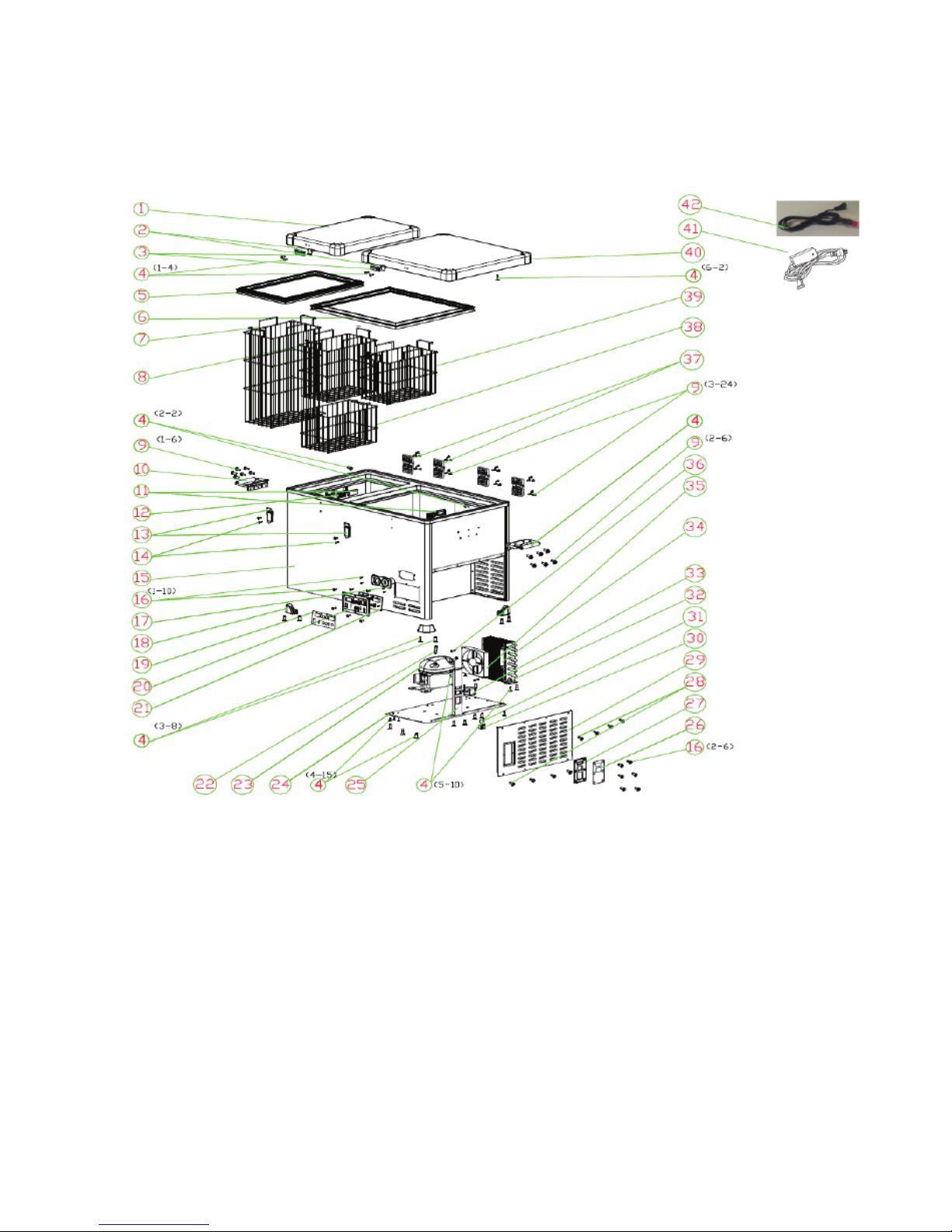

18 Parts diagram and list
20 Appliance information
20 Notes
21 Contact us
21 Limited warranty

3
INSTALLATION AND OPERATION OF
YOUR UNIQUE PORTABLE AC/DC
FRIDGE/FREEZER
It is important that your fridge/
freezer is installed and oper-
ated in accordance with the
manufacturer’s instructions to
guarantee the performance,
efciency and operation.
• Position the fridge/freezer in
a safe and secure location, out
of the reach of rain/snow and
excessive wind. Prolonged
exposure to heat sources or
direct sunlight can aect the
unit’s performance and e-
ciency.
• The normal operation of the fridge/freezer requires heat to be radi-
ated away from the condensers located in the end of the cabinet.
Ensure the vented areas of the cabinet are kept clear at all times to
allow adequate airflow to the compressor.
• The cooling system has been
designed to continue operat-
ing correctly when the fridge/
freezer is positioned on angles
up to 35˚. It is recommended
that the time the unit is ex-
posed to angles over 30˚ is
limited to no more than four
(4) hours continuous opera-
tion.
IMPORTANT: After transit where the fridge/freezer is on
its side or back, ensure fridge/freezer is in a level, up-
right position for 3-4 hours to allow compressor fluids
to redistribute evenly before use.

4
DEFROSTING THE CABINET
If your appliance is being used primarily as a freezer, it is possible
that an ice build-up on the interior may occur. This build up can af-
fect the performance and eciency of the cooling system and must
be removed.
Do not use pointed tools, knives or sharp utensils, or significant force
to remove the ice as this may result in damage to the unit. Turn the
fridge/freezer o and empty the cabinet of food/drinks. Allow the
ice to melt and then drain the water from the cabinet using the drain
plugs. Use a soft, clean cloth to wipe down all surfaces and allow the
fridge/freezer to dry completely.
IMPORTANT
This fridge/freezer is not intended for use by children or persons
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are under supervision or
instruction concerning the use of the fridge/freezer by a person
responsible for their safety.
• This is not a toy. Do not allow children to play with or within the
fridge/freezer.
• The fridge/freezer is suitable for outdoor and camping use and
should not be exposed to rain or snow or other inclement weather.
INSTALLATION AND OPERATION OF
YOUR UNIQUE PORTABLE AC/DC
FRIDGE/FREEZER continued

5
UGP-120L PORTABLE
FRIDGE/FREEZER FEATURES
Protective insulated cover
DC power cord
with 10 amp fuse
Battery alligator clips24V AC power cord
Internal LED light
Powder coated
steel exterior
Stainless steel lid
latches
Protective
corners
2 x Drain
plugs
Digital
control
panel
1 x USB 2.1A
Sturdy side
handles
4 x Storage
Baskets
1 x USB
2.1A
1 x USB
2.1A
Emergency
overide

6
POWER REQUIREMENTS
The Unique UGP-120L1 W portable fridge/freezers are designed to
operate on AC and DC voltage inputs.
AC input Voltage is required to be 110V AC at 50 - 60 Hz
DC input Voltage is required to be 12 or 24 DC +/- 10%
AC/DC Convertor is 12V
AC POWER CONNECTION
The Unique UGP-120L1 W portable fridge/freezers are supplied with
an approved 2 pin AC power cord. It is recommended that this cord
is not lengthened as this may result in a voltage drop and reduced
performance.
DC POWER CONNECTION
EMERGENCY OVERIDE
The Unique UGP-120L1 W portable fridge/freezers are supplied with
a vehicle DC plug (cigarette lighter plug). It is recommended that
this cord is not lengthened as this may result in a voltage drop and
reduced performance.
When connecting the fridge/freezer to DC, plug the power cord into
the DC socket on the fridge/freezer and then plug the other end of
the power cord into the DC supply.
The supplied DC power cord comes with an in-line fuse. If the red
indicator light on the DC cigarette plug is not illuminated, there is
either no DC voltage being supplied or the fuse is blown. See below
for fuse replacement instructions.
*Only use the DC power cord that is supplied with the fridge/freezer.
The emergency switch is located above the power inlet socket on
the side of the unit. If the digital thermostat fails and you are un-
able to set the temperature, turn this switch to Emergency override.
This enables the fridge to run until you reach a service centre to
replace the faulty component.
NOTE: If the switch is in the “ EMERGENCY OVERRIDE” position,
the fridge/compressor will run with full cooling capacity and may
freeze. This will only freeze the zone of the fridge that is currently
turned on before flicking the emergency override switch.

7
REPLACING THE FUSE
1
2-3
4-5
The Unique UGP-120L1 W portable fridge/freezers are supplied with
2 additional replacement 10A fuses for the adaptor. These can be
found in a plastic bag attached to the cord. If the indicator light on
the DC power cord is not illuminated, it could mean that the fuse has
blown. Here is how to replace the fuse:
1. Unscrew the black
plastic end cap from
the DC power plug.
2. Unscrew the metal
threaded tip of the DC
power plug to expose
the cylindrical 10 amp
fuse.
3. Remove blown fuse and
replace with a new fuse.
4. Replace metal threaded
tip of DC power plug and
screw back into place.
5. Replace black plastic
end cap of the DC power
plug and screw into
place.
Black plastic end cap
Metal threaded tip
10 A fuse
NORMAL
USE
EMERGENCY
OVERIDE
DC 12V / 24V
12 / 24V based on input
12 / 24V base sur l’entree
IT IS NOT FOR EVERYDAY USE - ONLY FOR EMERGENCIES
If the Emergency Switch is turned on. The
control panel will only show the tempera-
ture and voltage, you will not be able to
set the temperature or voltage.

8
IN-LINE FUSE
A 15A in-line fuse is provided with this fridge in order to protect the
wiring. For 12V/24V operation, use a 15A fuse. A standard automo-
bile fuse is recommended - A 15A fuse is provided with this fridge/
freezer.
REPLACING THE FUSE continued
OPERATING VOLTAGE FUSE
12 V / 24 V 15 A
Remove screws from the
grates to access 15A fuse

9
OPERATION
COMPARTMENT CONTROL
Individual temperature controlled compartments enable a variety of
fridge/freezer combinations and also allow either compartment to
be shut o to save energy.
Temperature setting range: -22°C ~ +10°C, -8°F ~ 50°F
Plug in the DC or AC power cable. Use the ON/OFF power but-
ton located on the electronic thermostat to power on the fridge. The
LED display on the control panel will light up and the interior tem-
perature will be displayed.
THERMOSTAT
Press and hold the SETTING button on the electronic thermostat
for 3 seconds to adjust the temperature. To lock in the target tem-
perature press SETTING button one time or leave for 5 seconds. The
LCD display will indicate the current temperature inside the unit af-
ter the target temperature is set. After approximately 5 minutes the
displayed temperature will start to decrease.
To change the fridge between ºC and ºF. Press the Down button
and UP button together.
Press and hold the SETTING button and UP button together for 3
seconds to turn o the left zone and press and hold the same but-
tons for 3 seconds to turn on the left zone.
Press and hold the SETTING button and DOWN button together for
3 seconds to turn o the right zone and press and hold the same
buttons for three seconds to turn on the right zone.
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO

10
OPERATION
Battery Protection: press and hold the voltage setting button for
3 seconds to adjust the Low, Middle , High voltage. We recommend
the Middle voltage for operation.
To change the battery voltage setting press and hold the button
for 3 seconds and then use the button to change between the
settings. Leave the unit for 5 seconds for the voltage to adjust. The
three approximate voltage settings are as follows: - (We advise to
keep the setting on Medium level).
Voltage
Setting
12V Battery Protection
Turn o
compressor
(to protect
battery)
Early warning alarm
system will notify before
turning o compressor
(to protect battery)
Turn on
compressor
Low Level 10.3V 10.6V 11.4V
Med Level 11.1V 11.3V 12.2V
High Level 11.6V 11.9V 12.7V
Voltage
Setting
24V Battery Protection
Turn o
compressor
(to protect
battery)
Early warning alarm
system will notify before
turning o compressor
(to protect battery)
Turn on
compressor
Low Level 21.5V 21.8V 23.0V
Med Level 23.3V 23.6V 25.3V
High Level 24.5V 24.8V 26.2V
NOTE: The early warning alarm will sound o every 4 seconds for
30 minutes before the compressor shuts o. If an alternative power
source is not found, the early warning alarm will sound o every 8
seconds for 30 mins until the unit has no more power.
CHANGING THE COOLING SPEED
Press & hold the setting button for 3 seconds and use the setting
button to change between the settings. Leave the unit for 5 seconds
for the cooling speed to adjust. (We advise to keep the setting on
Normal level).
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
