Unique UGP-80L1 W User manual

80L / 2.8 cu/ft
AC/DC PORTABLE
FRIDGE/FREEZER
UGP-80L1 W
OWNER’S GUIDE
serial number:
APR18V1

TABLE OF CONTENTS
03 Installation and operation of your Unique portable AC/DC
fridge/freezer
04 Defrosting the cabinet
05 UGP-80L1 W Portable fridge/freezer: features
06 Power requirements
06 AC power connection
06 DC power connection
06 Emergency overide
07 Replacing the fuse
09 Operation
11 Error codes
11 Bluetooth APP
12 Connecting to a battery
12 Using solar panels
13 Using portable generators
14 Tips and suggestions
15 Technical specifications
16 Troubleshooting
17 Wiring diagram
18 Parts diagram and list
20 Appliance information
20 Notes
21 Contact us
21 Limited warranty

3
INSTALLATION AND OPERATION OF
YOUR UNIQUE PORTABLE AC/DC
FRIDGE/FREEZER
It is important that your fridge/
freezer is installed and oper-
ated in accordance with the
manufacturer’s instructions to
guarantee the performance,
efficiency and operation.
• Position the fridge/freezer in
a safe and secure location, out
of the reach of rain/snow and
excessive wind. Prolonged
exposure to heat sources or
direct sunlight can aect the
unit’s performance and e-
ciency.
• The normal operation of the fridge/freezer requires heat to be radi-
ated away from the condensers located in the end of the cabinet.
Ensure the vented areas of the cabinet are kept clear at all times to
allow adequate airflow to the compressor.
• The cooling system has been
designed to continue operat-
ing correctly when the fridge/
freezer is positioned on angles
up to 35˚. It is recommended
that the time the unit is ex-
posed to angles over 30˚ is
limited to no more than four
(4) hours continuous opera-
tion.
IMPORTANT: After transit where the fridge/freezer is on
its side or back, ensure fridge/freezer is in a level, up-
right position for 3-4 hours to allow compressor fluids
to redistribute evenly before use.

4
DEFROSTING THE CABINET
If your appliance is being used primarily as a freezer, it is possible
that an ice build-up on the interior may occur. This build up can af-
fect the performance and eciency of the cooling system and must
be removed.
Do not use pointed tools, knives or sharp utensils, or significant force
to remove the ice as this may result in damage to the unit. Turn the
fridge/freezer o and empty the cabinet of food/drinks. Allow the
ice to melt and then drain the water from the cabinet using the drain
plugs. Use a soft, clean cloth to wipe down all surfaces and allow the
fridge/freezer to dry completely.
IMPORTANT
This fridge/freezer is not intended for use by children or persons
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are under supervision or
instruction concerning the use of the fridge/freezer by a person
responsible for their safety.
• This is not a toy. Do not allow children to play with or within the
fridge/freezer.
• The fridge/freezer is suitable for outdoor and camping use and
should not be exposed to rain or snow or other inclement weather.
INSTALLATION AND OPERATION OF
YOUR UNIQUE PORTABLE AC/DC
FRIDGE/FREEZER continued

5
UGP-80L PORTABLE
FRIDGE/FREEZER FEATURES
Protective insulated cover
DC power cord
with 10 amp fuse
Battery alligator clips12V AC power cord
Interior insulated compartment lids
Internal LED light
Powder coated
steel exterior
Stainless steel lid
latches
Protective
corners
2 x Drain
plugs
Digital
control
panel
1 x USB 2.1A
Sturdy side
handles
3 x S t o r a g e
Baskets
1 x 12V
socket
(40W
Max)
2 x USB
2.1A
Emergency
overide

6

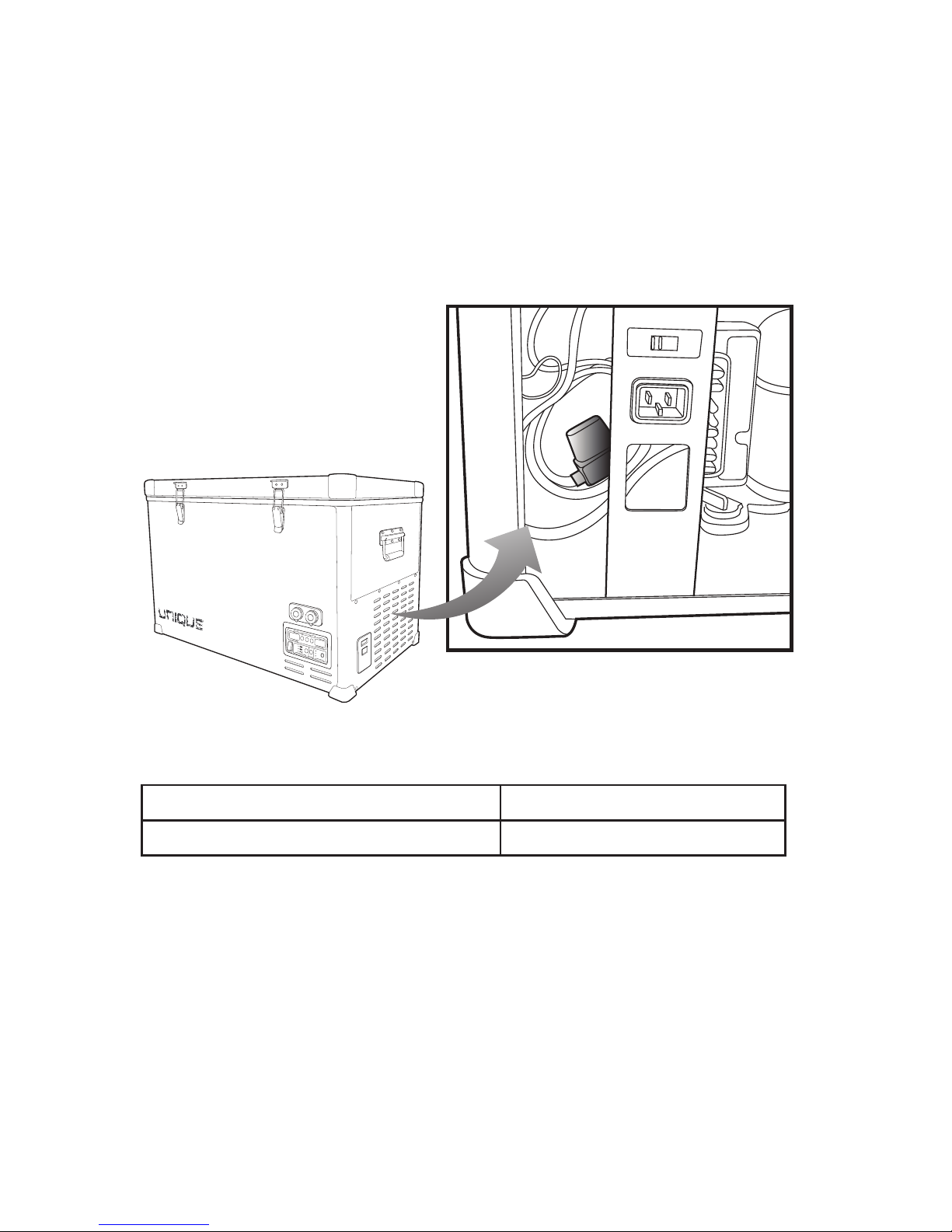

POWER REQUIREMENTS
The Unique UGP-80L1 W portable fridge/freezers are designed to
operate on AC and DC voltage inputs.
AC input Voltage is required to be 110V AC at 50 - 60 Hz
DC input Voltage is required to be 12 or 24 DC +/- 10%
AC/DC Convertor is 12V
AC POWER CONNECTION
The Unique UGP-80L1 W portable fridge/freezers are supplied with
an approved 2 pin AC power cord. It is recommended that this cord
is not lengthened as this may result in a voltage drop and reduced
performance.
DC POWER CONNECTION
EMERGENCY OVERIDE
The Unique UGP-80L1 W portable fridge/freezers are supplied with
a vehicle DC plug (cigarette lighter plug). It is recommended that
this cord is not lengthened as this may result in a voltage drop and
reduced performance.
When connecting the fridge/freezer to DC, plug the power cord into
the DC socket on the fridge/freezer and then plug the other end of
the power cord into the DC supply.
The supplied DC power cord comes with an in-line fuse. If the red
indicator light on the DC cigarette plug is not illuminated, there is
either no DC voltage being supplied or the fuse is blown. See below
for fuse replacement instructions.
*Only use the DC power cord that is supplied with the fridge/freezer.
The emergency switch is located above the power inlet socket on
the side of the unit. If the digital thermostat fails and you are un-
able to set the temperature, turn this switch to Emergency override.
This enables the fridge to run until you reach a service centre to
replace the faulty component.
NOTE: If the switch is in the “ EMERGENCY OVERRIDE” position,
the fridge/compressor will run with full cooling capacity and may
freeze. This will only freeze the zone of the fridge that is currently
turned on before flicking the emergency override switch.

7
REPLACING THE FUSE
1
2-3
4-5
The Unique UGP-80L1 W portable fridge/freezers are supplied with
2 additional replacement 10A fuses for the adaptor. These can be
found in a plastic bag attached to the cord. If the indicator light on
the DC power cord is not illuminated, it could mean that the fuse has
blown. Here is how to replace the fuse:
1. Unscrew the black
plastic end cap from
the DC power plug.
2. Unscrew the metal
threaded tip of the DC
power plug to expose
the cylindrical 10 amp
fuse.
3. Remove blown fuse and
replace with a new fuse.
4. Replace metal threaded
tip of DC power plug and
screw back into place.
5. Replace black plastic
end cap of the DC power
plug and screw into
place.
Black plastic end cap
Metal threaded tip
10 A fuse
NORMAL
USE
EMERGENCY
OVERIDE
DC 12V / 24V
12 / 24V based on input
12 / 24V base sur l’entree
IT IS NOT FOR EVERYDAY USE - ONLY FOR EMERGENCIES
If the Emergency Switch is turned on. The
control panel will only show the tempera-
ture and voltage, you will not be able to
set the temperature or voltage.

8
IN-LINE FUSE
A 15A in-line fuse is provided with this fridge in order to protect the
wiring. For 12V/24V operation, use a 15A fuse. A standard automo-
bile fuse is recommended - A 15A fuse is provided with this fridge/
freezer.
REPLACING THE FUSE continued
OPERATING VOLTAGE FUSE
12 V / 24 V 15 A
Remove screws from the
grates to access 15A fuse

9

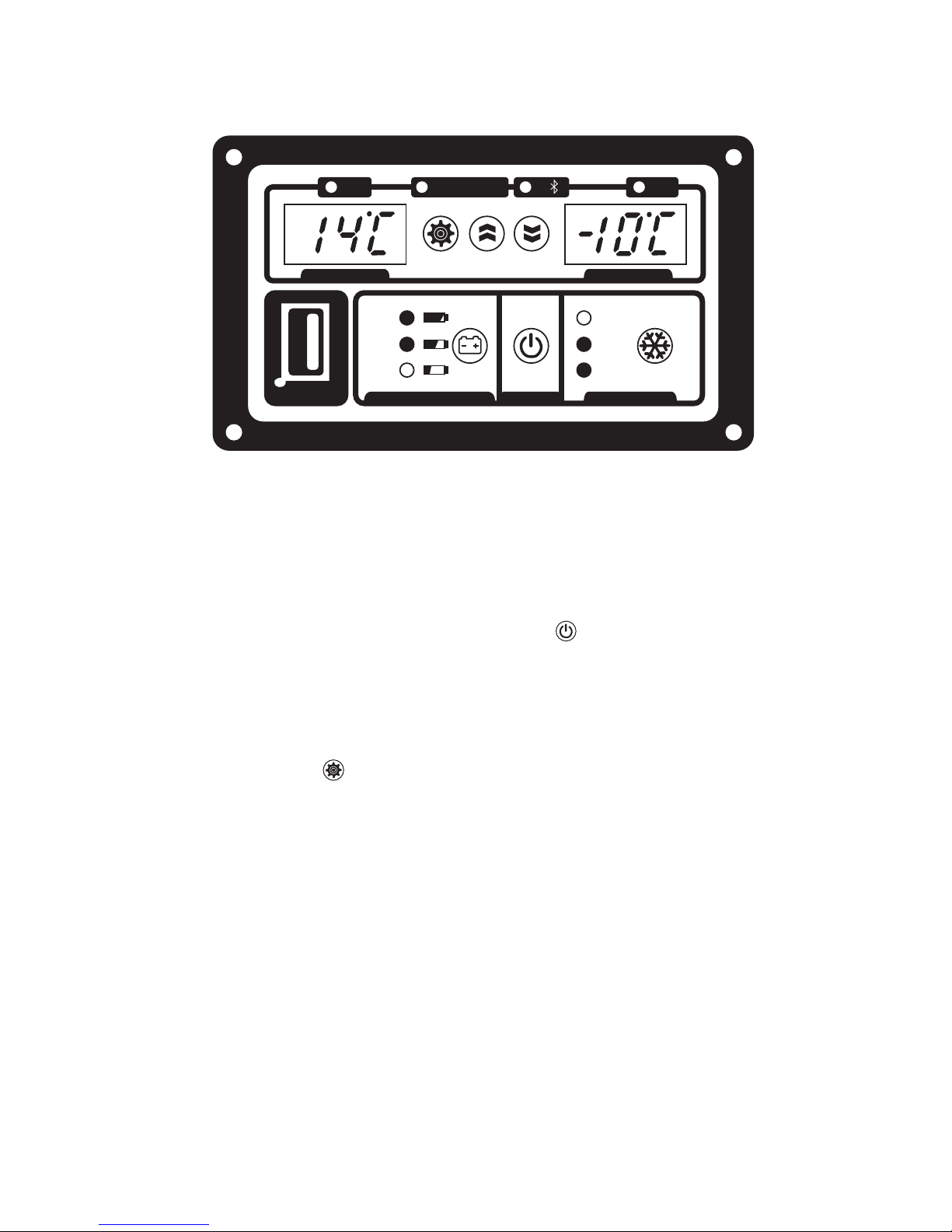

OPERATION
COMPARTMENT CONTROL
Individual temperature controlled compartments enable a variety of
fridge/freezer combinations and also allow either compartment to
be shut o to save energy.
Temperature setting range: -22°C ~ +10°C, -8°F ~ 50°F
Plug in the DC or AC power cable. Use the ON/OFF power but-
ton located on the electronic thermostat to power on the fridge. The
LED display on the control panel will light up and the interior tem-
perature will be displayed.
THERMOSTAT
Press and hold the SETTING button on the electronic thermostat
for 3 seconds to adjust the temperature. To lock in the target tem-
perature press SETTING button one time or leave for 5 seconds. The
LCD display will indicate the current temperature inside the unit af-
ter the target temperature is set. After approximately 5 minutes the
displayed temperature will start to decrease.
To change the fridge between ºC and ºF. Press the Down button
and UP button together.
Press and hold the SETTING button and UP button together for 3
seconds to turn o the left zone and press and hold the same but-
tons for 3 seconds to turn on the left zone.
Press and hold the SETTING button and DOWN button together for
3 seconds to turn o the right zone and press and hold the same
buttons for three seconds to turn on the right zone.
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO

10
OPERATION
Battery Protection: press and hold the voltage setting button for
3 seconds to adjust the Low, Middle , High voltage. We recommend
the Middle voltage for operation.
To change the battery voltage setting press and hold the button
for 3 seconds and then use the button to change between the
settings. Leave the unit for 5 seconds for the voltage to adjust. The
three approximate voltage settings are as follows: - (We advise to
keep the setting on Medium level).
Voltage
Setting
12V Battery Protection
Turn o
compressor
(to protect
battery)
Early warning alarm
system will notify before
turning o compressor
(to protect battery)
Turn on
compressor
Low Level 10.3V 10.6V 11.4V
Med Level 11.1V 11.3V 12.2V
High Level 11.6V 11.9V 12.7V
Voltage
Setting
24V Battery Protection
Turn o
compressor
(to protect
battery)
Early warning alarm
system will notify before
turning o compressor
(to protect battery)
Turn on
compressor
Low Level 21.5V 21.8V 23.0V
Med Level 23.3V 23.6V 25.3V
High Level 24.5V 24.8V 26.2V
NOTE: The early warning alarm will sound o every 4 seconds for
30 minutes before the compressor shuts o. If an alternative power
source is not found, the early warning alarm will sound o every 8
seconds for 30 mins until the unit has no more power.
CHANGING THE COOLING SPEED
Press & hold the setting button for 3 seconds and use the setting
button to change between the settings. Leave the unit for 5 seconds
for the cooling speed to adjust. (We advise to keep the setting on
Normal level).
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO

11
ERROR CODE
Error Code Error type can be read out on the
control display
Err 7
Err 6
Thermostat failure
(If the NTC thermistor is short-
circuit or has no connection).
Err 5
Thermal cut-out of electronic unit
(If the refrigeration system has
been too heavily loaded, or if the
ambient tempreature is high, the
electronic unit will run too hot).
Err 4
Minimum motor speed error
(If the refrigeration system is too
heavily loaded, the motor cannot
maintain minimum speed at ap-
proximately 1,850 rpm).
Err 3
Motor start error
(The rotor is blocked or the dier-
ential pressue in the refrigeration
system is too high(>5bar)).
Err 2
Fan over-current cut-out
(The fan loads the electronic unit
with more than 0.5A).
Err 1
Battery protection cut-out
(The voltage is outside the cut-out
setting).
BLUETOOTH APP
To check the Bluetooth name : Press setting
button one time and see the fridge Bluetooth
name.
Your Bluetooth code is located on the side of
the unit under the power socket.
* To download the APP visit our website at
www.UniqueOgrid.com
LEFT BIN
USB 2.1A
RIGHT BIN
RUN
RUN COMPRESSOR
BATTERY PROTECTION ON/OFF COOLING SPEED
HIGH
MED
LOW
QUICK
NORM
ECO
NORMAL
USE
EMERGENCY
OVERIDE
DC 12V / 24V
12 / 24V based on input
12 / 24V base sur l’entree

12
USING SOLAR PANELS
The power consumption and eciency of your Unique UGP-80L1 W
portable fridge/freezer makes it ideal to be used in conjunction with
solar panels to provide recharging of the DC supply. The Unique Por-
table Solar Panel system (UGP-100WSPB and/or UGP-120WSP) was
designed for easy use with the fridge/freezer’s DC supply.
Solar panels will provide charge into the battery during the daylight
hours even while the appliance is operating.
As the output from solar panels changes depending on the level of
sunlight and intensity, your UGP-80L1 W portable fridge/freezer
cannot be connected directly to the solar panels. The appliance
must be connected to a suitable DC battery and then the solar pan-
els connected to the battery.
OR OR
CONNECTING TO A BATTERY
Your DC fridge/freezer can run o a single 12V or 24V power supply.
When connecting to a 12V battery, ensure that the supplied connec-
tion wires are used. Connect the positive wire (red) to the positive
terminal on the battery and the negative wire (black) to the negative
terminal on the battery. Please ensure that your deep cycle battery is
fully charged and is properly connected to the Unique Portable So-
lar Panel system (UGP-100WSPB and/or UGP-120WSP) or a power
generator.
12V
RED BLACK NOTE: if you use 24V
to power your unit ie:
batteries, the cigarette
socket will output 24V.
Input = Output.

13
USING PORTABLE GENERATORS
It is important that the correct generator is used with your UGP-
UGP-80L1 W portable fridge/freezer. An incorrect generator may
result in reduced performance or damage to your appliance which
may void your appliance’s warranty.
If connecting directly to an AC generator, ensure that only a digital
or inverter type generator is used. These provide a more reliable
and constant 110V AC output and are specifically designed to power
electronic and other power sensitive appliances.
When charging the battery using a digital or inverter type genera-
tor, we recommend only using a ‘smart battery charger’ that is fully
automatic, spark proof and reverse polarity protected. The battery
charger is connected directly to the AC power output of the genera-
tor.

14
TIPS AND SUGGESTIONS
• Fresh and frozen foods should not be stored together. Frozen
surfaces can cause frost damage on fresh foods which can then
lead to spoilage. It is best to put an insulating layer between these
goods or to organize them into separate compartments.
• When the appliance is being set at 0˚C / 32˚F or lower, do not
store glass bottles or liquids such as beer, wine, juices or soft
drinks in the unit as they may freeze and shatter.
• Items such as fruit and vegetables should be stored closer to the
top of the cabinet as this area is normally slightly warmer. This will
reduce the risk of spoiling and ensure that delicate fresh foods are
not crushed by heavier frozen items.
• To improve the eciency of your UGP-80L1 W portable fridge/
freezer it is better to have the cabinet as full as possible at all
times. A full cabinet will provide lower power consumption over 24
hours than a half-empty one, as chilled and frozen food help main-
tain temperature eciency.
• Make your selection of what you wish to remove from the cabinet
before you open the door. This will reduce the amount of warm air
that will enter the cabinet while the door is open, and help main-
tain energy and temperature eciency.
• When located in the rear of a vehicle, it is recommended that the
fridge/freezer be shaded from direct sunlight to reduce the risk of
increased heat. It should also be provided with suitable ventilation
to guarantee ecient power consumption and performance.
*Remember: when a vehicle is parked in the sun on a day where the ambient temperature is +30˚C/86˚F, the interior of the vehicle
can reach more than +55˚C/131˚F.

15
TECHNICAL SPECIFICATIONS
MODEL UGP-80L1 W
GROSS CAPACITY 80 L / 2.8 cubic feet
ZONE Dual
RUN TEMPERATURE -22˚C/-7.6˚F to +20˚C/68˚F (in ambient temperature
between +1˚C/34˚F to +43˚C/109˚F)
POWER CONSUMPTION 33 W (power consumption varies based on temp. setting)
AVERAGE RUN CURRENT 2.7 amps on 12V DC
TOTAL WATT HR DRAW 378 Wh/24 hrs (lrg. side set to +5˚C/Sm. side set to -13˚C)
TOTAL AMP HR DRAW 9.3 Ah/24 hrs (lrg. side set to +5˚C/Sm. side set to -13˚C)
REFRIGERANT R134a / 85g
INSULATION MATERIAL C5H10/C-Pentane
INSULATION THICKNESS Wall: 55mm / Lid: 50mm
WEIGHT (kg, approx.) 29 kg / 63.9 lbs
EXTERNAL DIMENSION
(WxDxH)
20.9” x 31.5” x 18.5”
INTERNAL DIMENSION
large chamber - 1 (LxWxD)
13.9” x 8.4” x 15.4”
INTERNAL DIMENSION
large chamber - 2 (LxWxD)
13.9” x 8,4” x 6.6”
INTERNAL DIMENSION
small chamber (LxWxD)
13.9” x 8.3” x 15.4”

16
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
THE COMPRESSOR DOES NOT
RUN
The polarity of the positive and the
negative have been reversed.
Switch off the power and check the
polarity of the connections.
Check your in-line fuse within the
cigarette lighter plug.
The voltage is insufficient or
interrupted.
Switch off power.
Check connections and then fuses.
THE COMPRESSOR RUNS FOR 1-5
MINUTES AND THEN STOPS
The voltage is insufficient or
interrupted.
Switch off power.
Check connections and then restart.
THE COMPRESSOR RUNS BUT THE
INNER COMPARTMENT DOES NOT
GET COLD
The refrigeration system may be
blocked.
Contact your dealer for assistance.
THE INNER LINER IS VERY COLD
AND THE COMPRESSOR RUNS
CONTINUOUSLY
There is a build up of ice on the
inner liner.
Defrost the cabinet.
The lid is being opened and closed
too frequently.
The lid should only be opened when
needed.
The cabinet is being overloaded and
used as a freezer.
Remove some product.
There is insufficient air flow to the
condenser.
Select a well ventilated area.
THE WIRELESS REMOTE DOES
NOT CONNECT TO THE FRIDGE
The voltage is insufficient or
interrupted.
Switch off power. Check connections
and then fuses. Restart.
The fridge is not switched on. Turn fridge on.

17
UGP-80L1 W
WIRING DIAGRAM

18
UGP-80L1 W

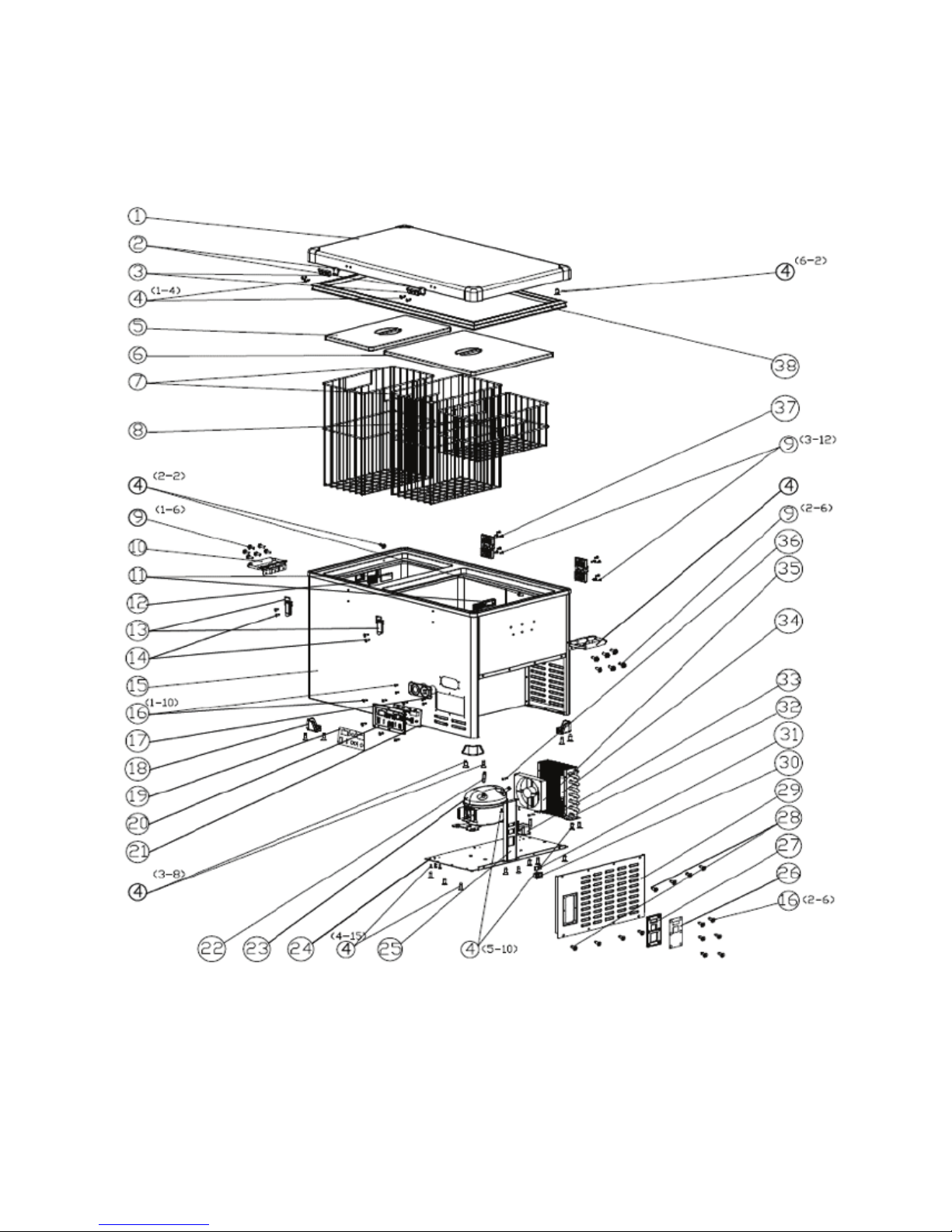

PARTS DIAGRAM AND LIST

19
PARTS DIAGRAM AND LIST continued
ITEM # PART # DESCRIPTION
1UGP-80L1 W 1 Door
2UGP-80L1 W 2 Upper Latch
3UGP-80L1 W 3 Door Handle
4UGP-80L1 W 4 M4x8 Screw
5UGP-80L1 W 5 Small lid
6UGP-80L1 W 6 Big lid
7UGP-80L1 W 7 Big Basket
8UGP-80L1 W 8 Small Basket
9UGP-80L1 W 9 M5x10 Screw
10 UGP-80L1 W 10 Fridge Handle
11 UGP-80L1 W 11 Led light
12 UGP-80L1 W 12 Temperature Sensing Box
13 UGP-80L1 W 13 Under Latch
14 UGP-80L1 W 14 M5x8 Screw
15 UGP-80L1 W 15 Fridge Cabinet
16 UGP-80L1 W 16 M4x10 Screw
17 UGP-80L1 W 17 Cigarrate and USB Socket
18 UGP-80L1 W 18 Protective Corner
19 UGP-80L1 W 19 Display Control Sticker
20 UGP-80L1 W 20 Display Control Panel
21 UGP-80L1 W 21 Circuit Board
22 UGP-80L1 W 22 Process Tube
23 UGP-80L1 W 23 DC Compressor
24 UGP-80L1 W 24 Compressor base
25 UGP-80L1 W 25 Socket Support
26 UGP-80L1 W 26 Socket Sticker
27 UGP-80L1 W 27 Socket Panel
28 UGP-80L1 W 28 M4x8 Screw
29 UGP-80L1 W 29 Back Cover
30 UGP-80L1 W 30 DC Socket
31 UGP-80L1 W 31 Emergency Switch
32 UGP-80L1 W 32 Condenser
33 UGP-80L1 W 33 Solenoid Valve
34 UGP-80L1 W34 Drier filter
35 UGP-80L1 W 35 Fan
36 UGP-80L1 W 36 M4*30 Screw
37 UGP-80L1 W 37 Hinge
38 UGP-80L1 W 38 Door Seal

20
NOTES
APPLIANCE INFORMATION
(manual copy - keep with your records)
To make care and servicing of your fridge/freezer easy and ecient, please
record the following information for future reference:
Model:
Serial Number:
Purchased From:
Date Purchased:
