unispectral Monarch II User manual

Monarch II™- Multi-spectral Camera
Add-On Assembly Guide
Document Details
Purpose
Add-On Assembly Guide for the Monarch II EVK
Scope
UNS Monarch II - UNS54000 Multispectral Camera
Document number
UNSDOC5024
Revision number
Rev 00
Responsible Engineer
Ohad Hayoun
Date
12/29/2021
Security level
Confidential

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 2 of 1211
Table Of Contents
1. Parts List ...................................................................................................................................... 3
2. Lens Cover ................................................................................................................................... 4
3. Tripod Add-On Assembly Instructions ........................................................................................ 5
4. Mobile Phone Add-On Assembly Instructions ............................................................................ 6
5. Cable Add-On Assembly Instructions.......................................................................................... 7
6. Tripod & Cable Add-Ons Assembly Instructions ......................................................................... 8
7. Mobile Phone & Cable Add-Ons Assembly Instructions........................................................... 10
8. Spectralon Add-On.................................................................................................................... 12

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 3 of 1211

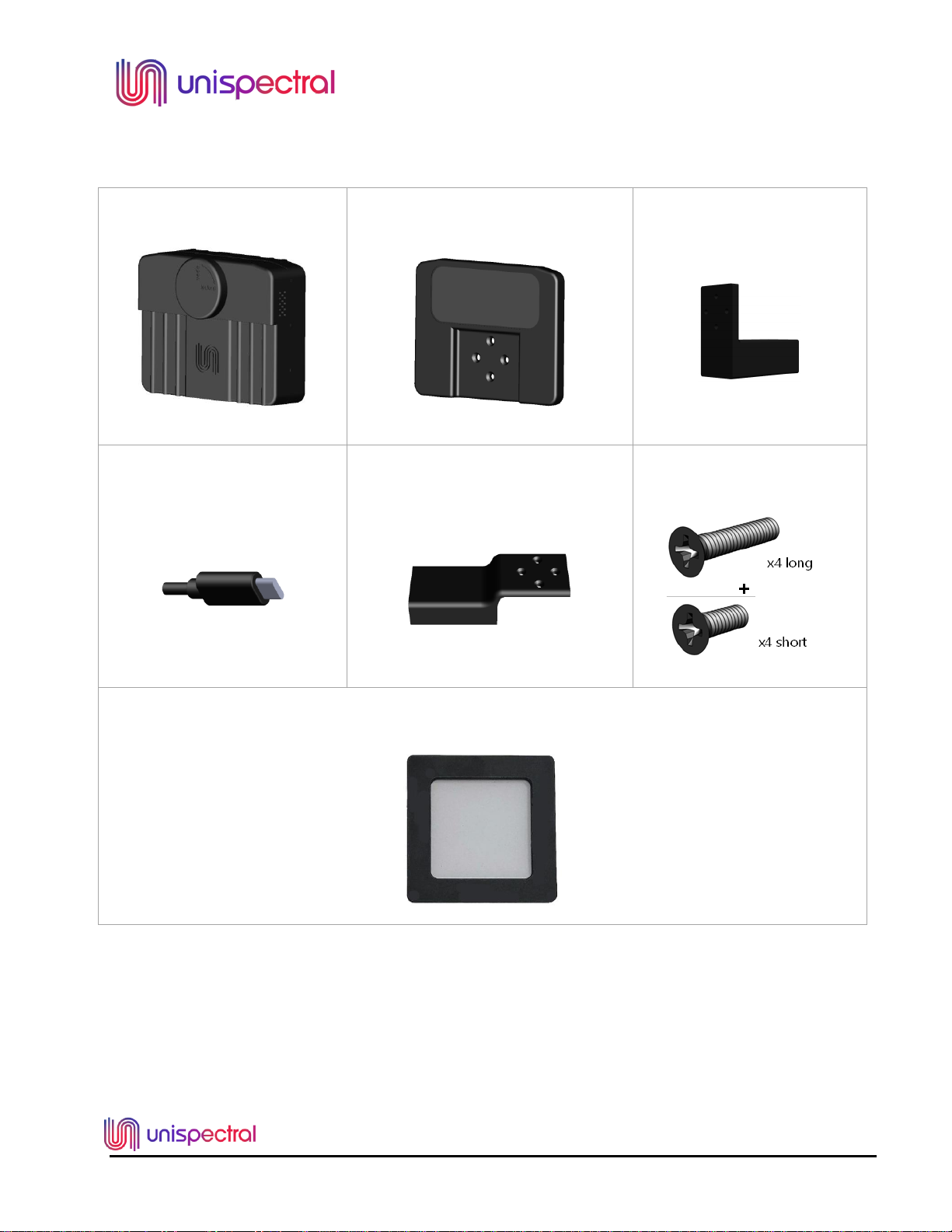

1. Parts List
The MONARCH assembly kit contains the following parts:
1. Monarch Camera
2. Mobile Phone Add On
3. Tripod Add On
4. USB Cable x2
5. Cable Add On
6. M2 Screw Set x 8
7. Spectralon (Gray material with 50% NIR reflection)

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 4 of 1211

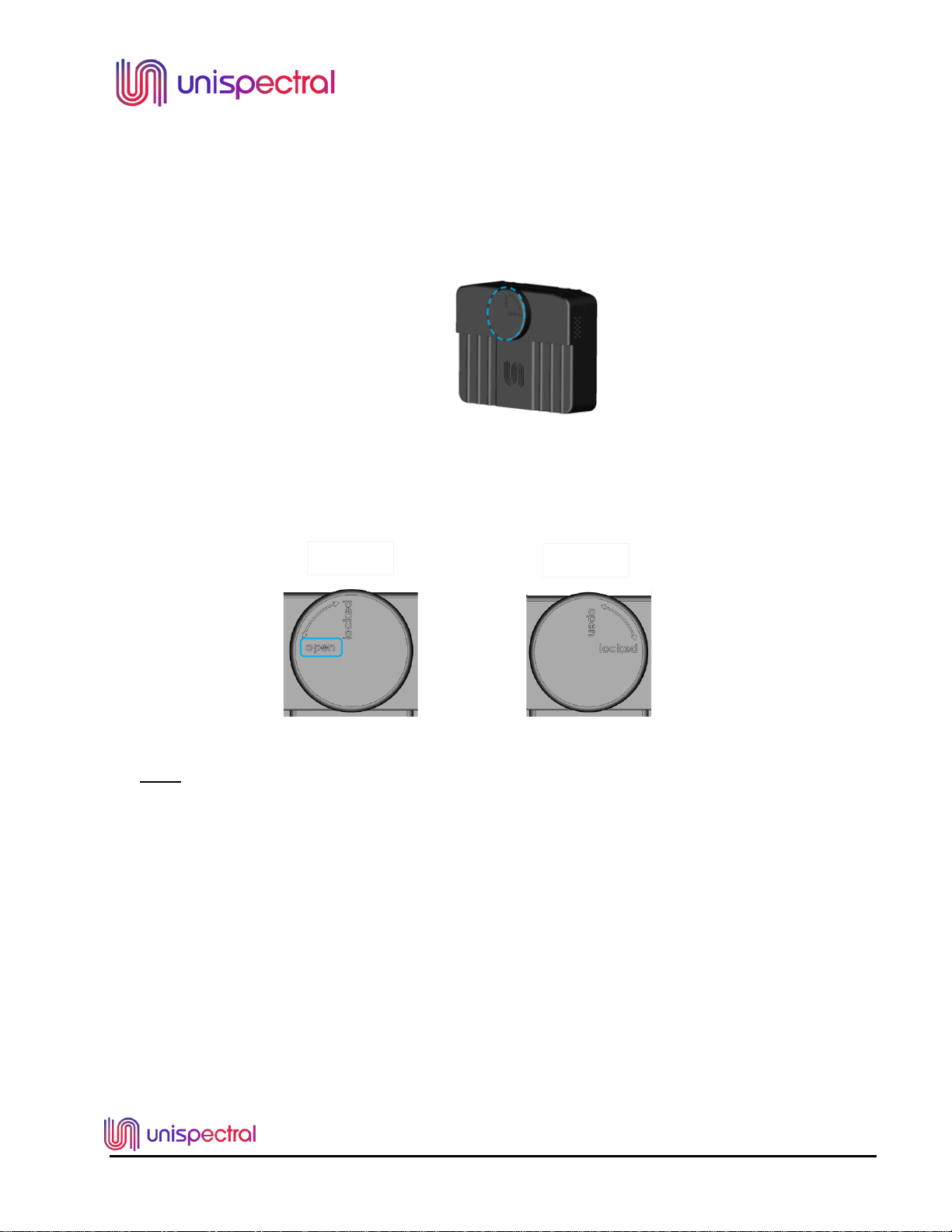

2. Lens cover
3.1 2.1 The new lens cover’s purpose is to protect the camera lens from dust
while the camera is NOT in use.
3.2 The cover should be removed only when using the camera.
3.3 lens cover removal instructions
•Open - Rotate the cover until the “open”sign is shown horizontally and pull out the cover.
•Lock –Insert the cover when the “open”sign is shown horizontally and rotate it to lock.
Note:
Please keep the cover in a safe place while it’s not attached to the camera.
Open
Locked

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 5 of 1211
3. Tripod Add-on Assembly Instructions
3.4 Insert the 4 short screws into the designated slots in the back of the Tripod Add On
3.5 Place the screws into the according threads in the back of the MONARCH camera and screw in
tightly.
x4 short
+
+

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 6 of 1211

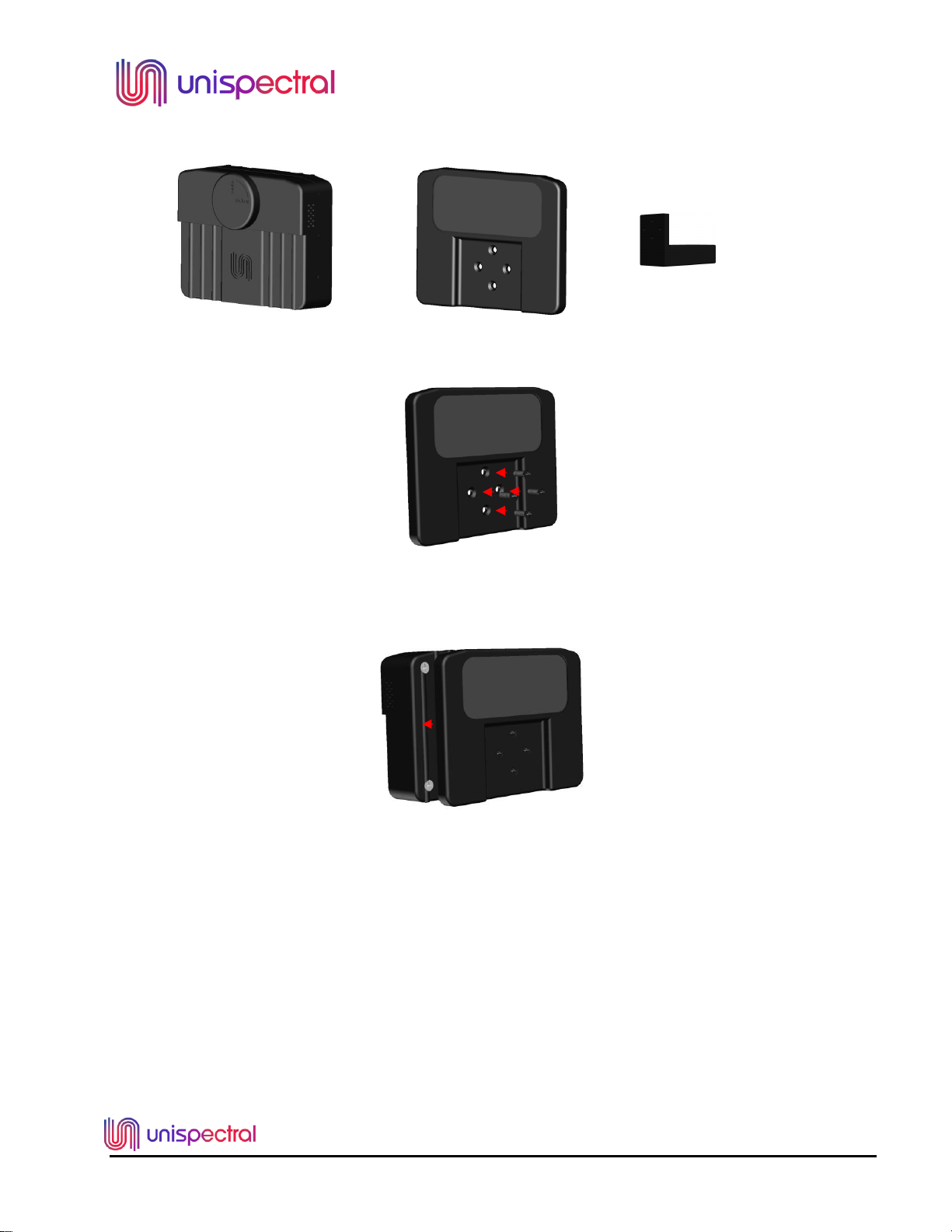

4. Mobile Phone Add-on Assembly Instructions
3.1 Insert the 4 short screws into the designated slots in the back of the Mobile Phone Add On.
3.2 Place the screws into the according threads in the back of the MONARCH camera and screw in
tightly.
+
x4 short
+

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 7 of 1211

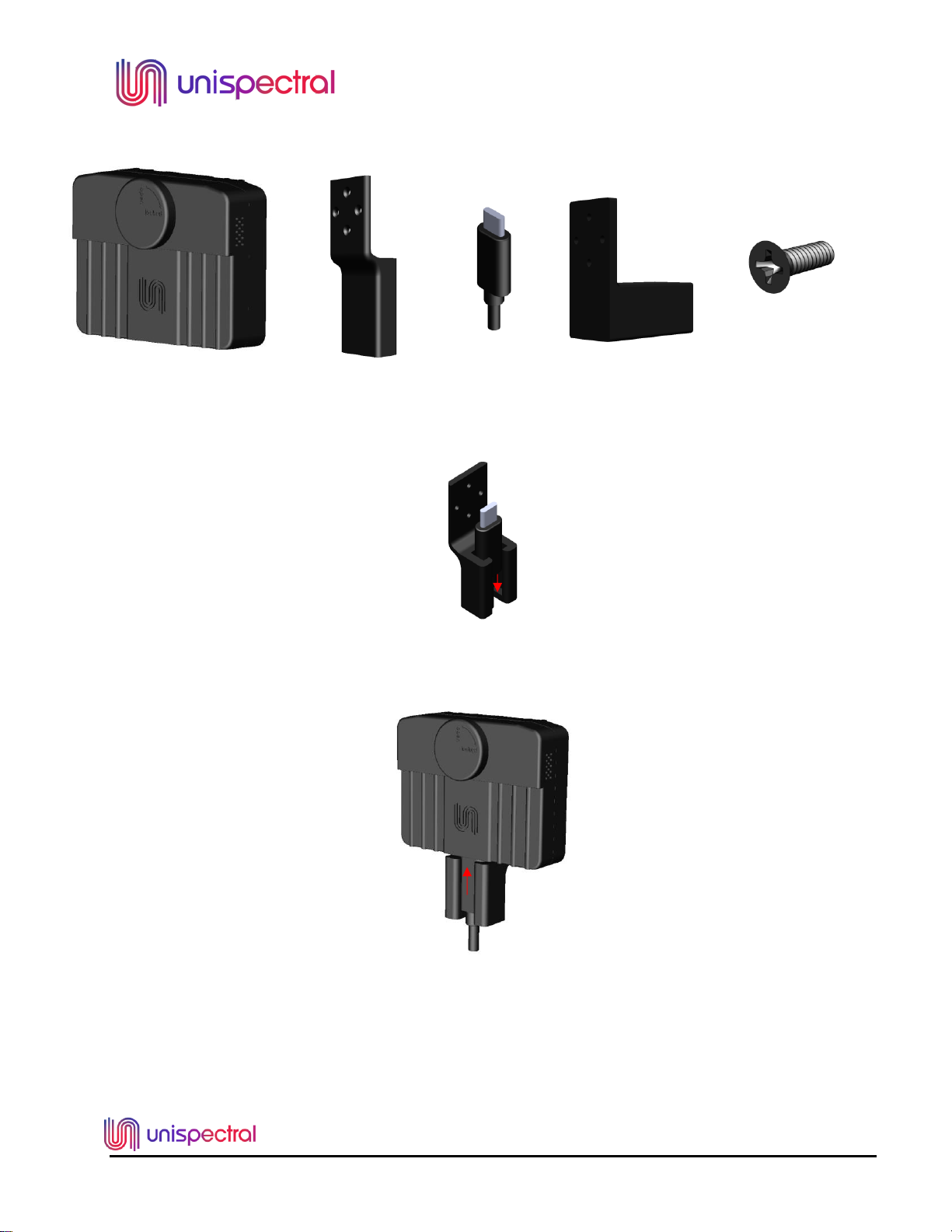

5. Cable Add-on Assembly Instructions
3.3 Place the USB cable in the designated slot in the Cable Add On, flat surface of the USB plug facing
up.
3.4 Connect the USB Cable while in the add on to the MONARCH Camera.
3.5 Insert the 4 short screws into the designated slots in the back of the Cable Add On, threading into
the MONARCH Camera threads, and screw in tightly.
+
+
+
+
x4 short

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 8 of 1211

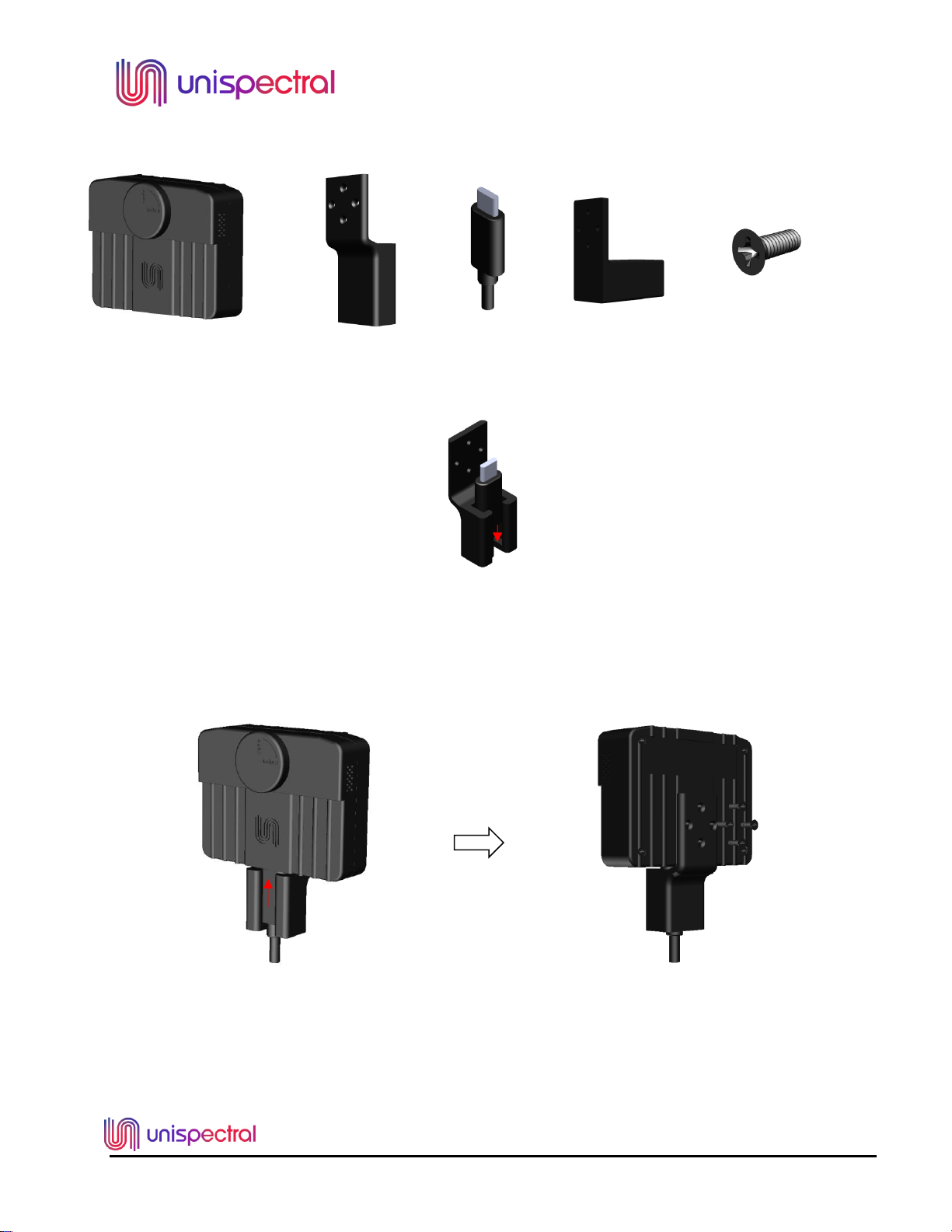

6. Tripod & Cable Add-Ons Assembly Instructions
5.1 Place the USB cable in the designated slot in the Cable Add On, flat surface of the USB plug
facing up.
5.2 Connect the USB Cable while in the add on to the MONARCH Camera.
+
+
+
+
x4 long

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 9 of 1211
5.3 Place the Tripod Add On top of the Cable Add On so the slots are aligned
5.4 Insert the 4 long screws into the designated slots in the back of the Cable Add On, threading
into the MONARCH Camera threads, and screw in tightly.

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 10 of 1211

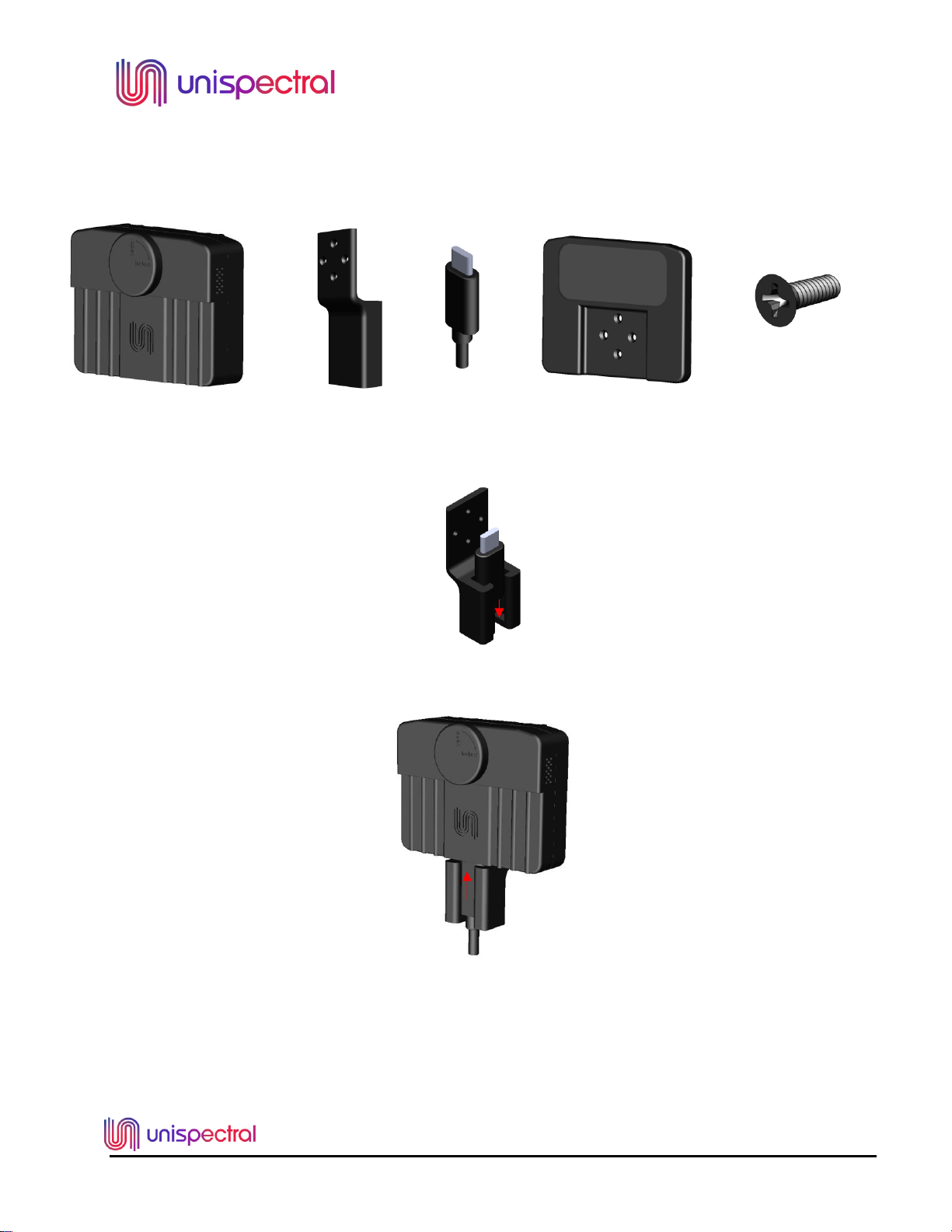

7. Mobile Phone & Cable Add-Ons Assembly Instructions
6.1 Place the USB cable in the designated slot in the Cable Add On, flat surface of the USB plug facing
up.
6.2 Connect the USB Cable while in the add on to the MONARCH Camera.
6.3 Place the Tripod Add On top of the Cable Add On so the slots are aligned.
+
+
+
+
x4 long

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 11 of 1211

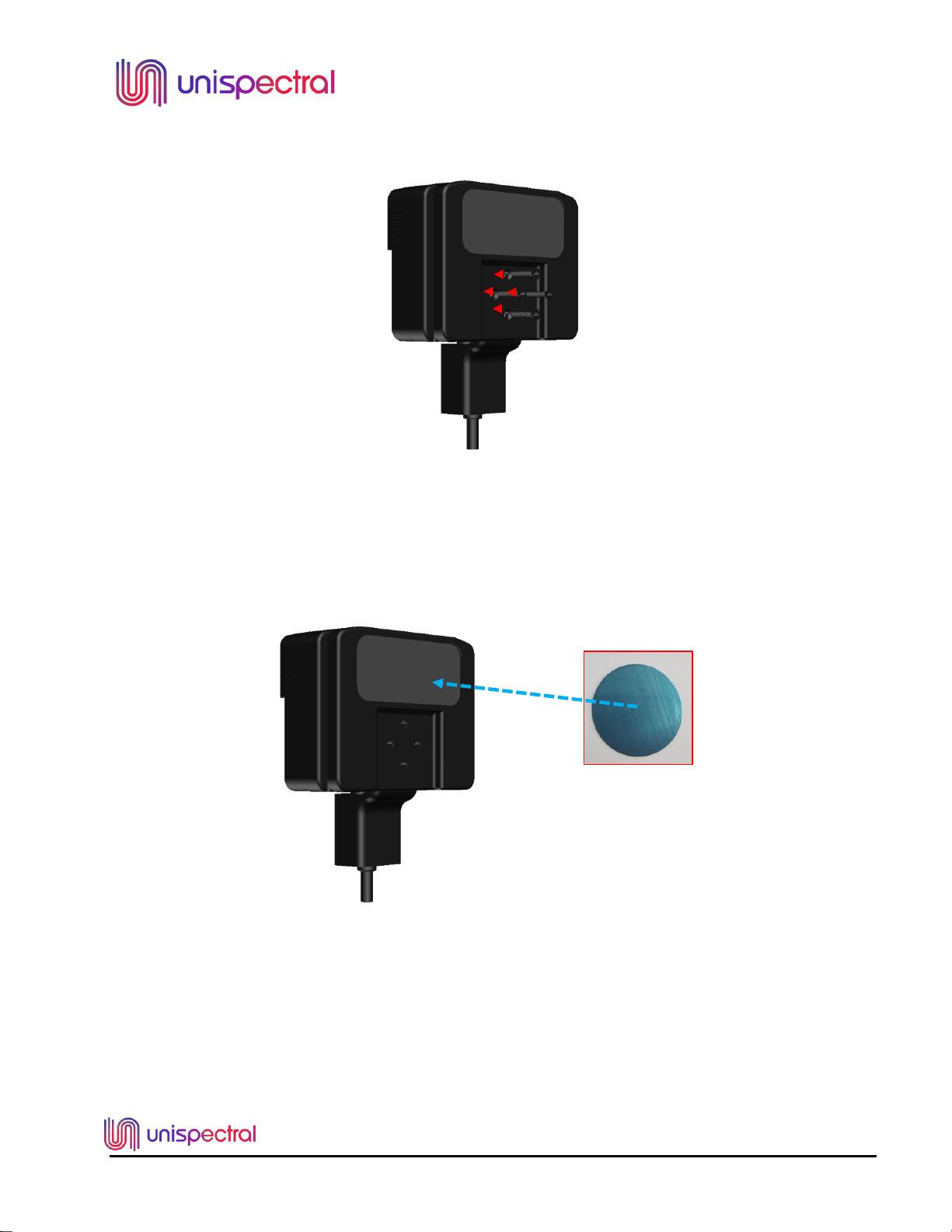

6.4 designated slots in the back of the Cable Add On, threading into the MONARCH Camera threads,
and screw in tightly.
6.5 Use the magnetic pads provided in the kit as a metal object to be attached to the magnet of the
Mobile phone Add-on.
6.6 You can attach it to the back of your mobile phone or any other surface that you would like to place
the camera.

Unispectral internal and confidential. Subject to NDA. © Unispectral 2021
Page 12 of 1211

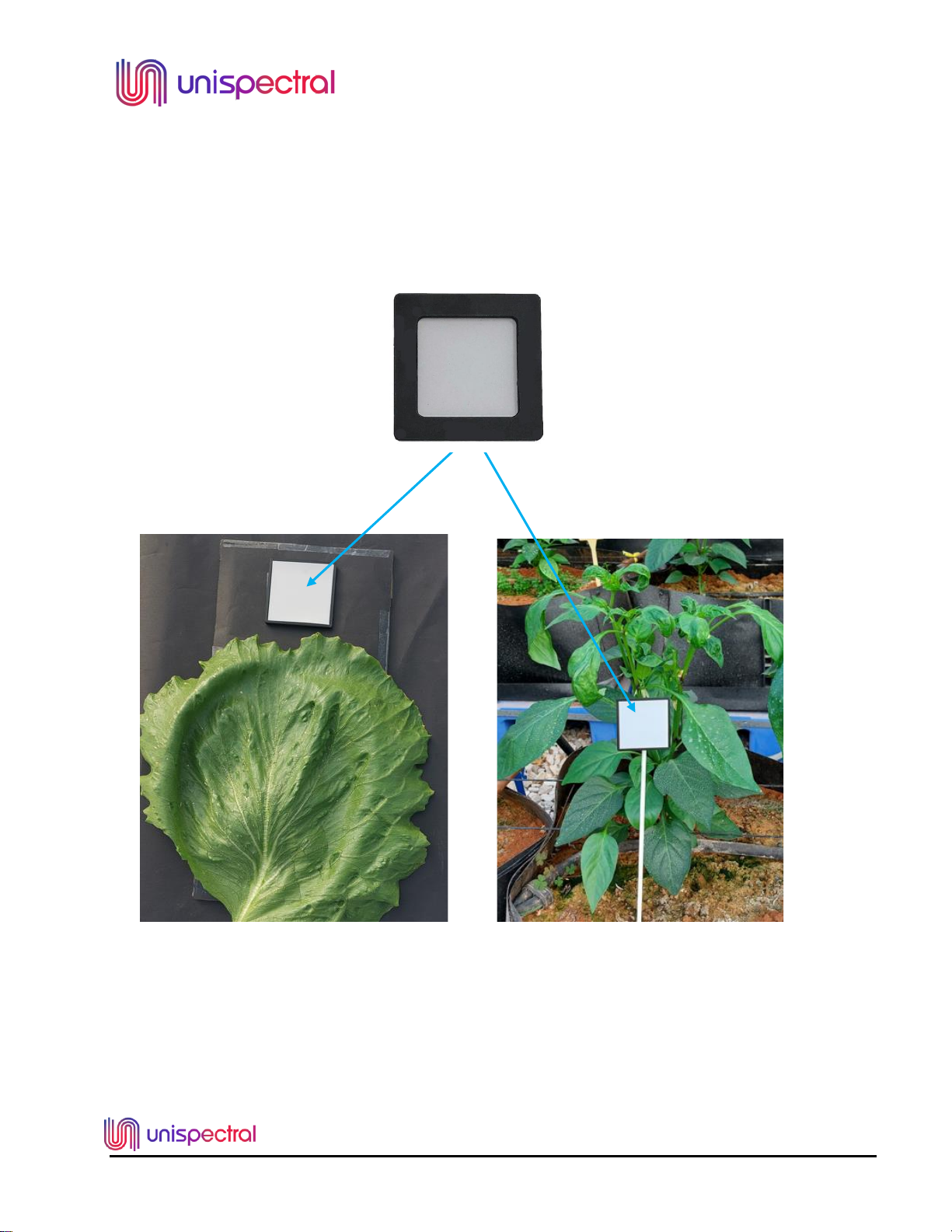

8. Spectralon Add-on
7.1 The gray Spectralon has 50% uniform reflection properties in the NIR range, it’s being
use as a white balance reference to calibrate the object spectral response according to the
illumination source reflection.
