1. HOW TO USE THE DSCR PROGRAMMER
Configuration file
1. Login to https://remote.uui-platform.com (if necessary, register a new account)
2. On the dashboard, select the product you wish to manage, e.g. the digital LNB.
3. To make a configuration file for the dSCR device, there are 3 options:
-Predefined configurations: select a predefined configuration for the device
-New configuration: make your own configuration
-Edit configuration: edit an existing configuration file
4. Complete the online form for the configuration file based on your project needs.
5. Download and save the configuration file on a SD card. Make sure only one
configuration file is stored on the SD card.
Configuring dSCR products
1. Power the dSCR Programmer with 18 Vdc minimum. You can use a powersupply with
a DC jack or an F-connector.
2. Insert the SD-card in the dSCR Programmer. When the dSCR Programmer detects the
configuration file, this is indicated with a solid GREEN LED. A blinking RED LED indicates
no SD card or no valid configuration file.
3. Connect the dSCR device (LNB, Multiswitch,…) to the dSCR Programmer using the
program port. Wait a few seconds to let the dSCR device fully boot (5 sec. approx.).
4. Tap the button on the dSCR Programmer for 2 seconds to start the configuration. The
status LED will blink ORANGE until configuration is finished. This can take a few
minutes. A successful configuration is indicated with a solid GREEN status LED. If the
status LED is solid ORANGE or there is no LED at all, the configuration did not succeed.
If the status LED is solid RED, the configuration file is not correct. In that case, check
the configuration file and retry the configuration.
5. To repeat the configuration, connect the dSCR Programmer to other dSCR devices.

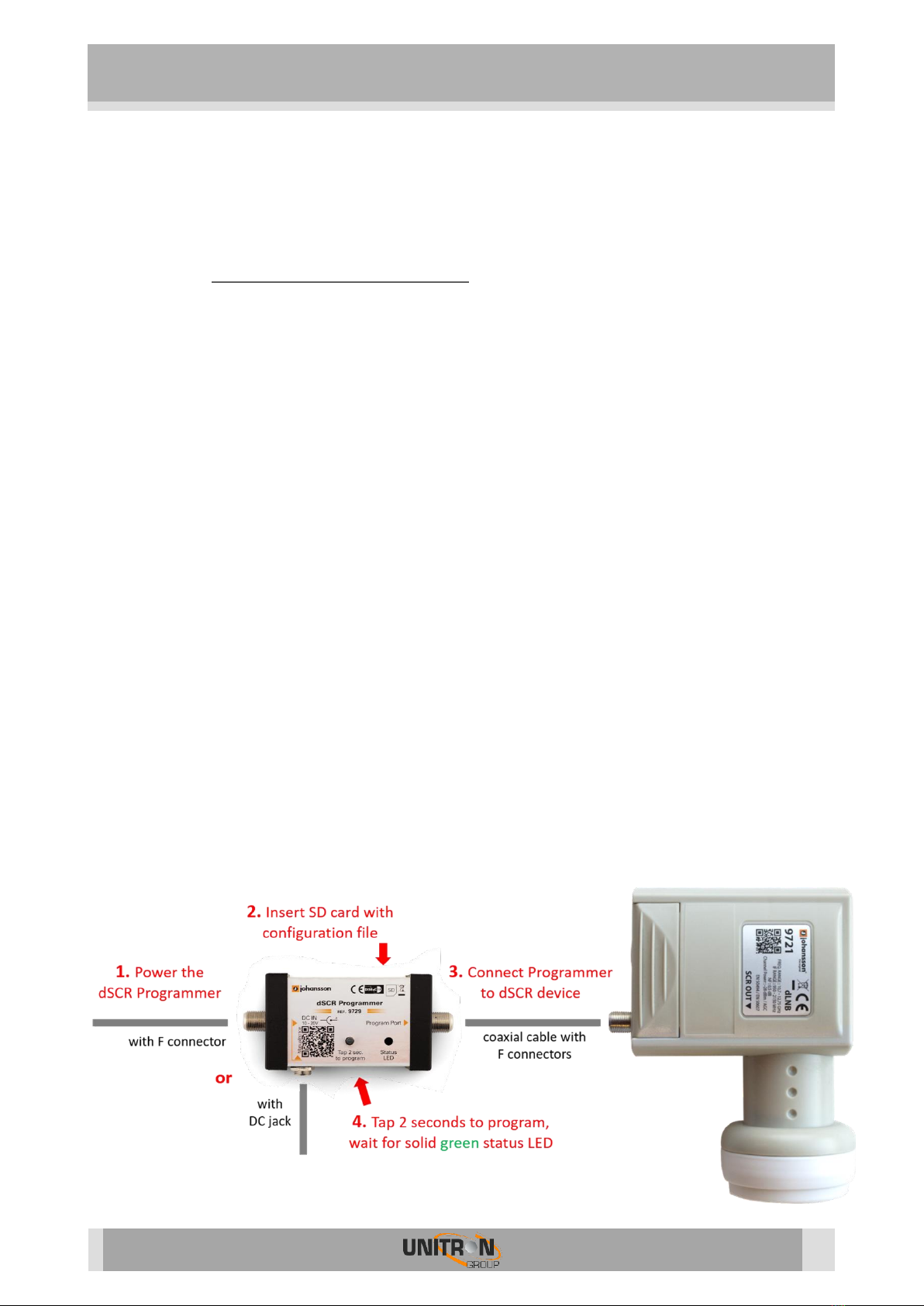

System diagram

dSCR Programmer Ref. 9729
4
2. CONFIGURATION FILE FOR DYNAMIC DIGITAL LNB

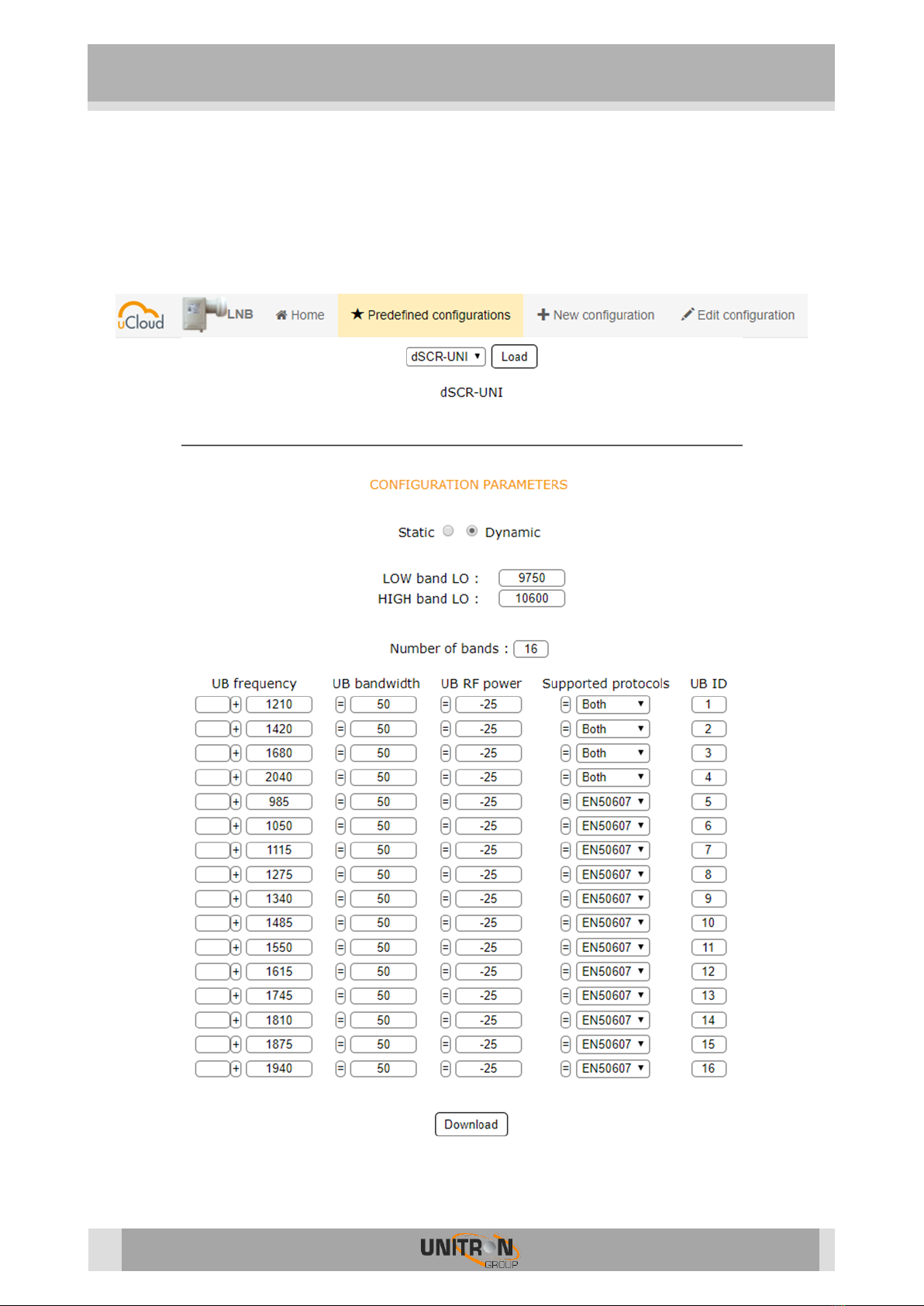

An example of a configuration file for a dynamic digital LNB can be found on the online
platform. Go to Predefined configurations and load dSCR-UNI. Click Download and save the file
to the SD card.

Wideband Splitter and Wideband Tap (Ref. 9655 - 9656) v1.0
5
3. CONFIGURATION FILE FOR STATIC DIGITAL LNB

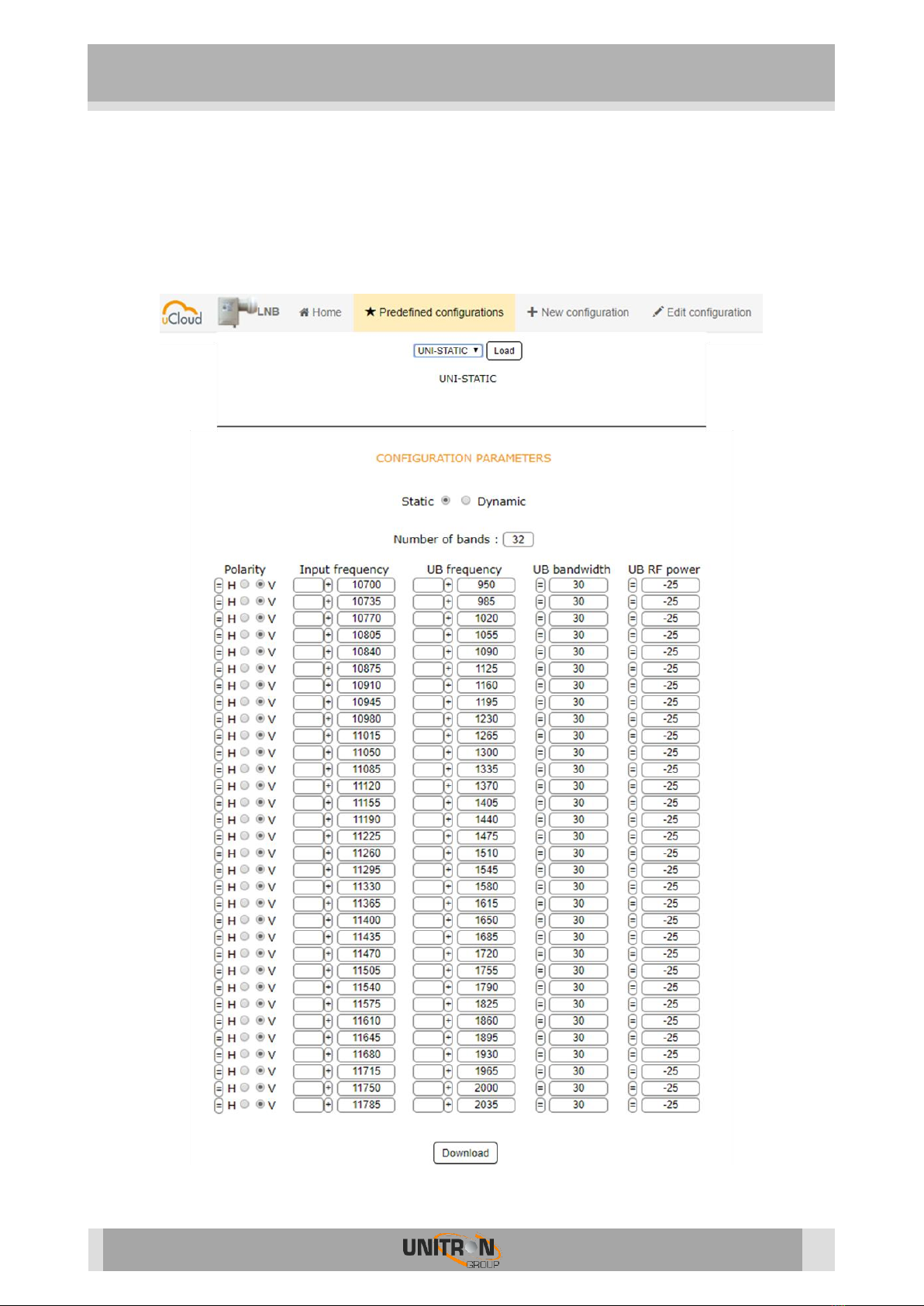

An example of a configuration file for a static digital LNB can be found on the online platform.
Go to Predefined configurations and load UNI-STATIC. Click Download and save the file to the
SD card.
