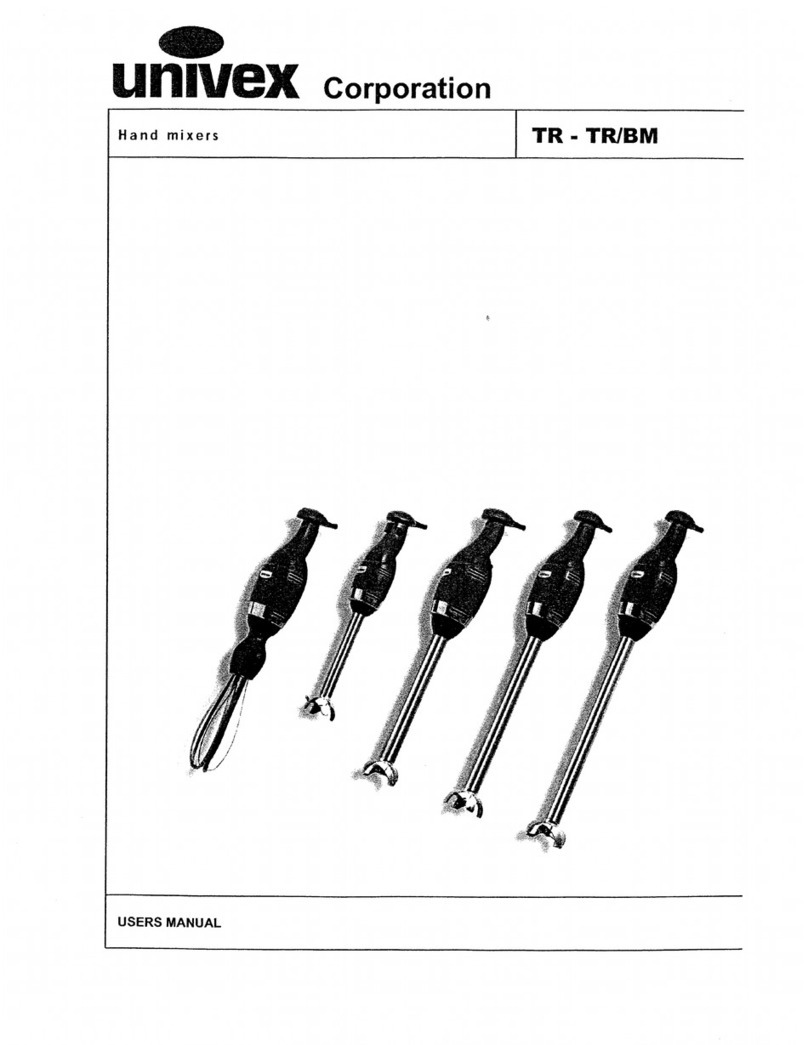

Univex TR/BM350 User manual

Project Item Number Quantity
_
________________________________ ______________________________ _______________
_
E
E
x
x
a
ac c
t
t
i
in n
g
g
S
S
t
t
a
an nd da a
r
r
d
ds s
,
,
J
J
u
us s
t
t
L
Li ik ke e
Y
Y
o
ou u
r
r
s
s
,
,
s
si in nc ce e
1
19 94 4
8
8
Univex Corporation HAND MIXERS TR250, TR350, TR550,
TR/BM350
WARRANTY DETAILS
Univex hand mixers carry a one-year, carry-in parts and labor warranty against any flaws in materials and workmanship. This period begins date of purchase and
provided the unit is used in accordance with our instructions, is in full effect for one year from that date. Any work performed under this warranty must be
performed between the hours of 8:00 a.m. and 5:00 p.m. local time, Monday through Friday. Univex will not pay for overtime charges for work performed other than
during normal business hours. Damage incurred in transit or from installation error, accident, alteration or misuse is not covered. Univex shall not be liable for any
consequential, compensatory, incidental, or special damages. Contact the Univex service department for any warranty claims.
Models:
 TR250: 250 Watt Complete Unit
 TR350: 350 Watt Motor Unit
 TR550: 550 Watt Motor Unit
 TR/BM350: Variable Speed Motor
Unit
Hand Mixers
TR250, TR350, TR550, TR/BM350
Features
• TR250: For containers up to a 30 quart
capacity. Constant speed (14,500 RPM).
Lightweight (4.1 lbs) for easy use. Comes
complete with 10 ½” immersion tube which
is not removable.
• TR350: For containers up to a 100 quart
capacity. Constant speed (14,000 RPM).
Accepts interchangeable immersion tubes
in 15” and 18” lengths.
• TR550: For containers up to a 200 quart
capacity. Constant speed (15,000 RPM).
Accepts interchangeable immersion tubes
in 15”, 18” and 21” lengths.
• TR/BM350: Variable speed model for
containers up to 100 quart capacity.
Accepts interchangeable immersion tubes
in 15” and 18” lengths, as well as a beater
attachment. Tube blade speed range is
1,000 to 11,000 RPM. Beater speed range
is 130 to 1
,
500 RPM.
Standard Accessories
• Each motor unit supplied with a bracket that
mounts to the wall and holds unit when not in
use.
• Model TR250 comes with a built-in 10 ½
immersion tube which is not removable.
Optional Accessories
 15” immersion tube (For models TR350, TR550,
TR/BM350
 18” immersion tube (For models TR350, TR550,
TR/BM350
 21” immersion tube (For model TR550 only)
 Beater arm (For model TR/BM350 only)
 Bowl Clamp
 Clamp sliding frame (Requires bowl clamp)
Warranty
• One-year, carry-in parts & labor warranty
Univex Corporation
www.univexcorp.com
3 Old Rockingham Rd Salem, NH 03079 USA
Tel. [phone] Fax: [phone]
Intl Tel. [phone] Int’l Fax: [phone]

Hand Mixers TR250, TR350, TR550, TR/BM350
E
E
x
x
a
ac c
t
t
i
in n
g
g
S
S
t
t
a
an nd da a
r
r
d
ds s
,
,
J
J
u
us s
t
t
L
Li ik ke e
Y
Y
o
ou u
r
r
s
s
,
,
s
si in nc ce e
1
19 94 4
8
8
Optional Accessories:
The following are available at an extra cost:
Bowl Clamp: Clamps mixer to the side of
the bowl for hands-free mixing. Also
mounts on clamp sliding frame
Clamp Sliding Frame: Spans bowl for
positioning bowl clamp in desired location.
(Bowl clamp sold separately.)
Printed
in the USA 01/07
Construction: Red plastic motor housing.
Stainless steel and aluminum tubes and
beater arm.
Hygiene and maintenance: No tools are
needed to remove or change the immersion
tubes or beater, which couple to the motor
with a simple twisting motion. (The tube the
model TR250 is not detachable.) All parts
wipe easily with soapy detergent. Motor
units must not be immersed.
Standard Equipment: each appliance is
supplied with a bracket that mounts to the
wall and holds the mixer when not in use.
Electrical: 120/50-60/1. Cord supplied.
A
lso available at no additional charge:
220/50-60/1.
Controls:
Model TR250: ON/OFF (locking) and
SAFETY buttons must be depressed
together to start operation. Mixer stops
when ON/OFF is released.
Model TR350 & TR550: ON/OFF and
safety buttons, plus a separate LOCK
button to maintain mixer operations.
Pressing ON/OFF releases this function.
Model TR/BM350: Same as TR350,
plus variable speed control dial.
MOTOR UNIT TR250 TR350 TR550 TR/BM350
AMax motor unit dia. 3 3/8” 4 5/8” 4 5/8” 4 5/8”
BTotal length with tube:
TR250 31 3/4" NA NA NA
15” TUBE NA 29” 29” 29”
18” TUBE NA 31 3/4" 31 3/4" 31 3/4"
21” TUBE NA NA 35” NA
BEATER ARM NA NA NA 27 3/4"
CMax motor height 11 3/4" 14” 14” 14”
Net weight 4.2 lbs. 5 lbs. 5.9 lbs. 5 lbs.
Shipping weight 5.3 lbs. 6.3 lbs. 7.4 lbs. 6.8 lbs.
TUBES & BEATERS 15” 18” 21” BEATER ARM
DLength 15” 18” 21” 13.75”
EBlade shroud dia. 4” 4” 4 1/2" NA
FDiameter 1 1/2" 1 1/2" 1 1/2" 4”
Net weight 1.5 lbs. 1.9 lbs 2.3 lbs. 1.9 lbs
Shipping weight 2.3 lbs. 2.7 lbs. 3.1 lbs. 2.7 lbs.
TR250 TR350 TR550 TR/BM350
MOTOR WATTAGE 250 W 350 W 550 W 350 W
SPEED Constant Constant Constant Variable
14,500 rpm 14,000 rpm 15,000 rpm Tube:1000-11,000 rpm
Beater: 130-1,500 rpm
MIXING CAPACITY 30 Quarts 100 Quarts 200 Quarts 100 Quarts
ACCEPTS IMMERSION Motor with integral 15” & 18” tubes 15” & 18” & 21” 15” & 18”
TUBES OR BEATER 10 1/2" tube only. Tubes tubes &
Beater arm
