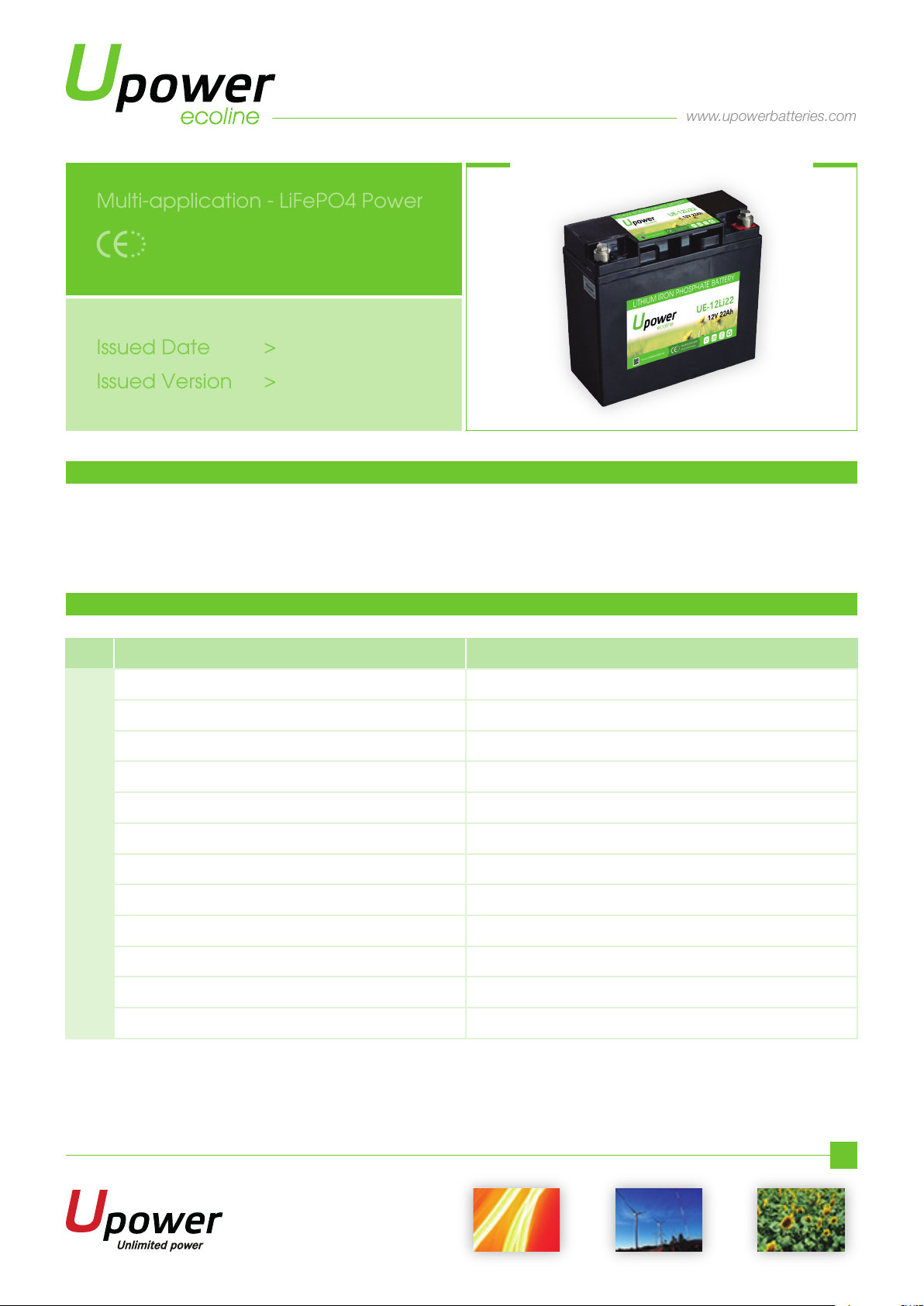

UPOWER Ecoline UE-12Li22 User manual

1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack UE-12Li22 manufactured by
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
Multi-application - LiFePO4 Power
UE-12Li22
LITHIUM IRON PHOSPHATE BATTERY
01
Issued Date > 2017-04-19
Issued Version > V00
NO. Items Description
22Ah
21Ah
0.2816KWh
Rated Capacity
Minimum Capacity
Energy
Floating charge voltage
Internal resistance
Limited charge voltage
12.8V
≥12.8V
13.8±0.2V
2
3
4
5
7
8
Nominal Voltage
Outgoing Voltage
≤50mΩ
14.6±0.2V
Standard charge current 12A9
Maximum charge current 15A10
Standard discharge current 15A11
1
Series parallel application6Series connection is prohibited
2. Specification (@Battery initial Temp25±5 °C )
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

UE-12Li22
02
NO. Items Description
Length: 165±2mm
Width: 76±2mm
Height: 181±2mm
Dimension
Self-discharge rate
Operating Temperature
Approx: 3.0±0.3Kg
Charging:0~45°C
Residual capacity:≤3%/month; ≤15%/years
16
17
18
Weight
Discharging:-20~60°C
Recommended operating temperature:15°C~35°C
Reversible capacity:≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range
Less than 1 month:-20°C~35°C，45% RH~75％RH
19
Less than 3 months:-10°C~35°C，45% RH~75％RH
Recommended storage environment:
15°C~35°C,45% RH~75％RH
15
Long time storage:
If the battery need be stored for a long time, the voltage should be 13.2V (50% SOC), and stored in the
condition as storage proposal. It need at least one charge & discharge cycle every six months
Maximum discharge current 30A12
Pulse discharge current Withstand the 55A/3s13
10V14 Discharge cut-off voltage
3. Test Condition
3.1 Standard Test Conditions
3.1.1 Unless otherwise specified, all performance tests is required conducted at temperature 25 °C ±2 °C ,
Humidity less than 45% ~ 75% RH.
3.1.2 Unless otherwise specified, the tested product is required unused within two month after outgoing.
3.2 Standard Charge Mode
"Standard Charge" means at 25±2 °C charge to limit voltage with 0.33C constant current, then charge with
constant voltage until current less than 0.02ItA.
3.3 Quick Charge Mode
"Quick Charge" means at 25±2 °C charge to limit voltage with 0.5C constant current, then charge with
constant voltage until current less than 0.02ItA.
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

UE-12Li22
03
4. Product Performance
NO. Items
Minimum Capacity2
3
-20°C
Testing Method
Rated Capacity122Ah
Criteria
Rest for 1 hour after fully charged, then discharge
with 0.33C current until the battery reaches the
discharge cutoff voltage. Repeat above process for
three times, if the discharge time is not less than 120
minutes, you can stop and define the Discharging
current*time value (Ah) as battery capacity.
21Ah
Discharge
Temperature
Characteristics
At 25±5°C discharge the battery with the current of
0.33C to the cut-off voltage and record charge
capacity. Store the battery at various temperatures
for 2h and discharge the battery with 0.33C to the
cut-off voltage.
0°C
25°C
55°C
≥70%
≥80%
≥100%
≥95%
Charge the battery to full capacity and store it for 28
days, and then discharge it with 0.33C to the cut-off
voltage.
Charge Retention
ability
Residual
capacity ≥80%
Internal resistance ≤50mΩ 50% battery SOC state frequency of 1 KHZ ac
resistance tester.
Discharge with the current of 0.33C until it can’t
discharge, and then rest it for 1h. Charge the battery
following CC (0.33C)/CV (14.6V) mode to full capacity,
and then rest it for 1h. Repeat above process until full
charged capacity is no more than 80% of normal
value. Accumulated times is defined as cycle life.
4Cycle life (DOD%100) ≥2500 cycles
5
6
Recovery
capacity ≥90%
3.4 Standard Discharge Mode
"Standard Discharge" means at 25±2 °C discharge to the cut-off voltage with 0.33C current.
3.5 Quick Discharge Mode
"Quick Discharge" means discharge to the cut-off voltage with 0.5C current.
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

UE-12Li22
04

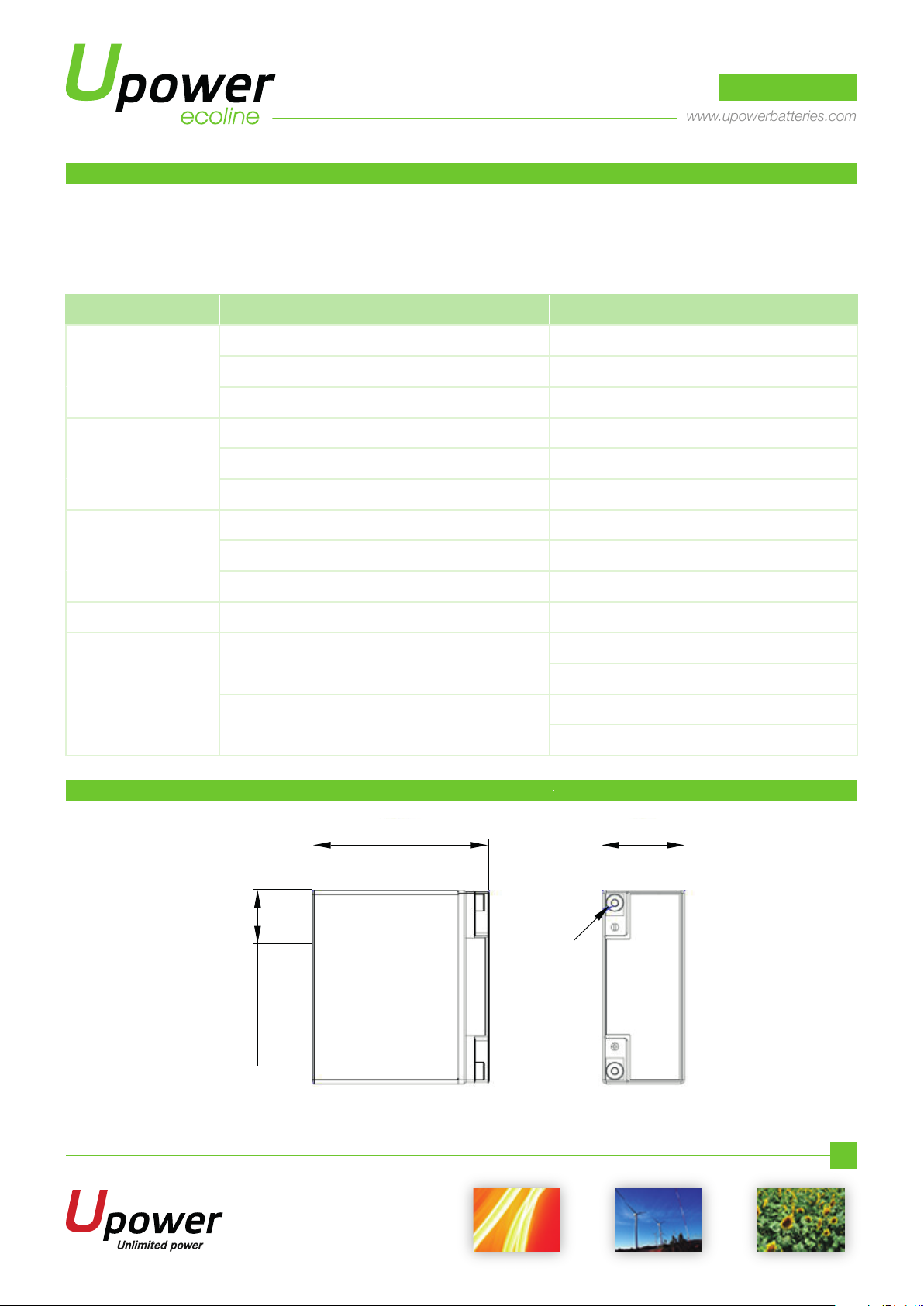

6. Dimensional Drawing
Items
Over-charge protection for each cell
SpecificationContent
3.80±0.0255V
Over charge Over-charge release for each cell 3.60±0.0255V
Over-charge release method Under the release voltage
Over-discharge protection for each cell 2.5±0.025V
Over discharge Over-discharge release for each cell 3.0±0.025V
Over-discharge release method Charge to recovery
Discharge over current protection 70~100A
Over current Protection delay time 100 - 200ms
Over current release method Delay about 30S after recovery
Battery
temperature
Charge over temperature
Protection @65±5°C
Discharge over temperature
Release @60±5°C
Protection @65±5°C
Release @60±5°C
Short circuit Do not short-circuit the electrodes Designed For 100A~200A /500us
181
M5
165 76
Unit: mm
5. Protective Circuit Specification
The batteries are supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimized
each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge,
short circuit. Overall, the BMS helps to ensure safe and accurate running.
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

UE-12Li22
05
7. Transportation
• Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be
created to protect the battery.
• Battery should be stayed in the warehouse 15ºC 〜35ºC where it’s dry, clean, shade and well-ventilated.
• The battery should be stored in 50% SOC during transportation.
• The battery need to be charged every 6 months if out of use.
• Keep the battery against dropping, turning over and serious stacking during loading.
8. Warning & Tips
Please read and follow the specification and caution remarks on battery surface before use the battery. Improper
use may cause heat, fire, rupture, damage or capacity deterioration of the battery. UPOWER, S.L. describes is not
responsible for any accidents caused by the usage without following our specification.
• The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time.
• Never throw the battery into water.
• Do not put the battery in a charger or equipment with wrong terminals connected.
• Never connect the positive and negative of battery with metal.
• Avoid excessive physical shock or vibration. don't hit, fall, stamp on the battery.
• Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery.
• Do not use the battery mixed with other different manufacturer, type, or model batteries.
• Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some
function and reduce the life.
• When battery run out of power, please charge your battery timely (≤15 day).
• Please use the matched or suggested charger for this battery.
• If battery emit peculiar smell, heating, distortion or appear any abnormity during working or storage, please stop
using and take it out from device.
• If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor
immediately.
• Please far away from children or pets.
• Do not put disuse battery into a fire or water.
• The battery pack supports up to 4 series-connected applications.
• Parallel connection of this battery pack is allowed under condition that voltage difference ≤0.2V,
parallel numbers ≤4 groups, and operated by professionals.
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

UE-12Li22
06
9. Battery Operation Instruction
9.1 Charge and discharge
9.1.1 Charging current:Do not surpass the largest charging current that specification stipulated.
9.1.2 Charging voltage:Do not surpass the highest limited voltage that specification stipulated.
9.1.3 Charging temperature:within temperature scope that specification stipulated.
9.1.4 Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous.
9.1.5 Special note:
Short time doesn't affect the use of the battery overcharge too, but for a long period of time over
discharge or over charge can affect the function of the battery failure, or the battery can't use permanent,
appear serious safety hazards, need long time floating please use the recommended floating model
specification. Battery when not in use for a long time, because of its own self-discharge characteristics
can also cause discharge, to prevent the occurrence of a discharge, battery should maintain a certain
capacity, maintain the voltage at 50% state of SOC.
10. Other Chemical Reaction
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a
long period of time without being used. In addition, if the various usage conditions such as charge, discharge,
ambient temperature, etc. are not maintained within the specified ranges, the life expectancy of the battery may
be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the discharge
time is much shorter than the normal after full charged, even battery is charged correctly, and this may indicate it is
time to change the battery.
