UPOWER Ecoline UE-48Li80 User manual

LITHIUM IRON PHOSPHATE BATTERY
Multi-application - LiFePO4 Power
UE-48Li80
Issued Date > 2017-12-01
Issued Version > V00
01
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack UE-48Li80 manufactured by
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack.
2. Specification (@Battery initial Temp25±5 °C )
NO. Items Criteria
80Ah
76.8Ah
3.84KWh
Rated Capacity
Minimum Capacity
Energy
Standard charge current
Internal resistance
Floating charge voltage
48~51V
50A
2
3
4
5
7
8
Nominal Voltage
≤20mΩ
51.7±0.2V
Maximum charge current 50A
9
10
Maximum discharge current 50A
11
Pulse discharge current 100A/Continuous for 8s
Discharge cut-off voltage 30.0~37.5V
1
Limited charge voltage
6
54.7±0.2V
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

3. Test Condition
3.1 Standard Test Conditions
3.1.1 Unless otherwise specified, all performance tests is required conducted at temperature 25 °C ±2 °C ,
Humidity less than 45% ~ 75% RH.
3.1.2 Unless otherwise specified, the tested product is required unused within two month after outgoing.
3.2 Standard Charge Mode
"Standard Charge" means at 25±2 °C charge to limit voltage with 0.62C constant current, then charge with
constant voltage until current less than 0.02C.
3.3 Quick Charge Mode
"Quick Charge" means at 25±2 °C charge to limit voltage with 0.62C constant current, then charge with
constant voltage until current less than 0.02C.
3.4 Standard Discharge Mode
"Standard Discharge" means at 25±2 °C discharge to the cut-off voltage with 0.62C current.
3.5 Quick Discharge Mode
"Quick Discharge" means discharge to the cut-off voltage with 0.62C current.
UE-48Li80
02
NO. Items Criteria
Length: 570±2mm
Width: 329±2mm
Height: 215±2mm
Dimension
Self-discharge rate
Operating Temperature
Approx: 43.5±1kg
Charging:0~45°C
Residual capacity:≤3%/month; ≤15%/years
13
14
15
Weight
Discharging:-20~60°C
Recommended operating temperature:15°C~35°C
Reversible capacity:≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range
Less than 1 month:-20°C~45°C，45% RH~75％RH
16
Less than 3 months:-10°C~35°C，45% RH~75％RH
Recommended storage environment:
15°C~35°C,45% RH~75％RH
12
Long time storage:
If the battery need be stored for a long time, the voltage should be 49.5V (50% SOC), and stored in the
condition as storage proposal. It need at least one charge & discharge cycle every six months
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

4. Product Performance
5. Protective Circuit Specification
The batteries are supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimized
each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge,
short circuit. Overall, the BMS helps to ensure safe and accurate running.
NO. Items
Minimum Capacity2
3
-20°C
Testing Method
Rated Capacity180Ah
Criteria
Rest for 1 hour after fully charged, then discharge
with 0.5C current until the battery reaches the
discharge cutoff voltage. Repeat above process for
three times, if the discharge time is not less than 120
minutes, you can stop and define the Discharging
current*time value (Ah) as battery capacity.
76.8Ah
Discharge
Temperature
Characteristics
At 25±5°C discharge the battery with the current of
0.5C to the cut-off voltage and record charge
capacity. Store the battery at various temperatures
for 2h and discharge the battery with 0.5C to the
cut-off voltage.
0°C
25°C
55°C
≥70%
≥80%
≥100%
≥95%
Charge the battery to full capacity and store it for 28
days, and then discharge it with 0.5C to the cut-off
voltage.
Charge Retention
ability
Residual
capacity ≥80%
Internal resistance ≤20mΩ 50% battery SOC state frequency of 1 KHZ ac
resistance tester.
Discharge with the current of 0.5C until it can’t dischar-
ge, and then rest it for 1h. Charge the battery following
CC (0.5C)/CV (54.7V) mode to full capacity, and then
rest it for 1h. Repeat above process until full charged
capacity is no more than 80% of normal value.
Accumulated times is defined as cycle life.
4Cycle life (DOD%100) ≥2500 cycles
5
6
Recovery
capacity ≥90%
03
UE-48Li80
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

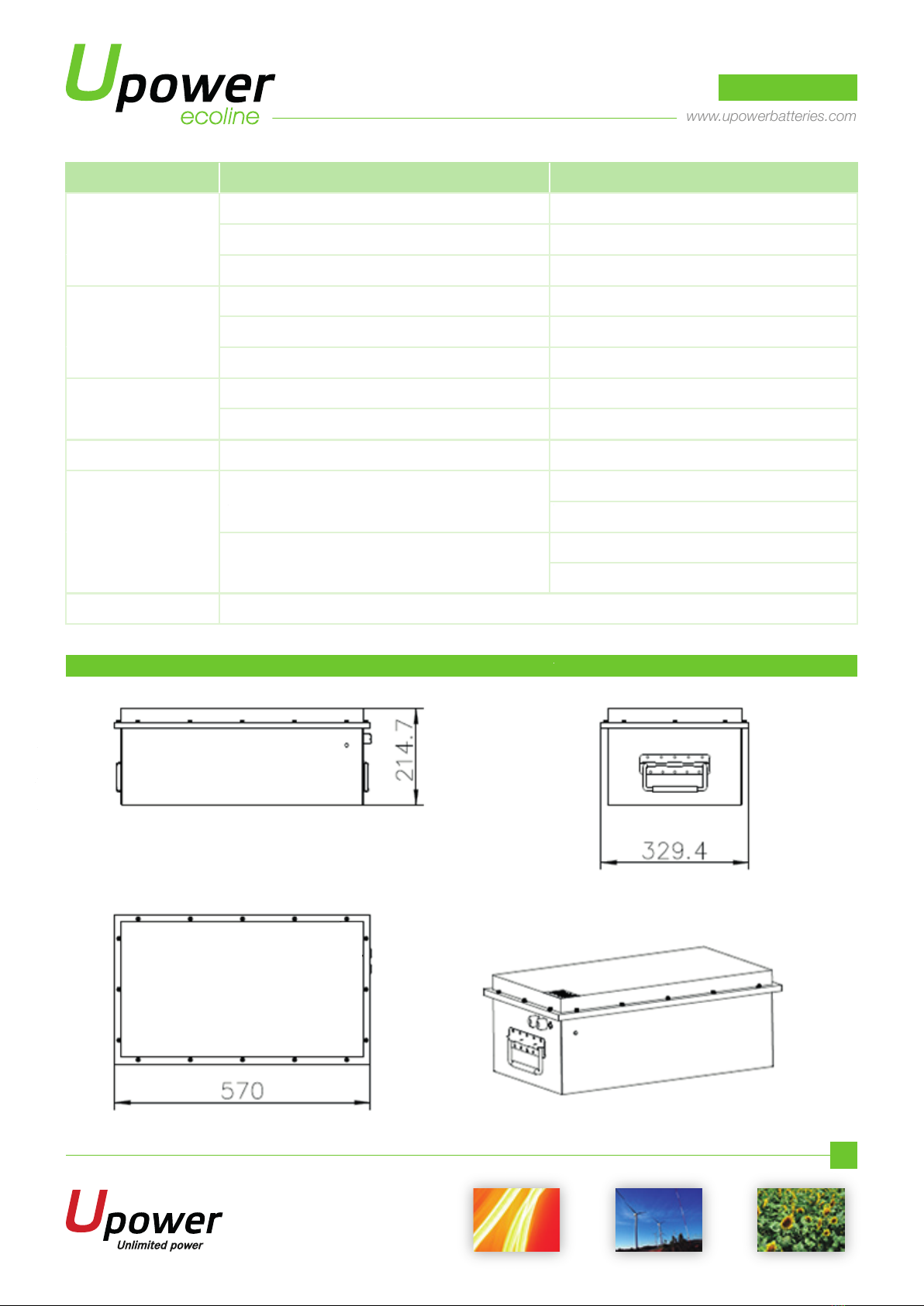

6. Dimensional Drawing (Unit: mm)
04
UE-48Li80
Items
Over-charge protection for each cell
SpecificationContent
3.9±0.05V
Over charge Over-charge release for each cell 3.6±0.05V
Over-charge release method Under the release voltage
Over-discharge protection for each cell 2.0±0.1V
Over discharge Over-discharge release for each cell 2.7±0.1V
Over-discharge release method Charging recovery
Discharge over current protection 160±10A，delay 300±100ms
Over current
Over current release method Release after cutoff the load
Battery
temperature
Charge over temperature
Protection @85±5°C
Discharge over temperature
Release @70±5°C
Protection @85±5°C
Release @70±5°C
Short Available Release after charge
Static power Since the power consumption ≤20mA; After discharge protection ≤250uA
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. [phone]
Fax. [phone]
[email protected]

7. Transportation
• Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be
created to protect the battery.
• Battery should be stayed in the warehouse 15ºC 〜35ºC where it’s dry, clean, shade and well-ventilated.
• The battery should be stored in 50% SOC during transportation.
• The battery need to be charged every 6 months if out of use.
• Keep the battery against dropping, turning over and serious stacking during loading.
8. Warning & Tips
Please read and follow the specification and caution remarks on battery surface before use the battery. Improper
use may cause heat, fire, rupture, damage or capacity deterioration of the battery. UPOWER, S.L. describes is not
responsible for any accidents caused by the usage without following our specification.
• The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time.
• Never throw the battery into water.
• Do not put the battery in a charger or equipment with wrong terminals connected.
• Never connect the positive and negative of battery with metal.
• Avoid excessive physical shock or vibration. don't hit, fall, stamp on the battery.
• Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery.
• Do not use the battery mixed with other different manufacturer, type, or model batteries.
• Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some
function and reduce the life.
• When battery run out of power, please charge your battery timely (≤15day).
• Please use the matched or suggested charger for this battery.
• If battery emit peculiar smell, heating, distortion or appear any abnormity during working or storage,
please stop using and take it out from device.
• If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor
immediately.
• Please far away from children or pets.
• Do not put disuse battery into a fire or water.
• It is strictly prohibited any series between the battery packs. Any requirements on serials connection,
please contact UPOWER, S.L. for details.
05
