urmet domus 1093/701 User manual

DS1093-529
Mod.
1093
DS1093-529
IP KEYBORD
Ref. 1093/701
USER MANUAL
5

DS1093-529
TABLE OF CONTENTS
1ProductFeatureS..................................................................................................................3
1.1 Opening the package...........................................................................................3
1.2 Warnings..............................................................................................................4
2Panel and Interface Introduction ........................................................................................5
2.1 Front panel and function buttons introduction .....................................................5
2.2 Rear panel interface introduction.........................................................................5
3Keyboard function introduction.........................................................................................6
3.1 Connection...........................................................................................................6
3.2 Power on and add device.....................................................................................6
4Manually add device............................................................................................................7
4.1 PTZ control and image switch..............................................................................8
4.2 Direction control ...................................................................................................8
4.3 Zoom....................................................................................................................8
4.4 Lens control..........................................................................................................8
4.5 Preset operation instruction..................................................................................9
4.6 Special function..................................................................................................10
4.7 Language...........................................................................................................11
4.8 Fig.7...................................................................................................................11
4.9 LED Display .......................................................................................................11
4.10 IP address..........................................................................................................11
4.11 Exception Handing.............................................................................................12
5TechnicalSpecification......................................................................................................13
ENGLISH

DS1093-529
1 PRODUCTFEATURES
This network control keyboard is a powerful three-dimensional with multi-function.
It supports:
5.0 "LED LCD HD real-time display
HDMI output
USB
ONVIF2.4
back-end PTZ.
OSD menu;
1.1 OPENING THE PACKAGE
Check that the packing and the contents are not visibly damaged. Do not attempt to work the unit if
components are missing or damaged. Contact the retailer immediately. Pack the unit in it original packing if
it needs to be replaced.
1.1.1 CONTENTS OF THE PACKAGE
1 keyboard.
1 user’s manual.
1 power supply unit
Important note:
Accessories may be changed without prior notice.

DS1093-529
1.2 WARNINGS
1.2.1 POWER
This device is powered in the range from 100 to 240 VAC. Check the power voltage before
connecting.
Use of an URMET Domus power unit with the required specifications is recommended.
Do not pull the cable to unplug the device.
Important note:
Inverting the polarity may damage the keyboard.
1.2.2 SAFETY PRECAUTIONS
Keep the device away from rain and humidity to prevent the risk of fire and electrocution.
Do not introduce solids or liquids inside the device to prevent the risk of fire and electrocution. If
this should accidentally occur, disconnect the device from the mains and have it inspected by
qualified personnel.
Never open the device. In all cases, contact qualified personnel or the service centre for repairs.
1.2.3 INSTALLATION PRECAUTIONS
Arrange the device in a well-ventilated place to prevent overheating.
For the same reason, do not install sources of heat, such as radiators or hot air ducts. Keep away
from direct sunlight. Do not install in areas subject to excessive dust, mechanical vibrations or
shocks.
Consider the working temperature of the unit (from 5°C to 45°C) and humidity range (from 10% to
90%) before choosing the installation location. High differences in temperature with respect to the
specified working temperature range can damage the unit. Do not install the unit over another unit
which generates heat.
Wait for a while before operating a device immediately after transporting it from a cold place to a
warm place and vice versa. Wait on average for three hours: this will allow the device to adapt to
the new ambient (temperature, humidity, etc.).
Do not arrange this device on an unstable surface, such as a tottering or slanted table. The device
could fall causing injury or mechanical failures.
Do not install the device in a place where it could be exposed to humidity or water. Do not direct a
jet of water onto the device: risk of fire, electrocution or mechanical failure.
Stop using the device if water or other material should penetrate inside: risk of fire and
electrocution. Contact the retailer or authorised installer.
1.2.4 CLEANING THE DEVICE
Rub delicately with a dry cloth to remove dust and dirt.
Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth alone.
Do not use volatile liquids (such as petrol, alcohol, solvents, etc.) or chemically treated clothes to
clean the device to prevent deformation, deterioration or scratches to the surface finish.

DS1093-529
2 PANEL AND INTERFACE INTRODUCTION
2.1 FRONT PANEL AND FUNCTION BUTTONS INTRODUCTION
Fig.1
2.2 REAR PANEL INTERFACE INTRODUCTION
Fig.2
Input power : DC12V/2A
Reserved output interface:RS485 (not available)
Power indicator
④USB interface : it is available for connecting mouse to operate network keyboard
⑤RJ45 network interface : through the IP switch to access network
⑥HDMI interface :Used for connecting HD Screen to realize synchronous switch between
keyboard LED and the HD Screen

DS1093-529
3 KEYBOARD FUNCTION INTRODUCTION

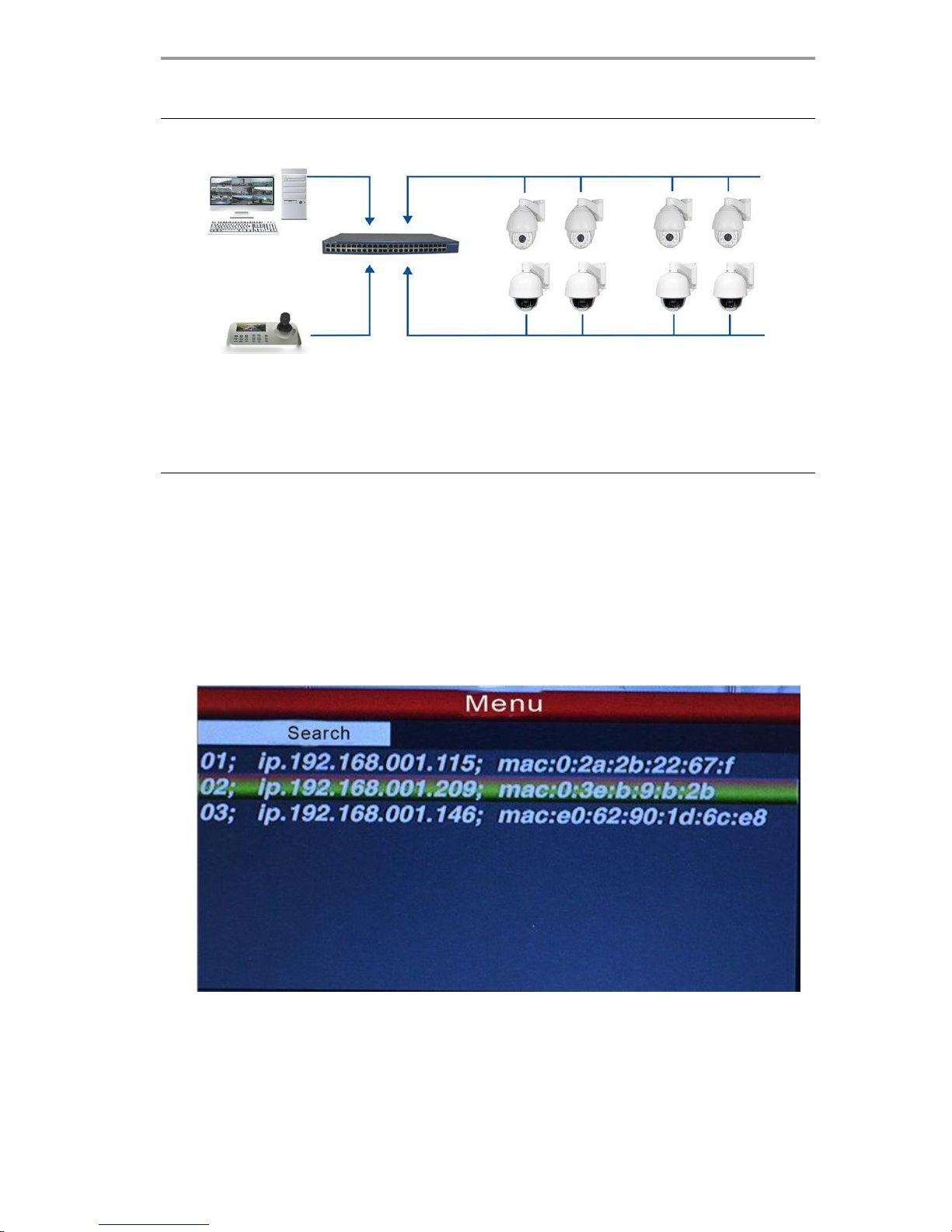

3.1 CONNECTION
Fig.3
As above picture shows, ensure the keyboard in the same LAN with the devices.
3.2 POWER ON AND ADD DEVICE
3.2.1 ADD DEVICE WAY UNDER POWER ON
When the keyboard is powered on normally, the automatic search IP interface will pop up 60min later,
as below:
After IP search finished, the user can move up and down the cursor by joystick, select IP device
needed to access device, press ”Enter” then can save the device and display the corresponding IP
image; when the screen displays image normally, then can be realized to control PTZ of the front
dome.
Fig.4
Remark: The keyboard supports power-off memory function. If re-power the keyboard and after
finish self-test, it will be restored the IP image as previous power-off.

DS1093-529
3.2.2 AUTOMATIC SEARCH AND MANUALLY ADD DEVICE
After the network keyboard connected to the front-end device, then press “Menu” on keyboard
panel, then will pop up main menu interface as below:
Fig.5
Choose the “device management”, click “Enter” to the next sub-menu, select “search add”
and confirmation. Please move the cursor to the top to select ”search” and click “enter”,
then can search and add automatically in the network PTZ of all area network. Select the IP
address of the image, press ”Enter ”to save the corresponding image an d displayed.
4 MANUALLY ADD DEVICE
When access to other manufacturer’s PTZ, because of the limit of the port and PTZ log-in
password ,there will exist that IP can’t complete add automatically, then can us manually
add function now, the operation as below:
Click the “Enter”, select “device management”, “manual add”, enter to the following interface:
Fig.6

DS1093-529
On the keyboard interface, input and fill in “IP address, port, name, password”, then press
confirmation , then can display and save corresponding IP images.
Remark: 1. please check IP port, password and other information before manually add IP
address.
Remark 2. “Menu” button is also the return button.
4.1 PTZ CONTROL AND IMAGE SWITCH
4.1.1 IP CHANNEL SWITCH
As shown above figure 4, the user can switch image channel by the corresponding S/N with
the left of IP address list.
Press “ ”button under normal image display, and choice the corresponding S/N with
the left of IP address list. Keyboard will switch into the corresponding IP address when you
press “ ”button. For example, switch into above figure 192.168.1.145 as the following way:
Please press “ ”button; and press “No.3”; last press “”.
Remark: Image switching except through the keyboard shortcut also can be introduced into
products through equipment management. Please select the corresponding IP address and press
“Enter” to save to come true.
4.1.2 ROCKER OPERATION AND LENS CONTROL
On the right side of keyboard, it’s 3D vector rocker. User can easy to control PTZ and speed.
4.2 DIRECTION CONTROL
User can pass moving rocker to control PTZ in different direction: left, right, up, down, up left,
down left, up right, down right, rotate.
4.3 ZOOM
Zoom in: Rotating vector rocker in right direction to make the lens closer. Zoom out:
Rotating vector rocker in left direction to make the lens farther.
4.4 LENS CONTROL
Six buttons to control lens: FOCUS+, FOCUS- ; ZOOM+, ZOOM-; IRIS+, IRIS-. These are used for
focus, zoom and iris.
1. Focus: adjusting the focus distance. It can manually adjust image
via “FOCUS+, FOCUS-”buttons. (Default of camera module is automatic adjustment)
2. Zoom: adjusting the lens distance. It realizes zoom in and out.
3. Iris: Iris function means change the value of F to make image realize
bright or dim by manually adjust . (Default of camera module is automatic cursor, it is not

DS1093-529
available.)
4.5 PRESET OPERATION INSTRUCTION
Preset instruction
Preset function means that store camera state (horizontal angle, tilt angle and lens spec) .It
can realize recover the setting state in advance and call it.
4.5.1 SET PRESET
Rotating PTZ into the target monitored position. Press setting button “ ” and choice preset
point, for example: “ ” and press “ ”button to finish preset setting.
Remark: 1. Preset point will replace the previous recording if you save the same preset number
as the previous saved point.
2. It’s no relate to save the quantities of presets , it is based on the front device specification .
4.5.2 CALL PRESET
Please check if the preset point is successfully saved before you call preset. Otherwise, the
operation is vain. Operation way as below:
1. Press “ ” button ;
2. Input the preset number ;
3. Press“ ” button. PTZ will automatically return to the preset point in advance.
4.5.3 DELETE PRESET
1. Press “ ” button;
2. Input the preset point which one do you want to delete;
3. Press “ ” to delete preset point.

DS1093-529
4.6 SPECIAL FUNCTION
PRESET
FUNCTION
PRESET
FUNCTION
x
1080P N
x
vettorscan 2
xx
1080P P
x
Patteners1
xx
720P N
x
A-B Scan
xx
720P P
x
XXXX
x
Vectorscan 1
x
XXX
Remark: Please be noted that the special functions only for our controller. Since different
control equipment have different protocol, if use some other controller, some special
functions probablycan’t be effective.

11

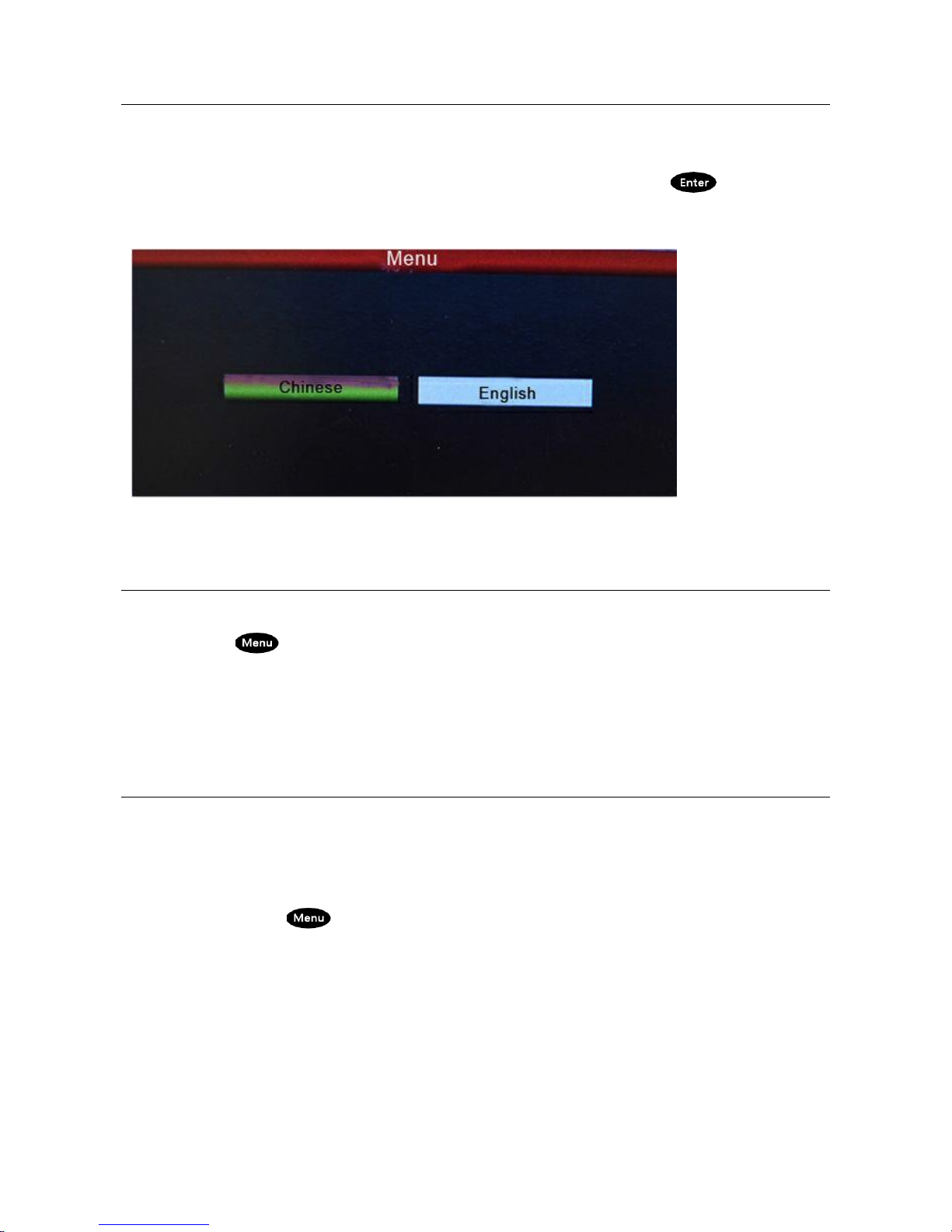

4.7 LANGUAGE
There is onlyEnglish Language, don’t select Chinese
Enter to the Main OSD and choice the Language you need, press the button“ ”,then it would
be save it automatically.
As below picture show:
4.8 FIG.7
4.9 LED DISPLAY
This Keyboard controller with the 5” LED Display,and Supports Main Stream and Sub-Stream for optional.
Press the button “ ”Enter to the Main OSD，find the “System”item and choice the “Main Stream”or “Sub Stream”
,press “Enter”
Remark: LED Display could supports the Sub Stream of 4.0MP and above device,but can’t with Main
Stream.
4.10 IP ADDRESS
The Default IP address of the keyboard is “192.168.1.2”
The IP address of the camera and keyboard must be in same Network Segment ,and can’t be same
address ,or there will be no image of the keyboard
Change the IP address of the Keyboard：
Press the button“ ”enter to the main OSD and then fine the “Network”，type into the IP address
you want.press the “Enter” to save it.after the keyboard auto-reboot,it’s changed Successful.
Remark:The new IP address must be in same network segment with the camera.

DS1093-XXX 12
4.11 EXCEPTION HANDING
Issue
Possible Reason
Solution
Can’t add the Device
The conflict IP address with the IP
camera
Change any one IP address of
the keyboard or camera
Can’t run the Tour
The command is inconsistent
with the actual
Confirm that the command is
same as above 2.5 item
instructionshow
Auto Reboot
Input power voltage is too low
Change it with the correct power
supply
Get the IP address ,but
can’t add the Device
The cursor has been stuck in the
search,when you add the
device,thekeyboard research
again
Move the Cursor to the IP
address to confirm which one
you want to add it
After Power is
applied,there is no working
1. Power supply doesn’t work；
2. The master board of keyboard
is broken
1. Change a new power supply
2. Contact factory for
maintenance
Controlinsensitive
Differences between different
manufacturersprotocol
compatible
Contact factory technical to
upgrade the software
No Image
Access devices with higher
resolution, does not support more
than 1920 * 1080
Change the keyboard Stream as
Sub Stream

DS1093-XXX 13
5 TECHNICALSPECIFICATION
Model Name
Network keyboard controller
Model
BT-1008W
Control Mode
Network
ControllableDevice
Network High Speed Dome, High Speed Dome
Screendisplay
5.0" HD LED Display
Interface
1 RJ45, 2 RS485( reserved ), 1 DC12V, 1HDMI output, 1 USB port
Ambient Temp.
-20°~55°
Power Supply
DC12V/2A
ONVIF
ONVIF2.4
Joystick
Three-dimensionaljoystick
Language
Chinese/English
Access Device No.
No upper limit（display by single picture）
Image Switch Mode
Serial number or mouse
ProductSize
260mm*160mm*48mm
Weight
Gross: 1.52KG / Net:1.0KG
Carton Size
300mm*210mm*160mm

DS1093-XXX 14
DS1093-529
URMET S.p.A.
10154 TORINO (ITALY)
VIA BOLOGNA 188/C
Telef. +39 011.24.00.000 (RIC.AUT.)
Fax [phone] - 323
Area tecnica
servizio clienti +39 011.23.39.810
http://www.urmet.com
e-mail: [e-mail]
MADE IN CINA
