URUAV UZ80 User manual
Camera mount holder
M1 2 5.
Canopy
M1 4 3.
Damping ball
M2 10
Tools not include in the package
1.Install the camera to the mount holder with M1.2x5, you can put
some hot melt glue to fixed the camera
2.Install the camera and mount holder to the canopy with M1.3x4
screws
3.Install the motors to the frame with M1.4x3 screws 4.Motor directioan
M2 motorM4 motor
M1 motor
M3 motor
Tools needed and spare parts list
UZ80 kit assemble steps
M1 3 4.
UZ80 Flysky version bind procedure:
(Receiver mode "A7105_FLYSKY_2A" and choose
"AFHDS2A" for your radio transmitter
Press and hold the bind button for 1 second ,then plug
USB, the Red LED at the bottom of the flight controller will
blinking
fast , this indicate the receiver is in bind mode.
Make your Flysky transmitter get into bind mode . If bind
is successful the red led will getting to be solid.
UZ80 Frsky version bind procedure:
(Receiver mode "Frsky_D" and choose "Frsky D8" for your
radio transmitter)
Plug USB and then press the bind button for 1 second ,the
Red LED on the top of the
flight controller will getting to be solid , this indicate the
receiver is
in bind mode. Or Plug USB and then connect betaflight
configurator. Go to CLI command then enter "frsky_bind",
the receiver would get into bind mode too. Make your Frsky
transmitter get into bind mode . If bind is successful the red
LED will starting to blink. The red LED wouldn’t blinking
when binding with some new ACCESS firmware frsky radio ,
but the bind is actual successful , need to go to CLI
command and enter “save”to finish the binding .

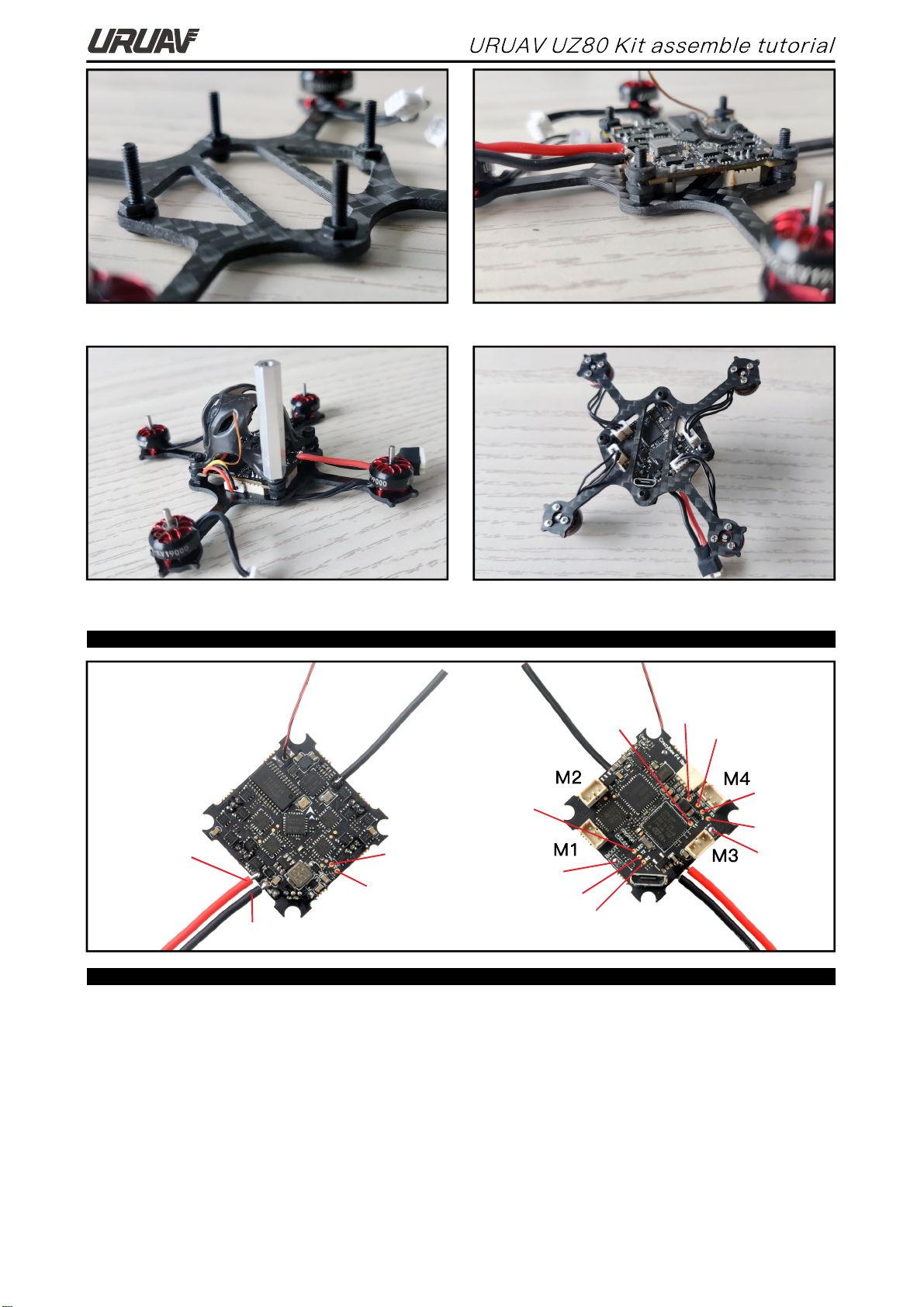

5.Make M2x10 screws through the frame, and then use M2 nylon
nuts to fix
6.Put the rubber damping ball on the M2x10 screw to install the flight
controller
Flight controller connection diagram
7.Insert the wire plug of the camera to the socket of the flight controller
and then use M2 Nylon nut to fixed the canopy
8.Insert the wire plug of the motor to the flight controller
Bind procedure
BUZ-
+5V
BAT+
- .3V 4 35V
GND
LED STRIP_
T 2X
R 2X
BOOT
+5VGND
I 1R
R 1X
BIND
T 1X
