US Blaster USB 4200 User manual

1
USB 4200
OWNER’S MANUAL
Mobile Video System
DVD/VCD/CD/MP3 PLAYER WITH
AM/FM-STEREO DIGITAL PLL TUNING RADIO
ANTI-THEFT FLIP DOWN DETACHABLE PANEL
© Copyright USBLASTER Europe B.V. The Netherlands

2
CONTENTS
Safety Information ...........................................................................…..3
Disc Notes …………………………………………………………………….4
Installation ......................................................................................……..5
Electric Connection ......................................................................…......8
Remote Control..............................................................................……....9
Basic Operation ...........................................................................…......11
Radio operation.............................................................................…........12
Disc operation..................................................................................….....13
TO select the first track/chapter to play..................................................13
TO scan disc…………………………………………………………………..13
TO play disc in random……………………………………………………….13
MP3 Disc Play ....................................................................................…..13
On-Screen Display Function.............................................................…....14
Multi-audio Language Function..........................................................…...15
Title Menu Function (For DVD only) .................................................….15
Multi-subtitle Language Function (For DVD only) .................................15
Multi-angle Function (For DVD only) .....................................................15
Setup .............................................................................................………16
Initial Setup...................................................................................……......16
General Setup................................................................................…….....16
Speaker Setup ...............................................................................….......18
Audio Setup......................................................................................……..18
Preferences Setup ..............................................................................…..19
Defaults Table .....................................................................................…..21
Specifications.................................................................................………22
Trouble Shooting .............................................................................……23
© Copyright USBLASTER Europe B.V. The Netherlands

3
SAFETY INFORMATION
CAUTION:
THIS DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
WARNING:
lTO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT
lTO RAIN OR MOISTURE.
lTO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
© Copyright USBLASTER Europe B.V. The Netherlands
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology must be
authorized by Macro vision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Region Management Information
Region Management Information:
This DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
DVD Player, this DVD Player cannot play
this disc.

4
DISC NOTES
Disc formats supported by this player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this player
lDVD-ROM
lDVD-R/DVD-RAM
lCDV
lCD-G
Handling and Cleaning
lDirt, dust, scratches and warping disc
will cause mis operation.
lDo not place stickers or make
scratches on discs.
lDo not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
lDo not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth
slightly moisture with isopropyl (rubbing) alcohol. Never use solvents such as
benzine, thinner or conventional record cleaners as they may mar the surface of the disc.
Note:
A disc may become somewhat scratched (although not enough to make it unusable) depending on your
handle it and conditions in the usage environment. Note these scratches are not an indication of any
problem with the player Preparing New Discs with Rough Spots A new disc may have rough edges on its
inside and outside edges. If a disc with rough edges is used, the proper setting
will not be performed and the player will not play the disc. Therefore, remove the
rough edges in advance by using a ball point pen or pencil as shown on the right.
To remove the rough edges, press the side of the pen or pencil against the
inside and outside edges of the disc.
© Copyright USBLASTER Europe B.V. The Netherlands

5
INSTALLATION
Notes:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure it is
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the drivers way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater, or where it would be subject to dust,
dirt or excessive vibration.
DIN FRONT/REAR
-MOUNT
This unit can be properly installed either from @Front@(conventional DIN Front-mount)
or @Rear@(DIN Rear-mount installation, utilizing threaded screw holes at the sides of
the unit chassis). For details, refer to the following illustrated installation methods.
30
© Copyright USBLASTER Europe B.V. The Netherlands

6
INSTALLATION
© Copyright USBLASTER Europe B.V. The Netherlands

7
INSTALLATION
HOW TO REMOVE AND INSTALL THE FRONT PANL
1. Press the OPEN button to flip down the front panel (see fig.1), then take
away the front panel (see fig.2) and put it in the protective case (see fig.3)
safe keeping.
2. Install the front panel back into its bracket and then push it back to the
position for playing (see fig.4).
© Copyright USBLASTER Europe B.V. The Netherlands

8
ELECTRIC CONNECTION
WIRING CONNECTION
© Copyright USBLASTER Europe B.V. The Netherlands

9

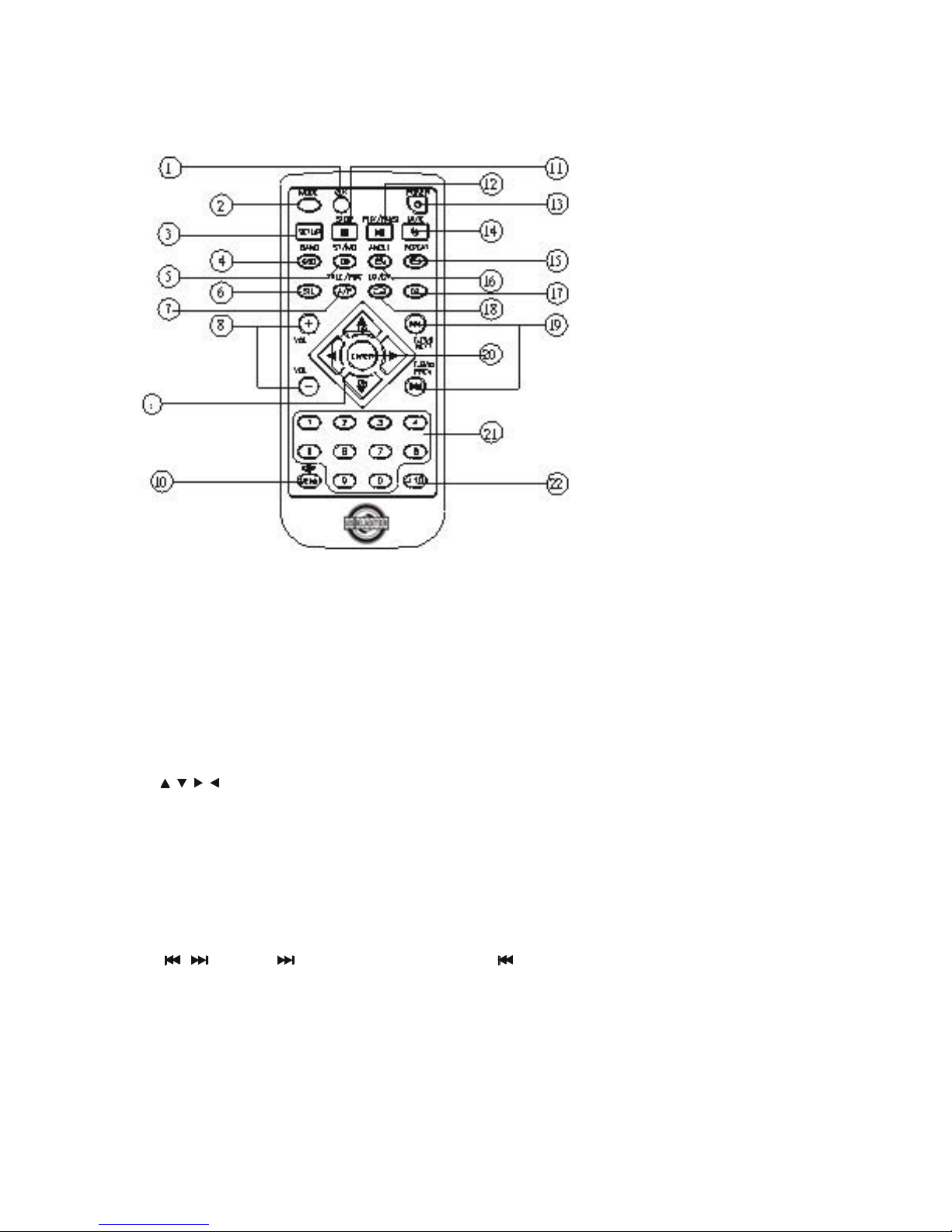

REMOTE CONTROL
1. CLK Press it to change the display to clock display
2. MODE Press it to change between radio or disc model
3. SETUP Display the SETUP menu.
4. OSD(BAND) Display statistical disc information during playback(TO change
the band in radio stations)
5. ST/MO (AUDIO) Press it to select STEREO or MONO (IN disc stations ,press it
to changing of the AUDIO soundtrack on multi-audio soundtrack
DVD disc. Changing of the sound mode of the vcd / cd disc)
6. SEL press it to change audio mode through volume, bass, balance
and fader modes.
6. TITLE/PCB(A/P) Display the TITLE menu that is stored in DVD disc changing
between PBC ON and PBC OFF on the VCD disc.(Auto store and
preset scan function in radio stations .)
8. VOL+/VOL- press it to adjust volume level
9. / / / Cursor buttons in MENU mode.
10.MENU press it to display the root menu of the dvd disc
11. STOP Press it to stop playback.
12. PLAY/PAUSE Press once to pause a play, press again to resume playback.
13. POWER Press it to turn on the unit ,press it again to turn off
14. MUTE press it to mute down sound
15. REPEAT Switch the Repeat mode of DVD/VCD/CD disc.
16. ANGLE Changing of the view angle on multi-angle DVD disc
17. EQ press it to turn to equalizatin function
18. SUBTITLE(LO/DX) Changing of the SUBTITLE language on multi-subtitle
language DVD disc(TO select LO/DX function in radio stations)
19. / Press to skip to the next track & press to skip back one track.
20. ENTER Confirm the Track/Chapter selected with the number key or elected
with the cursor buttons on TV screen.
21. 0 - 9 Numeric buttons.
22.+10 Press it to select 10th digits.
© Copyright USBLASTER Europe B.V. The Netherlands

10
REMOTE CONTROL
Preparing the Remote Control

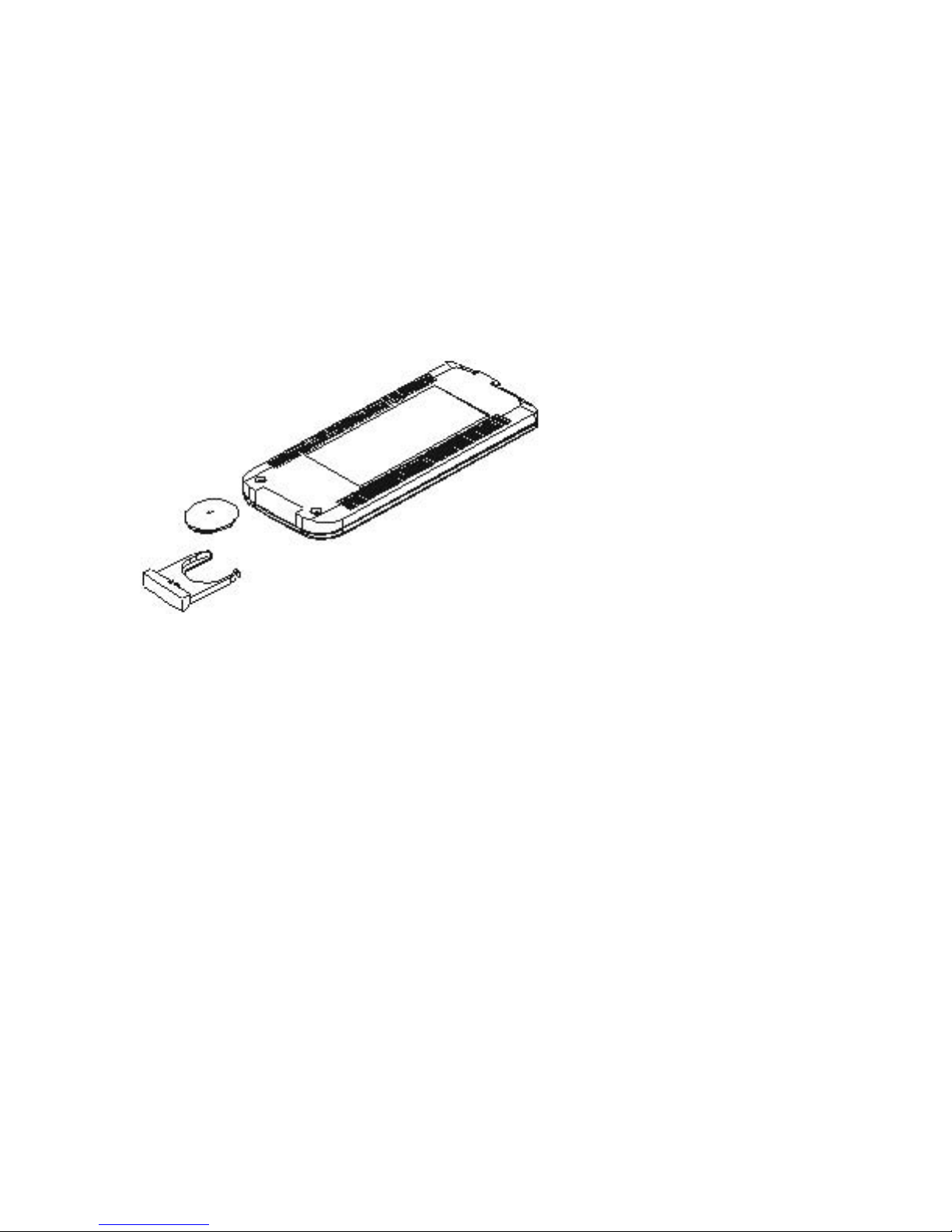

Inserting the Batteries
1.Open the battery compartment cover.
2.Insert the new batteries. Make sure that the positive and negative terminals of the
batteries are oriented indicated.
3.Close the cover
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About +30 degree in each the direction of the front of the IR mark.
To prevent damage to the unit, be sure to follow the connection diagram (page 8).
© Copyright USBLASTER Europe B.V. The Netherlands

11
BASIC OPERATION
ON/OFF [PWR BOTTON](19)
Press it to turn on the unit. Press it again to turn off.
OPEN [ OPEN BOTTON](1)
Press it to flip down the front panel then you can insert the cd disc into the cd compartment
SET THE CLOCK [CLK BUTTON ](17)
Press it to change the display to clock display. Press it again to return to previous
display. In clock display, press and hold for about 2 seconds until the hour display
flashes. Press VOL +/- (5) to adjust hours ,press CLK button to flash minute
than press VOL+/- to adjust minutes.
MUTE [MU BUTTON](16)
Press it to mute down sound. Press it again to release this mode and recover
previous volume level.
SELECT MODE [MOD BUTTON](13)
Press it to change between radio or disc mode.
EQUALIZATION [EQ BUTTON](15)
Press it to turn to equalization function and to select desired audio mode.
There are four kinds of mode as below:
JAZZ CLAS POP ROCK
© Copyright USBLASTER Europe B.V. The Netherlands

12
BASIC OPERATION
RADIO OPERATION
BAND [BAND BUTTON](18)
In RADIO mode, press the BAND button on the front panel or on the remote
controller to select your desired radio band and word which band is selected
will be displayed on LCD. Press it to change the bands as below :
FM MW LW
For 3 Bands (Europe)
FM MW
For 2 Bands (Europe)
FM AM
For 2 Bands (USA)
PRESET STATION (6-11)
A)To memorize the current frequency, press any one of the six preset buttons[1-6]
on the front panel or on the remote controller hold for more than 2 seconds.
B). To recall the preset memory, press one of the preset buttons [1-6].
AS/PS BUTTON (12)
When shortly pressing the APS button on the front panel or the A/P button on the
remote controller, the radio searches for each preset station. When the field
strength level is more than the threshold level of stop level, the radio is holding at
that preset number for few seconds with releasing mute, and then searches again.
In FM band, FM 1,FM 2 and FM 3 is checked one at a time When long pressing the
APS or A/P button (more than 1 second), the radio searches from the current
frequency and checks the signal strength level until 1 cycle search is finished.
And then 6 strongest stations are preset to the corresponding preset number.
The AS operation is implemented in the each band of selected band. When the
AS operation is finished, the radio executes the preset scan.
STEREO/MONO
Press the ST/MO button on the remote controller to select STEREO or MONO sound mode.
TUNE/SEEK UP/DOWN
Press UP or DN button on the remote controller or T-UP/T-DN on the front panel to
manually tune up or down for your desired station. Press them hold for more
than 2 seconds to automatically tune up or down for the stronger station.
LOC(LO/DX)
Press LO/DX button on the remote controller for distance reception when you are
located at weak signal location
Depress it for stronger signal.
© Copyright USBLASTER Europe B.V. The Netherlands

13
BASIC OPERATION
DISC OPERATION
Most of the disc operations are controlled by the remote controller.
Ejecting a Disc [ button]
Press (EJECT) button on the back of the front panel to eject the disc.
Stopping Play
-Brief press the (Stop) button to stop the unit playback, when press the button
,it can continuous normal playback.
Rapid Forward/Rapid Reverse
When long Pressing the / or T-UP/T-DN button (more than 2 seconds )
during play. The speed of rapid forward/reverse changes according to the disc as follow.
Skipping Track [ / ]
Shortly
press the / or T-UP/T-DN button(5) during playback to skip to next
track or back one track.
Note: For some VCD 2.0 discs (PBC-playback control), and buttons may be unavailable.
Pause
(still picture) (14)
Pressing during playback will stop play temporary. Return to normal playback,
press once again.
Repeat [2/RPT](7)
Press the REPEAT button to select repeat mode as follow.
CHAPTER REPEA T ON TITLE REPEA T ON
REPEAT OFF
DVD:
Press the REPEAT button to select repeat mode as follow.
VCD/CD:
Press the REPEAT button to select repeat mode as follow.
REP-ONE REP- ALL
1.Continuously repeat at the current chapter/track, when selected REP-ONE mode.
2.Select REP-ALL mode to continuously repeat all chapter/track on the current disc.
3.REPEAT feature does not support VCD2.0 (with PBC ON).
Remote Sensor (IR)
Point the remote handset to the remote sensor. Receive the signal from remote handset.
© Copyright USBLASTER Europe B.V. The Netherlands

14
BASIC OPERATION
On-Screen Display Function
Press the OSD button during playback to display the contents of the current disc on the screen.
Example:
DVD: (1) Press OSD for the first time:
TITLE 01/03 CHAPTER 002/025 P: 00:00:25
TITLE ELAPSED
Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently
being played will be shown on the screen, along with the elapsed time.
(2) Press OSD for the second time:
TITLE 01/03 CHAPTER 002/025 P: 00:00:25
TITLE REMAIN
(3) Press OSD for the third time:
TITLE 01/03 CHAPTER 002/025 P: 00:00:25
CHAPTER ELAPSED
(4) Press OSD for the fourth time:
TITLE 01/03 CHAPTER 002/025 P: 00:00:25
CHAPTER REMAIN
(5) Press OSD for the fifth time: The message on the screen will be cleared.
Video CD/SVCD/CD:
(1) Press OSD for the first time:
SINGLE ELAPSED
T:01/18 P: 00:00:25 LR DISC
(2) Press OSD for the second time:
(3) Press OSD for the third time:
(4) Press OSD for the fourth time:
(5) Press OSD for the fifth time:
The message on the screen will be cleared for SVCD and VCD.
Note: For CD and Mp3, the message will always display on the screen.
Mp3:
Each time OSD is pressed, the message displayed on screen changes as follows:
SINGLE ELAPSED SIGGLE REMAIN
© Copyright USBLASTER Europe B.V. The Netherlands

15
BASIC OPERATION
Multi-audio Language Function
DVD:
Press AUDIO during playback.
Each time the button is pressed, number of the audio soundtrack language changes on sequential order.
Notes:
-The language number is different according to the disc.
-Some disc only contain one language soundtrack.
-When no different language soundtrack are recorded will be display at screen left top corner.
VCD:
Press AUDIO during playback.
LEFT VOCAL RIGHT VOCAL MONO LEFT
STEREO MONO RIGHT
It is possible to switch the sound between monaural and stereo sound.
CD:
Press AUDIO during playback.
MONO LEFT MONO RIGHT STEREO
It is possible to switch the sound between monaural and stereo sound
Multi-subtitle Language Function
(For DVD only)
Press SUBTITLE during playback.
Each time the button is pressed, number of the subtitle language changes in sequential order.
Notes:
-The language number is different according to the disc.
-Some discs only contain one subtitle language.
-When no different subtitle language are recorded, will be displayed at screen left top corner.
Multi-angle Function
(For DVD only)
Press ANGLE during playback.
Each time the button is pressed, number of the angle changes in sequential order.
Notes:
-The angle number is different according to the disc.
-The function only work for disc having scenes recorded at different angles.
-When no different angle are recorded, will be displayed at screen left top corner.
TITLE Menu Function
DVD:
If the DVD has multiple titles recorded on the disc.
It can select preferred title from the title menu to start playback.
1.Press TITLE during playback. The title menu is display.
2.Press the cursor button shown in TV screen, select preferred title by the cursor button and confirmed by
ENTER key.
VCD:
Press MENU button while the disc is playing, you can switch between @PBC on@ and @PBC off mode
© Copyright USBLASTER Europe B.V. The Netherlands

16
SETUP
INITIAL SETUP
SETUP MENU --- MAIN PAGE---
GENERAL SETUP
SPEAKER SEUP
PREFERENCES
AUDIO SETUP
EXIT SETUP
1.Press SETUP in the stop mode.(Press the stop button twice to ensure the player under STOP mode.)
2.The initial SETUP menu is displayed.
3.Select the preferred item by using the / buttons.
4.Press ENTER buttons.
a. GENERAL SETUP
This setup page includes all the item of TV display & audio output feature.
The detail please refer to GENERAL SETUP MENU.
b. SPEAKER SETUP
This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Please refer
to SPEAKER SETUP MENU.
c. AUDIO SETUP
This setup page includes all the items for AUDIO. Please refer to AUDIOSETUPMENU.
d. PREFERENCE SETUP
This setup page includes all the configuration of support feature. The detail please refer to
PREFERENCES SETUP MENU.
GENERAL SETUP
--- GENERAL PAGE ---
Video
Material
4:3
ANGLEMARK
MAIN PAGE
TV DISPLAY
SCR SAVER
PIC MODE
OSD LANG
CAPTIONS
Normal Pan Scan
TV Screen
NORMAL/PS
NORMAL/LB
WIDE
Letter-box
Wide(16:9)
TV display setup
This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set. Normal/PS (For
4:3 TV) Played back in the PAN & SCAN style.(If connected to wide-screen TV, the left and right edges are
cut off.)Normal/LB (For 4:3 TV) Played back in letterbox style.(If connected to wide-screen TV, black bands
appear at top and bottom of the screen.)Wide (For 16:9 TV) Select when a wide-screen TV set is connected.
© Copyright USBLASTER Europe B.V. The Netherlands

17
SETUP
--- GENERAL PAGE --- --- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ENGLISH
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
AUTO
HI-RES
N-FLICKER
PIC mode setup
Select AUTO, the player PIC mode will depend on DVD disc.
Select HI-RES format for best image resolution.
Select N-FLICKER format on format on image or picture under noise affect.
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
ANGLE MARK display setup
If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is
set to OFF, the mark will not appear.
OSD LANG type setup
Select the preferred OSD language by using the / buttons.
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
CAPTIONS setup
Activate the CAPTIONS feature by selecting ON. And release this feature by selecting OFF.
© Copyright USBLASTER Europe B.V. The Netherlands

18
SETUP AUDIOSETUP
--- GENERAL PAGE --- --- AUDIO SETUP ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
MAIN PAGE
OP MODE
DYNAMIC
LPCM OUTPUT
ANALOG
SPDIF/RAW
SPDIF/PCM
SCR SAVER setup
Select the SCR SAVER output ON/OFF.
SPEAKER SETUP
--- SPEAKER SETUP PAGE ---
--- SPEAKER PAGE ---
MAIN PAGE
LT/RT
STEREO
This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Select the
preferred SPEAKER connection by using the cursor buttons. Select the LT/RT to activate the Dolby
surround compatible output. Select the STEREO to activate simple stereo mode.
AUDIO OUT
This is to activate the audio output from ANALOG mode to SPDIF/RAW mode to SPDIF/PCM mode.
--- AUDIO SETUP ---
MAIN PAGE
OP MODE
DYNAMIC
LPCM OUTPUT
LINE OUT
RF REMOD
OP MODE
There are two operating modes for the Dolby Digital decoder: LINE OUT and RF REMOD
© Copyright USBLASTER Europe B.V. The Netherlands

19
SETUP
--- AUDIO SETUP---
MAIN PAGE
OP MODE
DYNAMIC
LPCM OUTPUT
LPCM96K
LPCM OUTPUT
Select the LPCM OUTPUT between LPCM 48K and LPCM 96K.
--- AUDIO SETUP ---
MAIN PAGE
OP MODE
DYNAMIC
LPCM OUTPUT
FULL
6/8
4/8
OFF
2/8
Dynamic Range Control
Select DRC and adjust the dynamic range of a Dolby Digital encoded program. There are 8 steps between
full compression and off compression.
PREFERENCES SETUP
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
MULTI
NTSC
PAL
DEFAULTS
SMART NAV
TV type setup
This player can play discs recorded in either PAL or NTSC format. Select NTSC format, when you
connected to NTSC TV. Select PAL format, when you connected to PAL TV.
Select AUTO format, the player TV output format will according to the DVD disc format.
--- PREFERENCES PAGE ---
SMART NAV
AUDIO language setup
Select the preferred AUDIO soundtrack by using the cursor buttons.
© Copyright USBLASTER Europe B.V. The Netherlands

20
--- PREFERENCES PAGE --- --- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
ENGLISH
FRENCH
SPANISH
DEFAULTS
CHINESE
JAPANESE
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
1G
2
3PG
4PG13
5
6PG-R
NO PARENTAL
7NC-17
8 ADULTSMART NAV SMART NAV
SUBTITLE language setup Select the preferred SUBTITLE language by using the cursor buttons.
--- PREFERENCES PAGE---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
ENGLISH
FRENCH
SPANISH
DEFAULTS CHINESE
JAPANESE
SMART NAV
DISC MENU language setup Select the preferred DISC MENU language by using the cursor buttons.
PARENTAL
Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button.
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
CHANGE
SMART NAV
PASSWORD
Select the change and press ENTER button. Type the old password (The initial factory code is 3308) and
key in 4 characters password now you want to use, and retype again to confirm key in correctly.
© Copyright USBLASTER Europe B.V. The Netherlands
