US Robotics USR8700 User manual

Serial ATA 4-Drive NAS
User Guide
R46.1221.00
rev 0.3 06/06

U.S. Robotics Corporation
935 National Parkway
Schaumburg, Illinois
60173-5157
USA
No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as a
translation, transformation, or adaptation) without written permission from U.S. Robotics Corporation. U.S. Robotics Corporation
reserves the right to revise this documentation and to make changes in the products and/or content of this document from time to
time without obligation to provide notification of such revision or change. U.S. Robotics Corporation provides this documentation
without warranty of any kind, either implied or expressed, including, but not limited to, implied warranties of merchantability and fit-
ness for a particular purpose. If there is any software on removable media described in this documentation, it is furnished under a
license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media
in a directory named LICENSE. If you are unable to locate a copy, please contact USRobotics and a copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the soft-
ware described herein are provided to you subject to the following:
All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered
as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in
FAR 2.101(a) and as such is provided with only such rights as are provided in USRobotics standard commercial license for the
Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14
(June 1987) whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed pro-
gram or documentation contained in, or delivered to you in conjunction with, this Administrator Guide.
Copyright © 2006 U.S. Robotics Corporation. All rights reserved. U.S. Robotics and the USRobotics logo are registered trade-
marks of U.S. Robotics Corporation. Other product names are for identification purposes only and may be trademarks of their
respective companies. Product specifications subject to change without notice.

iii
Contents
Introducing Your Storage System
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Physical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Key Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hardware Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Software Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
USB Printer Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Getting Started
Installing Your Storage System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step One: Determine Your Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Step Two: Set up Your storage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Step Three: Install the Storage System Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Step Four: Initialize the Hard Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Step Five: Configure your Storage System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Accessing the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Accessing the Web User Interface Using a Web browser. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Accessing the Web User Interface Using the Storage System Console . . . . . . . . . . . . . . . . 25
Logging In to the Web User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Navigating the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adding Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Creating Shared Folders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Accessing Shared Folders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Windows Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Linux Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Mac Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Managing Your Storage System
Managing Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adding Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Modifying Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Removing Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Working with Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Managing Shared Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adding Shared Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Changing User Access to Shared Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Deleting a Shared Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Managing Backups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Changing the Recovery CD Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Deleting a Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Deleting a Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Setting Up E-mail Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Upgrading the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Disconnecting USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Changing the System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing the Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Reconfiguring Your Storage System Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Serial ATA 4-Drive NAS
User Guide
iv
Logging Out of the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Shutting Down the Storage System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Shutdown by Using the Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Shutdown through the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Accessing the Storage System through FTP and Telnet
FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Protecting Local Disks
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Installing the Microsoft iSCSI Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Installing DiskSafe Express. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Starting DiskSafe Express. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Activating Your license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Protecting Your Disks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Manually Backing Up Your Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Stopping a Backup or Recovery in Progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Changing the Backup Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Changing the Recovery CD Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Recovering Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Recovering Files from a Backup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Recovering a Non-system Disk or Partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Recovering a System Disk or Partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Removing Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Disk Configurations
Adding Hard Disks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Adding Hard Disks to a Linear or Normal RAID Configuration . . . . . . . . . . . . . . . . . . . . . 108
Adding Hard Disks to a Degraded RAID Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Removing Hard Disks or Responding to Disk Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Responding to RAID Degradation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Responding to RAID Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Swapping Hard Disks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Transferring Hard Disks to a New Storage System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Troubleshooting
Resetting the Web User Interface Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Viewing the System Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Disconnecting from Shared Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Windows Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Linux Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Mac Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Troubleshooting the Storage System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Troubleshooting DiskSafe Express. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Creating a Diagnostic File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Using DiskSafe Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Using the Recovery CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Serial ATA 4-Drive NAS
User Guide
v
Support Information
Regulatory Information

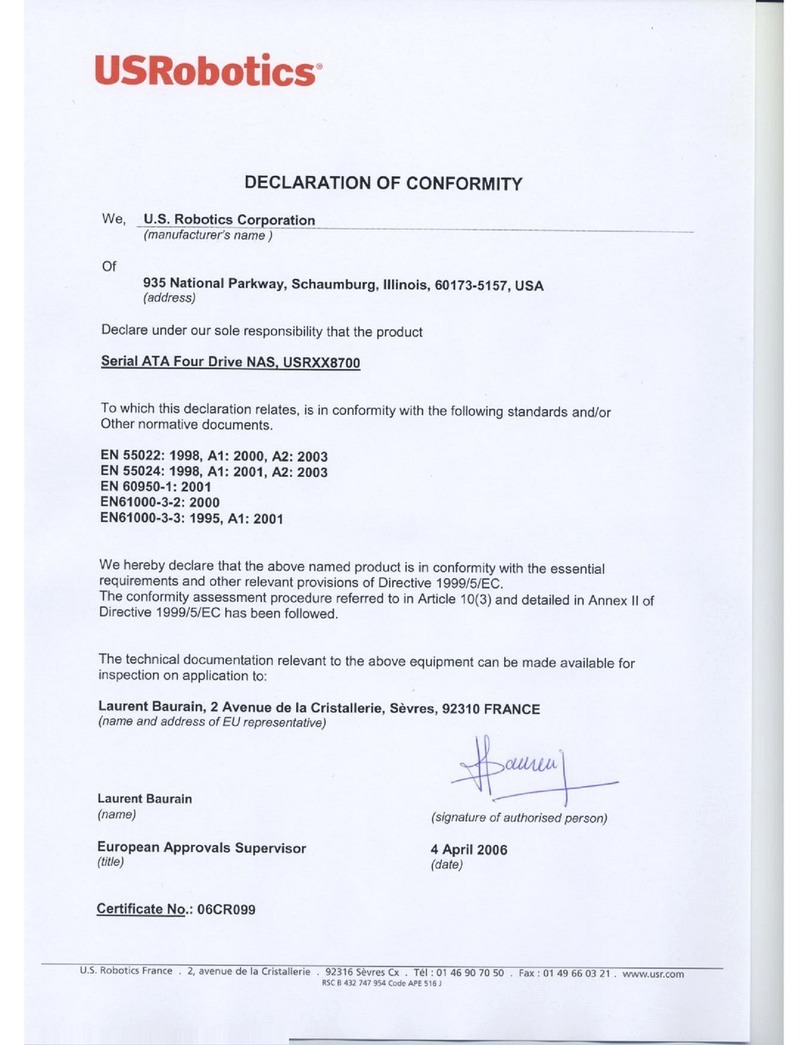

Manufacturer’s Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Radio and Television Interference: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
UL Listing/CUL Listing:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
For Canadian Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
CE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
U.S. Robotics Corporation Two (2) Year Limited Warranty
1.0 GENERAL TERMS: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
2.0 CUSTOMER OBLIGATIONS:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
3.0 OBTAINING WARRANTY SERVICE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
4.0 WARRANTY REPLACEMENT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
5.0 LIMITATIONS:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
6.0 DISCLAIMER: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Serial ATA 4-Drive NAS
User Guide
vi

Serial ATA 4-Drive NAS
User Guide
Introducing Your Storage System - 7
Introducing Your Storage System
The Serial ATA 4-Drive NAS is an intelligent network storage solution for small and medium-sized offices
and home network environments. It provides up to 2.0 TB of hard disk space for both shared files and
backups of your computer hard disks, offering an ideal way to distribute and protect important data.
To make it easy to back up your computer hard disks, this solution includes DiskSafe Express, a software
application that provides reliable data protection and rapid data recovery in the event of a system crash or
disk failure. With DiskSafe Express, you can recover your local disks or partitions without having to reinstall
or reconfigure the operating system or applications, dramatically shortening recovery time.
Package Contents
Physical Features
Front
The Serial ATA 4-Drive NAS system has the following status LEDs:
• USR8700 Serial ATA 4-Drive
NAS
• Installation CD-ROM
• Power Cord • Quick Installation Guide
• Ethernet Cable • DiskSafe Express recovery CD
Symbol Name State Condition
Power Off Not receiving power
Solid Receiving power: normal operation
Flashing Booting or shutting down by power button
USB 2.0 Off USB device not available
On USB device available
LAN
(10/100/1000 Mbps)
Off Not connected to network
Solid Connected to network
Flashing Transmitting or receiving network data
1432

Serial ATA 4-Drive NAS
User Guide
Introducing Your Storage System - 8
Back
System Requirements
• Microsoft Windows XP; Microsoft Windows Server 2003; or Microsoft Windows 2000 Professional,
Server, or Advanced Server with Service Pack 4
• An HTML 4.01-compliant Web Browser (such as Internet Explorer 5.5 or later or Netscape 8.0 or later)
with JavaScript enabled
Key Features and Benefits
•Flexible storage capacity—The storage system supports up to four 3.5" SATA-I hard disks, with a
capacity of 80–500 GB each. You can start with just one and add more as your needs grow.
•Built-in data protection—In addition to a linear disk configuration in which all the disks are treated as
independent entities, the storage system supports several different types of RAIDs (redundant arrays
of independent disks). This means that you can take advantage of the build-in data protection and data
duplication offered by advanced RAID levels. If your storage system has multiple hard disks and one
fails, you won’t lose important data. For more information, refer to "Disk Configurations," beginning on
page 107.
Disk
(1–4)
Off Drive not available
On Drive available
Flashing Drive activity
Symbol Name State Condition
Ethernet Port
USB Ports
Power Connector
Power Switch

Serial ATA 4-Drive NAS
User Guide
Introducing Your Storage System - 9
•Simple administration—You can run the browser-based management interface from any computer in
your network, and its informative wizards and configuration pages will help you accomplish your tasks
quickly and easily.
•Status at a glance—The home page of the management interface lets you quickly determine how
much space is being used and who’s currently connected.
•Support for multiple platforms—Whether the computers in your network run Windows, Mac OS X or
other Mac operating systems, or Linux, you can set up file sharing for each of them.
•Security—Only authorized users can access the shared folders on your storage system. You can also
control whether the user can only view the information in the shared folders or also add, modify, or
delete files there.
•Fast performance—With its gigabit Ethernet support, the storage system provides fast access to the
data you need, when you need it.
•Printer support—You can attach up to two pass-through printers to the storage system’s USB sock-
ets, and all users can access them.
Hardware Specification
Processor Intel IOP80219 400 MHz
Memory DDR 256 MB
Flash 32 MB NOR Flash
Hard Disks Up to four 3.5" SATA-I hard disks (80–500 GB each)
Note: The total amount of storage space cannot exceed 2 TB.
Maximum Capacity 2 TB
Network Intel gigabit LAN port interface
SATA Controller Intel SATA Controller
USB Two Type A USB 2.0 sockets
EMI Safety CE/FCC Class B
System Power 200 W PSU
Operating Temperature 0º C to 85º C (32º F to 185º F)
Operating Humidity 10–90% relative humidity
Storage Temperature -20º C to 70º C (-4º F to 158º F)
Storage Humidity 5–90% non-condensing humidity

Serial ATA 4-Drive NAS
User Guide
Introducing Your Storage System - 10
Software Specification
USB Printer Limitations
The storage system is designed to work with up to two USB printers. However, the following are not
supported:
• Multi-function printers (such as printers that perform copying, scanning, or faxing in addition to printing)
• Windows Printing System (WPS)
• Non-PostScript printing (Mac)
• Duplex-only (two-way) communication
Note: If the temperature of the entire unit reaches or exceeds 85º C (185º F) or if the temperature if any
of the disks reaches or exceeds 55º C (131º F), the storage system shuts down automatically.
If the temperature of any of the disks reaches or exceeds 42º C (107.6º F), the fan will run at full speed.
If the temperature of any of the disks reaches or falls below 37º C (98.6º F), the fan will slow down.
Operating System Linux Kernel 2.6
Network Service DHCP client/server (default IP address is 192.168.0.101)
Supported Web Browsers • Microsoft Internet Explorer 6.0
• Firefox 1.06 or newer
RAID • Standard RAID 0
•RAID1
•RAID5
•RAID5+spare
•RAID10
File-Sharing Protocols • CIFS/SMB
•NFS
Access Control • Users have read-only or read/write access to shared folders
• Users access shared folders using passwords
Note: Refer to your printer’s documentation for information about disabling duplex communication.
With some duplex printers, printing might complete successfully, although errors might
occur. In addition, some features (such as the printer reporting low ink levels) might not
function since two-way communication is not supported.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 11
Getting Started
Getting started with your storage system involves the following general steps:
1. Install your storage system.
This process involves installing both the hardware and software components of your storage system
and specifying the initial configuration.
For step-by-step instructions for this process, see “Installing Your Storage System”.
2. After installation is complete and the storage system restarts, start the Web User Interface and log in.
For more information about this step, see “Accessing the Web User Interface” on page 24.
3. Add users.
If you want to control access to the shared folders, or if the users in your network use Linux or Macs
that don’t use OS X, you must create a list of users.
For more information about this step, see “Adding Users” on page 30.
4. Create shared folders.
By default, the storage system includes a shared folder named public, which all Windows and Mac OS
X users can access. However, you might want to create other shared folders as well. For example, in
an office environment, you might want to create a shared folder for company policies that everyone
can view, and separate folders for confidential business documents that only selected individuals can
view or change. In a home environment, you might want to set up separate folders for different types of
files, like photos, videos, or music.
For more information about this step, see “Creating Shared Folders” on page 33.
5. Access the shared folders.
For information about this step, see “Accessing Shared Folders” on page 37.
6. Protect your computer hard disks.
This process involves installing DiskSafe Express on each computer that you want to protect and
specifying which hard disks or partitions to back up and how often backups should occur.
For more information about this step, see "Protecting Local Disks," beginning on page 77.
Installing Your Storage System
1. Determine your Configuration.
Before you set up your system, you need to decide which configuration you will use. For configuration

Serial ATA 4-Drive NAS
User Guide
Getting Started - 12
considerations, see “Step One: Determine Your Configuration” on page 12.
2. Set up your storage system.
This involves installing the hard disks, attaching any optional USB devices, attaching the storage sys-
tem to your network, and powering up the system.
For information about this step, see “Step Two: Set up Your storage system” on page 13.
3. Install the Storage System Console.
You will need the Storage System Console to initialize your hard disks in step 4.
For information about this step, see “Step Three: Install the Storage System Console” on page 16
4. Initialize the Hard Disks.
This step loads firmware from the storage unit’s memory to each disk. “Step Four: Initialize the Hard
Disks” on page 17.
5. Configure your storage system.
Before you can use your storage system, you must perform some initial configuration tasks, like setting
the date and time, and specifying how much space to use for file sharing and how much to use for
backups. The System Setup wizard guides you through this process.
For information about this step, see “Step Five: Configure your Storage System” on page 20.
If you bought your Serial ATA 4-Drive NAS with the disks already installed and configured, and you do not
want to change your disk configuration, skip step one and proceed with “Attaching USB Devices” in step
two on page 15.
Step One: Determine Your Configuration
Before you start the physical installation of your storage system, decide which configuration is best suited
to your needs. The configuration that you choose may affect the order in which you load the disks into your
storage system, and you will need to specify your configuration choice when you reach “Step Five:
Configure your Storage System”.
Each supported configuration has a different balance of desirable characteristics, as shown in the table
below. The configurations available to you depend on the number of disks installed in your storage system.
Use this table to select your configuration based on the number of disks you intend to use and the
characteristics that are of the highest priority to you.
Number
of Disks Configuration Methods Used
Configuration Characteristics
Available
Capacity*
Data
Redundancy Performance
1Linear Independent disks 500 GB No Good

Serial ATA 4-Drive NAS
User Guide
Getting Started - 13
For more information about configurations, see the “Disk Configurations” on page 107.
Step Two: Set up Your storage system
Setting up your storage system consists of the following steps:
Installing the Hard Disks
Attaching USB Devices
Connecting the Storage System to the Network
Powering Up the Storage System
Installing the Hard Disks
If you have fewer than four hard disks in your storage system, you might want to add more at this time. You
can add disks later, but changing your disk configuration once the disks contain data might cause data
loss.
2Linear Independent disks 1.0 TB No Good
RAID 0 Striping 1.0 TB No High
RAID 1 Mirroring 500 GB Yes Good
3Linear Independent disks 1.5 TB No Good
RAID 0 Striping 1.5 TB No High
RAID 5 Striping with parity 1.0 TB Yes Good
4Linear Independent disks 2.0 TB No Good
RAID 0 Striping 2.0 TB No High
RAID 5 Striping with parity 1.5 TB Yes Good
RAID 5
with Spare
Striping with parity; spare drive
automatically rebuilds a failed
drive
1.0 TB Yes Good
RAID 10 Striping, Mirroring 1.0 TB Yes Good
* Available capacity based on 500-GB drives
Note: The storage system must have at least one SATA hard disk with a capacity of at least 80
GB.
USRobotics strongly recommends that you install all the hard disks that you want to use in
the storage system at this time in order to avoid data loss.
USRobotics also recommends that you use 4 disks of the same size for optimum perfor-
mance.
Number
of Disks Configuration Methods Used
Configuration Characteristics
Available
Capacity*
Data
Redundancy Performance

Serial ATA 4-Drive NAS
User Guide
Getting Started - 14
To install the hard disks, you need a Phillips head screwdriver.
1. Remove the top hard disk tray from the storage system:
2. Near the front of the tray is a spacer containing four screws. Squeeze the tabs together to remove the
spacer from the tray.
3. With the flat edge of the spacer up and the screws facing a flat surface (such as a table or desk top),
flex the sides of the spacer apart from each other to release the screws.
4. Make sure that the hard disk is a SATA disk. It should have a SATA connector similar to the following:
5. Slide the new hard disk into the tray (connector end down and toward the back of the tray), and fasten

Serial ATA 4-Drive NAS
User Guide
Getting Started - 15
the screws on the sides of the tray:
6. Slide the hard disk and tray back into the storage system until it snaps into place.
If you have fewer than four disks, load the bottom trays first and leave the top tray or trays empty.
If you have four disks that are not the same size and you intend to use RAID 10, USRobotics recom-
mends that you load the disks in ascending order of disk capacity, starting with the smallest disk in the
bottom slot (slot 1),
For more information about disk configurations, see the “Disk Configurations” on page 107.
7. Repeat steps 1 through 6 for each disk that you will use in your storage system.
Attaching USB Devices
If you have USB storage devices or printers, you can attach them to the USB ports on the back of the
storage system.
Connecting the Storage System to the Network
To connect your storage system to your network, insert one end of the supplied RJ-45 Ethernet cable into
the Ethernet port on the back of the storage system. Then insert the other end into a network port.
Notes:
• If you install a hard disk that was previously part of a RAID, it will rebuild automatically.
• If you later replace all of the disks with higher-capacity disks, you will have to format
those disks.
Note: USB hubs are not supported. In addition, any USB disk must be formatted before you use
it with the storage system, and only the first partition of a FAT or FAT32 file system will be
recognized. Do not attach the storage system directly to a USB port on a computer.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 16
Powering Up the Storage System
To power up the storage system, insert the power cable into the power connector on the back of the
storage system and plug the other end into a power outlet.
Once you have connected the power cable, make sure that the power switch on the back of the storage
system is set to the on position. Then press and release the power button on the front of the storage
system.
The power and Disk LEDs flash while the storage system is booting. Once the system has finished
booting, the Disk LEDs stop flashing.
If the hard disk installation was successful, the Disk LED is blue. If there is a problem, the Disk LED is off.
If this occurs, shut down the system, remove and inspect the hard disk for any installation problem, and
reinstall it. To shut down the system, press and hold the power button for approximately five seconds until
the Disk LEDs start flashing. Then release the power button; the storage system will shut down after a
short period.
Step Three: Install the Storage System Console
Install the Storage System Console on a computer on the same network as the Serial ATA 4-Drive NAS:
1. Insert the USRobotics Installation CD-ROM into your CD-ROM drive.
2. If prompted, select your preferred language, then review the License Agreement and click Yes.
The installation CD prompts you to make a choice:
3. Select Console Installation.
Note: USRobotics recommends that you plug the storage system into a surge protector or
uninterruptible power supply to prevent damage to the system from power surges.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 17
The installation wizard appears.
4. Follow the on-screen prompts to install the Storage System Console. When installation is complete,
the following window appears:
5. Click Finish.
Step Four: Initialize the Hard Disks
To initialize the hard disks, follow these steps:
1. Start the Storage System Console: click Start > Programs > Storage System Console.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 18
The Storage System Console appears:
2. In the left pane, click the name of the storage system. Then click Log On Storage System Manager.
If you see the Login page,
your storage system was initialized and configured before you bought it. You are finished with the
installation procedure and can begin using your Serial ATA 4-Drive NAS system, or you can reconfig-
ure your disks if you choose to do so. Skip the remaining installation steps and proceed with “Access-
ing the Web User Interface” on page 24.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 19
If the System Initialization page appears, you need to initialize your disks:
If not all the hard disks have been detected, or if you want to add, remove, or reorder the disks at this
time, insert or remove the disks one at a time and click Scan after each action. If you’re adding disks,
be sure to wait until the Disk LED is blue before you click Scan.
3. Click Browse and locate the USRobotics Installation CD-ROM.
4. Open Firmware\fs-usr-1.0-b106.pkg.
5. On the System Initialization page, click Upload.
The firmware on the storage system’s internal flash memory is uploaded to the hard disks.
Note: USRobotics strongly recommends that you install all the hard disks that you want to
use in the storage system at this time, since changing the number of hard disks later
can require disk reconfiguration and possible data loss.

Serial ATA 4-Drive NAS
User Guide
Getting Started - 20
When this process is complete, the storage system restarts and displays the welcome page:
Step Five: Configure your Storage System
Once initial setup has been completed, follow these steps to run the System Setup wizard and perform the
necessary initial configuration:
1. On the welcome page, click Next.
The End User Software License Agreement page appears.
2. If you agree to the terms, select I accept the license agreement and click Next.
The Host Name page appears.
3. Click Next to accept the default storage system name (USR8700)
OR
Enter the name that you prefer and then click Next.
The storage system name can be up to 15 characters long and can include letters, numbers, and
hyphens.
When you click Next, the Date/Time page appears:
Specify the current date, time, and time zone, and then click Next.
